Atlas ALI Certified APEX 8 4 Post Lift + RJ35 Sliding Jacks Combo
$9,199.00
The Atlas RJ35 is an ALI Certified four-post lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.
In Stock
Description
Features and Benefits:
- Combo package includes ALI Certified APEX 8 lift & two Non-Certified RJ35 Bridge Jacks

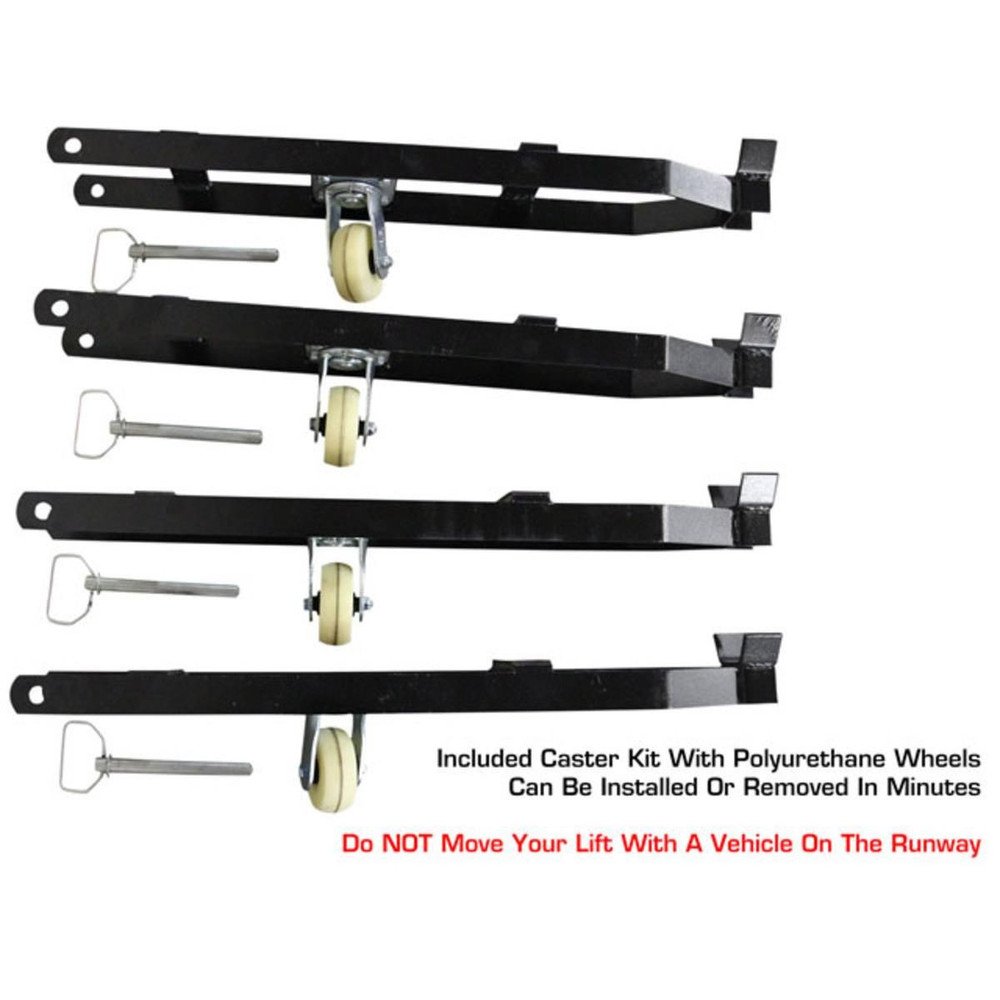

- Caster Kit With Polyurethane Wheels Included
- Steel Approach Ramps Included
- Steel Jack Tray Included
- Drip Trays Included

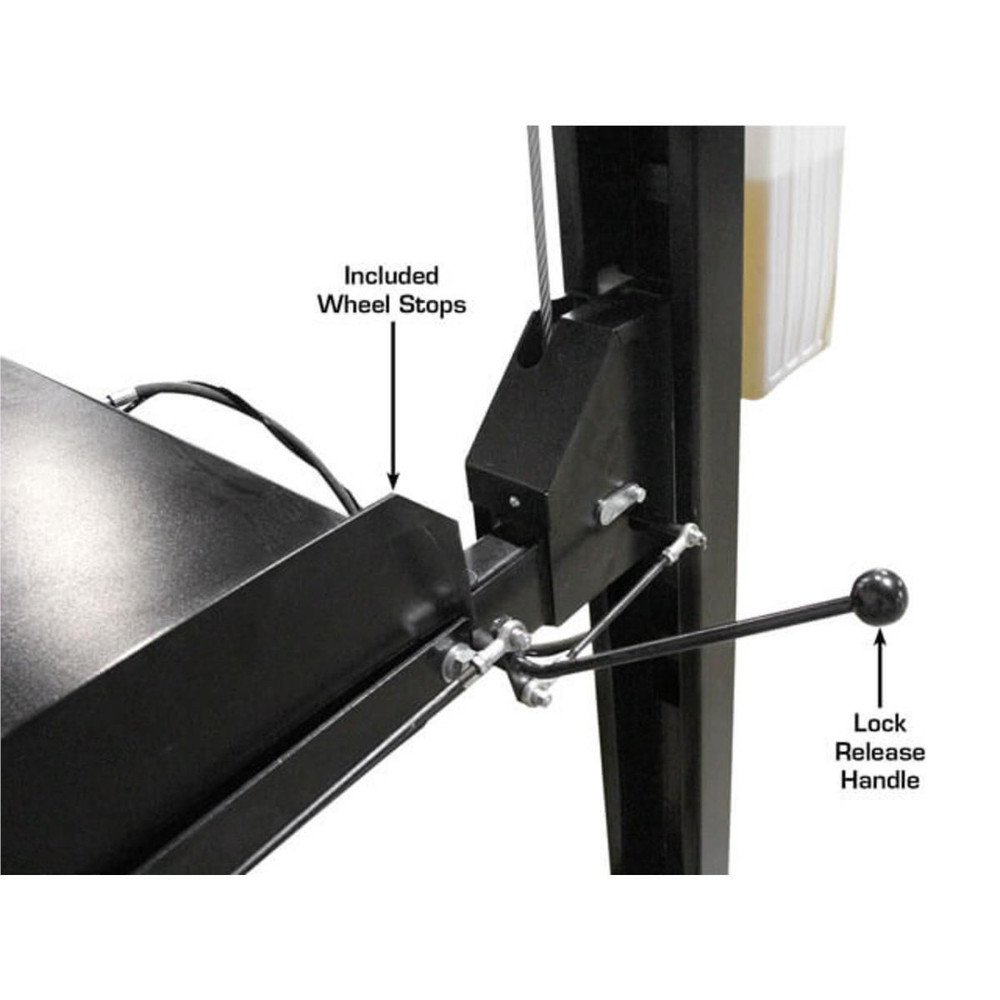

- Wheel Stops Included
- Wheel Chocks Included
- Truck Adapter set for Each Jack Included
- This part number FREIGHT PREPAID

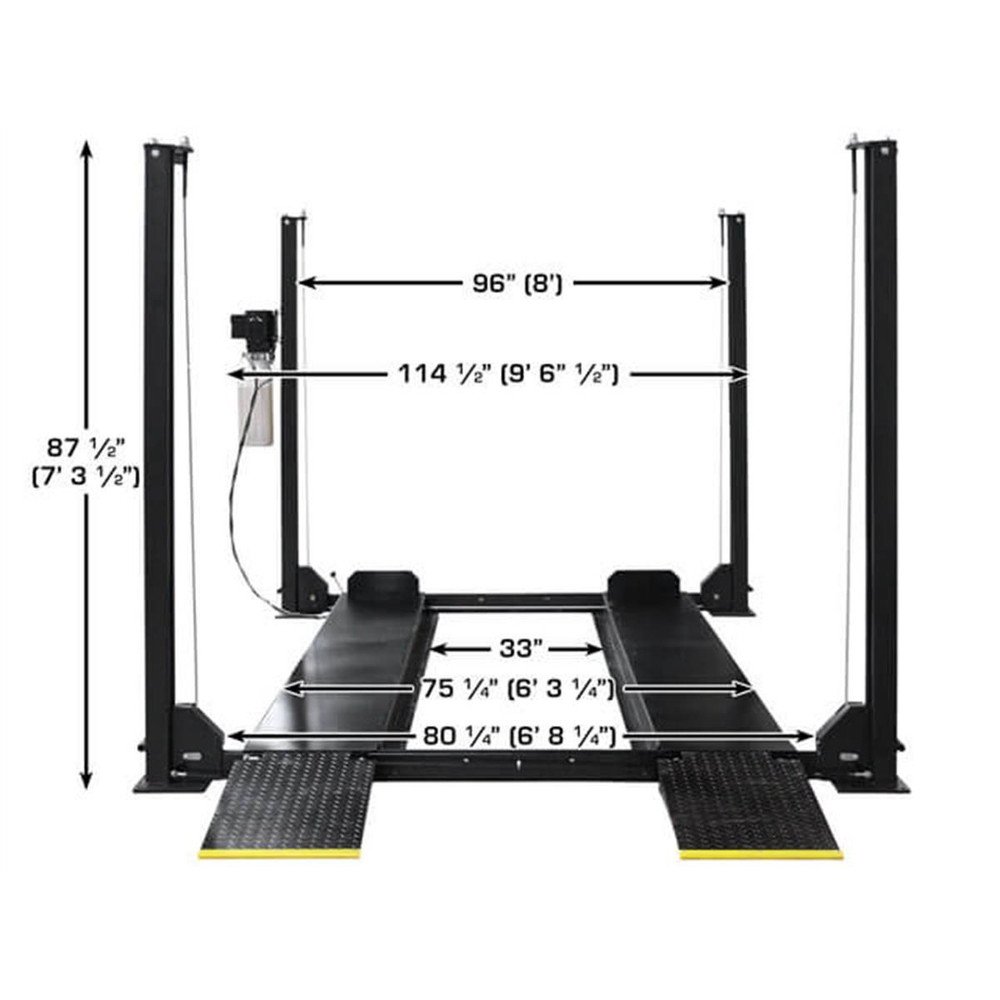

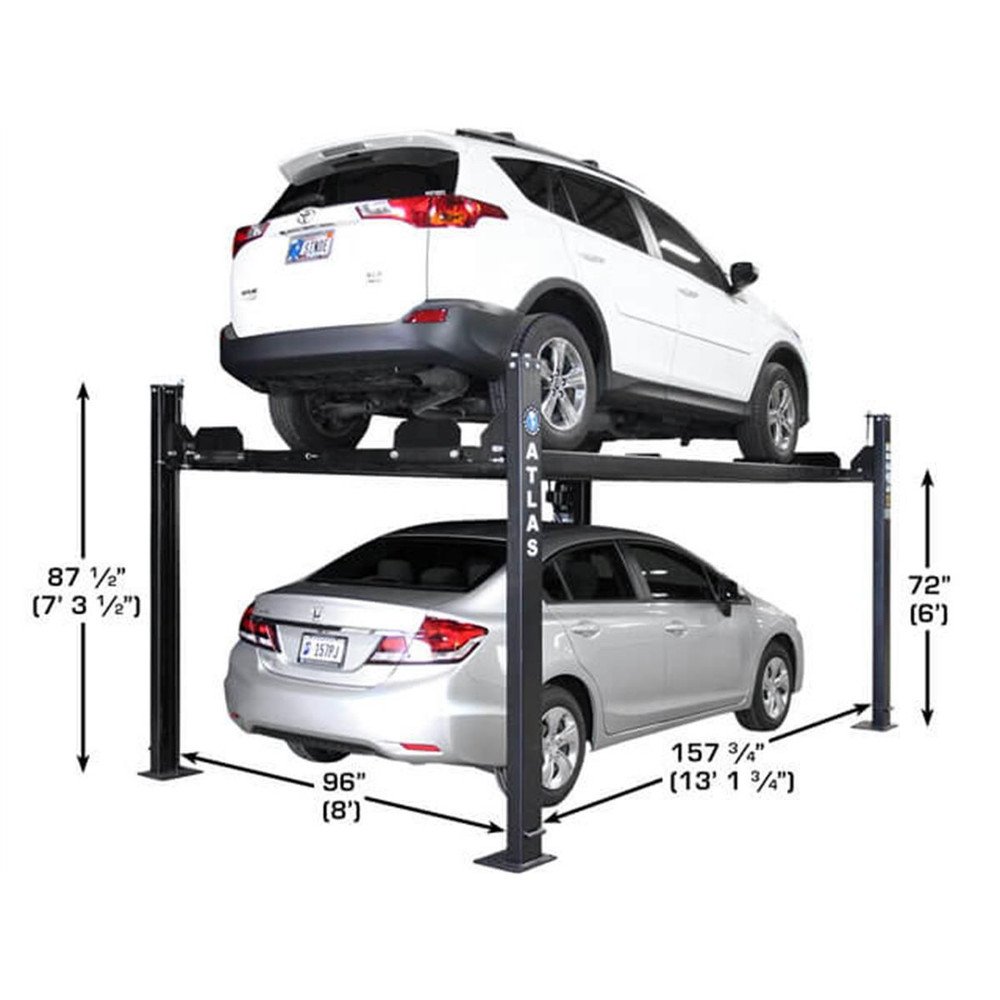

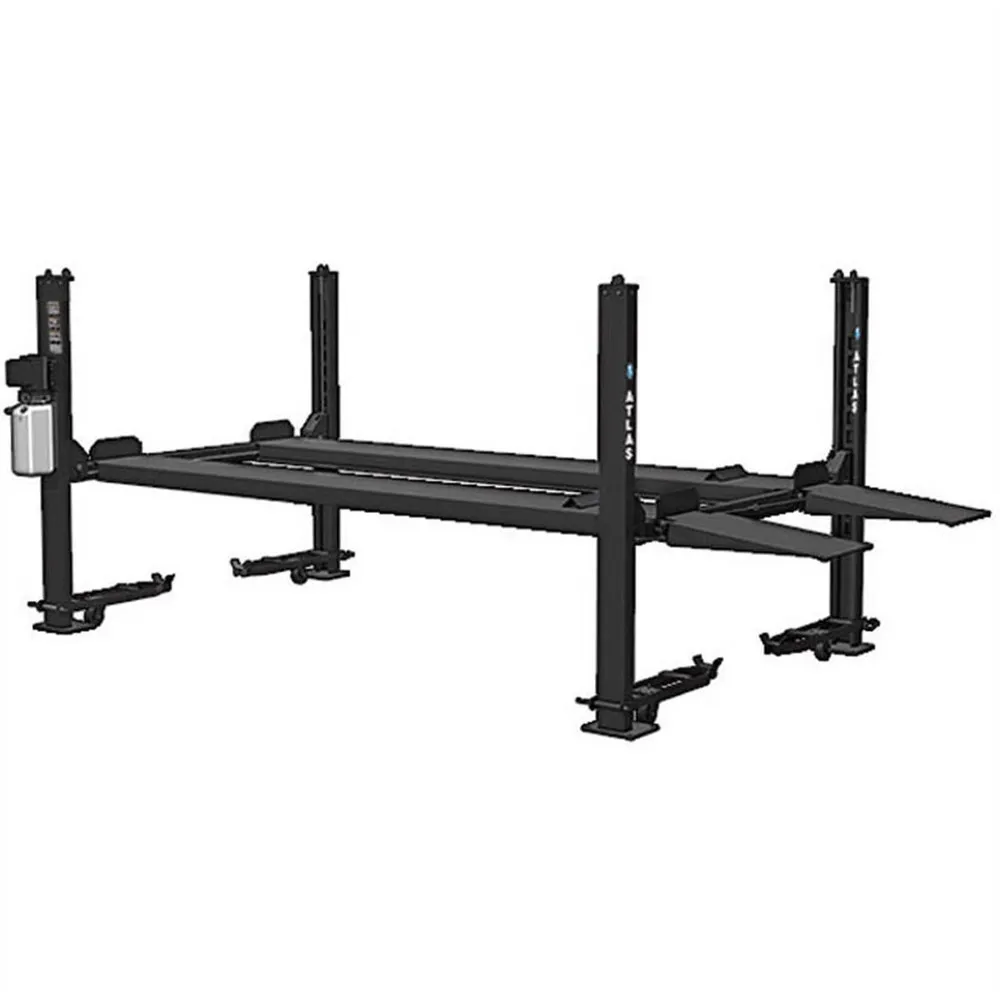

Atlas® APEX8 Specifications:
- Capacity: 8000 lbs
- Lifting Height, Top of Runway: 72″ (6′)

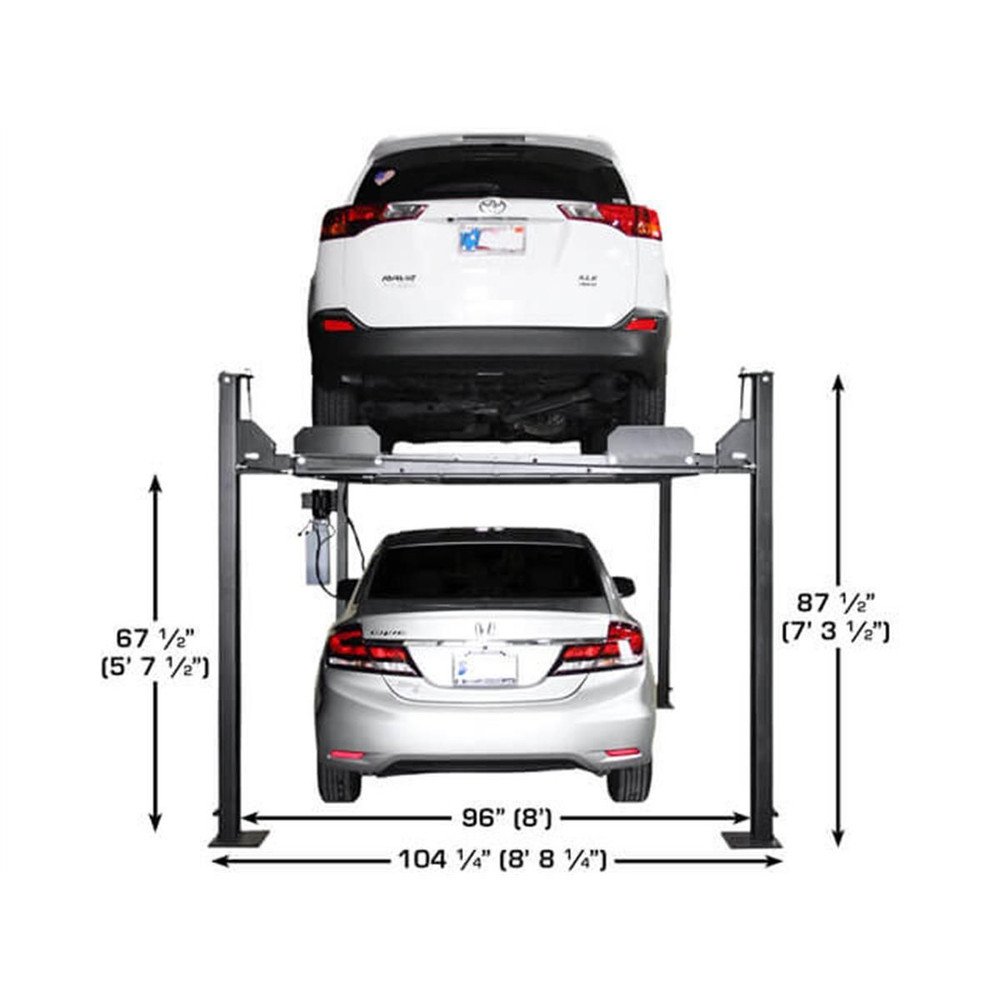

- Clearance Under Runways: 67″ (5′ 7″)
- Height of Columns: 85″ (7′ 1″)
- Overall Width: 104″ (8′ 8″) w/ motor 114″ (9′ 6″)

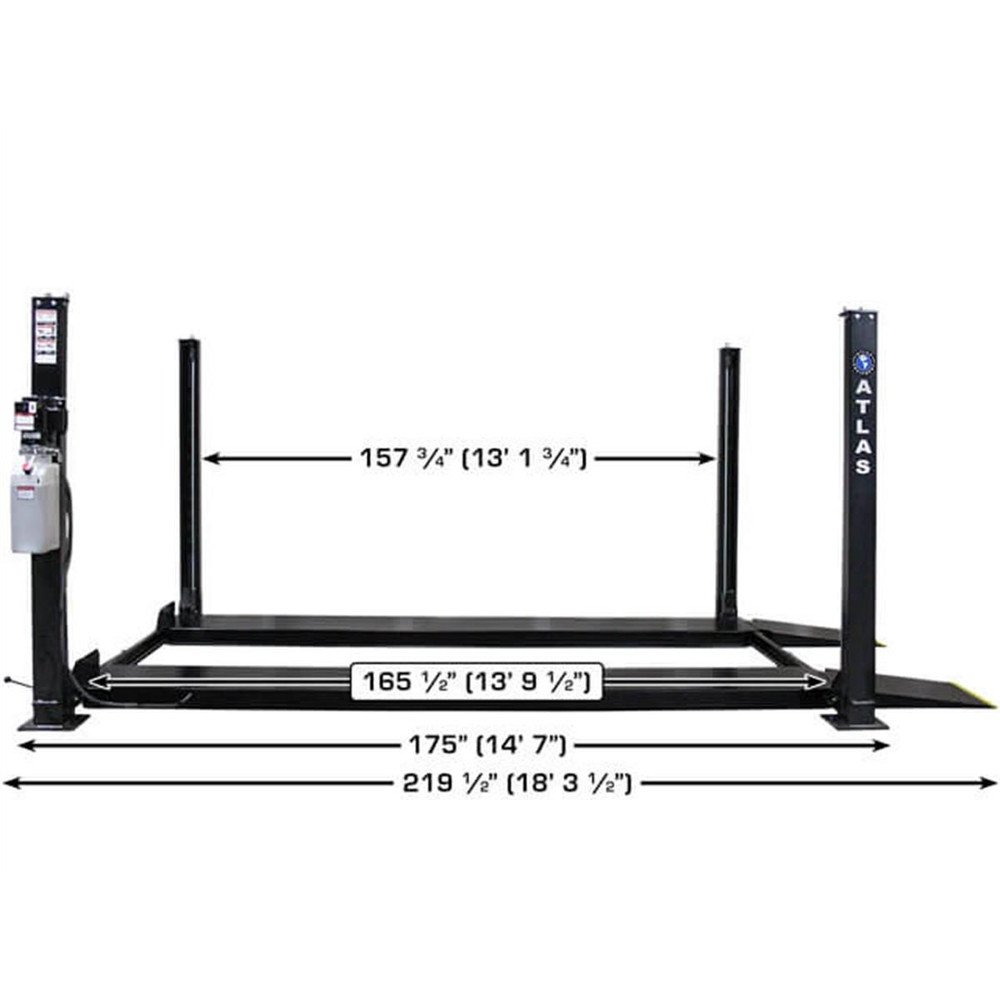

- Overall Length w/ Ramps: 207 5/8″ (17′ 3 5/8″)

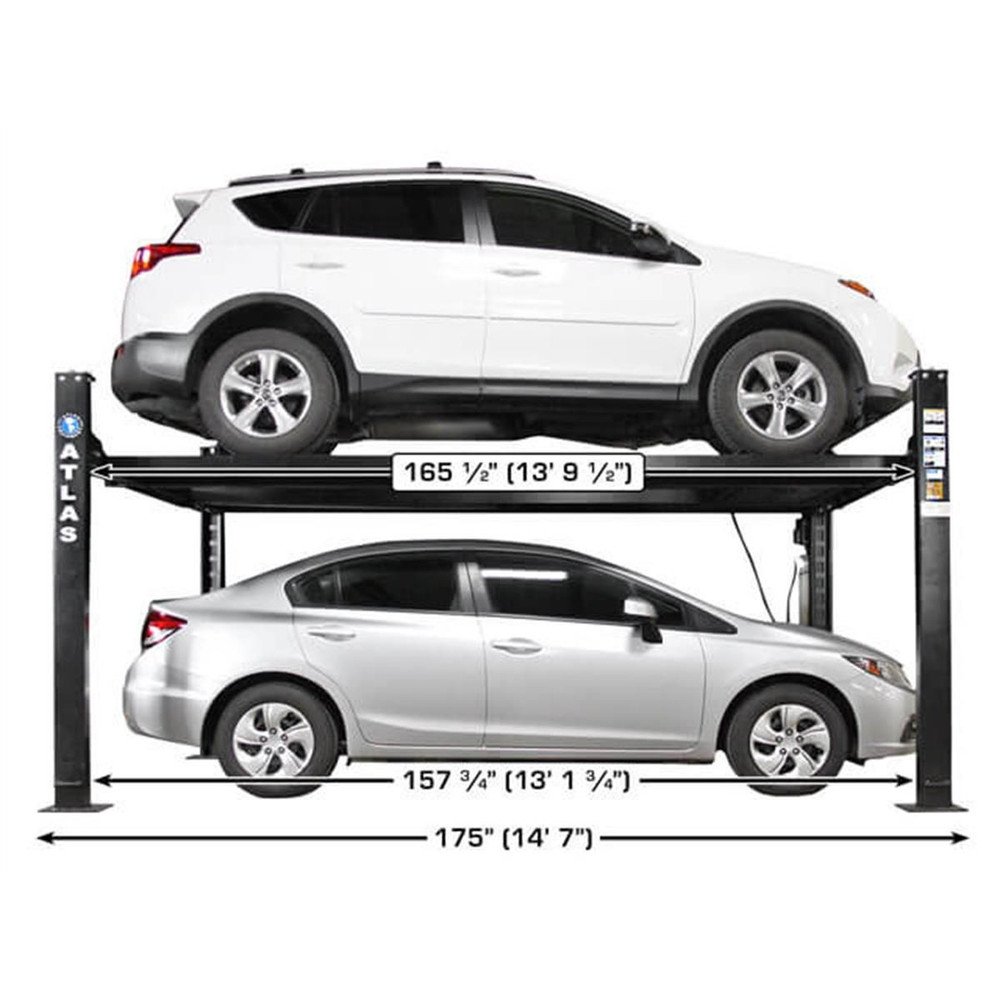

- Runway Length: 169 1/2″ (14′ 1 1/2″)

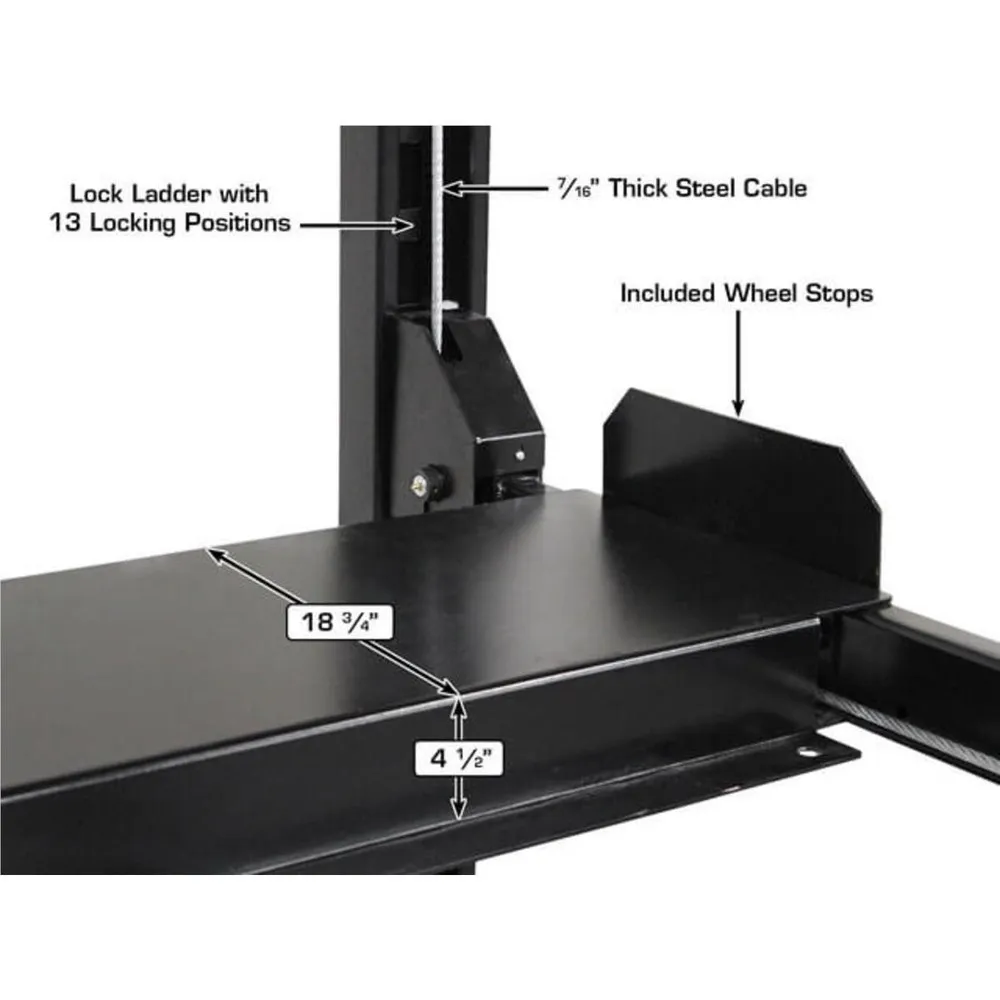

- Runway Width: 18 2/4″
- Runway Thickness: 4 1/3″
- Width Between Runways: 38″ w/ Rail 33″
- Outside Runway to Outside Runway: 75 1/4″ (6′ 3 1/4″)
- Clearance Between Columns: 94″ (7′ 10″)
- Length Between Columns: 157 1/3″ (13′ 1 1/3″)
- Drive Thru: 80 1/4″ (6′ 8 1/4″)

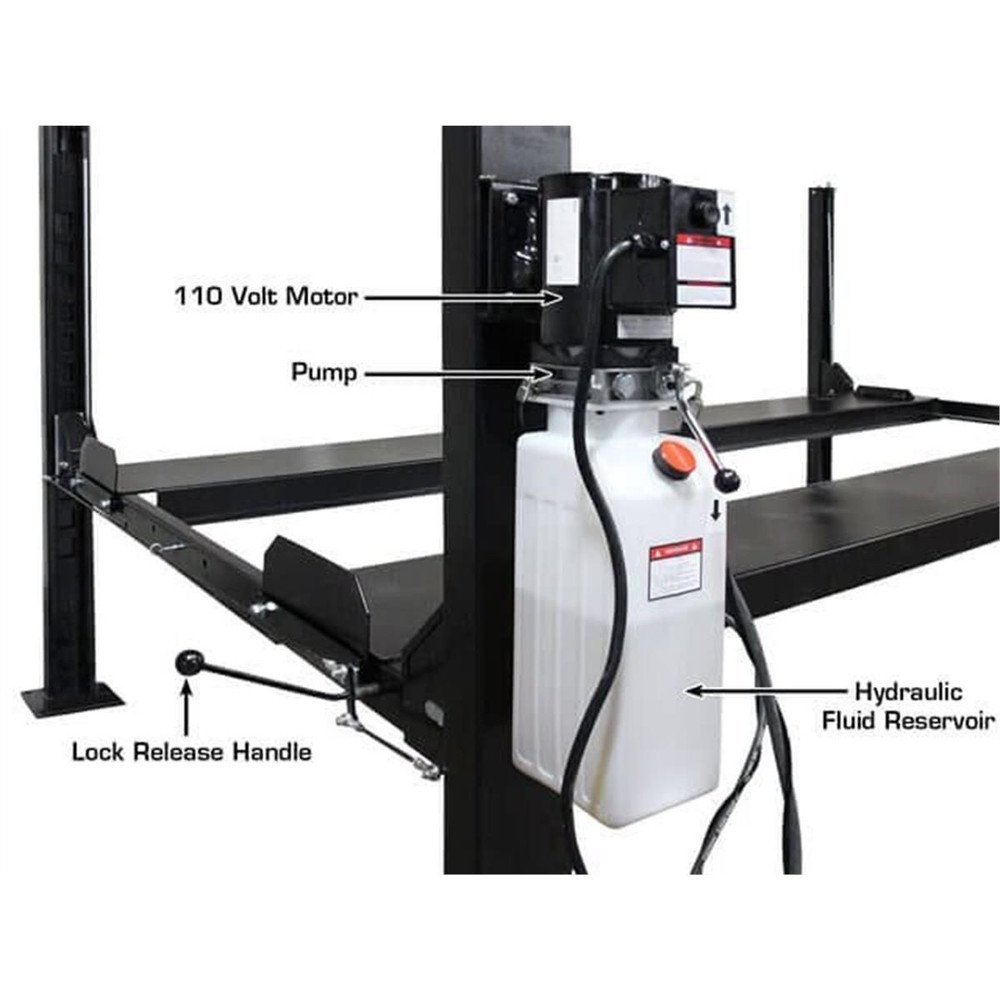

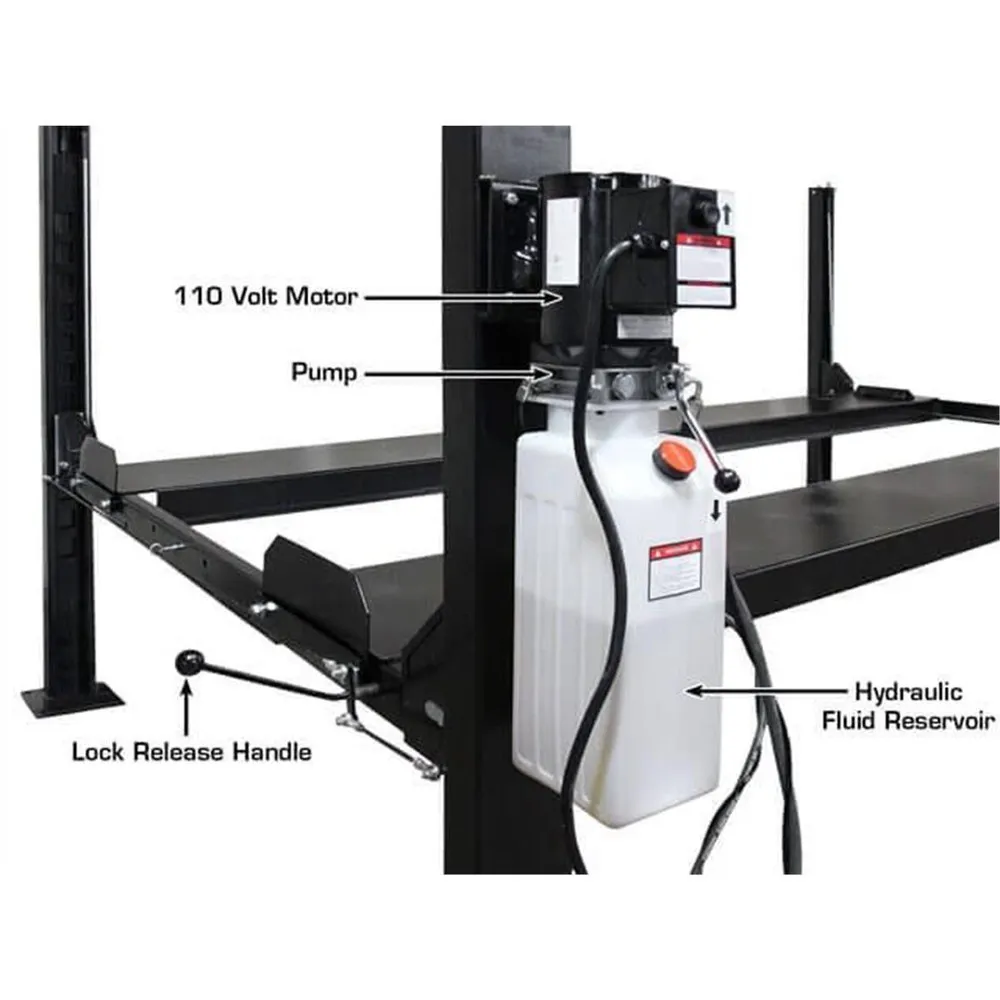

- Motor/Electrical Requirement: 110volt, 30 amp breaker required
- Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)

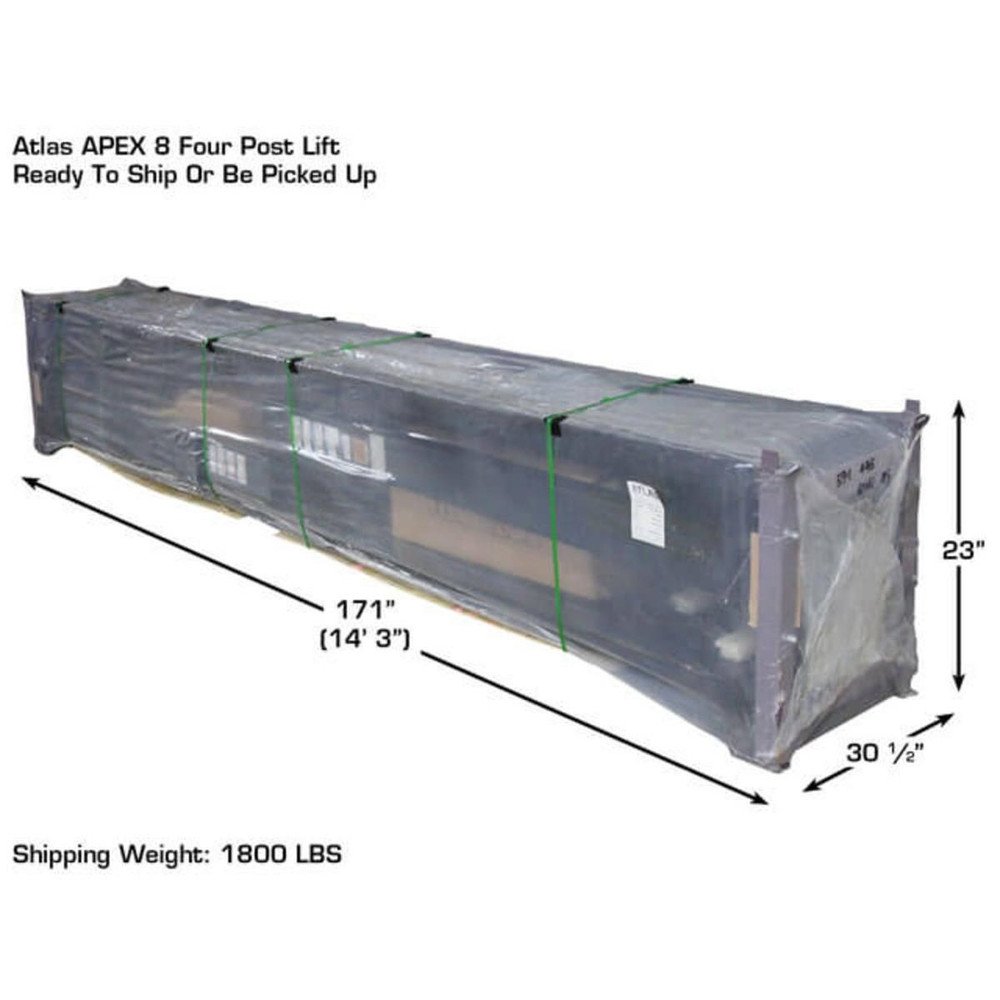

- Shipping Weight: 2000 lbs
Atlas® RJ35 Sliding Jack Specifications
- Capacity: 3500 lbs
- Lower Extension Width (Between Runway): 20 1/2″ to 47″
- Top Width (Arms Retracted & Extended): 39 12″ to 64 3/4″
- Min. Pad Height Above Runway (MAY VARY BY LIFT): 3 1/2″
- Lift Pad Height Above Arm: 1 3/8″
- Max Height Raised w/o Adapter: 11″
- Max Height Raised w/ Adapters: 17 1/4″
- Shipping Weight: 350 lbs
- Adapter Heights: 2 Each 1 1/2″, 5″
- Arm Hole/Adapter Peg Size: 1 1/2″
Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Four Post Lifts.
