Atlas 9OHSC Overhead 9,000 lb. Capacity 2-Post Lift

Description

Shop the Atlas 9OHSC Overhead 9,000 lb. Capacity 2-Post Lift at Variety Engines — every unit is carefully inspected, warrantied, and ready to ship fast across the US.

Features and Benefits:

• 9,000 lb. Capacity
• Overhead, Open-Floor Lift
• Single-Piece Column Design
• Overall Height: 142″ (11′ 10″)

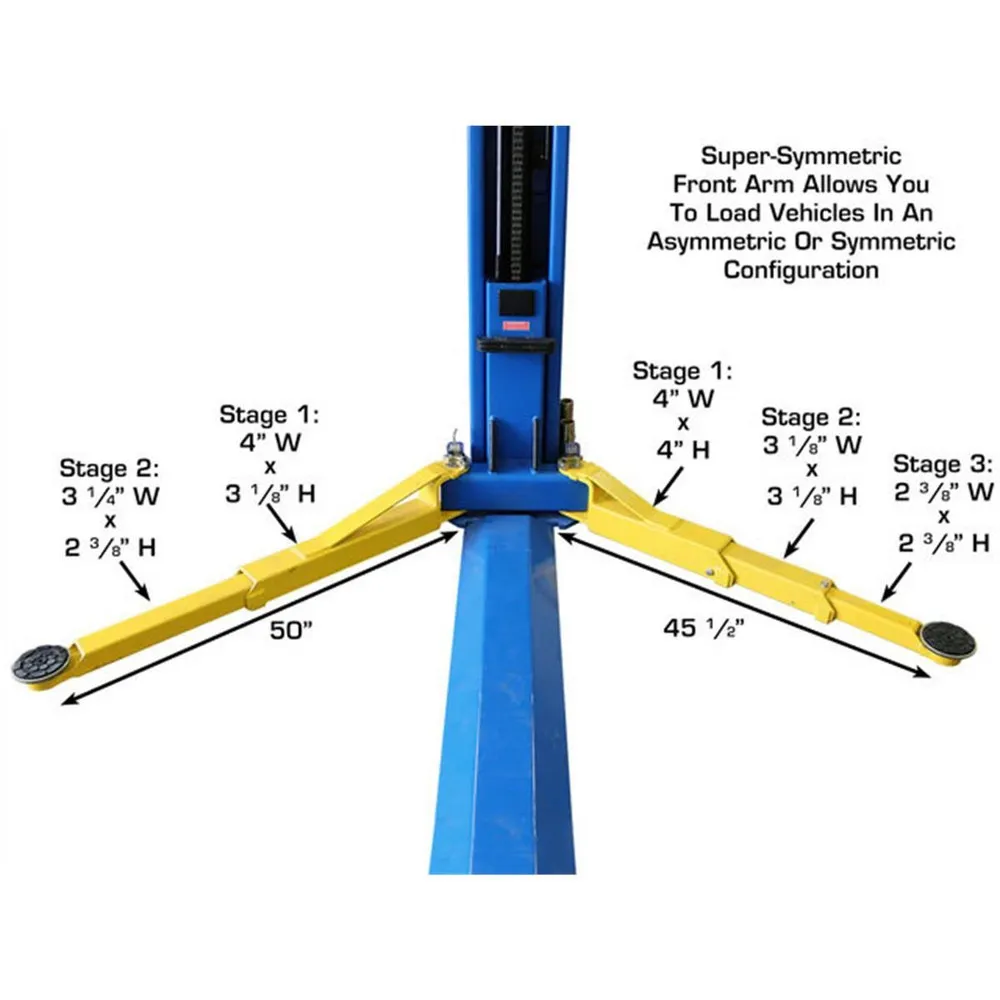

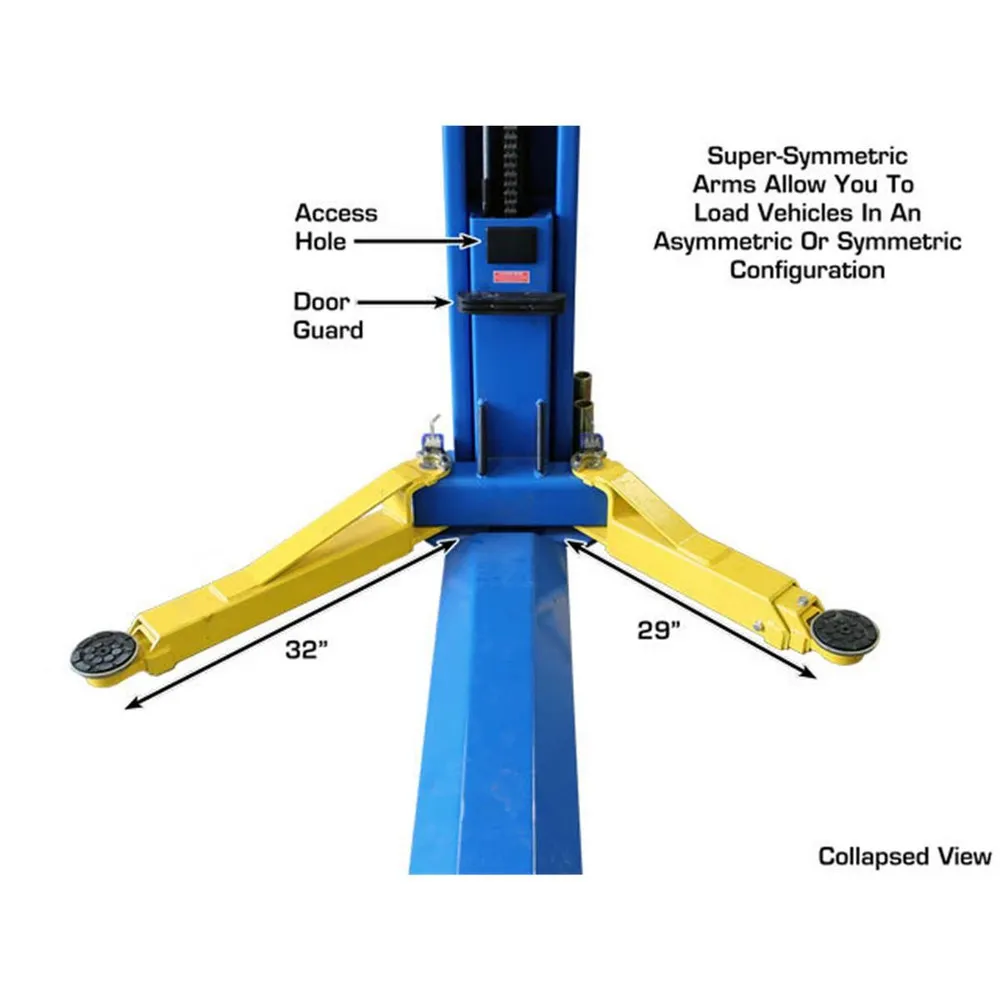

• 3-Stage Front Arms/2-Stage Rear Arms

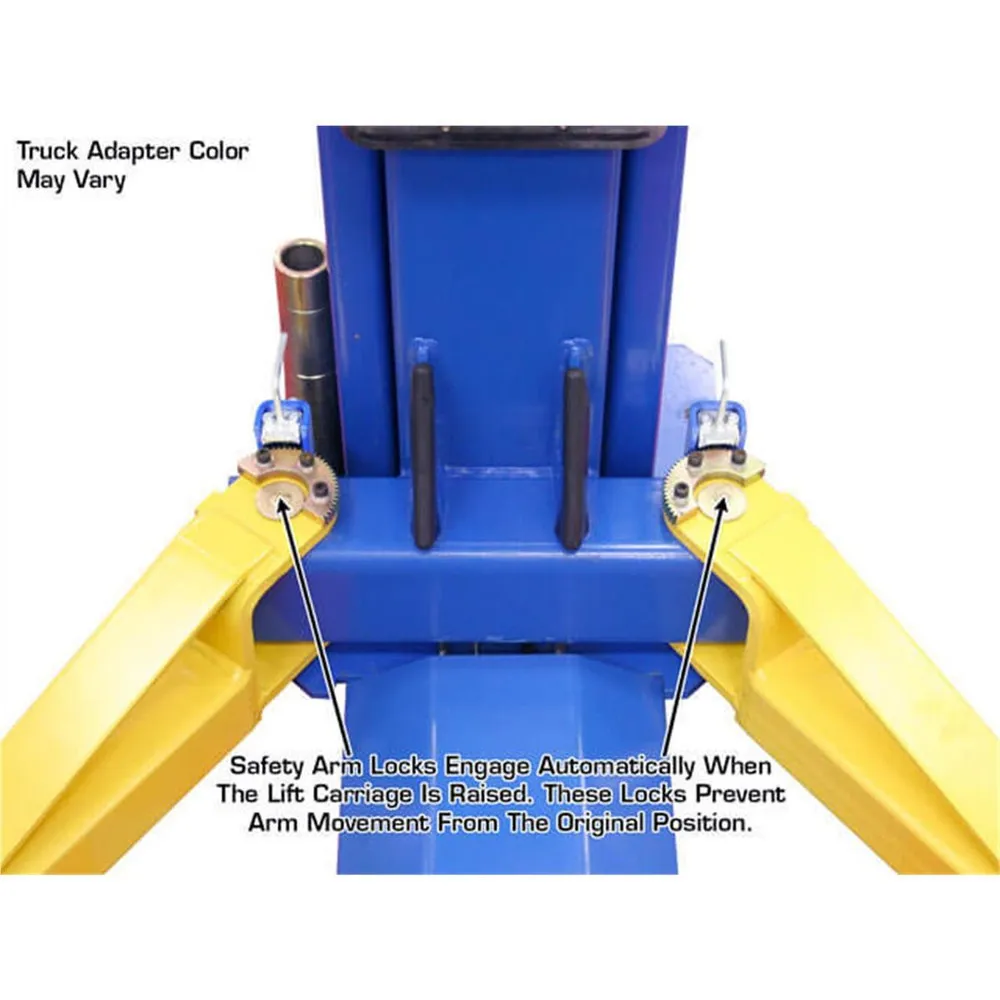

• Automatic Arm Restraints

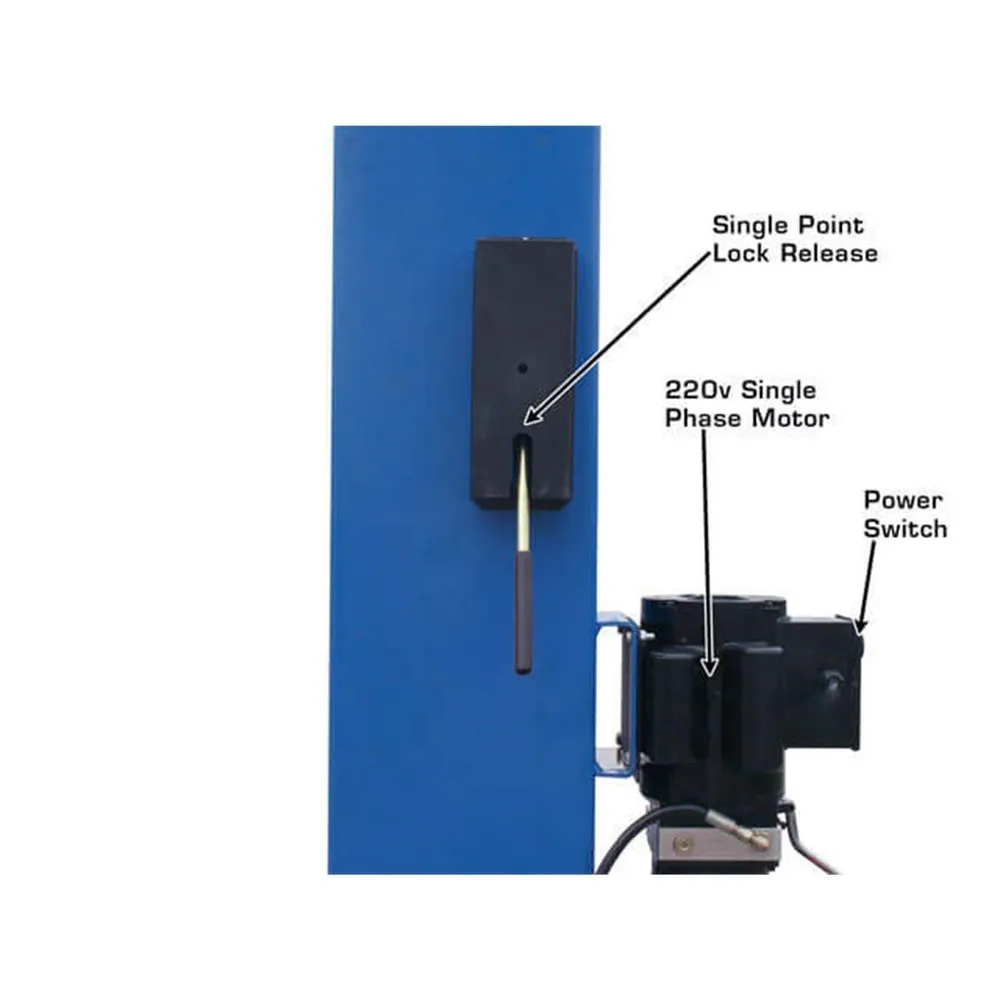

• Single-Point Lock Release
• Rubber Guards on Carriages

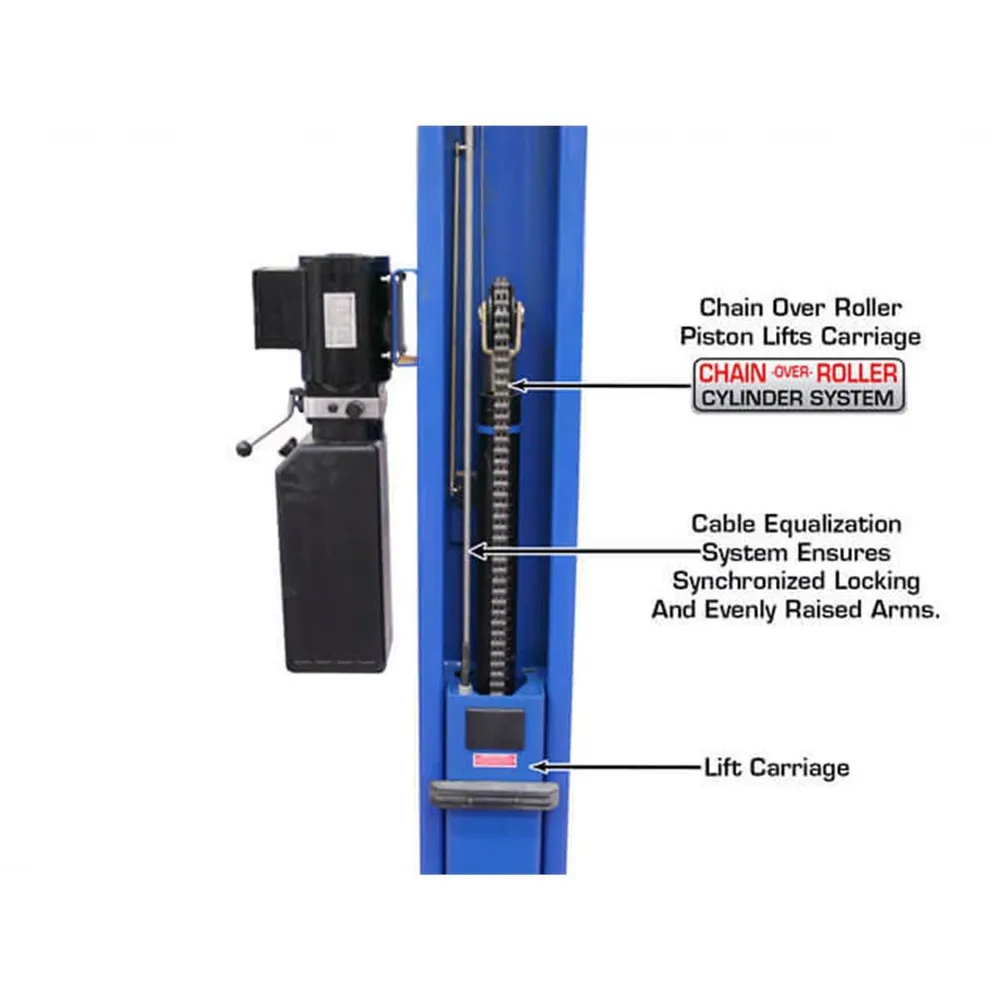

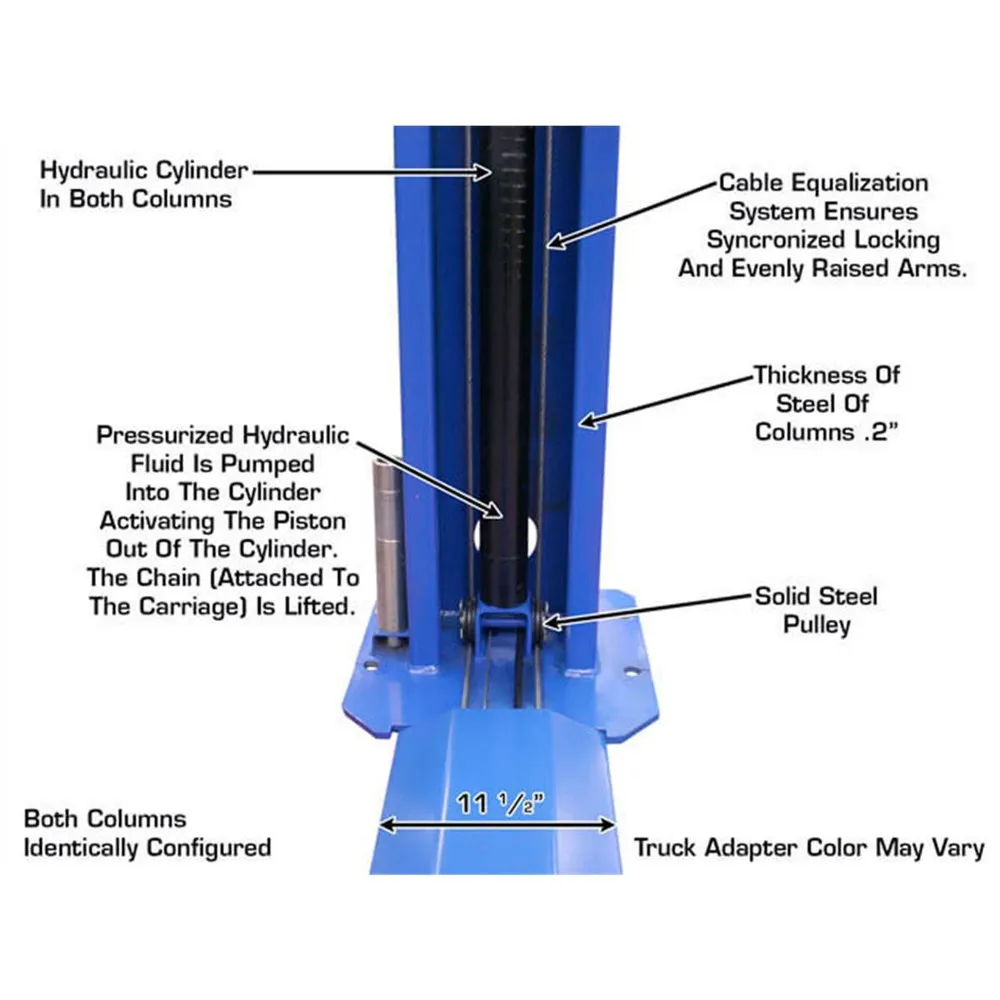

• Dual Hydraulic Chain-Drive Cylinders

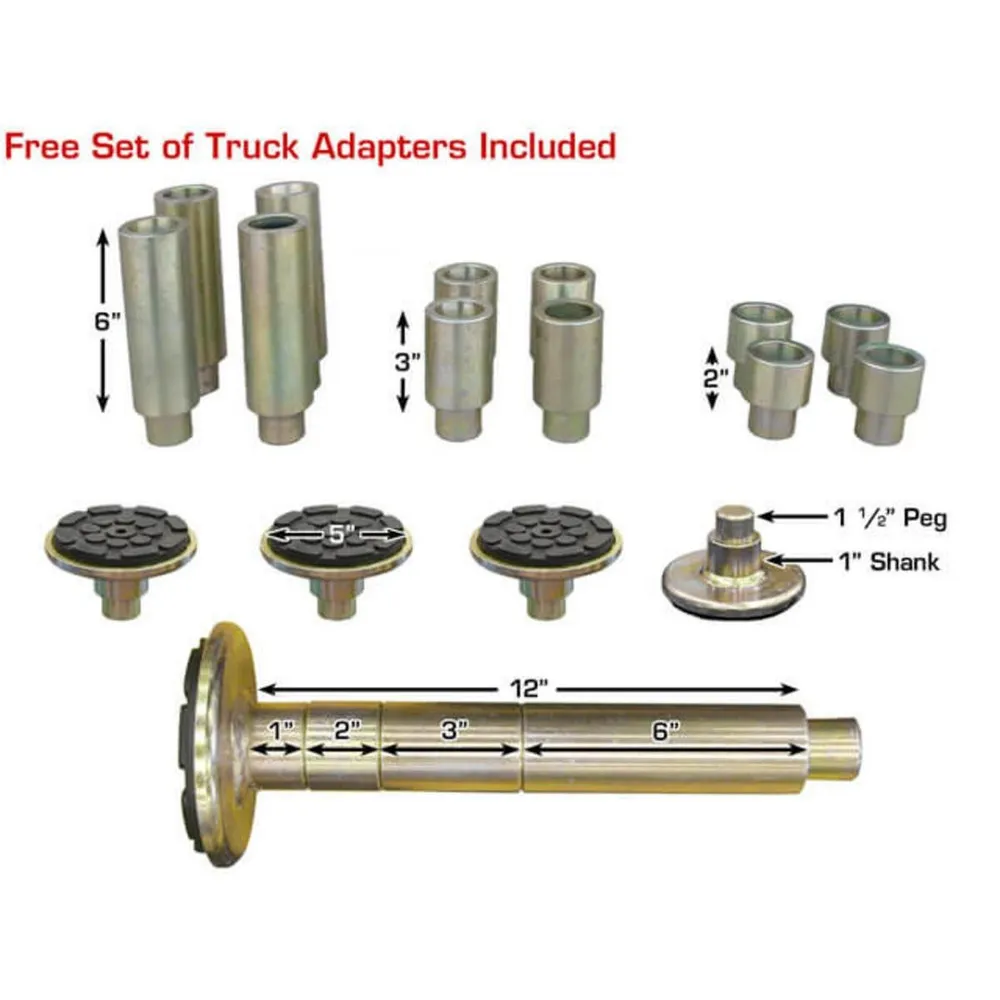

• Free 12 Piece Truck Adapter Set
• Mounting Hardware Included
• Shipping Weight: 1,430 lbs.
• 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only
• This part number FREIGHT PREPAID

Atlas® ATTD-9OHSC-SS Specifications

• Capacity9,000 LB.
• Overall Height 142″ (11′ 10″)
• Overall Floor Width133 1/2″ (11′ 1 1/2″)
• Outside Column to Outside Column 125 1/2″ (10′ 5 1/2″)
• Maximum Lift Height (Without Adapters) 76 3/4″
• Maximum Lift Height (With Adapters) 87 3/4″
• Minimum Arm Height 4″
• Inside Column 109 1/2” (9′ 1 1/2”)
• Drive Thru 100 1/2” (8′ 4 1/2”)
• Column Size 8″ x 9 3/8″
• Column Thickness of Steel 5mm
• Base Of Lift 16 3/4″ x 17 3/4″

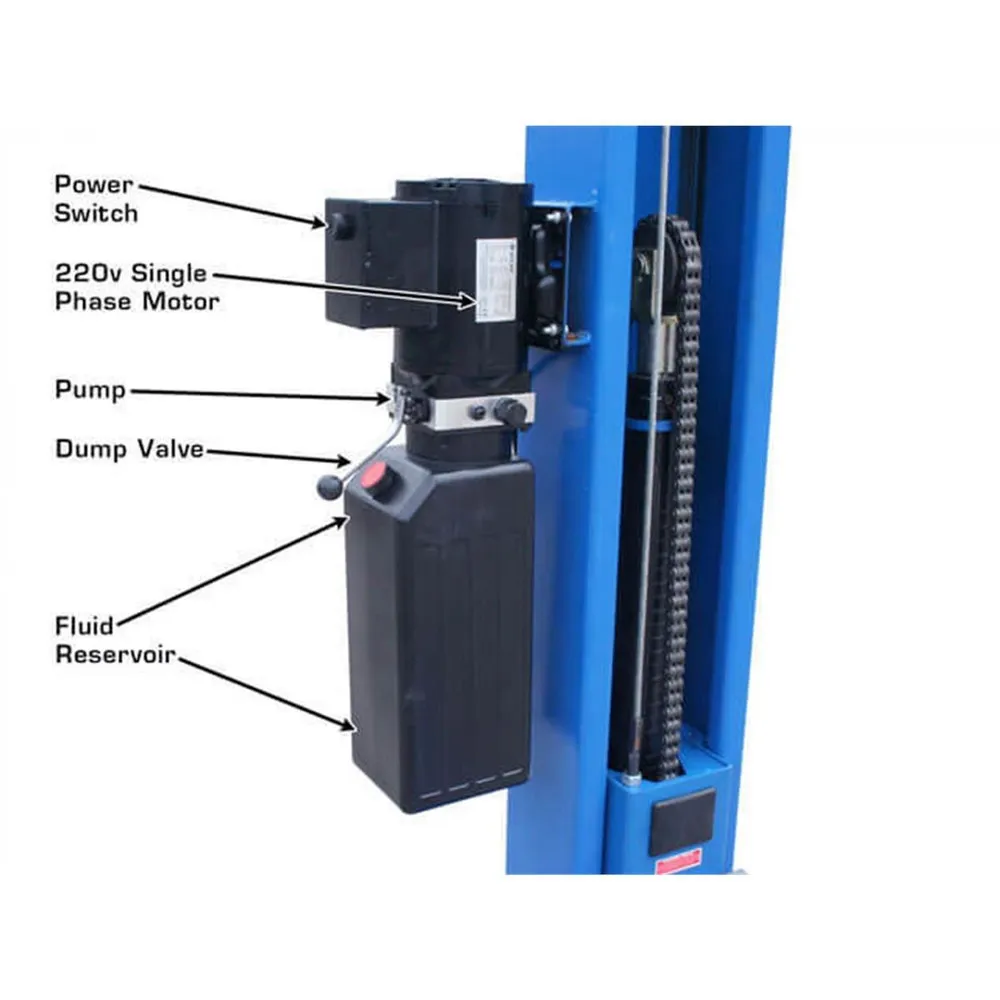

• Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 1,430 LBS.

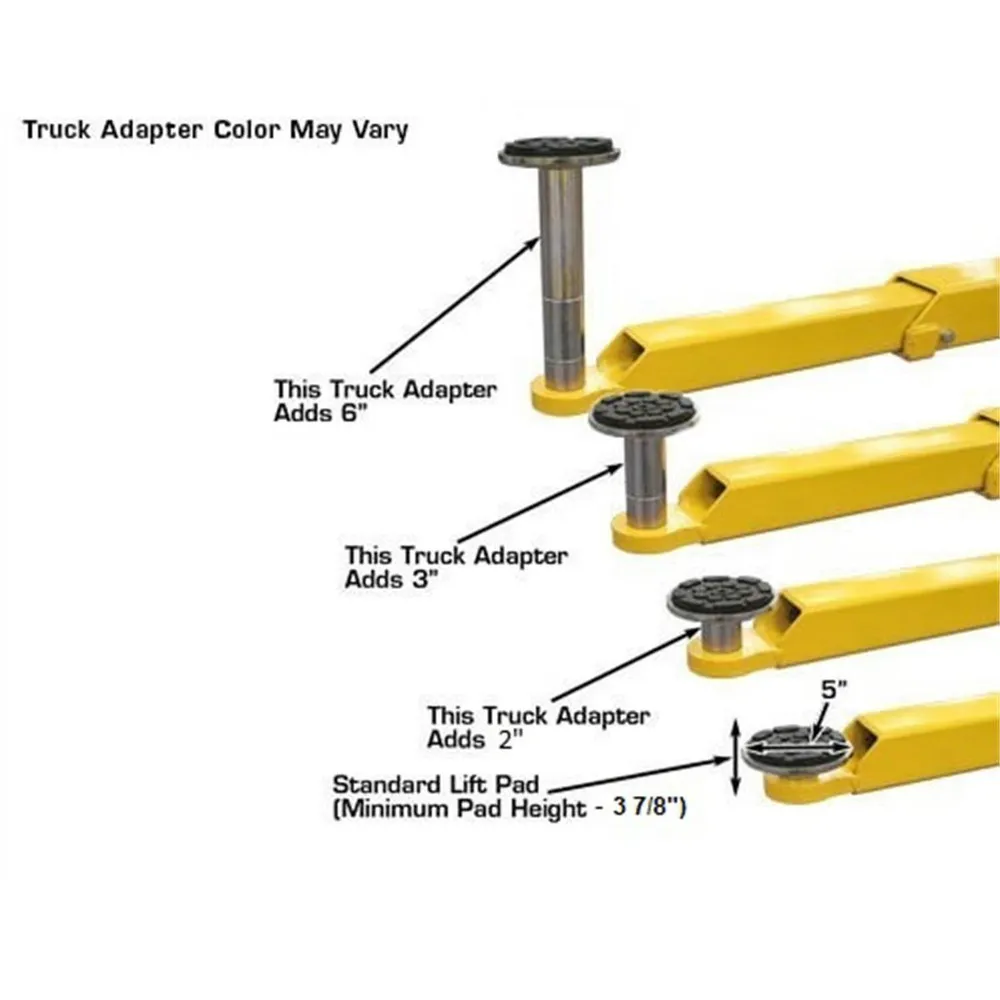

• Adapter Heights 4 Each 2”, 3”, 6”
• Arm Hole/Adapter Peg Size 1.5”
• Requires a minimum of 4″ of concrete with a 3000 psi. rating
• Not for use with Diesel Trucks (3/4 ton diesel or larger). Due to the weight placed on the front lifting arms, we recommend customers purchase a 10K or 11K 2-post lift.
