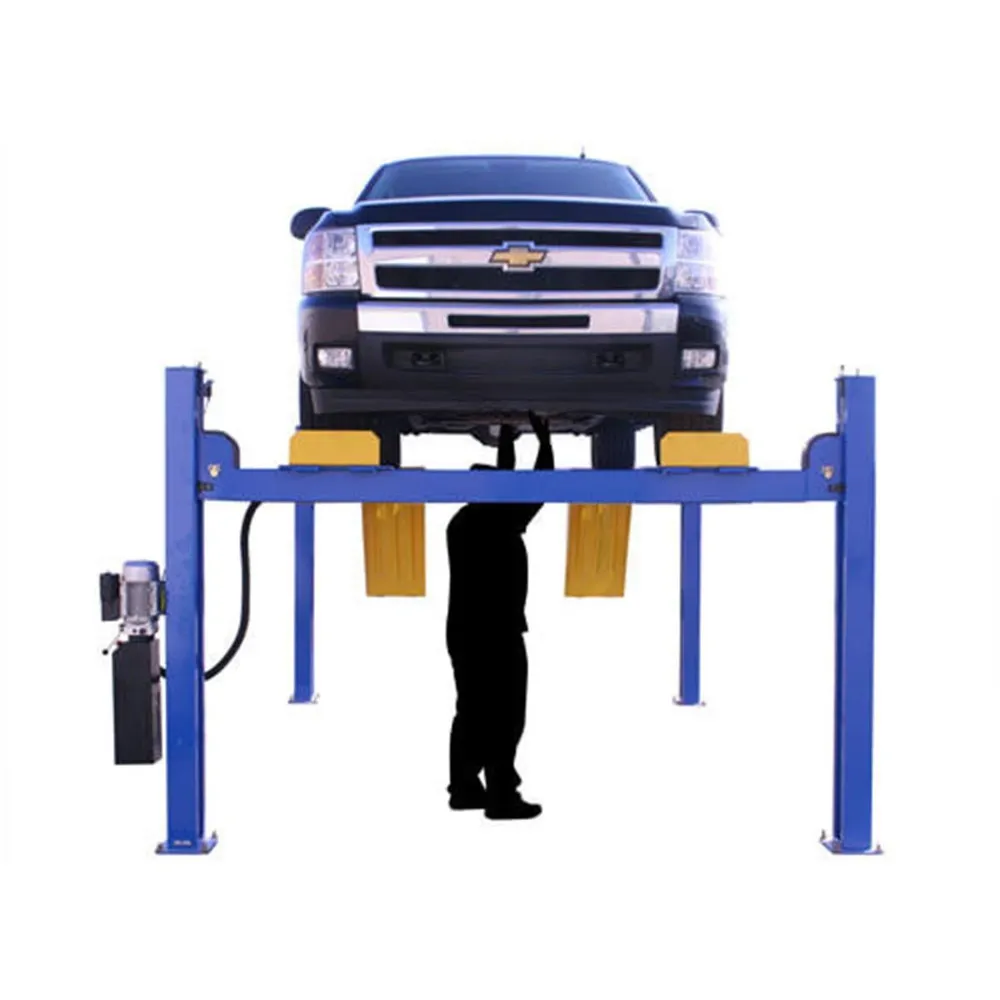

Atlas 414 Commercial Grade 14,000 lb. 4-Post Lift

• 14,000 lb. Capacity
• Heavy Duty, Commercial Grade
• Extra Tall, Extra Wide & Extra LongV
• Diamond Plated Runways

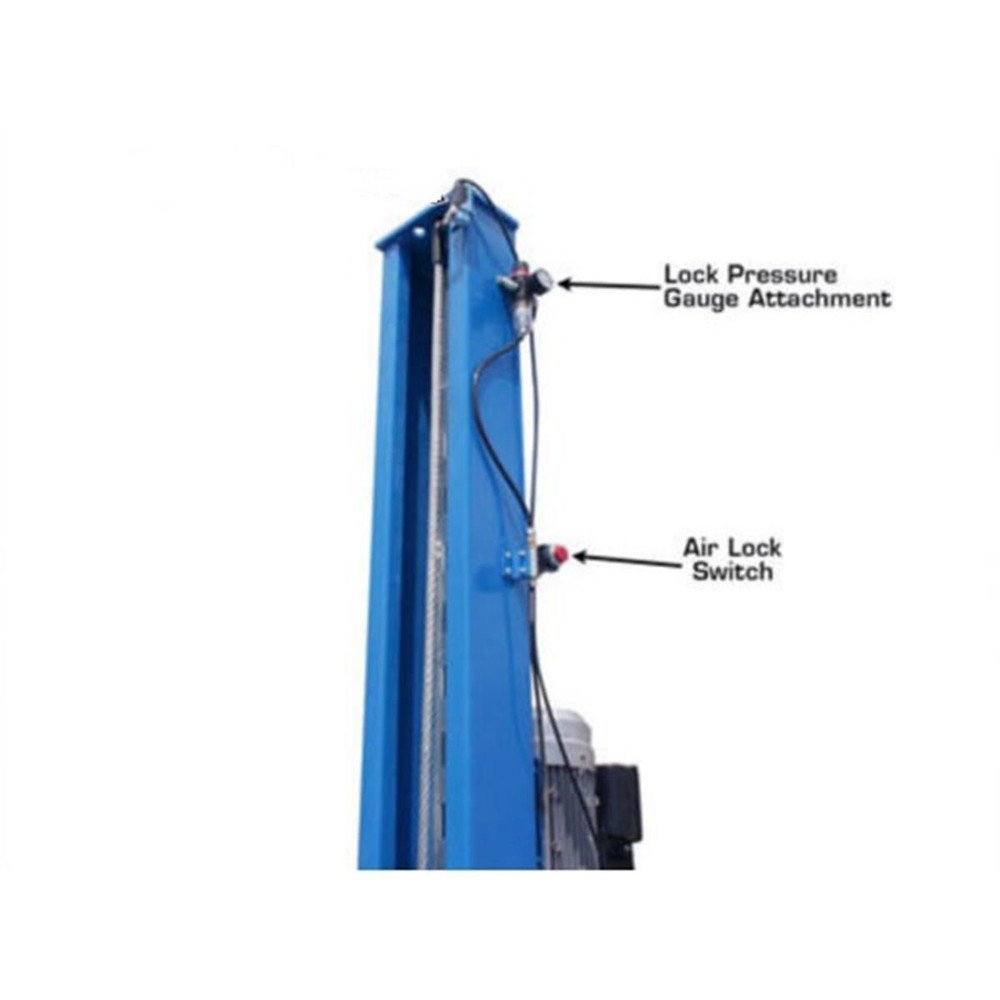

• Air Operated Single Point Lock Release (External Air Supply Required - NOT INCLUDED)

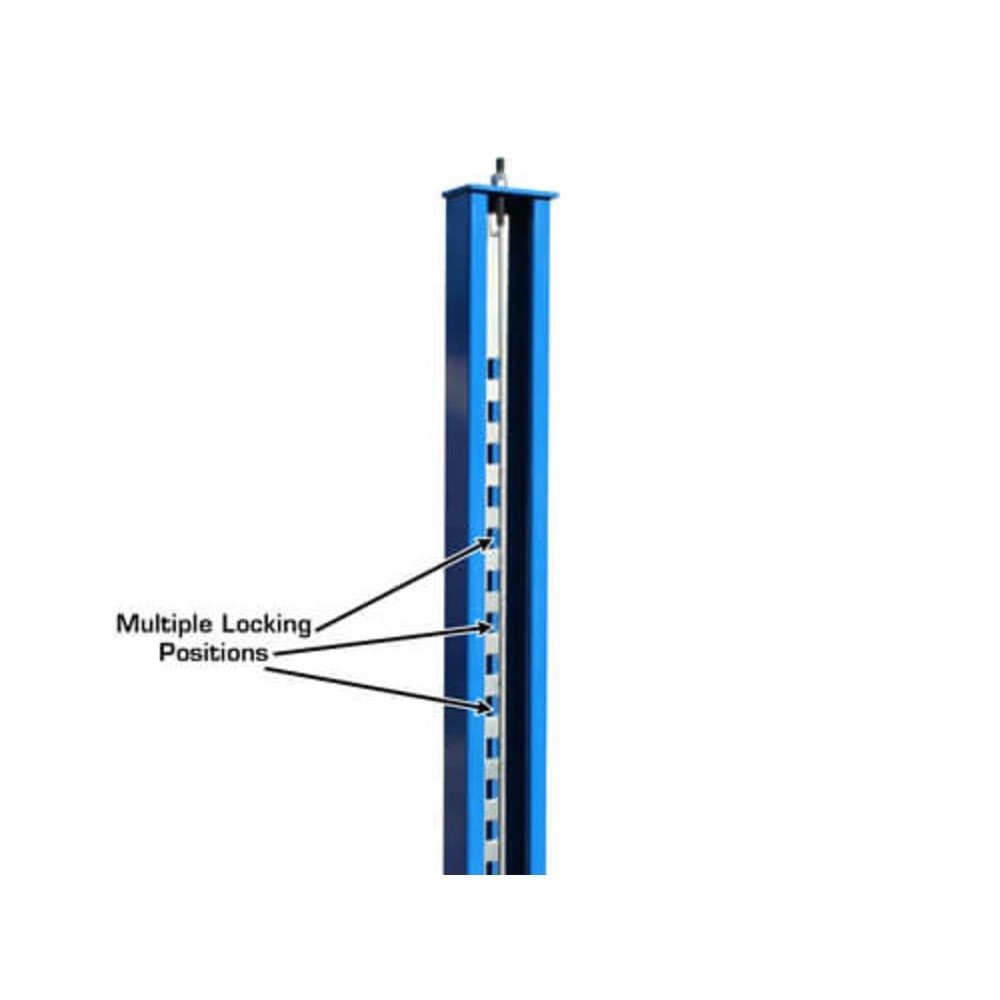

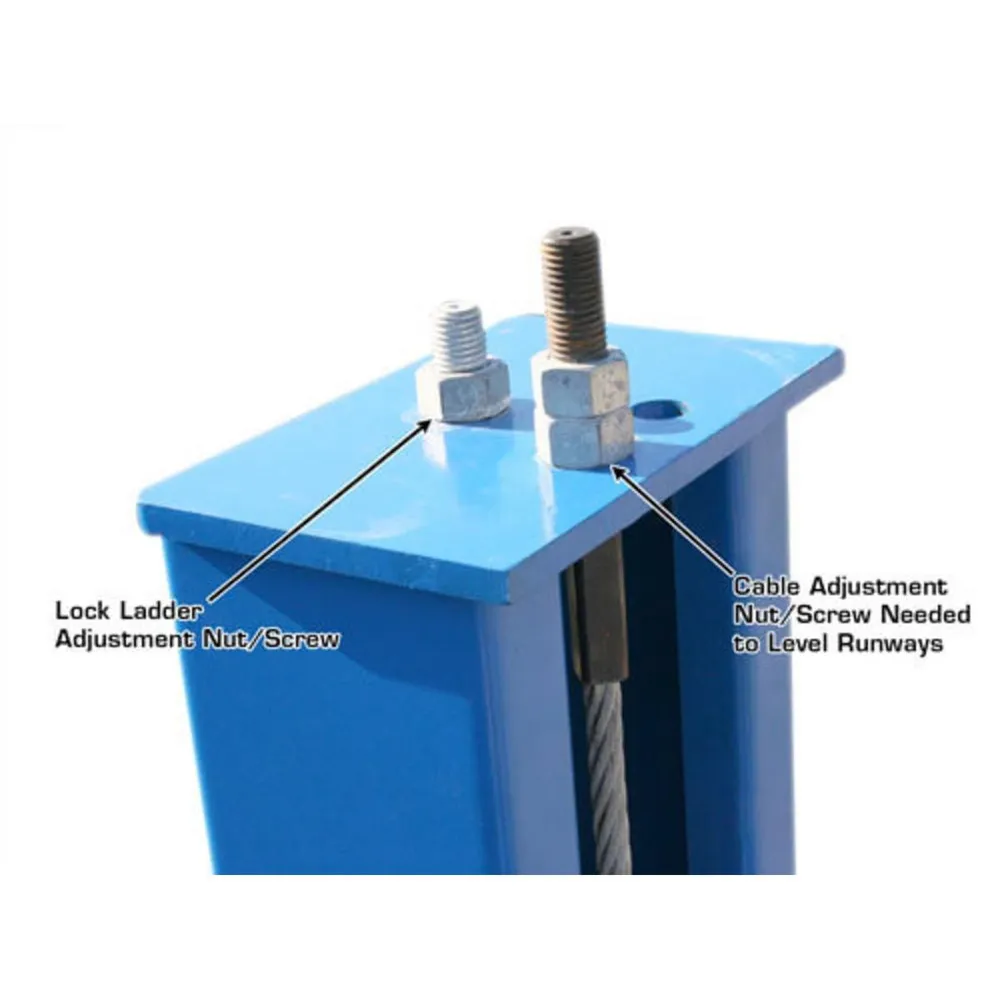

• Lock Ladder Design
• Double Lock Safety System
• Powder Coat Finish
• Steel Approach Ramps Included
• Additional Drive off Ramps Available (Sold Separately)
• Runway Extensions Available (Sold Separately)

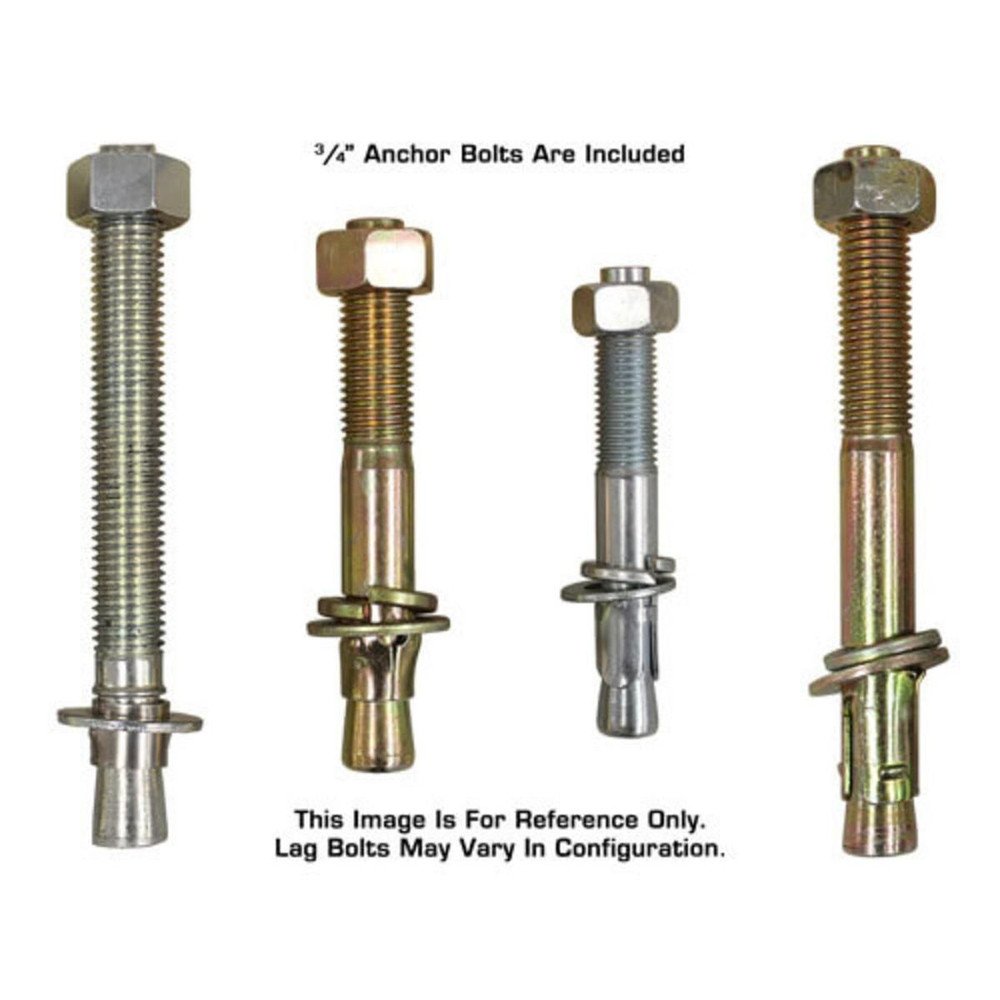

• Mounting Hardware Included
• 220volt/1phase Electric Operation (Requires a 30amp Breaker)

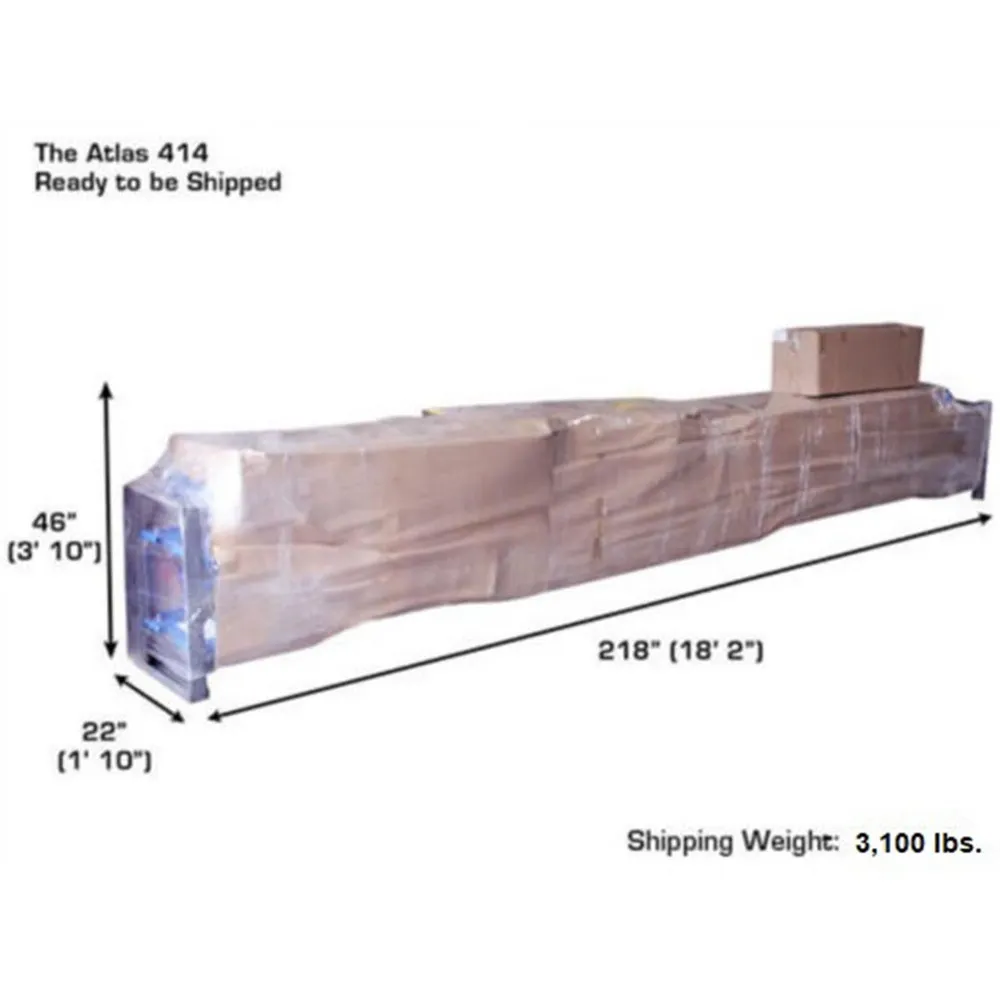

• Shipping Weight: 3,100 lbs.
• 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only
• This part number FREIGHT PREPAID

• Capacity 14,000 lb.

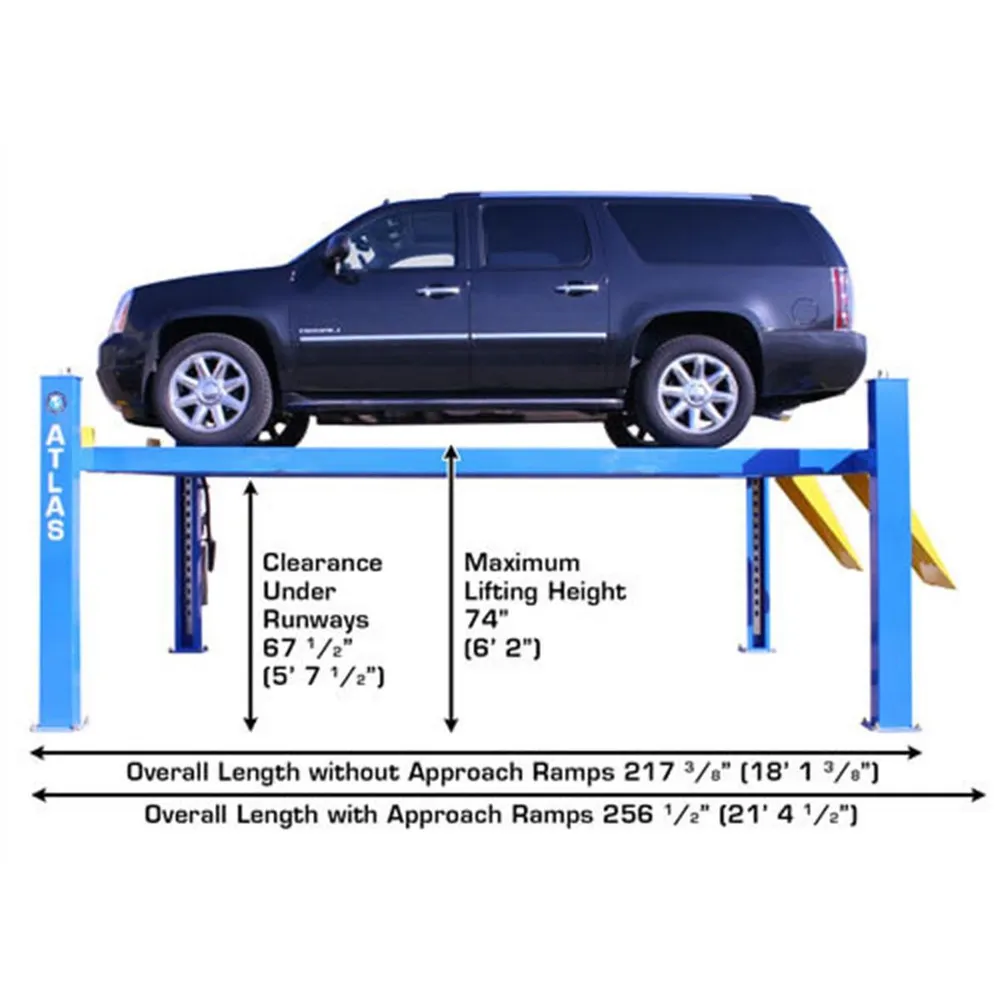

• Lifting Height 80" (6' 8")

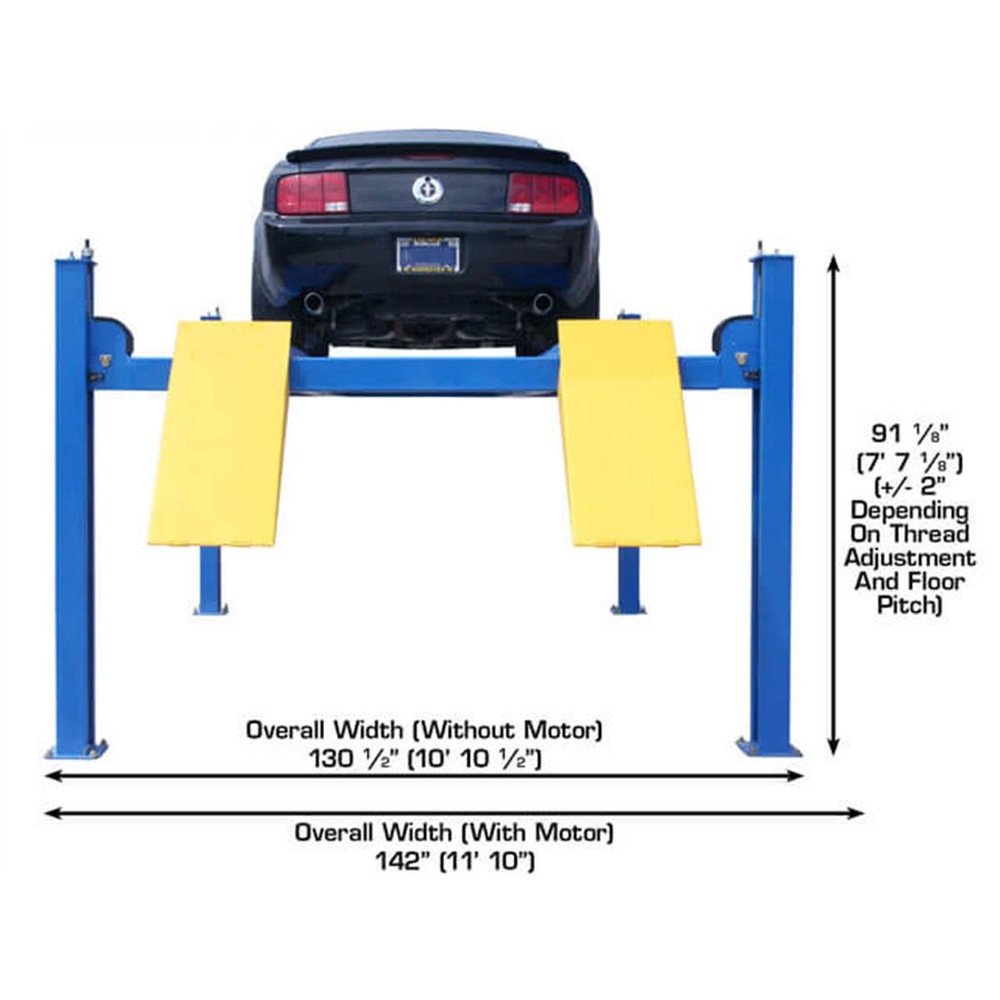

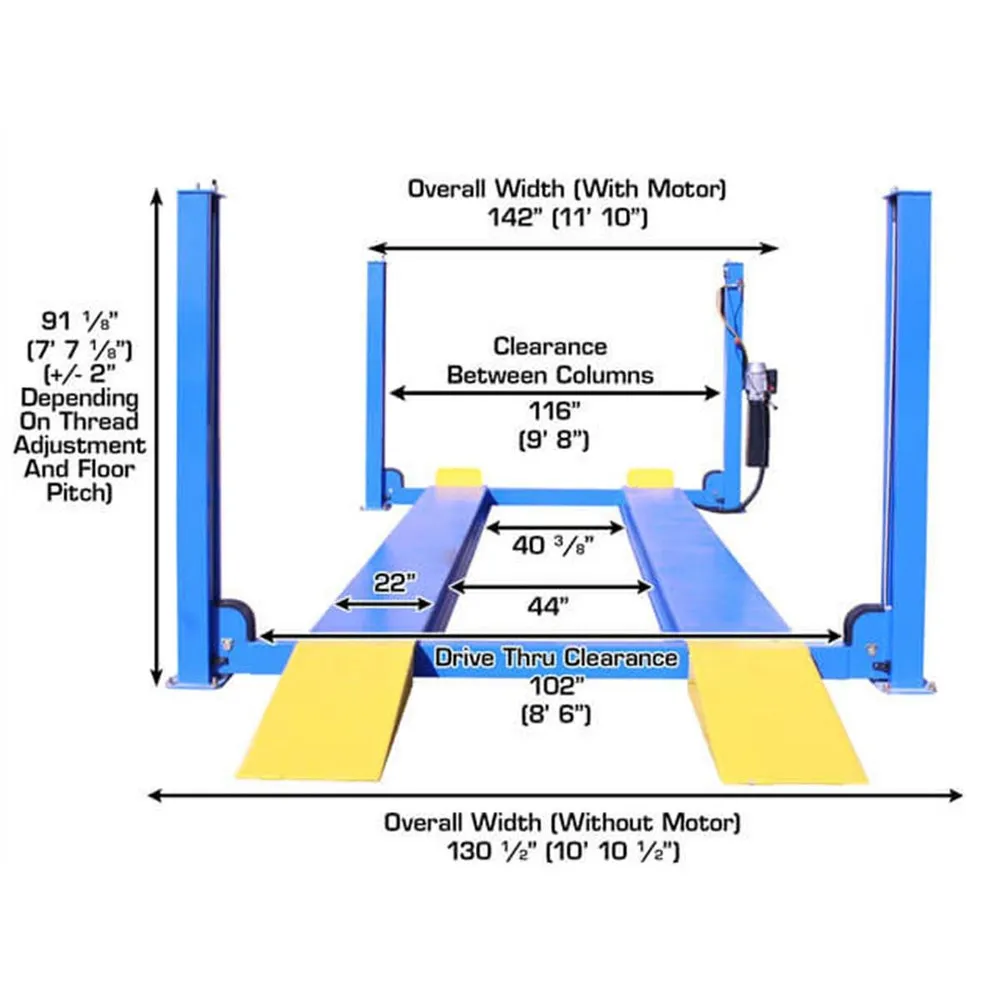

• Overall Width Of Columns (Without Motor) 130 7/8" (10' 10 7/8")
• Overall Width Of Columns (With Motor) 138 7/8" (11' 6 7/8")
• Overall Length With Approach Ramp 255" (21' 3")
• Length Between Columns 197 1/4" (16' 5 1/4")

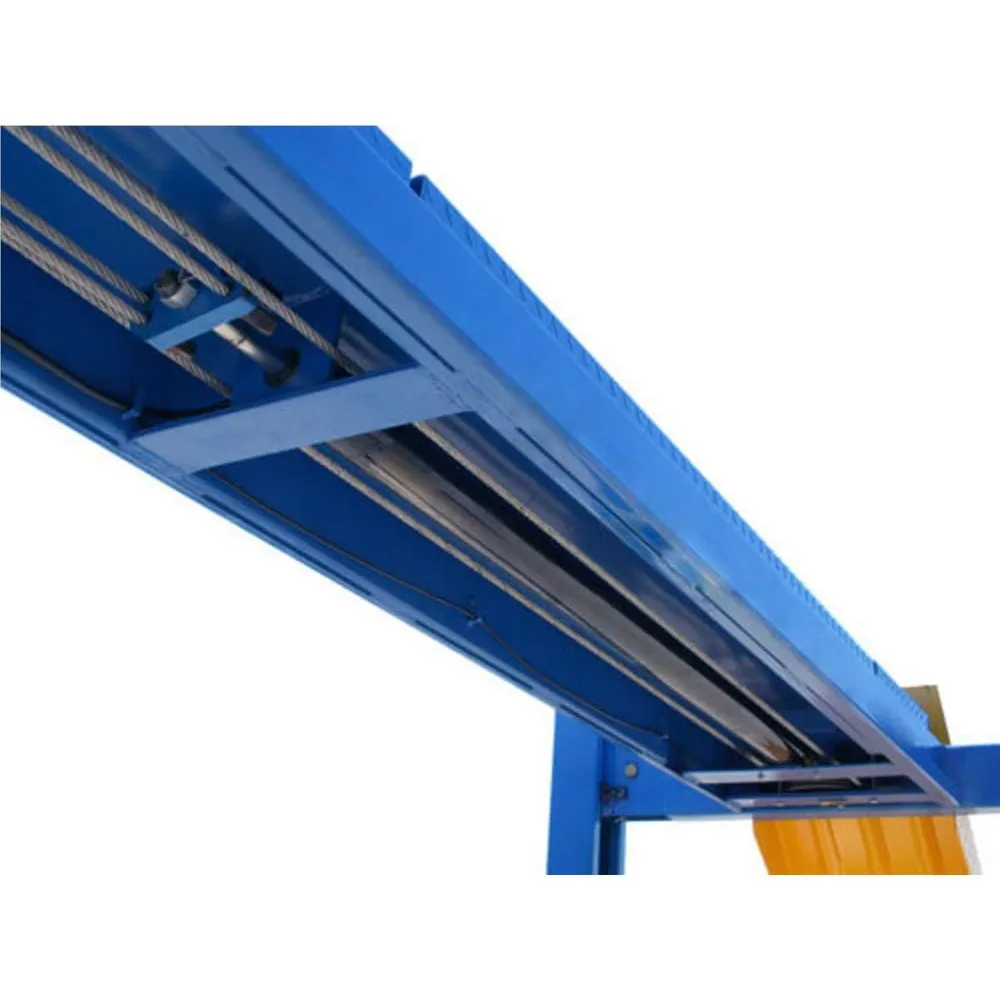

• Runway Length 208 5/8" (17' 4 5/8")
• Runway Width 20"
• Thickness Of Runway 8 3/4"

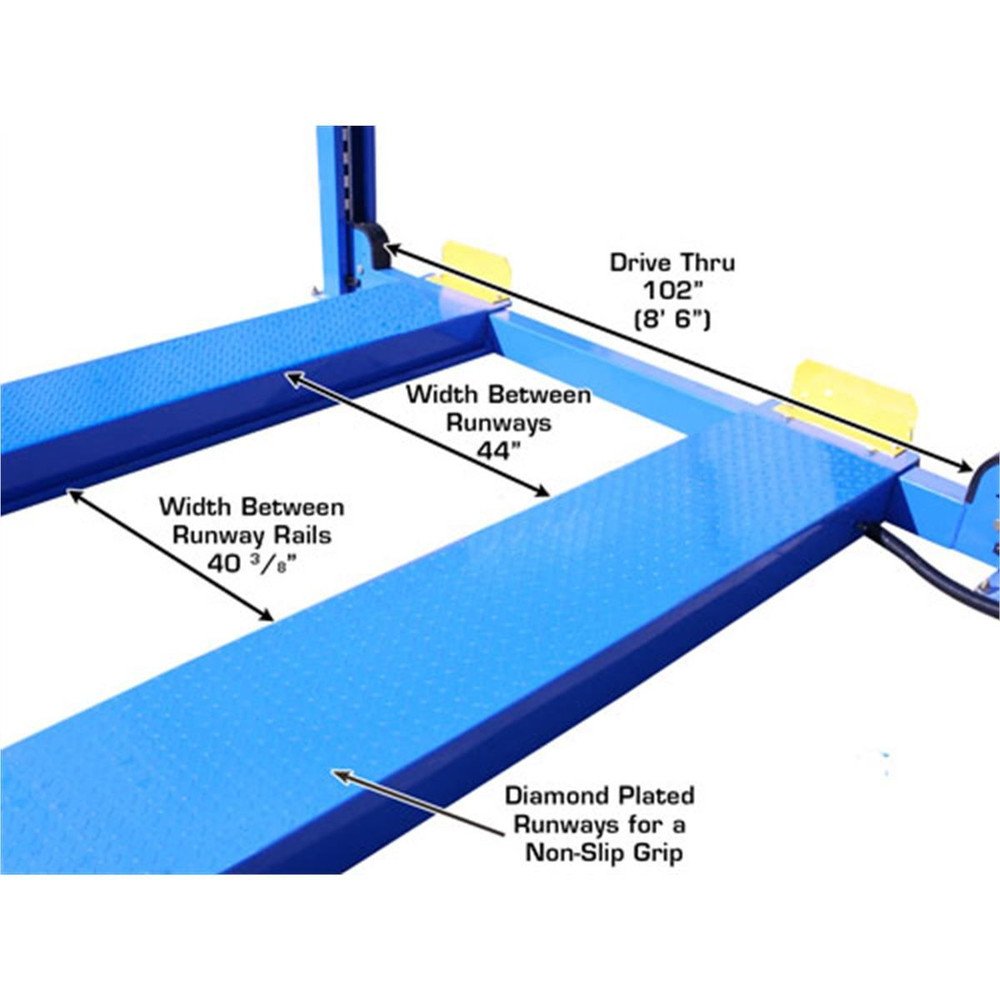

• Width Between Runways 46 7/8" (w/ Rail 44 3/8")
• Outside Runway To Outside Runway 86 7/8" (7' 2 7/8")

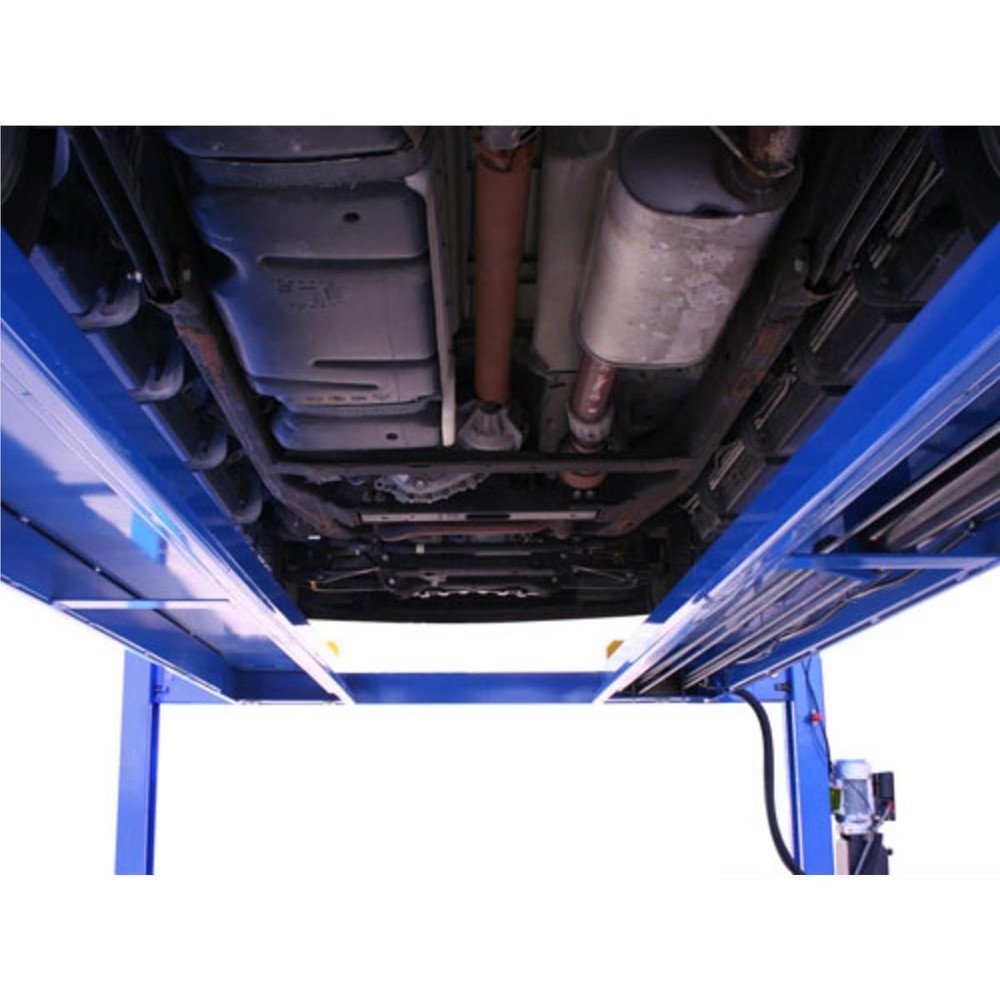

• Clearance Under Runways 71 1/4" (5' 11 1/4")

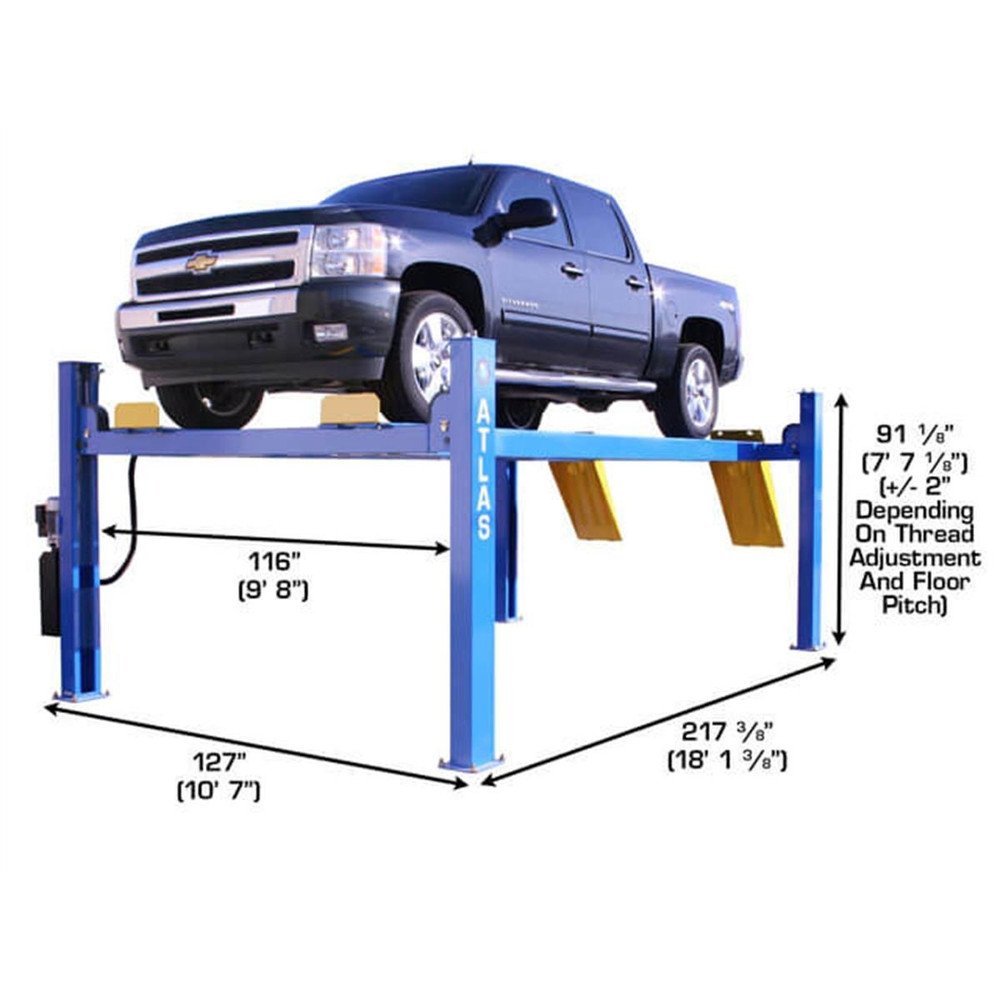

• Clearance Between Columns 116" (9' 8")
• Height Of Columns 91 1/8" (7' 7 1/8")
• Maximum Wheel Base 197" (16' 5")
• Drive Thru 102 1/8" (8' 6 1/8")
• Air Requirement 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)

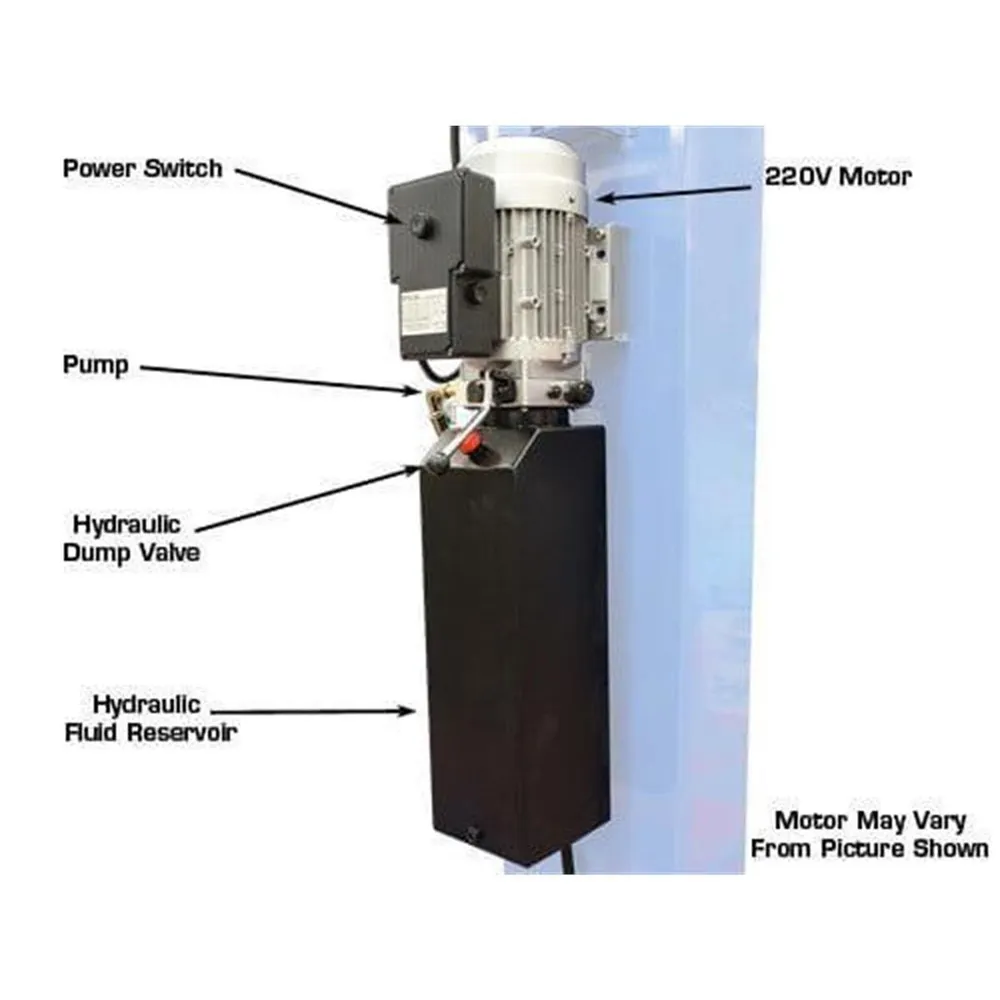

• Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 3,100 LBS.

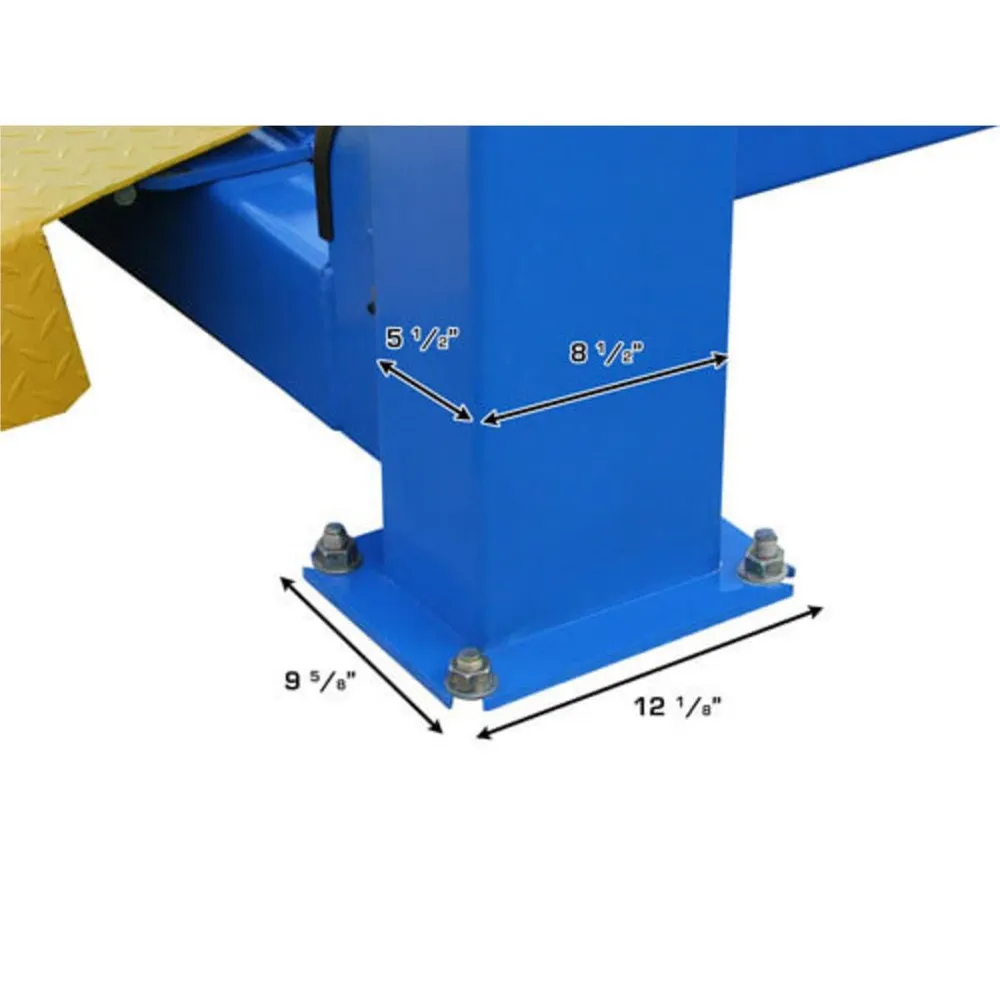

• Requires a minimum of 6" of concrete with a 3000 psi. rating

Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Four Post Lifts.
