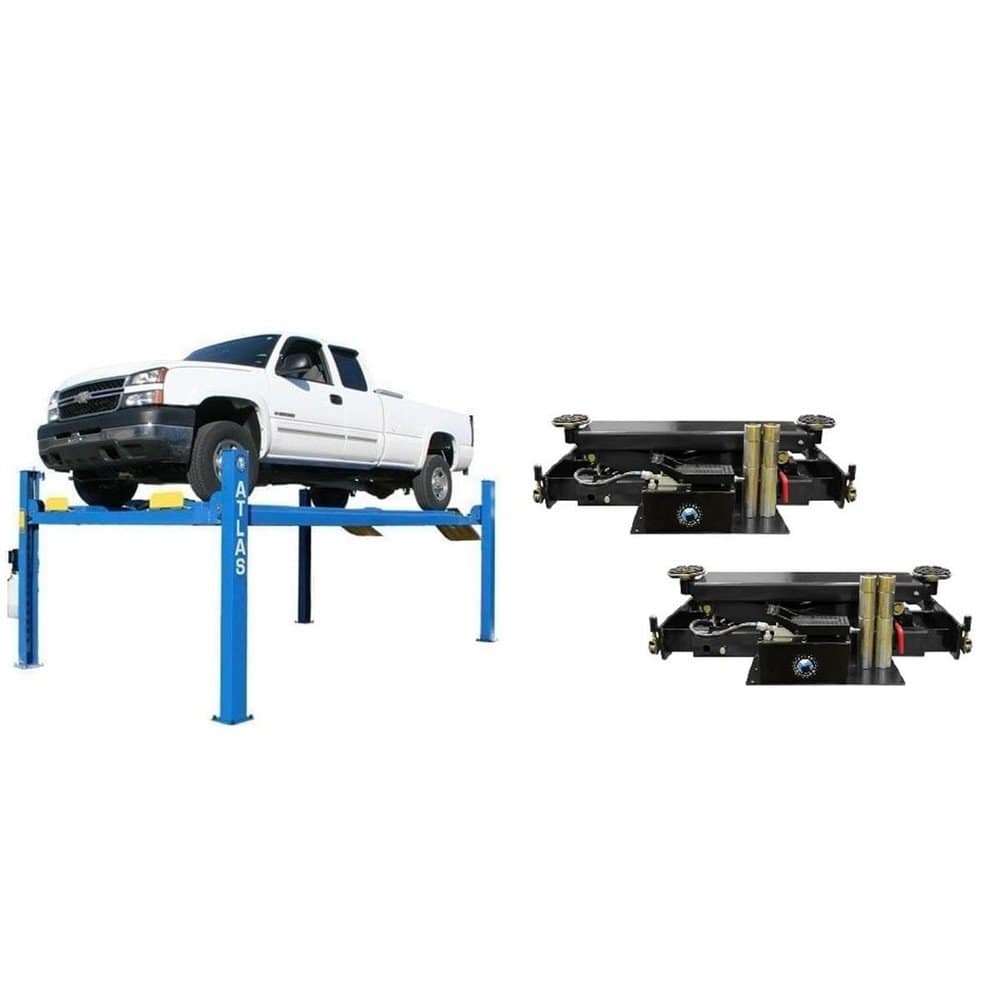

Atlas 414 14,000 lb. 4-Post Lift + RJ8 Rolling Jacks Combo

Name: Atlas 414 14,000 lb. 4-Post Lift + RJ8 Rolling Jacks Combo
Brand: Atlas
SKU: VE-7447
Price: 11049.00 USD
Availability: InStock

SKU VE-7447Condition New

$11,049.00

In stock — ships in 1–2 business days

The Atlas RJ8 is a 14,000-lb. four-post lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

Call 216-250-6666 Request this unit

Call with your VIN or tag number and we will confirm this listing fits before you pay.

Shipping: Freight, 3–6 business days
Returns: 45 days, by mail
Warranty: See warranty terms
Payment: Bank transfer, Zelle, Chime

Product details

Features and Benefits:

Combo Package includes 414 14,000 lb. Capacity lift & two RJ8 rolling jacks
Heavy Duty, Commercial Grade
Lift is Extra Tall, Extra Wide & Extra Long
Lift has Diamond Plated Runways

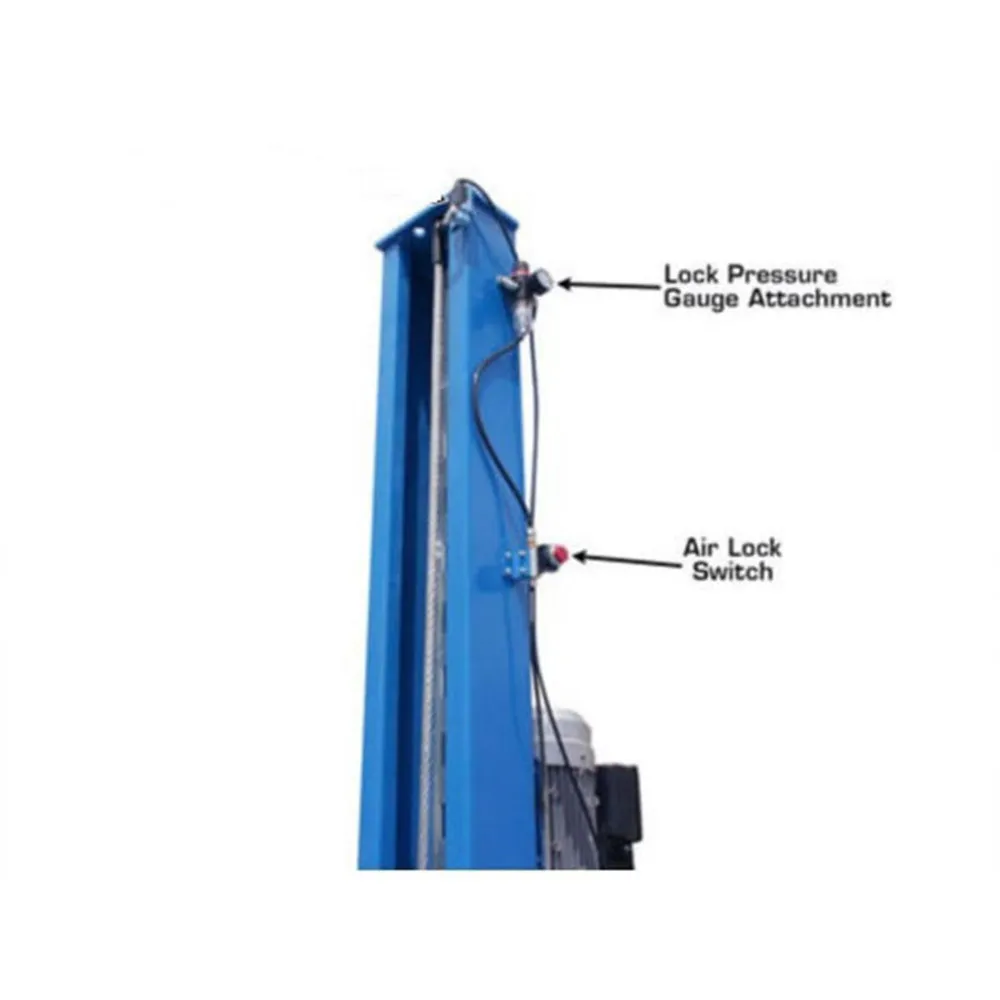

Lift has Air Operated Single Point Lock Release (External Air Supply Required - NOT INCLUDED)
Steel Approach Ramps Included
Additional Drive off Ramps Available (Sold Separately)
Runway Extensions Available (Sold Separately)

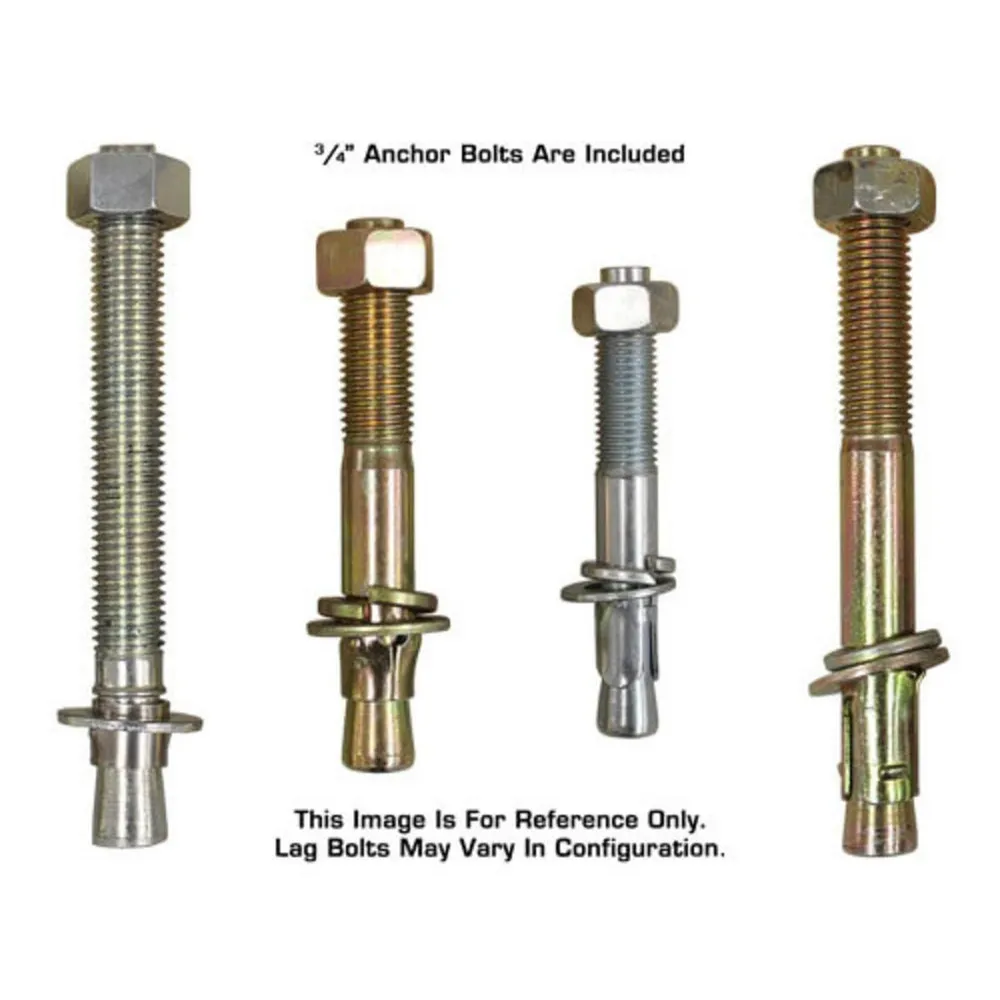

Mounting Hardware Included
Jacks are Air Over Hydraulic operated
Truck Adapter Set for each Jack Included
This part number FREIGHT PREPAID

Atlas® ATTD-414 Specifications

Capacity 14,000 lb.
Lifting Height 80" (6' 8")

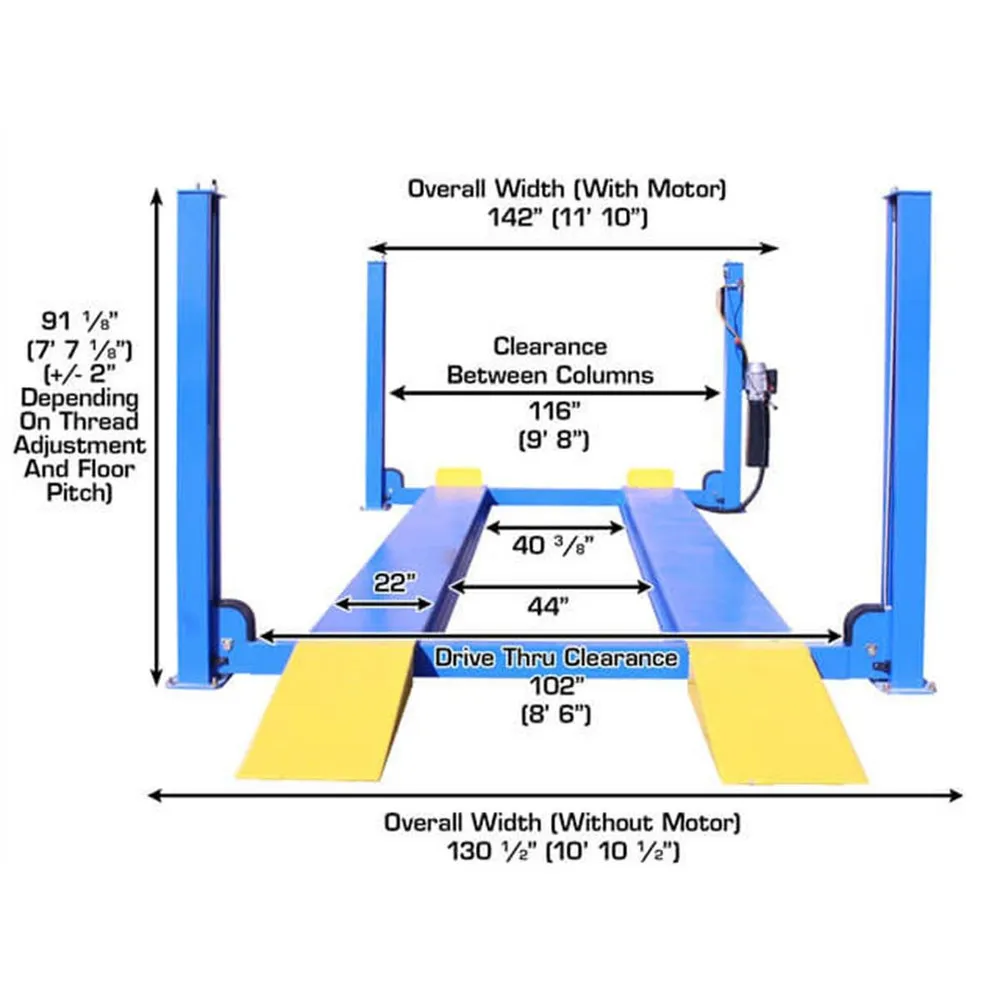

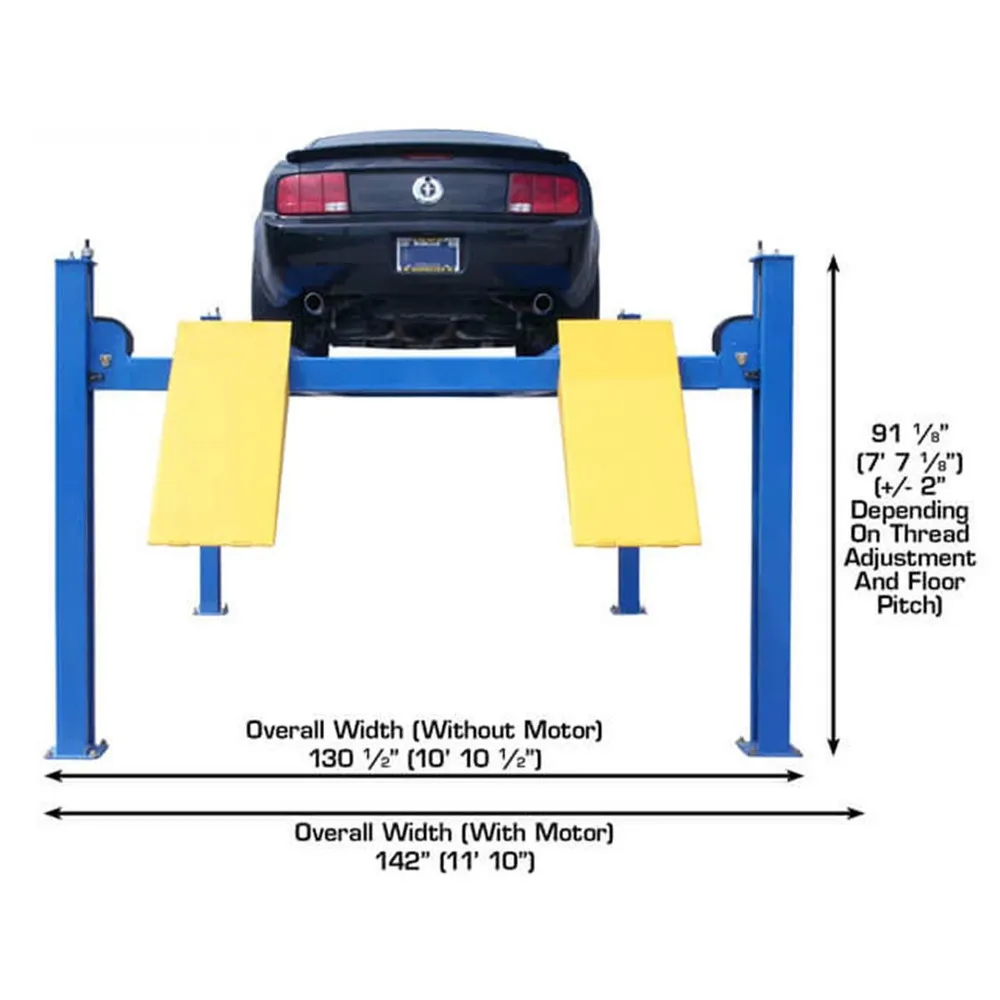

Overall Width Of Columns (Without Motor) 130 7/8" (10' 10 7/8")
Overall Width Of Columns (With Motor) 138 7/8" (11' 6 7/8")
Overall Length With Approach Ramp 255" (21' 3")
Length Between Columns 197 1/4" (16' 5 1/4")
Runway Length 208 5/8" (17' 4 5/8")
Runway Width 20"
Thickness Of Runway 8 3/4"

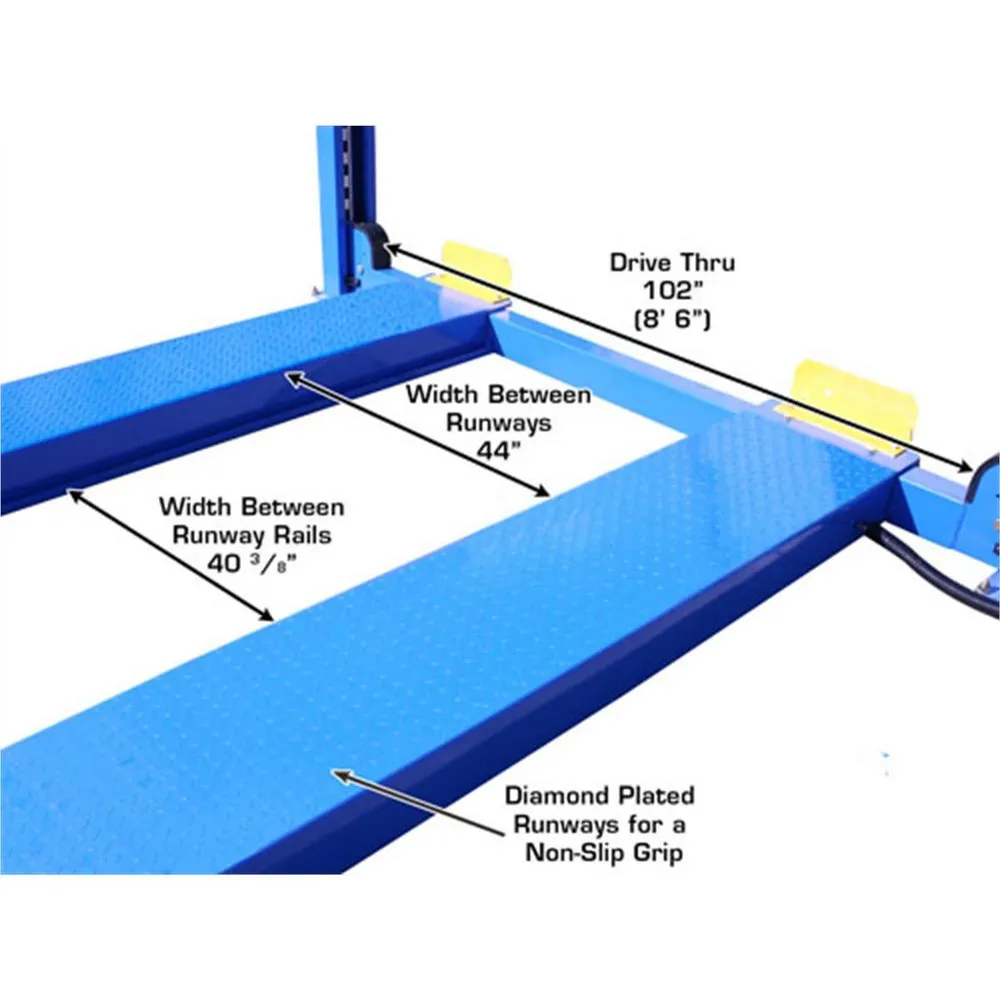

Width Between Runways 46 7/8" (w/ Rail 44 3/8")
Outside Runway To Outside Runway 86 7/8" (7' 2 7/8")

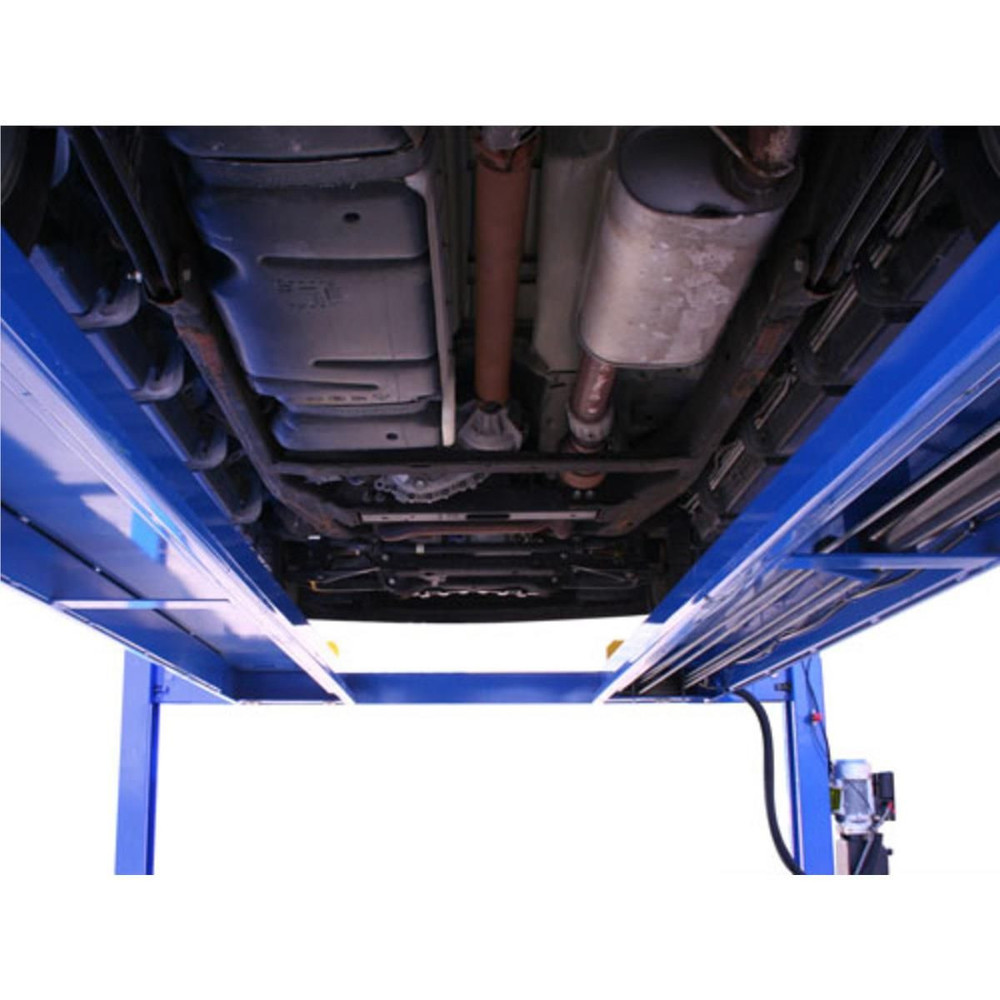

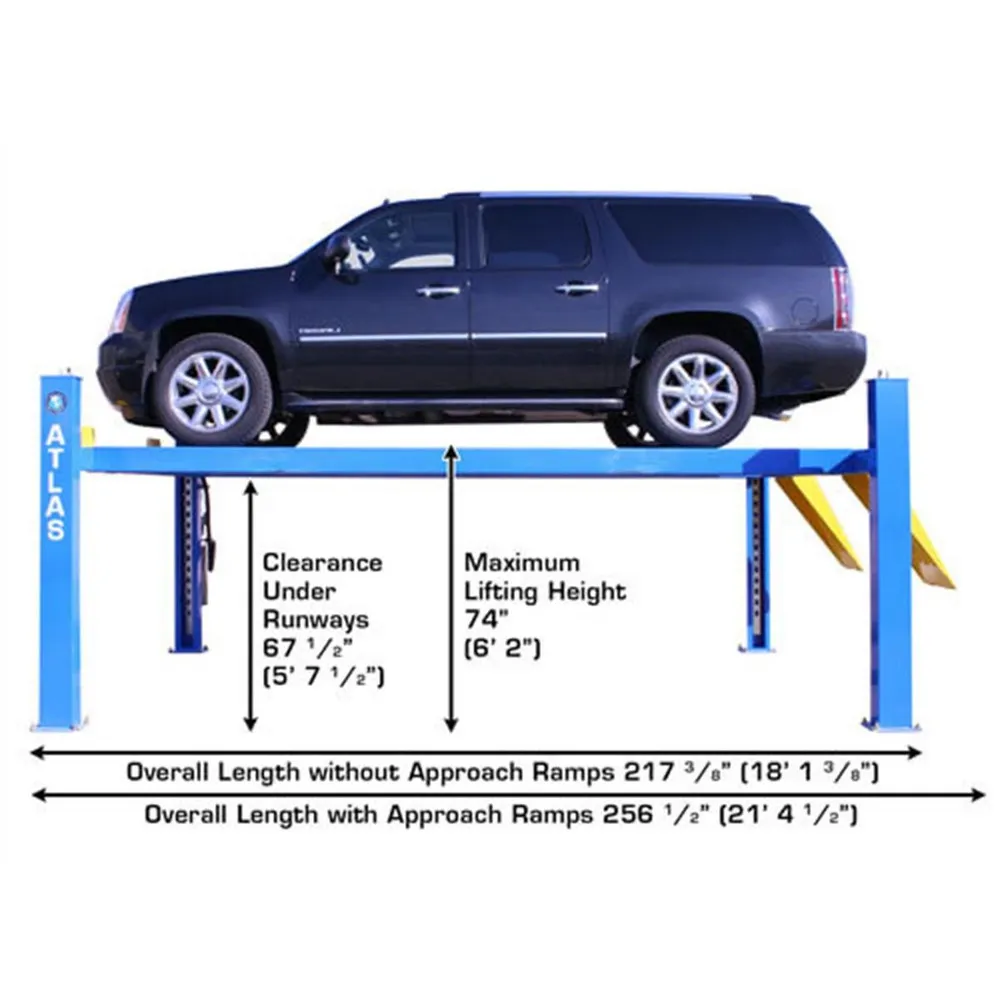

Clearance Under Runways 71 1/4" (5' 11 1/4")

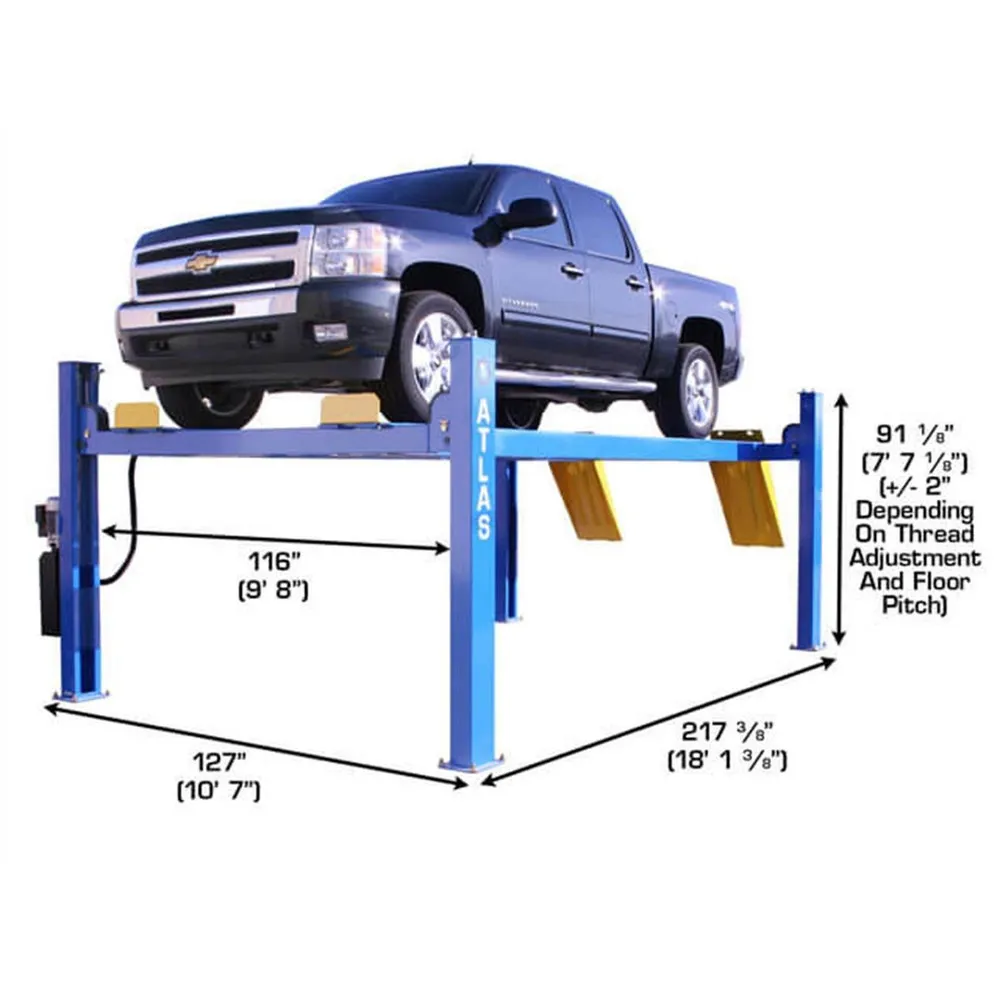

Clearance Between Columns 116" (9' 8")
Height Of Columns 91 1/8" (7' 7 1/8")
Maximum Wheel Base 197" (16' 5")
Drive Thru 102 1/8" (8' 6 1/8")
Air Requirement 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)

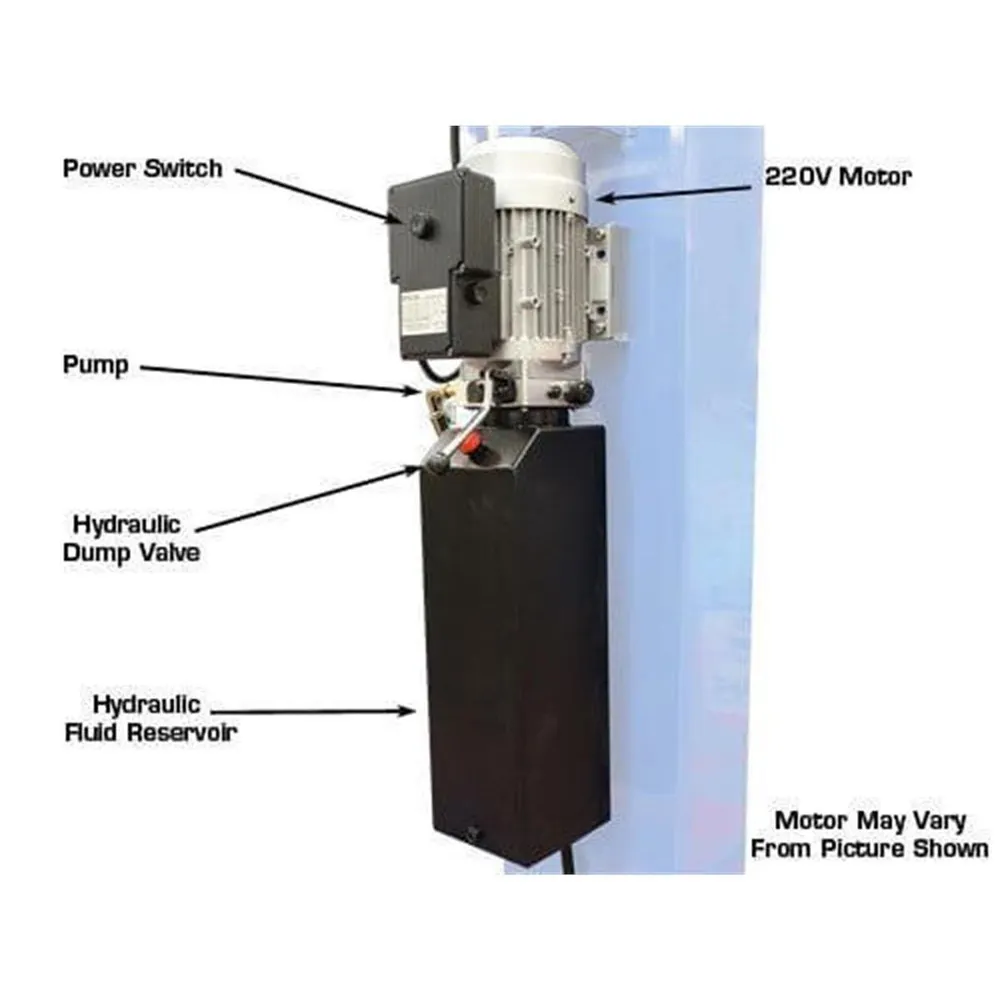

Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)

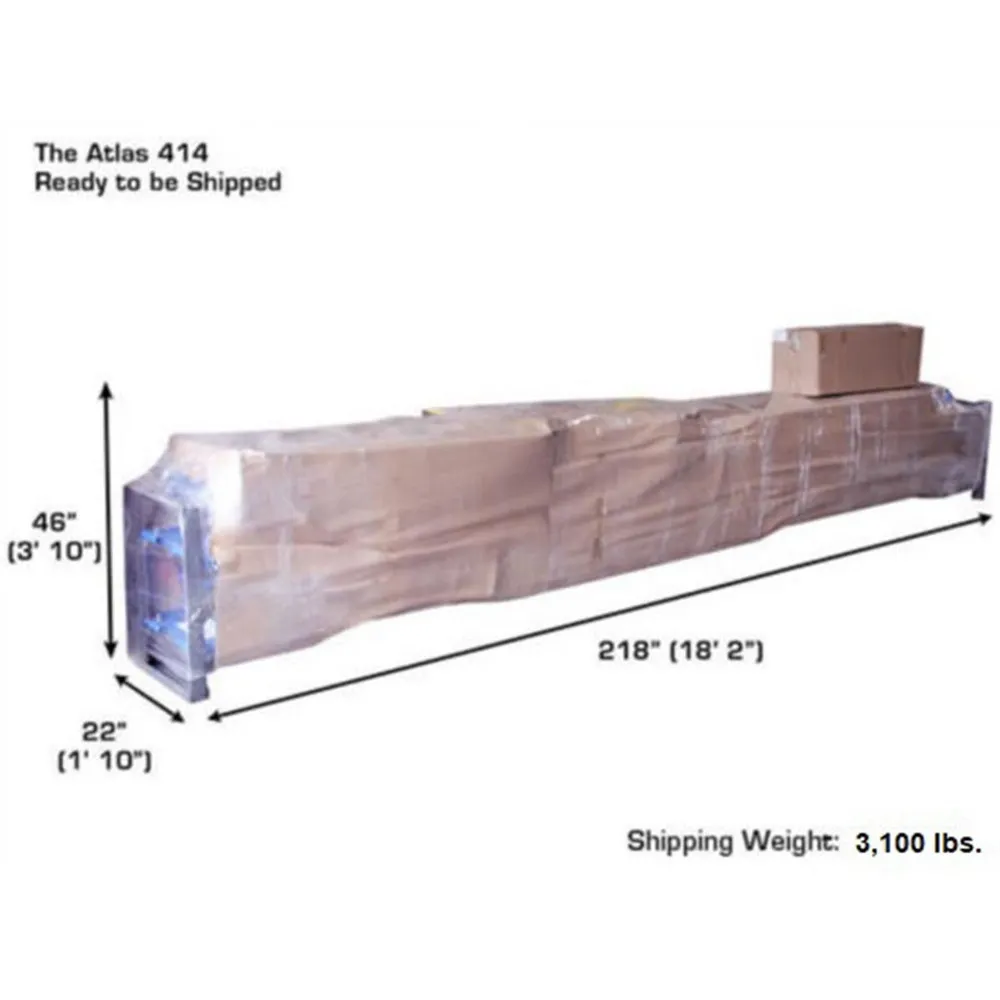

Shipping Weight 3,100 LBS.
Requires a minimum of 6" of concrete with a 3000 psi. rating

Atlas® RJ8000 Specifications

Maximum Capacity 8,000 lb.
Maximum Width 66 1/2" (5' 6 1/2")
Minimum Width 40" (3' 4")
Distance Between Runway Capability 34 1/2"-55"
Maximum Lifting Height (With Adapters) 30"
Air Requirement 70-115 PSI (External Air Supply Required - NOT INCLUDED)
Shipping Weight 390 lbs.
Adapter Heights 2 Each 2", 3"
Arm Hole/Adapter Peg Size 1.5"
