Atlas

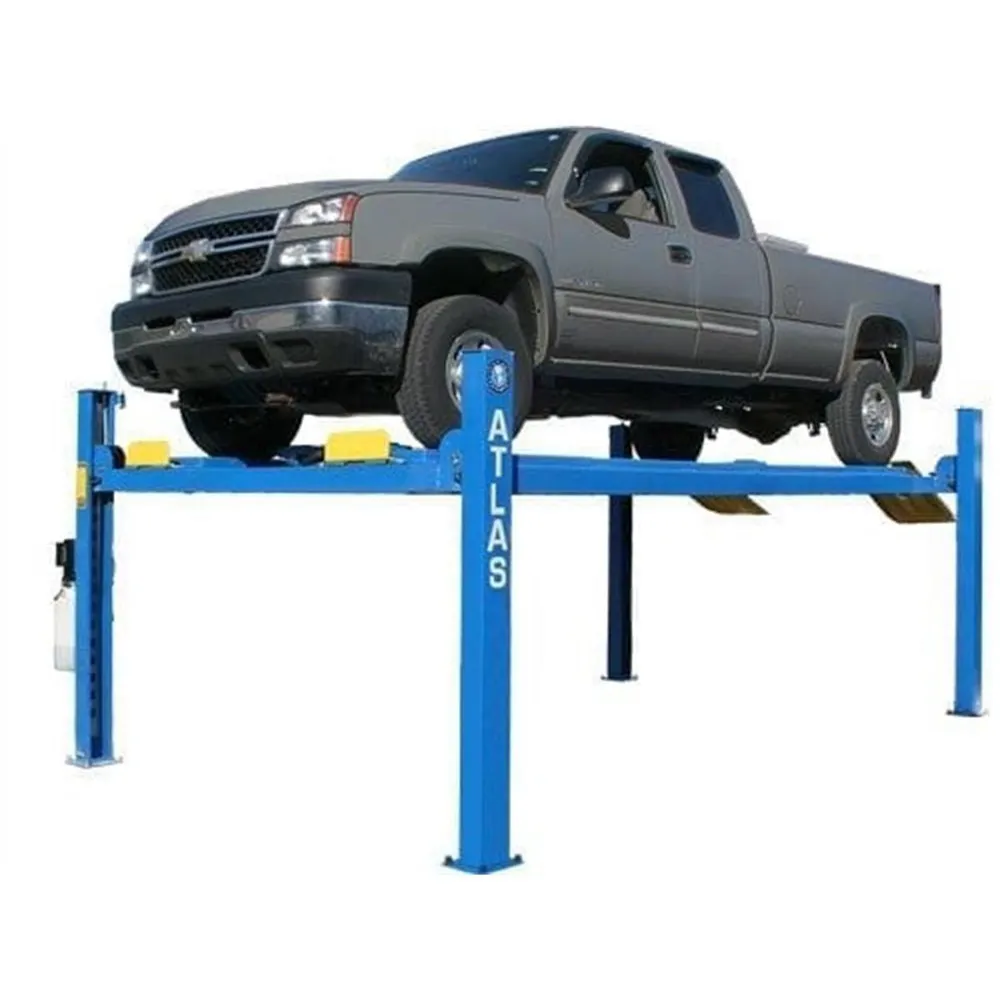

Atlas 412 Commercial Grade 12,000 lb. 4-Post Lift

SKU VE-7271Condition New

$7,049.00

In stock — ships in 1–2 business days

The Atlas 412 Commercial Grade 4-Post Lift is a 12,000-lb. four-post lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

Call 216-250-6666

Call with your VIN or tag number and we will confirm this listing fits before you pay.

Shipping: Freight, 3–6 business days
Returns: 45 days, by mail
Warranty: See warranty terms
Payment: Bank transfer, Zelle, Chime

Product details

Features and Benefits:

12,000 lb. Capacity
Heavy Duty, Commercial Grade
Extra Tall, Extra Wide & Extra Long
Diamond Plated Runways

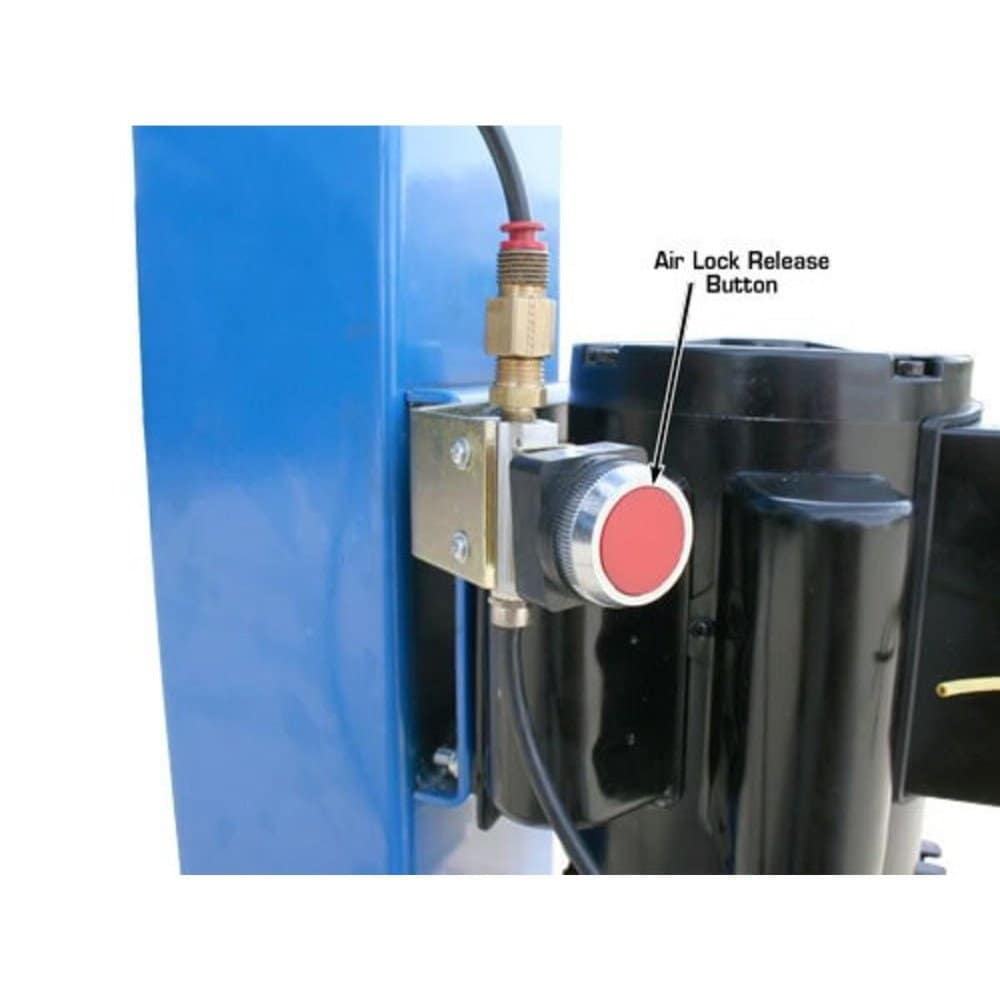

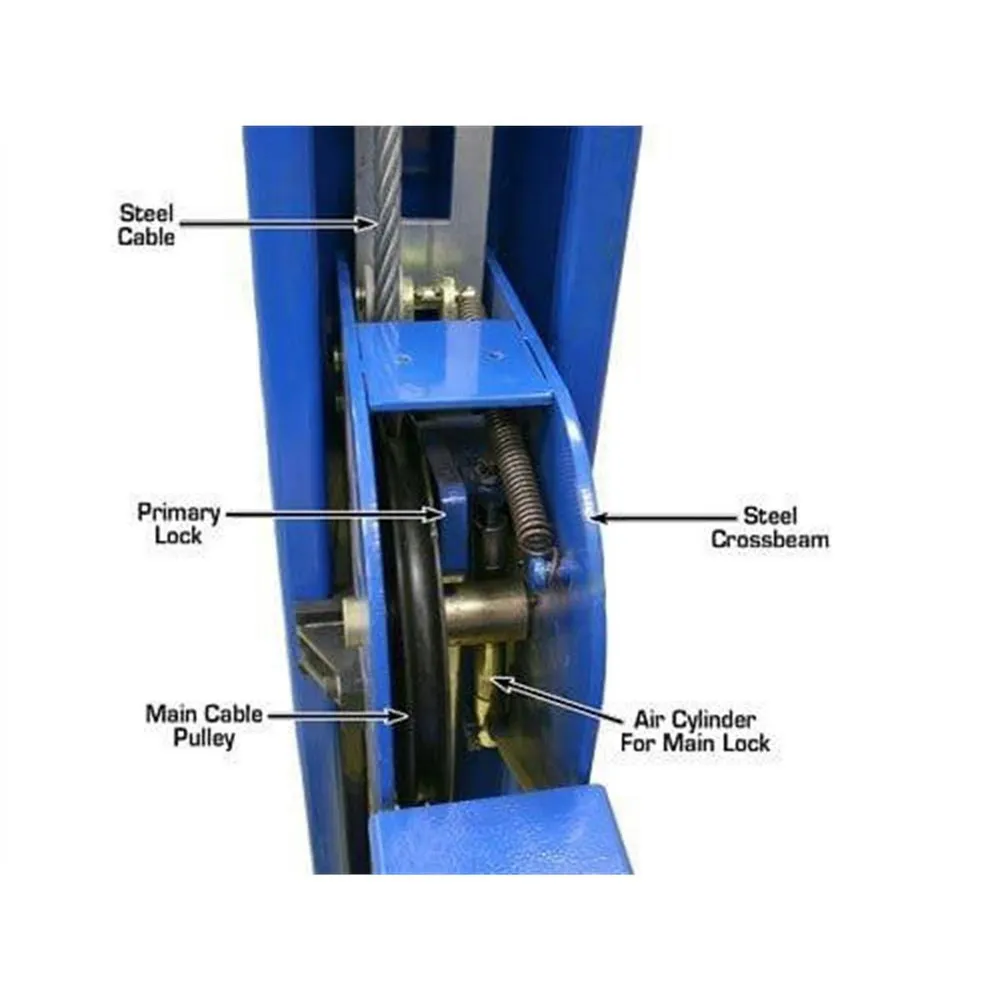

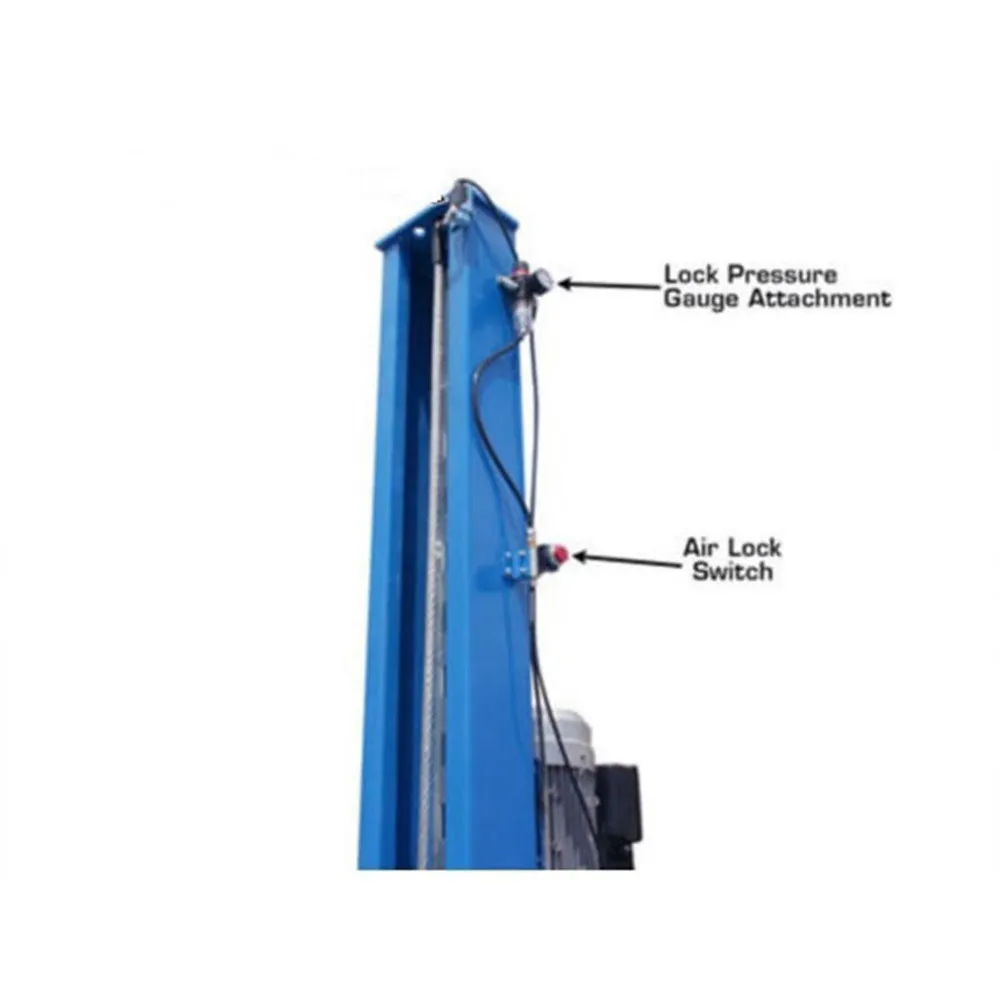

Air Operated Single Point Lock Release (External Air Supply Required - NOT INCLUDED)
Lock Ladder Design
Double Lock Safety System
Powder Coat Finish

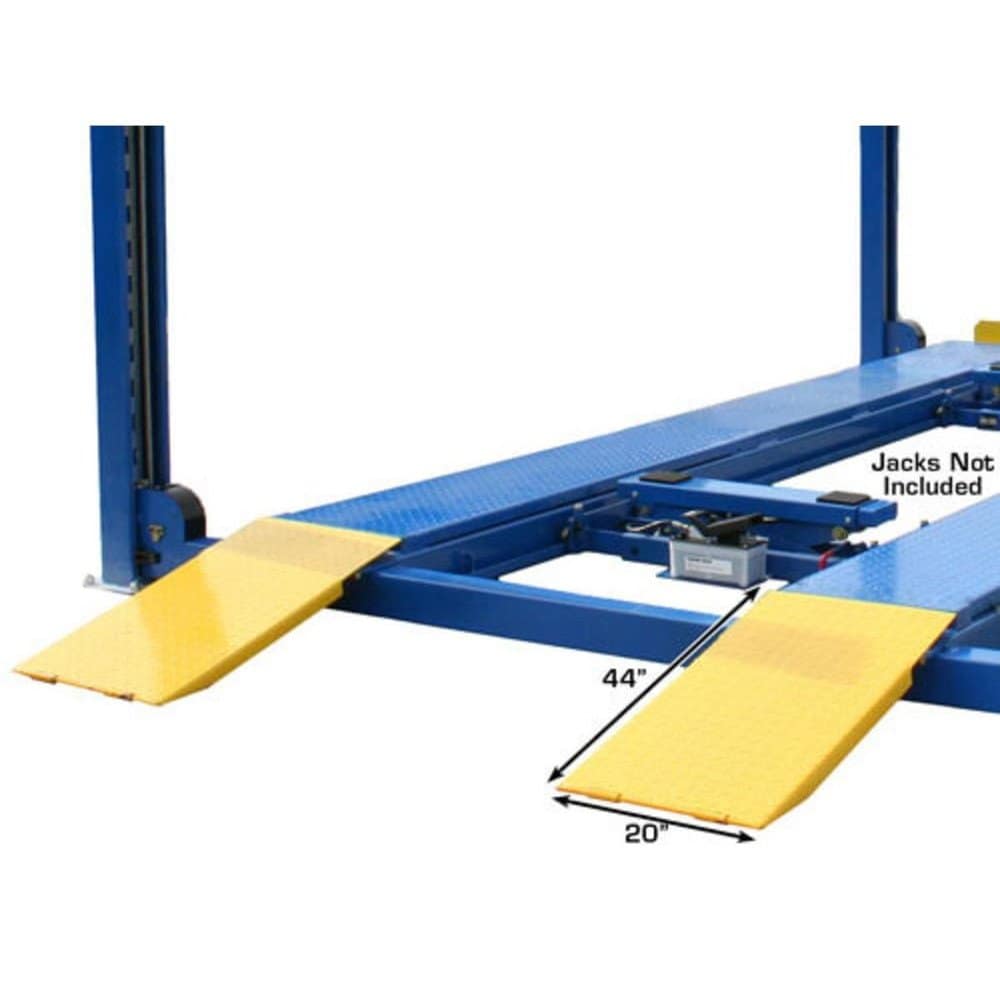

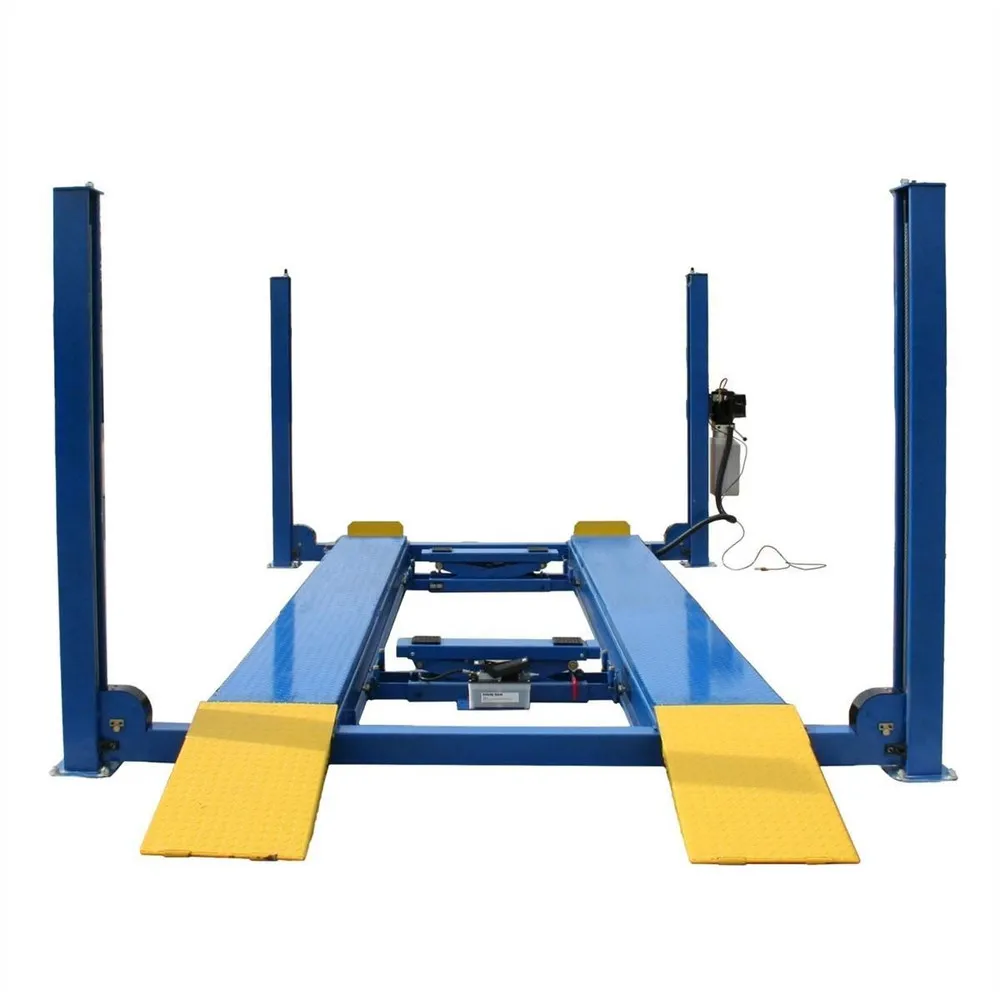

Steel Approach Ramps Included
Additional Drive off Ramps Available (Sold Separately)
Runway Extensions Available (Sold Separately)

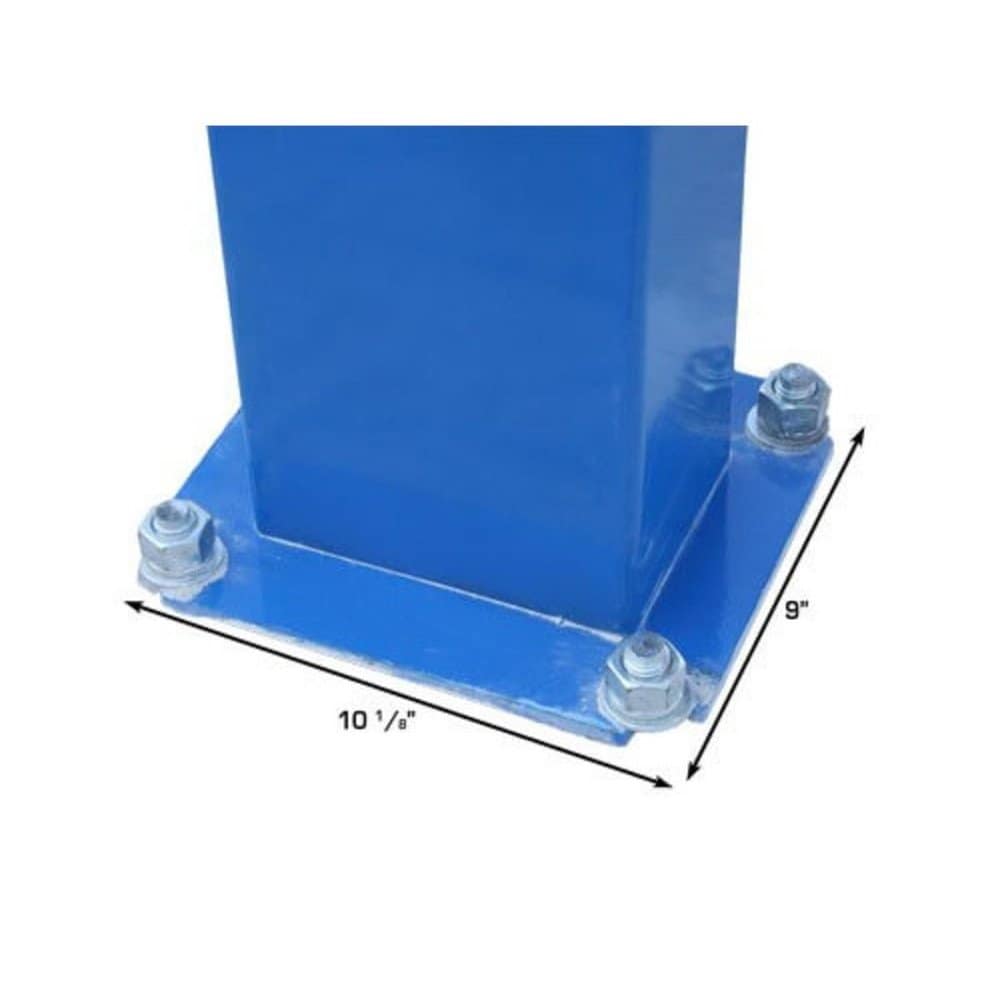

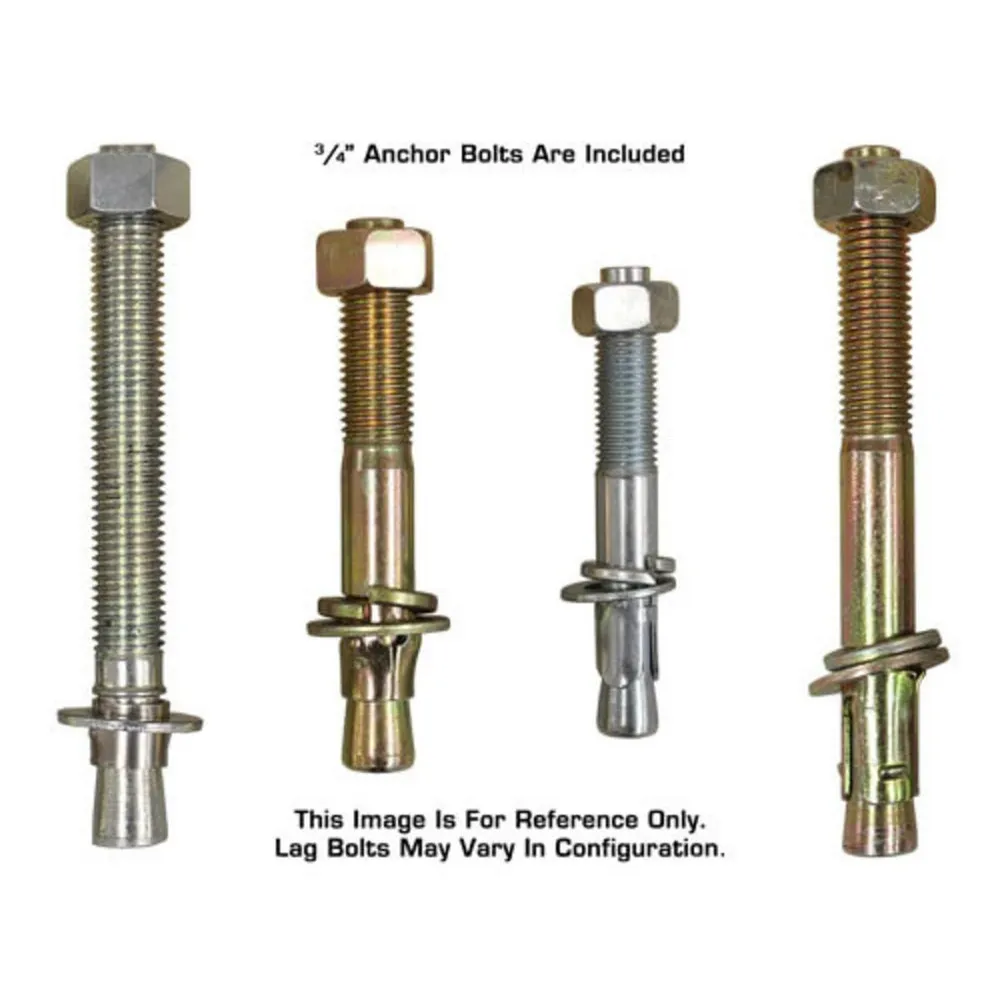

Mounting Hardware Included

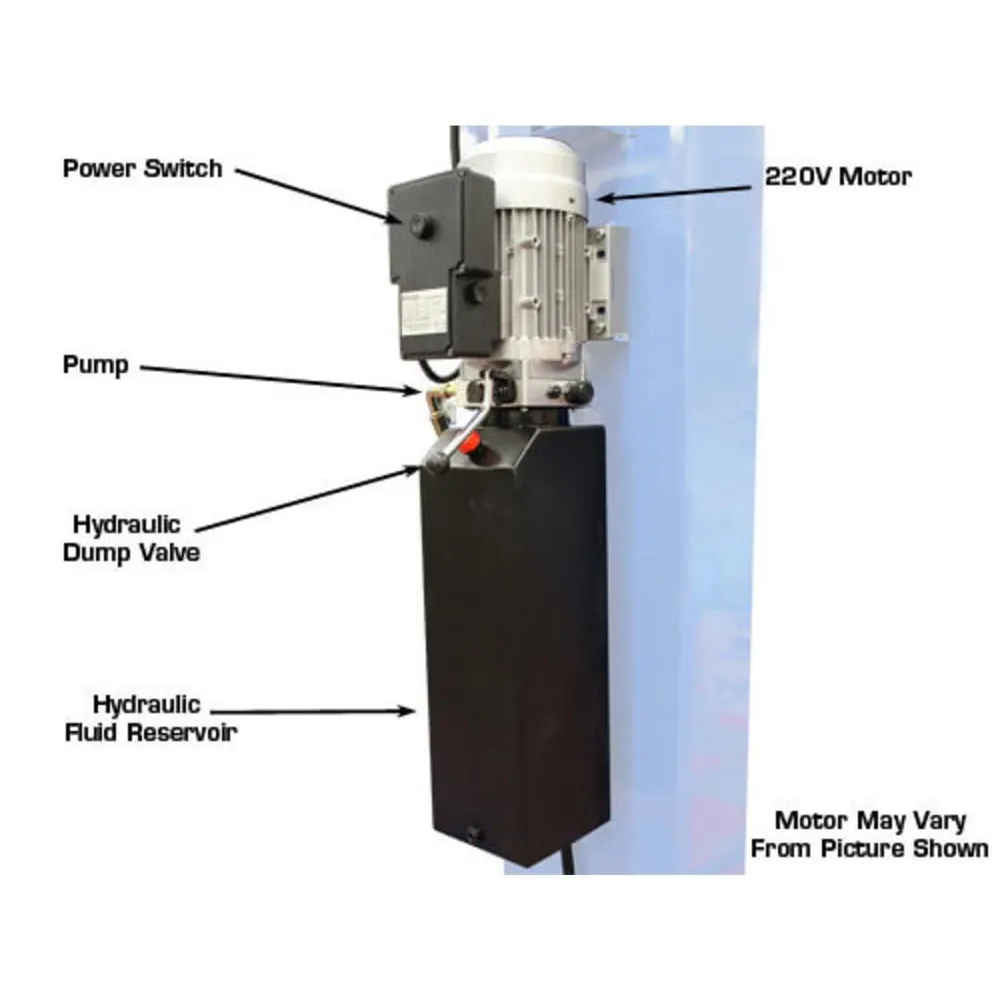

220volt/1phase Electric Operation (Requires a 30amp Breaker)

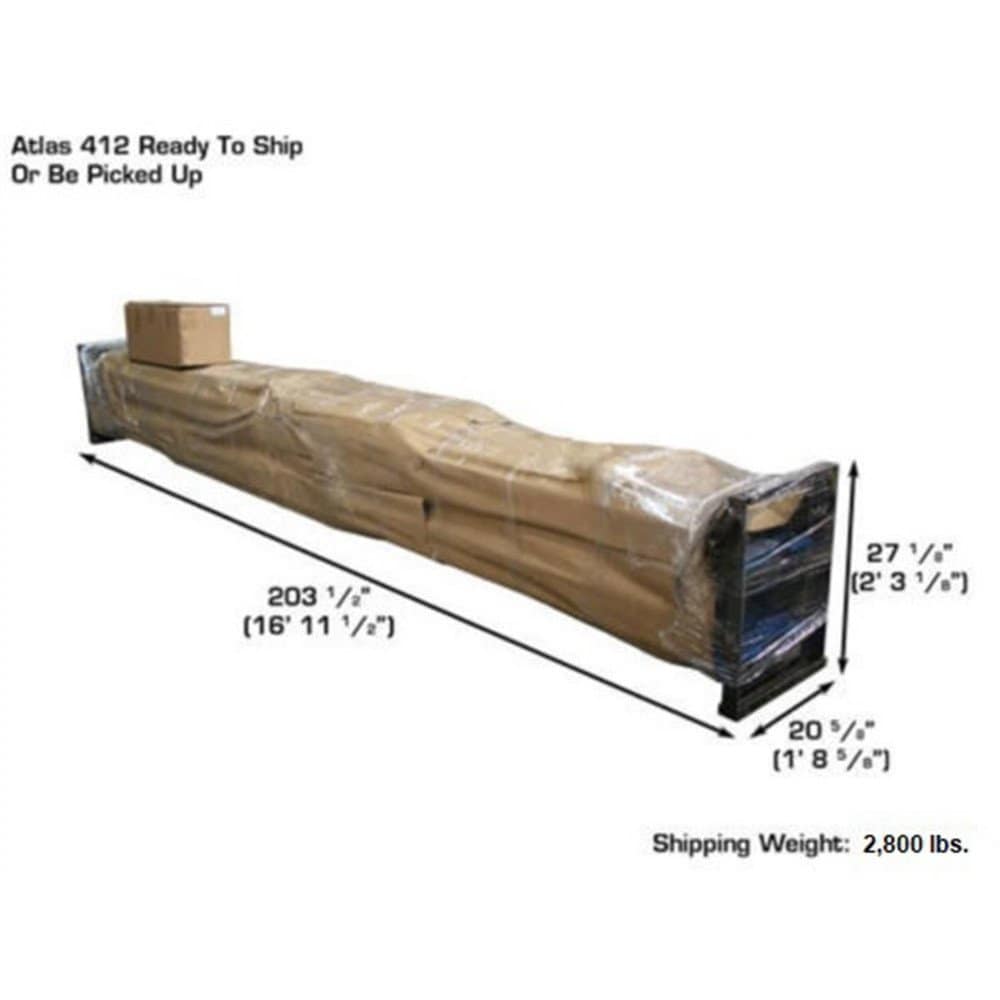

Shipping Weight: 2,800 lbs.
5 yr Structural – 2 yr Hydraulic Warranty – Parts Only
This part number FREIGHT PREPAID

Atlas® ATTD-412 Specifications

Capacity 12,000 lb.

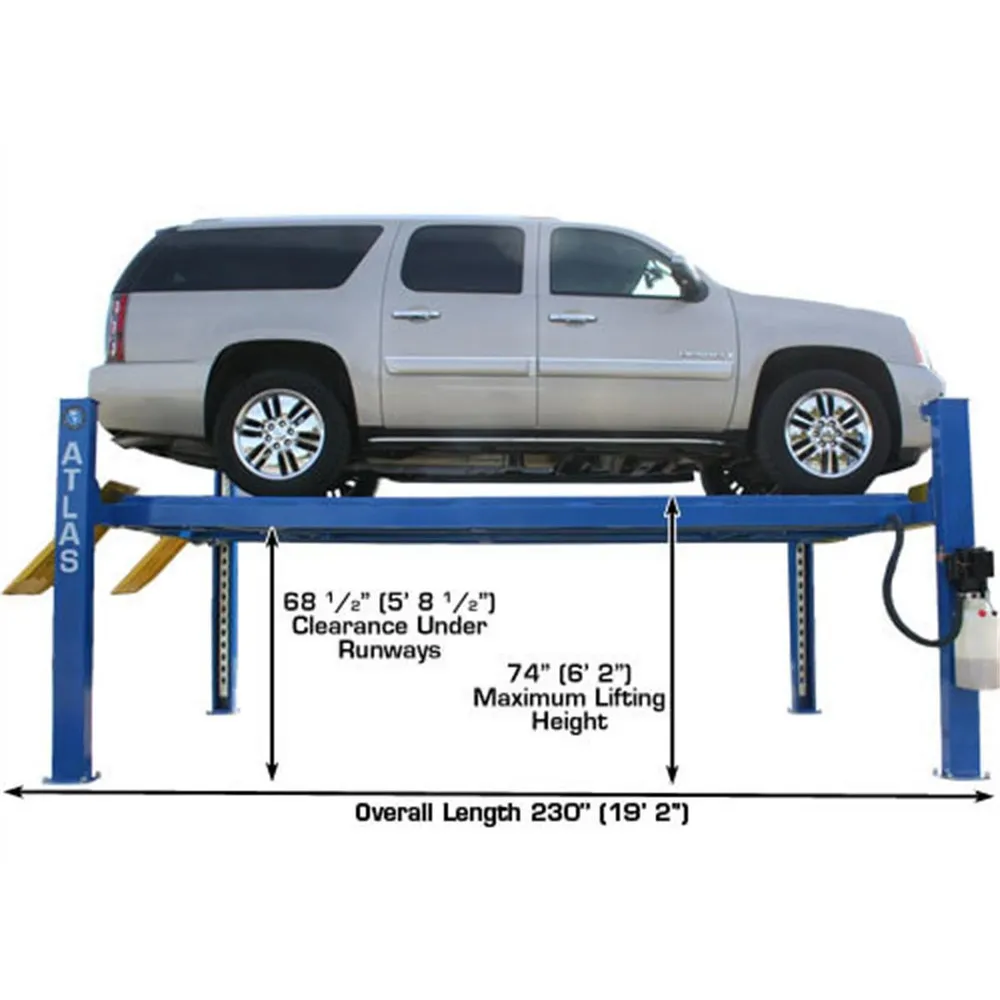

Lifting Height 77 3/4" (6' 5 3/4")

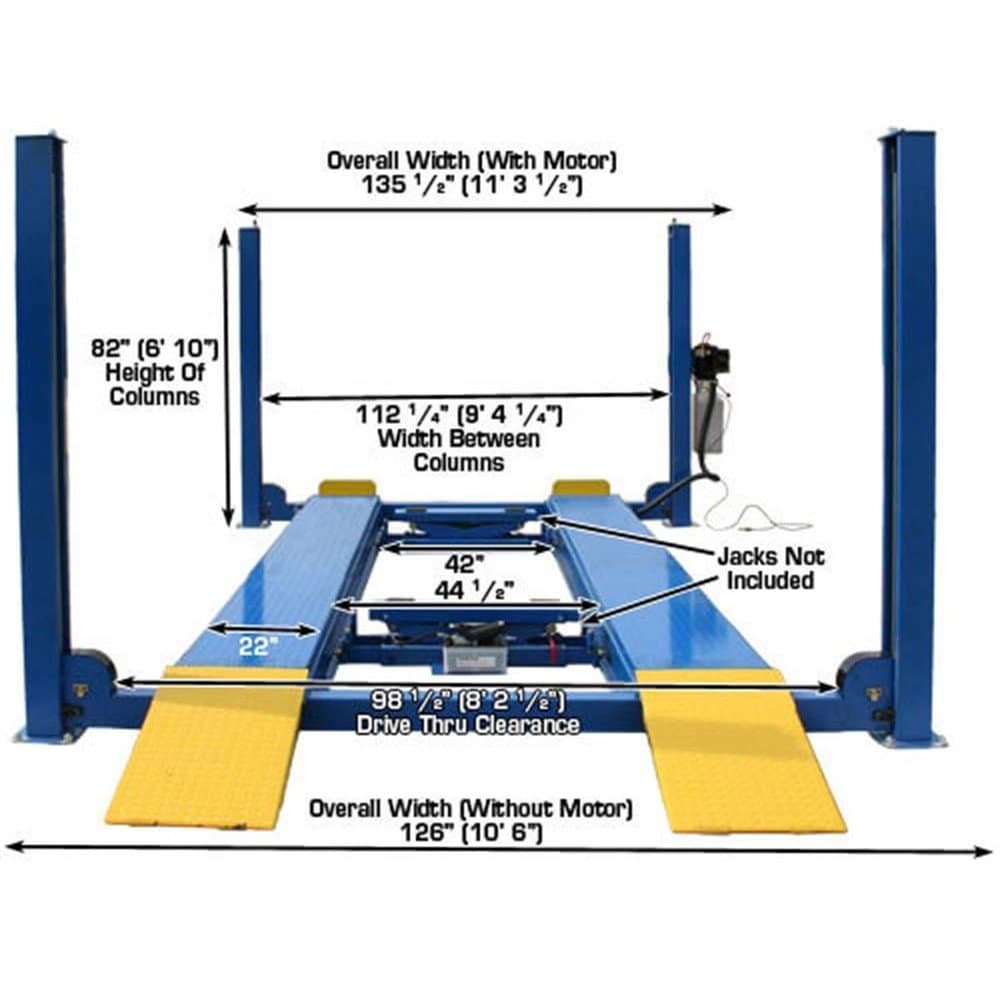

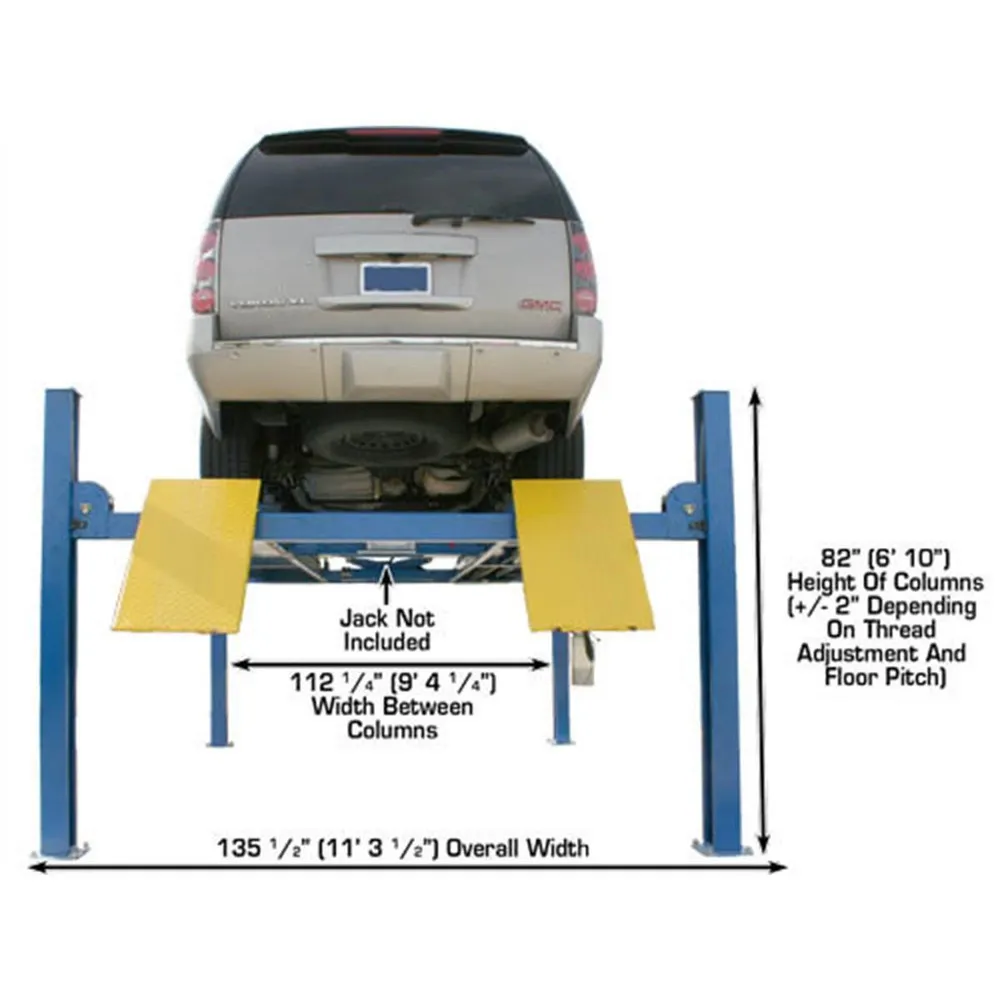

Overall Width Of Columns (Without Motor) 126 1/4" (10' 6 1/4")
Overall Width Of Columns (With Motor) 135 1/4" (11' 3 1/4")

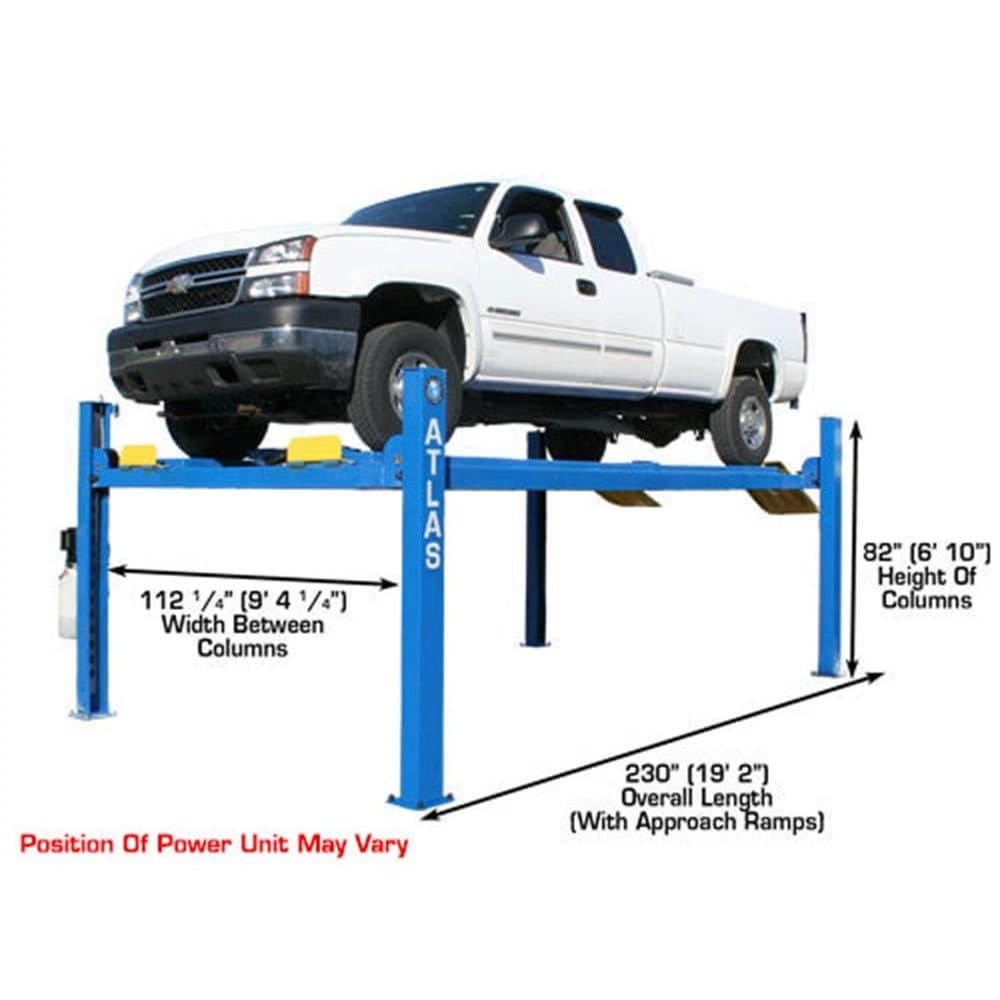

Overall Length With Approach Ramp 236 1/2" (19' 8 1/2")
Length Between Columns 183 1/4" (15' 3 1/4")
Runway Length 194 1/2" (16' 2 1/2")
Runway Width 20"
Thickness Of Runway 7 1/2"
Width Between Runways 43 1/4" (w/ Rail 39 3/4")
Outside Runway To Outside Runway 83 1/4" (6' 11 1/4")

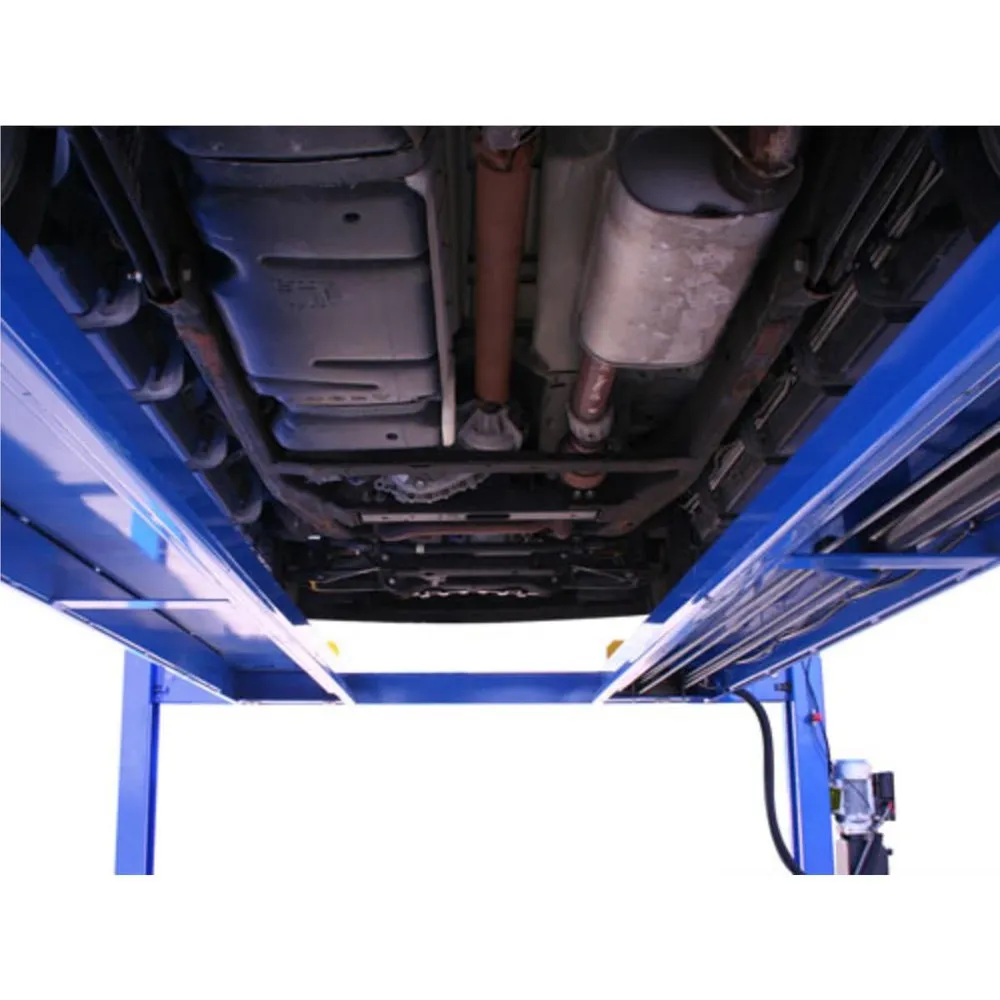

Clearance Under Runways 70 1/4" (5' 10 1/4")
Clearance Between Columns 112 5/8" (9' 4 5/8")
Height Of Columns 89 3/4" (7' 5 3/4")
Maximum Wheel Base 185" (15' 5")
Drive Thru 98" (8' 2")
Air Requirement 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight 2,800 LBS.
Requires a minimum of 6" of concrete with a 3000 psi. rating
