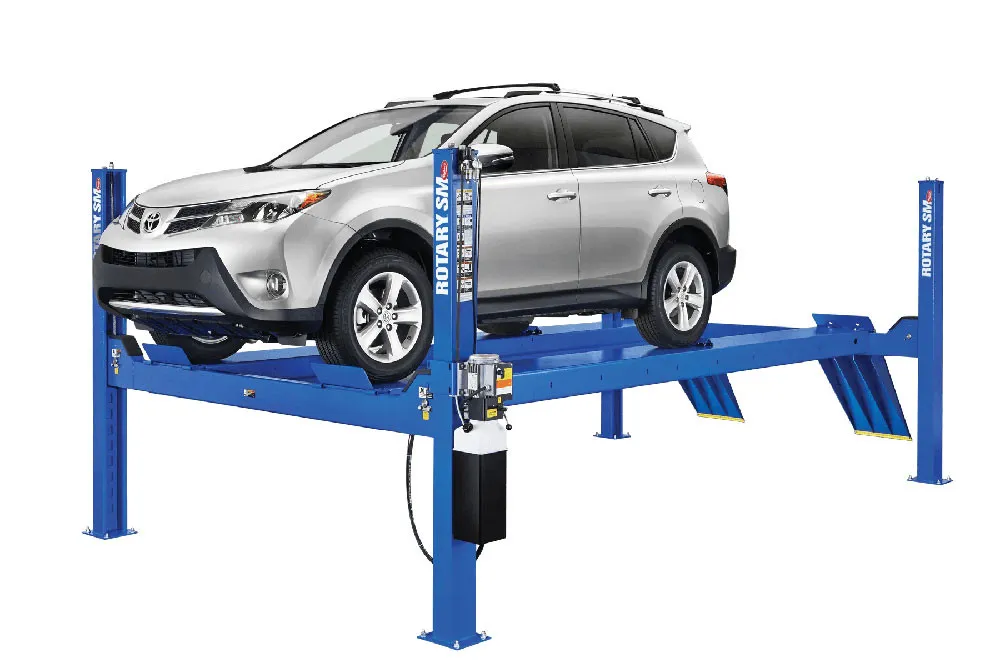

Rotary SM14 14,000 lb ALI Certified Four-Post Closed-Front Lift
$10,725.00
The Rotary SM14 is a 14,000-lb. ALI Certified four-post lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.
Description
Shop the Rotary SM14 14,000 lb ALI Certified Four-Post Closed-Front Lift at Variety Engines — every unit is carefully inspected, warrantied, and ready to ship fast across the US.
- Dual-Function Sentinel Lock™
All Rotary four-post lifts feature our patented Dual-Function Sentinel Lock system, which features a slack cable guide arm that rides with the cable and stays “on guard” to manage the lock latch should there ever be an unforeseen cable issue.
- Single Piece 20” Runways
- Available with SHOCKWAVE™ Power
- Air Operated Lock Release
- Adjustable Lock Ladders Keep Lift Level
- Louvered Ramps with Polymer Rollers
- Air Filter / Regulator / Lubricator
- Powder-Coated Hammer Tone Paint
- Converts to a Drive-Thru Lift
- Rolling Jacks Sold Separately
Product Specifications
| Model | SM14-L | SM14-EL |
|---|---|---|
| Max Wheelbase | 182″ | 215″ |
| Rise Height | 78 3/4″ | 78 3/4″ |
| Length Overall | 20’10” | 23’7″ |
| Width Overall** | 10′ 11 3/4″ | 10′ 11 3/4″ |
| Inside of Columns** | 116 1/4″ | 116 1/4″ |
| Between Front and Rear Columns | 195 1/4″ | 228 1/4″ |
| Height of Columns | 7′ 6 1/2″ | 7′ 6 1/2″ |
| Width of Runways | 20″ | 20″ |
| Height of Runways | 7″ | 7″ |
| Width Between Runways | 43″-46″ | 43″-46″ |
| Lifting Capacity | 14,000 lbs. | 14,000 lbs. |
| Motor | 2 HP | 2 HP |
| Motor Shockwave | 5 HP | 5 HP |
| Batteries Not Included | 2 Standard Group 24 | 2 Standard Group 24 |
| Voltage Single Phase | 208v-230v | 208v-230v |
| Voltage with Shockwave | 110v | 110v |
| Time of Full Rise | 65 seconds | 65 seconds |
| Full Rise/Descent Shockwave*** | 35 secs./18 secs. | 35 secs./18 secs. |
| Min. Bay Size | 15’x26′ | 15’x28′ |
| * Maximum wheelbase is based on a tire diameter of 29 1/2″ ** Narrow bay models available. Consult factory for min. bay size before ordering *** Actual rise and descent times may vary depending on weight of the vehicle. |
||
About the Rotary SM14 14,000 lb ALI Certified Four-Post Closed-Front Lift
This unit is quality-tested and ready to install. Browse more Four Post Lifts, or contact our team with your VIN for fitment help — with fast, tracked shipping on every order.
