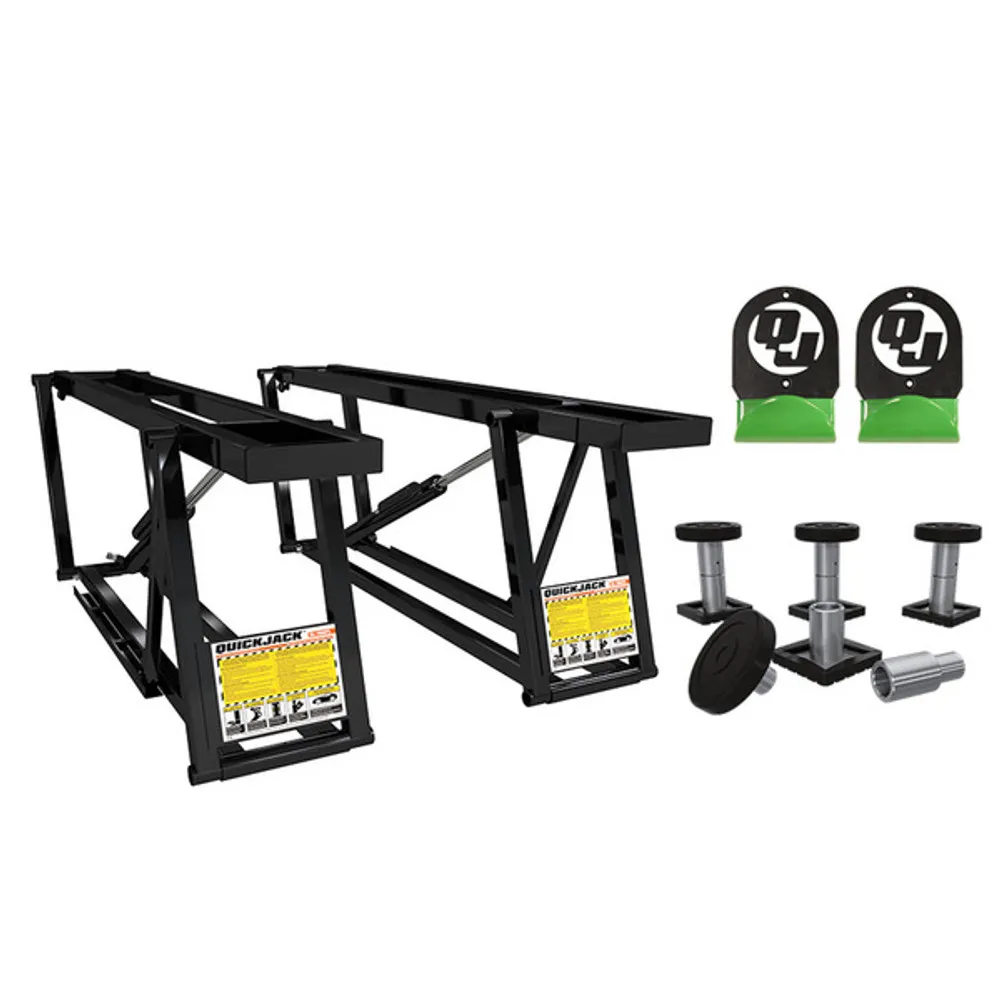

QuickJack Package (1) 7000TL-110V + (1) Wall Hangers Set + (1) SUV Adapter Set
QuickJack Package (1) 7000TL-110V + (1) Wall Hangers Set + (1) SUV Adapter Set

QuickJack Package (1) 7000TL-110V + (1) Wall Hangers Set + (1) SUV Adapter Set

$2,275.00

The QuickJack Package (1) 7000TL-110V + (1) Wall Hangers Set + (1) SUV Adapter Set is a portable car lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

In Stock
Category:
Brand:

Description

7000TL Portable Light Duty Truck and Passenger Car Lift System

QuickJack has developed the 7000TL to be capable of getting trucks and SUV tires completely off the ground. By utilizing the optional light truck and SUV Adapters, the 7000TL portable car lift delivers more room to allow you to tackle every repair and maintenance task on vehicles, and SUVs weighing up to 7,000 lbs.

Through intelligent engineering and design, QuickJack has been able to produce an extra 3-inches of lifting height without having to make any sacrifices on the overall dimensions that made QuickJack the must-have tool in your garage. 7000TL still has an impressive 3.5” lowered height, 70.75” overall length, and 12.5” overall width.

What is the Warranty Period on the TL Models?

The TL models all include a 1-year warranty on equipment structure and operating components. For added peace of mind, you can also purchase an optional 2-year extended warranty.

Features

7000TL

  • Automatic safety locks
  • Increased lifting height
  • One-handed operation
  • Accessories to increase versatility

Wall Hangers

  • Sold in sets of two
  • NEW! Now in powder-coated black!
  • One size fits all QuickJack models
  • Over-engineered to 150% rated capacity
  • Solid-steel construction
  • Sleek, laser-cut QuickJack logo design
  • Designed and engineered by QuickJack

SUV Adapters

  • Features removable stacking pin
  • Gain additional 6″ lifting height
  • High-quality, rugged lifting Tuf-Pads™ by BendPak provide exceptional grip
  • Fast assembly/disassembly & transport
  • Set of (4) takes up minimal space for easy storage
  • Fits all QuickJack portable car lift models (except BL-3500SLX)

Specifications

Lifting Capacity

Capacity 7,000 lbs. (3,175 kg)

Lowered Height

A – Frame only: 3.5″ (89 mm)
B – With 2″ block: 4″ (102mm)

Lifting Height

D – With 2″ block: 21.5″ (546 mm)
E – With 3″ block: 22.5″ (572 mm)
F – Max. height: 24.5″ (622 mm)
G – With adapters: 24.25″ (610 mm)
H – With adapters + pin: 27″ (686 mm)

Lift Point Spread

I – Maximum: 60″ (1,524 mm)
J – Minimum: 37″ (940 mm)

Frame dimensions (ea.)

K – Width: 12.5″ (318 mm)
L – Length: 70.75″ (1,797 mm)
A – Height: 3.5″ (89 mm)
Weight: 98 lbs. (45 kg)

Other Spec

Power/Voltage 110V, 60HZ, 1PH
Time to full rise: 30 seconds
Power unit weight: 30 lbs. (13 kg)
Shipping Dimensions (ea. Frame): 74″ (L) x 17″ (W) x 6″ (H) (1,880 mm x 432 mm x 153 mm)
Shipping weight: 350 lbs. (159 kg)

Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Portable Car Lifts.
