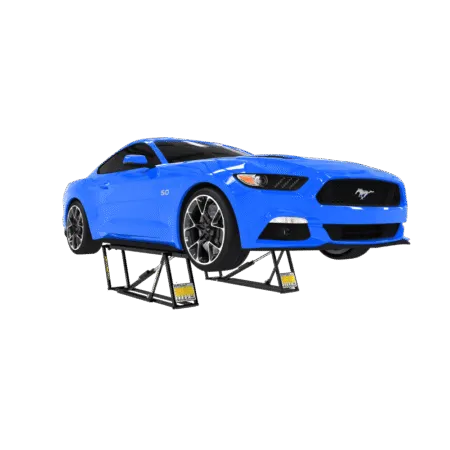

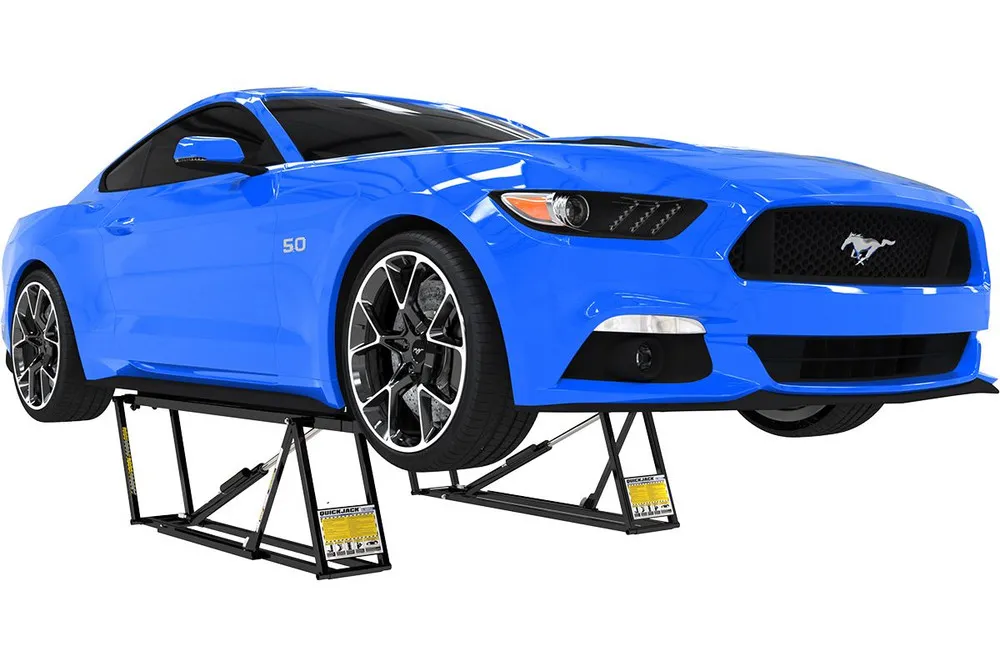

QuickJack 5000TLX 5,000 Lb. Capacity Extended Portable Car Lift
$1,950.00
The QuickJack 5000TLX Capacity Extended Portable Car Lift is a 5,000-lb. portable extended portable car lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.
Description
EXTENDED-LENGTH car lift design
The 5000TLX portable car lift has been redesigned to accommodate vehicles with longer wheelbases. We’ve increased the overall frame length and lift point spread by 6″. As a result, the minimum lift point spread is now 6″ longer, as well. Our new portable car lift design better accommodates longer wheelbases and/or extended lift point spreads.
TL minimum lift point spread: 37″
TLX minimum lift point spread: 43″
TL maximum lift point spread: 60″
TLX maximum lift point spread: 66″
TL overall frame length: 70″
TLX overall frame length: 76″

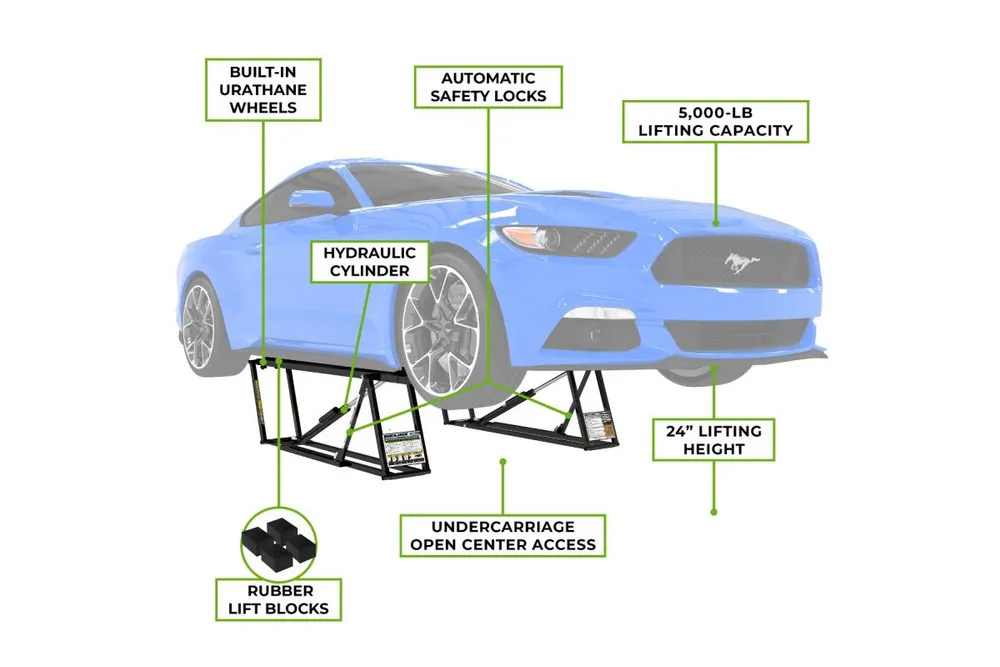

Features
Automatic safety locks
Features dual-position automatic safety locks on each TL frame. As the frames rise, these locks glide securely into place at mid-rise and full-rise. Disengage with a simple flip of the lock bar and your car lift is ready for a smooth descent.
Increased lifting height
QuickJack TL models are capable of lifting an extra 3-inches making it easier to perform vehicle maintenance tasks that are both routine and more involved. The extra room gives you more ability and versatility under the vehicle, while doing so in added comfort.

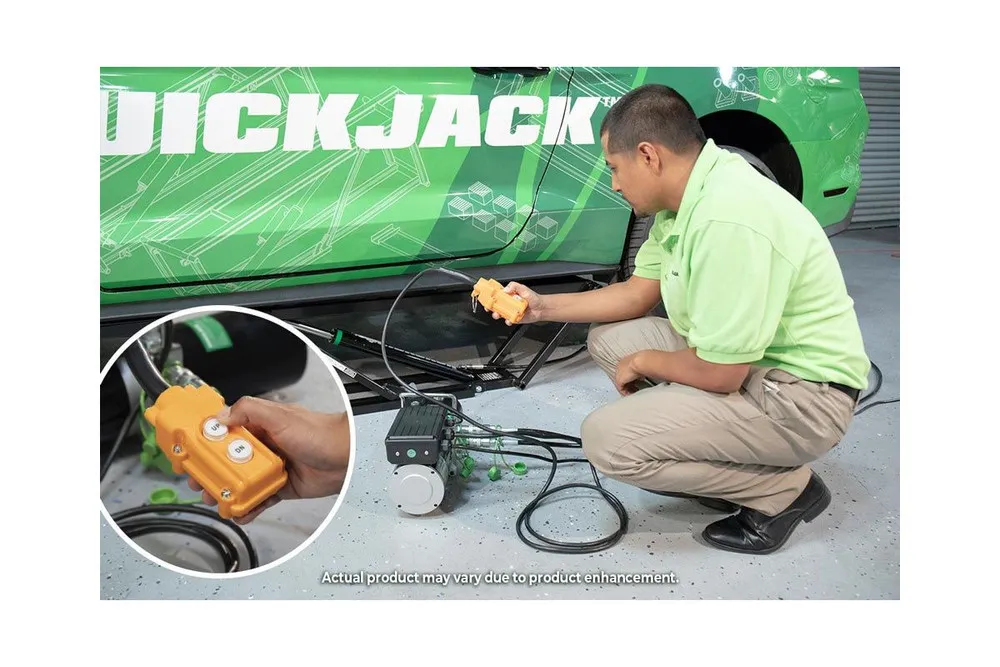

One-handed operation
By holding the pendant control in one hand, your other hand is totally free. No cranking or bending during lifting.
Accessories to increase versatility
Most QuickJack accessories were developed from customer suggestion and need. We offer many different lifting options and configurations to customize your QuickJack experience to fit your needs and specifications.
Tech specs
Lifting capacity
Lowered height
Lifting height
Lift point spread
Frame dimensions (ea.)
Other specs
79.5″ (L) x 15.25″ (W) x 5″ (H)
(2,015 mm x 385 mm x 129 mm)
What’s inside?
5000TLX Left Frame Assembly
5000TLX Right Frame Assembly
1x Hydraulic power unit with control
4x Medium rubber lift blocks (2″)
4x Tall rubber lift blocks (3″)
2x Short hydraulic hoses
2x Long hydraulic hoses
2x Frame-positioning handles
Fittings and thread tape for setup
Instruction manual
Requirements:
Up to 3 liters of Automatic Transmission Fluid
Air source to inflate air cylinders up to 50 PSI
Assembly tools
Note: QuickJack is shipped in three boxes
Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Portable Car Lifts.
