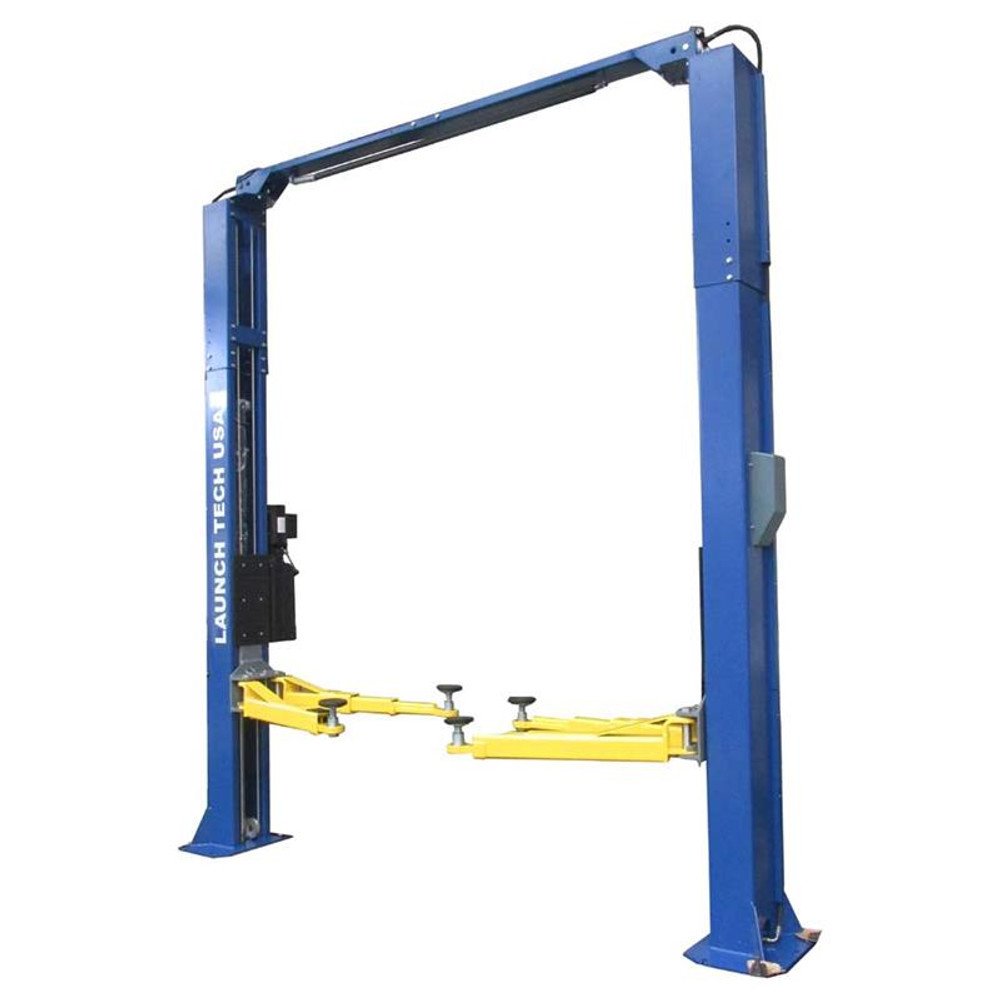

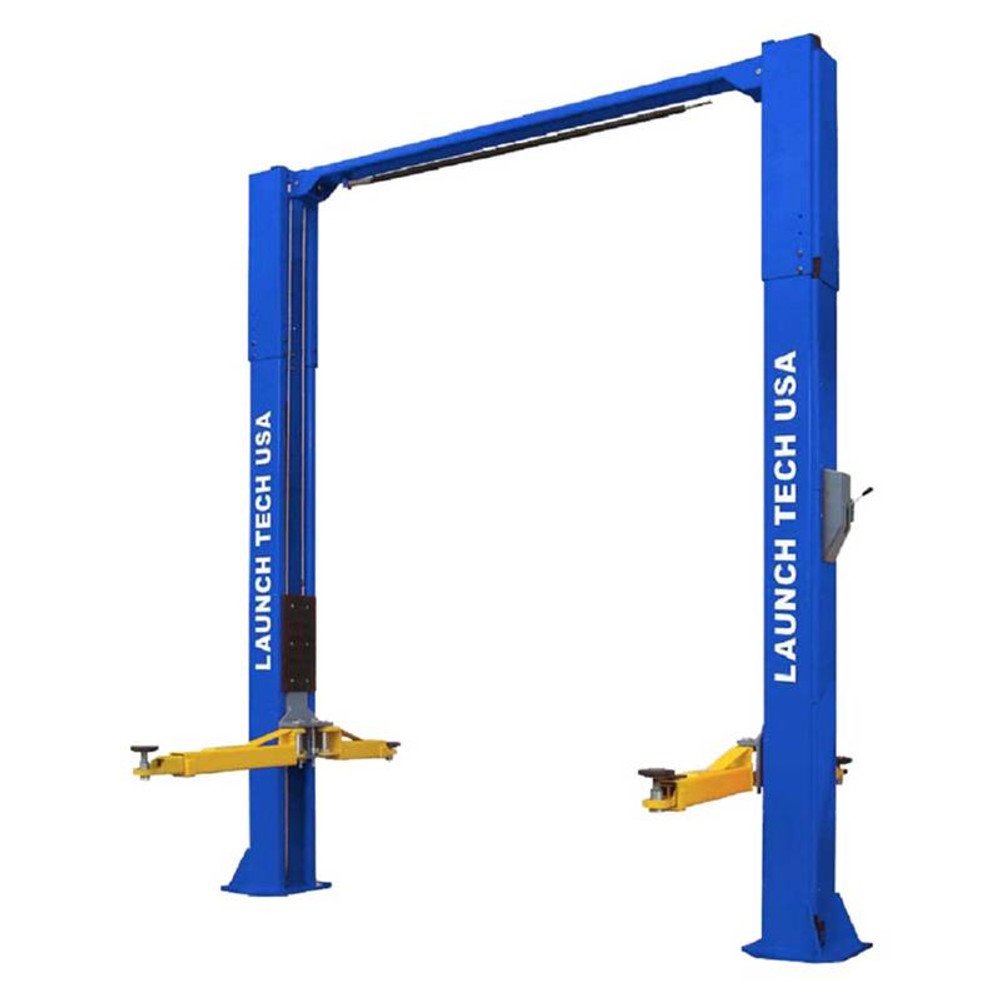

Launch Tech USA TLT210-XT-B 10,000 lb. ALI Certified 2-Post Asymmetrical Clear Floor Lift – Blue
Launch Tech USA TLT210-XT-B 10,000 lb. ALI Certified 2-Post Asymmetrical Clear Floor Lift – Blue
Launch Tech USA TLT210-XT-B 10,000 lb. ALI Certified 2-Post Asymmetrical Clear Floor Lift – Blue
Launch Tech USA TLT210-XT-B 10,000 lb. ALI Certified 2-Post Asymmetrical Clear Floor Lift – Blue

Launch Tech USA TLT210-XT-B 10,000 lb. ALI Certified 2-Post Asymmetrical Clear Floor Lift – Blue

$4,635.00

The Launch TLT210-XT-B is a 10,000-lb. ALI Certified clearfloor asymmetric symmetric two-post car lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

In Stock
Category:
Brand:

Description

Features

  • Direct Drive Cylinders.
  • Adjustable height allows you to maximize lifting height and utilize vertical shop space.
  • Adjustable width provides flexible install choices based on your shop dimensions.
  • Turned column or straight column installation.
  • Single point lock release allows quick and safe lift operation at one post.
  • Full coverage rubber doors guards provide unmatched door protection.
  • Telescoping screw pads are unmatched for quick and easy pad adjustment.
  • Stackable pad extensions included: 4 Pieces 3” and 4 Pieces 6”.
  • Hydraulic hoses are routed through covers for protection and a finished look.
  • Heavy Duty Automatic Arm restraints with oversized gears, pins and springs engage and disengage automatically.
  • Durable powder coat finish.

Specifications

Capacity: 10,000lbs.

Overall Width Straight Column (Adjustable): 130.70” / 136.60”

Overall Width Turned Column (Adjustable): 132.00” / 137.90”

Overall Height (Adjustable): 145.20” / 149.00”

Minimum Ceiling Height: 145.50”

Low Pad Height: 4”

Maximum Lift Height: 76.40”

Width Between Columns Straight (Adjustable): 104.30” / 110.20”

Width Between Columns Turned (Adjustable): 96” / 101.90”

Drive Thru Width Straight Columns (Adjustable): 92.00” / 98.40”

Drive Thru Width Turned Columns (Adjustable): 86” / 92.00”

Floor to Overhead Shutoff (Adjustable): 140.00” / 146.00”

Arm Reach Front: 23.60” – 43.50”

Arm Reach Rear: 38.60” – 61.80”

Maximum Load Per Arm: 2500lbs.

Electric Power Unit: 2HP/208-230Volts/60 Hz/Single Phase

Operating Pressure: 2750 PSI

Shipping Weight: 1750lbs.

Shipping Dimensions: 110”L X 24”W X 48”H

Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Two Post Lifts.
