$45,030.00

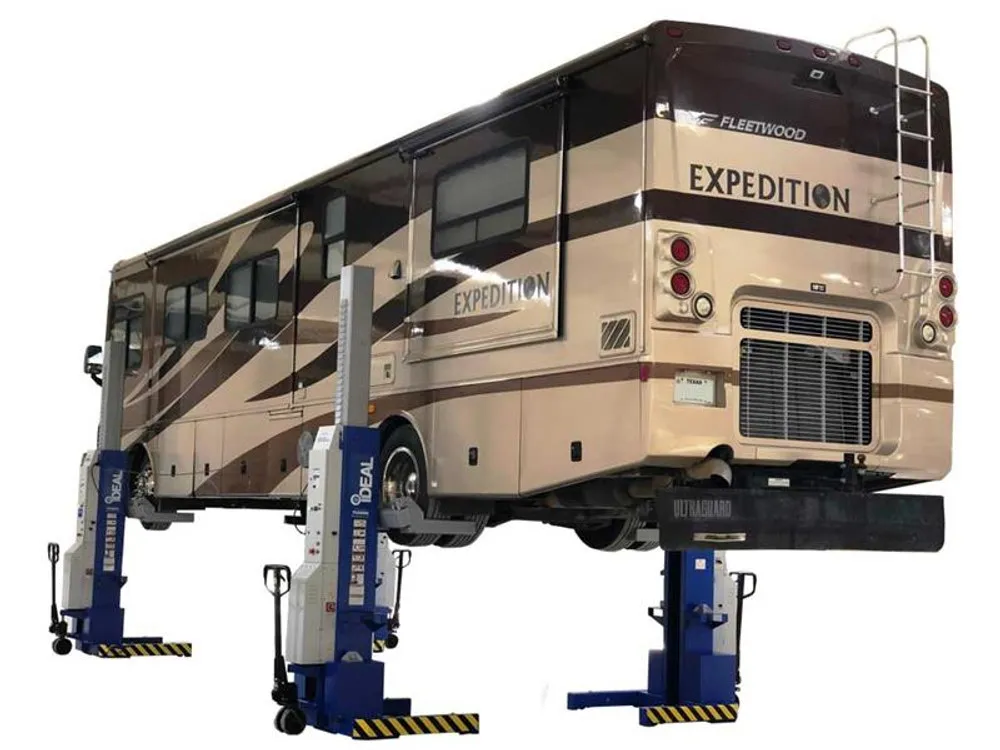

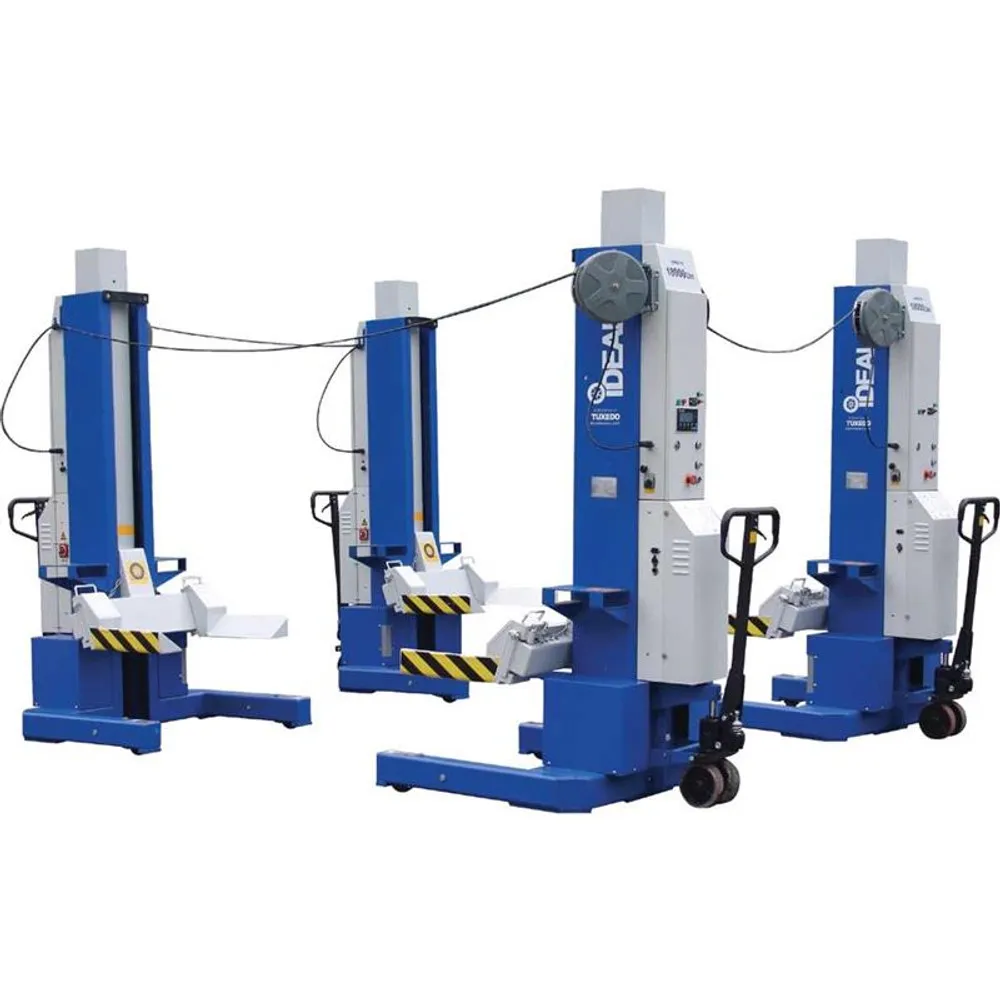

The iDEAL MSC-18K-X-472 is a 72,000-lb. ALI Certified mobile mobile column lift. Supplied as a set of Four columns. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

In Stock
Category:
Brand:

Description

Features

  • ALI certified
  • 24VDC Battery Operation with Onboard Charging System
  • Communication Cable with Retractable Cable Reels
  • U-Shape Wiring Configuration for quick vehicle entry & exiting
  • Convenient Operation from any Column
  • Independent Mechanical Locking System
  • PLC & Optical Encoder provides continuous synchronization for Columns
  • Easily positioned with Pallet Jack type device with Poly Caster Wheels

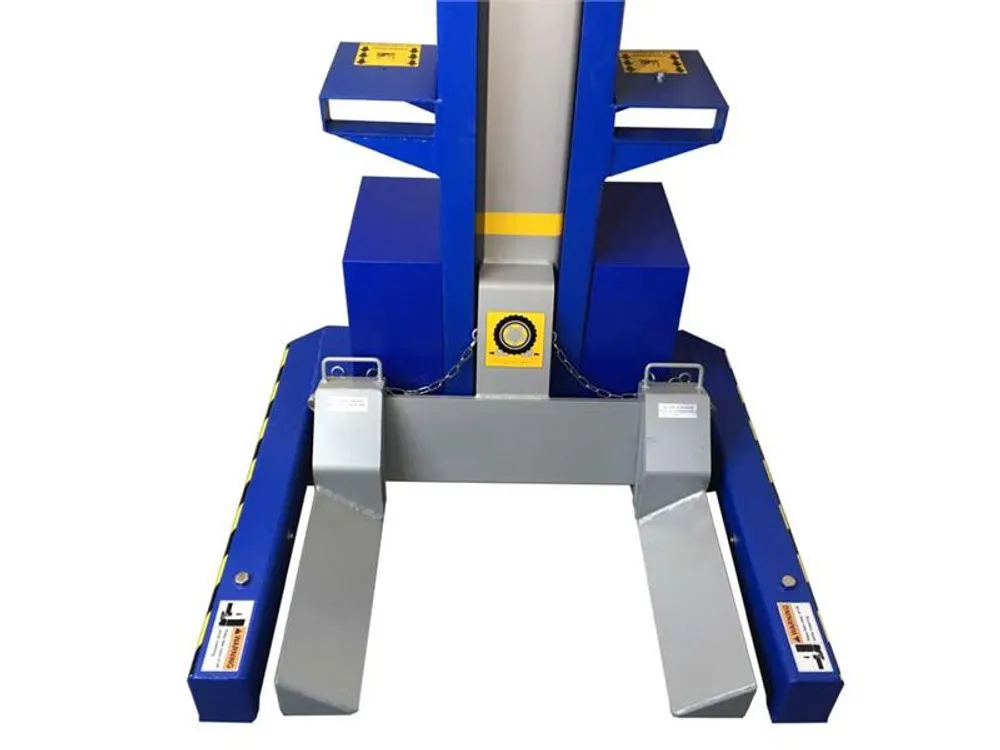

  • Adjustable Lifting Forks for the widest range of Wheel Diameters
  • Emergency Switch per each Column, provides the highest safety assurance
  • Easy to use Master Control Panel for Individual or Paired Synchronized Operation
  • LCD Screen with Keypad offers ‘easy to read’ visuals for Settings Lifting Height
  • Conveniently stored out of the way when not in use to maximize work space
  • Available in Two, Four or Six Column Configurations

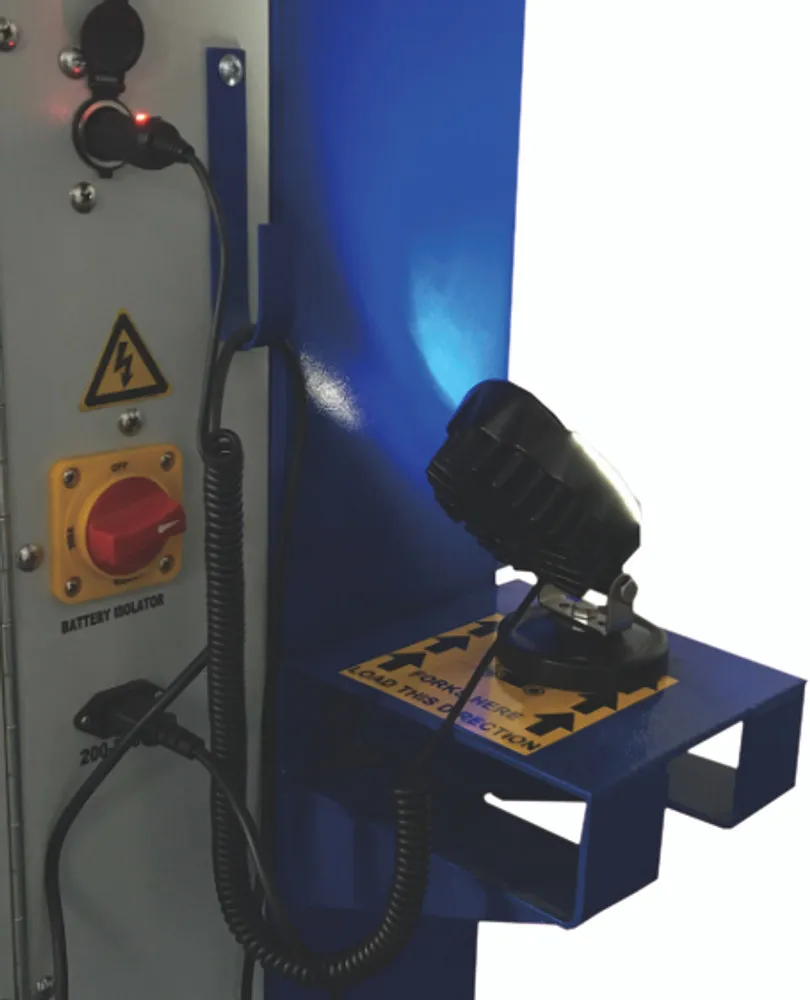

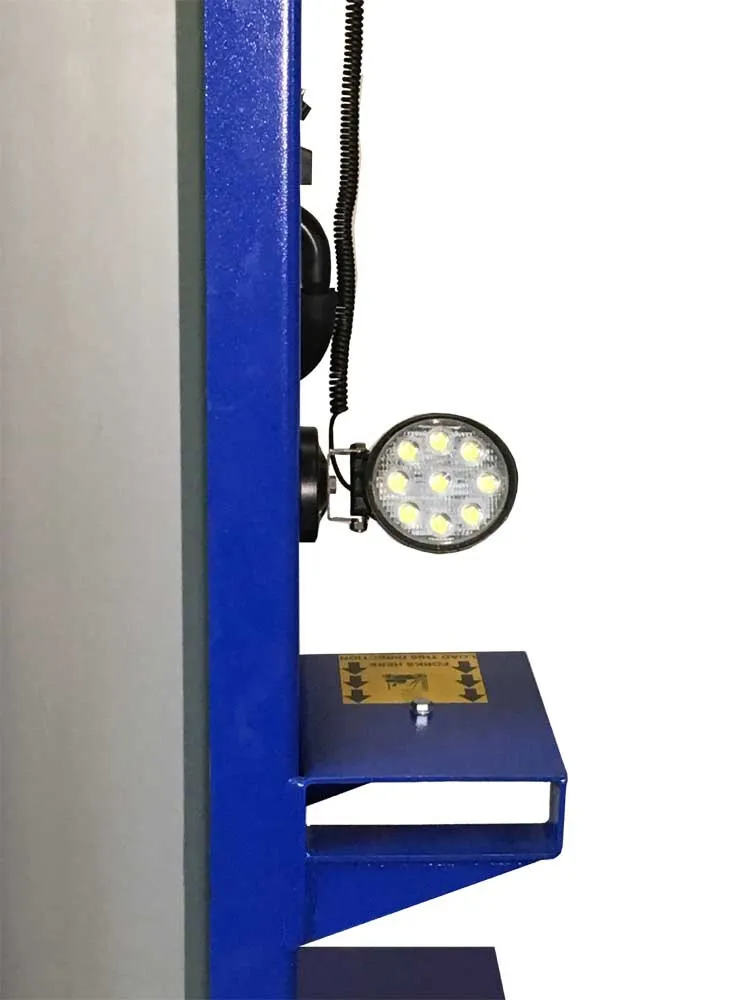

  • LED Light with Magnetic Base (1 per two columns)
  • Optional MSC ALI Certified Accessories available
  • Requires hydraulic oil before use (Not included)
  • Batteries NOT Included. Requires (2) 12V Deep Cycle Batteries per Column

Click here for Product Manual and Installation

Specifications

Lift Models MSC-18K-X-472
Column Configurations 4 Column
Capacity 72,000 lbs
AC Power (Input, Per Column) 100-140VAC, 60Hz, 1 PH
DC Power (Output, Per Column) 24VDC
Lifting Height 67.1″
Column Heights – Min/Max Min. 88.6″ / Max. 155.5″
Overall Width 44.1″
Fork Adjustable Range 12.6″- 22″
Fork Length 17.9″
Fork to Column Clearance 10″
Rise Time 100S
Descent Time 60S
Maximum Distance between Columns 32′ 8″
Minimum Concrete Surface Strength 3000 PSI
Noise Level 70 dB(A)
Set-Up / Operation Indoors
Battery Type (Not included) 12VDC Sealed Deep Cycle Battery

(BCI Group 31, AH-105)
Ship Weight 1,584 lbs per Column

Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Mobile Column Lifts.
