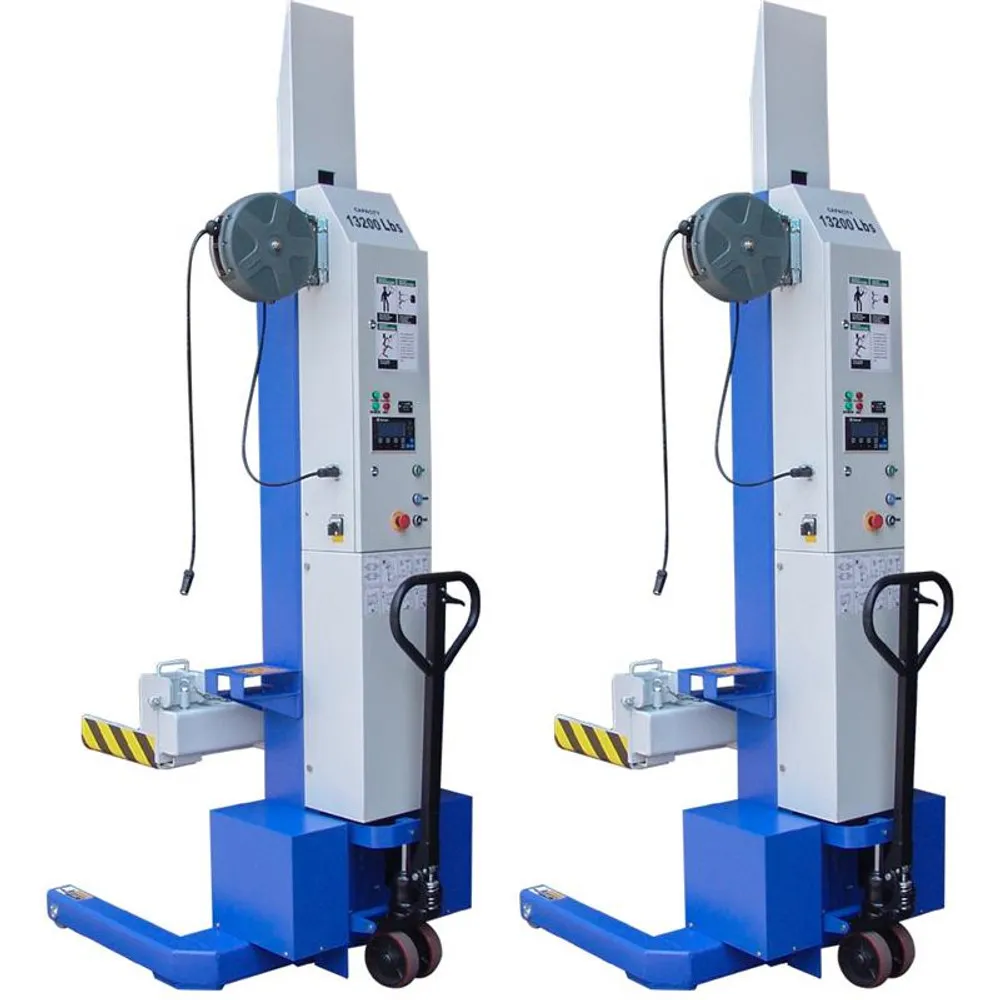

iDEAL MSC-13K-B-226 Mobile Column Lift, Two Column Set, 26,000 lbs.

iDEAL MSC-13K-B-226 Mobile Column Lift, Two Column Set, 26,000 lbs.

$18,130.00

The iDEAL MSC-13K-B-226 is a 26,000-lb. mobile mobile column lift. Supplied as a set of Two columns. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

In Stock
Category:
Brand:

Description

Features

  • Easy to use master controller for individual or paired synchronized operation
  • Siemens PLC and Electro-Optical encoder provide continuous synchronization of all columns

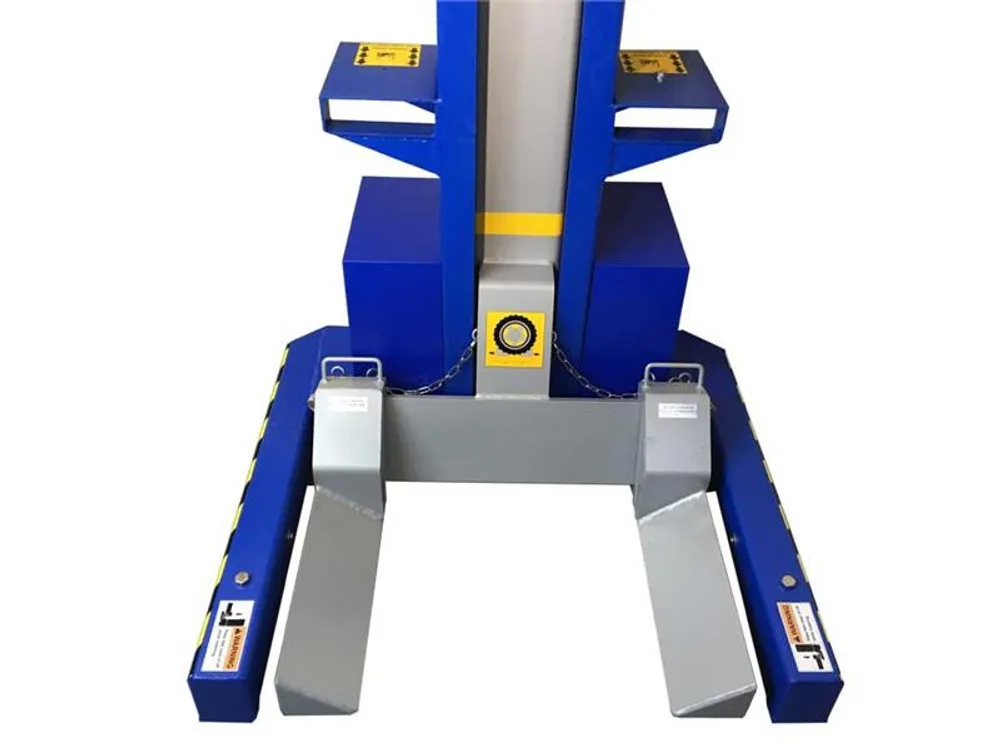

  • Adjustable lifting forks accommodate the widest range of wheels
  • Easily positioned with pallet jack style wheel
  • Heavy-duty hydraulic system
  • Large carriage bearings provide durable, fast and easy lifting
  • LCD screen with keyboard offers easy to read visuals of settings and lifting height
  • Independent mechanical locking system
  • Emergency switch on each column provide highest safety assurance
  • Operable from any column
  • Direct drive hydraulic cylinder
  • Battery operated with onboard charging system
  • Easily moved for use in multiple bays
  • Can be stored out of the way when not in use to maximize work space
  • Requires hydraulic oil before use (Not included)
  • Batteries NOT Included. Requires (2) 12V Deep Cycle Batteries per Column

Click here for Product Manual and Installation

Specifications

Lift Models MSC-13K-B-226
Column Configurations 2 Column
Capacity 26,000 lbs
AC Power (Input, Per Column) 100-140VAC, 60Hz, 1 PH
DC Power (Output, Per Column) 24VDC
Lifting Height 67.1″
Column Heights – Min/Max Min. 88.6″ / Max 155.5″
Overall Width 44.1″
Fork Adjustable Range 6.3″ – 22″
Fork Length 14″
Fork to Column Clearance 9.3″
Rise Time 75S
Descent Time 60S
Maximum Distance between Columns 32.8′
Minimum Concrete Surface Strength 3000 PSI
Noise Level 70 dB(A)
Set-Up / Operation Indoors
Battery Type (Not included) 12VDC Sealed Deep Cycle Battery

(BCI Group 31, AH-105)
Ship Weight 1,210 lbs per Column

Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Mobile Column Lifts.
