Forward Lift I12PRO 12,000 lb ALI Certified Two-Post Lift
Forward Lift I12PRO 12,000 lb ALI Certified Two-Post Lift
Forward Lift I12PRO 12,000 lb ALI Certified Two-Post Lift

Forward Lift I12PRO 12,000 lb ALI Certified Two-Post Lift

$10,395.00

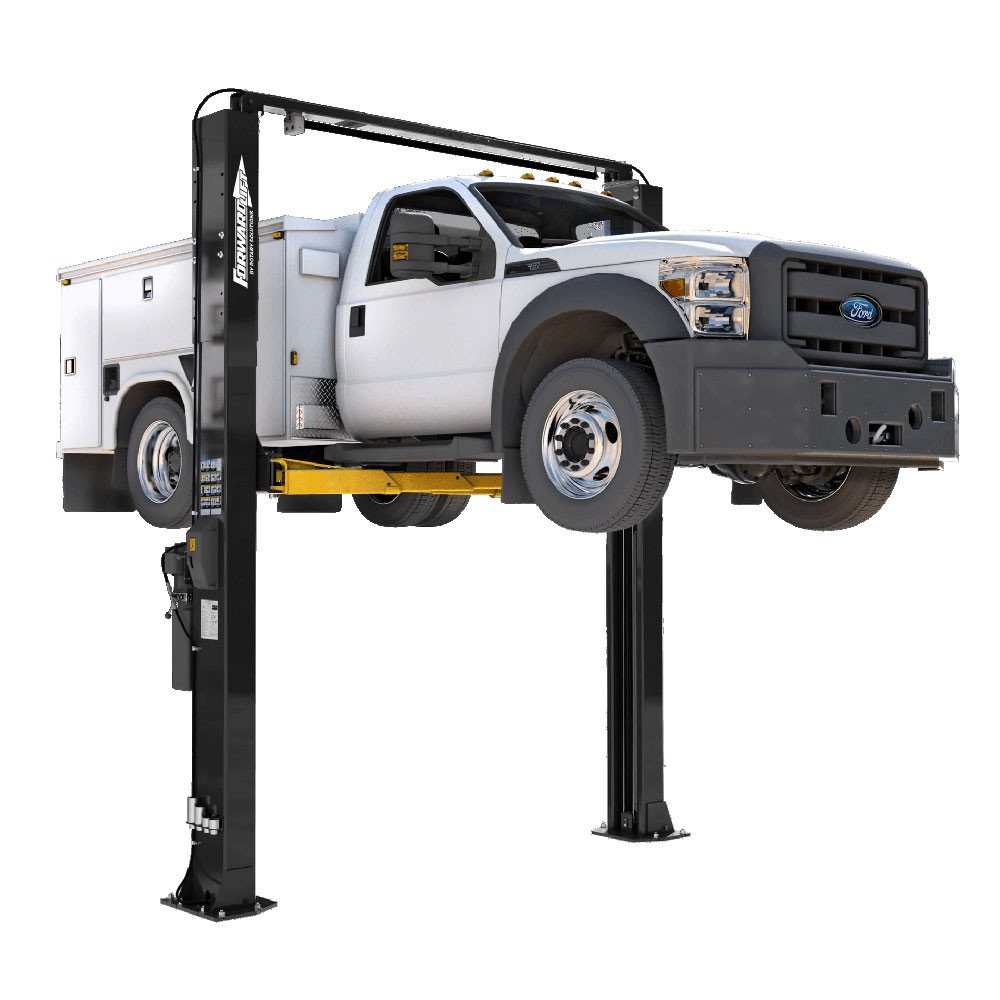

The Forward I12PRO is a 12,000-lb. ALI Certified two-post car lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

In Stock
Category:
Brand:

Description

Additional Features:

  • Hydraulic cylinders in each column
  • Full Stroke
  • Cylinder rod concealed inside carriage
  • 75-3/4″ Rise | 80-3/4″ (With 5″ adapter extensions)
  • 3 Stage arm design
  • Door Bumper Kits Standard
  • Overhead cable equalization
  • Single Point lock release
  • Large rubber-padded drop-in adapter with extra height extensions (1.75″, 3.5″ and 5″) are standard
  • Spring operated arm restraints, disengage at floor level
  • Padded overhead height limit switch bar
  • Durable powder coat finish

Specifications

Specifications I12PRO
Capacity 12,000 lbs. (5443kg)
Rise

Maximum Rise

 75-3/4″ (1924mm)

80-3/4″ (2051mm) w/ 5″ extension
Adjustable Overall Height Options 166″ (4216mm) Standard Height (i12N300)

178″ (4521mm) Extended Max. Height (i12N301)

154″ (3912mm) (i12N302)

143″ (3632mm) (i12N303)
Overall Width 140″ – 146″ (3556 – 3708mm)
Drive Through Clearance 108-3/4″ (2762mm) or optional

102-3/4″ (2610mm)
Overhead Switch

Height Options

 160-1/8″ (4067mm) Standard

172-1/8″ (4524mm) Extended

148-1/8″ (3762mm)

137-1/8″ (3483mm)
Front Arm Reach (Min./Max.) 27-3/4″ min / 59″ max (705mm / 1460mm)
Rear Arm Reach (Min./Max.) 27-3/4″ min / 59″ max (705mm / 1460mm)
Lifting Pad Height

(Min./Max.)

 4-3/4″ (121mm) with no extension

9-3/4″ w/ 5″ extension (248mm)
Width Between Columns 120-7/8″ (3070mm) Adjustable

114-7/8″ (2918) Standard
Motor/Phase 1ph* / 2HP / 50Hz

1ph* / 2HP / 60Hz
Voltage/Amps 208/230, 15 amps; 208/230, 16 amps
Speed of Rise 60 seconds
*Optional 3-phase available

Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Two Post Lifts.
