Forward Lift I10 10,000 lb ALI Certified Two-Post Lift
Forward

Forward Lift I10 10,000 lb ALI Certified Two-Post Lift

SKU VE-6634Condition New
$5,575.00

In stock — ships in 1–2 business days

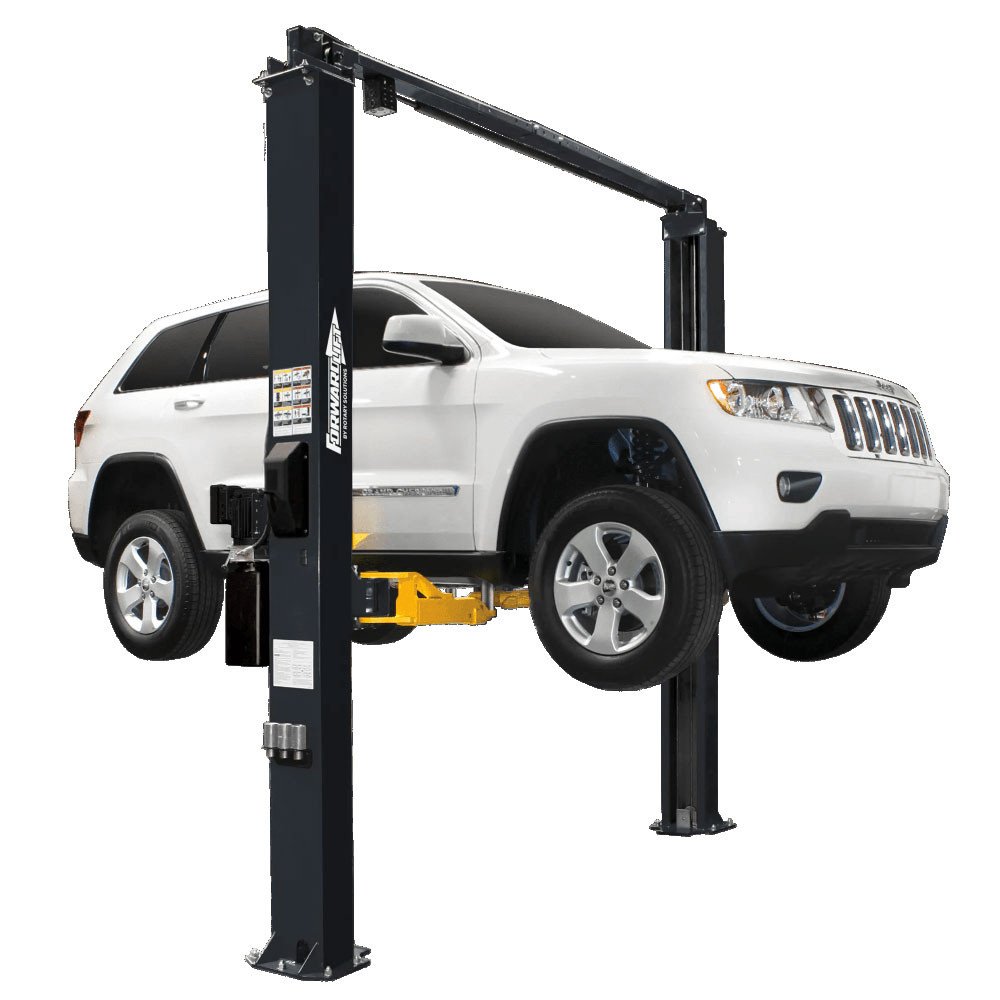

The Forward I10 is a 10,000-lb. ALI Certified two-post car lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

Call with your VIN or tag number and we will confirm this listing fits before you pay.

Shipping
Freight, 3–6 business days
Returns
45 days, by mail
Payment
Bank transfer, Zelle, Chime

Product details

Additional Features:
  • 10,000 lbs. capacity for raising most passenger cars, trucks and vans.
  • The I10 has been third party tested by ETL and approved by ALI.

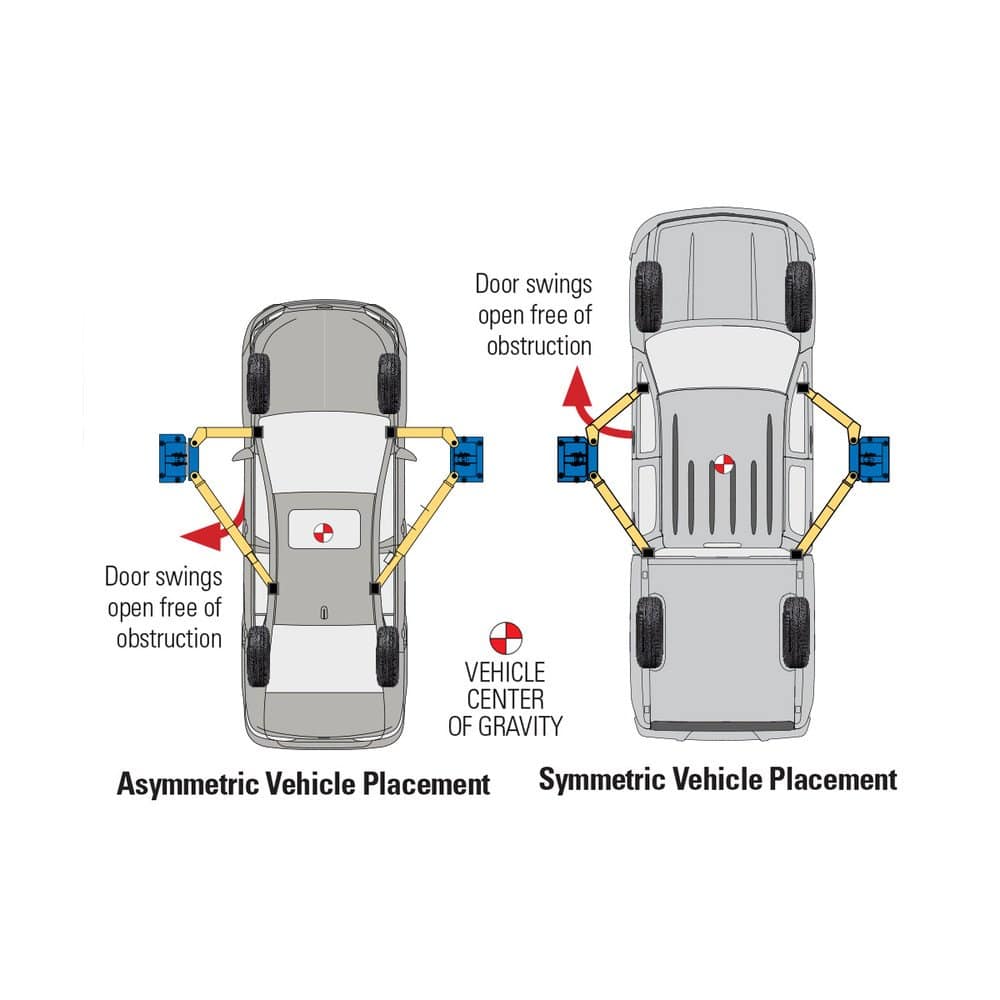

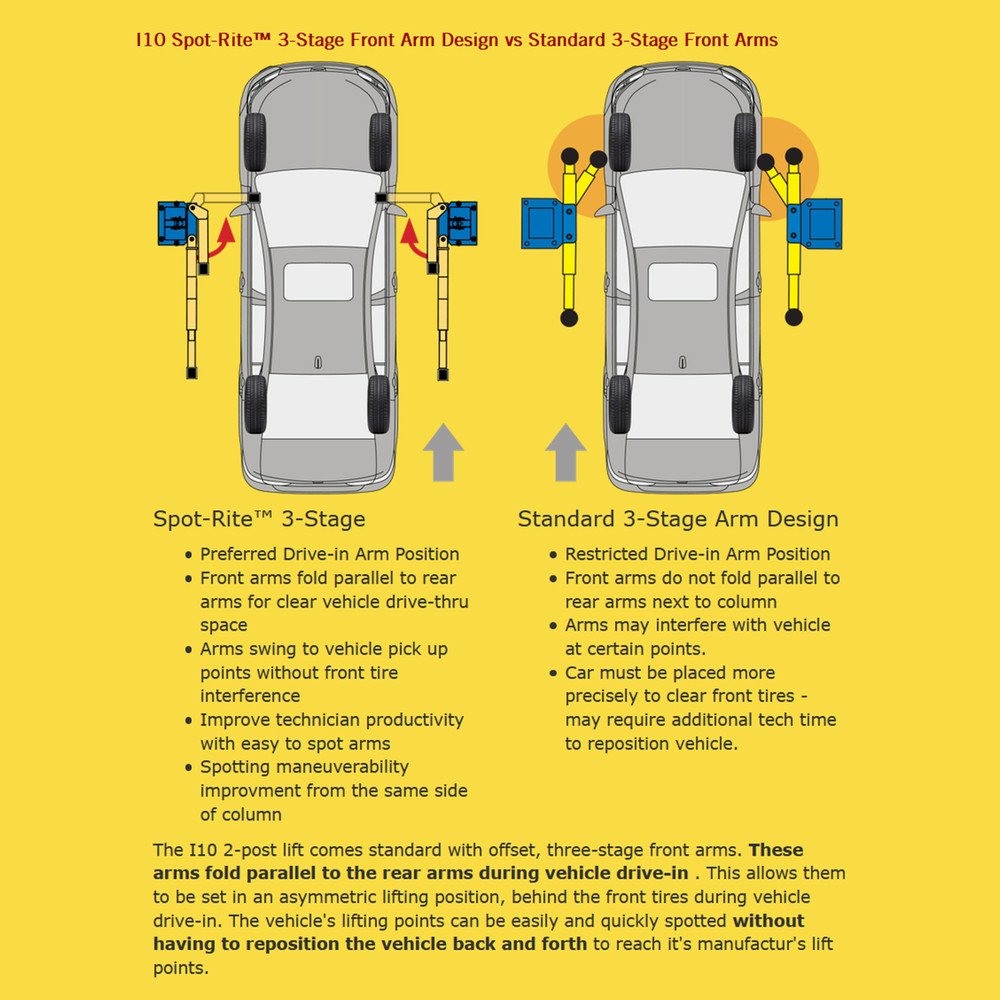

  • 3-stage front arm design enables you to position doors in front of the column or behind to avoid door damage.
  • Includes adjustable frame contact adapters.
  • Adapter storage bracket kit.

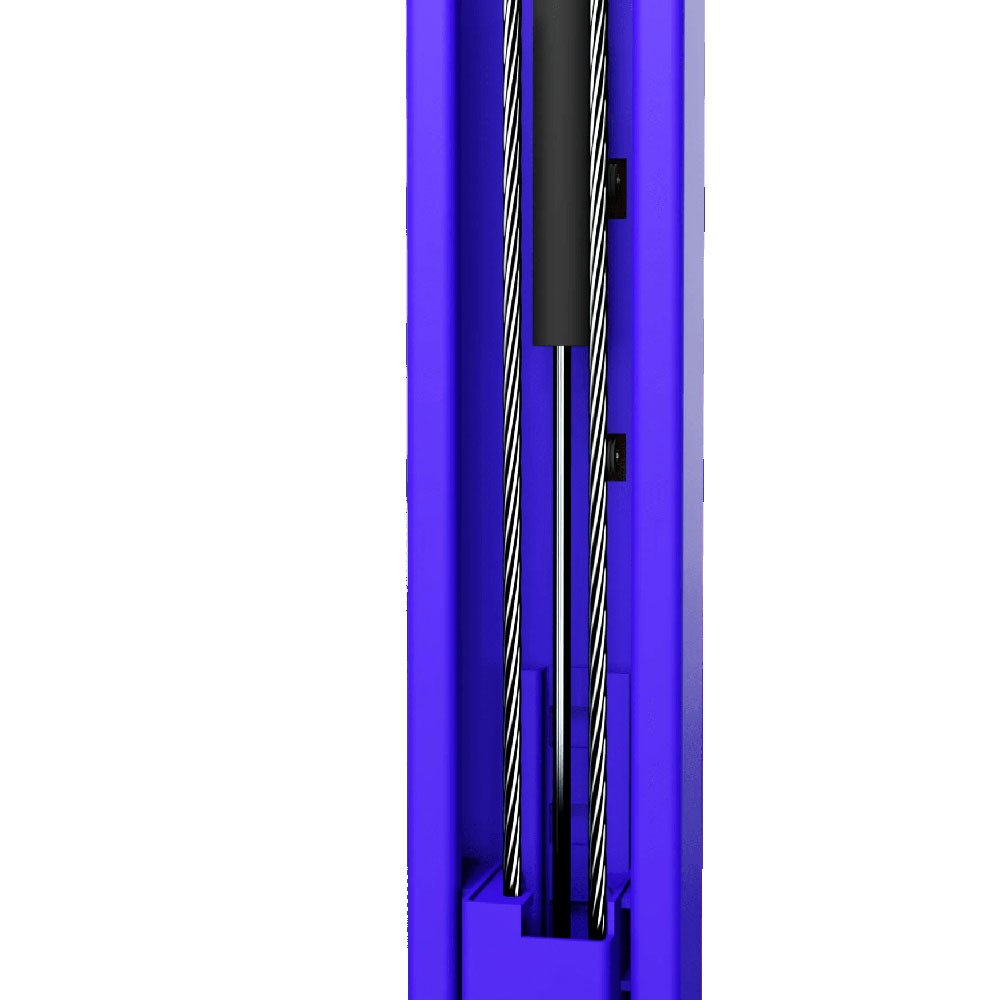

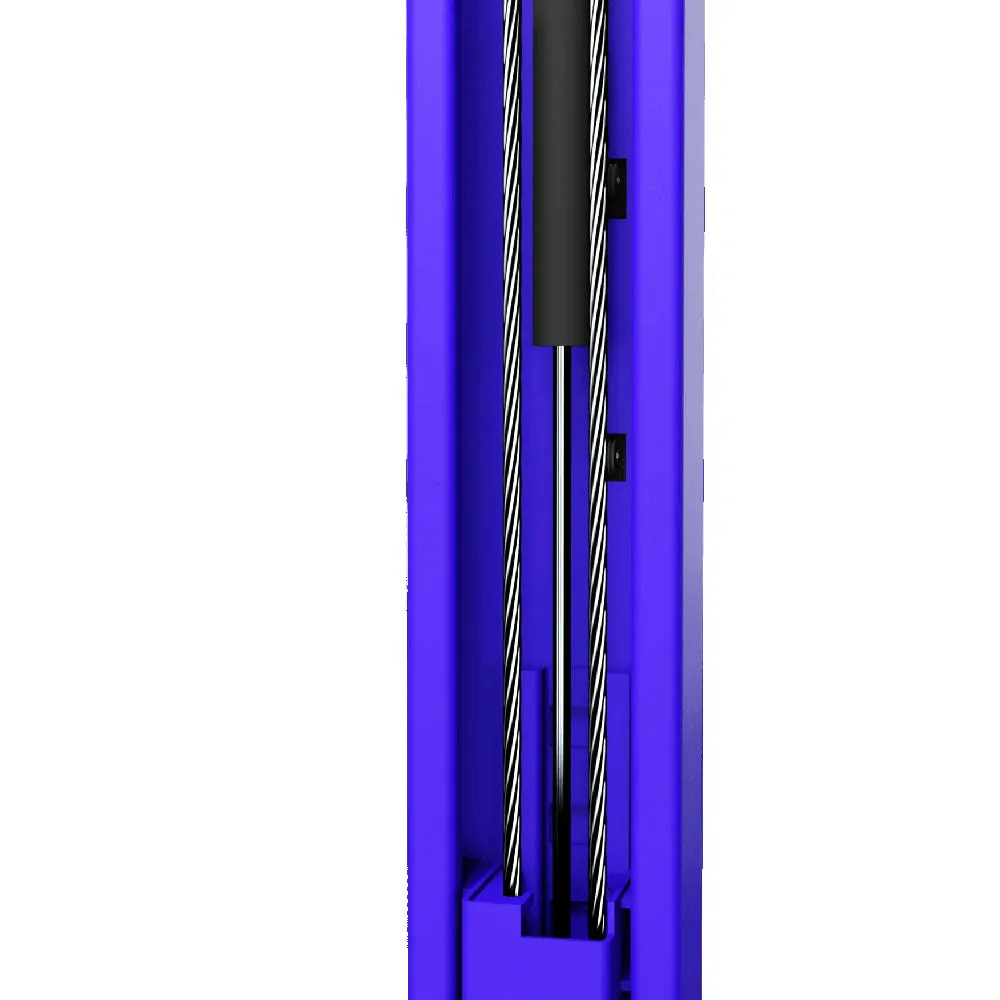

  • Hydraulic cylinders in each column:
    • Top-mounted | Direct pull lifting technology | Cylinder rod concealed inside the carriage
Specifications I10N400MBL
Capacity 10,000lbs
Max. Rise w/5″ extension 76-1/4″
Overall Height 143″ (3632mm)
Overall Width 131″ or optional 137″ (3327mm / 4380mm)
Drive through clearance 99″ or optional 105″ (2515mm / 2667mm)
Overhead switch height 137-5/8″ (3496mm)
Front reach (Min/Max) 23″ / 44-1/2″ (584mm / 1130mm)
Rear reach (Min/Max) 36″ / 58″ (914mm / 1473mm)
Min/Max Adapter Height 3-3/4″ (95mm) no adapter extension8-3/4″ (222mm) w/5″ adapter extension
Width Inside Column 109″ or optional 115″
Ceiling height required 12′
Voltage/Amps 208-230V, 17 amps
Motor/Phase 1PH / 2HP / 60Hz
Ceiling height required 144″ (3658mm)
*Lifts available in blue and red. Specifications subject to change without notice or liability

Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Two Post Lifts.
