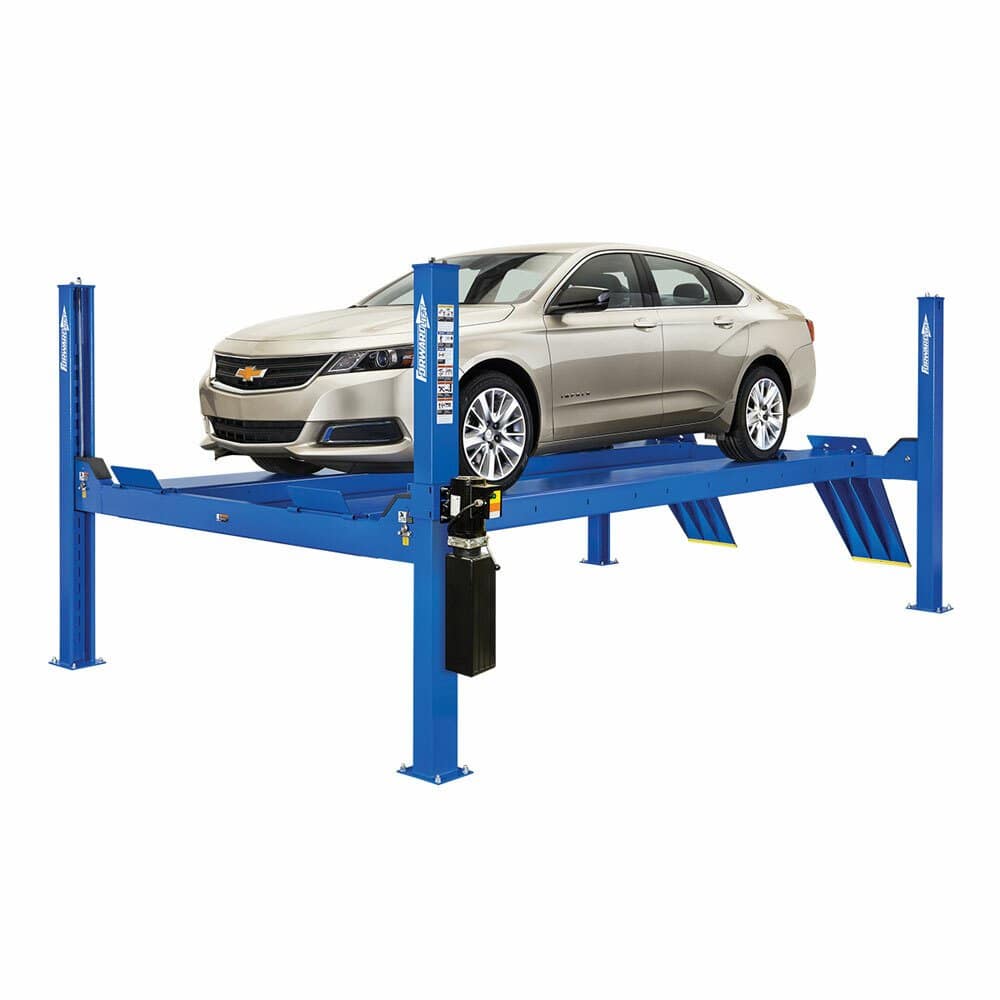

Forward Lift CR14-EL 14,000 LB. ALI Certified Four-Post Lift – 215” Max Wheelbase

Forward Lift CR14-EL 14,000 lb 4-Post Lift, ALI Certified, 215" Max Wheelbase

Name: Forward Lift CR14-EL 14,000 lb 4-Post Lift, ALI Certified, 215" Max Wheelbase
Brand: Forward
SKU: VE-7448
Price: 11270.00 USD
Availability: InStock

SKU VE-7448Condition New

$11,270.00

In stock — ships in 1–2 business days

The Forward CR14-EL is a 14,000-lb. ALI Certified four-post lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

Call 216-250-6666 Request this unit

Call with your VIN or tag number and we will confirm this listing fits before you pay.

Shipping: Freight, 3–6 business days
Returns: 45 days, by mail
Warranty: See warranty terms
Payment: Bank transfer, Zelle, Chime

Product details

Additional Features:

Heavy duty hydraulic cylinder
Single Point latch release system
One piece formed runway design incorporates rolling jack channels
Multiple position latch points in each structural leg

Optional Accessories:

7,000 lbs. capacity rolling bridge jacks
Drive Through ramps optional
Internal airline kit
Turning radius gauges
Power unit cover
3-phase motor

Specifications

Specifications	CR14N202Y
Capacity	14,000 lbs. (6350kg)
Rise	78-3/4″ (2000mm)
Maximum Wheelbase	215″ (5460mm)
Overall Length	283″ (7188mm)
Overall Width	131-3/4″ (3568mm)
Width Inside Columns	116-1/4″ (2953mm)
Length Between Columns	228-1/4″ (4946mm)
Overall Height	90-1/2″ (2299mm)
Runway Width	20″ (508mm)
Runway Height	7″ (178mm)
Width Between Runways	43″ (1092mm) or 46″ (1168mm)
Rise Time	72 seconds
Voltage*	208/230v
Motor	2HP
Minimum Bay Size	15′ x 28′ (4572 x 8534mm)
* single phase standard; 3-phase available at additional cost Specifications subject to change without notice or liability
