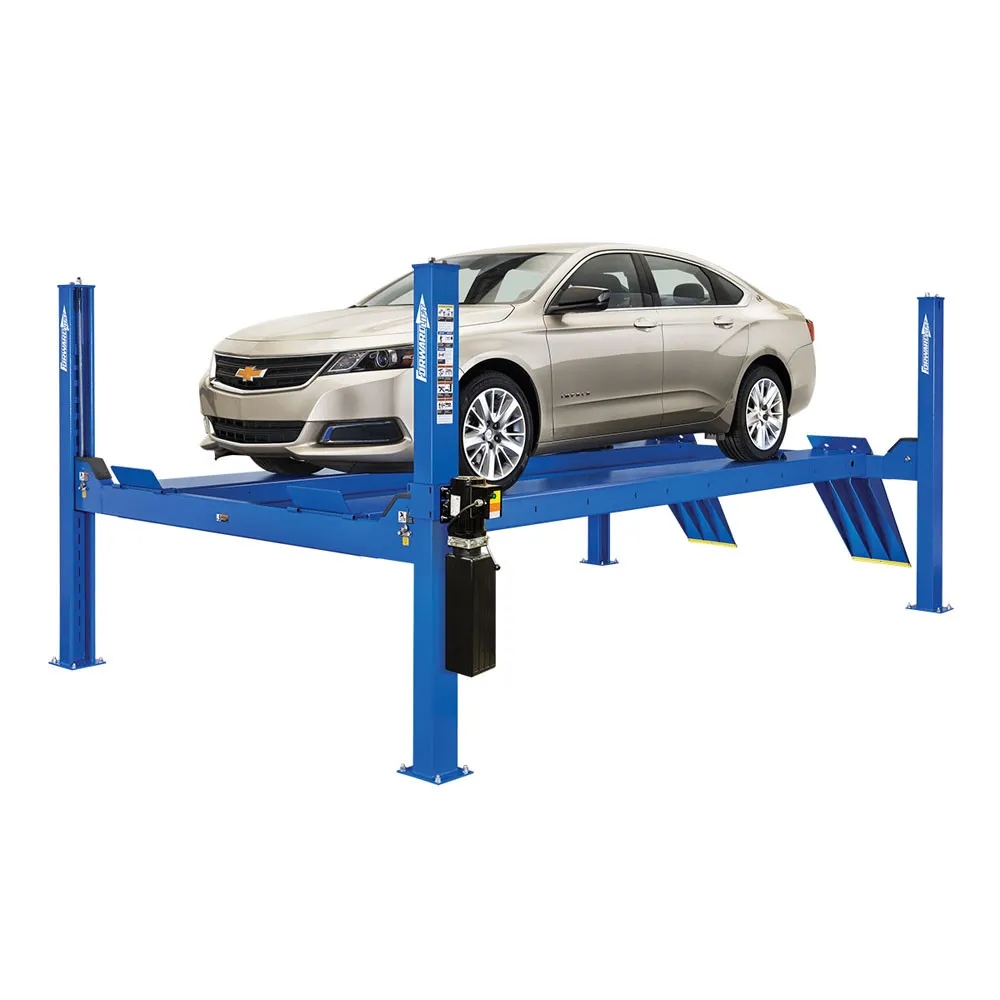

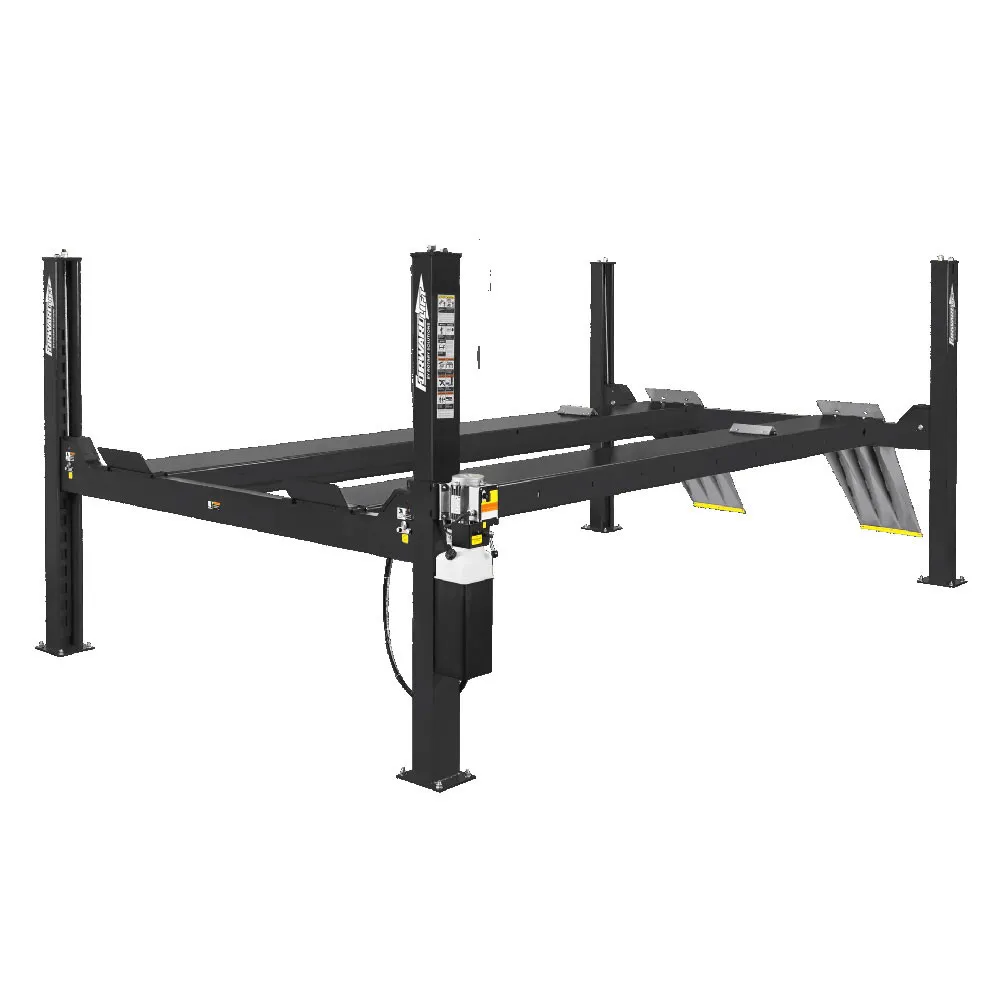

Forward Lift CR14 14,000 LB. ALI Certified Four-Post Lift – 182.5” Max Wheelbase
Forward Lift CR14 14,000 LB. ALI Certified Four-Post Lift – 182.5” Max Wheelbase
Forward Lift CR14 14,000 LB. ALI Certified Four-Post Lift – 182.5” Max Wheelbase

Forward Lift CR14 14,000 LB. ALI Certified Four-Post Lift – 182.5” Max Wheelbase

$9,675.00

The Forward CR14 is a 14,000-lb. ALI Certified four-post lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

In Stock
Category:
Brand:

Description

Additional Features:

  • Heavy duty hydraulic cylinder
  • Single Point latch release system
  • One piece formed runway design incorporates rolling jack channels
  • Multiple position latch points in each structural leg

Optional Accessories:

  • 7,000 lbs. capacity rolling bridge jacks
  • Drive Through ramps optional
  • Internal airline kit
  • Turning radius gauges
  • Power unit cover
  • 3-phase motor

Specifications

Specifications CR14N201Y
Capacity 14,000 lbs. (6350kg)
Rise 78-3/4″ (2000mm)
Maximum Wheelbase 182-1/2″ (4635mm)
Overall Length 250″ (6350mm)
Overall Width 131-3/4″ (3568mm)
Width Inside Columns 116-1/4″ (2953mm)
Length Between Columns 195-1/4″ (4946mm)
Overall Height 90-1/2″ (2299mm)
Runway Width 20″ (508mm)
Runway Height 7″ (178mm)
Width Between Runways 43″ (1092mm) or 46″ (1168mm)
Rise Time 72 seconds
Voltage* 208/230v
Motor 2HP
Minimum Bay Size 15′ x 25′ (4572 x 7620mm)
* single phase standard; 3-phase available at additional cost

Specifications subject to change without notice or liability

Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Four Post Lifts.
