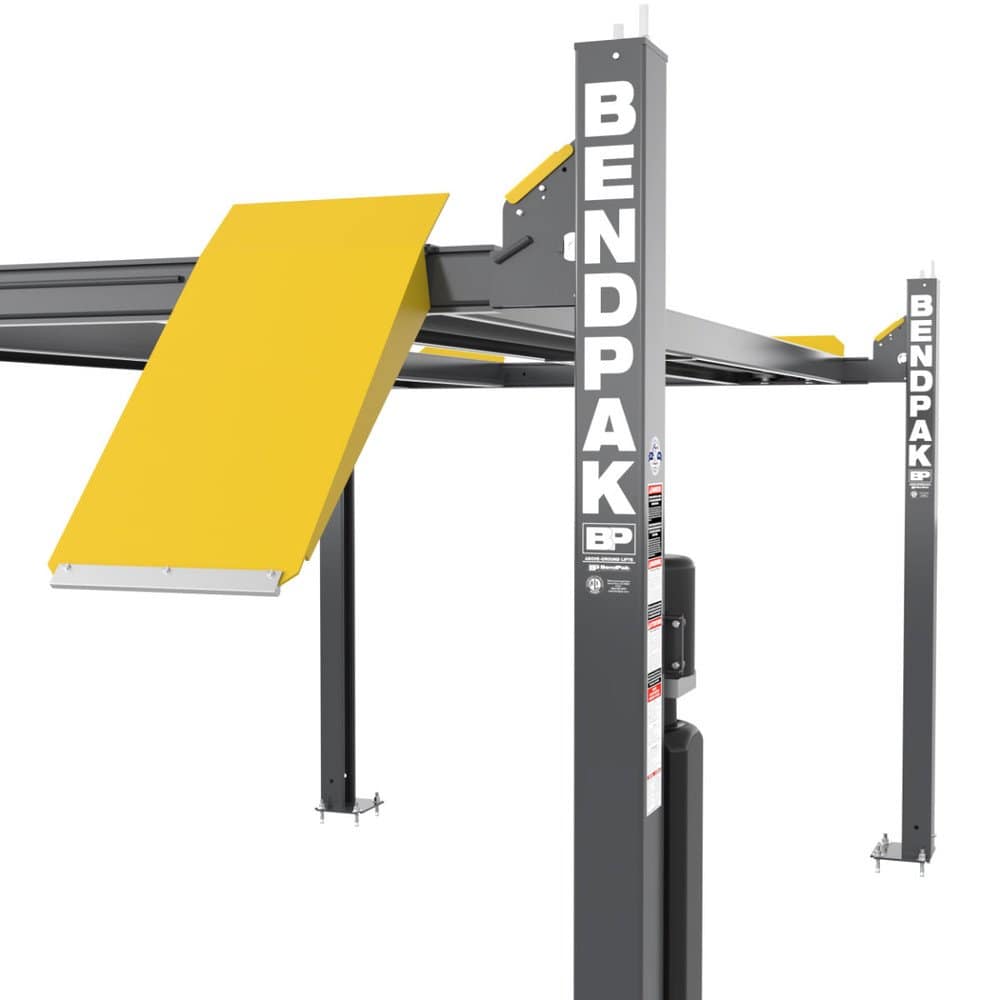

BendpakHD-9EWT 9,000-lb. Capacity ALI Certified / Four-Post Lift / Extra-Wide / High Lift
$6,695.00
The BendPak HD-9EWT Capacity / Four-Post Lift / Extra-Wide / High Lift is a 9,000-lb. ALI Certified four-post lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.
In Stock
Description
Specifications
- 9,000-lb. maximum lifting capacity
- Freestanding design
- High-rise
- Better suited for wide cars and off-road vehicles

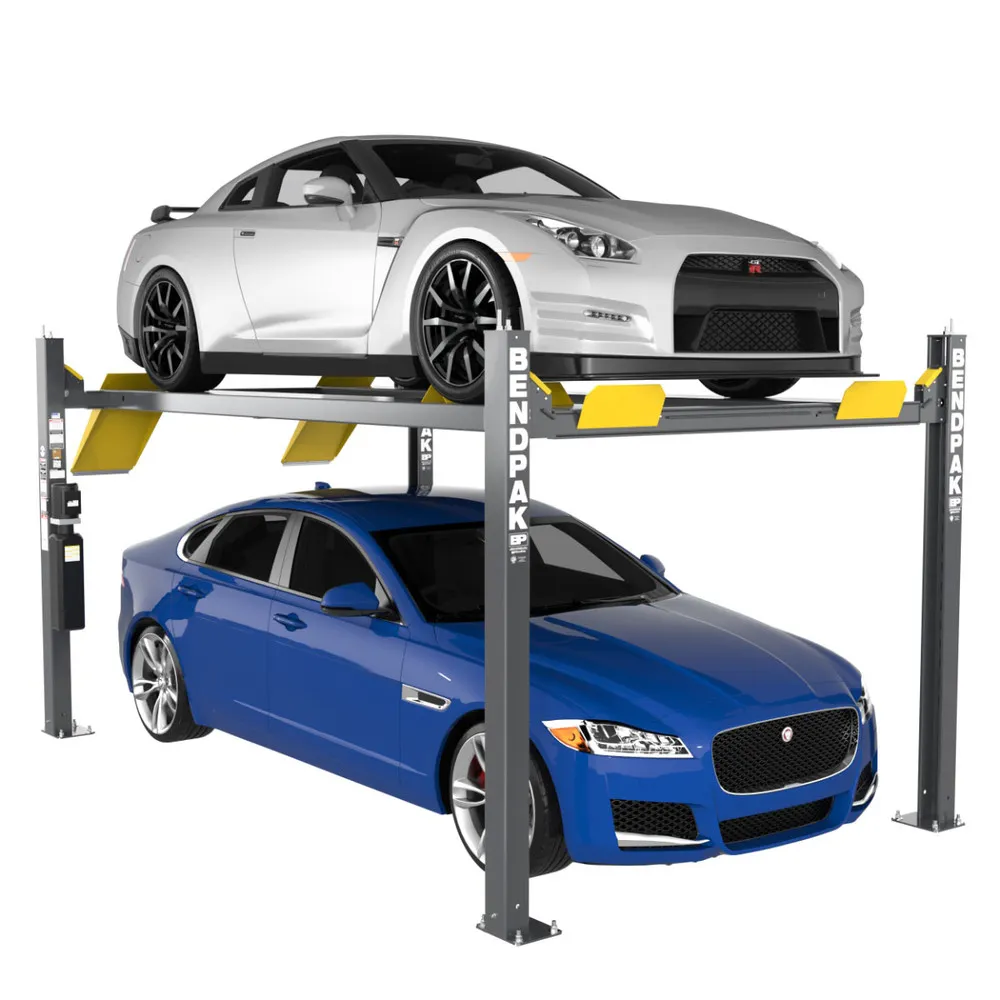

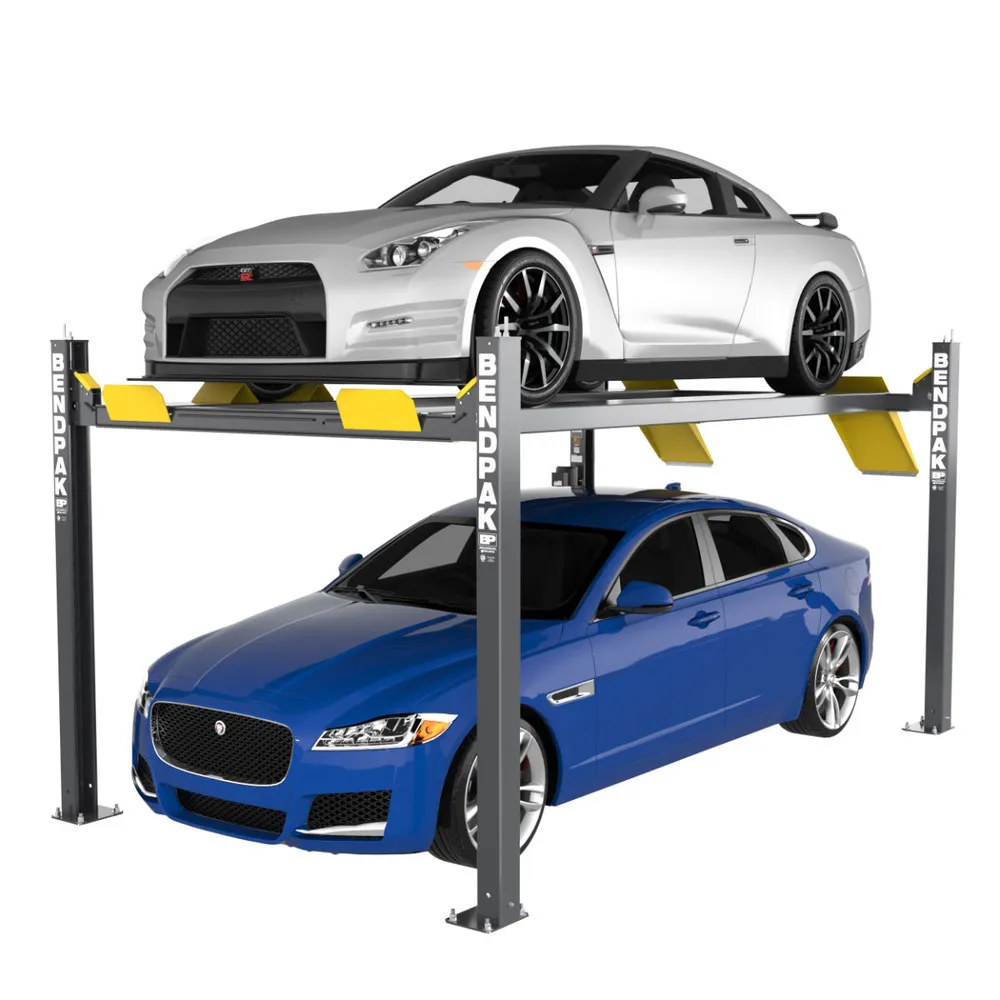

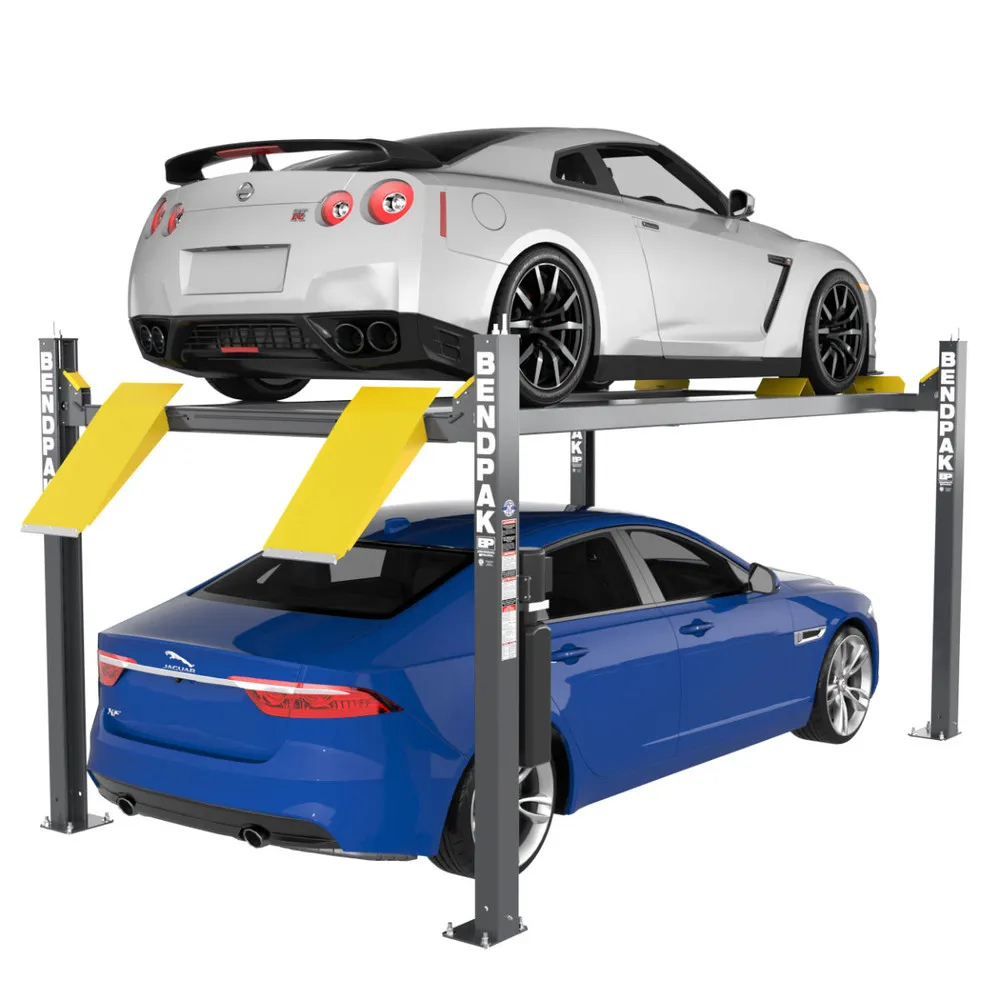

- Perfect for parking, storage, and service
- Runways accommodate narrow and standard vehicles
- Runways include rail-kit for optional accessories
- Electric-hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks, and sheaves
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers

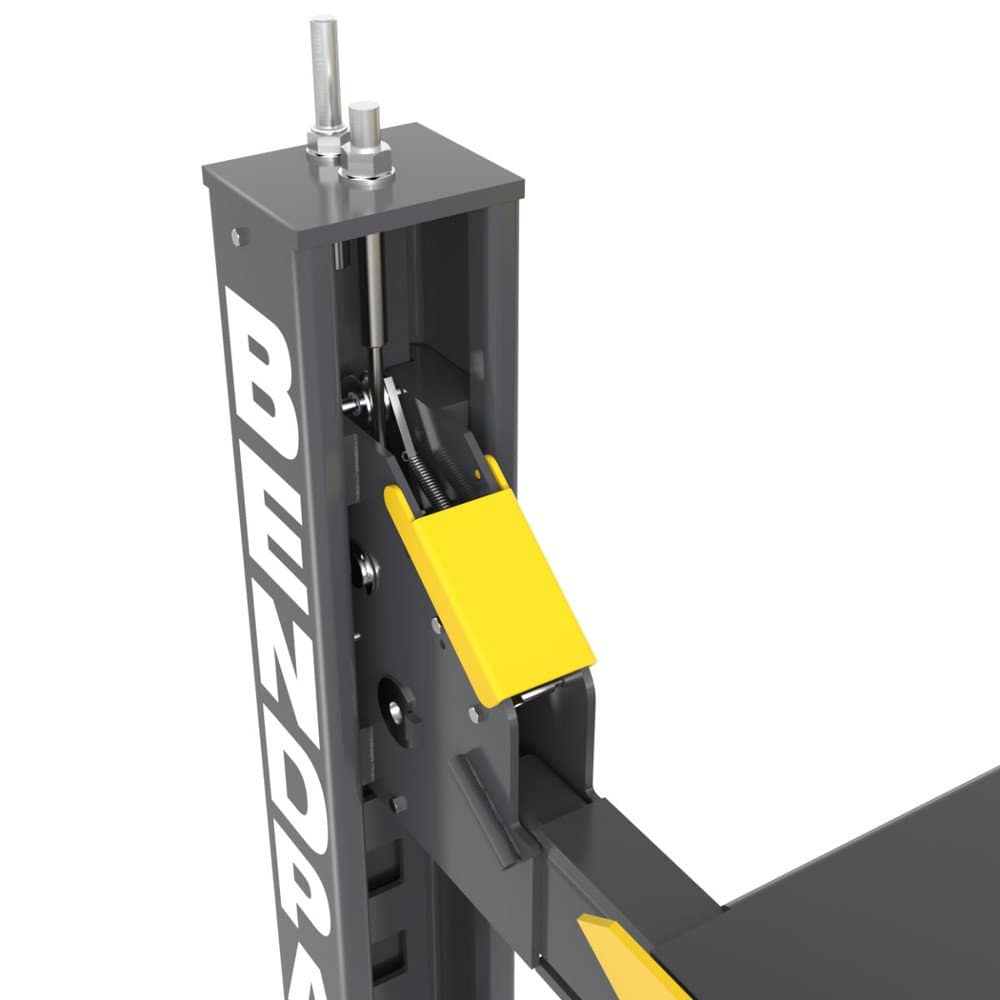

- Multi-position safety locks in each column
- Adjustable safety locks in each column
- Adjustable lock ladders
- Runways feature a durable matte finish
- Push-button pneumatic safety release
- Independent backup slack-cable safety latches
- Customizable power unit location
- Removable approach ramps for additional drive-under clearance
- Longer approach ramps for low-ground clearance vehicles available
Lifting Capacity: 9,000 lbs. / 4,082 kg
Lifting Capacity: 9,000 lbs. / 4,082 kg
Max Capacity at Front Axle: 4,500 lbs. / 2,041 kg
Max Capacity at Front Axle: 4,500 lbs. / 2,041 kg
Max Capacity at Rear Axle: 4,500 lbs. / 2,041 kg
Max Capacity at Rear Axle: 4,500 lbs. / 2,041 kg
A. Min. Runway Height: 4.75 in. / 121 mm
A. Min. Runway Height: 4.75 in. / 121 mm
B. Maximum Rise: 82.165 in. / 2,087 mm
B. Maximum Rise: 82.165 in. / 2,087 mm
C. Maximum Lifting Height: 87 in. / 2,208 mm
C. Maximum Lifting Height: 87 in. / 2,208 mm
D. Overall Width ± .125 in. / 3 mm: 117 in. / 2,970 mm
D. Overall Width ± .125 in. / 3 mm: 117 in. / 2,970 mm
E. Outside Length: 198 in. / 5,028 mm
E. Outside Length: 198 in. / 5,028 mm
F. Overall Length: 224.50 in. / 5,703 mm
F. Overall Length: 224.50 in. / 5,703 mm
G. Height of Post: 100 in. / 2,537 mm
G. Height of Post: 100 in. / 2,537 mm
H. Distance Between Posts: 107 in. / 2,716mm
H. Distance Between Posts: 107 in. / 2,716mm
I. Drive-thru Clearance: 93.25 in. / 2,371 mm
I. Drive-thru Clearance: 93.25 in. / 2,371 mm
J. Runway Width: 19 in. / 482 mm
J. Runway Width: 19 in. / 482 mm
K. Runway Length: 182.25 in. / 4,629 mm
K. Runway Length: 182.25 in. / 4,629 mm
L. Width Between Runways: 35.75 in. – 42.0 in. / 910 MIN – 1,068 mm MAX
L. Width Between Runways: 35.75 in. – 42.0 in. / 910 MIN – 1,068 mm MAX
M. Runway Centerline: 57.75 in. – 64.00 in. / 1,468 – 1,626 mm
M. Runway Centerline: 57.75 in. – 64.00 in. / 1,468 – 1,626 mm
N. Outside Edge of Runways: 76.75 in.- 83 in.
N. Outside Edge of Runways: 76.75 in.- 83 in. / 1,950 – 2,108 mm
Max. Load Operating Pressure: 135 in. / 3,429 mm
Max. Load Operating Pressure: 135 in. / 3,429 mm
Min. Wheelbase @ Rated Capacity: 115 in. / 2,921 mm:
Min. Wheelbase @ Rated Capacity: 115 in. / 2,921 mm:
Min. Wheelbase @ 75 Capacity: 95 in. / 2,413 mm
Min. Wheelbase @ 75 Capacity: 95 in. / 2,413 mm
Min. Wheelbase @ 25 Capacity: 80 in. / 2,032 mm
Min. Wheelbase @ 25 Capacity: 80 in. / 2,032 mm
Locking Positions: 17 spaced every 4 in. / 102 mm
Locking Positions: 17 spaced every 4 in. / 102 mm
Motor: 220 VAC, 60 Hz, 1 Ph (special voltages available upon request)
Motor: 220 VAC, 60 Hz, 1 Ph (special voltages available upon request)
Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Four Post Lifts.
