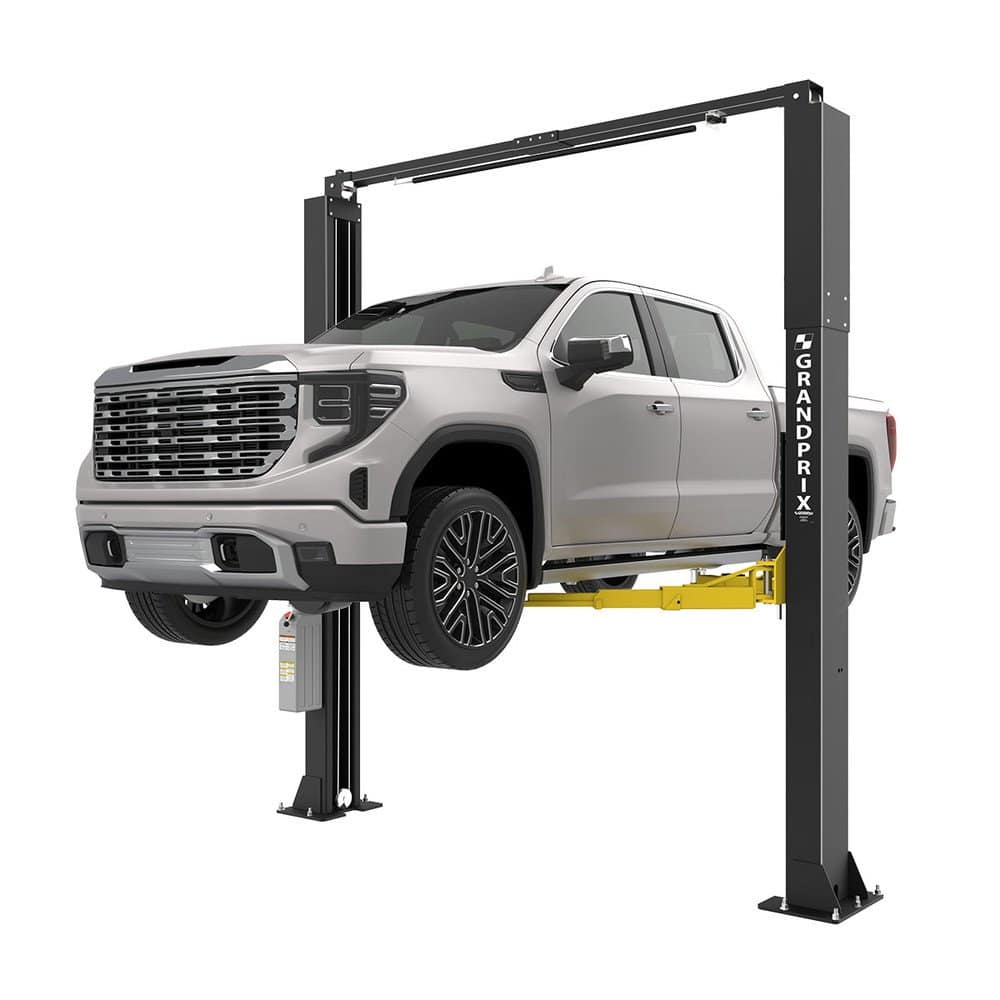

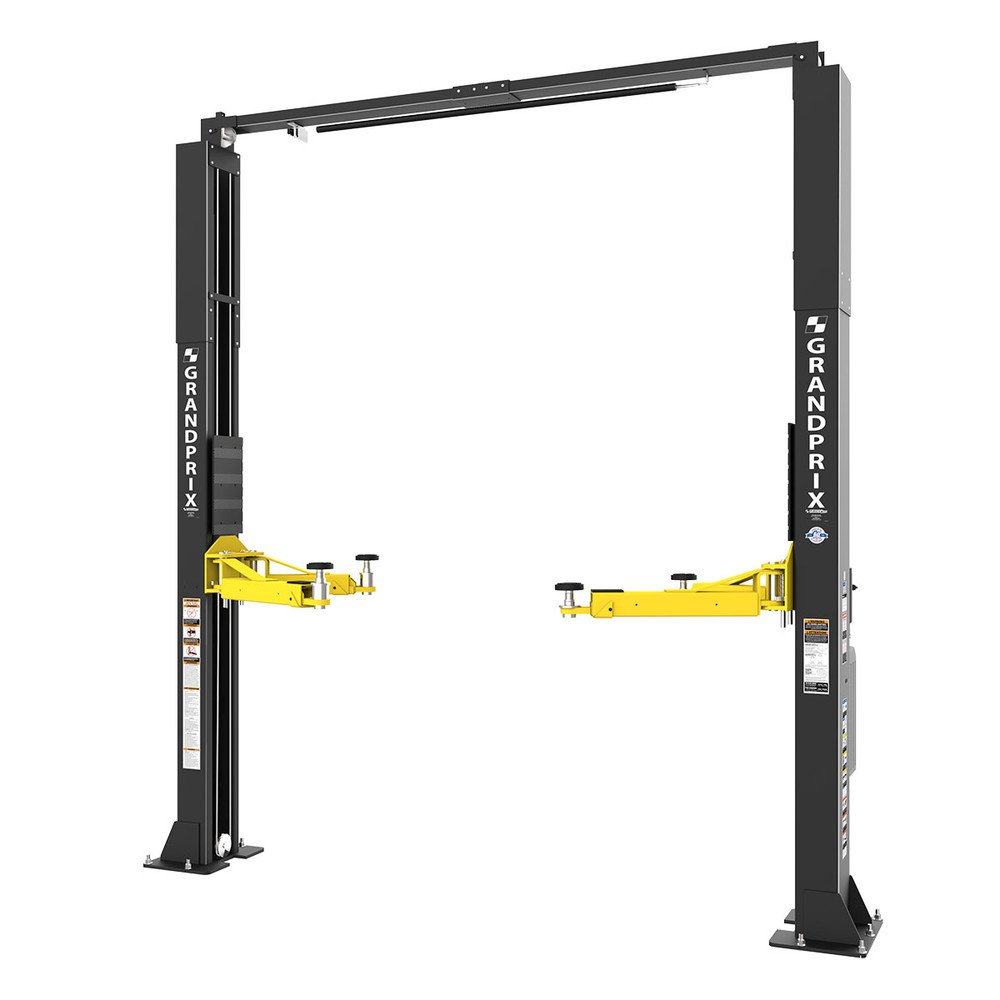

Bendpak GP-10C GrandPrix Series 10000 lb 2 Post Clear Floor Car Lift
$3,695.00
The BendPak GP-10C is a 10,000-lb. clearfloor two-post car lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.
In Stock
Description
Bendpak GP-10C GrandPrix Series 10000 lb 2 Post Clear Floor Car Lift
OFTEN IMITATED, NEVER DUPLICATED

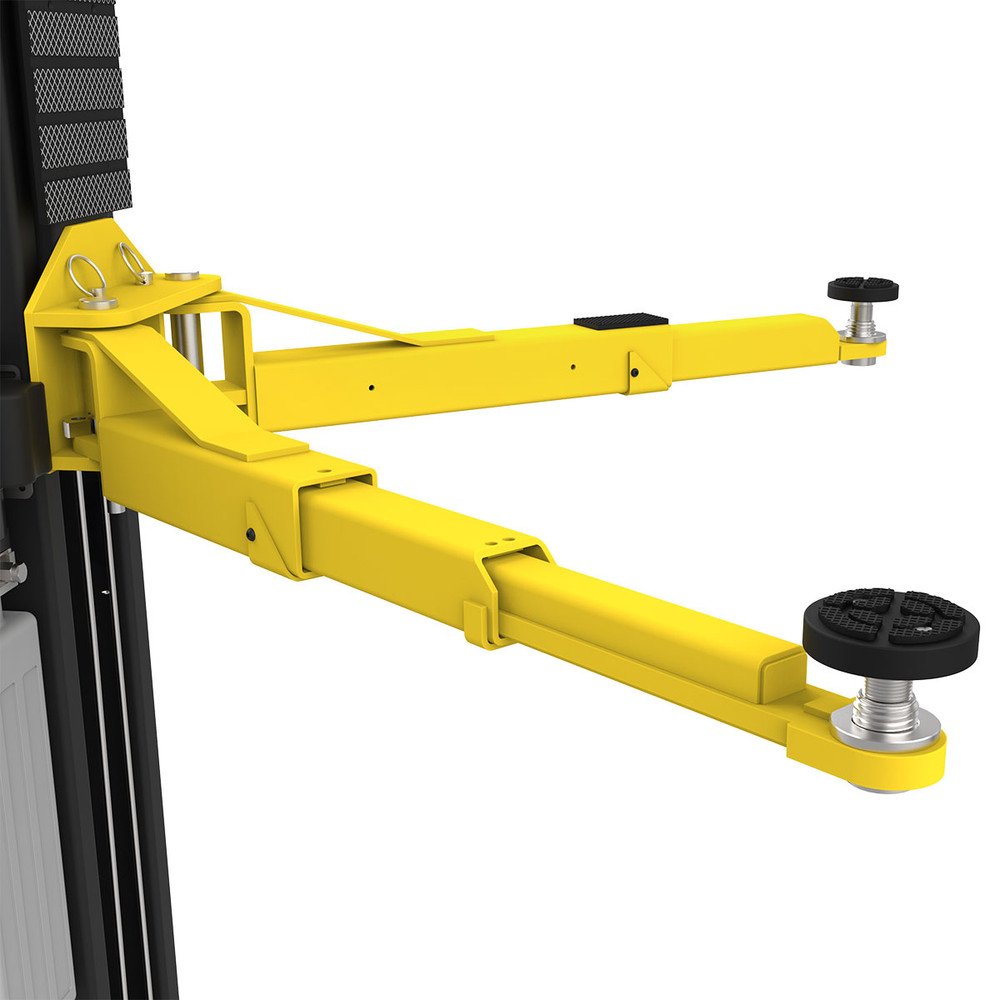

- Triple-Telescoping front arms & dual-stage extended rear arms

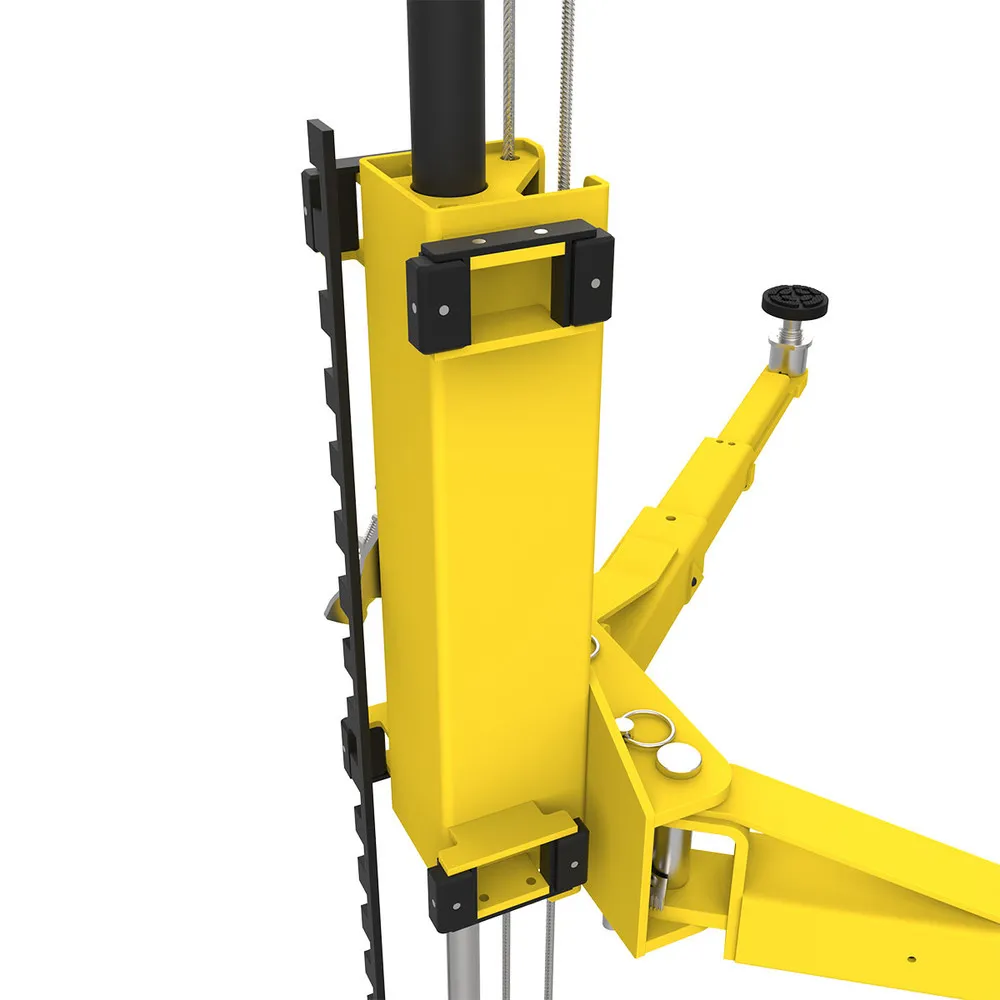

- Heavy-Duty 6″ x 6″ tubular steel carriage for maximum strength

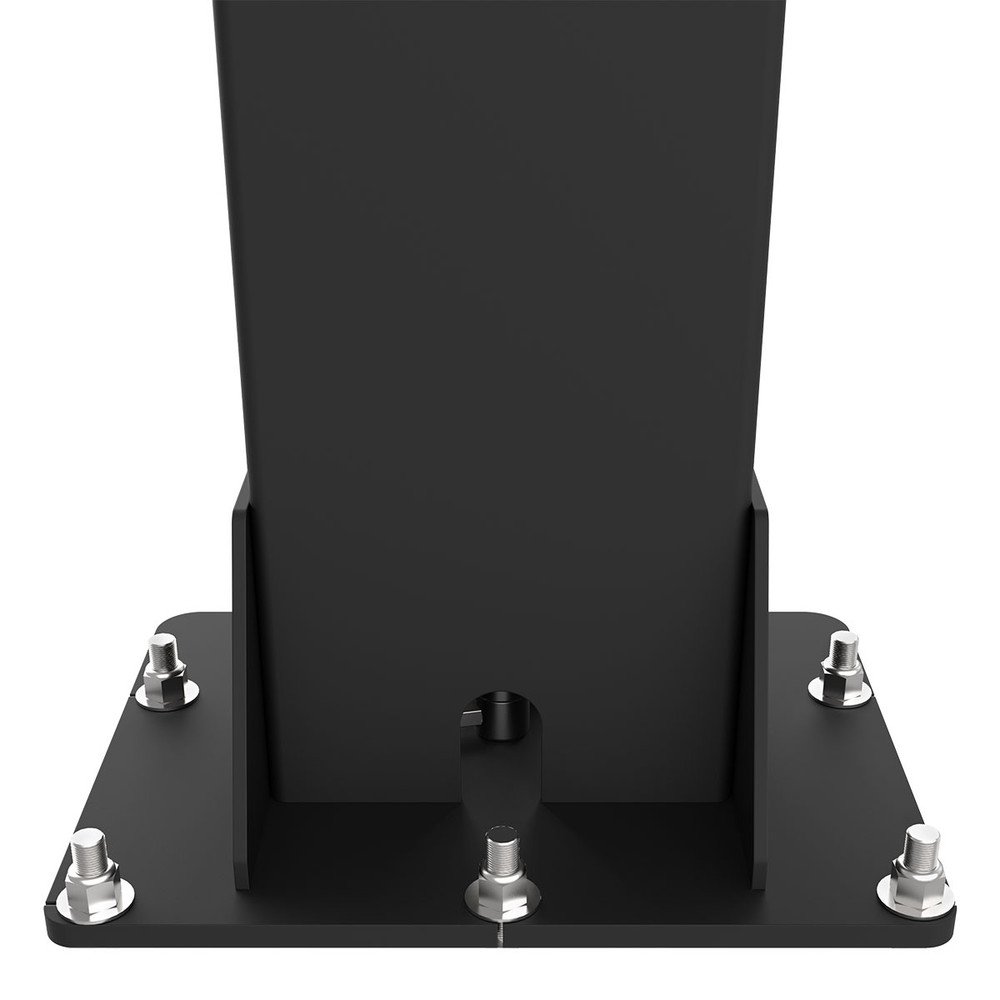

- Oversized 20.5″ x 15.5″ base plates for increased stability

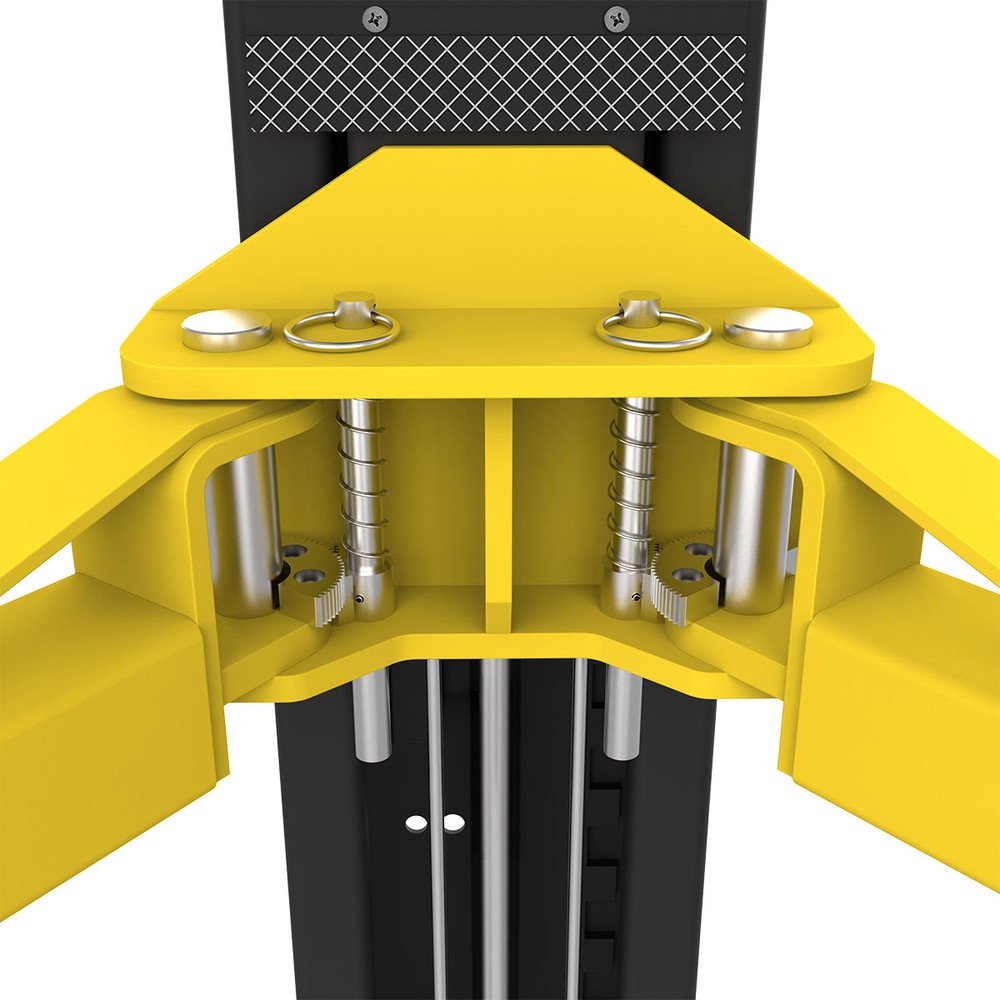

- Automatic arm restraints for enhanced safety
- Direct-drive design features dual full-stroke hydraulic cylinders

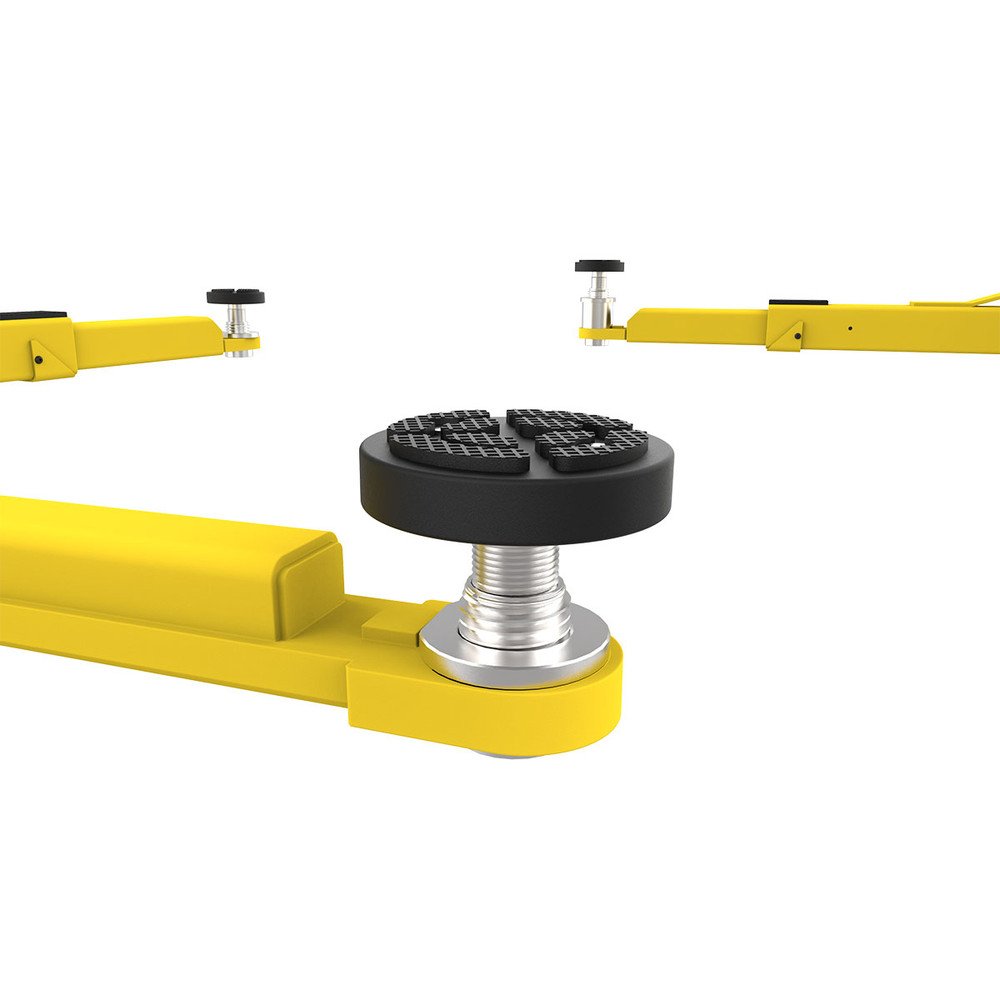

- Double-telescoping screw pads feature tear-resistant polyurethane non-slip pads

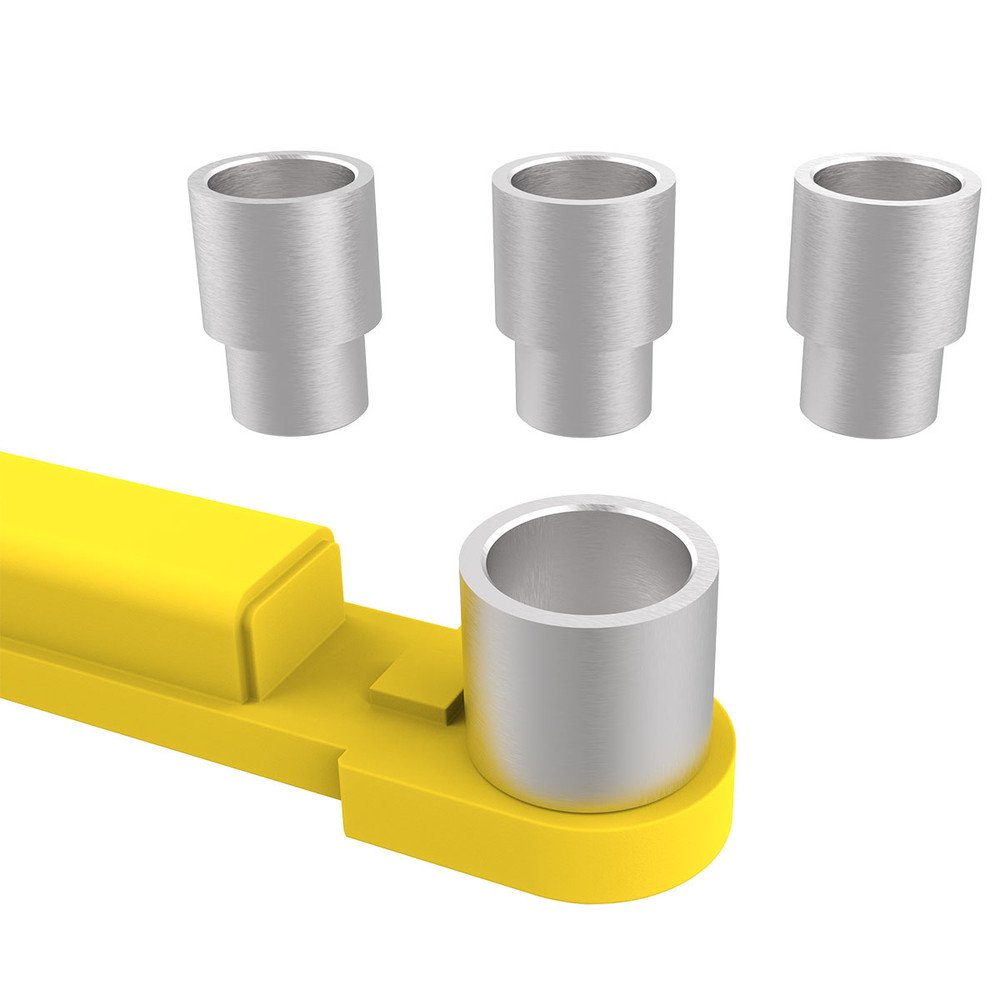

- 4-piece 63mm stackable adapter set included

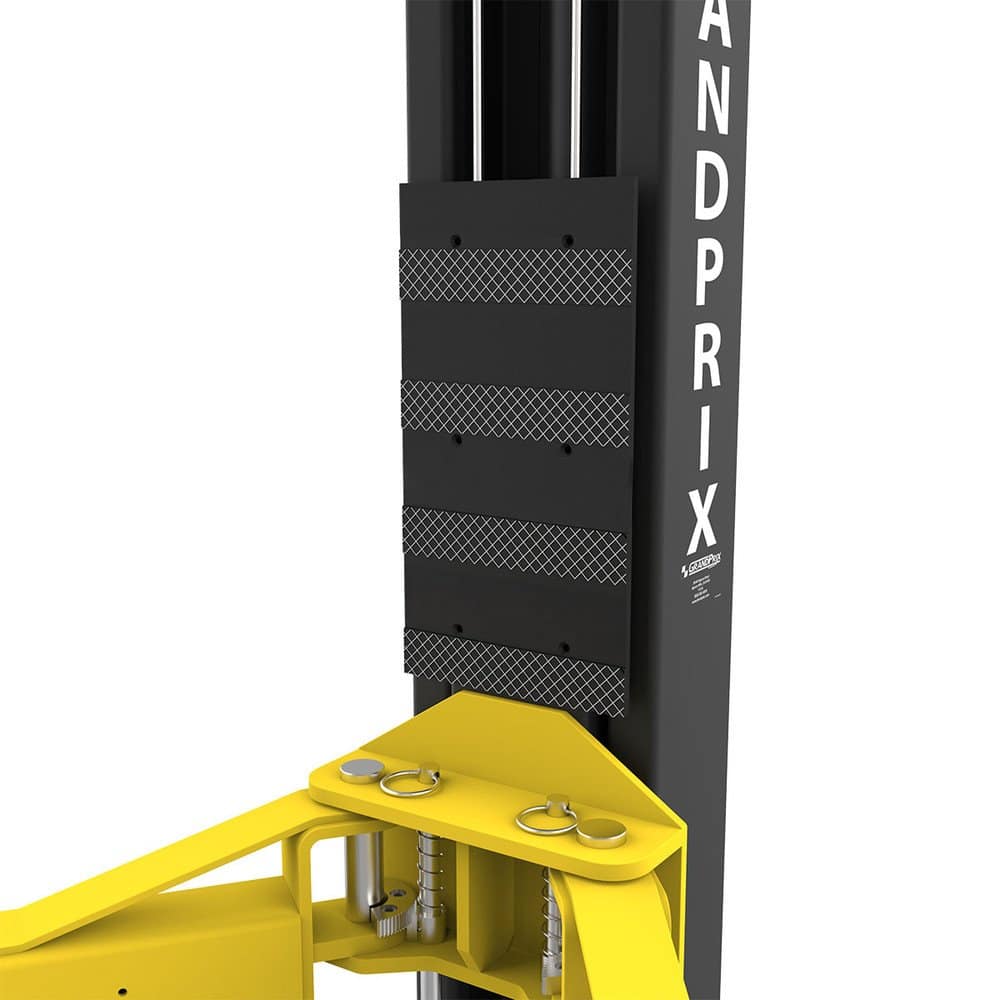

- Full size rubber carriage guard reduces door dings
Specifications
- 10,000-lb. lifting capacity
- Rugged box-beam overhead construction for added stability
- Padded overhead safety shutoff bar
- Symmetric and asymmetric arm design for enhanced versatility
- Triple-telescoping front arms & dual-stage extended rear arms
- Dual direct-drive low-pressure hydraulic cylinders
- Heavy-duty 6” x 6” tubular steel carriage for maximum strength
- Electric-hydraulic power system for effortless operation
- Oversized 20.5″ x 15.5″ base plate for increased stability
- Self-lubricating UHMW polyethylene guide blocks for long-lasting durability
- Safety locks in each column spaced every 3 inches
- Automatic arm restraints for enhanced safety

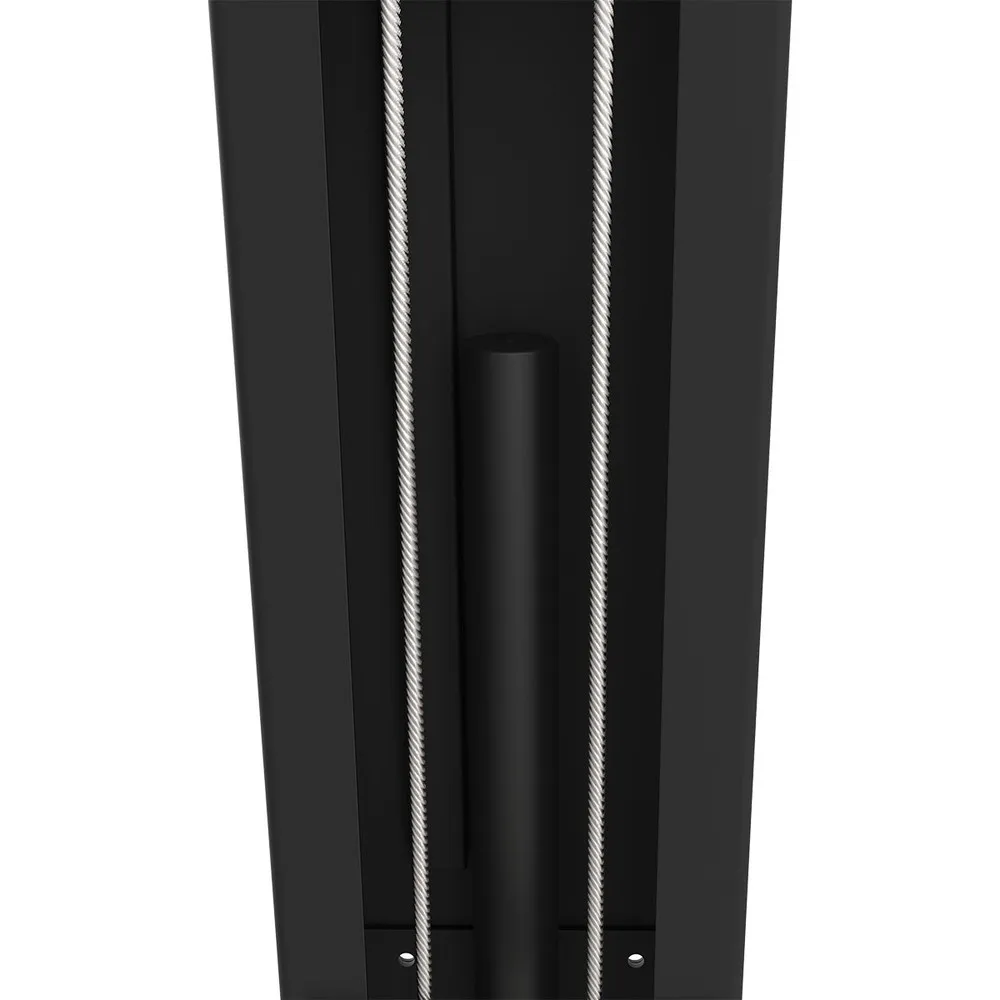

- Heavy-duty 3/8″ aircraft-quality equalizer cables
- Oversized cable sheaves to reduce cable fatigue
- Double-telescoping screw pads feature tear-resistant polyurethane for long-lasting durability
- Full size rubber carriage guard reduces door dings
- 4-piece 63mm stackable adapter set included
- 10-piece concrete wedge anchors included
- 36-month limited warranty
Lifting Capacity: 10,000 lbs. (4,536 kg)
Max. Capacity / Front Axle: 5,000 lbs. (2,268 kg)
Max. Capacity / Rear Axle: 5,000 lbs. (2,268 kg)
A – Height Overall: 148″ (3,759 mm)
B – Width Overall (at Baseplate): 137.5″ (3,492 mm)
C – Width Outside of Columns: 128.5″ (3,264 mm)
D – Floor to Overhead Switch Bar: 142.5″ (3,619 mm)
E – Width Inside Columns: 114.5″ (2,908 mm)
F – Front Arm Reach (Min.): 22.5″ (571 mm)
F – Front Arm Reach (Max.): 43.25″ (1,099 mm)
G – Rear Arm Reach (Min.): 33.5″ (845 mm)
G – Rear Arm Reach (Max.): 53.25″ (1,353 mm)
H – Min. Pad Height: 3.9″ (100 mm)
I – Rise: 70″ (1,778 mm)
J – Max. Lift Height (Pad + 63mm Adapt.): 76.5″ – 78.5″ (1,943 – 1,994 mm)
K – Drive-Thru Clearance: 103″ (2,618 mm)
Screw Pad Adjustment: 2″ (51 mm)
Motor: 220 VAC / 60Hz / 1 Ph
Time of Full Rise: 65 seconds
Max. Load Per Arm: 2,500 lbs. (1,134 kg)
Shipping Weight: 1,545 lbs. (703 kg)
