$7,670.00

The BendPak 10AP PRO Series 10,000‐lb. Capacity 2-Post Lift Package is an ALI Certified four-post lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

In Stock
Category:
Brand:

Description

  • Durable powder coat finish
  • Expandable top beam accommodates wide or narrow drive-thru configurations
  • Double-telescoping screw pads offer increased versatility
  • Padded overhead safety shutoff bar

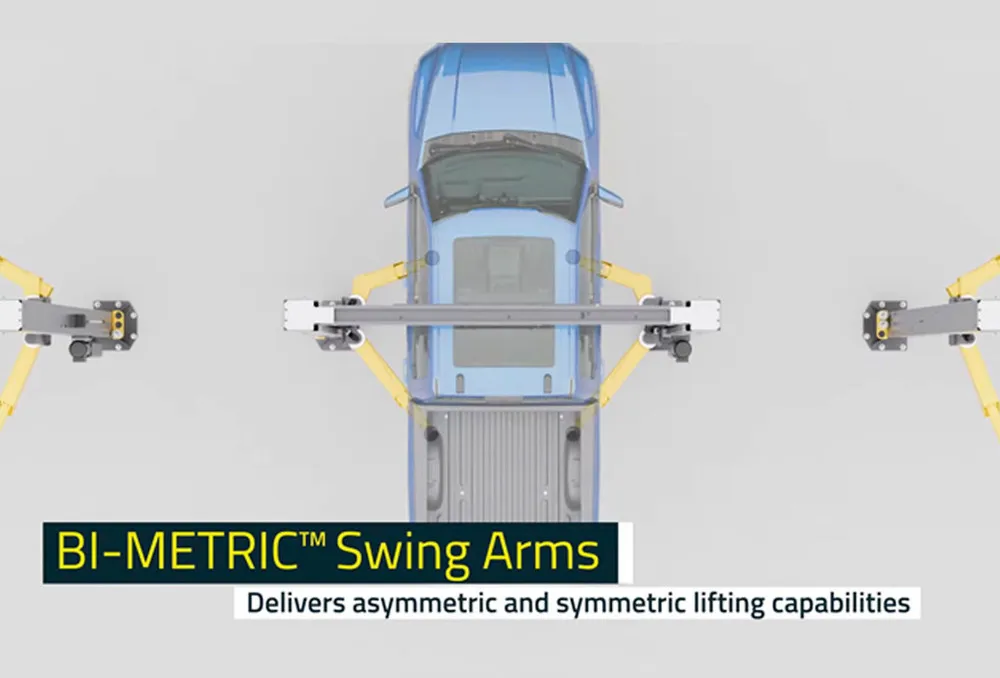

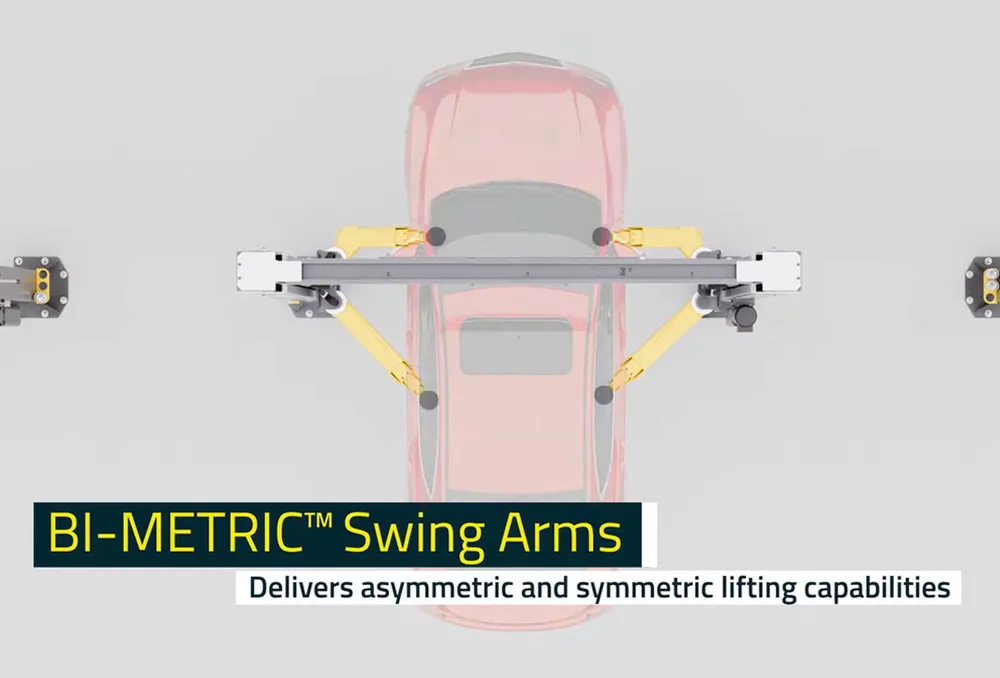

  • Exclusive Bi-Metric™ arm design for more versatile arm positioning
  • Single-point safety release

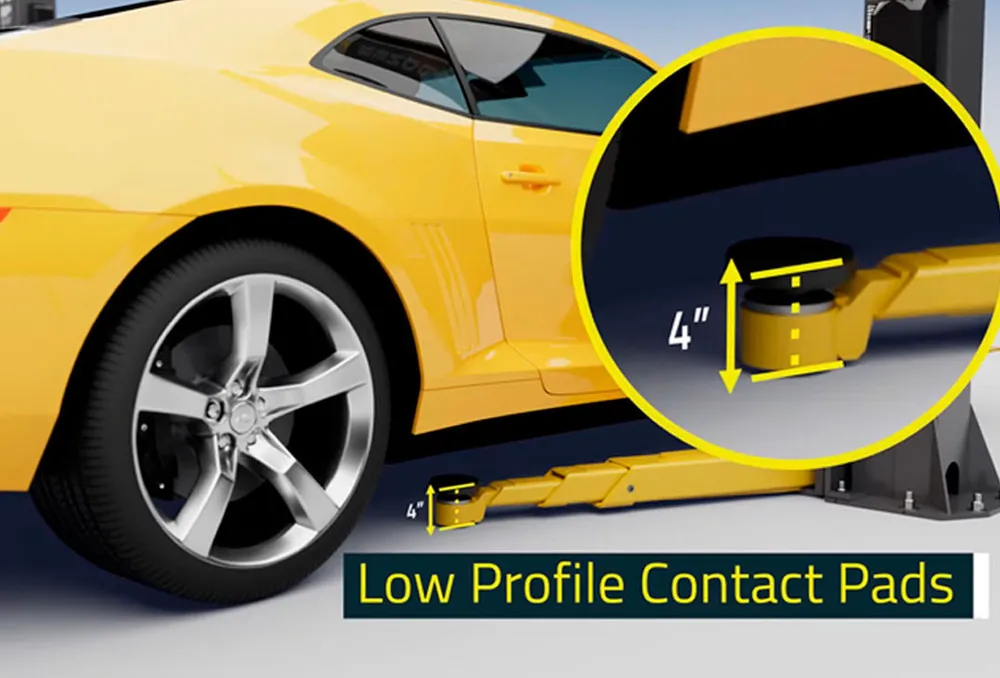

  • Drop-end arms provide a lower pad heigh
  • Dual hydraulic direct-drive cylinders
  • Oversized 53″ & 59″ tall carriages for superior strength and durability
  • Electric / hydraulic HVLP power system
  • Self-lubricating dura-glide UHMW polyethylene bearing system
  • Safety locks in each column spaced every 3″

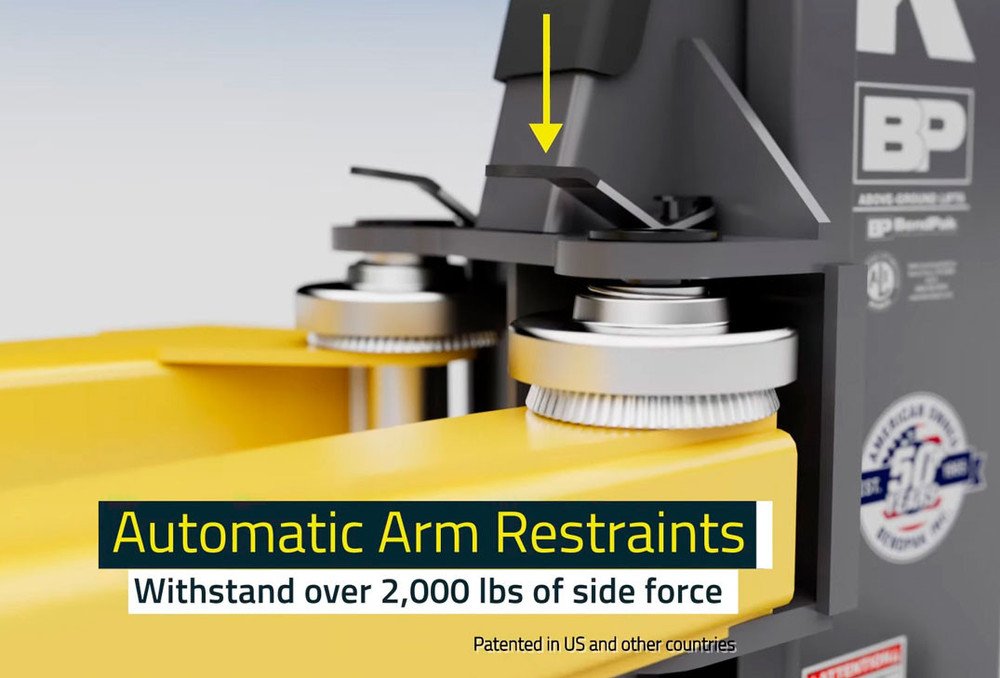

  • Automatic arm restraints withstand over 2000-pounds of side force
  • Heavy-duty 1/2″ aircraft-quality equalizer cables
  • Oversized cable sheave diameter reduces cable fatigue

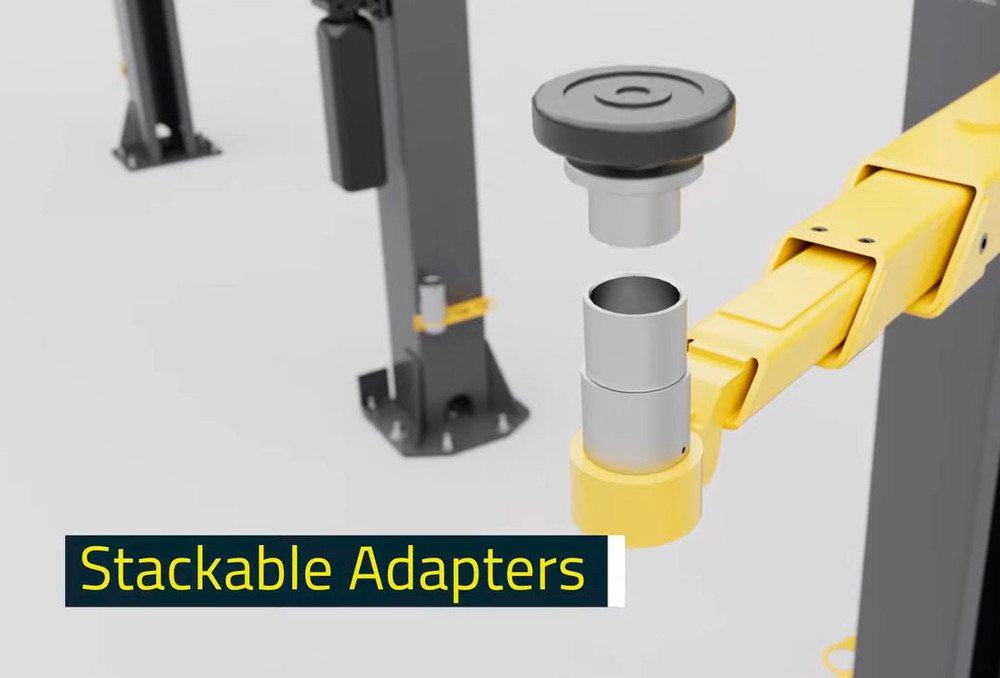

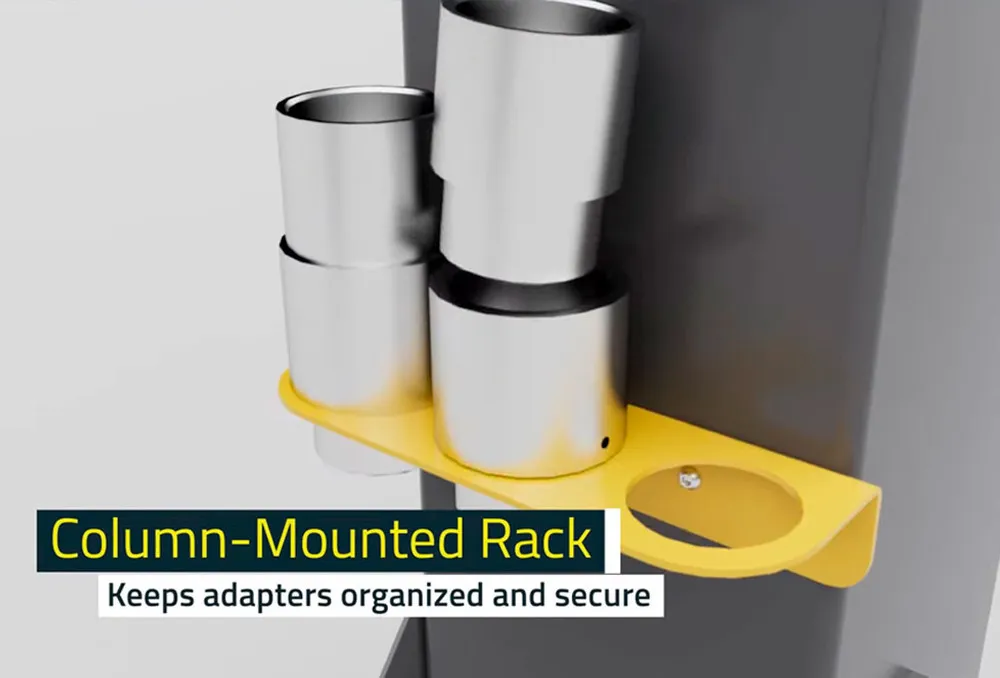

  • 14-piece standard adapter set

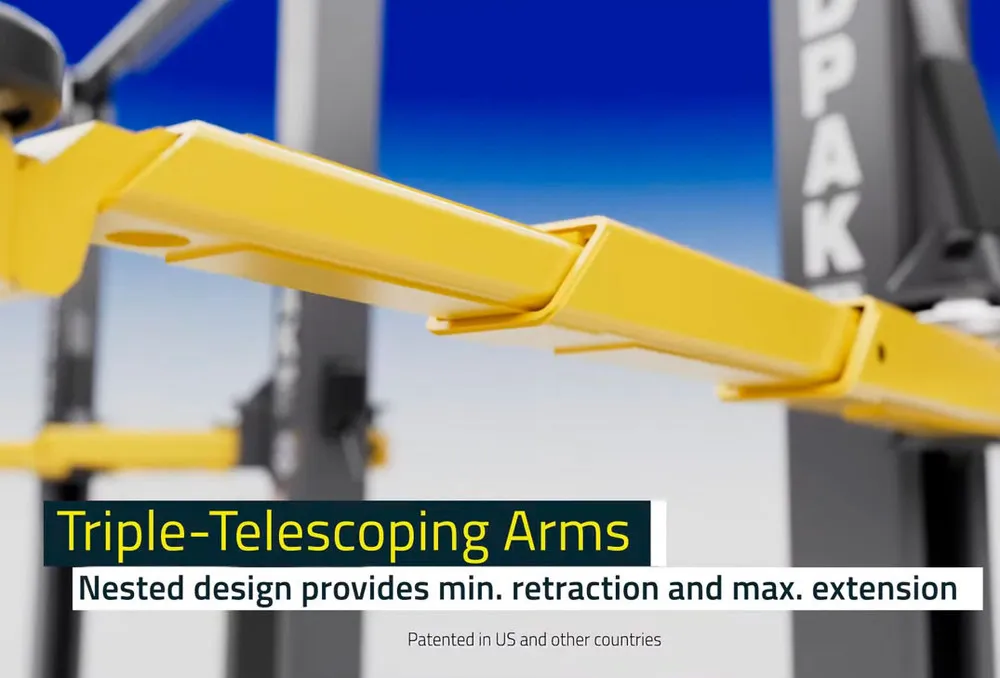

  • Four triple-telescoping arms
  • ALI certified

Capacity

Lifting Capacity*: 10,000 lbs. (4,536 kg)
*Max Capacity / Front Axle: 5,000 lbs. (2,268 kg)
*Max Capacity / Rear Axle: 5,000 lbs. (2,268 kg)
*Max Capacity / Rear Axle: 5,000 lbs. (2,268 kg)

Rise

A – Rise: 69″ (1,753 mm)
B – Rise + Pad Only: 73″ (1,854 mm)
C – Rise + Pad + 63 mm Adapter: 82.5″ (2,096 mm)
D – Min. Height + Pad: 4″ (102 mm)
Time to Full Rise: ≈45 seconds

Outside Dimensions

E – Height Overall: 145″ (3,683 mm)
F – Width Overall: 135″ (3,429 mm) or 145″ (3,683 mm)
G – Outside Columns: 127.5″ (3,239 mm) or 137.5″ (3,493 mm)

Inside Dimensions

H – Inside Columns: 108.5″ (2,756 mm) or 118.5″ (3,010 mm)
I – Drive-Thru Clearance: 92″ (2,337 mm) or 102″ (2,591 mm)

Arms & Pads

K – Front Arm Reach: (MIN) 24.5″ (622 mm)
K – Front Arm Reach: (MAX) 50″ (1,270 mm)
L – Rear Arm Reach: (MIN) 32″ (813 mm)
L – Rear Arm Reach: (MAX) 59.25″ (1,505 mm)
Screw Pad Adjustment: 2″ (51 mm)
Max Load Per Arm: 2,500 lbs. (1,134 kg)

Power Unit

Motor: 220 VAC, 60 Hz, 1 Phase
Noise: <70 dB

Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.

BendPak lifts are supplied with concrete fasteners that meet the criteria of the American National Standard ANSI/ALI ALCTV-(Current). Buyer is responsible for all charges relating to any special regional structural or seismic anchoring requirements specified by any other agencies or codes such as the Uniform Building Code (UBC) or International Building Code (IBC).

Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Four Post Lifts.
