$8,270.00

The BendPak 10AP-168 PRO Series 10,000‐lb. Capacity 2-Post Lift Package is an ALI Certified four-post lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

In Stock
Category:
Brand:

Description

  • Durable powder coat finish
  • Expandable top beam accommodates wide or narrow drive-thru configurations
  • Double-telescoping screw pads offer increased versatility
  • Padded overhead safety shutoff bar

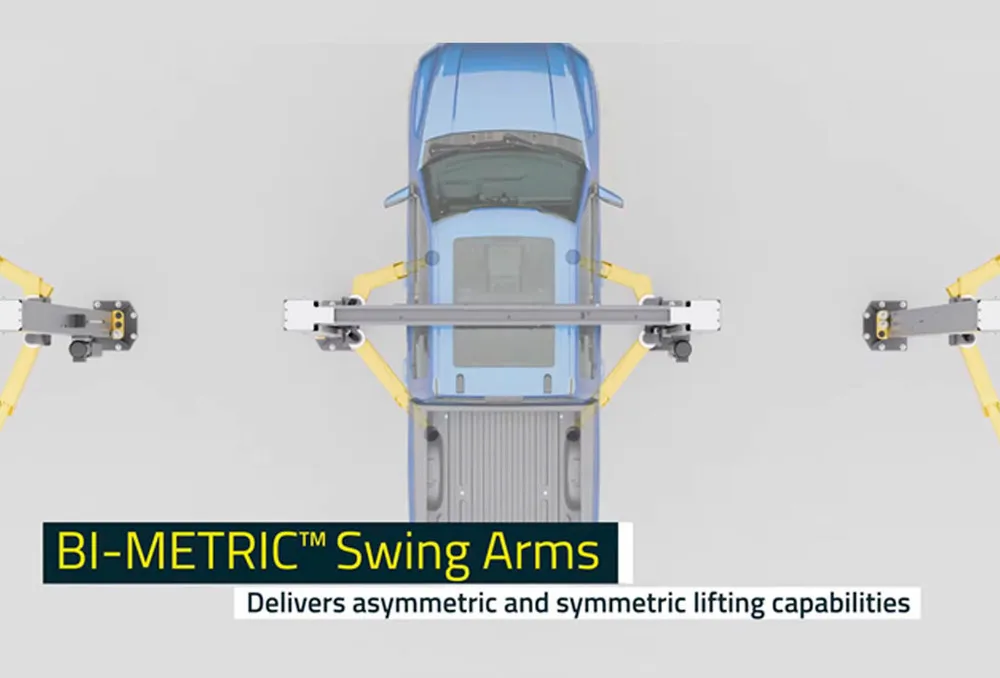

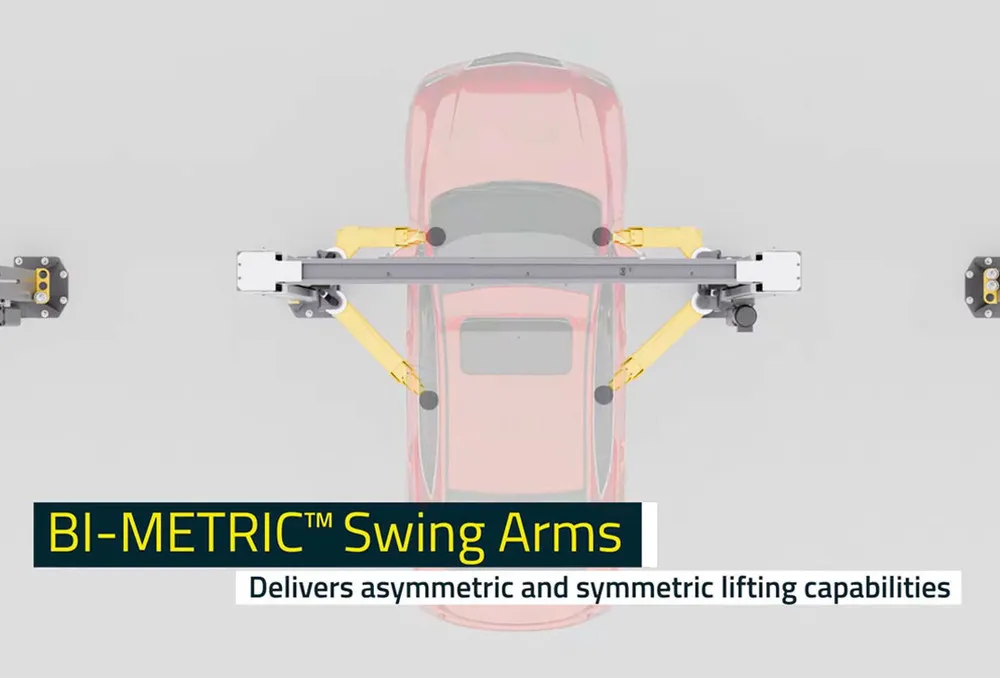

  • Exclusive Bi-Metric™ arm design for more versatile arm positioning
  • Single-point safety release
  • Drop-end arms provide a lower pad heigh
  • Dual hydraulic direct-drive cylinders
  • Oversized 53″ & 59″ tall carriages for superior strength and durability
  • Electric / hydraulic HVLP power system
  • Self-lubricating dura-glide UHMW polyethylene bearing system
  • Safety locks in each column spaced every 3″

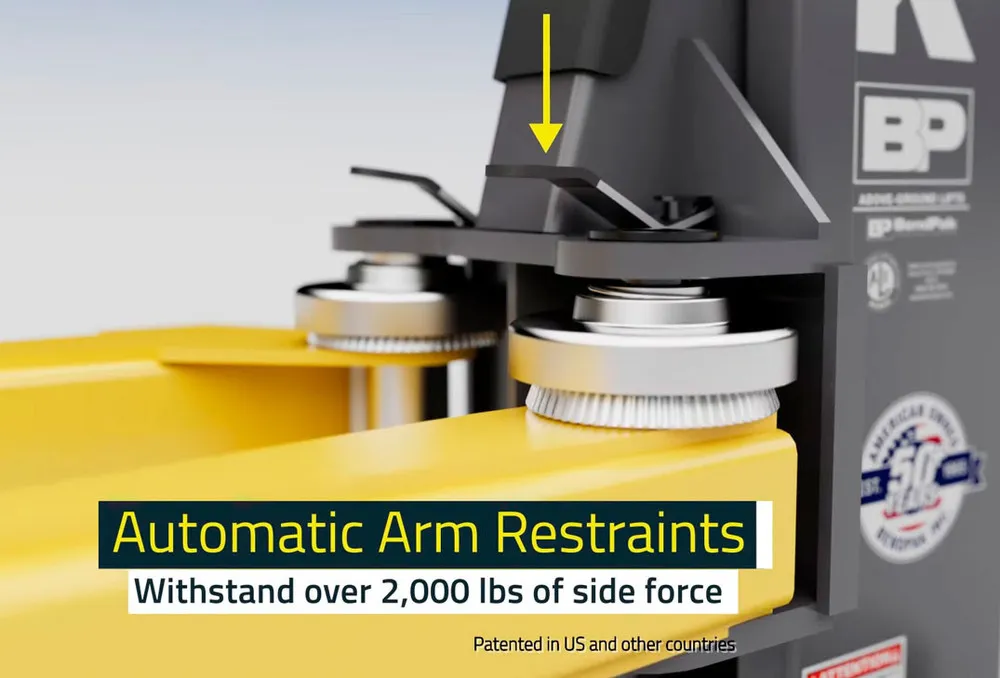

  • Automatic arm restraints withstand over 2000-pounds of side force
  • Heavy-duty 1/2″ aircraft-quality equalizer cables
  • Oversized cable sheave diameter reduces cable fatigue

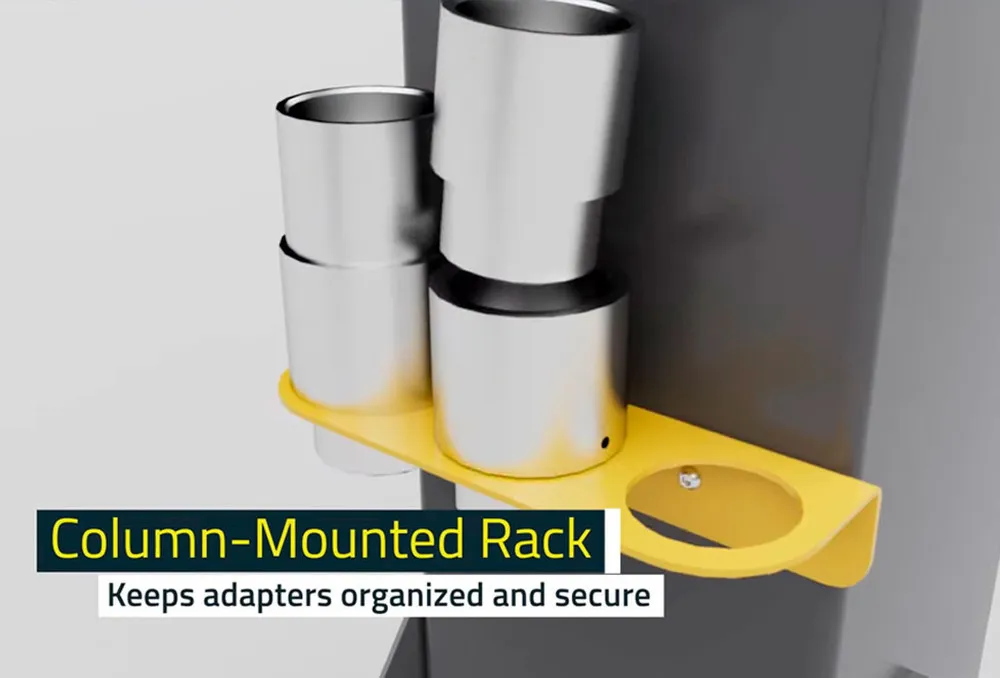

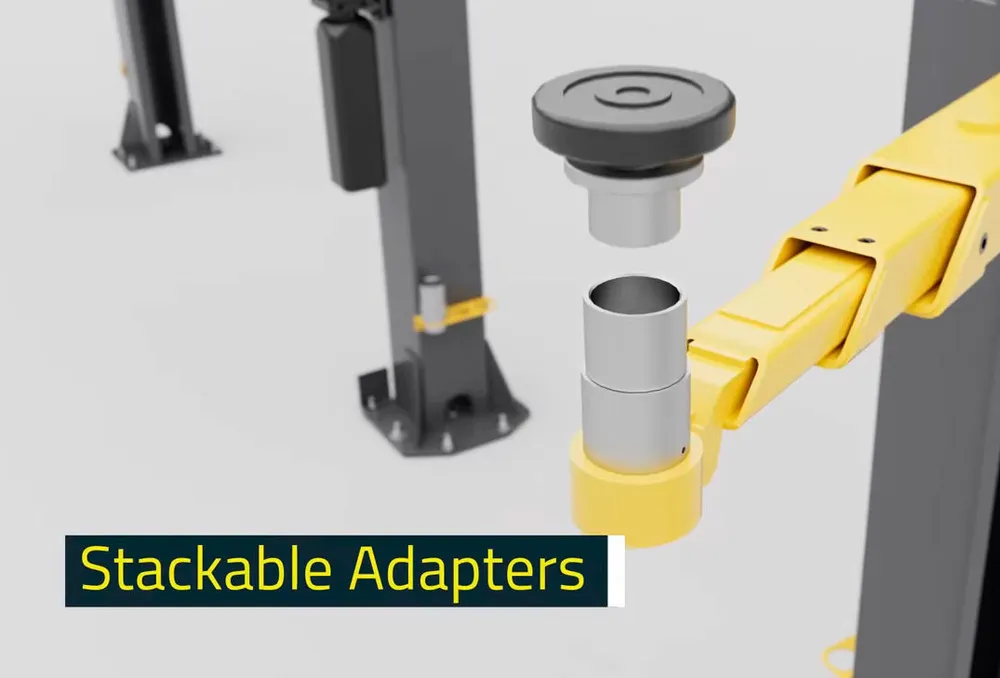

  • 14-piece standard adapter set

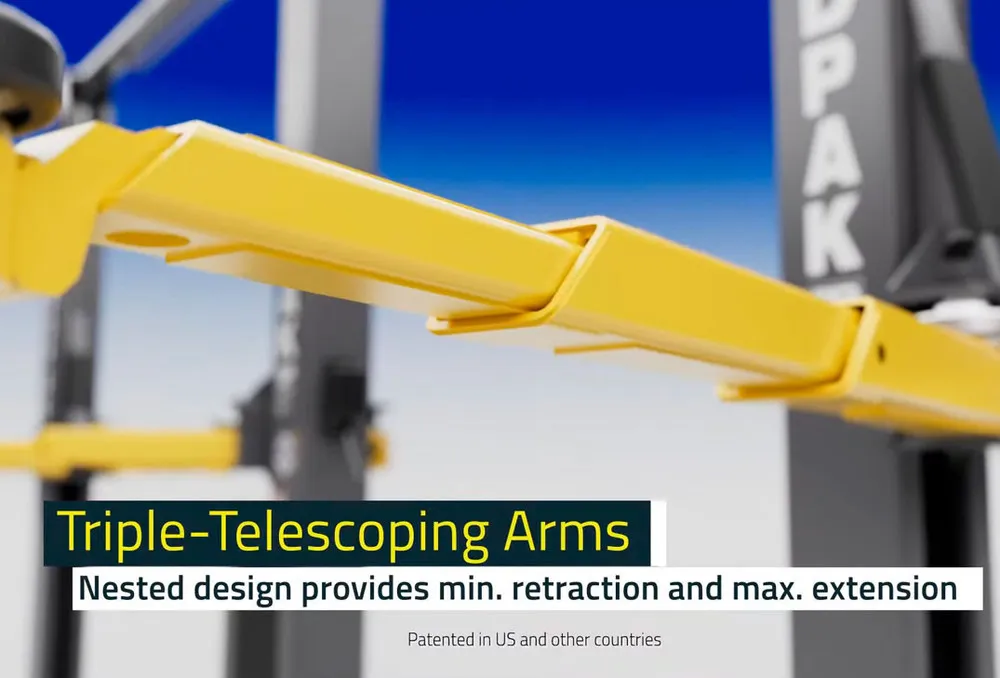

  • Four triple-telescoping arms
  • ALI certified

Capacity

Lifting Capacity*: 10,000 lbs. (4,536 kg)
*Max Capacity / Front Axle: 5,000 lbs. (2,268 kg)
*Max Capacity / Rear Axle: 5,000 lbs. (2,268 kg)
*Max Capacity / Rear Axle: 5,000 lbs. (2,268 kg)

Rise

A – Rise: 69″ (1,753 mm)
B – Rise + Pad Only: 73″ (1,854 mm)
C – Rise + Pad + 63 mm Adapter: 82.5″ (2,096 mm)

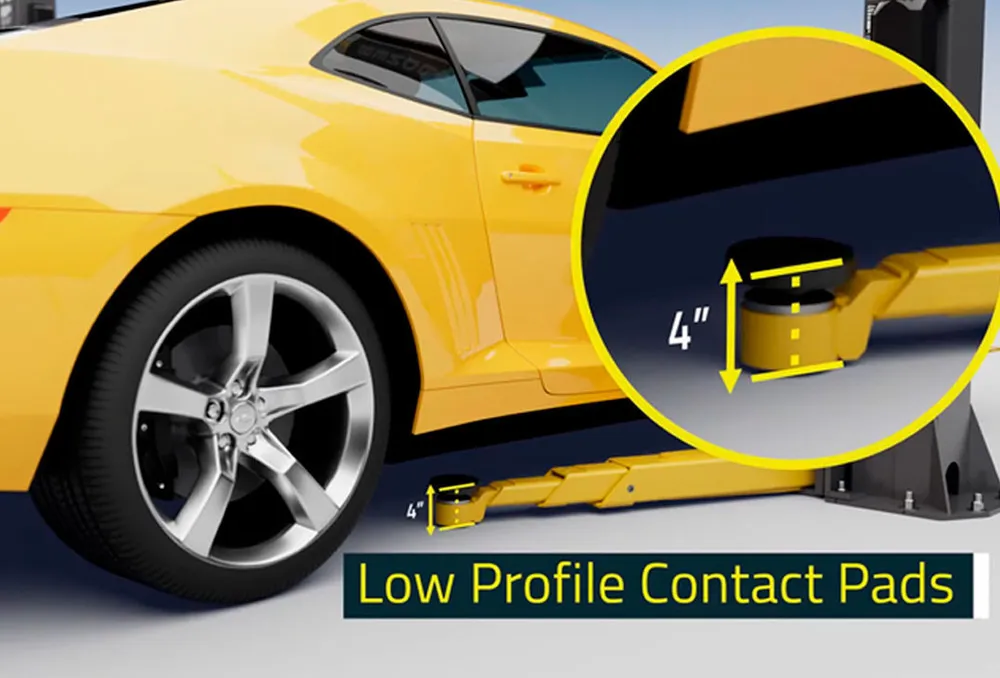

D – Min. Height + Pad: 4″ (102 mm)
Time to Full Rise: ≈45 seconds

Outside Dimensions

E – Height Overall: 168″ (4,267 mm)
F – Width Overall: 135″ (3,429 mm) or 145″ (3,683 mm)
G – Outside Columns: 127.5″ (3,239 mm) or 137.5″ (3,493 mm)

Inside Dimensions

H – Inside Columns: 108.5″ (2,756 mm) or 118.5″ (3,010 mm)
I – Drive-Thru Clearance: 92″ (2,337 mm) or 102″ (2,591 mm)

Arms & Pads

K – Front Arm Reach: (MIN) 24.5″ (622 mm)
K – Front Arm Reach: (MAX) 50″ (1,270 mm)
L – Rear Arm Reach: (MIN) 32″ (813 mm)
L – Rear Arm Reach: (MAX) 59.25″ (1,505 mm)
Screw Pad Adjustment: 2″ (51 mm)
Max Load Per Arm: 2,500 lbs. (1,134 kg)

Power Unit

Motor: 220 VAC, 60 Hz, 1 Phase
Noise: <70 dB

Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Four Post Lifts.
