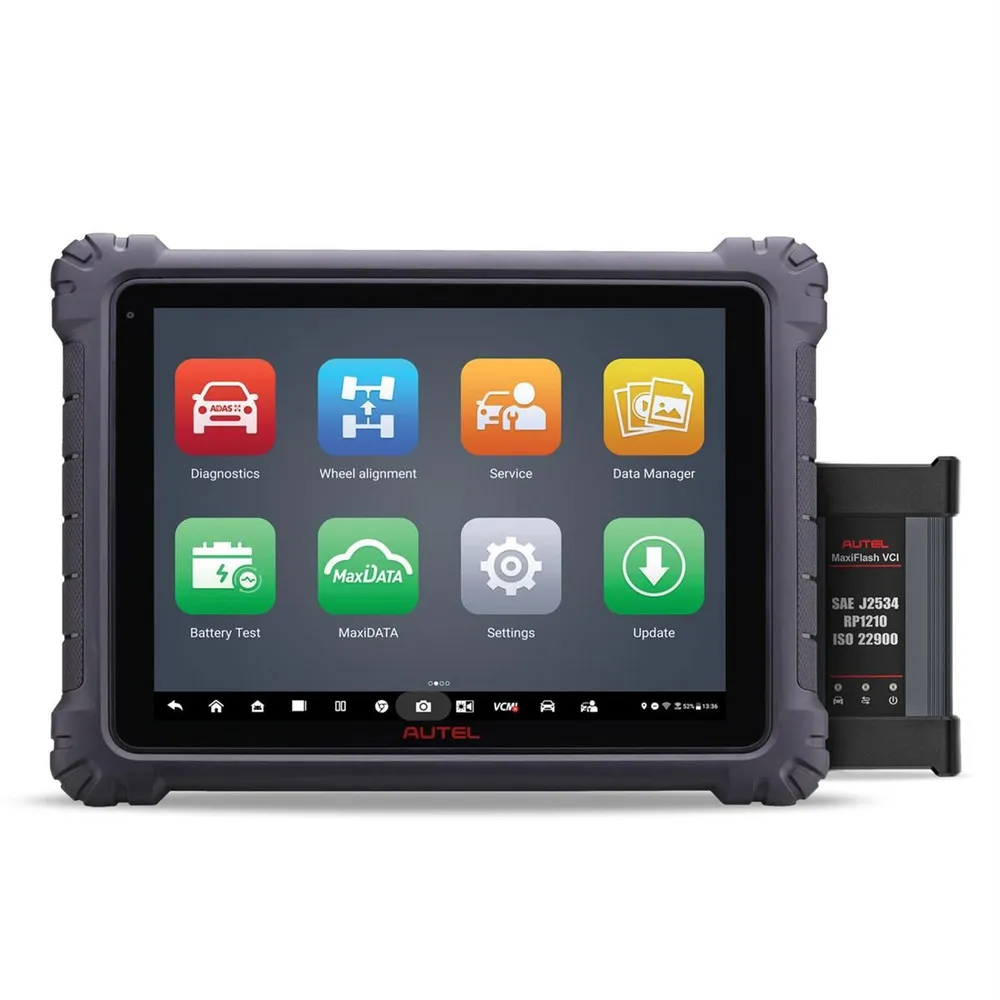

Autel MSULTRAADAS MaxiSYS Ultra ADAS Tablet
Autel MSULTRAADAS MaxiSYS Ultra ADAS Tablet

Autel MSULTRAADAS MaxiSYS Ultra ADAS Tablet

SKU: VE-9718
In Stock

$5,255.00

Autel MSULTRAADAS MaxiSYS Ultra ADAS Tablet

This 12.7-inch wireless touchscreen tablet comes replete with all the functionality expected in an advanced diagnostic and service tablet including the ability read and erase codes, view Freeze Frame and view and graph Live Data, perform Active Tests and perform coding and adaptions, plus it includes ADAS calibration and Wheel Alignment software. Compatible with the IA900WA frame system. The tablet is equipped with a Bluetooth-enabled VCI and J2534 pass thru programming device, includes one-year free software and is covered by a one year limited warranty.

In Stock
Category:
Brand:

Description

Autel MSULTRAADAS MaxiSYS Ultra ADAS Tablet

12.7-inch touchscreen Android-based advanced diagnostics tablet

Includes ADAS calibration and wheel alignment software update

Compatible with IA900WA frame system

Advanced diagnostic functionality compatible with U.S., Asian and European vehicles, 1996 ad newer

Read and Erase codes, view Freeze Frame and view and graph Live Data

Perform Active Test and adaptations and coding

Includes MaxiFlash VCI and J2534 passthru programming device

Covered by one year limited warranty

Includes one year of free software updates

Operating System: Android 7.0
Processor: Octa-core processor (4 x 2.3 GHz; 4 x 1.7 GHz)
Memory: 4GB RAM & 256GB On-board Memory
Display: 12.7 inch with 2732 x 2048 resolution and capacitive touchscreen
Camera: Rear: 16 Megapixel, Autofocus with Flashlight, Front: 5 Megapixel
Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
Input Voltage: 12V/3A Adapter
Operating Temp: 0 to 50°C (32 to 122°F)
Storage Temperature: -10 to 60°C (14 to 140°F)
Dimensions (WxHxD): 366.5 mm (14.43″) x 280.9 mm (11.06″) x 34 mm (1.34″)
Weight: 2.18kg (4.81 lb.)

Protocols:

DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
