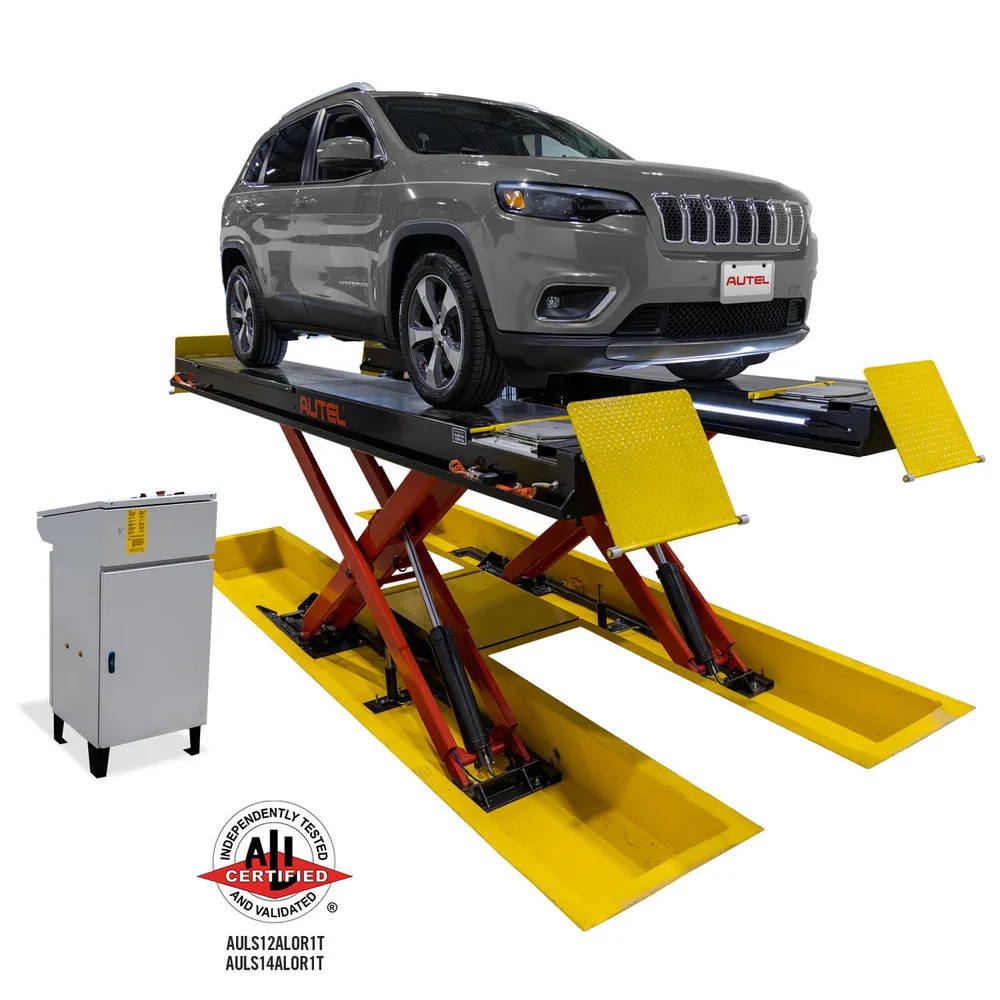

Autel AULS14ALOR1T ADAS Bay Max 14K Lift
$46,365.00
The Autel AULS14ALOR1T is an ALI Certified scissor lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.
Description
Autel AULS14ALOR1T ADAS Bay Max 14K Lift
Key Features

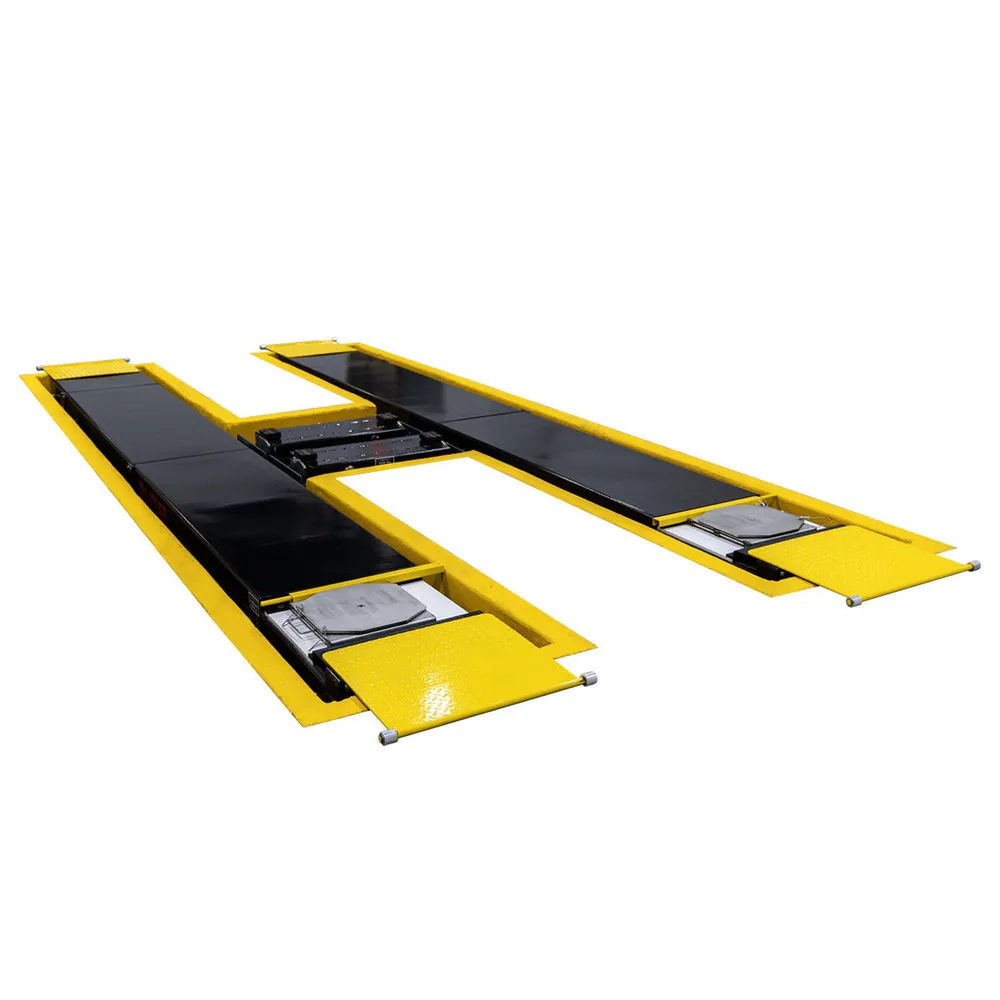

Flush-mounted Hydraulic Alignment Scissor Lift with recessed rolling Jacking Beams and Table Riser
Unique design that enables Mechanical Repair, Wheel Alignment, and 360 ADAS Calibration within a single bay space

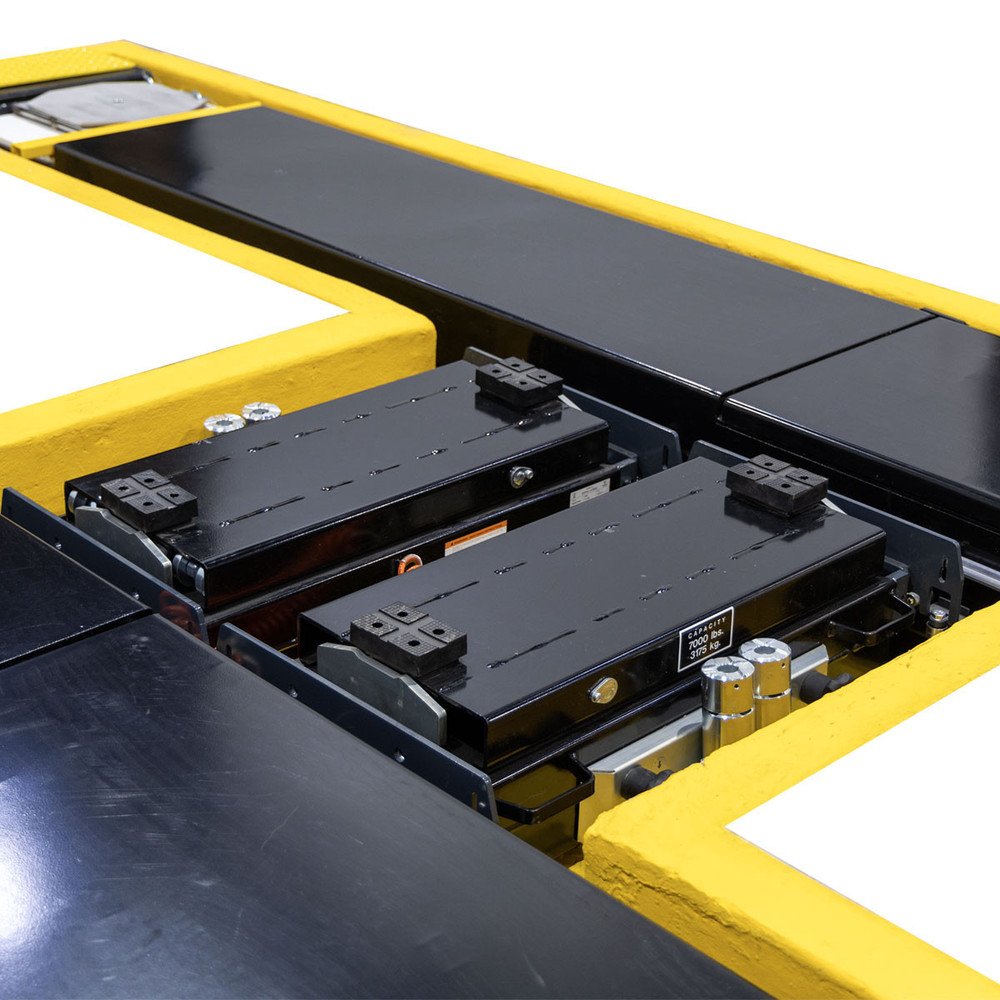

14K Lift with two 7K capacity Jacking Beams

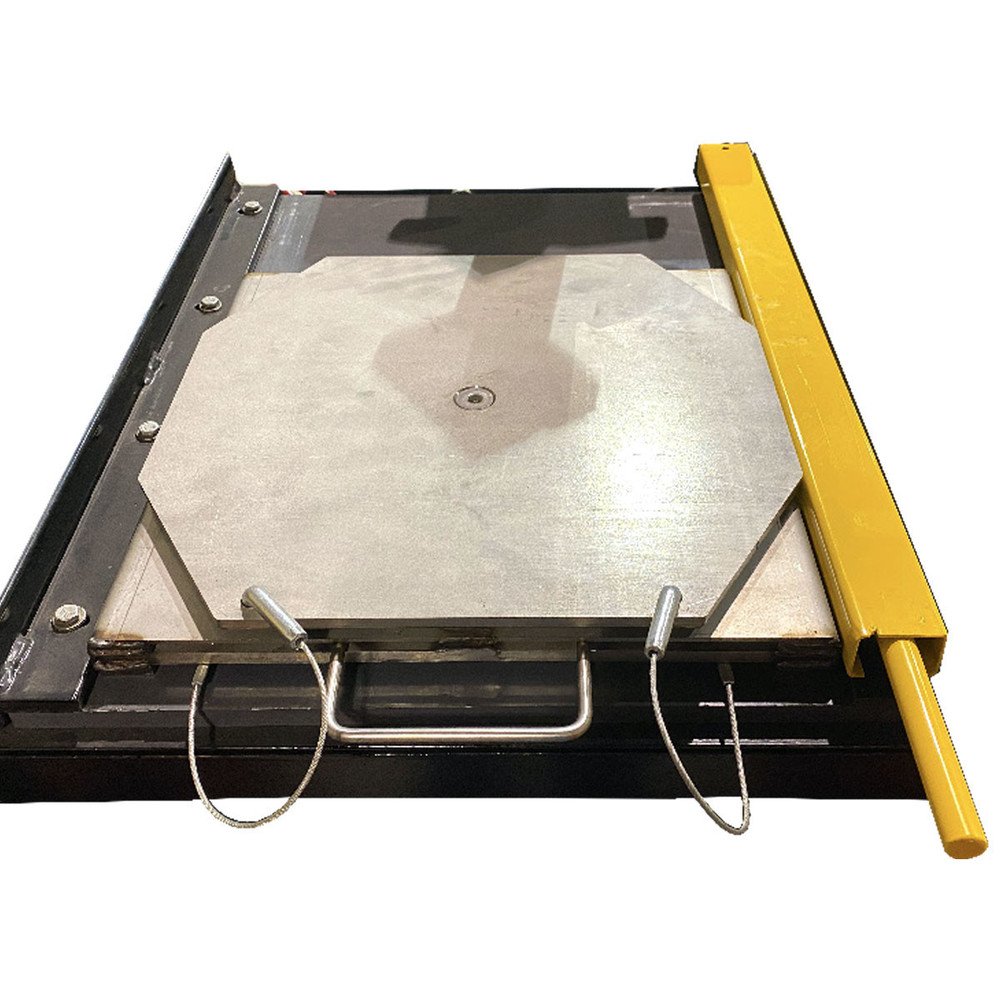

Stainless Steel Front Radius Plates and Rear Slip Plates
Front and Rear-opening Runways with Flip Down Wheel Stops
26″-wide space saving Runways

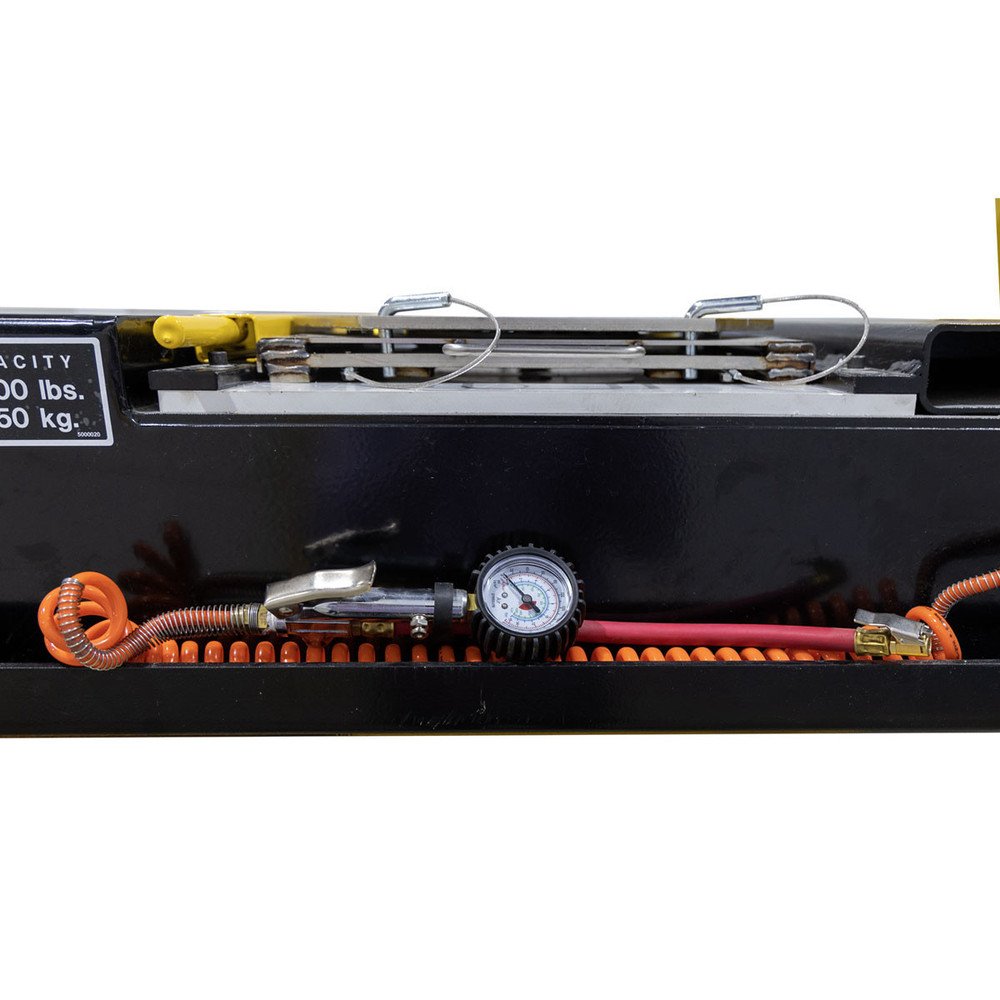

Built-in Runway Air Tire inflation Kit at each wheel

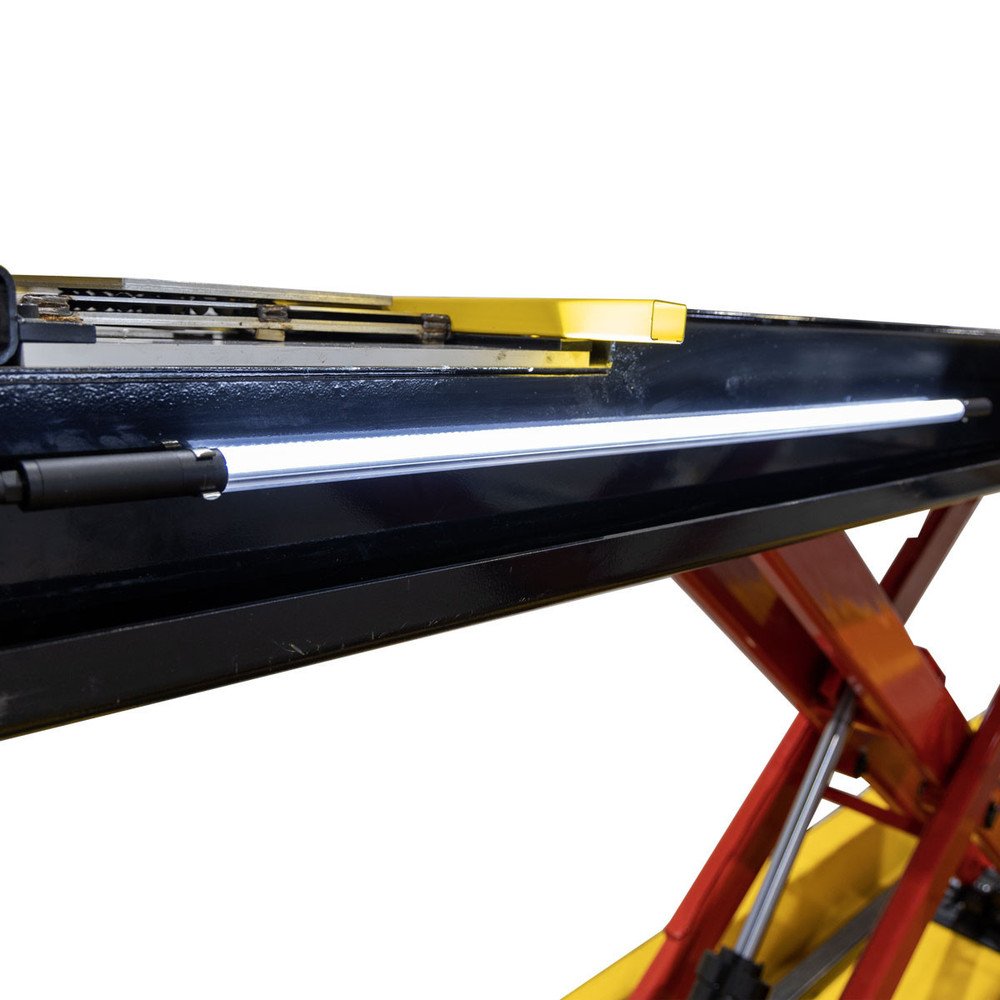

Auto shut off shatterproof LED Lighting Kits
Enclosed Console Control Power Unit
Premium Double Baked Powder Coating Finish and Industrial-grade Rust Proofing
100% North American made and ALI Certified
Product Specifications
Capacity: 14,000 lbs / 6.4T
Overall Length: 260-3/4″ / 6623mm
Deck Length: 203″ / 5156mm
Overall Width: 91-1/2″ / 2324mm
Width Between Runways: 41″ / 1041mm
Deck Width: 23″ / 584 mm
Lowered Height: 10-3/4″ / 273mm
Raised Height: 74″ / 1880 mm
Minimum 4 Wheel Alignment Wheelbase: 84″ / 2235mm
Maximum 4 Wheel Alignment Wheelbase: 164-1/2″ / 4178mm
Maximum 2 Wheel Alignment Wheelbase: 178″ / 4521mm
Maximum Service Wheelbase: 185” / 4699mm
Lift Time: 58 Seconds
Power Requirements: 230 Volts AC – 60 Hz – 1 PH – 25amp
Shipping Weight: 6,230 lbs. / 2.8T
