Atlas Platinum PVL10 ALI Certified 10,000 lb. Capacity 2-Post Lift

Description

Shop the Atlas Platinum PVL10 ALI Certified 10,000 lb. Capacity 2-Post Lift at Variety Engines — every unit is carefully inspected, warrantied, and ready to ship fast across the US.

Features and Benefits:

• • ALI Certified Lift
  • 10,0000 lb. Capacity
  • Column design with special Double “S” bends increasing column strength

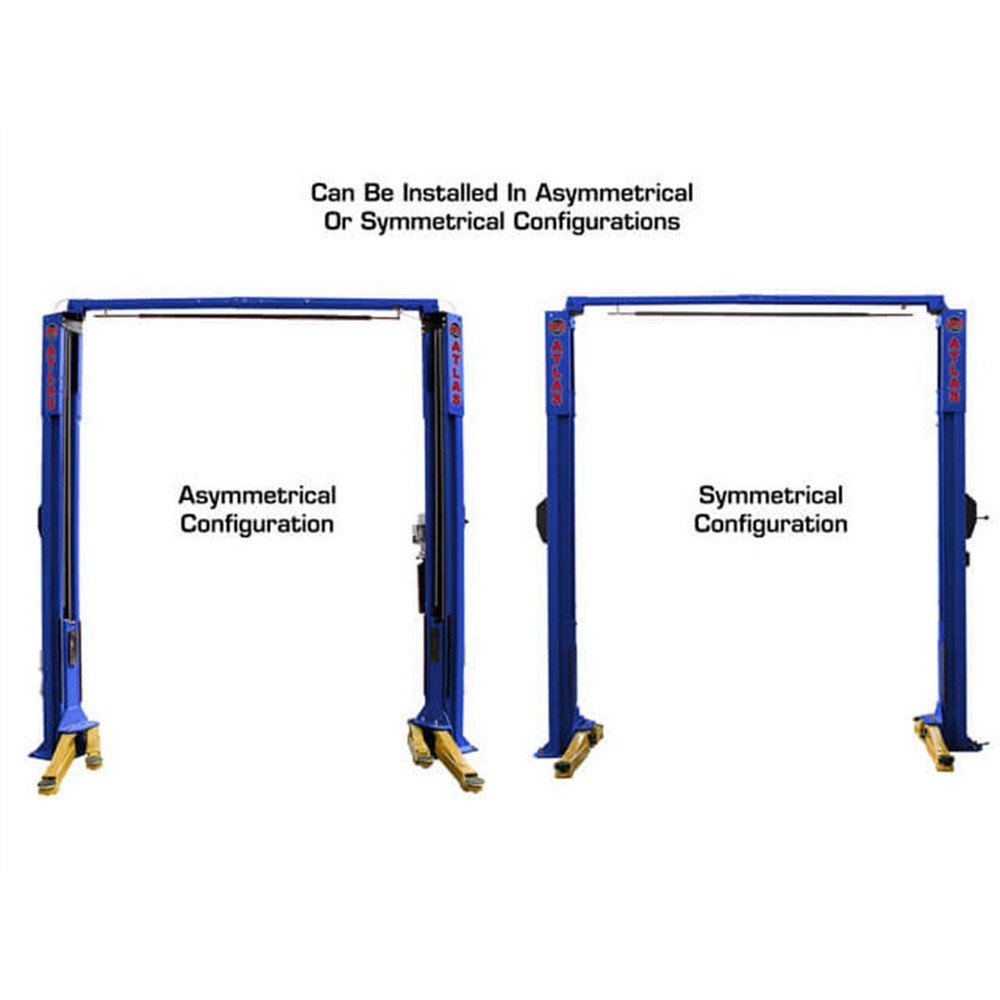

  • Can be installed Symmetrically OR Asymmetrically
  • Overall Height: 139 7/8″ (11′ 7 7/8″) (Cylinder Height 12′ 4″)
  • Special Low Height: 135 7/8″ (11′ 3 7/8″) (Cylinder Height 12′ 4″) (REQUIRES PURCHASE OF EXTRA CABLES)
  • Padded Carriages
  • 3-Stage Front Arms & 2-Stage Rear Arms
  • Single-Point Lock Release
  • Powder Coat Finish
  • Includes Double Screw-up Adapters
  • Free 8 Piece Truck Adapter Set
  • Mounting Hardware Included
  • Standard with Premium ALLY Power unit
  • Shipping Weight: 1,850 lbs.
  • 5 yr Structural ‐ 2 yr Hydraulic ‐ 2 yr Powerunit Warranty
  • This part number FREIGHT PREPAID

Atlas® Platinum PVL10 Specifications

• • Capacity 10,000 LB.

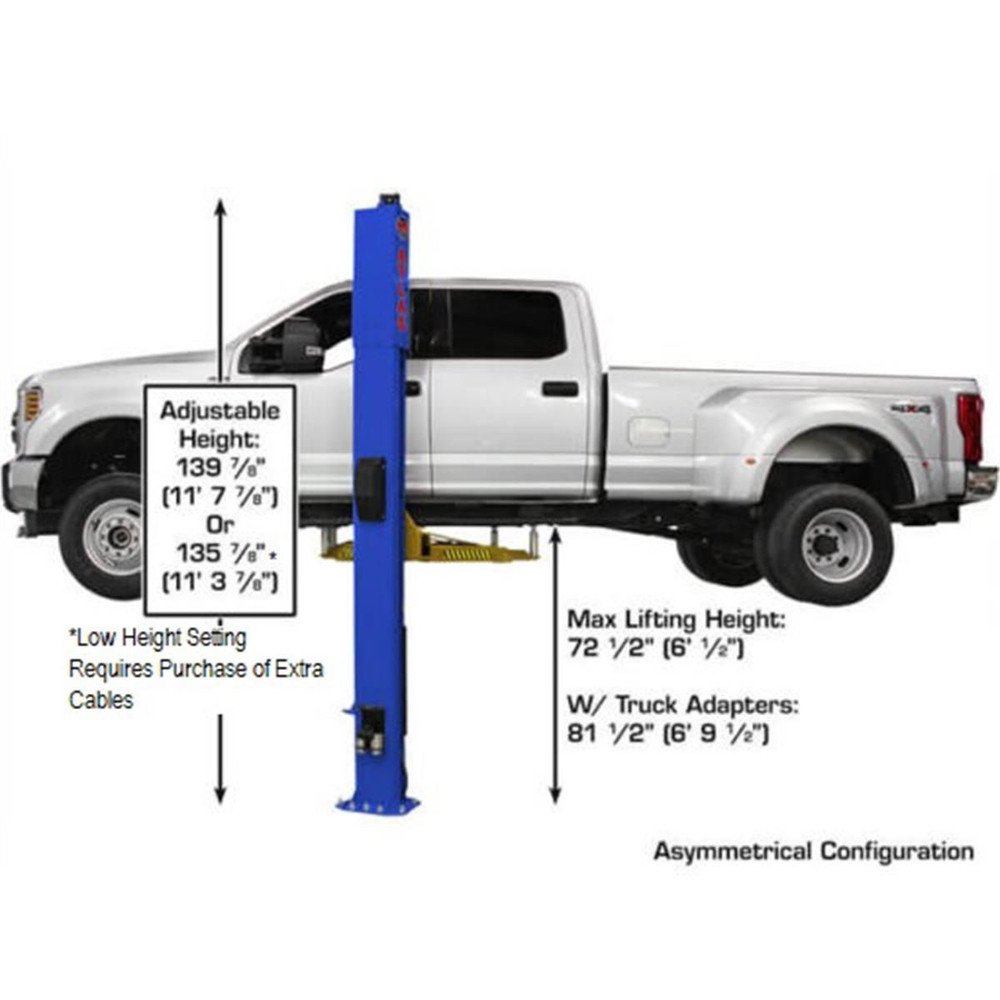

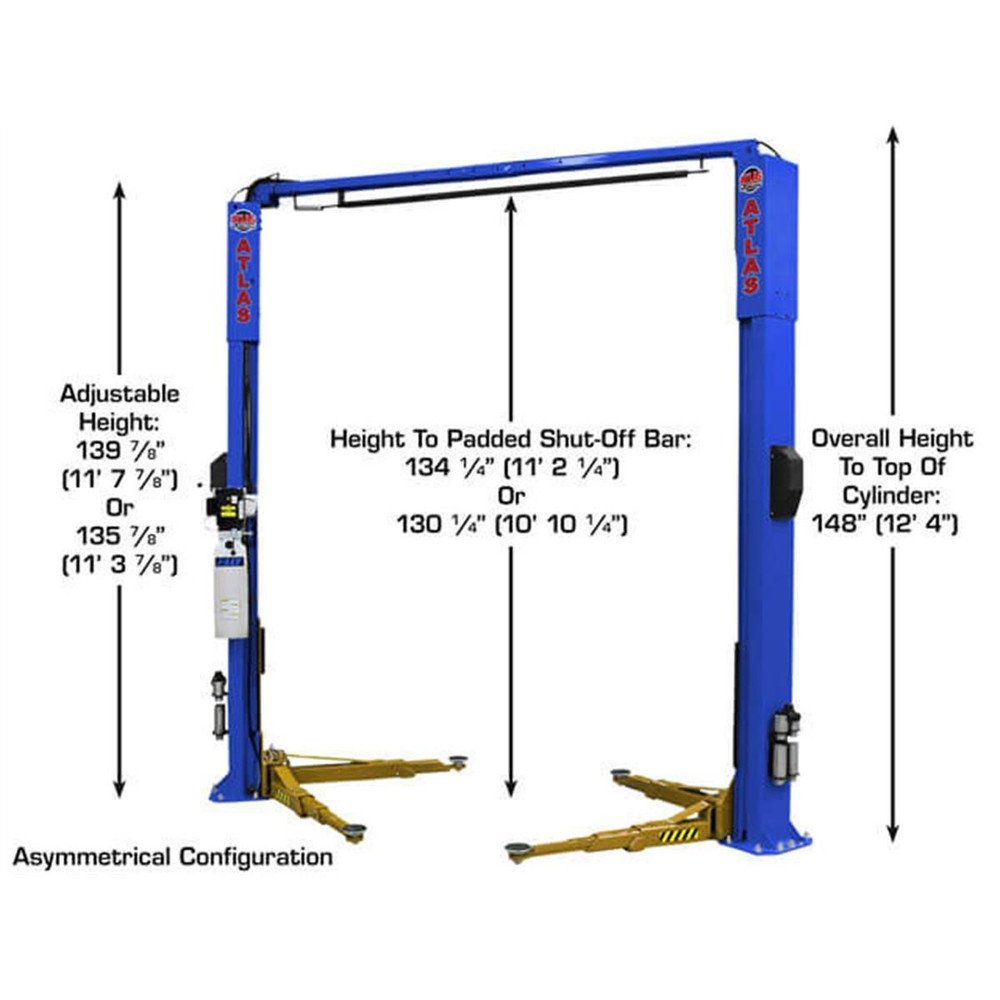

  • Overall Height 139 7/8” (11′ 7 7/8”) ‐ (CYLINDER EXTENDS TO 12′ 4”)
  • Special Low Height*: 135 7/8″ (11′ 3 7/8”) – (CYLINDER EXTENDS TO 12′ 4″)

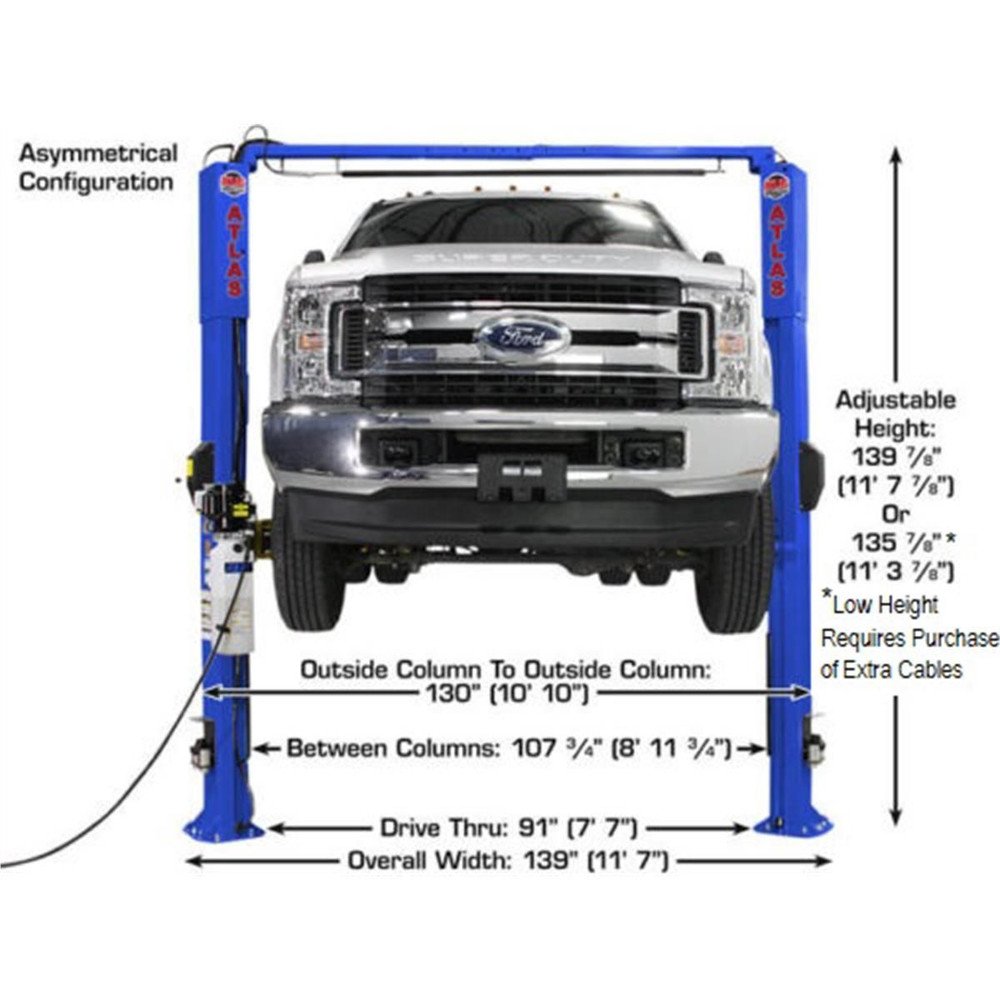

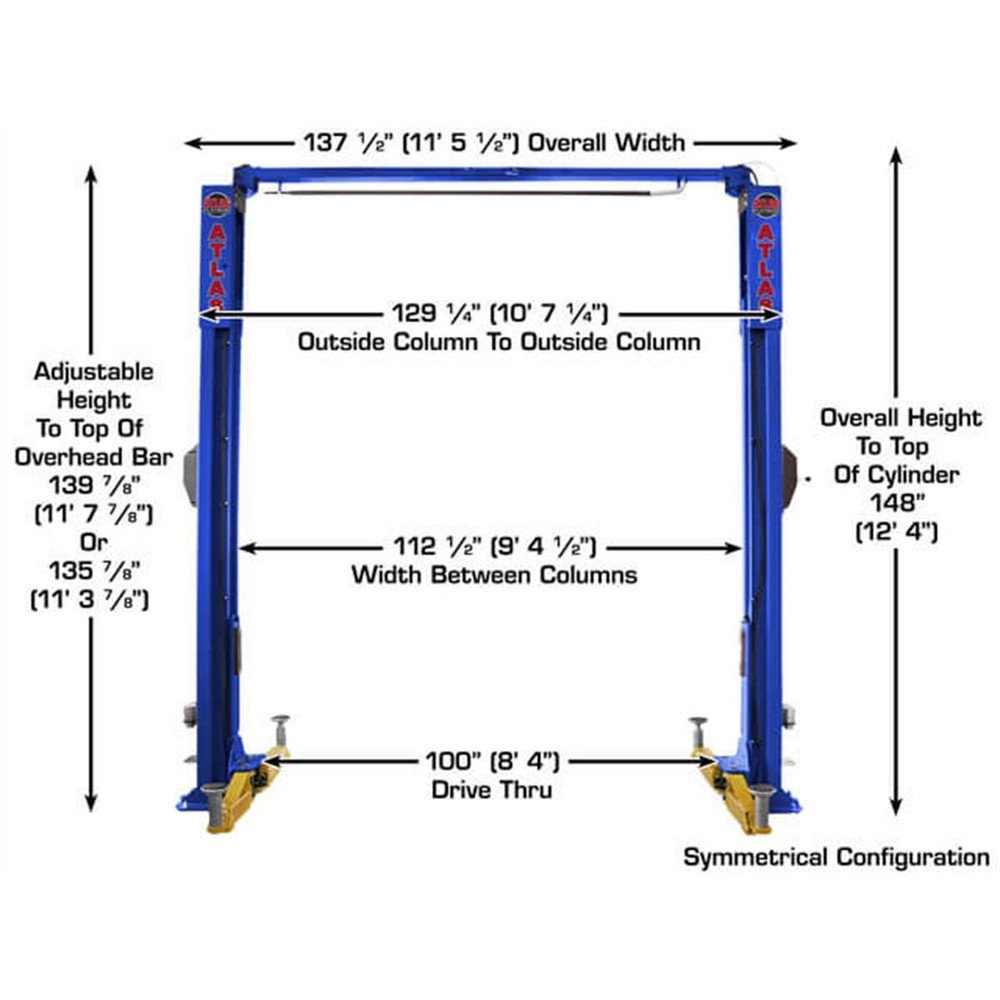

  • Overall Floor Width 139″ (11′ 7”) Asymmetric/137 1/2” (11′ 5 1/2”) Symmetric
  • Outside Column to Outside Column 130″ (10′ 10″) Asymmetric/129 1/4” (10′ 9 1/4″) Symmetric
  • Maximum Lift Height (Without Adapters) 72 1/2″
  • Maximum Lift Height (With Adapters) 81 1/2″
  • Minimum Arm Height 4″
  • Inside Column 107 3/4” (8′ 11 3/4”) Asymmetric/ 112 1/2″ (9′ 4 1/2″) Symmetric
  • Drive Thru 91” Asymmetric/99 1/2” Symmetric
  • Column Size 7″ x 10 1/4″
  • Column Thickness of Steel 6mm
  • Base Of Lift 15″ x 18″
  • Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
  • Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
  • Shipping Weight 1,850 LBS.
  • Adapter Heights 4 Each 3”, 6”
