Atlas Platinum PVL9BP ALI Certified Commercial Baseplate 9,000 lb. Capacity 2-Post Lift

Description

Shop the Atlas Platinum PVL9BP ALI Certified Commercial Baseplate 9,000 lb. Capacity 2-Post Lift at Variety Engines — every unit is carefully inspected, warrantied, and ready to ship fast across the US.

Features and Benefits:

• ALI Certified
• 9,000 lb. Capacity
• Commercial Grade

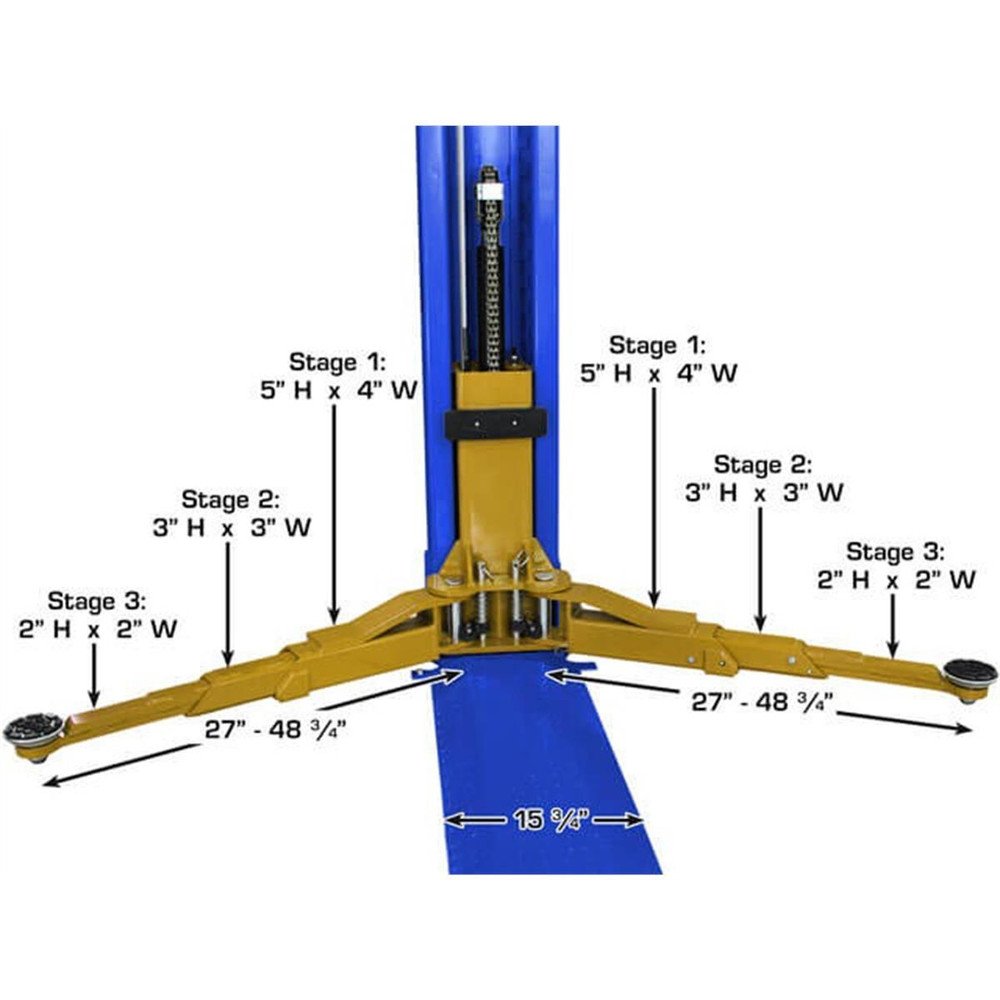

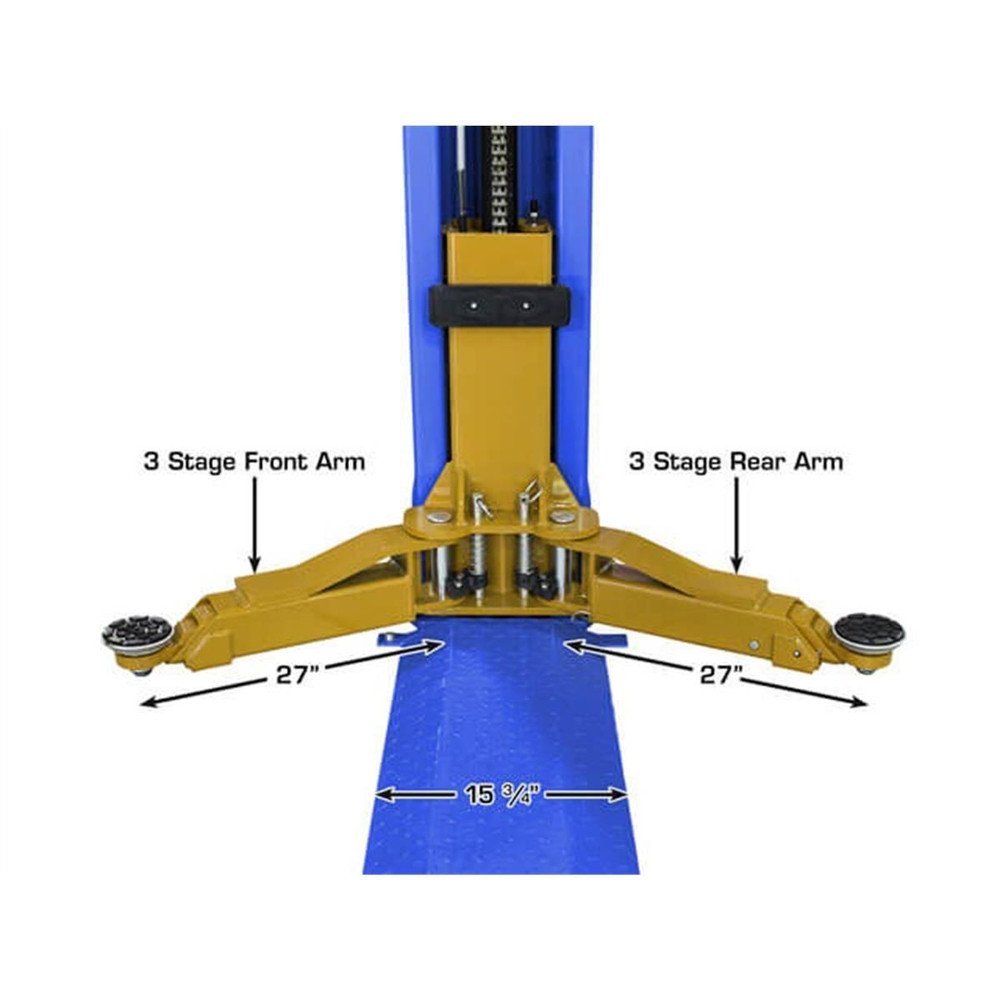

• 3-Stage Symmetric Arms
• Base Plate, Open-Top Design
• Designed For Low Ceiling Clearance ‐ 9′ 3 1/8″ Columns
• Dual Hydraulic Chain-Drive Cylinders
• Secondary Lock System (SLS)
• Automatic Arm Restraints

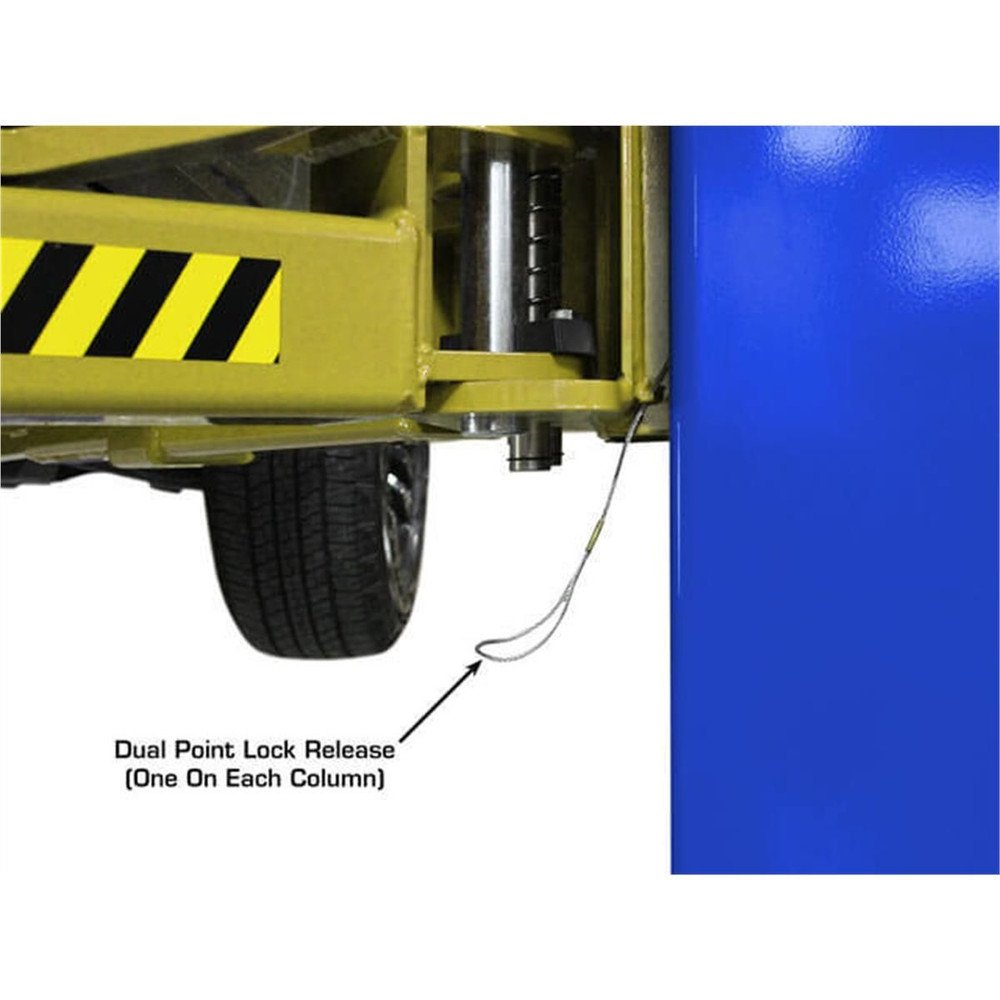

• Dual Point Lock Release

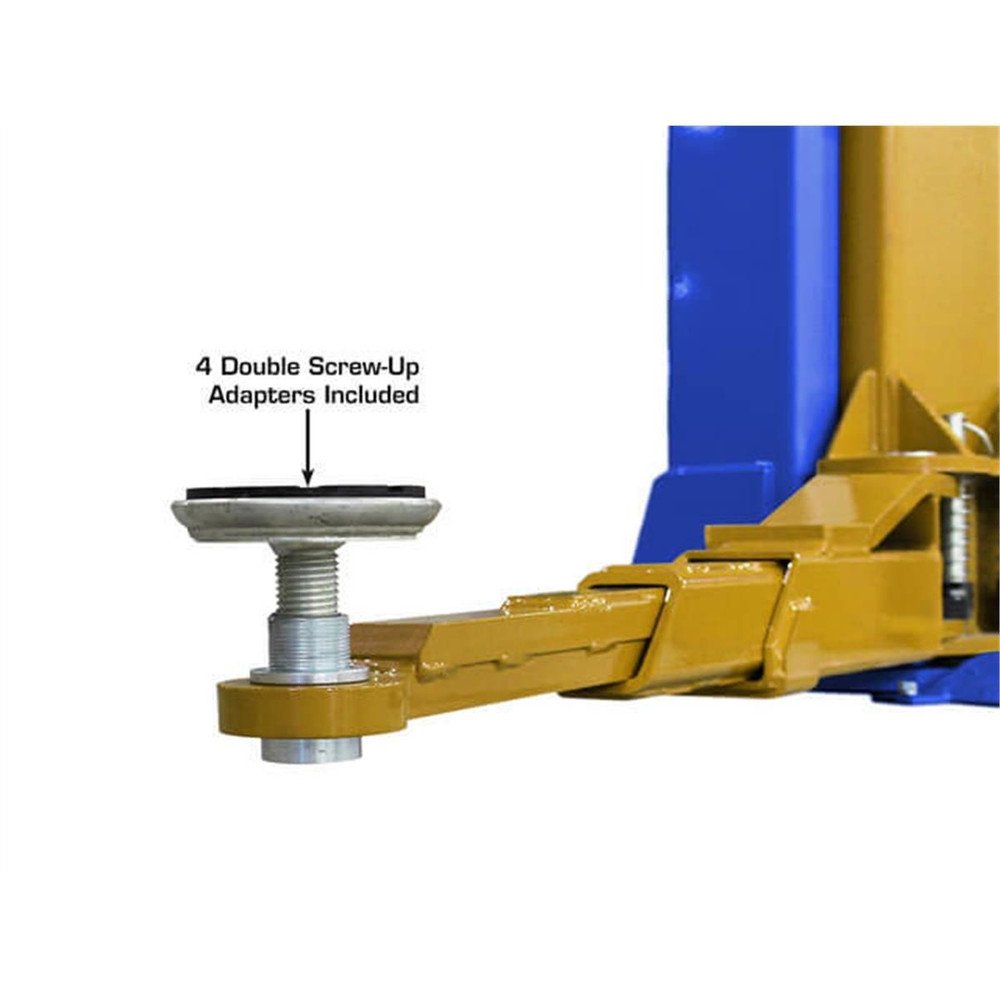

• Includes Double Screw-Up Adapters

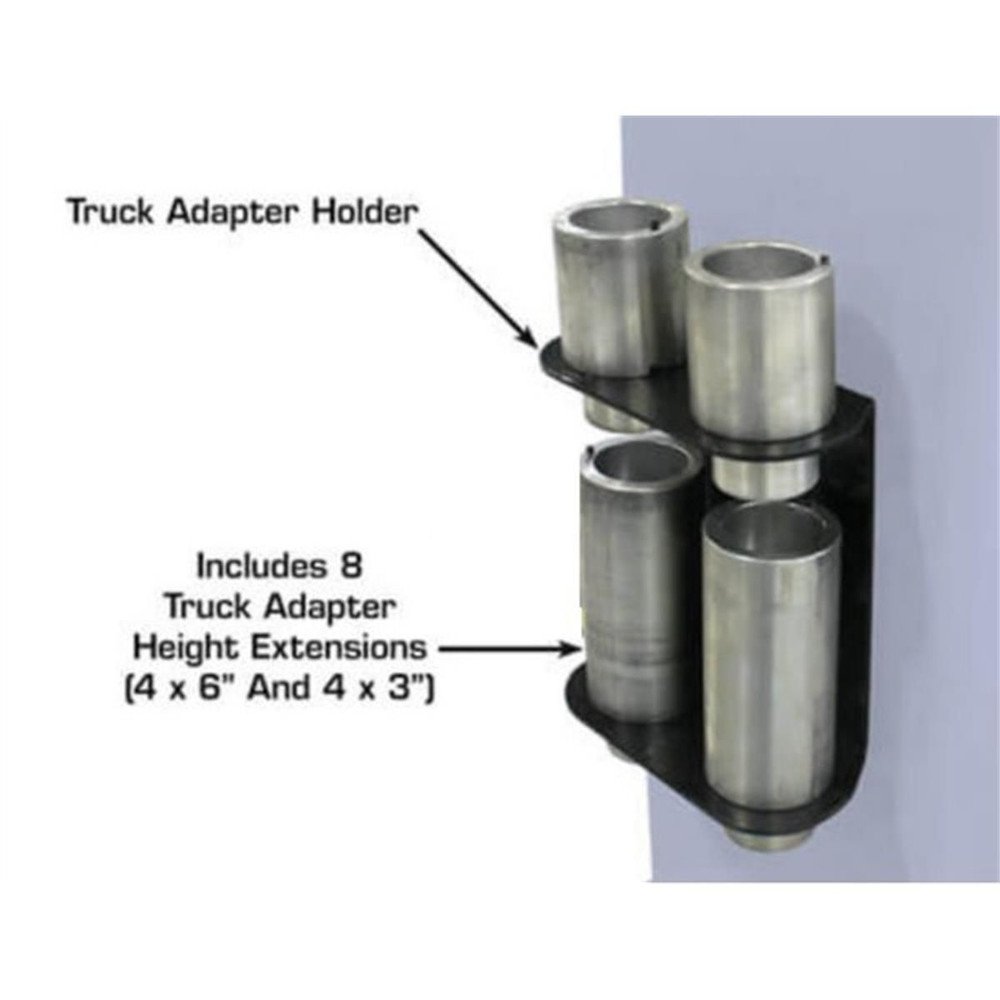

• Free 8 Piece Truck Adapter Set

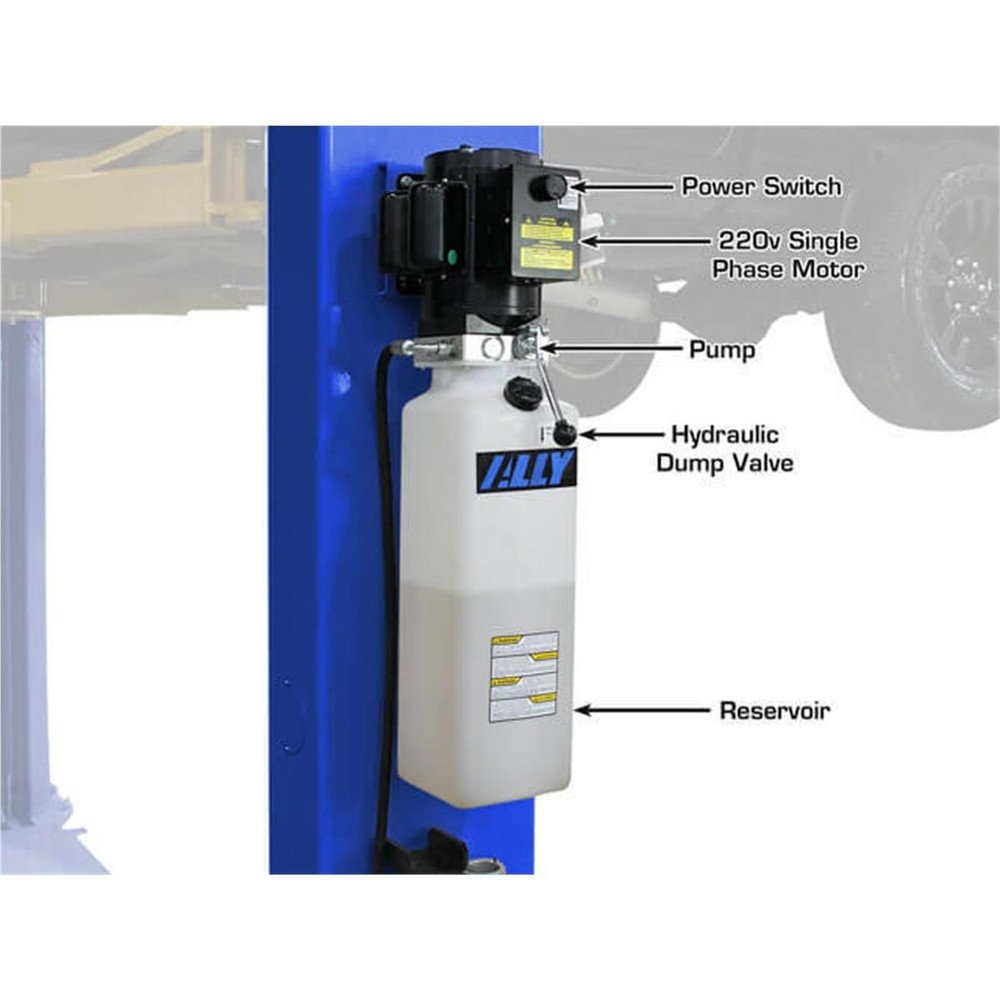

• Standard with Premium ALLY Power unit

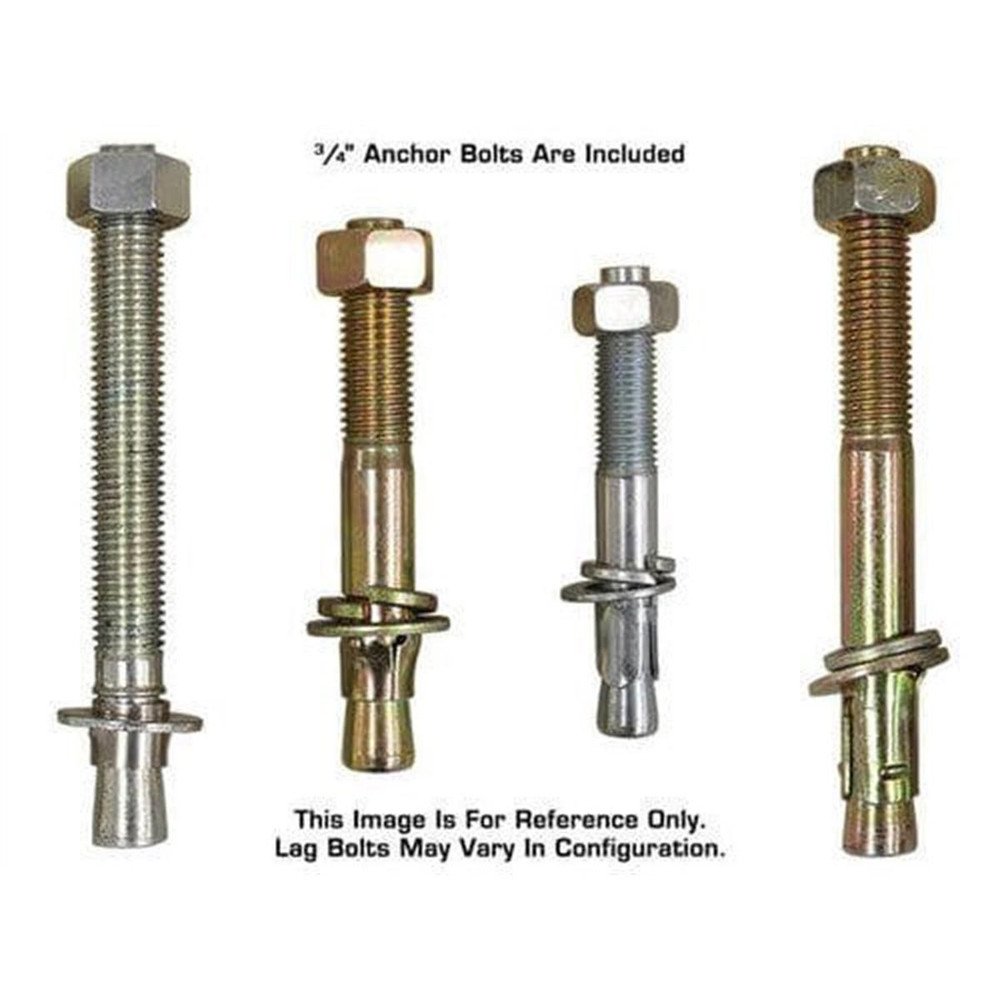

• Mounting Hardware Included

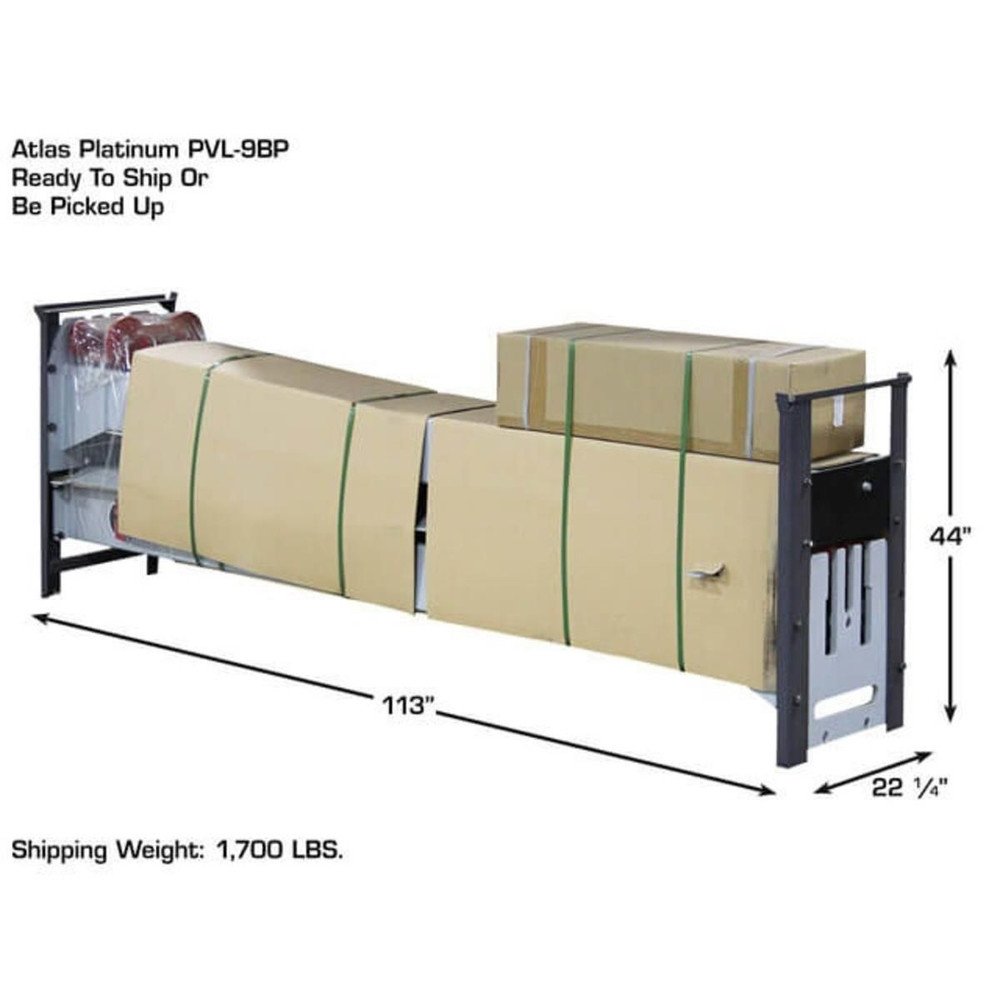

• Shipping Weight: 1,700 lbs.
• 5 yr Structural ‐ 2 yr Hydraulic ‐ 2 yr Power unit Warranty
• This part number Freight Prepaid

Atlas® Platinum PVL9BP Specifications

• Capacity 9,000 LB.

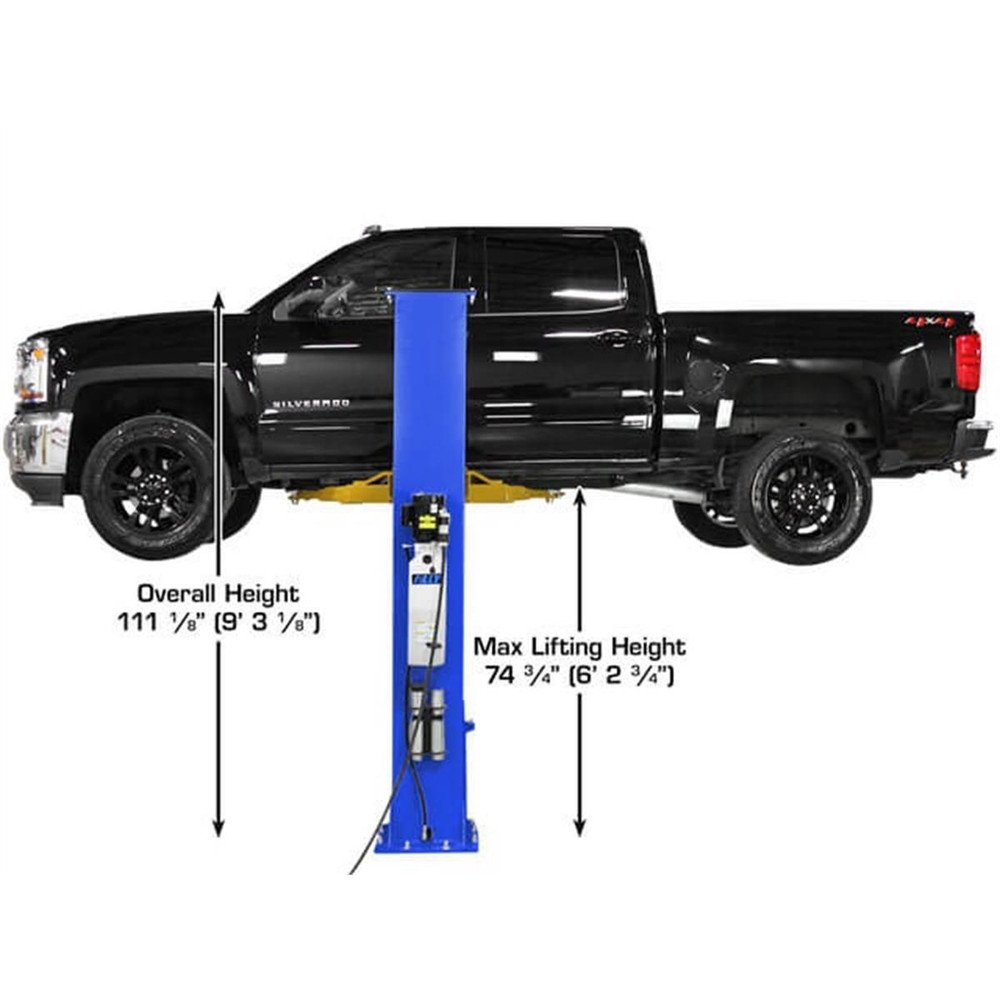

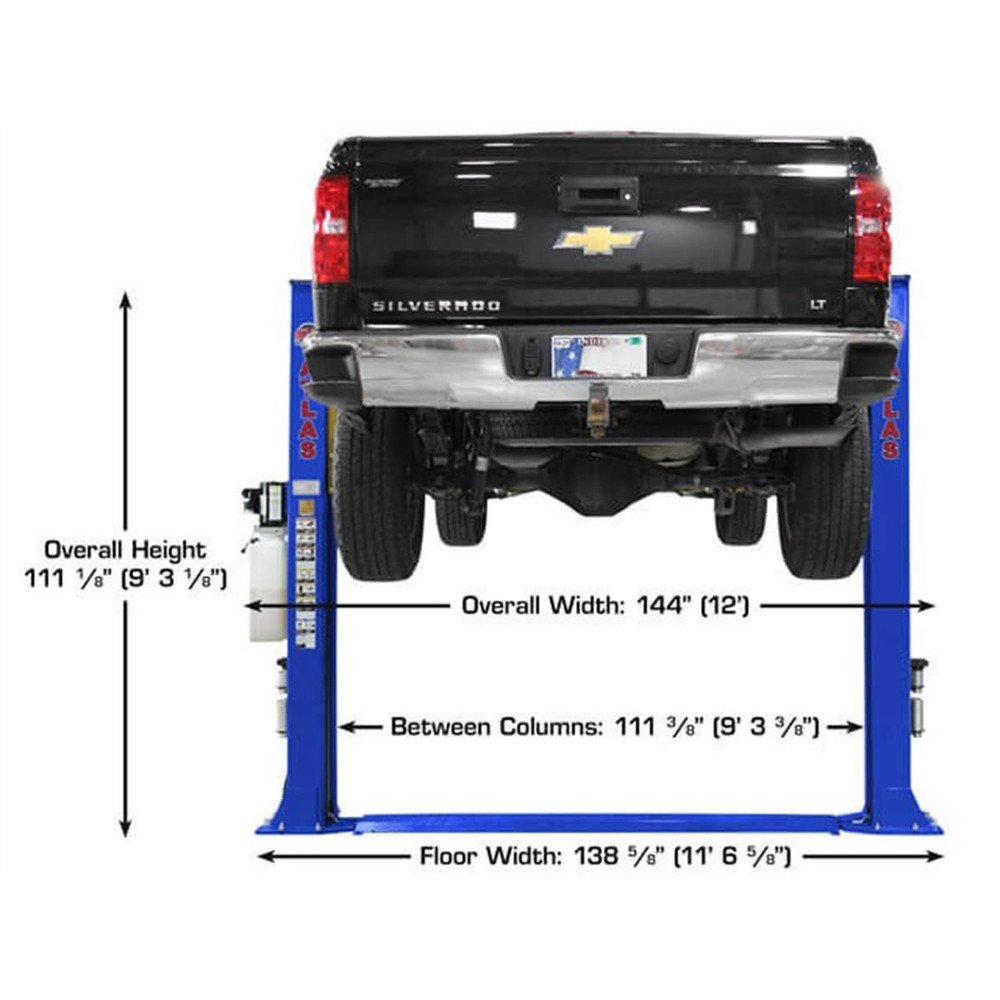

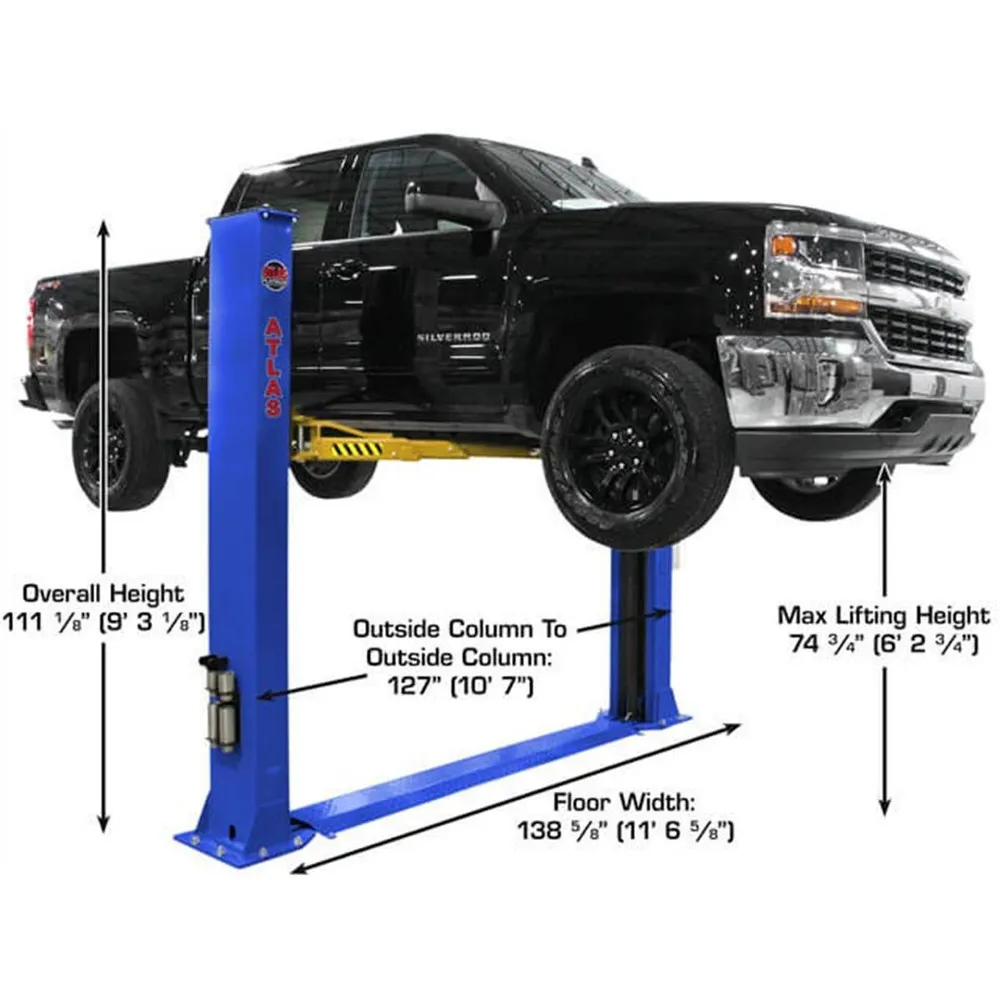

• Overall Height 111 1/8″ (9′ 3 1/8″)

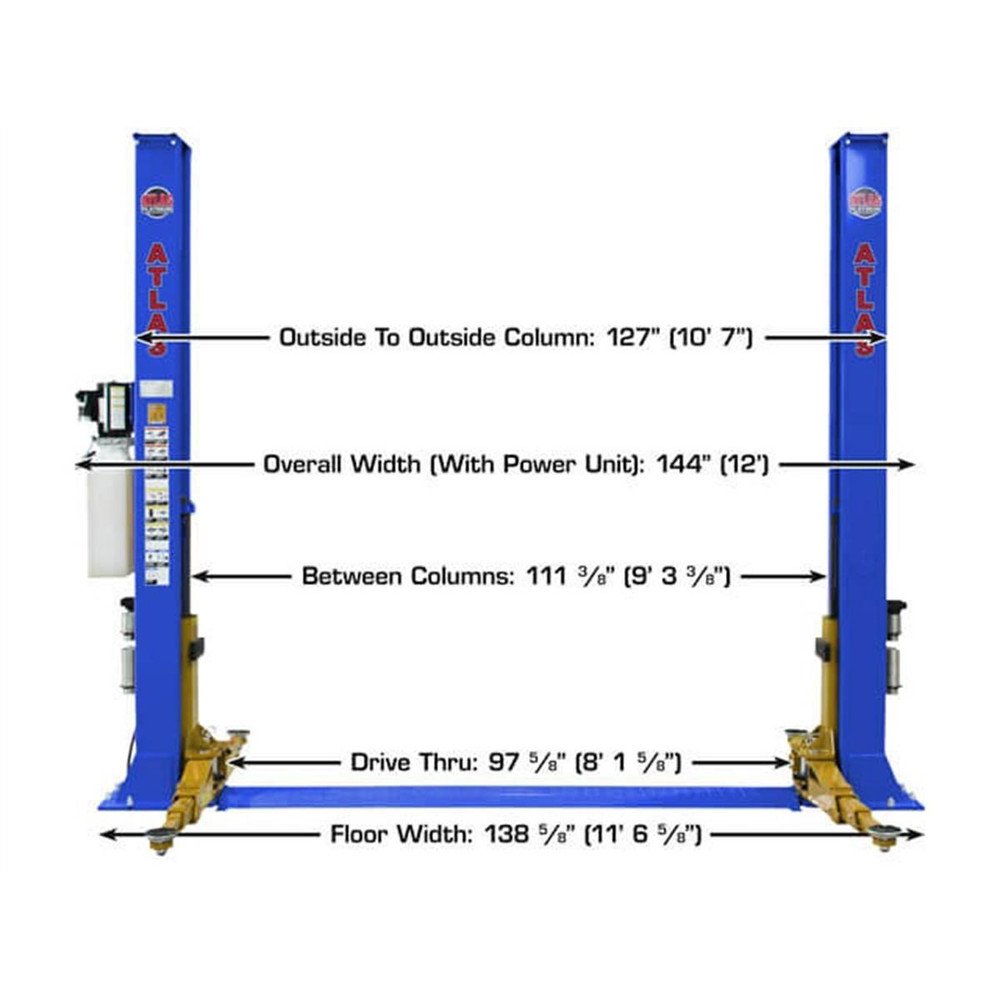

• Overall Floor Width 138 5/8″ (11′ 6 5/8″)
• Outside Column to Outside Column 127 1/2″ (10′ 7 1/2′)
• Maximum Lift Height (Without Adapters) 74 3/4″
• Maximum Lift Height (With Adapters) 83 3/4″”
• Minimum Arm Height 4 1/2″
• Inside Column 111 3/8″ (9′ 3 3/8″)
• Drive Thru 97 5/8″ (8′ 1 5/8″)
• Column Size 7 5/8″ x 14 1/4″
• Column Thickness of Steel 6mm

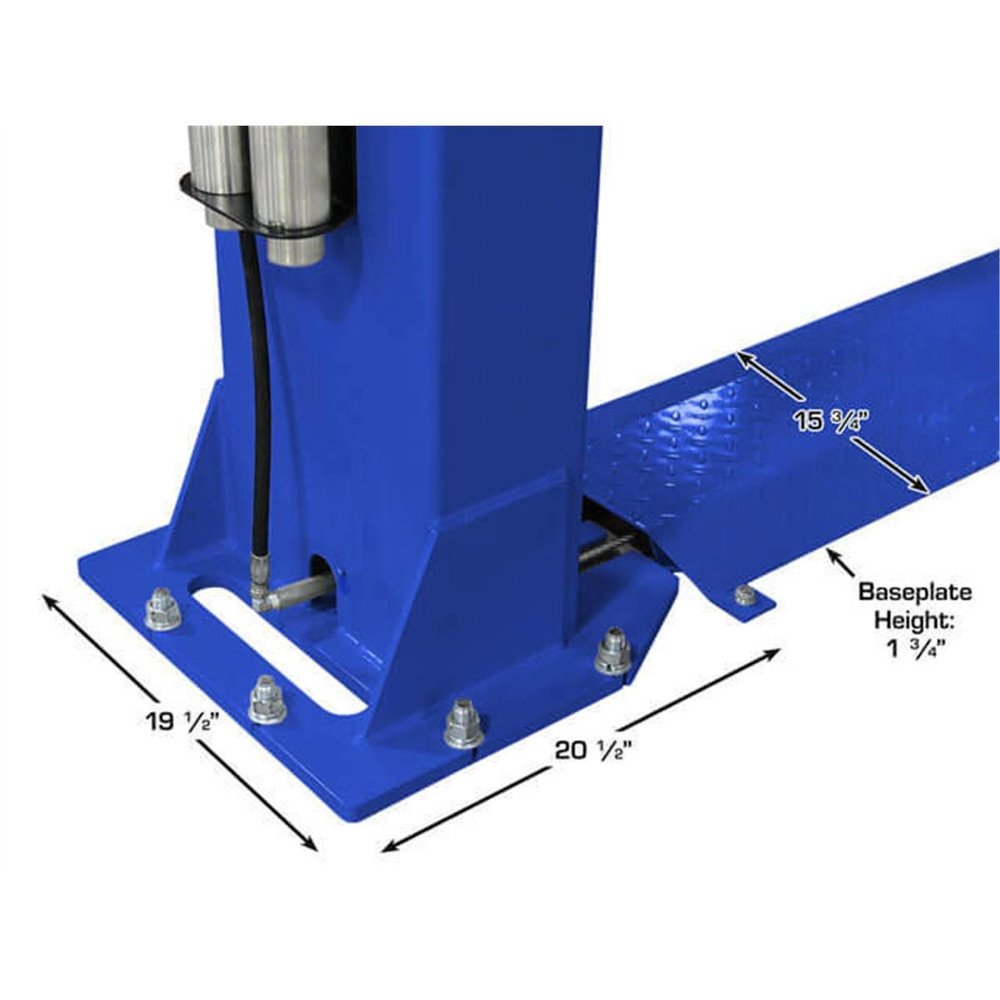

• Base Of Lift 19 1/2″ x 20 1/2″
• Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 1,700 LBS.

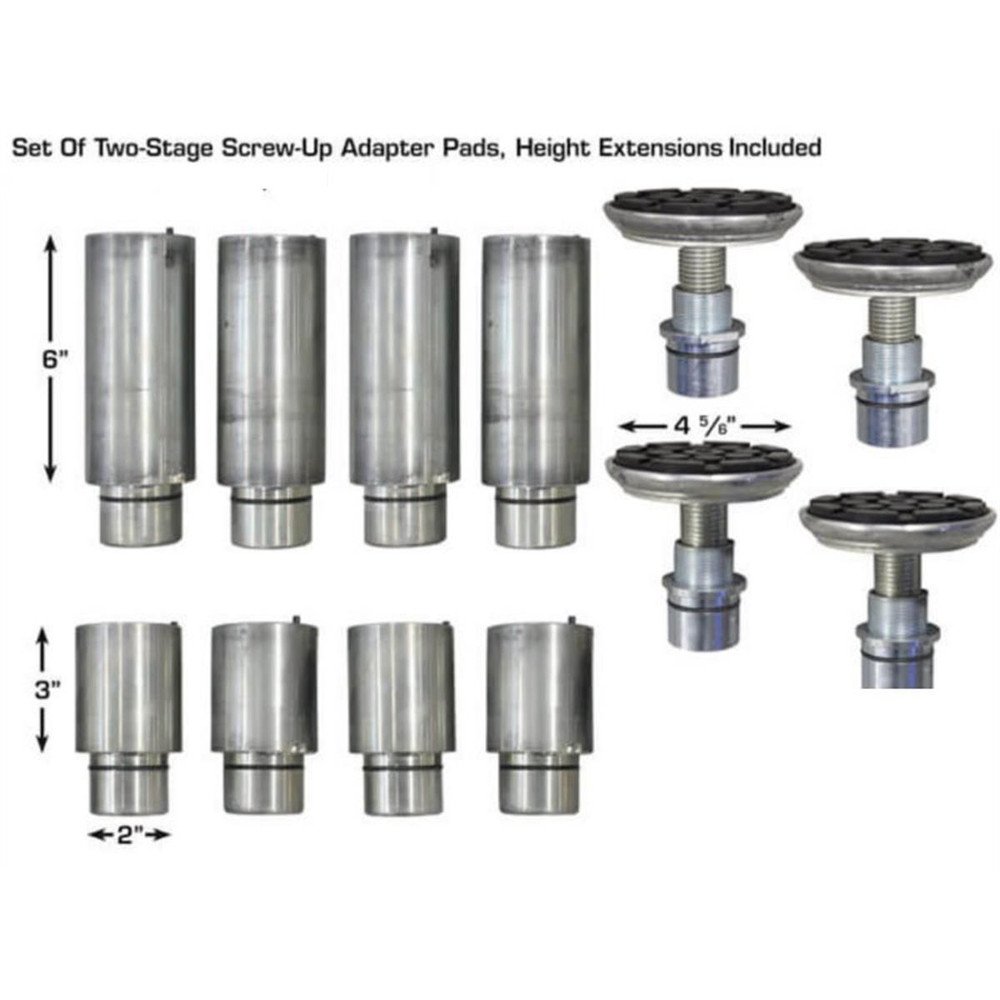

• Adapter Heights 4 Each 3″, 6″
• Arm Hole/Adapter Peg Size 2″
• Requires a minimum of 6″ of concrete with a 3000 psi. rating
