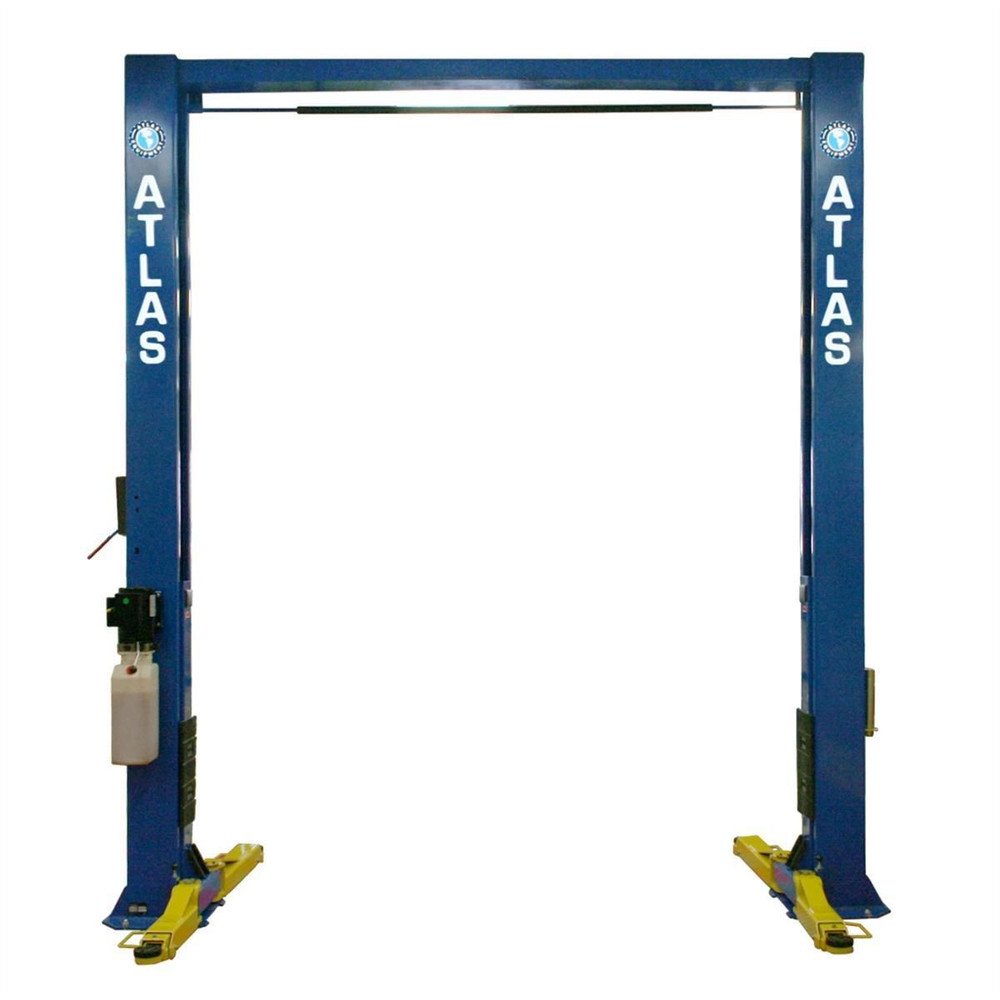

Atlas OHX10000X Commercial Grade Extra Tall 10,000 lb. Capacity 2-Post Lift

Description

Shop the Atlas OHX10000X Commercial Grade Extra Tall 10,000 lb. Capacity 2-Post Lift at Variety Engines — every unit is carefully inspected, warrantied, and ready to ship fast across the US.

Features and Benefits:

• 10,000 lb. Capacity
• Commercial Grade
• Extra Tall & Extra Wide
• Overall height: 152″ (12′ 8″)

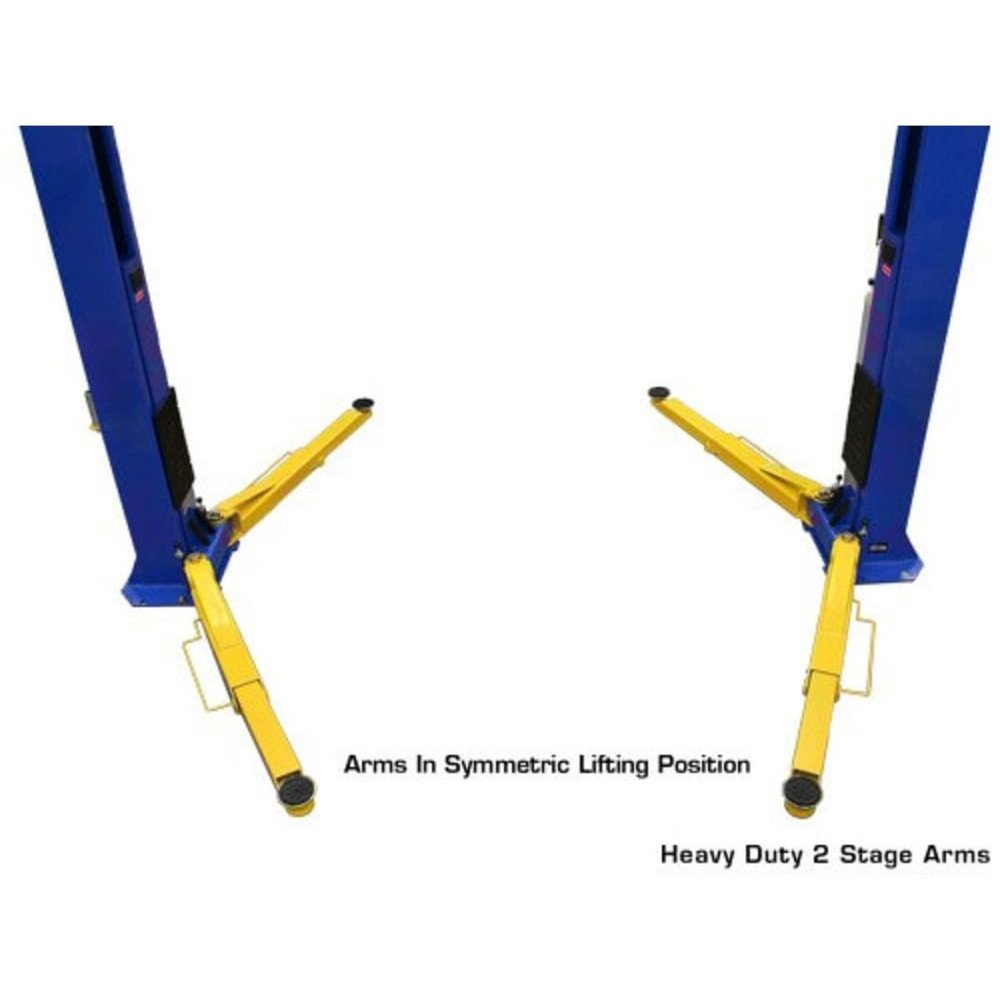

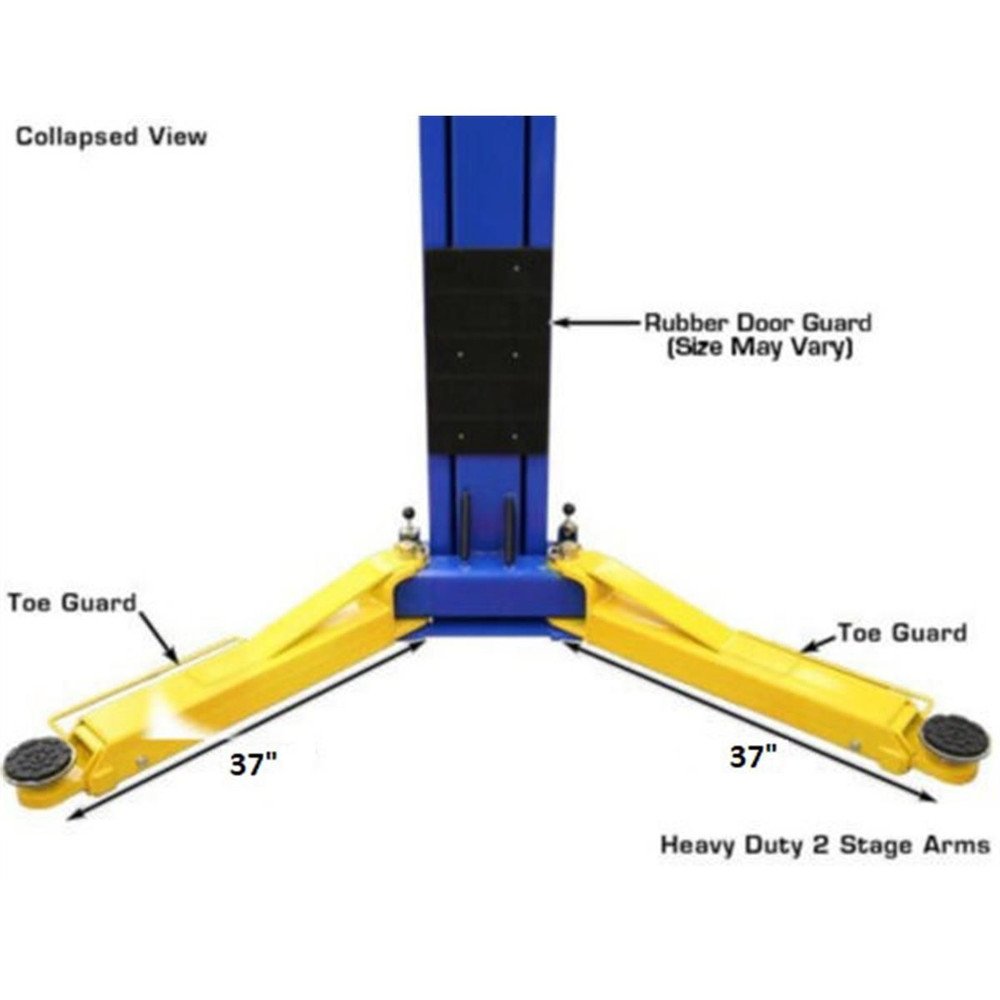

• Symmetric arms

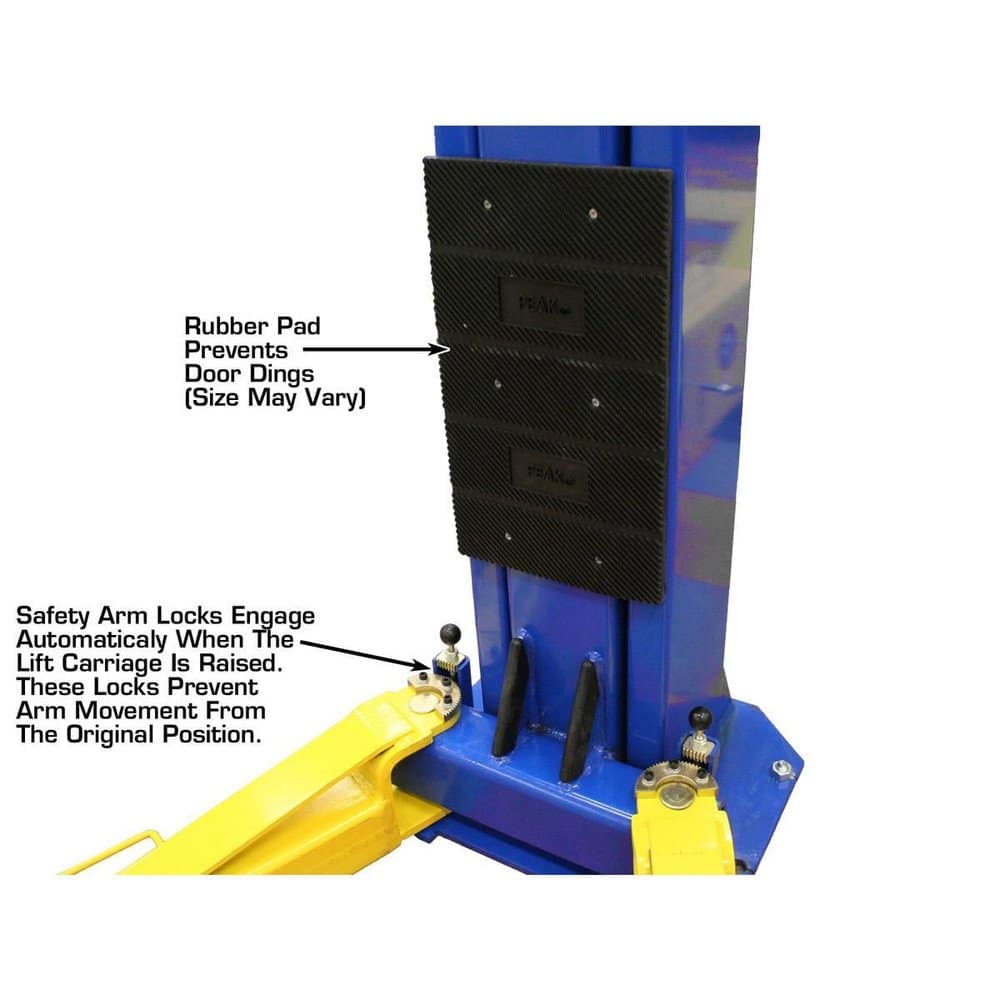

• Automatic Arm Restraints
• “Padded” Shut-Off Bar

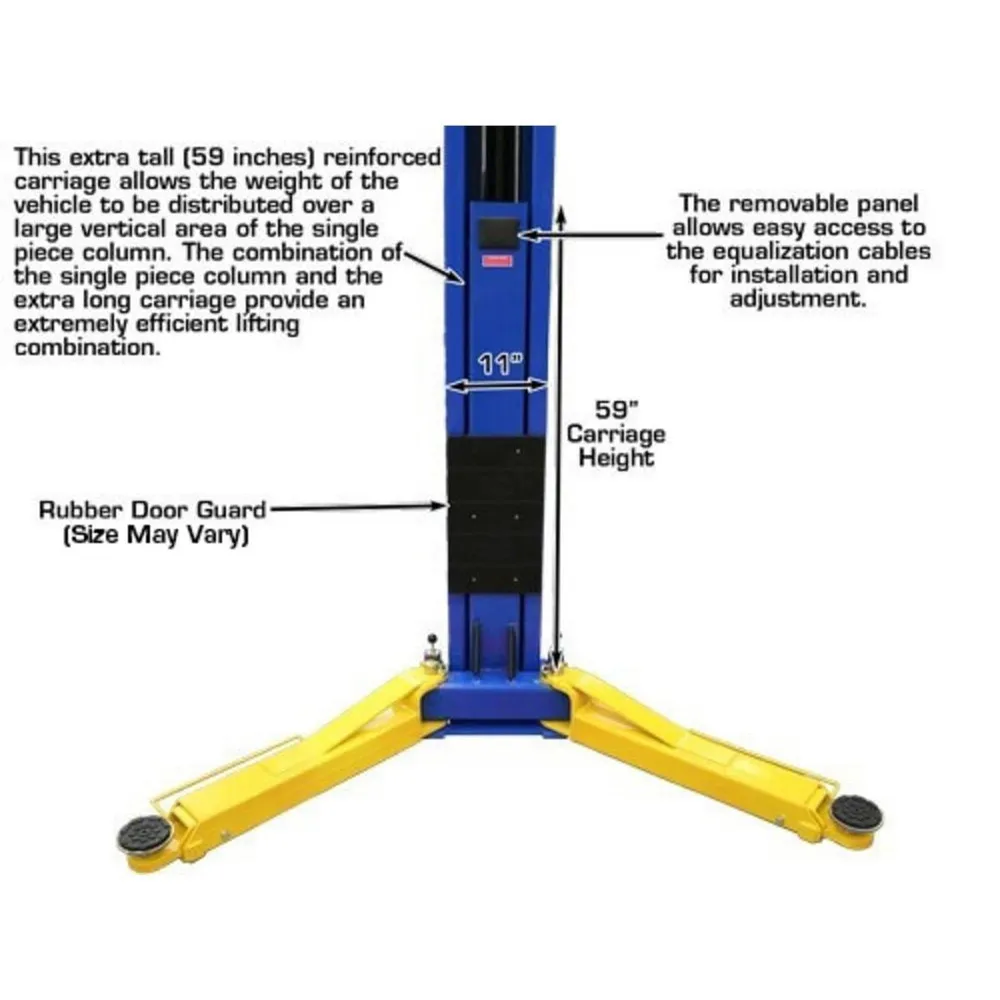

• Rubber Covers on Carriages

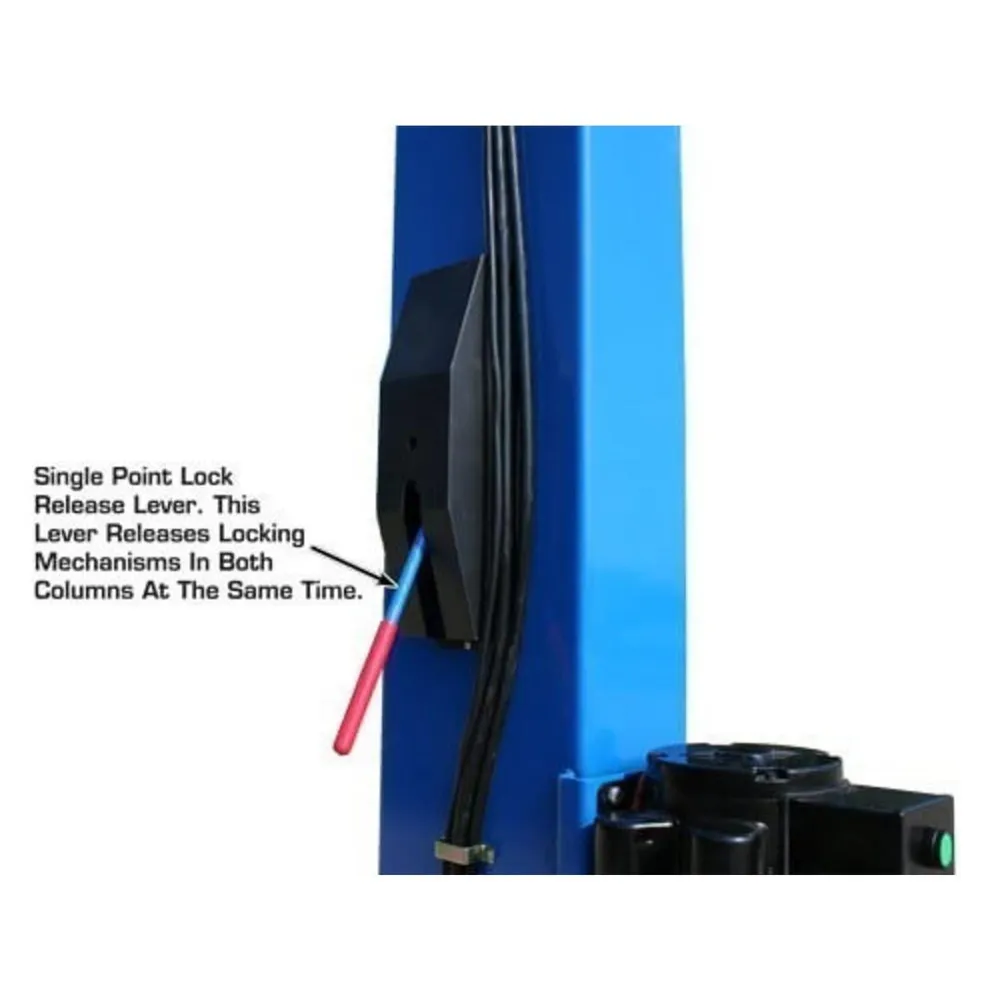

• Single Point Lock Release

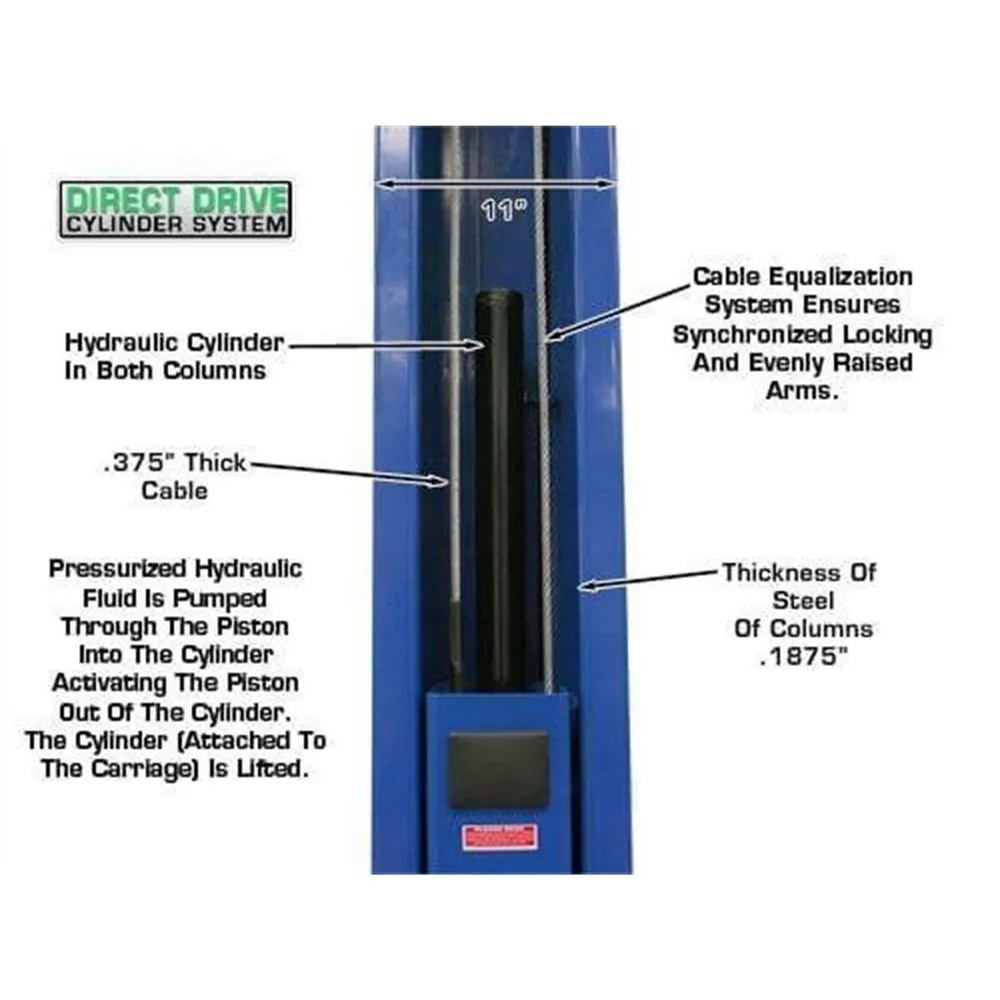

• Dual Direct-Drive Cylinders
• Powder Coat Finish

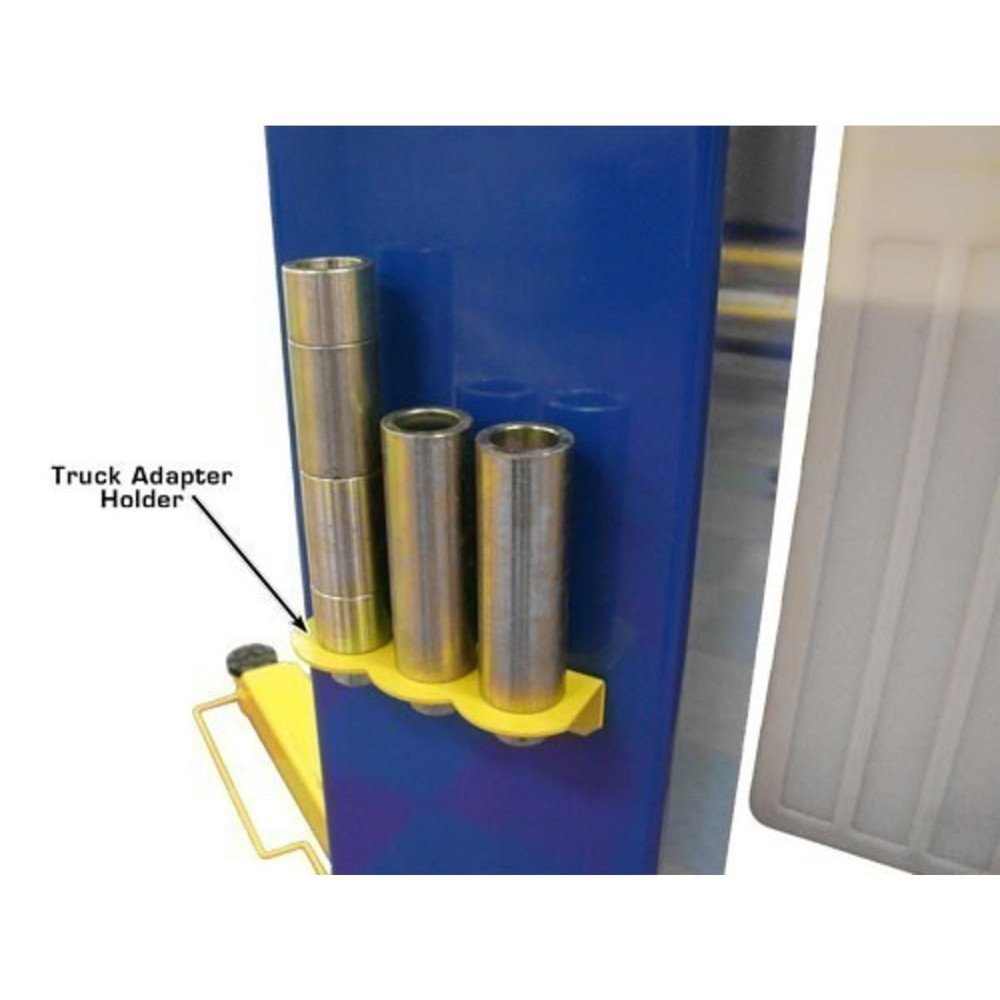

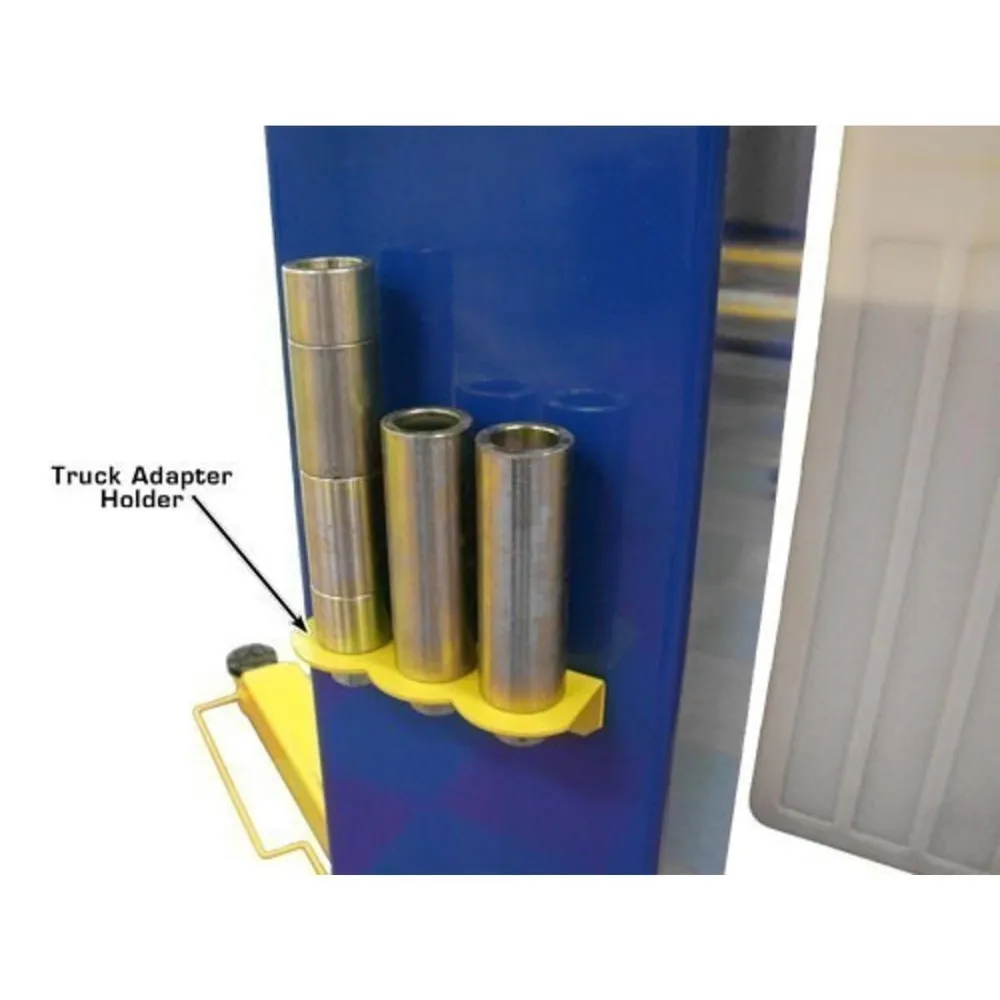

• Free 12 Piece Truck Adapter Set

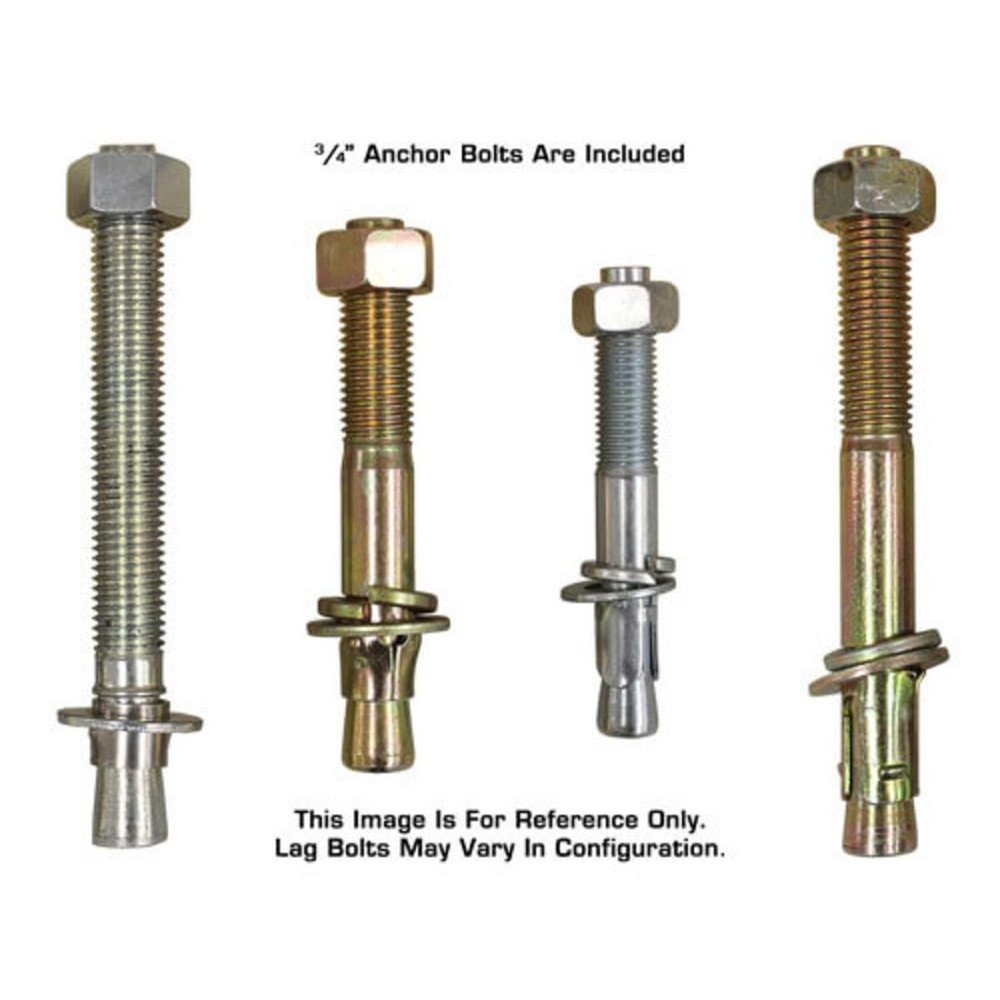

• Mounting Hardware Included

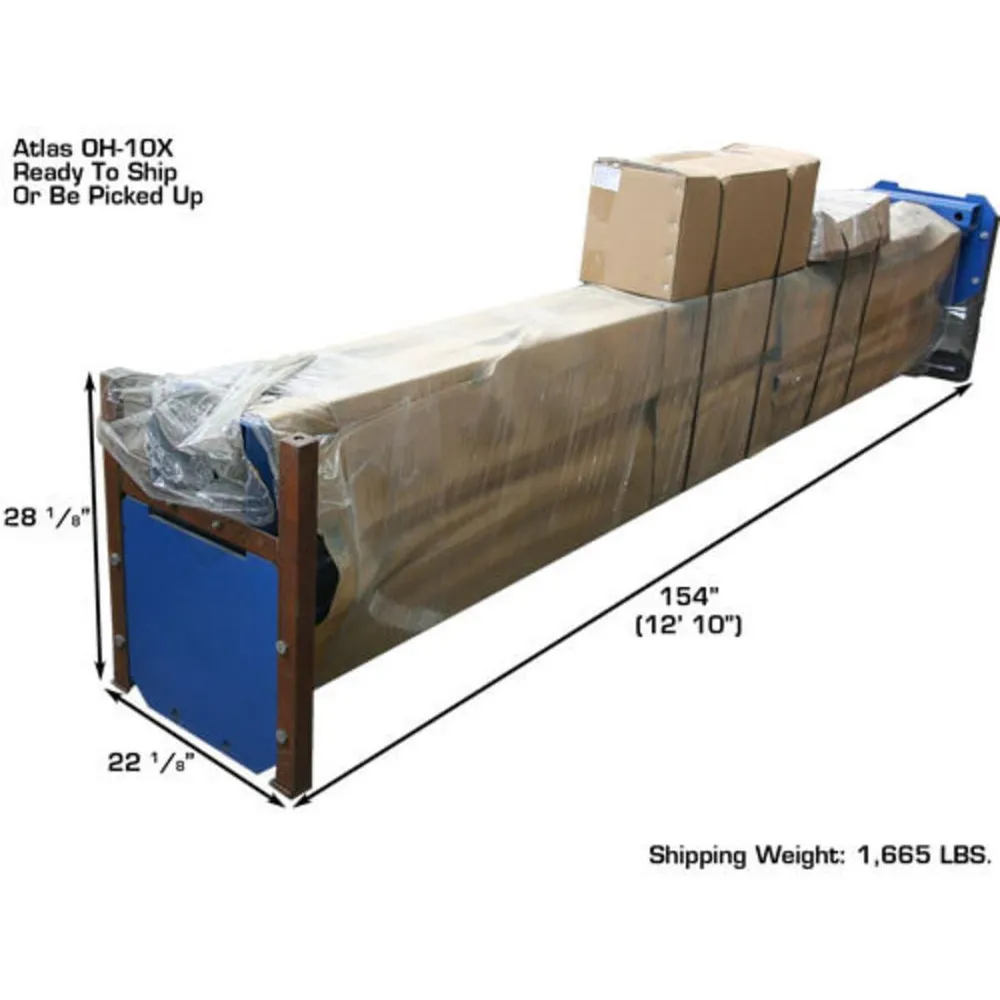

• Shipping Weight: 1,665 lbs
• 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only
• This part number FREIGHT PREPAID

Atlas® ATTD-OHX10000X Specifications

• Capacity 10,000 LB.

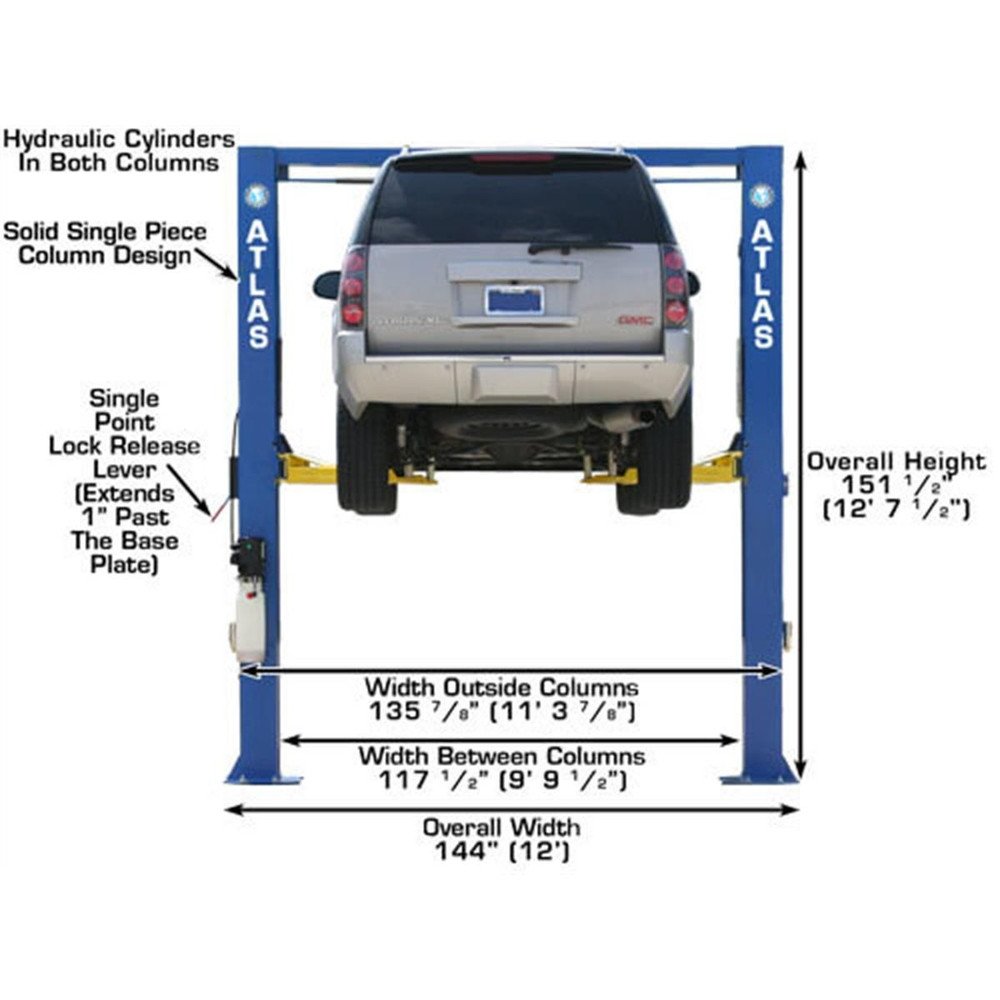

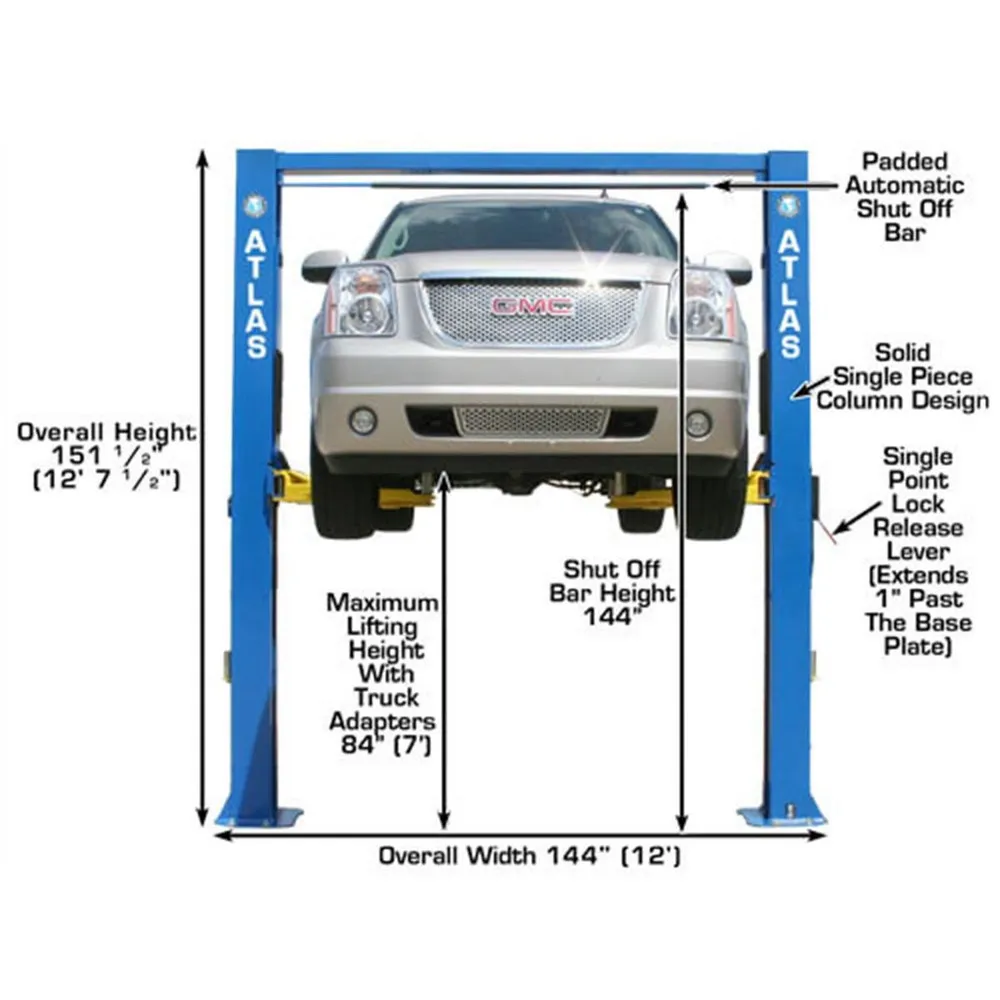

• Overall Height 152″ (12′ 8”)
• Overall Floor Width 144 3/8″ (12′ 3/8″)
• Outside Column to Outside Column 136″ (11′ 4″)

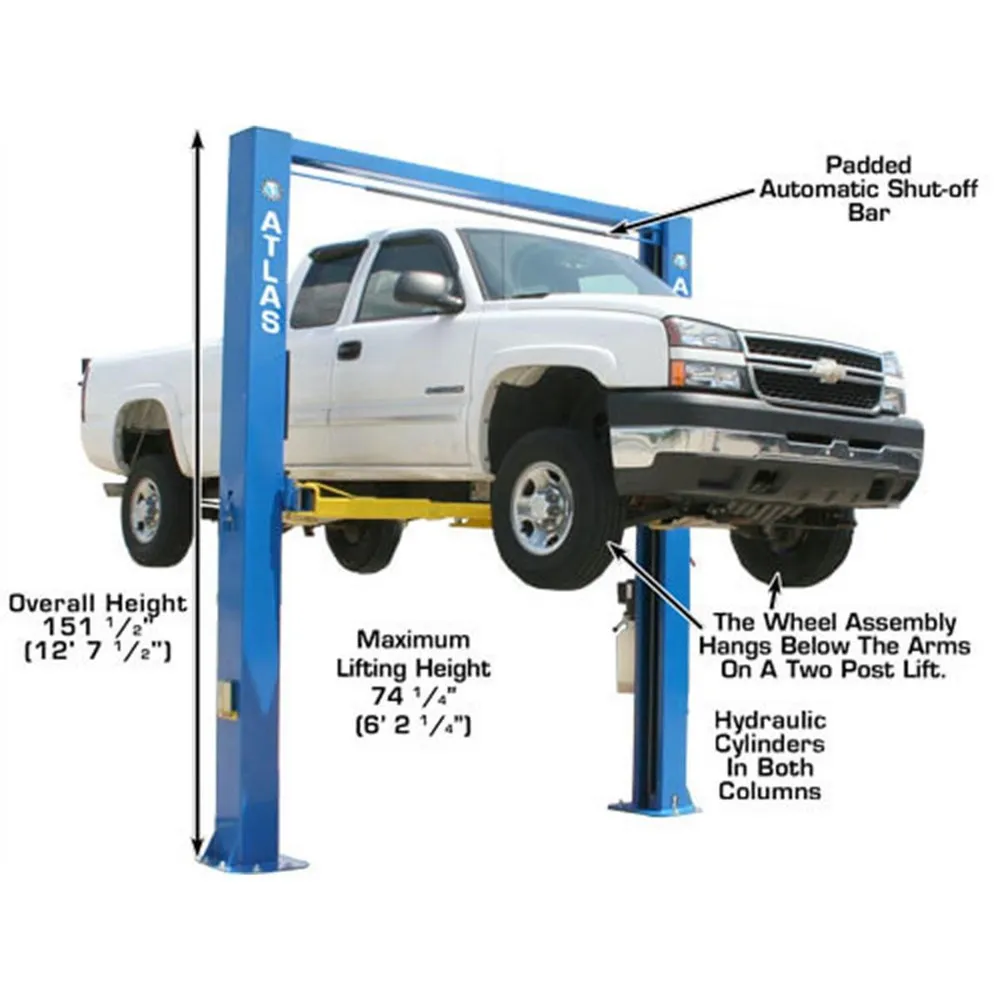

• Maximum Lift Height (Without Adapters) 74 3/4″

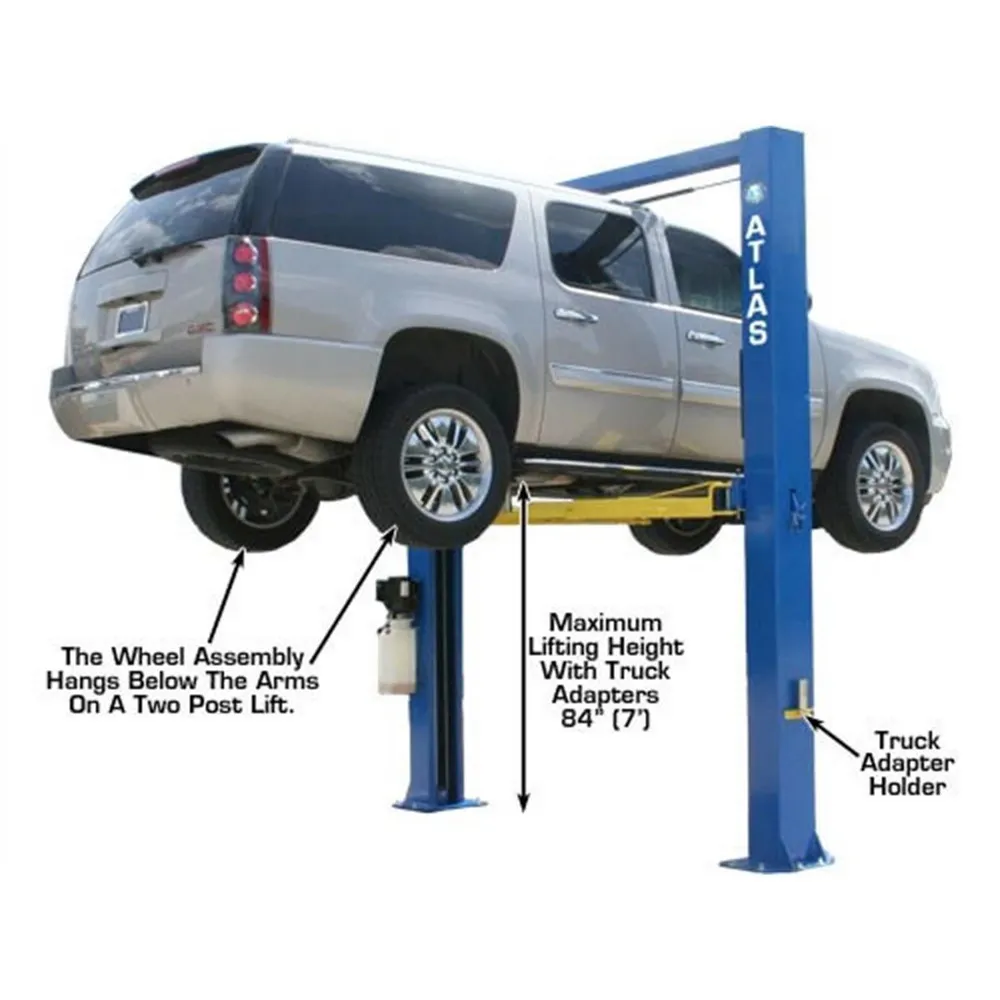

• Maximum Lift Height (With Adapters) 85 3/4″
• Minimum Arm Height 4 1/2″
• Inside Column 118 1/4” (9′ 10 1/4”)
• Drive Thru 106 7/8” (8′ 10 7/8”)
• Column Size 9 1/8″ x 11″
• Column Thickness of Steel 5mm

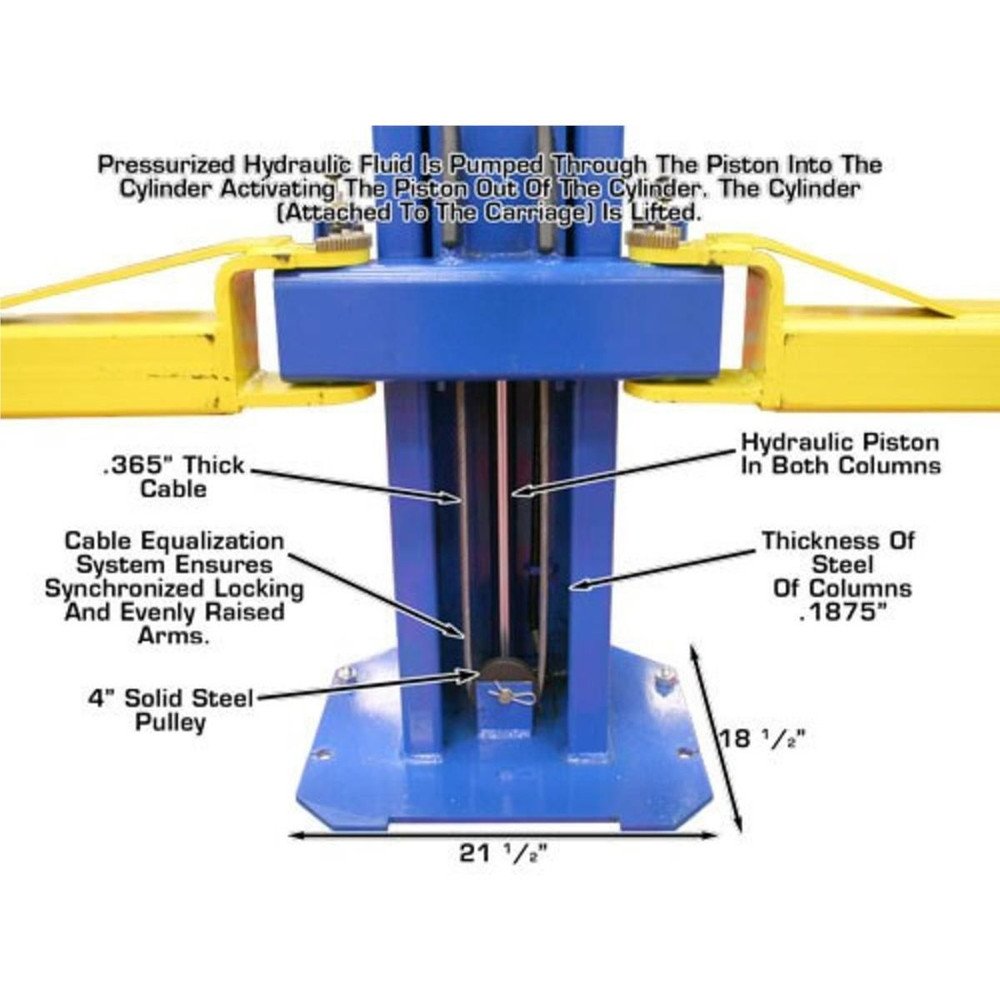

• Base Of Lift 18 1/2″ x 21 1/2″
• Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 1,665 LBS.

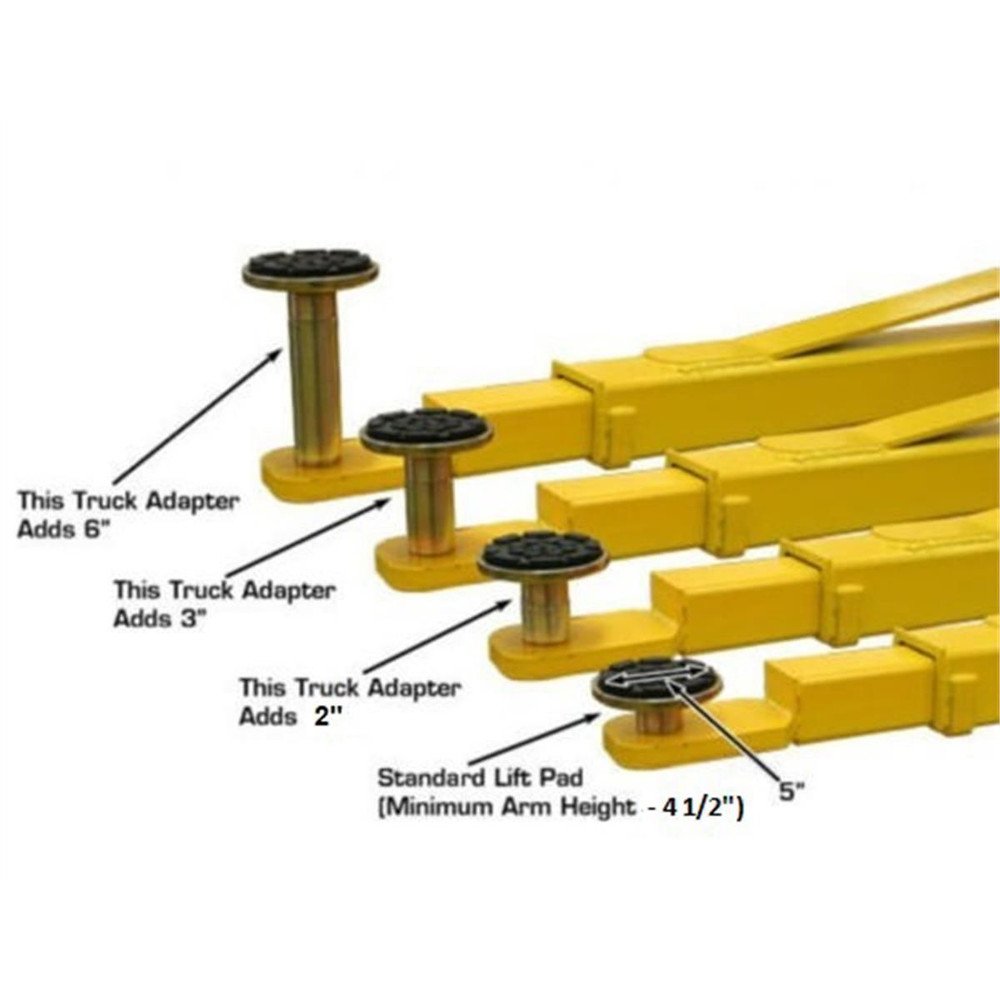

• Adapter Heights 4 Each 2”, 3”, 6”
• Arm Hole/Adapter Peg Size 1.5”
• Requires a minimum of 4″ of concrete with a 3000 psi. rating
