Atlas BP12000X Commercial Grade Baseplate 12,000 lb. Capacity 2-Post Lift

Description

Shop the Atlas BP12000X Commercial Grade Baseplate 12,000 lb. Capacity 2-Post Lift at Variety Engines — every unit is carefully inspected, warrantied, and ready to ship fast across the US.

Features and Benefits:

• 12,000 lb. Capacity
• Heavy Duty, Commercial Grade
• Baseplate, Open-Top Style Lift
• Overall Height: 122 1/2″ (10′ 2 1/2″)
• Adjustable Width

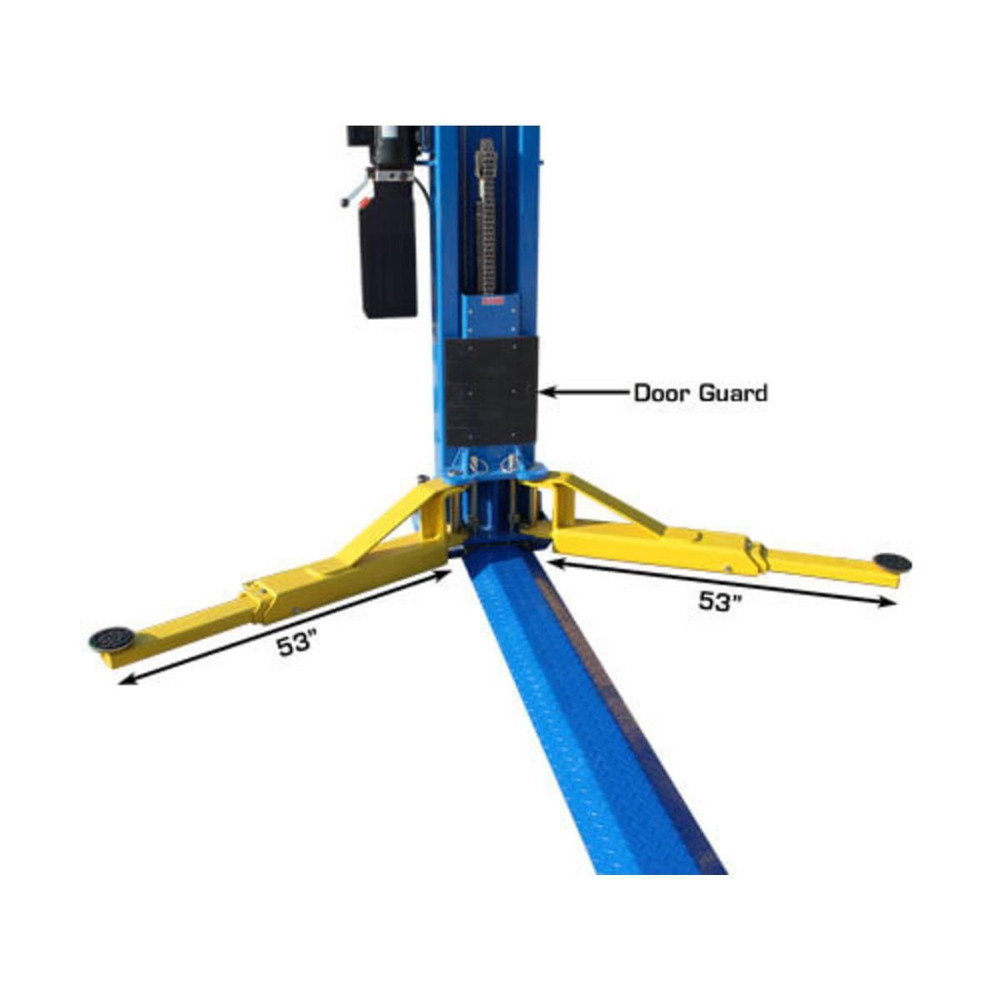

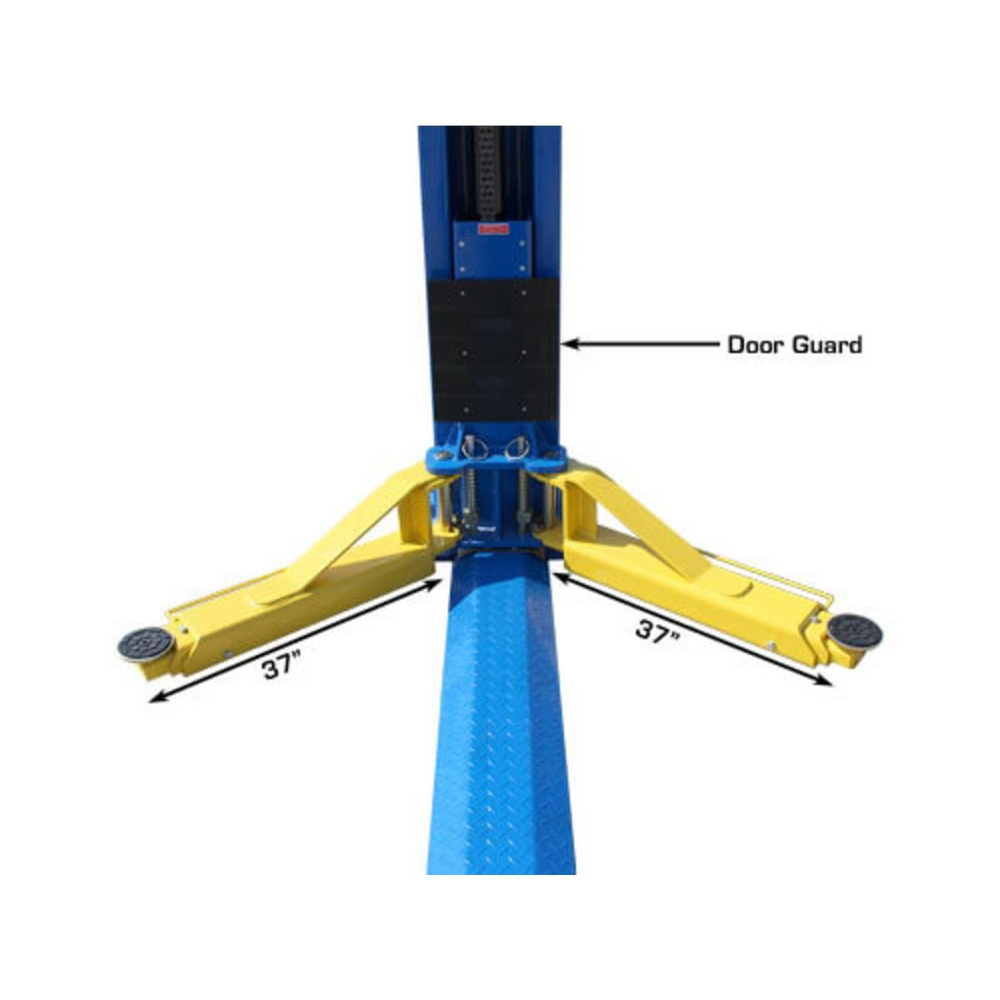

• 3-Stage Symmetric Arms

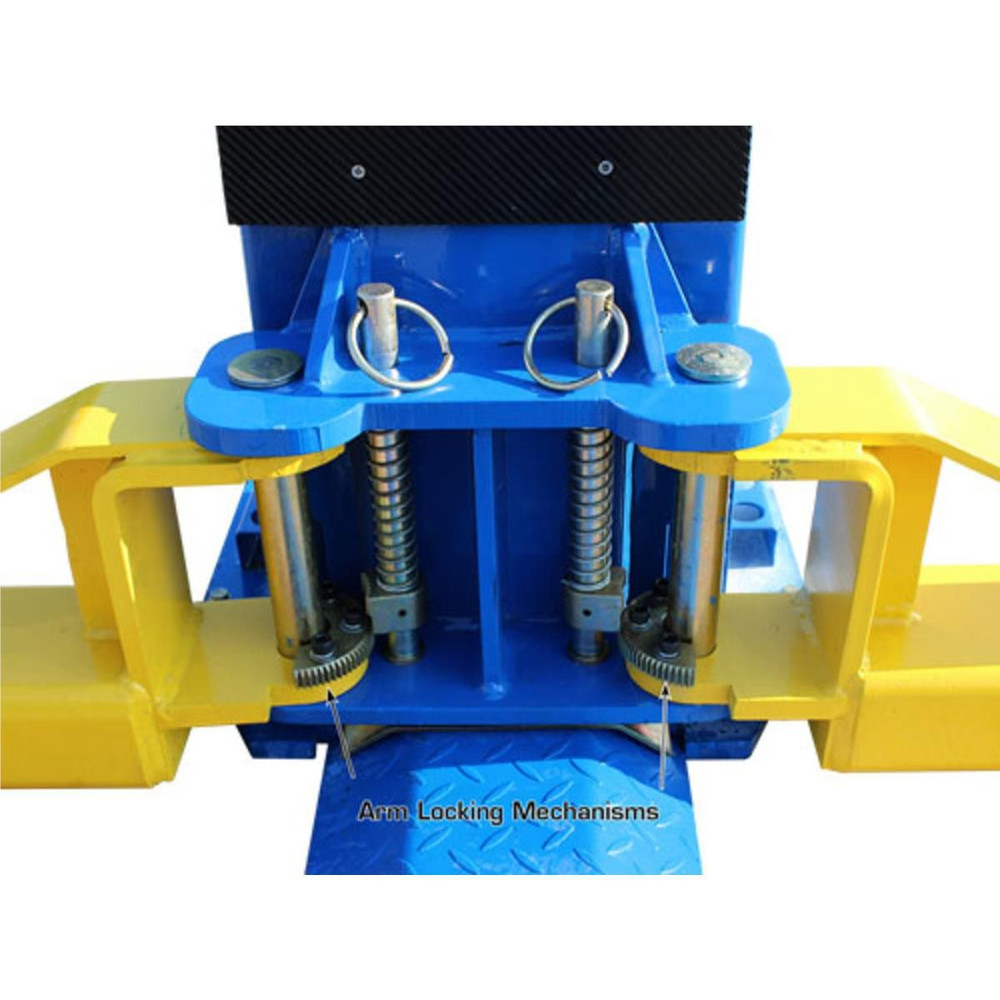

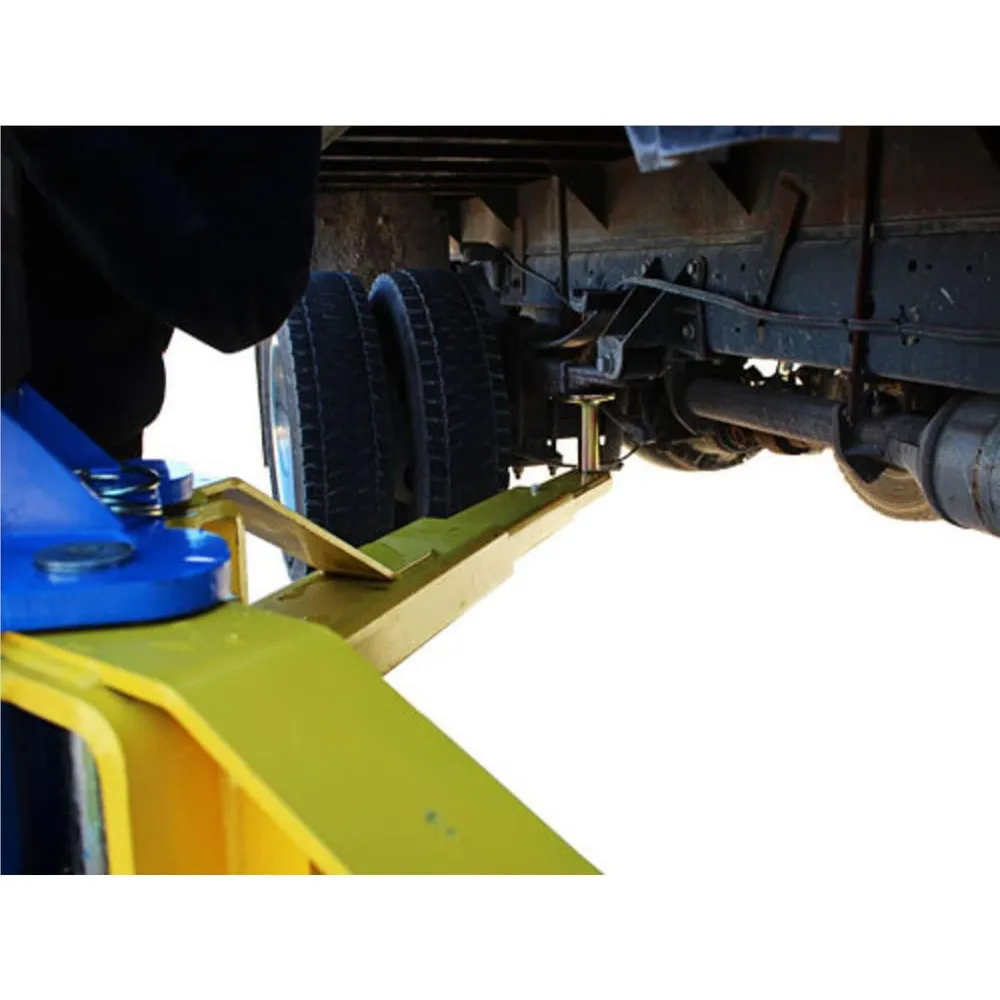

• Automatic Arm Restraints

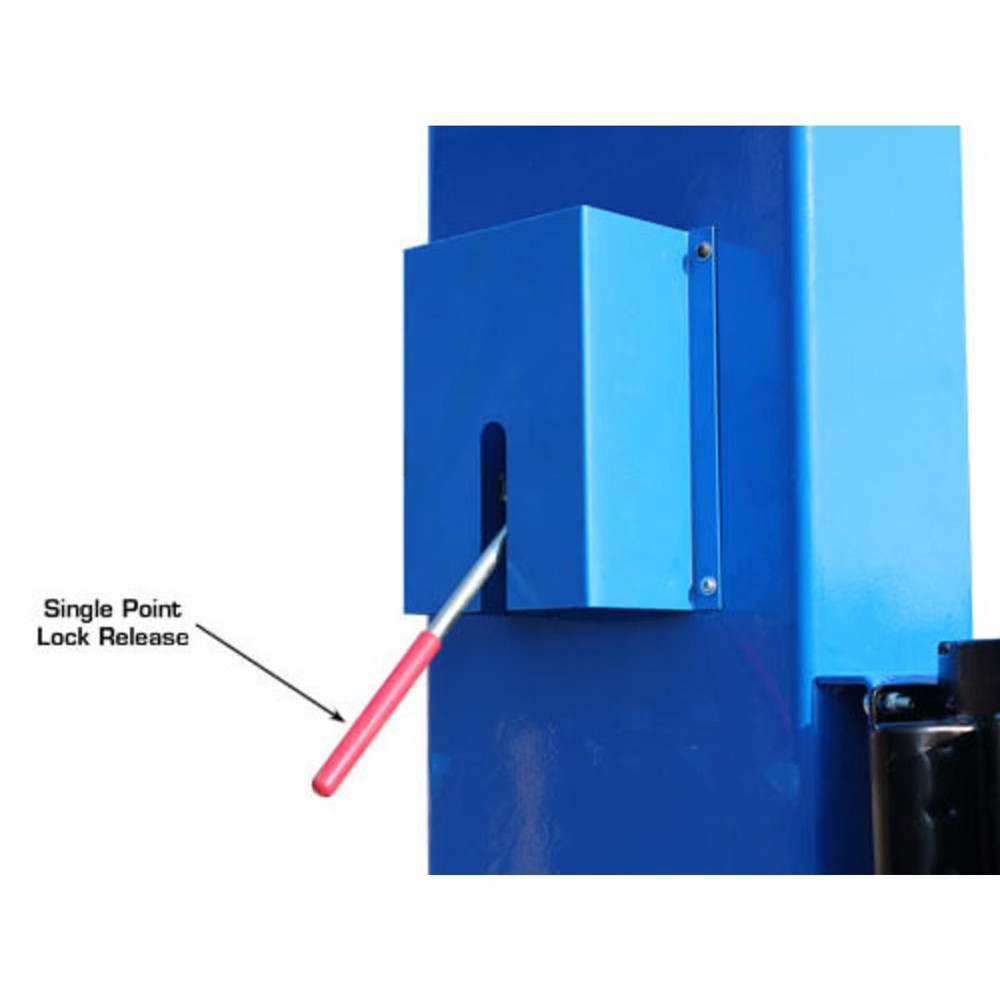

• Single-Point Lock Release
• Rubber Guards on Carriages

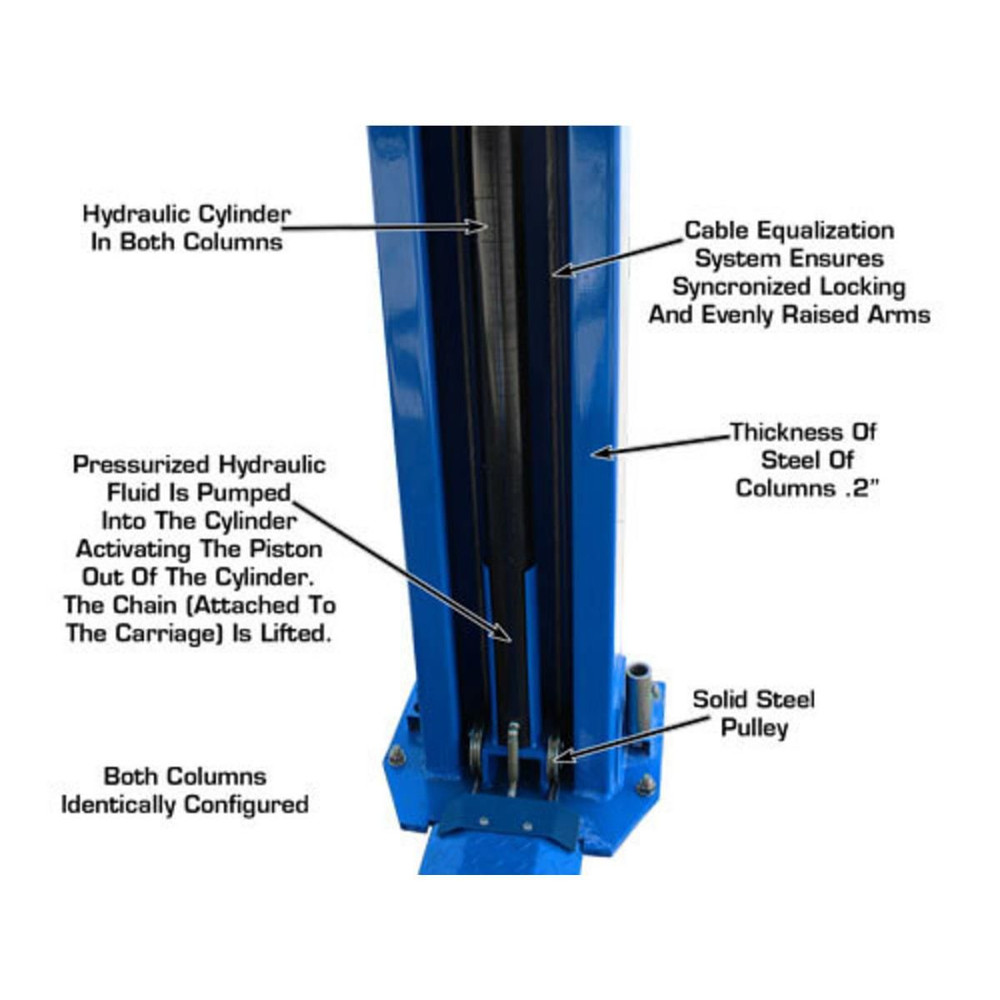

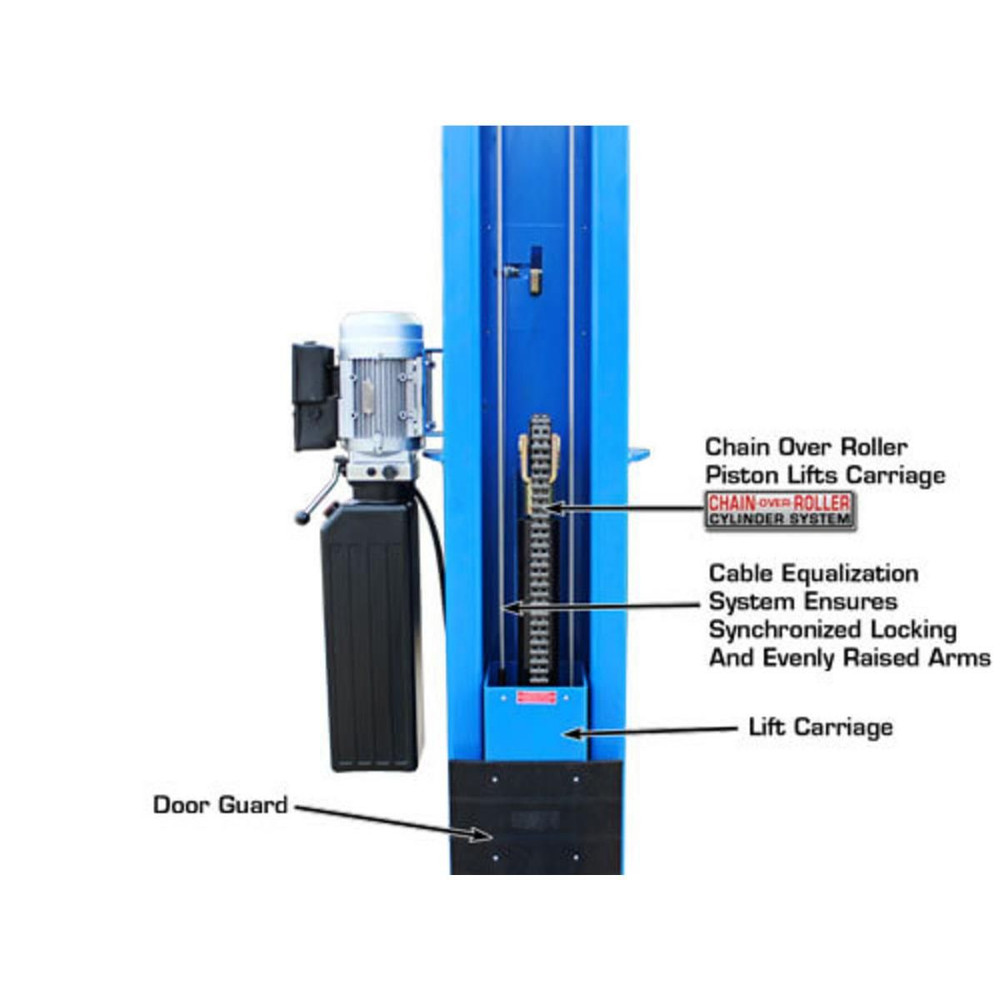

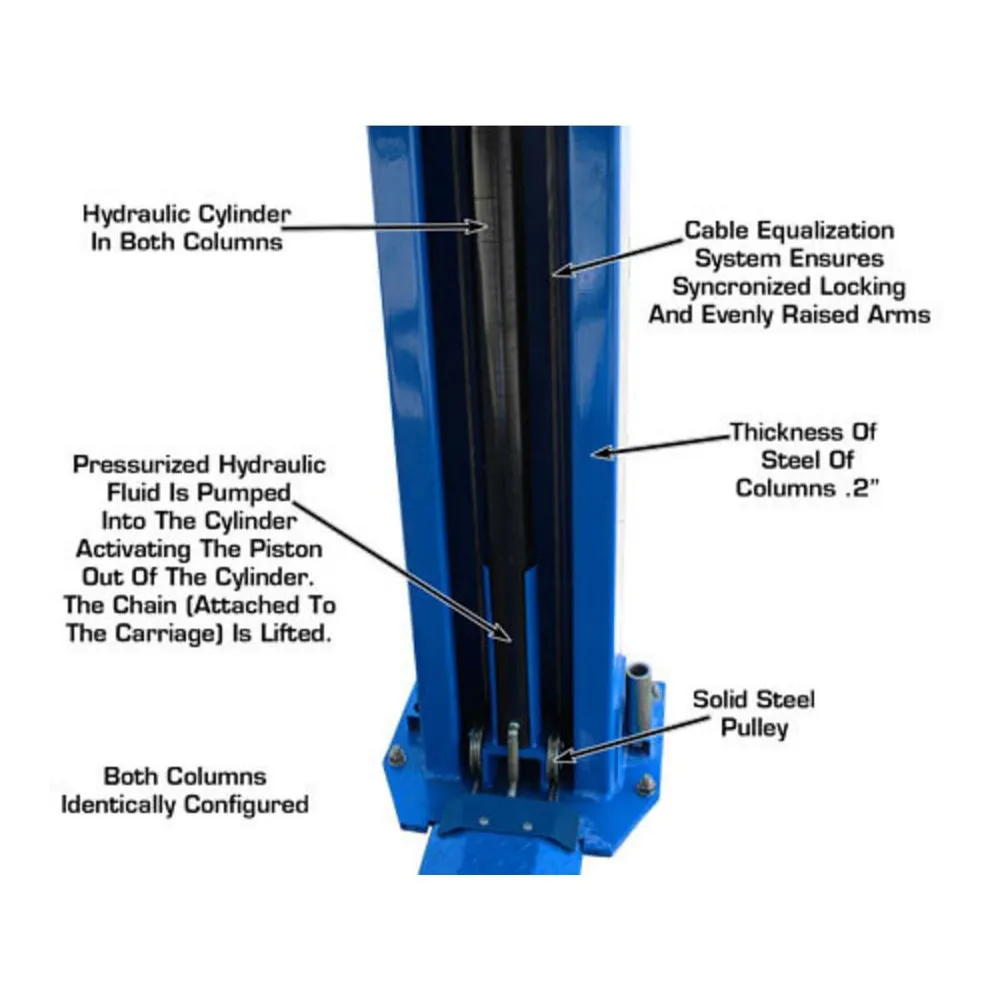

• Dual Hydraulic Chain-Over Cylinders
• Powder Coat Finish

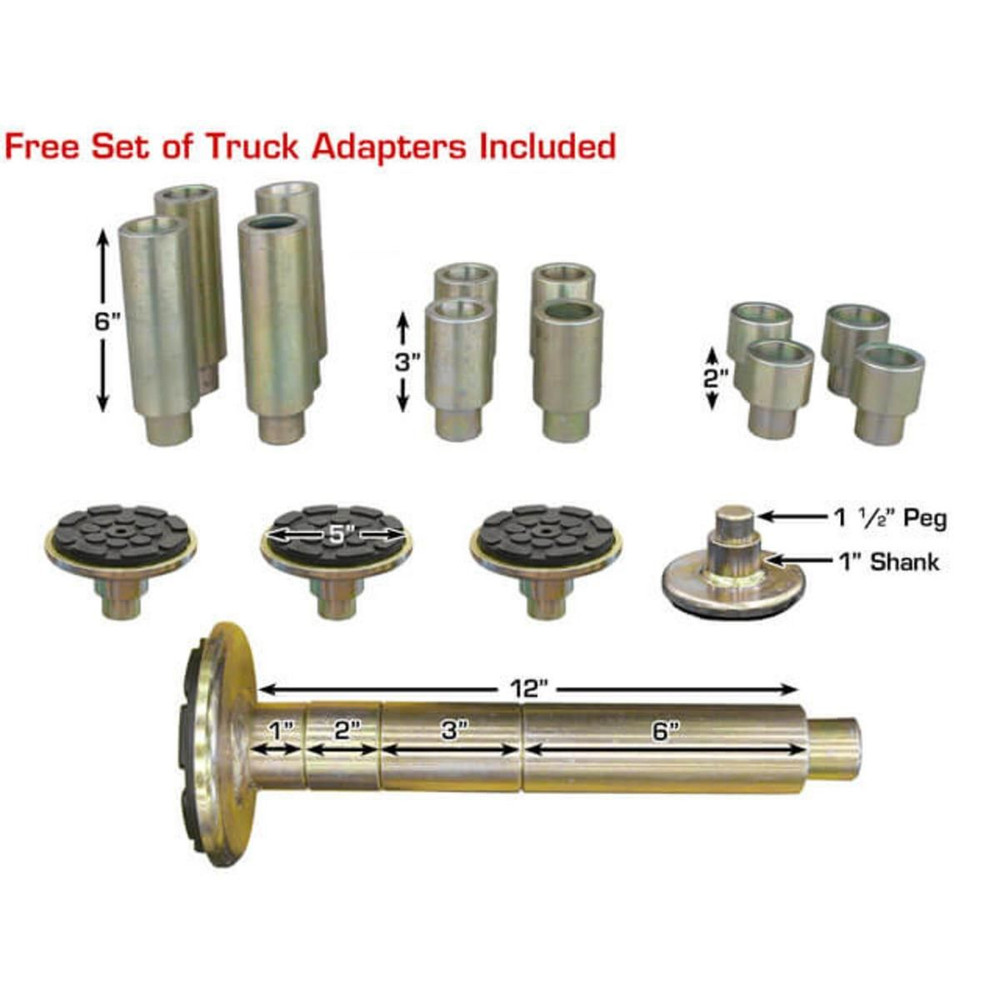

• Free 12 piece Truck Adapter Set

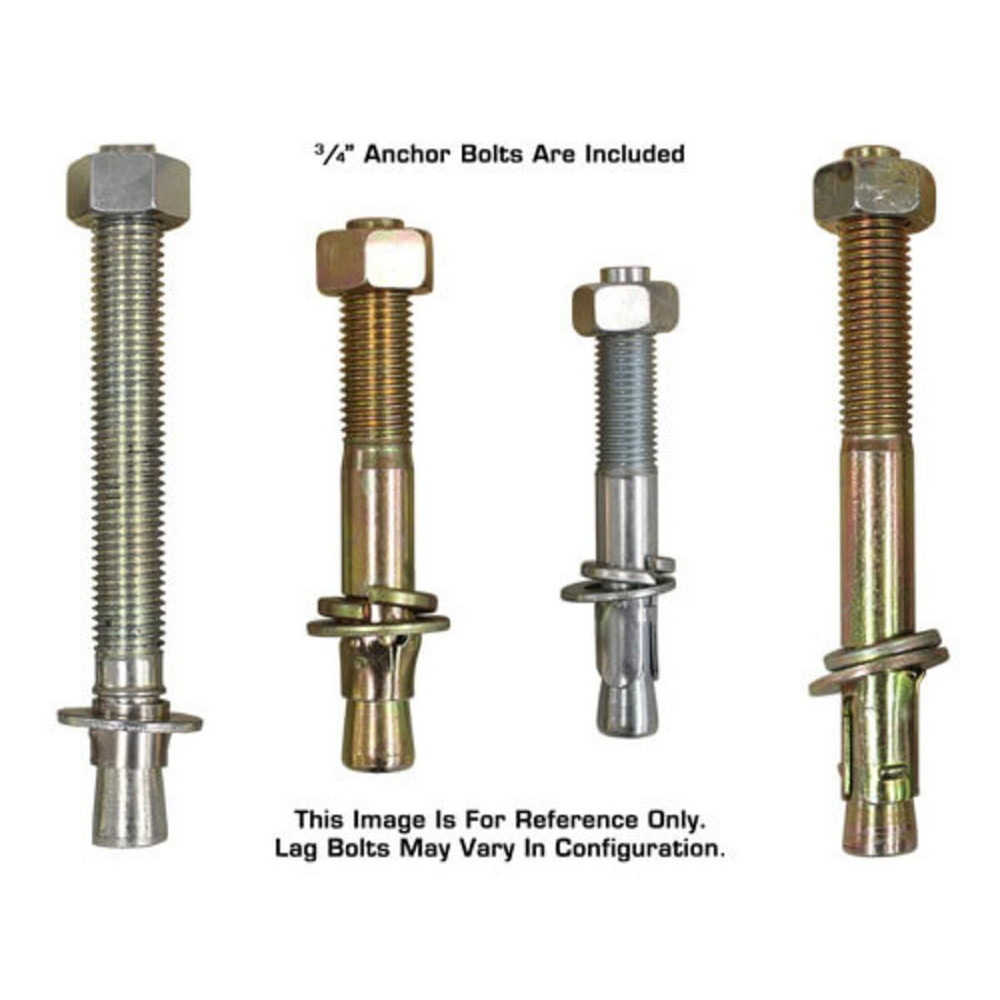

• Mounting Hardware Included

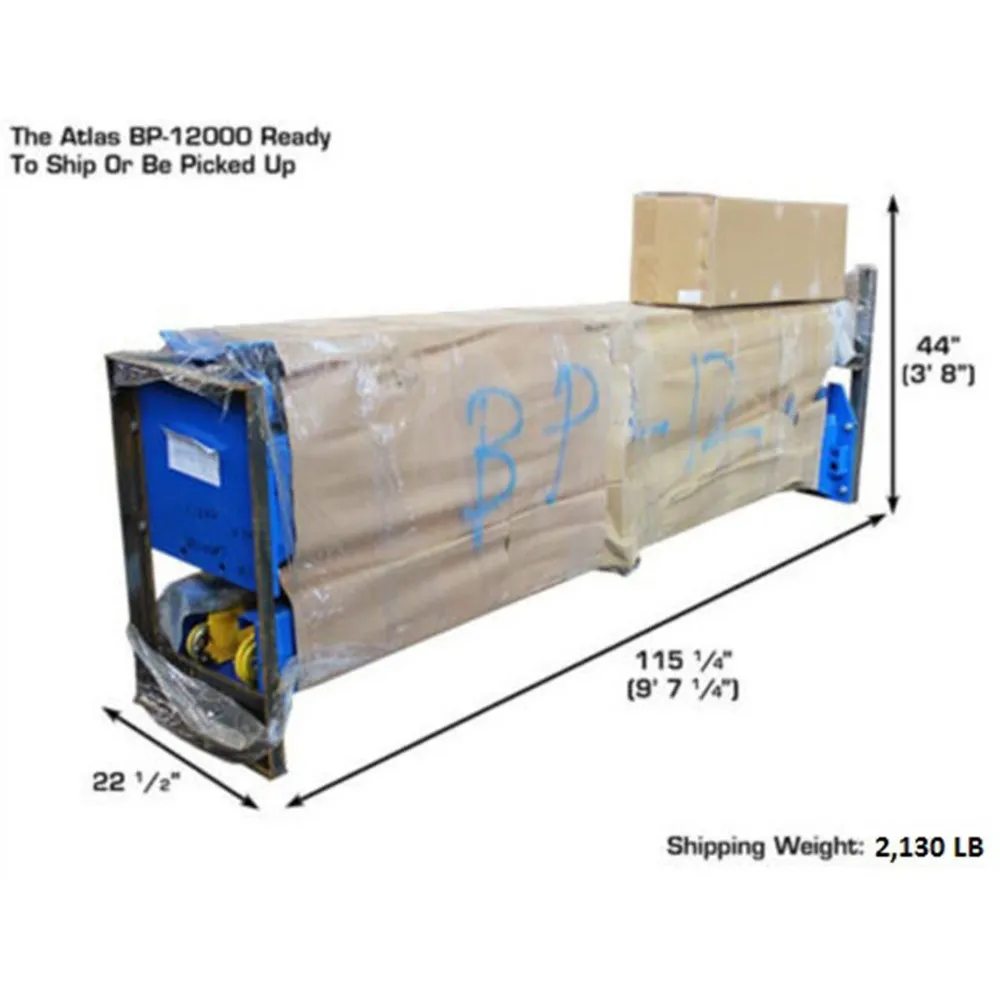

• Shipping Weight: 2,130 lbs.
• 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only
• This part number FREIGHT PREPAID

Atlas® ATTD-BP12000X Specifications

• Capacity 12,000 LB.

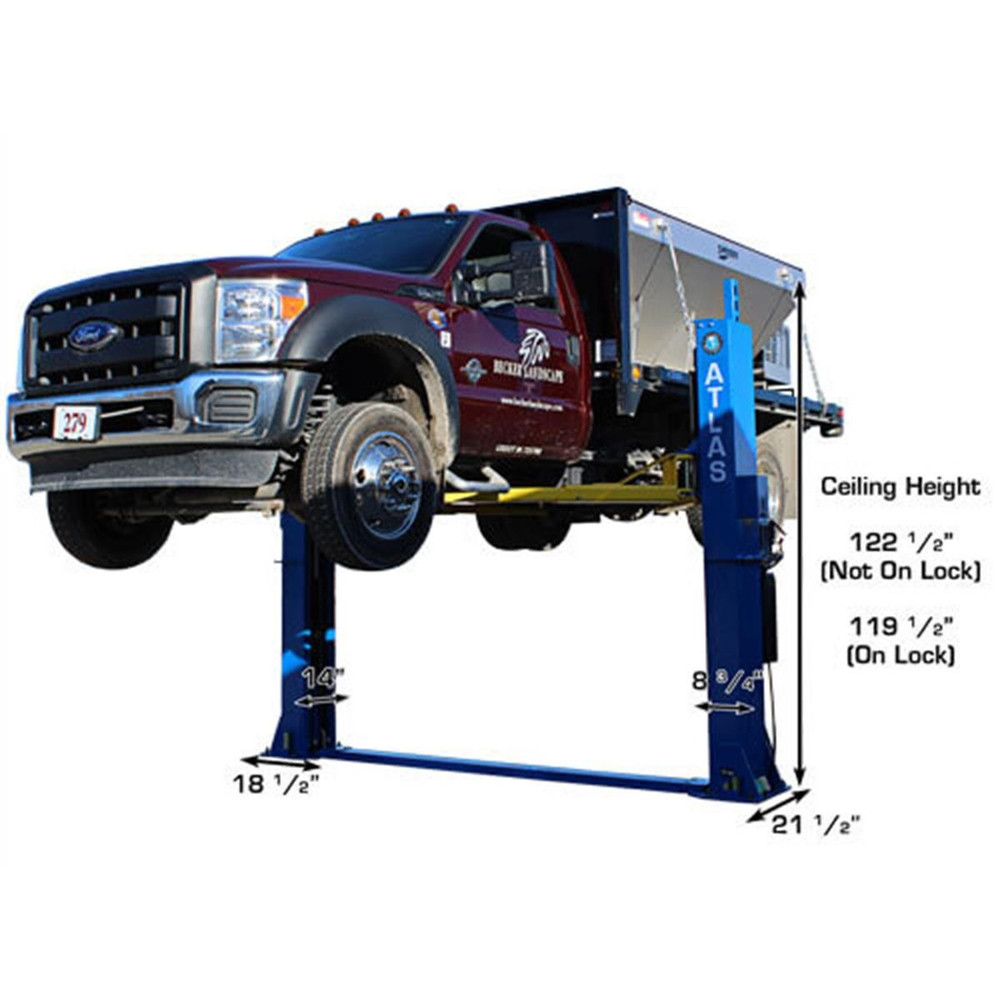

• Overall Height 122 1/2″ (10′ 2 1/2″)

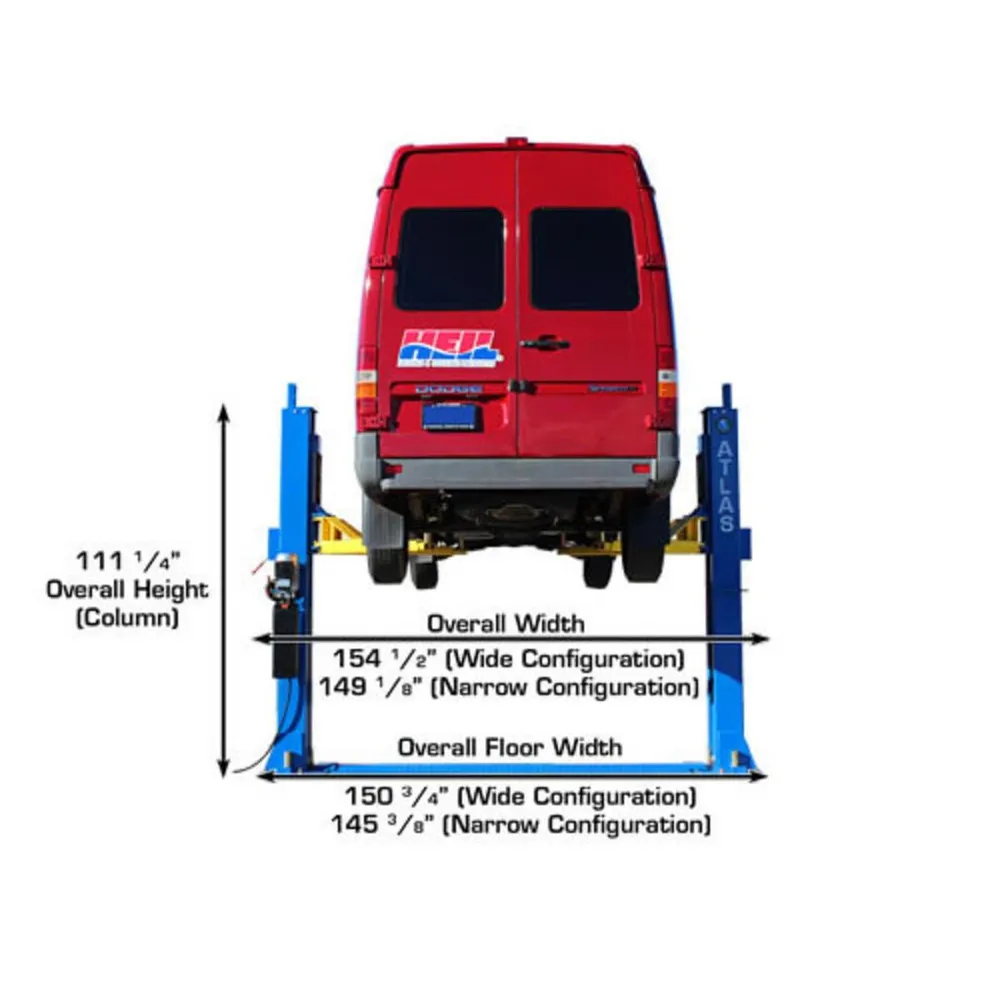

• Overall Floor Width 149 3/8″ (12′ 5 3/8″) or 154 1/2” (12′ 10 1/2”)

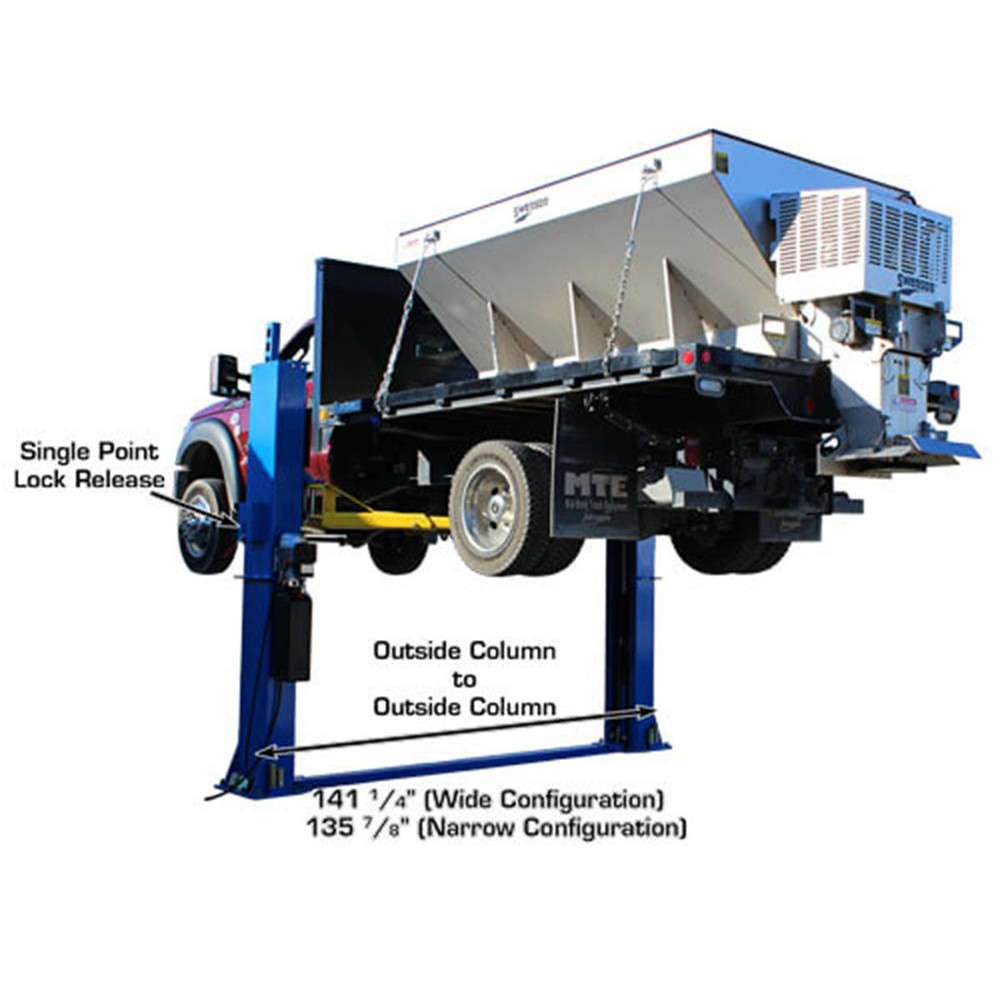

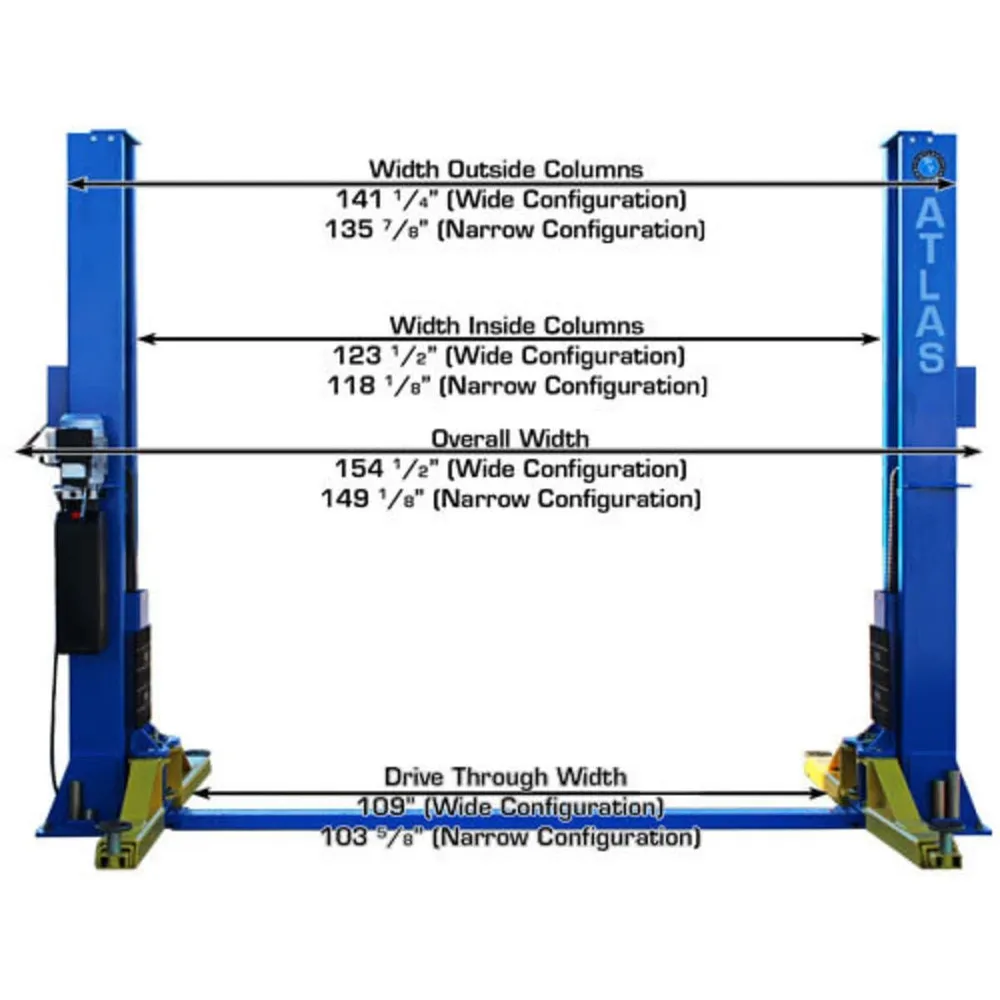

• Outside Column to Outside Column 135 7/8″ (11′ 3 7/8″) or 141 1/4″ (11′ 9 1/4”)
• Maximum Lift Height (Without Adapters) 77 1/2″

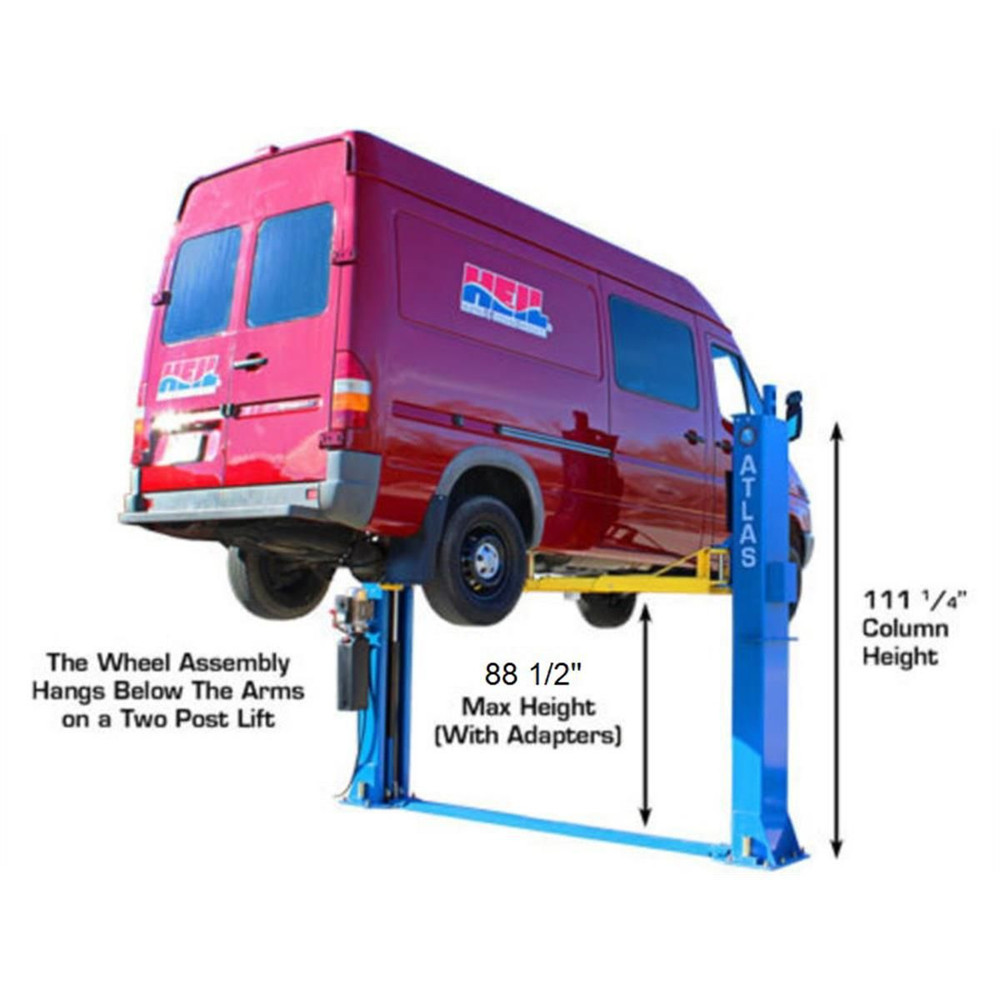

• Maximum Lift Height (With Adapters) 88 1/2″

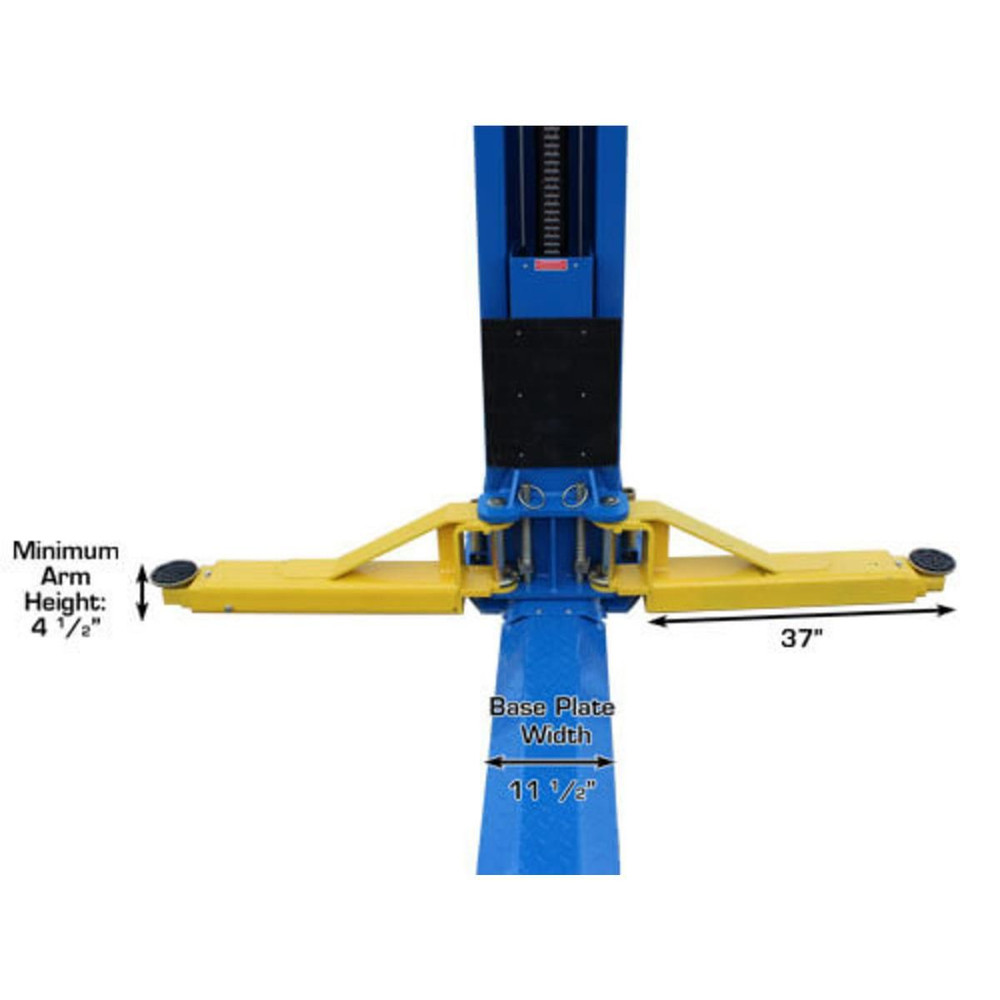

• Minimum Arm Height 4″
• Inside Column 118 1/8” (9′ 10 1/8”) or 123 1/2″ (10′ 3 1/2″)

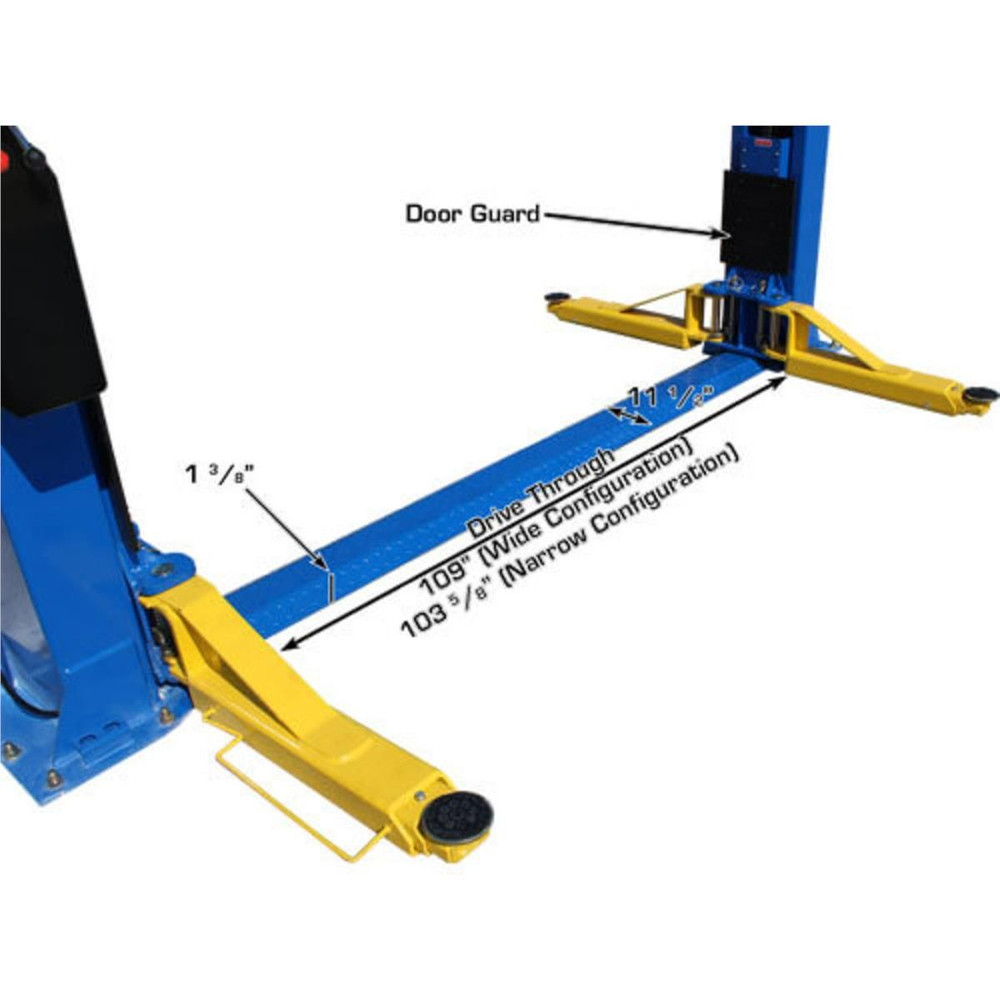

• Drive Thru 103 5/8” (8′ 7 5/8”) or 109” (9′ 1”)

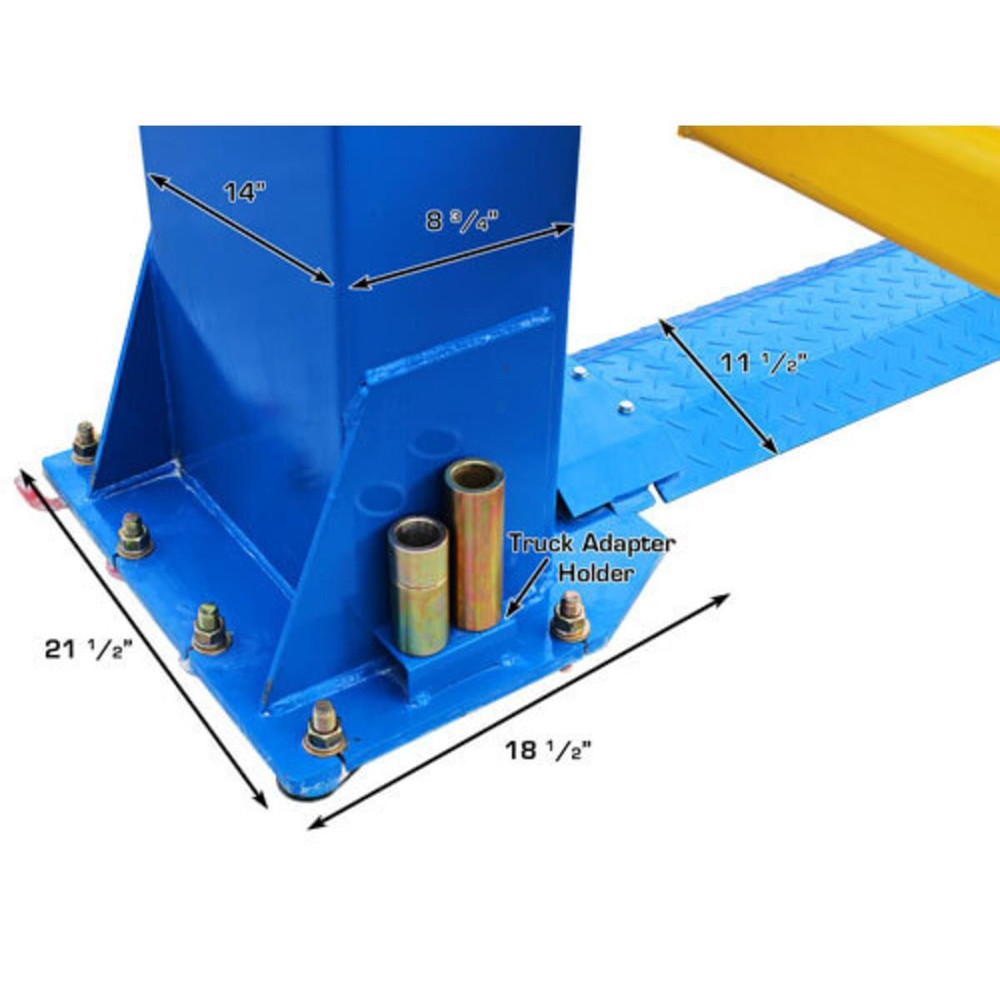

• Column Size 8 3/4″ x 14″
• Column Thickness of Steel 6mm
• Base Of Lift 18 1/2″ x 21 1/2″
• Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 2,130 LBS.

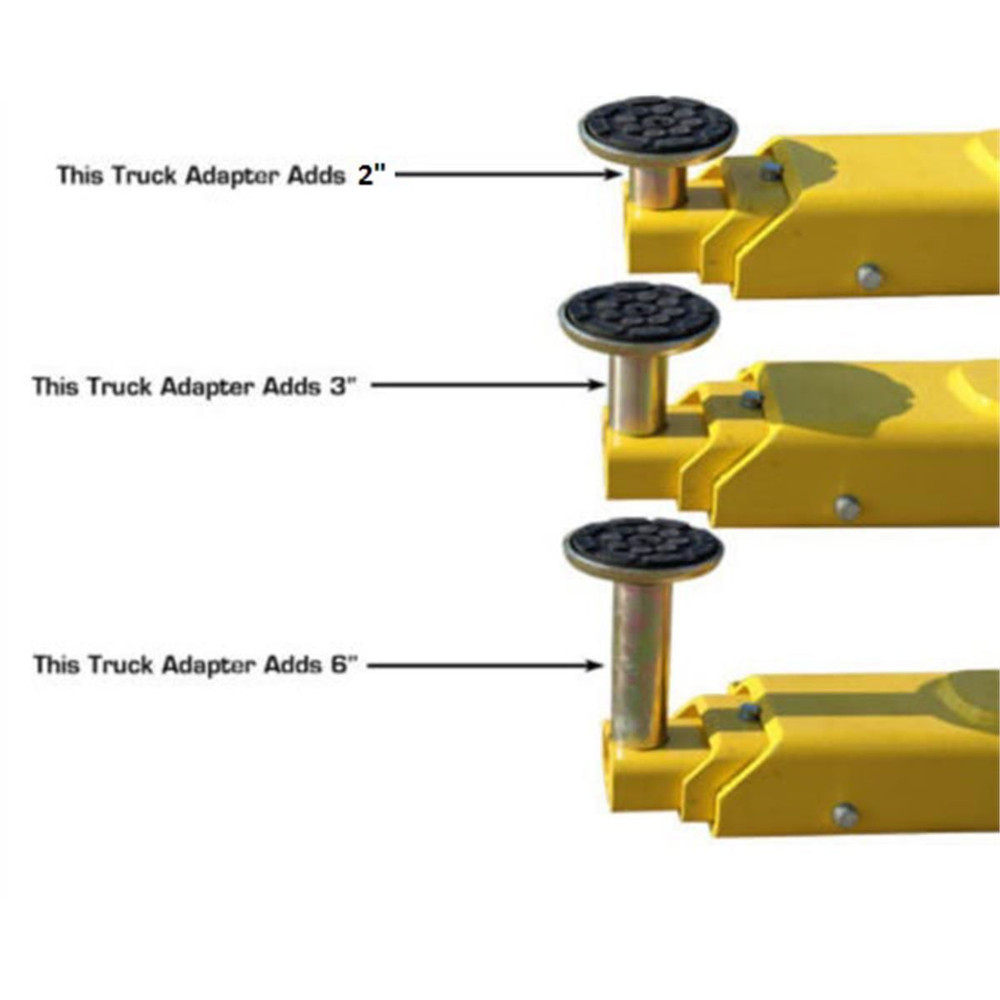

• Adapter Heights 4 Each 2”, 3”, 6”
• Arm Hole/Adapter Peg Size 1.5”
• Requires a minimum of 6″ of concrete with a 3000 psi. rating
