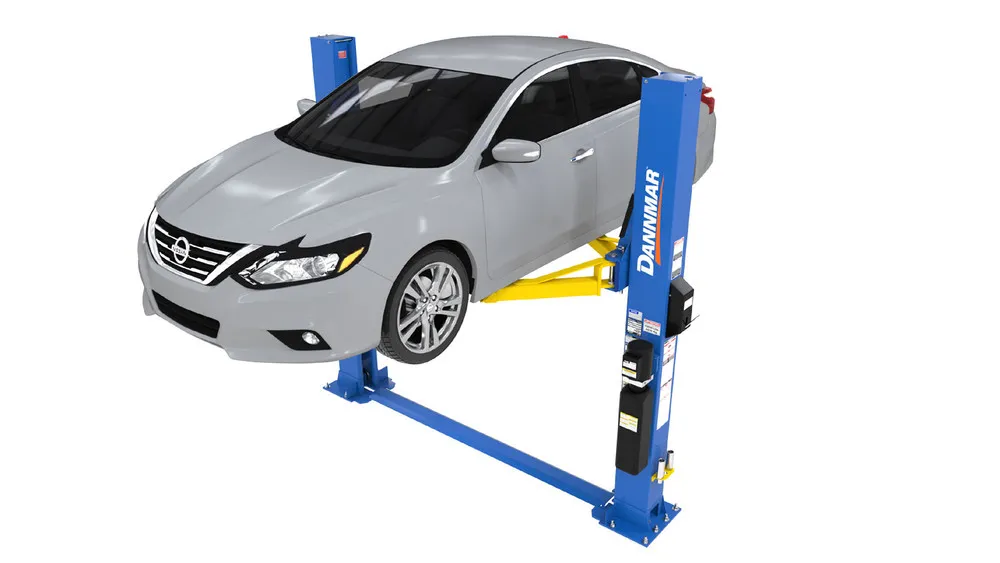

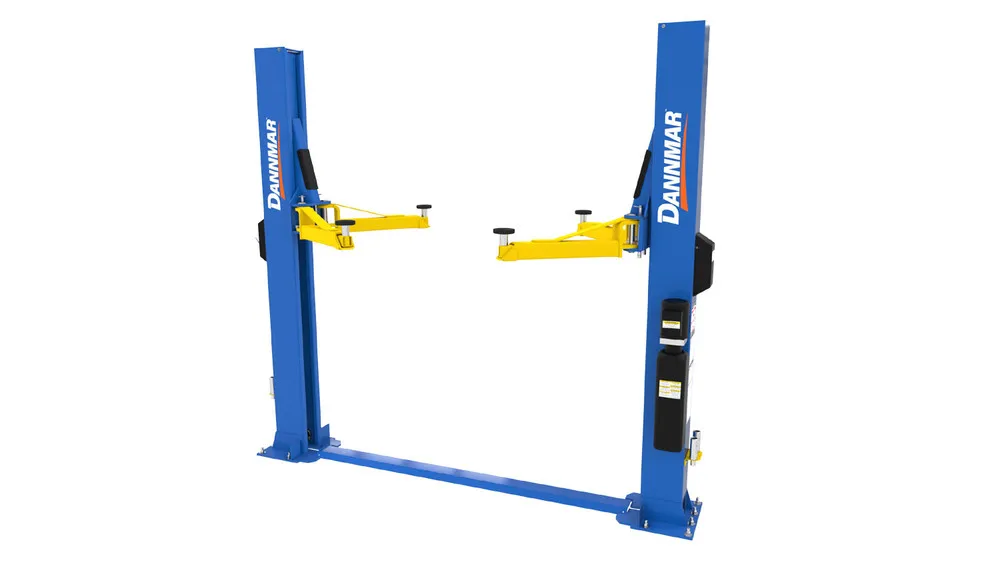

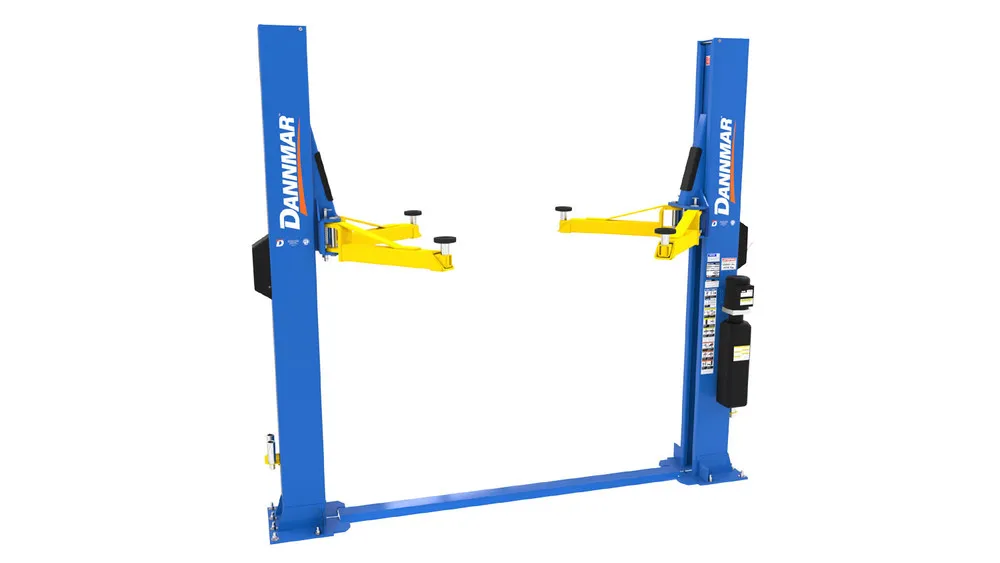

Dannmar D2-8F 8,000-lbs. Capacity Two-Post Floorplate Lift
$5,266.00
The Dannmar D2-8F is an 8,000-lb. two-post car lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.
In Stock
Description
Shop the Dannmar D2-8F 8,000-lbs. Capacity Two-Post Floorplate Lift at Variety Engines — every unit is carefully inspected, warrantied, and ready to ship fast across the US.
Features
- Electric / hydraulic power system
- Large, 17″ x 19″ A36 steel base plate
- Self-lubricating dura-glide UHMW polyethylene bearings
- Safety locks in each column spaced every 3”
- Automatic arm restraints
- Heavy-duty 1/2″ aircraft-quality equalizer cables
- Oversized cable sheave diameter reduces cable fatigue
- 4-piece 63 mm stackable adapter set comes standard
- Padded overhead safety shutoff bar
- Telescoping arm design for more versatile arm positioning
- Single-point safety release
- Drop-end arms provide a lower pad height
- Dual hydraulic direct-drive cylinders
- Oversized 53″ tall carriage for superior strength
- Triple-telescoping arm design
- Versatile drop-in contact pads with stackable adapters.
Specs
| Style | Floorplate |
|---|---|
| SKU# | 5175316 |
| Lifting Capacity | 8,000 lbs. (3,629 kg) |
| A – Lowered Height + Pad | 4.25” (108 mm) |
| B – Max. Lift Height (Top Lock) | 80.5” (2,045 mm) |
| C – Max. Rise | 72” (1,829 mm) |
| D – Height Overall | 113” (2,870 mm) |
| E – Width Overall | 132” (3,353 mm) or 145” (3,683 mm) |
| F – Width Outside Columns | 126.75” (3,219 mm) or 139.75” (3,550 mm) |
| G – Width Inside Columns | 105” (2,667 mm) or 118” (2,997 mm) |
| H – Drive-Thru Clearance | 93” (2,362 mm) or 106” (2,692 mm) |
| I – Floorplate Width | 8.5” (216 mm) |
| J – Floorplate Height | 1.25″ (33 mm) |
| K – Arm Reach | 32.25″ (819 mm) – 52.25” (1,327 mm) |
| Max. Load per Arm | 2,000 lbs. (907 kg) |
| Time to Full Rise | 45 seconds |
| Noise | 45 dB |
| Motor | 220 VAC / 60 Hz / 1 Ph |
About the Dannmar D2-8F 8,000-lbs. Capacity Two-Post Floorplate Lift
This unit is quality-tested and ready to install. Browse more Two Post Lifts, or contact our team with your VIN for fitment help — with fast, tracked shipping on every order.
