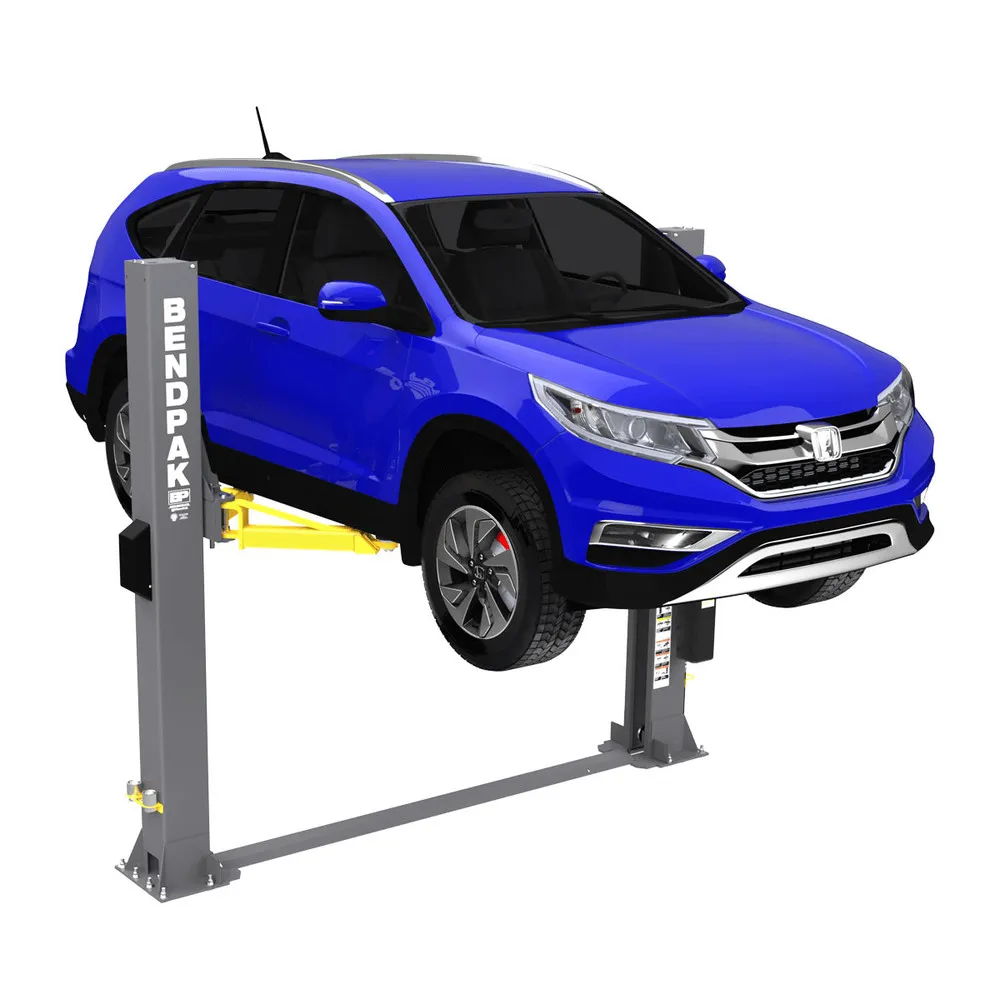

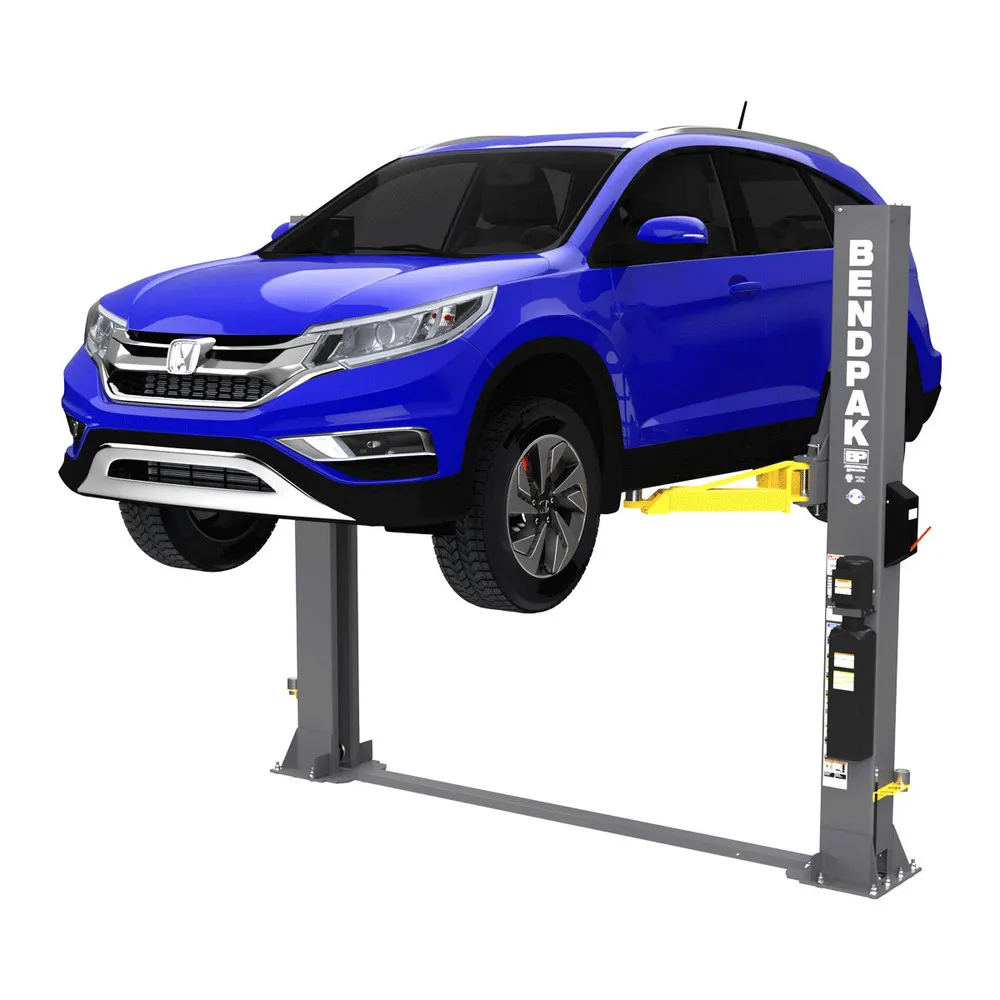

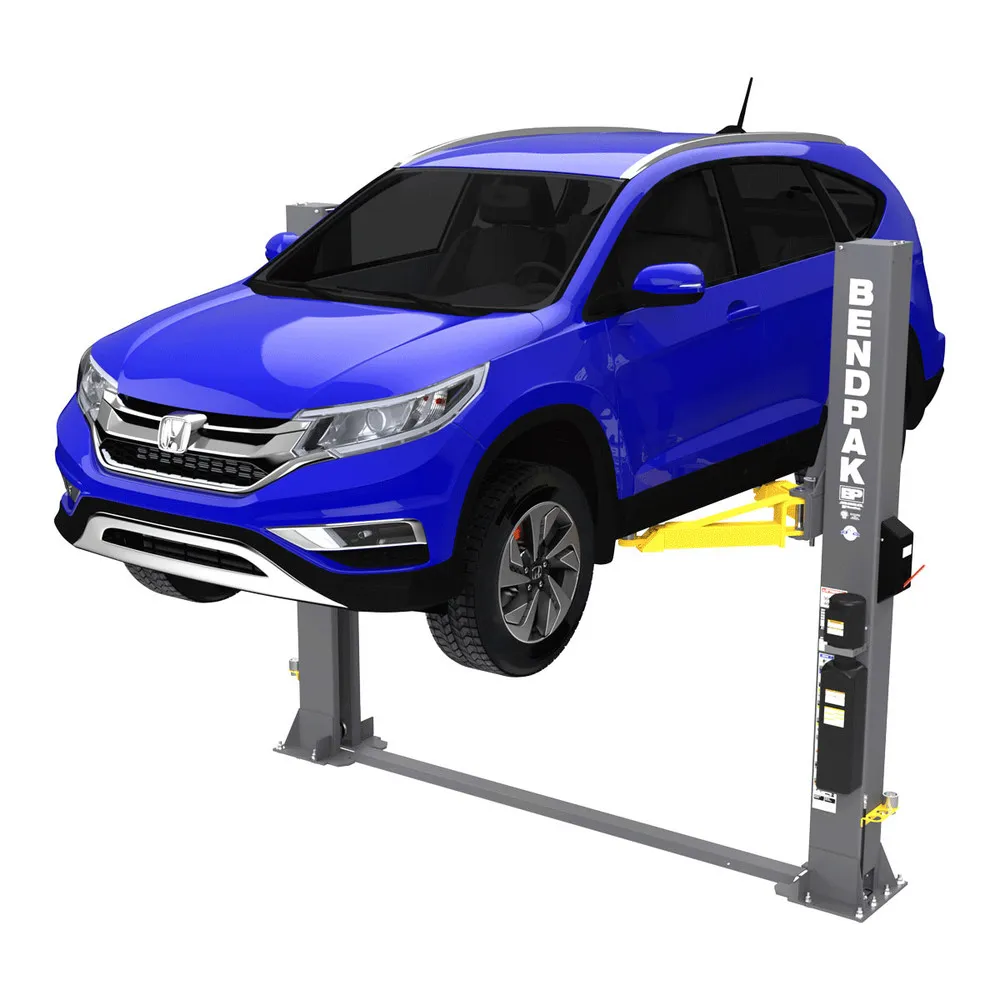

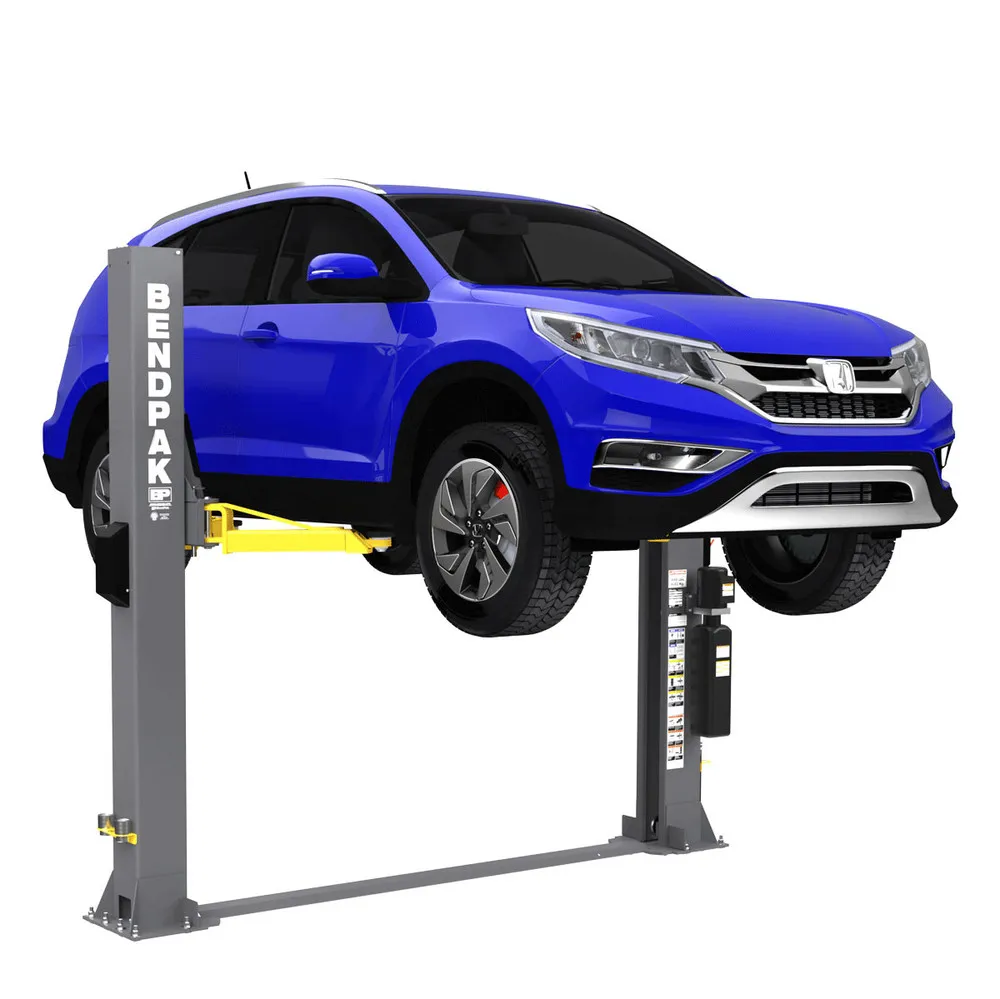

Bendpak XPR-9TF 9,000 lbs. Capacity 2-Post Floorplate Lift
$6,395.00
The BendPak XPR-9TF Capacity 2-Post Floorplate Lift is a 9,000-lb. two-post car lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.
In Stock
Description
Shop the Bendpak XPR-9TF 9,000 lbs. Capacity 2-Post Floorplate Lift at Variety Engines — every unit is carefully inspected, warrantied, and ready to ship fast across the US.
SPECIFICATIONS
- 9,000 lb. Capacity
- Single-Piece Columns
- Safety Lock Release Handle
- Equalizing Cables
- Chain Lifting System Combined with Dual Hydraulic Cylinders
- Plated Arm Restraints and Arm Pins for Rust Prevention
Capacity
Lifting Capacity*: 9,000 lbs. (4,082 kg)
*Max Capacity / Front Axle: 4,500 lbs. (2,041 kg)
*Max Capacity / Rear Axle: 4,500 lbs. (2,041 kg)
Rise
A – Rise: 69″ (1,753 mm)
B – Rise + Pad Only: 73.75″ (1,870 mm)
C – Rise + Pad + 63 mm Adapter: 78.25″ (1,987 mm)
D – Min. Height + Pad: 4.75″ (118 mm)
Time to Full Rise: ≈45 seconds
Outside Dimensions
E – Height Overall: 123.25″ (3,128 mm)
F – Width Overall: 132″ (3,353 mm) – 145″ (3,683 mm)
G – Outside Columns: 124.75″ (3,169 mm) – 137.75″ (3,499 mm)
Inside Dimensions
H – Inside Columns: 103.5″ (2,629 mm) or 116.5″ (2,959 mm)
I – Drive-Thru Clearance: 91″ (2,315 mm) or 104″ (2,642 mm)
Arms & Pads
K – Front Arm Reach: (MIN): 25.5″ (646 mm)
K – Front Arm Reach: (MAX): 49.5″ (1,255 mm)
L – Rear Arm Reach: (MIN): 32.25″ (821 mm)
L – Rear Arm Reach: (MAX): 52.5″ (1,331 mm)
Screw Pad Adjustment: 1.5″ (37 mm)
Max Load Per Arm: N/A
Power Unit
Motor: 220 VAC, 60 Hz, 1 Phase
Noise: <43 dB
About the Bendpak XPR-9TF 9,000 lbs. Capacity 2-Post Floorplate Lift
This unit is quality-tested and ready to install. Browse more Two Post Lifts, or contact our team with your VIN for fitment help — with fast, tracked shipping on every order.
