SKU: VE-6676
In Stock

$5,895.00

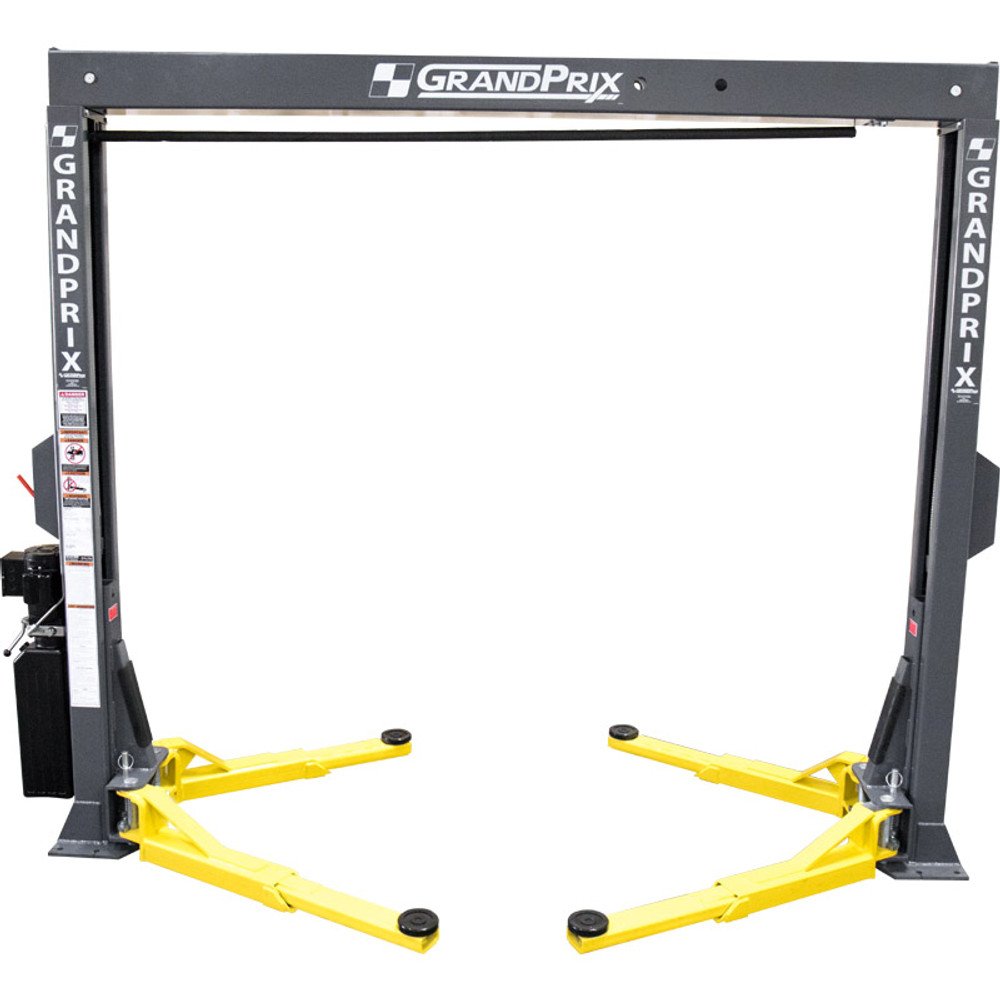

The BendPak GP-7LCS GrandPrix Series 2-Post Lift Capacity / 106.5 Overall Height is a 7,000-lb. ALI Certified two-post car lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

In Stock
Category:
Brand:

Description

Shop the Bendpak GP-7LCS GrandPrix Series ALI Certified 2-Post Lift 7,000-lb. Capacity / 106.5 Overall Height at Variety Engines — every unit is carefully inspected, warrantied, and ready to ship fast across the US.

Features

  • 7,000-lb lifting capacity

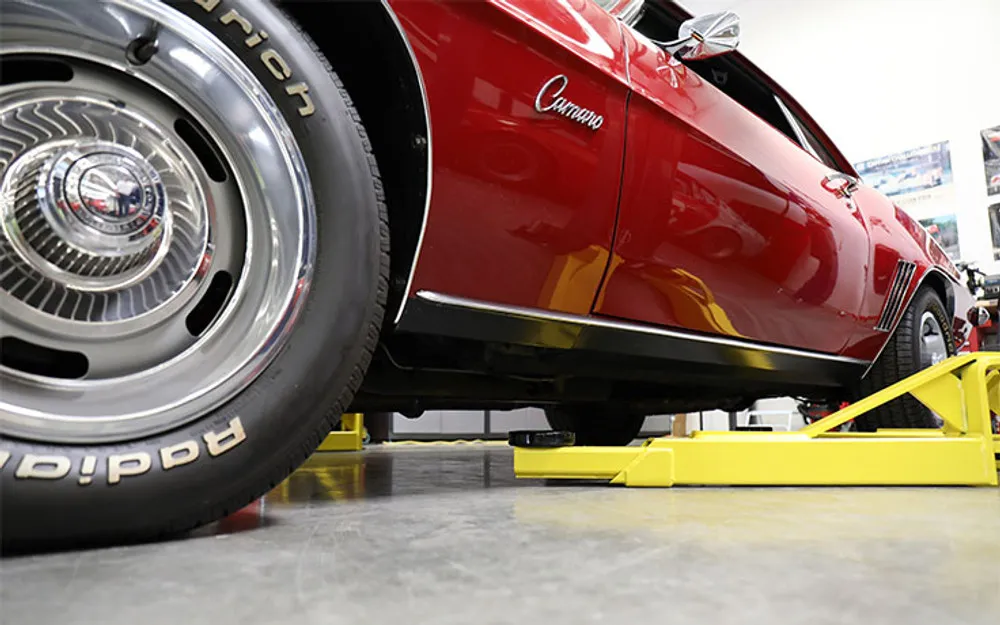

  • Telescoping Low-Pro™ arms for sports cars
  • Bi-metric asymmetric & symmetric arm configuration
  • Lowered arm tube supports

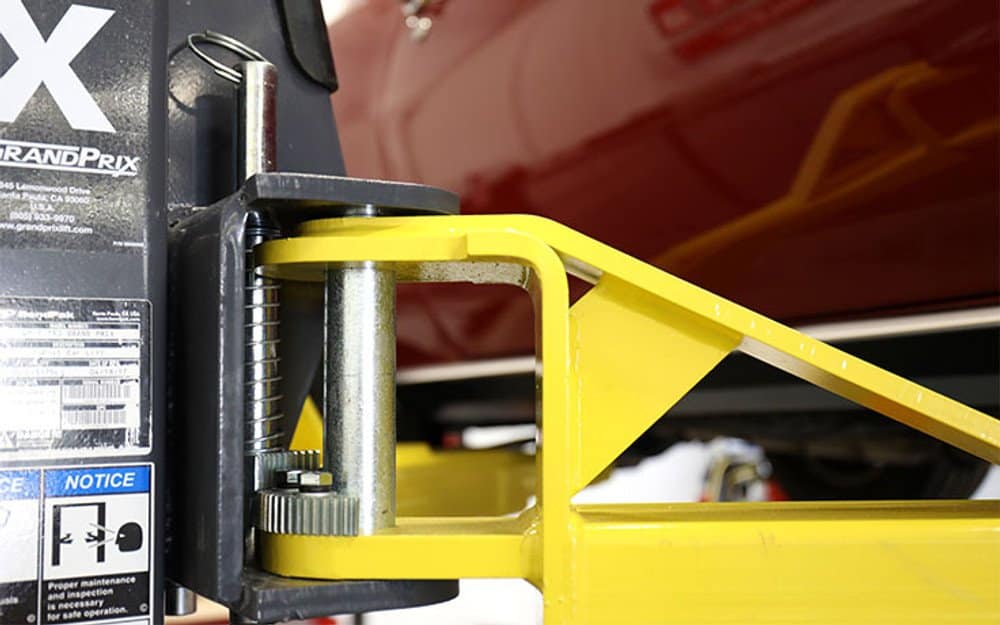

  • Automatic arm restraints
  • Single release-point operation
  • Taller lift carriages
  • Automatic safety locks
  • Single hidden hydraulic cylinder
  • (2) redundant safety cables
  • Multiple lock positions

GP-7LCS Specifications

Capacity

Lifting Capacity* 7,000 lbs. (3,175 kg)
*Max Capacity / Front Axle 3,500 lbs. (1,588 kg)
*Max Capacity / Rear Axle 3,500 lbs. (1,588 kg)

Rise

A – Rise: 54″ (1,372 mm)
B – Rise + Pad Only: 58″ (1,473 mm)
C – Rise + Pad + 63 mm Adapter: 66″ (1,676 mm)
D – Min. Height + Pad: 4.5″ (114 mm)
Time to Full Rise: 45 seconds

Outside Dimensions

E – Height Overall: 106.5″ (2,705 mm)
F – Width Overall: 125″ (3,175 mm)
G – Outside Columns: 119.5″ (3,035 mm)

Inside Dimensions

H – Inside Columns: 110″ (2,794 mm)
I – Drive-Thru Clearance: 98″ (2,489 mm)
J – Floor To Overhead Switch: 96″ (2,438 mm)

Arms & Pads

K – Front Arm Reach: (MIN) 26″ (660 mm)
K – Front Arm Reach: (MAX) 42″ (1,067 mm)
L – Rear Arm Reach: (MIN) 26″ (660 mm)
L – Rear Arm Reach: (MAX) 47.5″ (1,207 mm)
Max Load Per Arm 1,750 lbs. (794 kg)

Power Unit

Motor: 220 VAC / 60 Hz / 1 Ph
Noise: 45dB

About the Bendpak GP-7LCS GrandPrix Series ALI Certified 2-Post Lift 7,000-lb. Capacity / 106.5 Overall Height

This unit is quality-tested and ready to install. Browse more Two Post Lifts, or contact our team with your VIN for fitment help — with fast, tracked shipping on every order.
