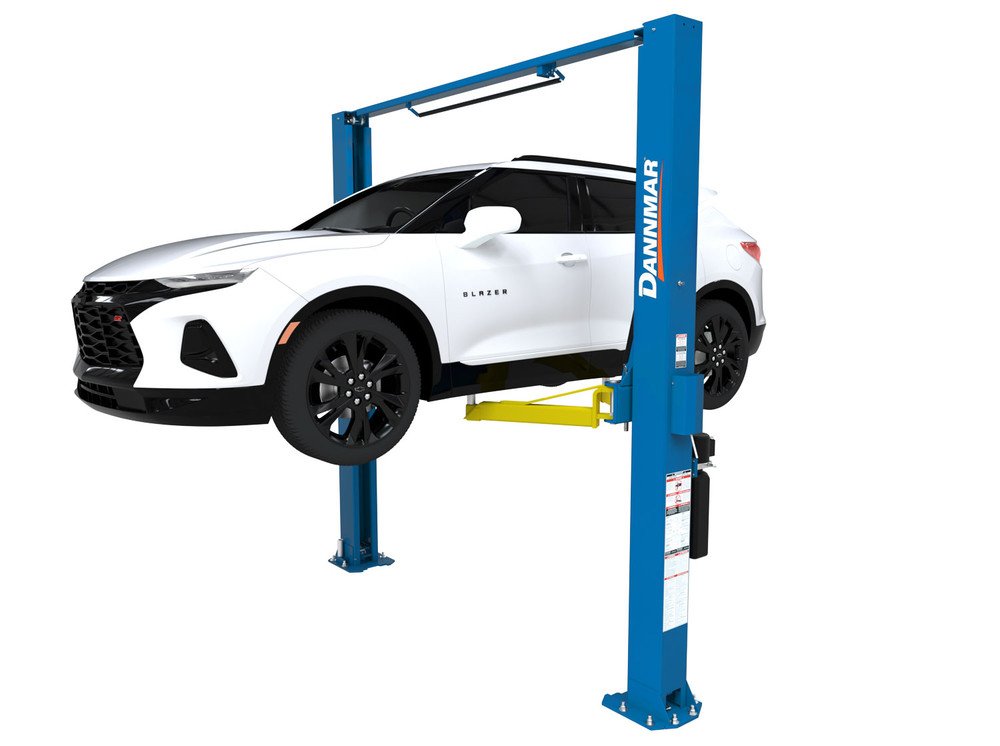

Dannmar D2-10C Symmetric 10,000 lb. capacity ALI certified Two-Post Lift
$5,134.00
The Dannmar D2-10C is a 10,000-lb. ALI Certified symmetric two-post car lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.
In Stock
Description
Shop the Dannmar D2-10C Symmetric 10,000 lb. capacity ALI certified Two-Post Lift at Variety Engines — every unit is carefully inspected, warrantied, and ready to ship fast across the US.
Features
- Electric / hydraulic power system
- Large, 17″ x 19″ A36 steel base plate
- Self-lubricating dura-glide UHMW polyethylene bearings
- Safety locks in each column spaced every 3”
- Automatic arm restraints
- Heavy-duty 1/2″ aircraft-quality equalizer cables
- Oversized cable sheave diameter reduces cable fatigue

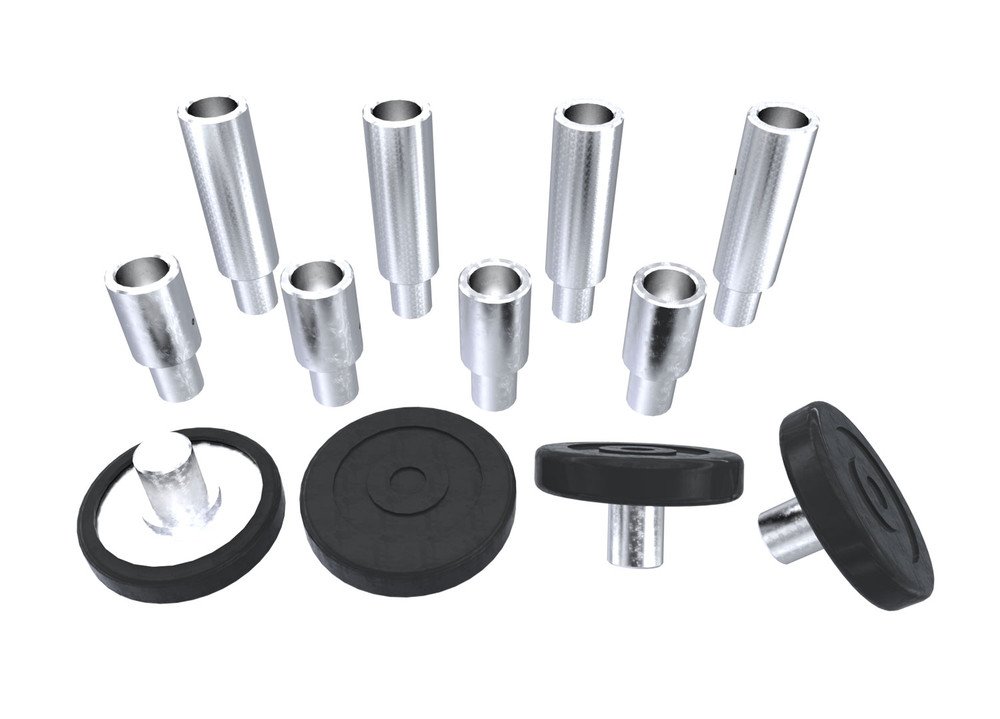

- 4-piece 63 mm stackable adapter set comes standard
- Padded overhead safety shutoff bar
- Telescoping arm design for more versatile arm positioning
- Single-point safety release
- Drop-end arms provide a lower pad height
- Dual hydraulic direct-drive cylinders

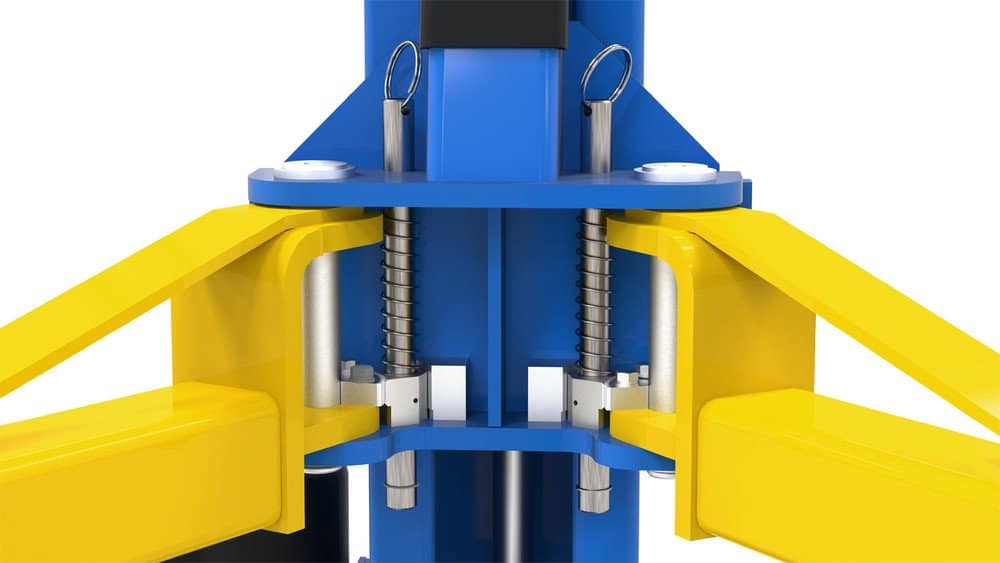

- Oversized 53″ tall carriage for superior strength
- Triple-telescoping arm design
- Versatile drop-in contact pads with stackable adapters.
- ETL Approved
Specs
| Style | Symmetric |
|---|---|
| SKU# | 5175313 |
| Lifting Capacity | 10,000 lbs. (4,536 kg) |
| A – Lowered Height + Pad | 5″ (127 mm) |
| B – Max. Lift Height (Top Lock) | 78.5″ (1,994 mm) |
| C – Max. Rise | 69″ (1,753 mm) |
| D – Height Overall | 145″ (3,683 mm) |
| E – Width Overall | 145.25″ (3,690 mm) |
| F – Width Outside Columns | 137.25″ (3,486 mm) |
| G – Width Inside Columns | 118.25″ (3,004 mm) |
| H – Drive-Thru Clearance | 106″ (2,692 mm) |
| I – Floor to Top Switch | 141″ (3,581 mm) |
| J – Arm Reach | 32.25″ (819 mm) – 52.5” (1,334 mm) |
| Max. Load per Arm | 2,500 lbs. (1,134 kg) |
| Time to Full Rise | 45 seconds |
| Noise | 45 dB |
| Motor | 220 VAC / 60 Hz / 1 Ph |
About the Dannmar D2-10C Symmetric 10,000 lb. capacity ALI certified Two-Post Lift
This unit is quality-tested and ready to install. Browse more Two Post Lifts, or contact our team with your VIN for fitment help — with fast, tracked shipping on every order.
