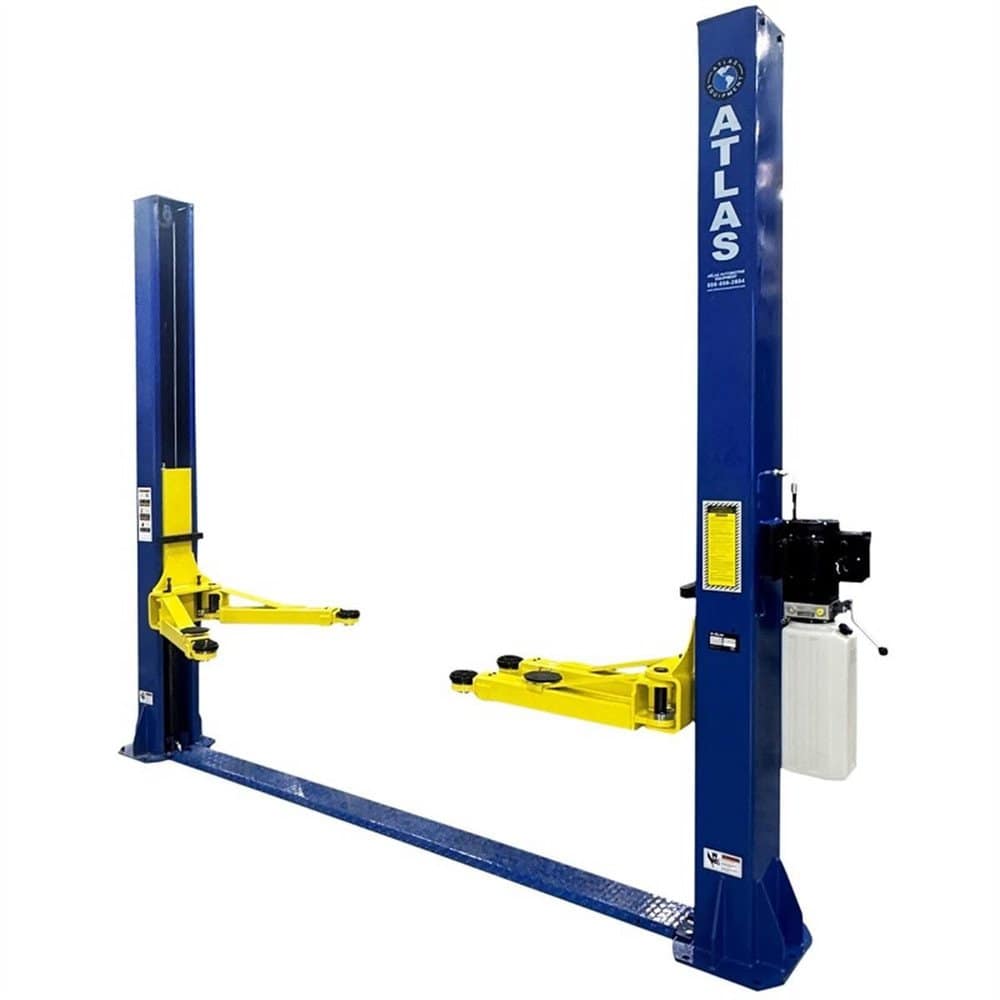

Atlas Capacity Base plate 2 Post Lift XH-TPF-9 9,000 lb
$2,849.00
The Atlas Capacity Base plate 2 Post Lift XH-TPF-9 is a 9,000-lb. two-post car lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.
In Stock
Description
Atlas Capacity Base plate 2 Post Lift XH-TPF-9 9,000 lb
Features and Benefits:
- 9,000 lb. Capacity
- Baseplate, Open Top design
- Overall Height: 111 1/2″ (9′ 3 1/2″)

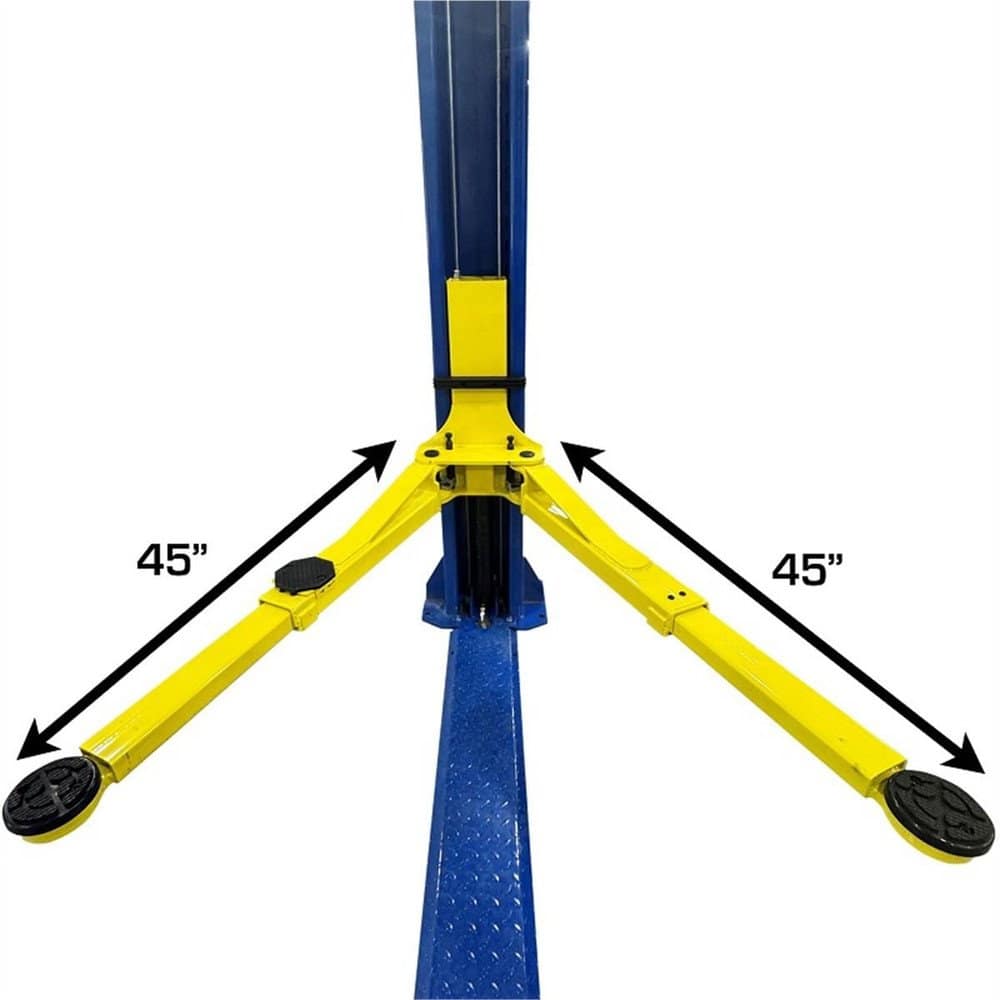

- Symmetric Arms

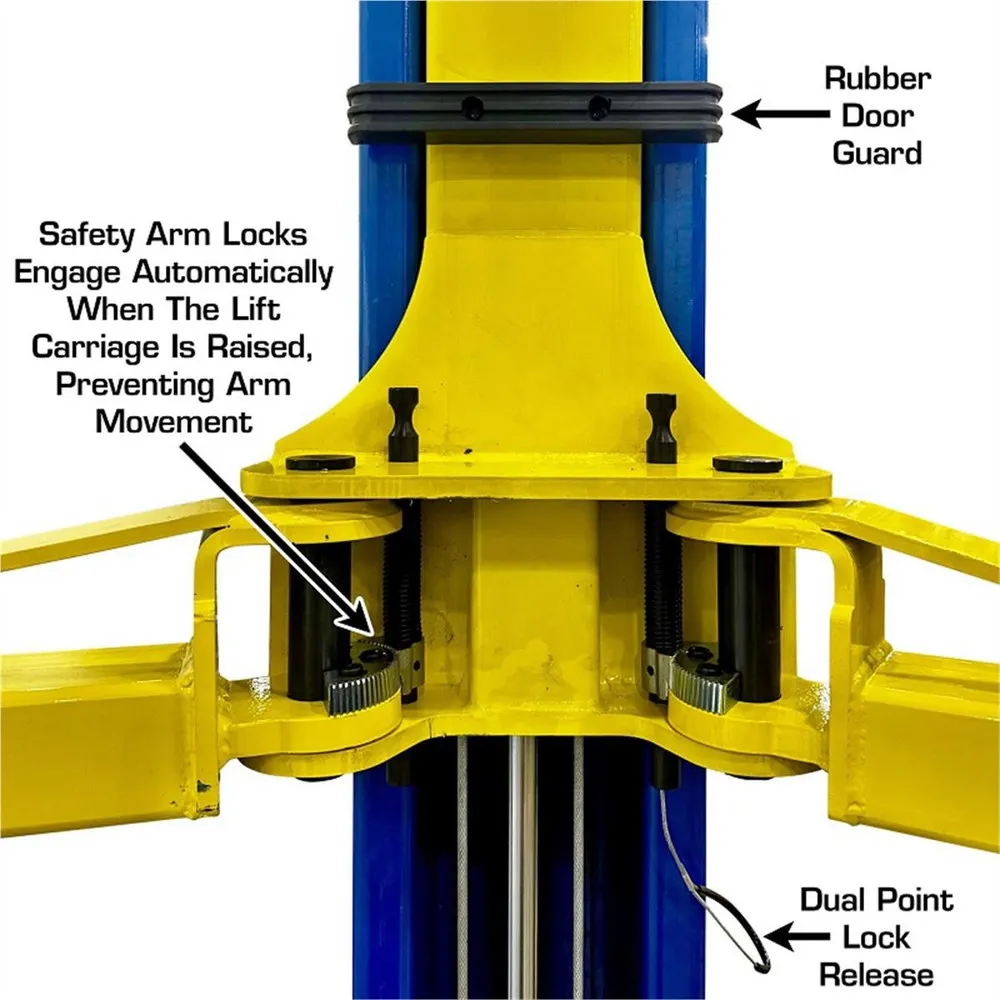

- Automatic Arm Restraints
- Dual-Point Lock Release
- Rubber Guards on Carriages

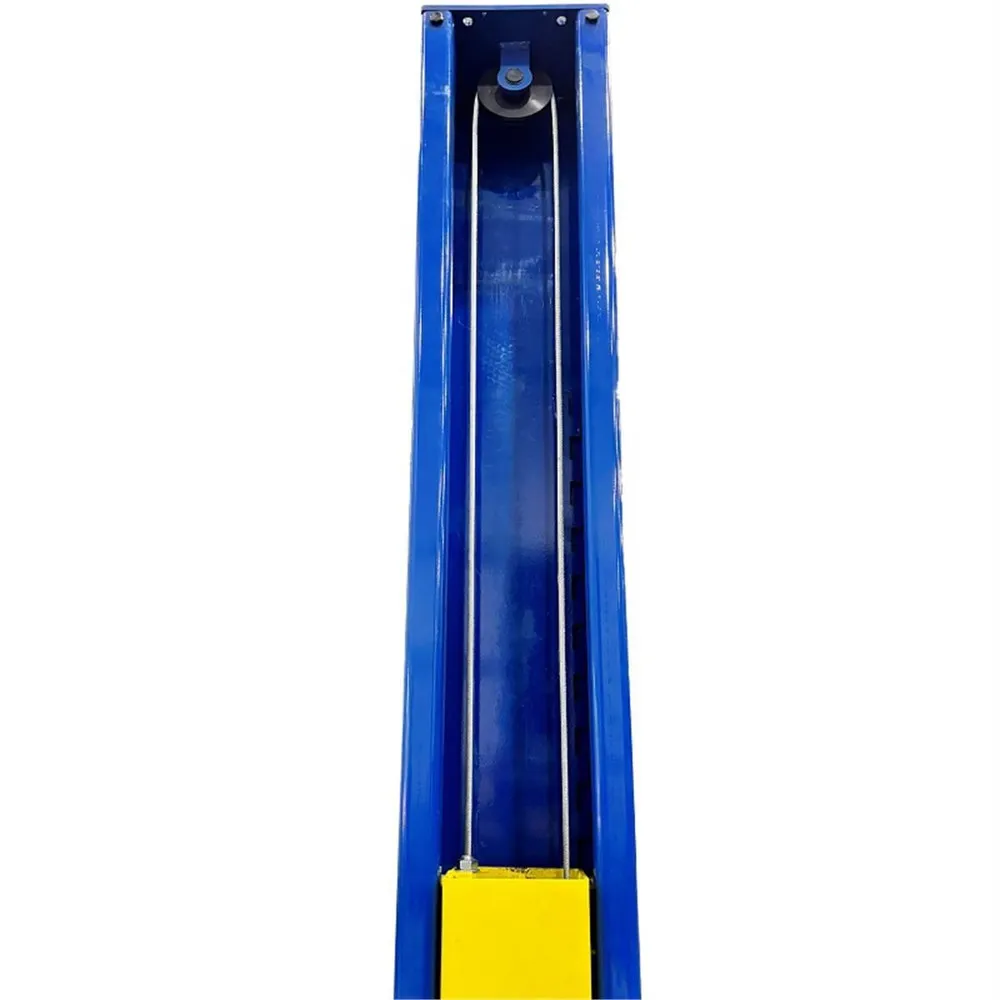

- Dual Hydraulic Chain-Drive Cylinders
- Secondary Lock System

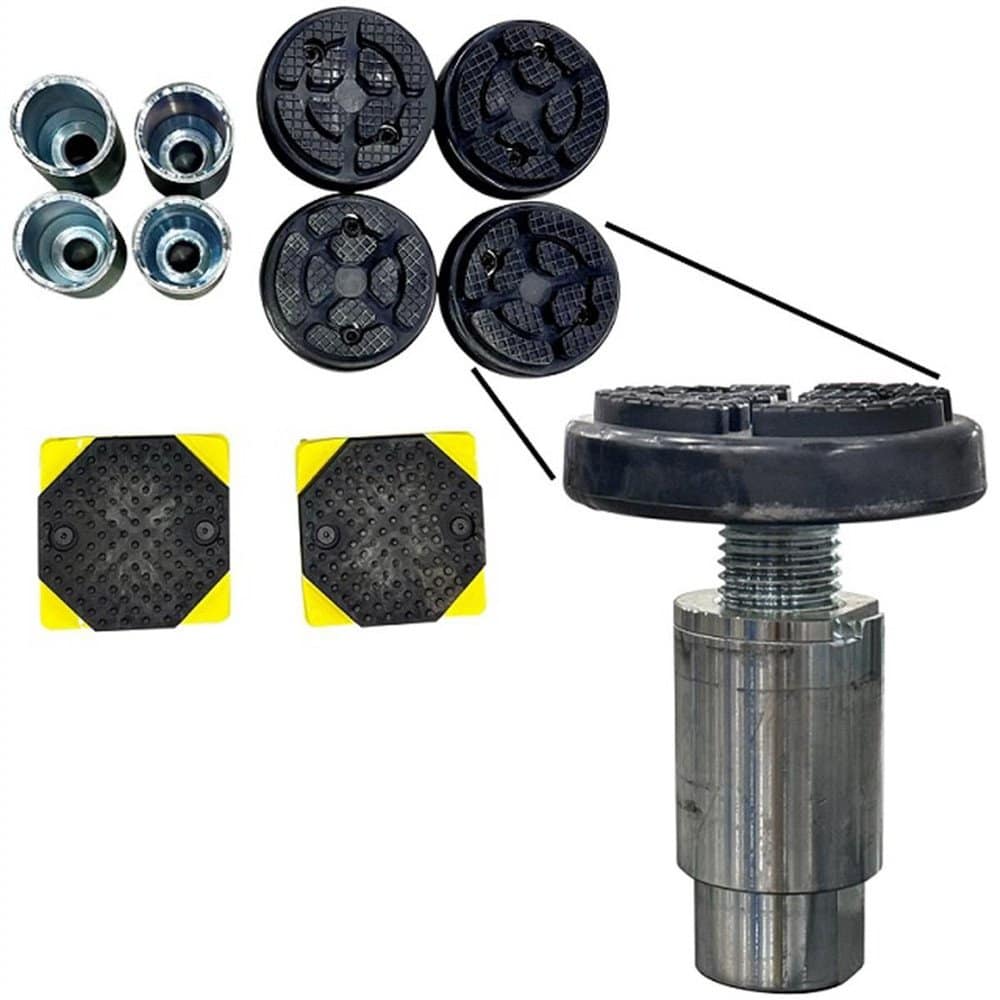

- Adjustable Screw-Up Adapters Included
- Free 4 Piece Truck Adapter Set

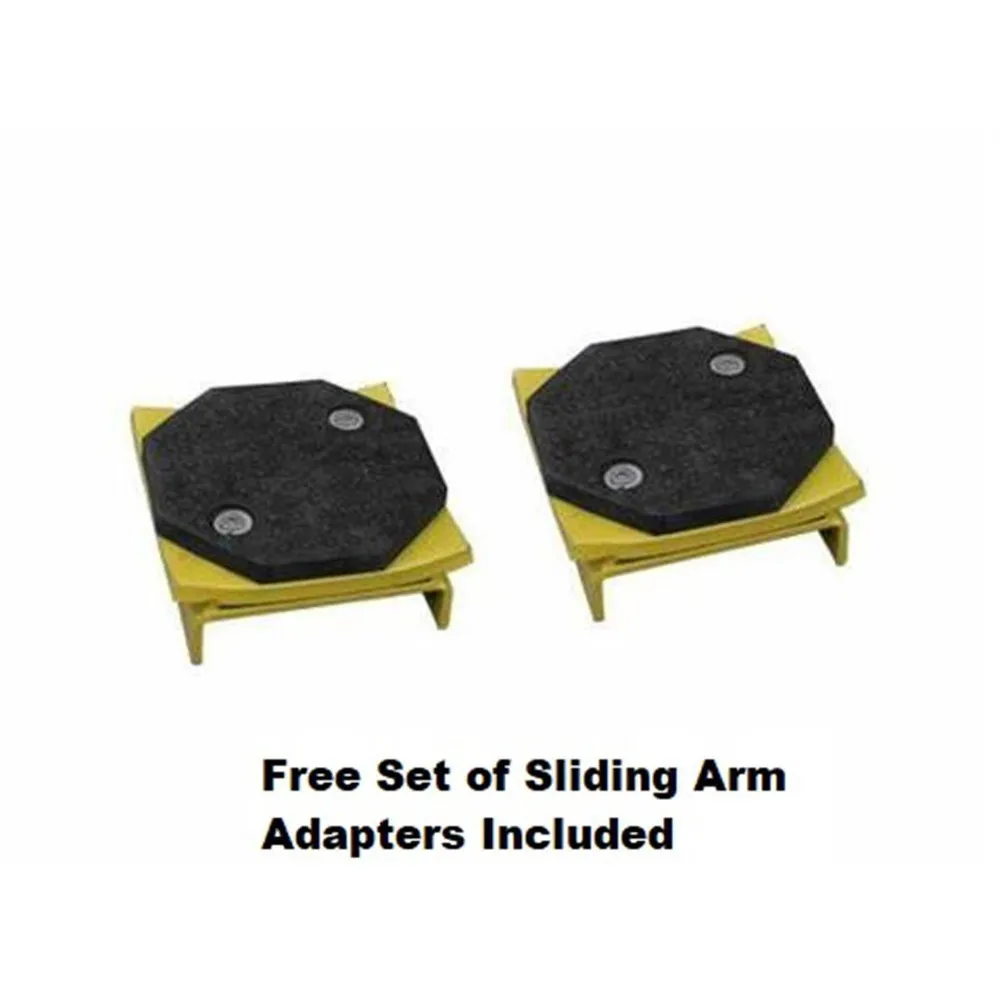

- Free set of Sliding Arm Adapters

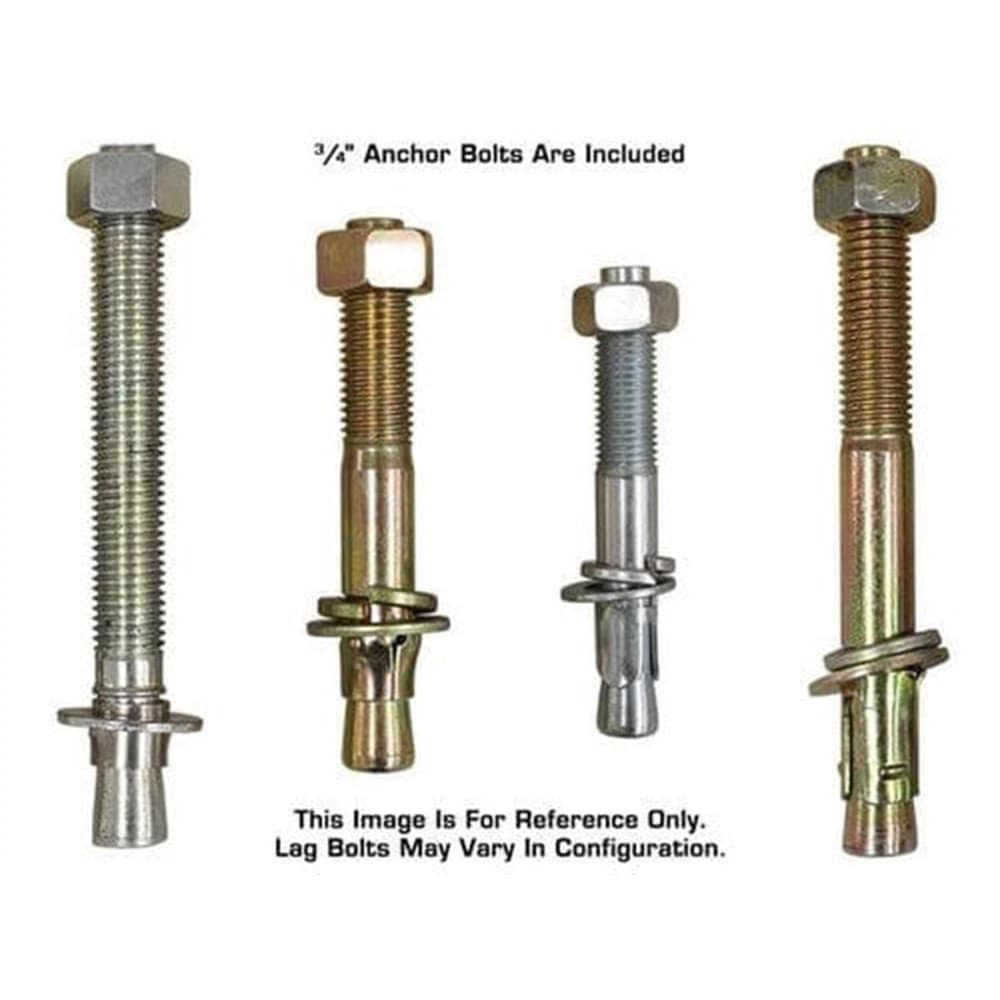

- Mounting Hardware Included

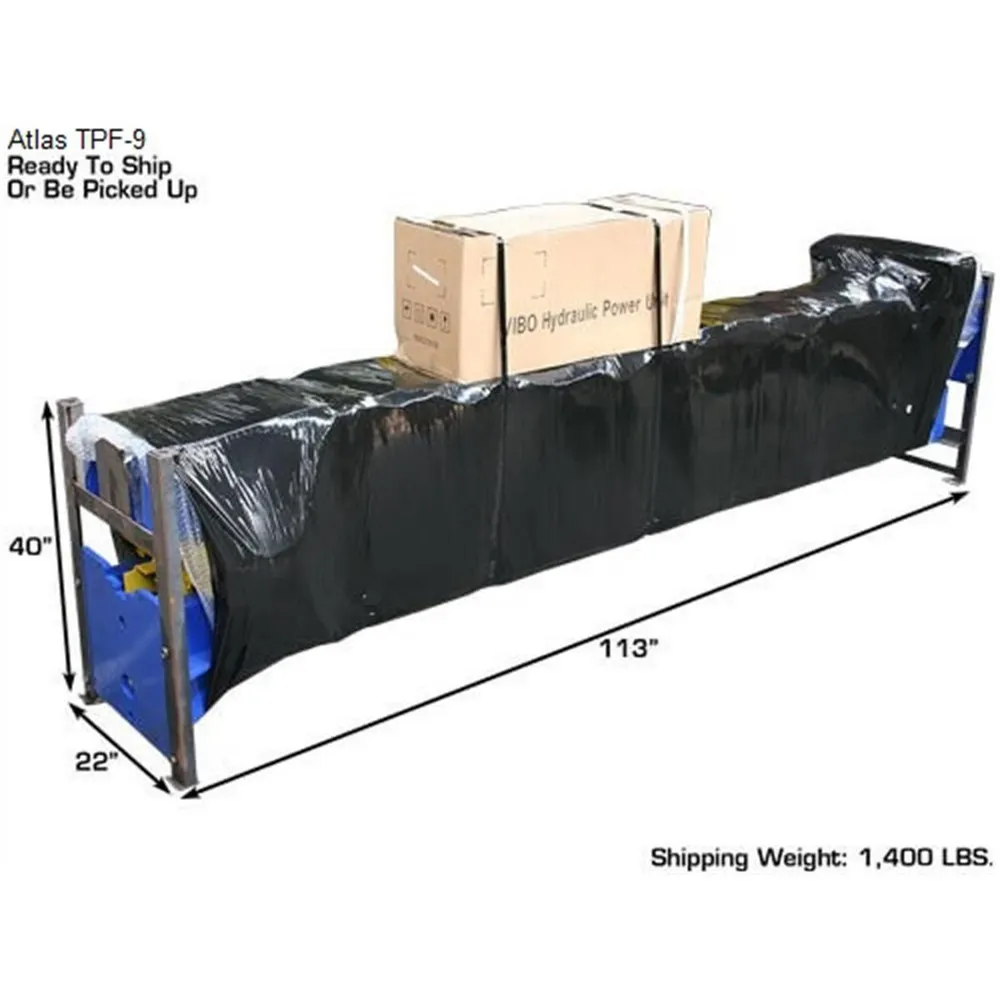

- Shipping Weight: 1,400 lbs.
- 2 yr Structural ‐ 1 yr Hydraulic Warranty ‐ Parts Only
- This part number FREIGHT PREPAID
Specifications:
- Capacity 9,000 LB.

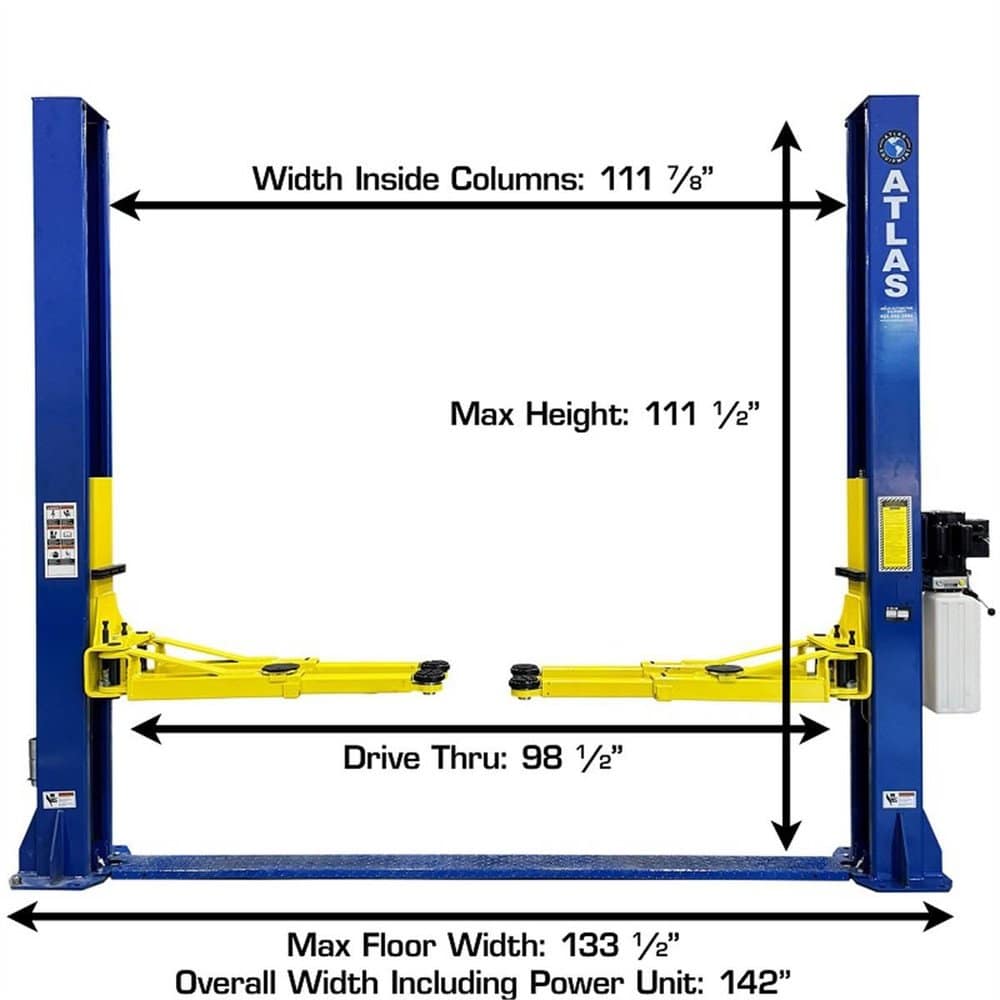

- Overall Height 111 1/2” (9′ 3 1/2″)
- Overall Floor Width 133 1/2″ (11′ 1 1/2″)
- Maximum Lift Height (Without Adapters) 76 1/2″
- Maximum Lift Height (With Adapters) 79 1/2″
- Minimum Arm Height 4″
- Inside Column 111 3/8” (9′ 2 3/8”)
- Drive Thru 98 1/2” (8′ 2 1/2”)
- Column Size 7 1/4″ x 11″
- Column Thickness of Steel 5mm

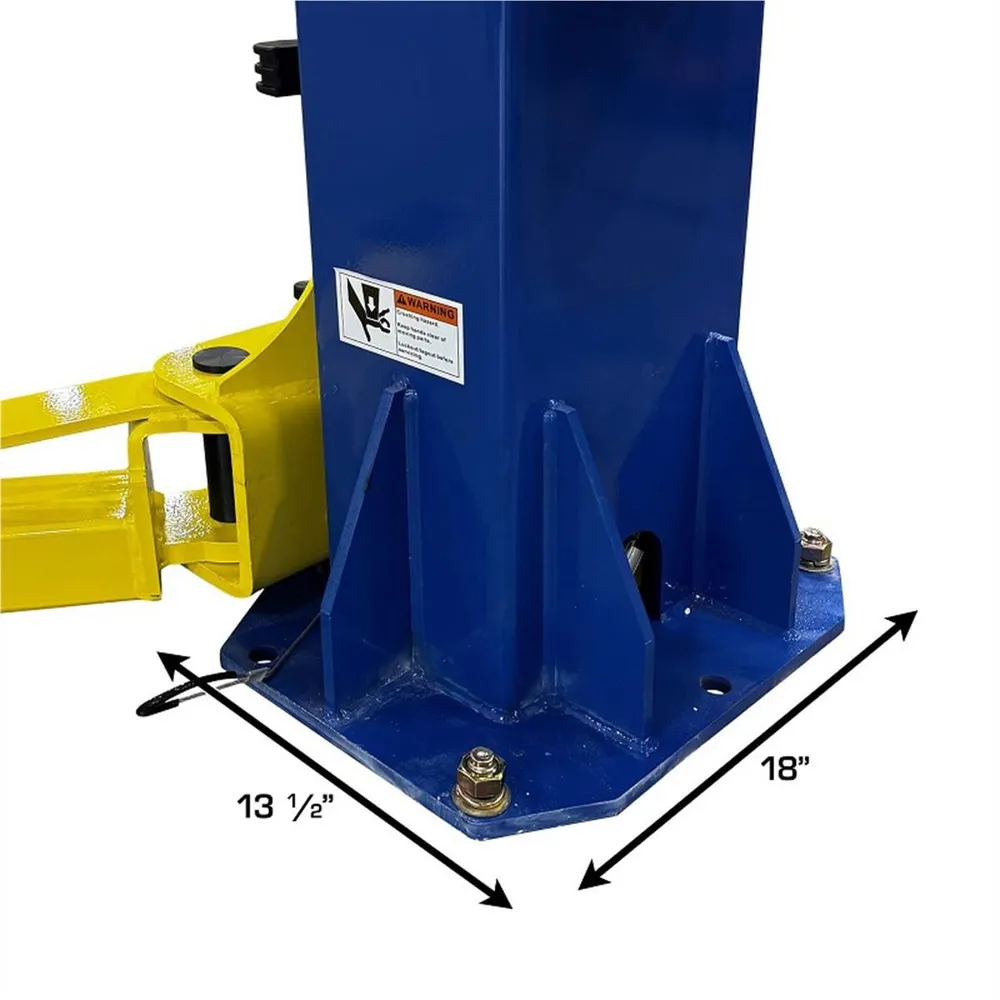

- Base Of Lift 14 1/4″ x 18″
- Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
- Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
- Shipping Weight 1,400 LBS.

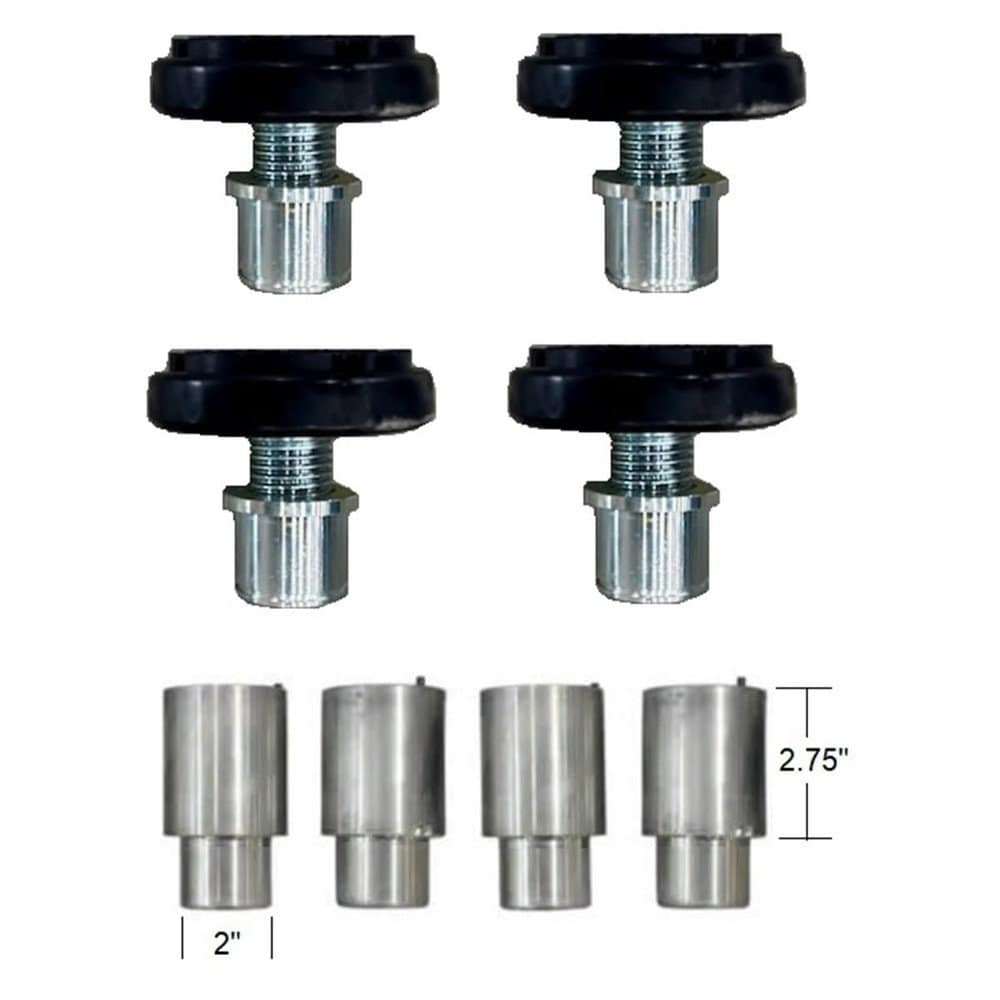

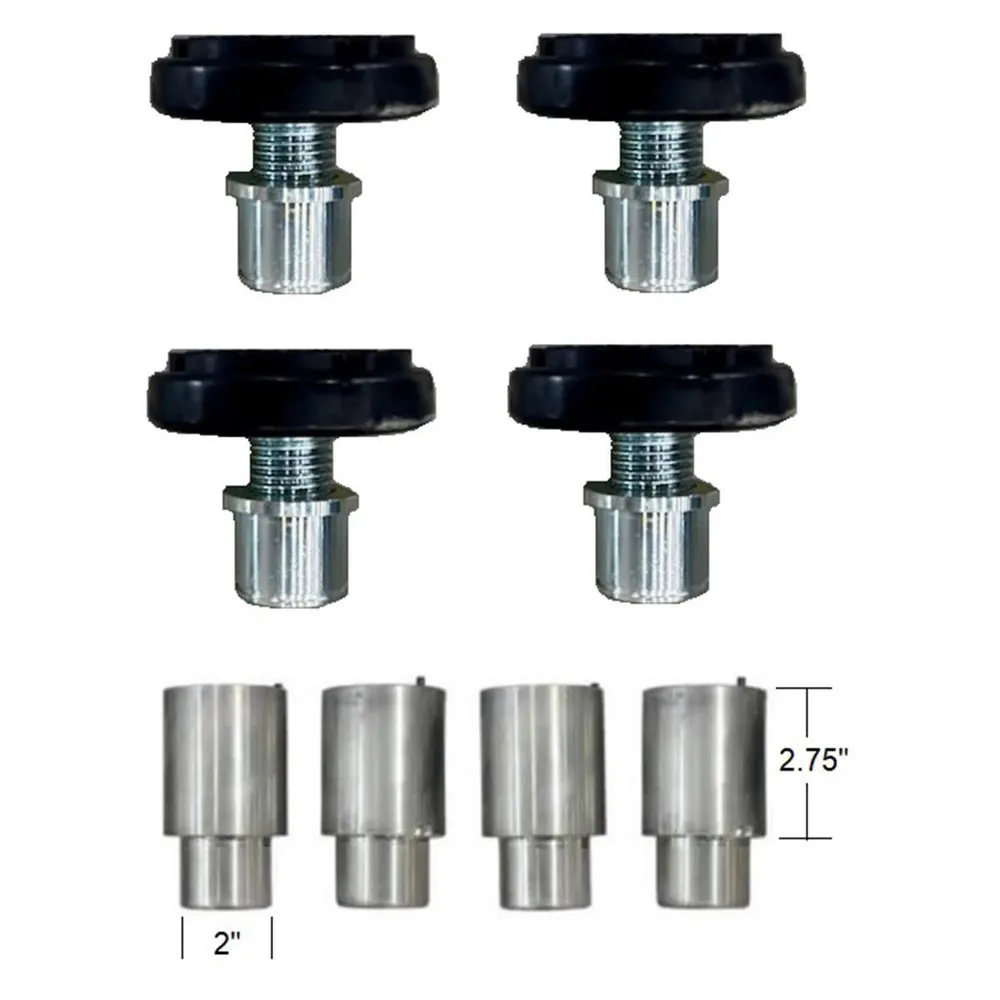

- Adapter Heights 4 Each 2.75″
- Arm Hole/Adapter Peg Size 2”
- Requires a minimum of 4″ of concrete with a 3000 psi. rating
