Atlas 9KOHX Overhead 9000 lb Capacity 2 Post Lift
$3,399.00
The Atlas 9KOHX Overhead Capacity 2 Post Lift is a 9,000-lb. overhead two-post car lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.
In Stock
Description
Atlas 9KOHX Overhead 9000 lb Capacity 2 Post Lift
Features and Benefits:
- 9,000 lb. Capacity
- Overhead, Open-Floor design
- Overall Height: 138″ (11′ 6″) or 142″ (11′ 10″)

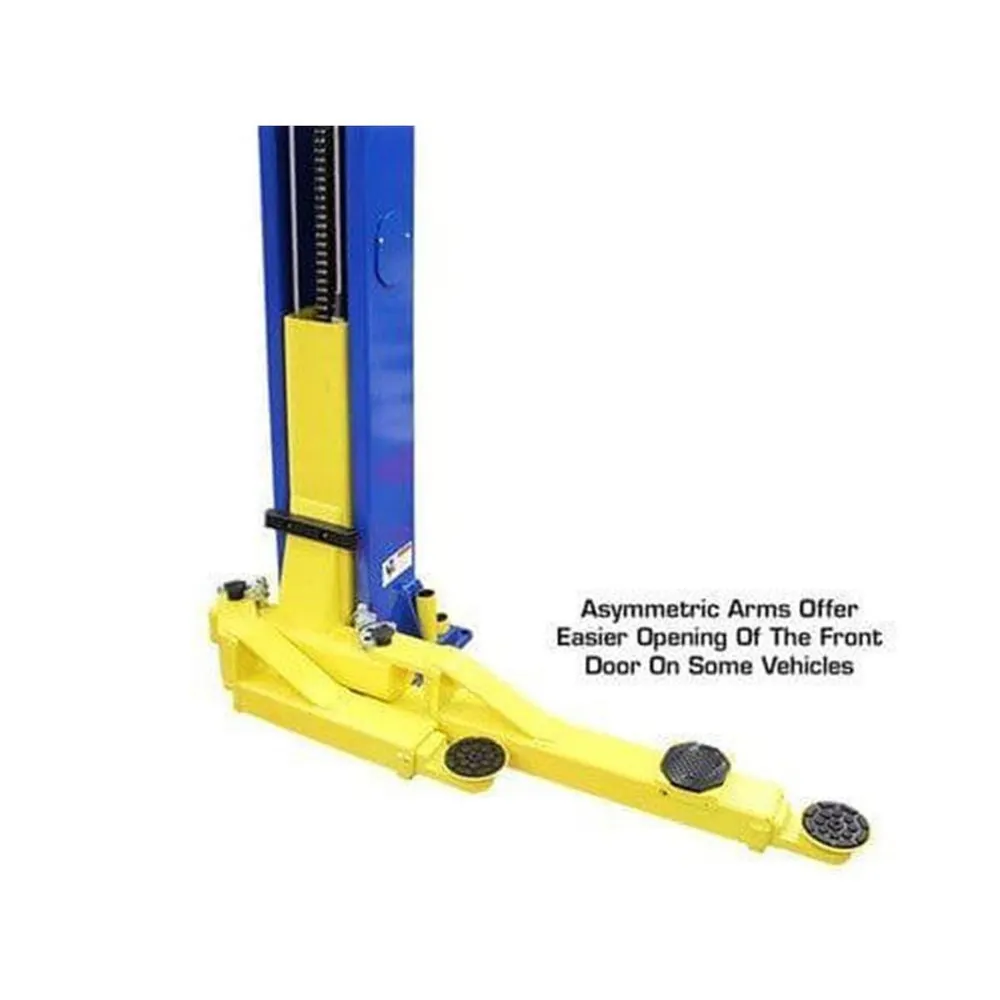

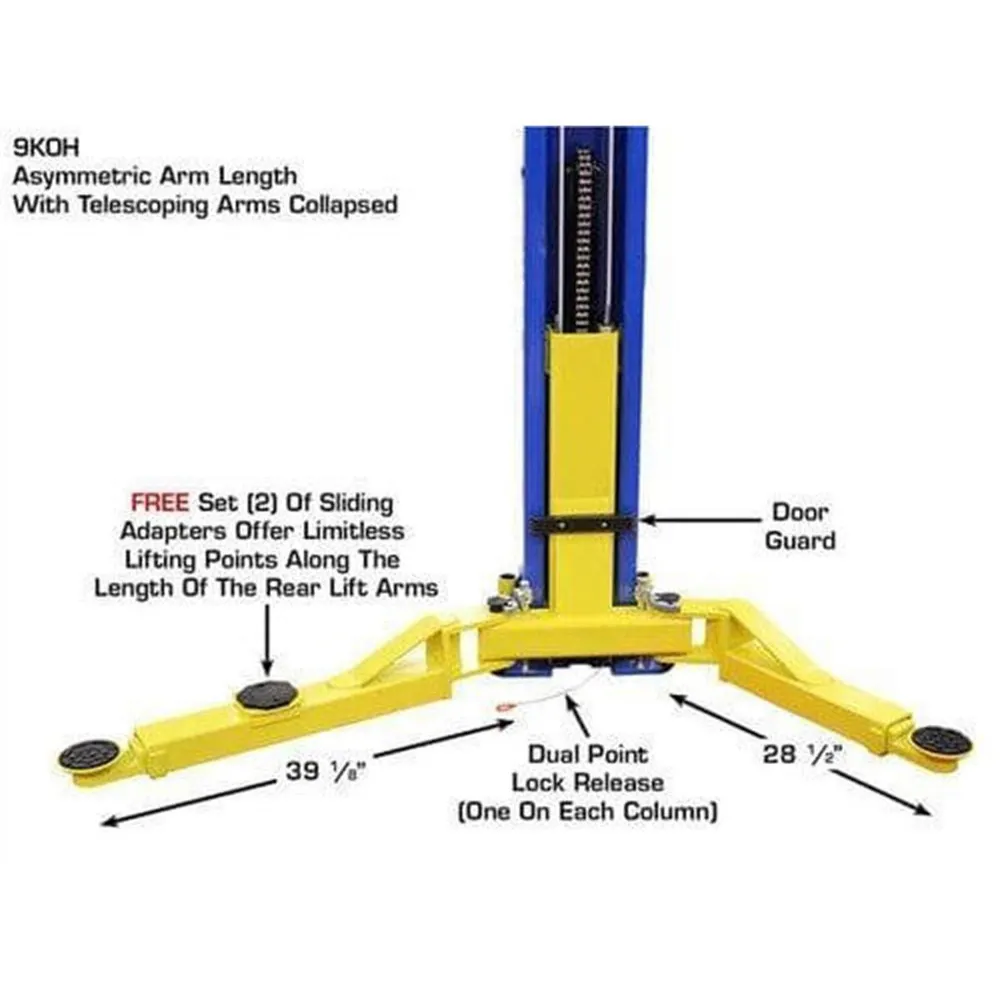

- Asymmetric/Symmetric Arms

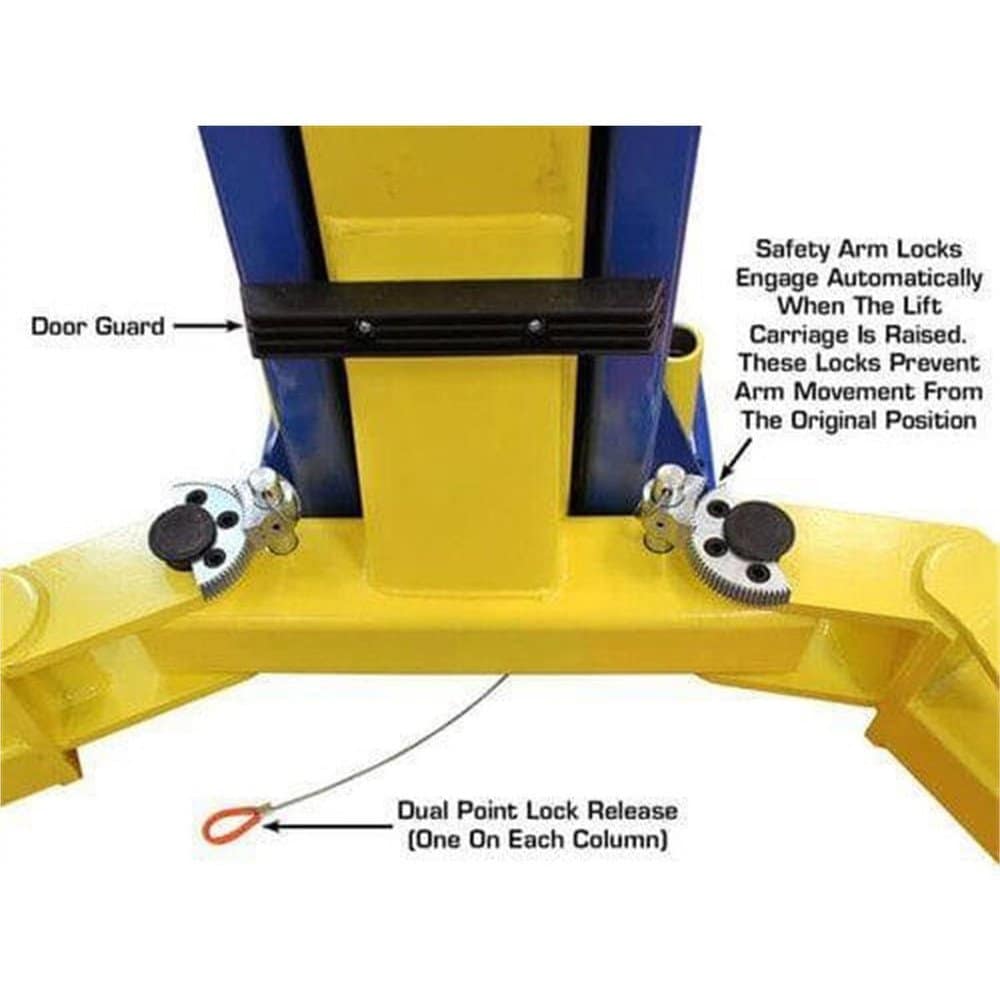

- Automatic Arm Restraints
- Dual-Point Lock Release

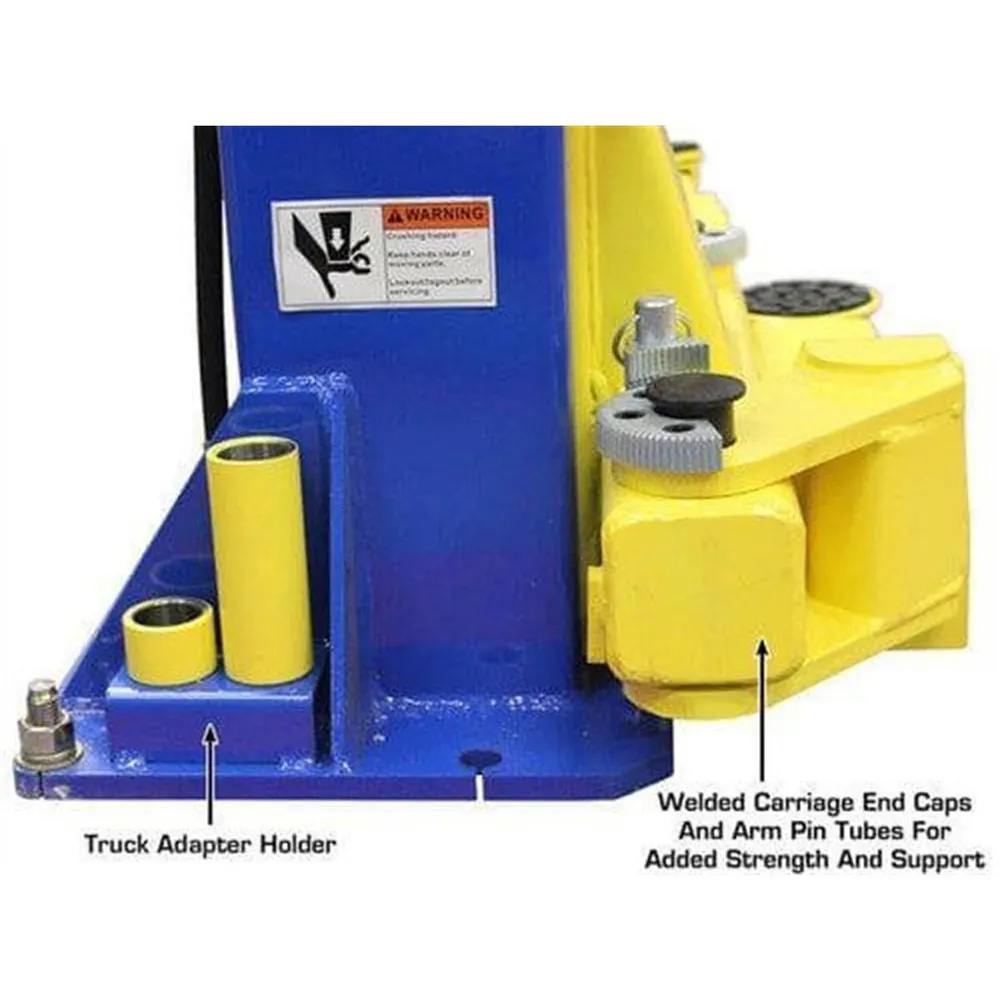

- Rubber Guards on Carriages

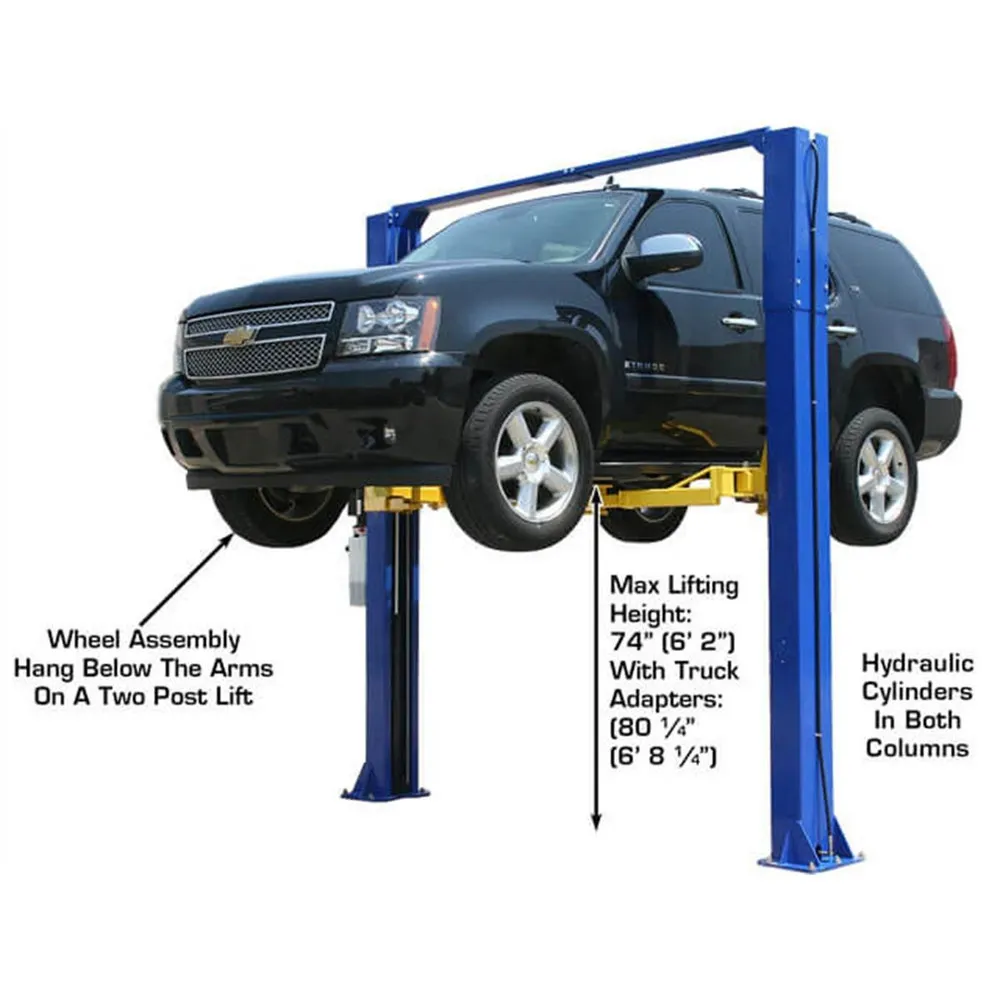

- Dual Hydraulic Chain-Drive Cylinders
- Secondary Lock System
- Free 8 Piece Truck Adapter Set
- Free set of Sliding Arm Adapters

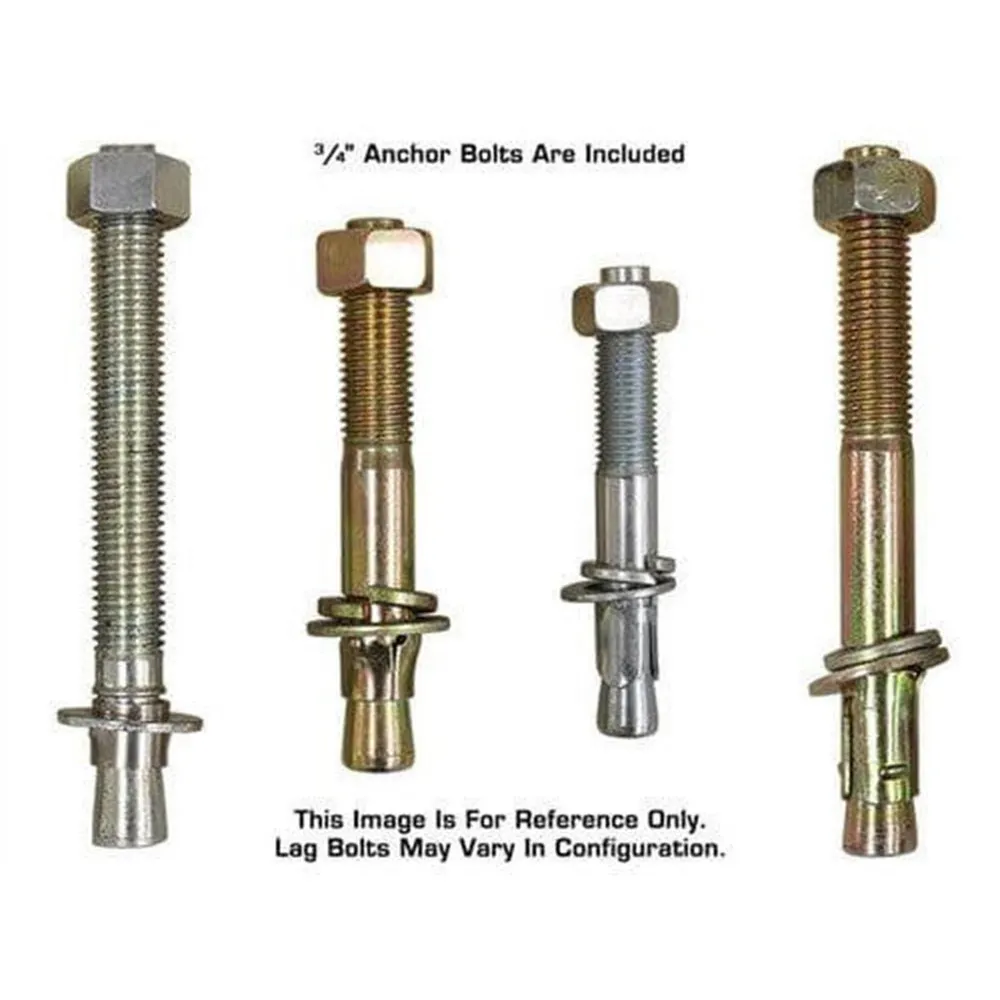

- Mounting Hardware Included

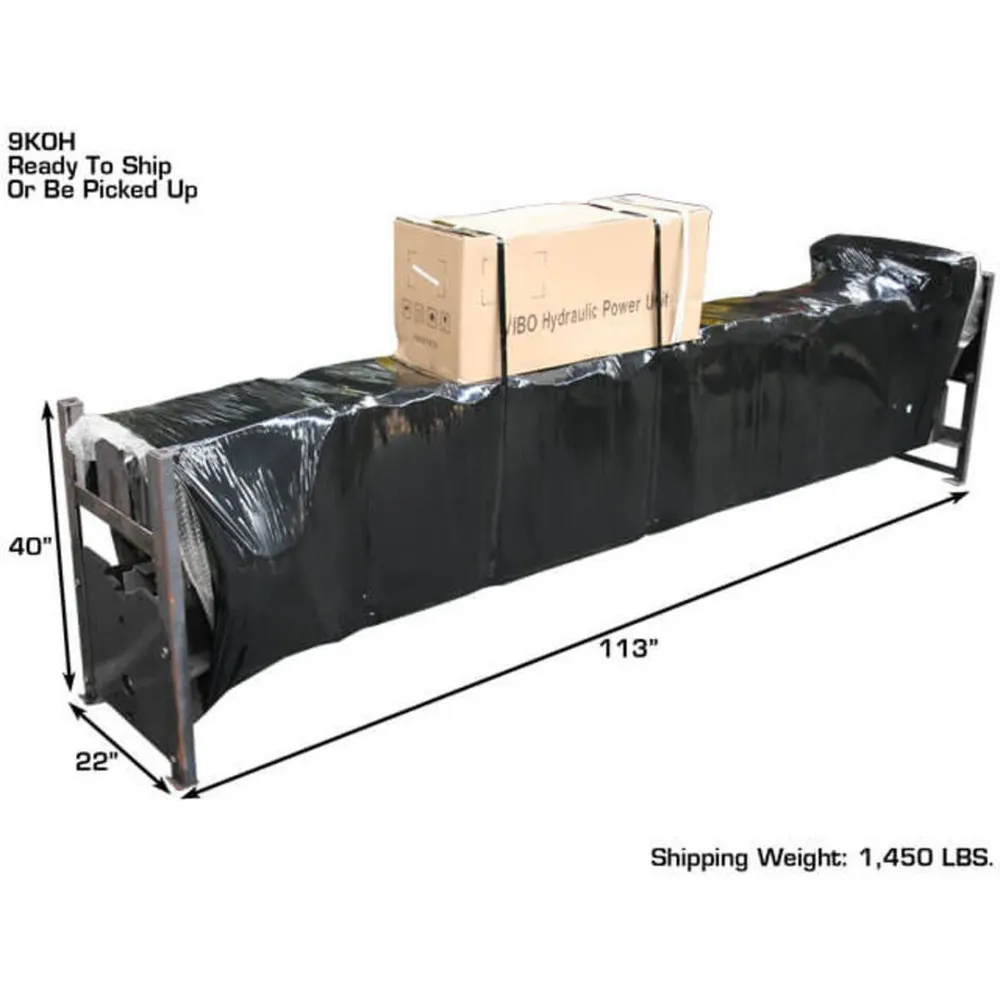

- Shipping Weight: 1,450 lbs.
- 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only
- This part number FREIGHT PREPAID TO LOWER 48 (RESTRICTIONS APPLY)
Atlas® 9KOHX Specifications
- Capacity 9,000 LB.

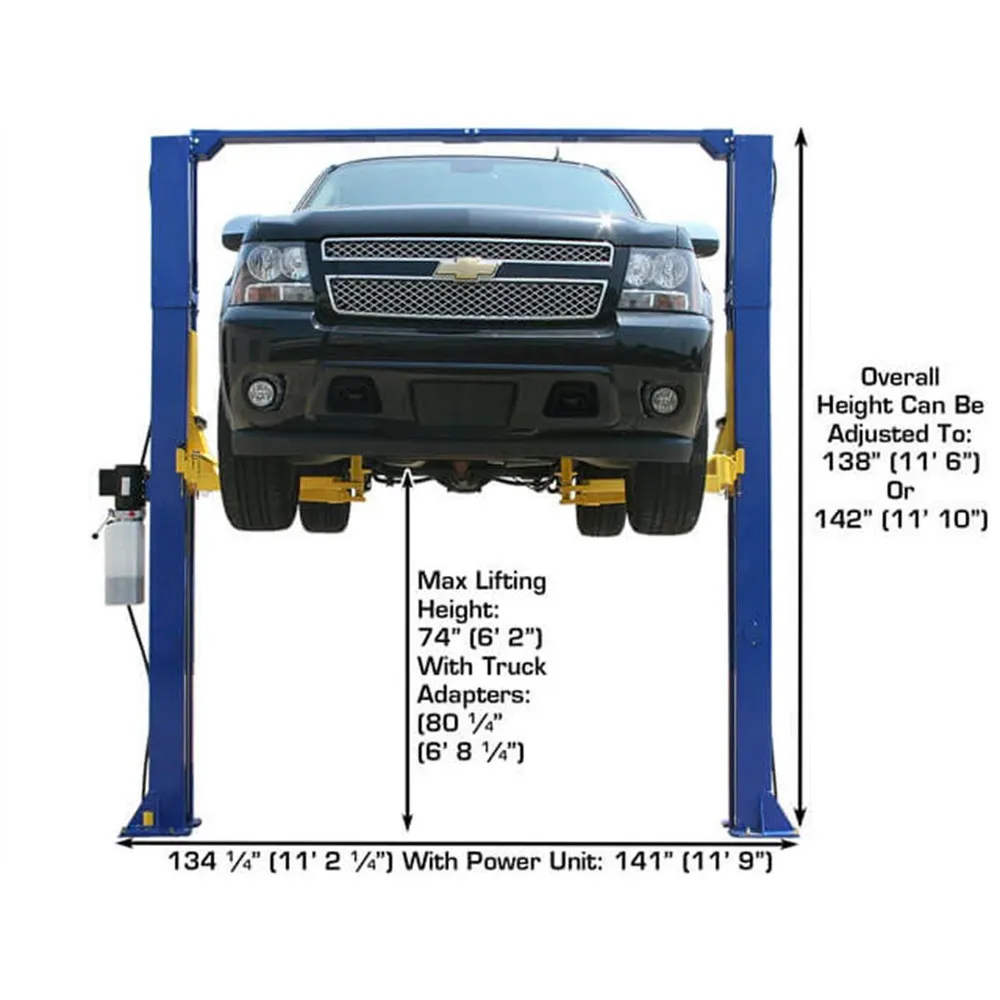

- Overall Height 138″ (11′ 6″) or 142″ (11′ 10″)

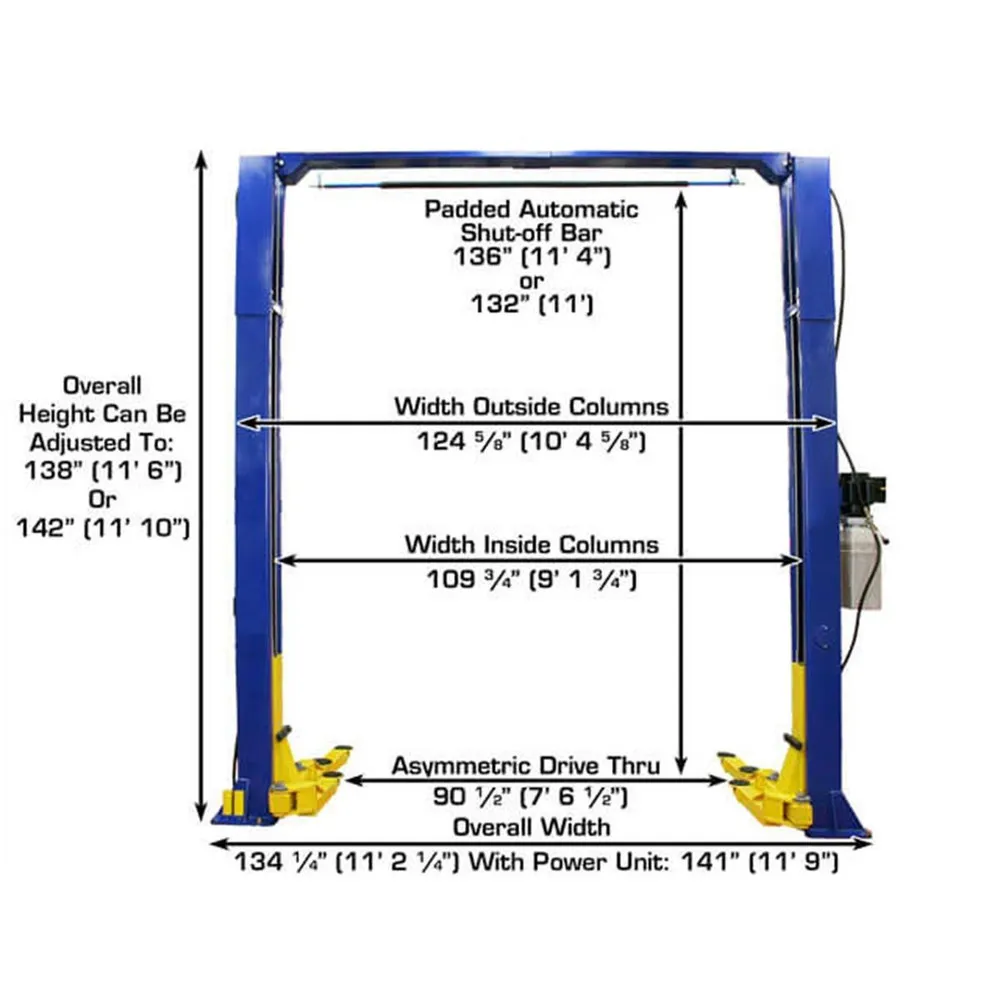

- Overall Floor Width 134 1/2 (11′ 2 1/2″)
- Outside Column to Outside Column 124 7/8 (10′ 4 7/8″)

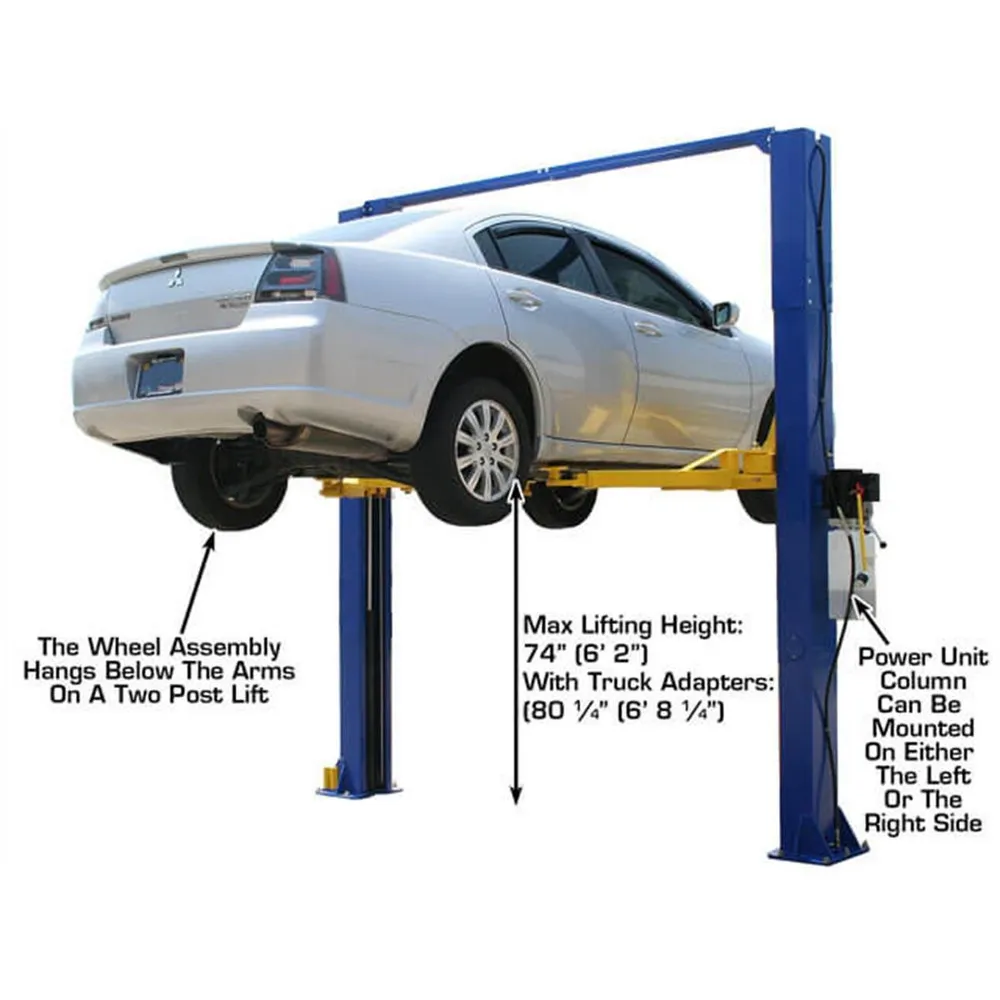

- Maximum Lift Height (Without Adapters) 74 1/2″
- Maximum Lift Height (With Adapters) 81″
- Minimum Arm Height 4″
- Inside Column 110” (9′ 2″)

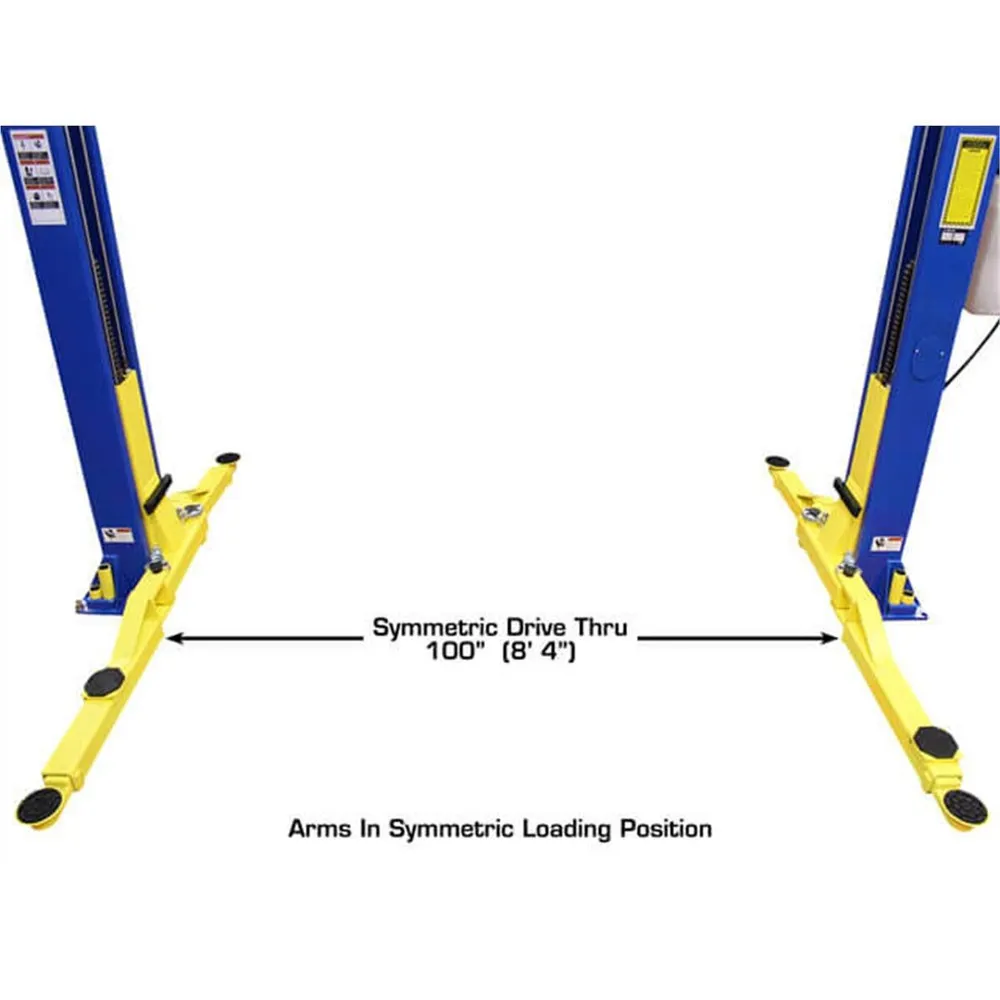

- Drive Thru 100” (8′ 4″) Symmetric/ 90 1/2″ (7′ 6 1/2″) Asymmetric
- Column Size 7 1/4″ x 11″
- Column Thickness of Steel 5mm
- Base Of Lift 14 1/4″ x 18″
- Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
- Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
- Shipping Weight 1,450 LBS.

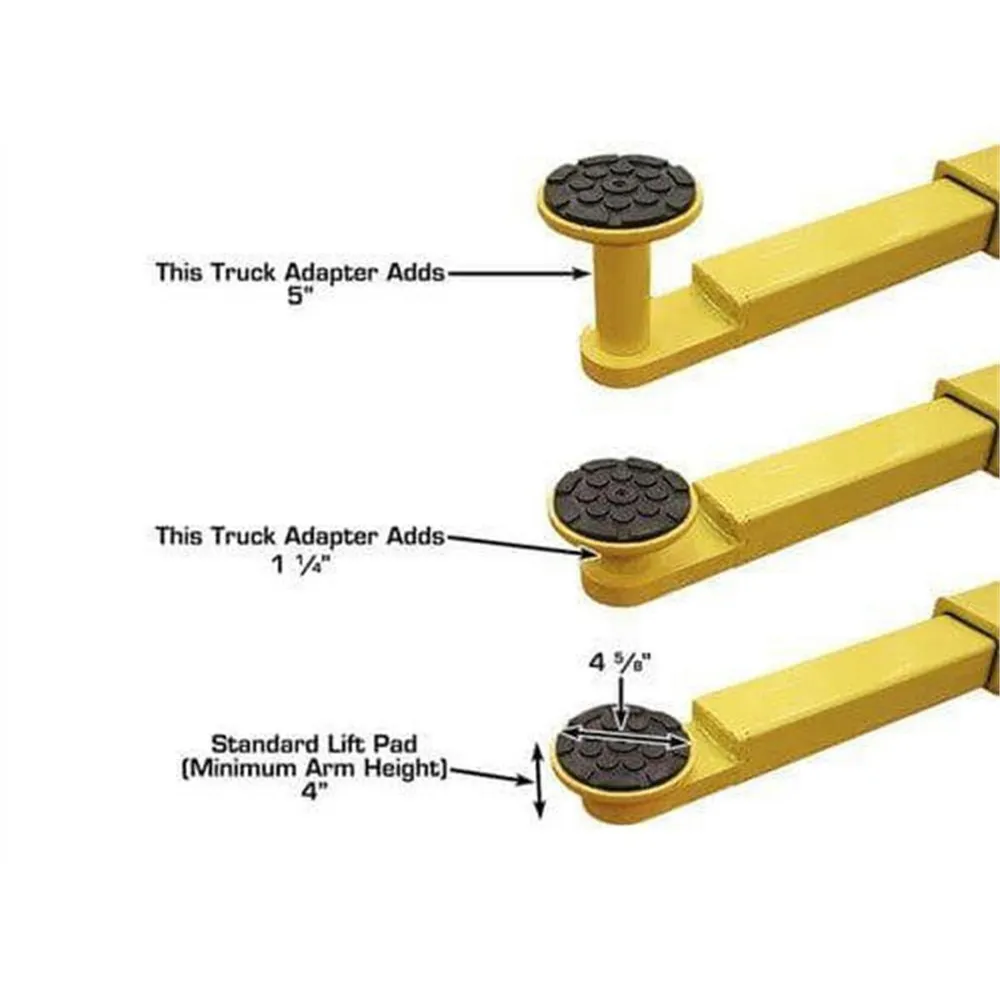

- Adapter Heights 4 Each 1.5″, 5″
- Arm Hole/Adapter Peg Size 1.5′
- Requires a minimum of 4″ of concrete with a 3000 psi. rating
- Not for use with Diesel Trucks (3/4 ton diesel or larger). Due to the weight placed on the front lifting arms, we recommend customers purchase a 10K or 11K 2-post lift.
