Atlas PRO-9D Overhead 9000 lb Capacity 2 Post Lift
$3,949.00
The Atlas PRO-9D Overhead Capacity 2 Post Lift is a 9,000-lb. overhead two-post car lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.
In Stock
Description
Atlas PRO-9D Overhead 9000 lb Capacity 2 Post Lift
Features and Benefits:
- 9,000 lb. Capacity
- Overhead, Open-Floor Design
- Overall Height: 144″ (12′)
- Asymmetric/Symmetric Arms
- Automatic Arm Restraints

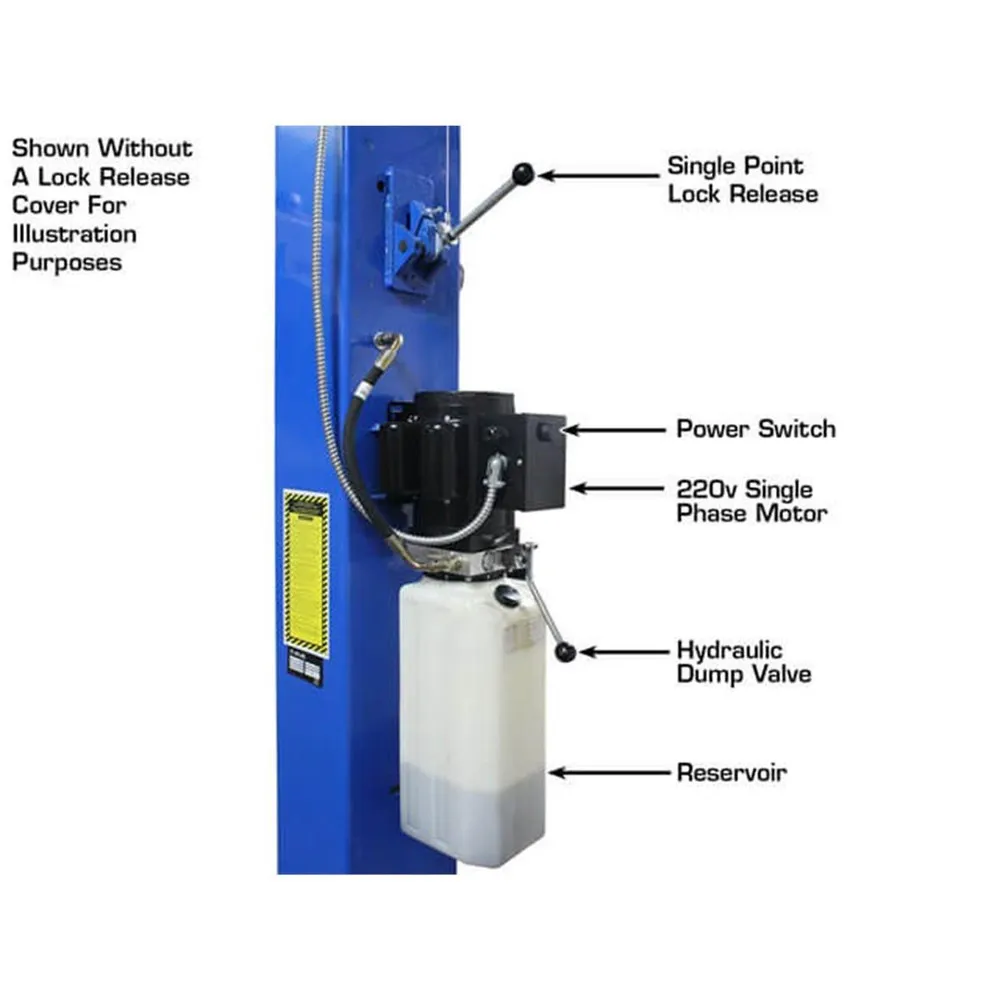

- Single-Point Lock Release
- Rubber Guards on Carriages

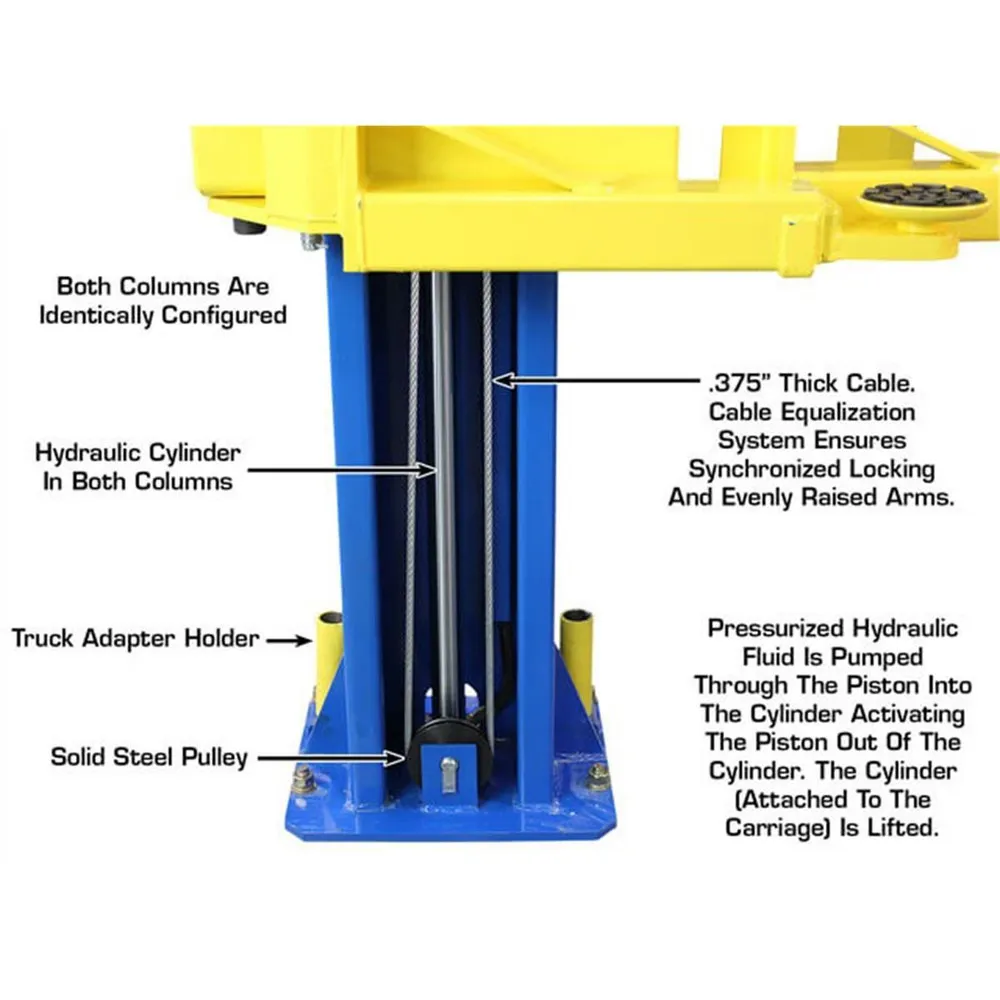

- Dual Direct-Drive Cylinders
- Powder Coat Finish

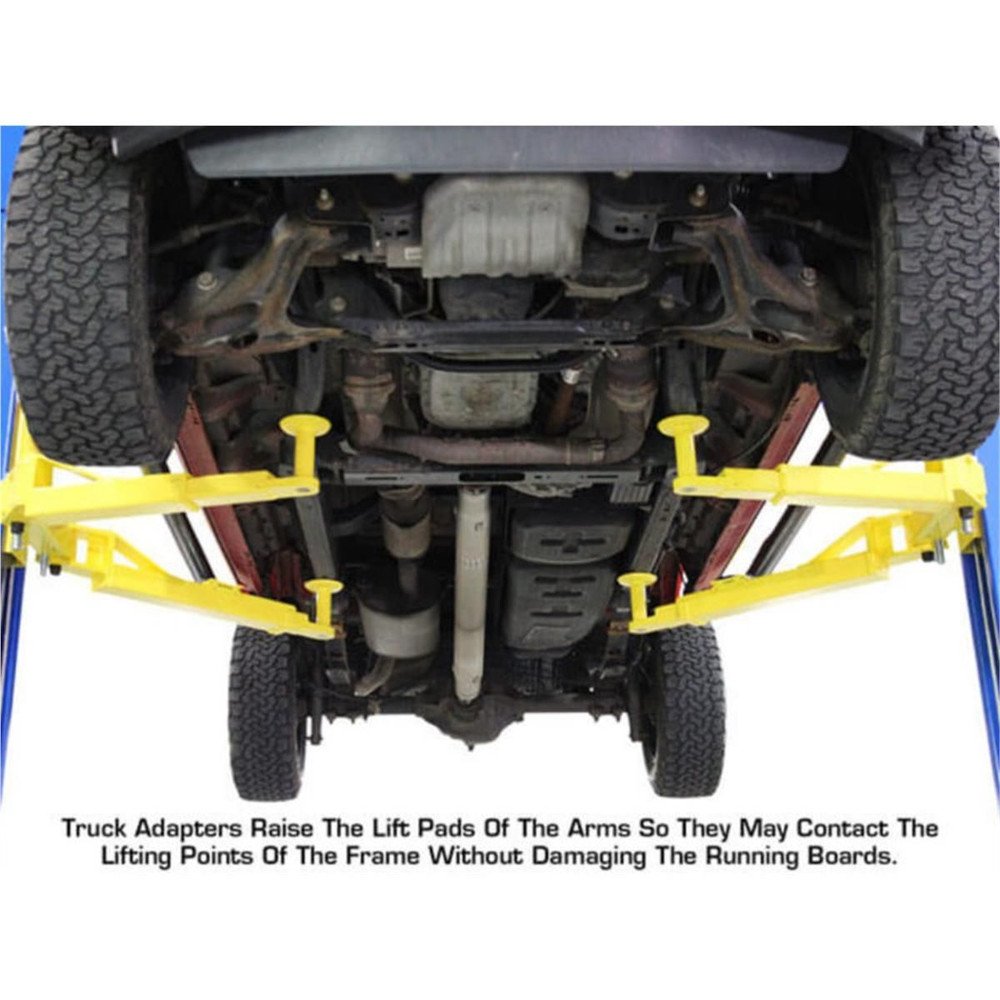

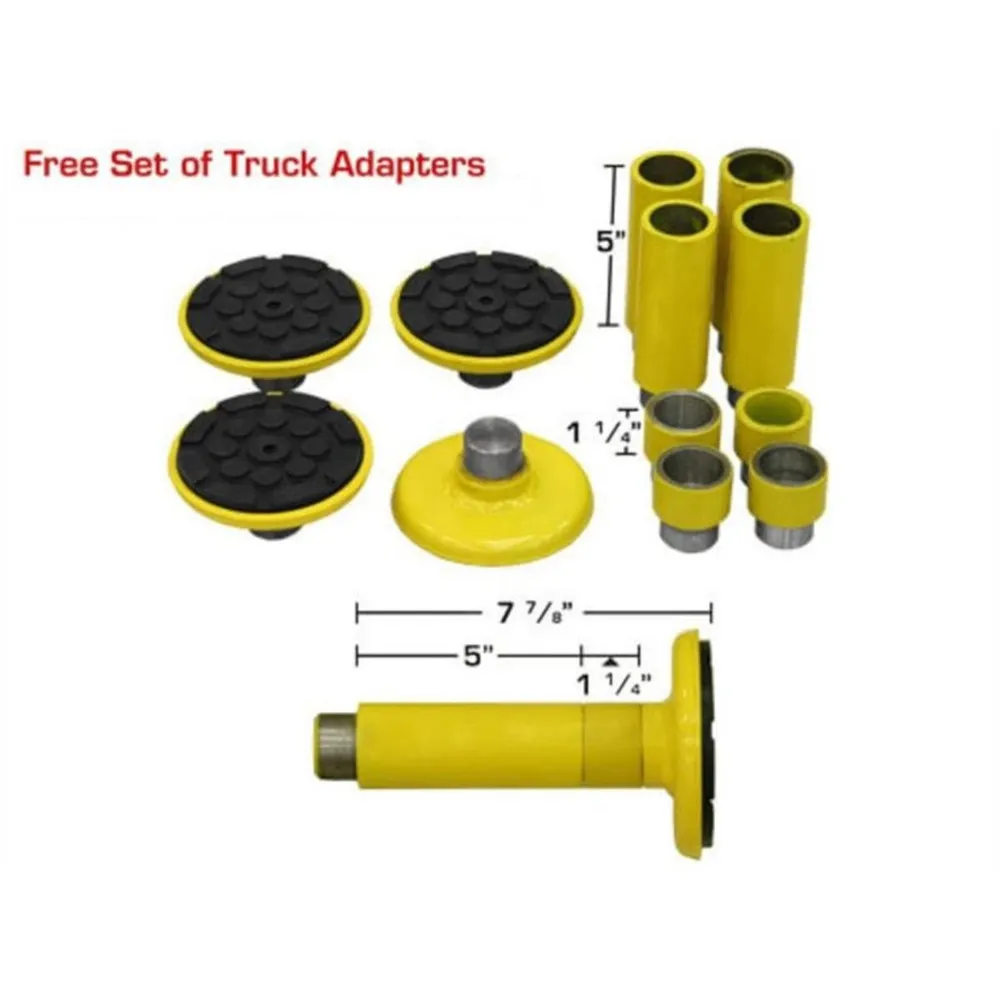

- Free 8 Piece Truck Adapter Set
- Mounting Hardware Included

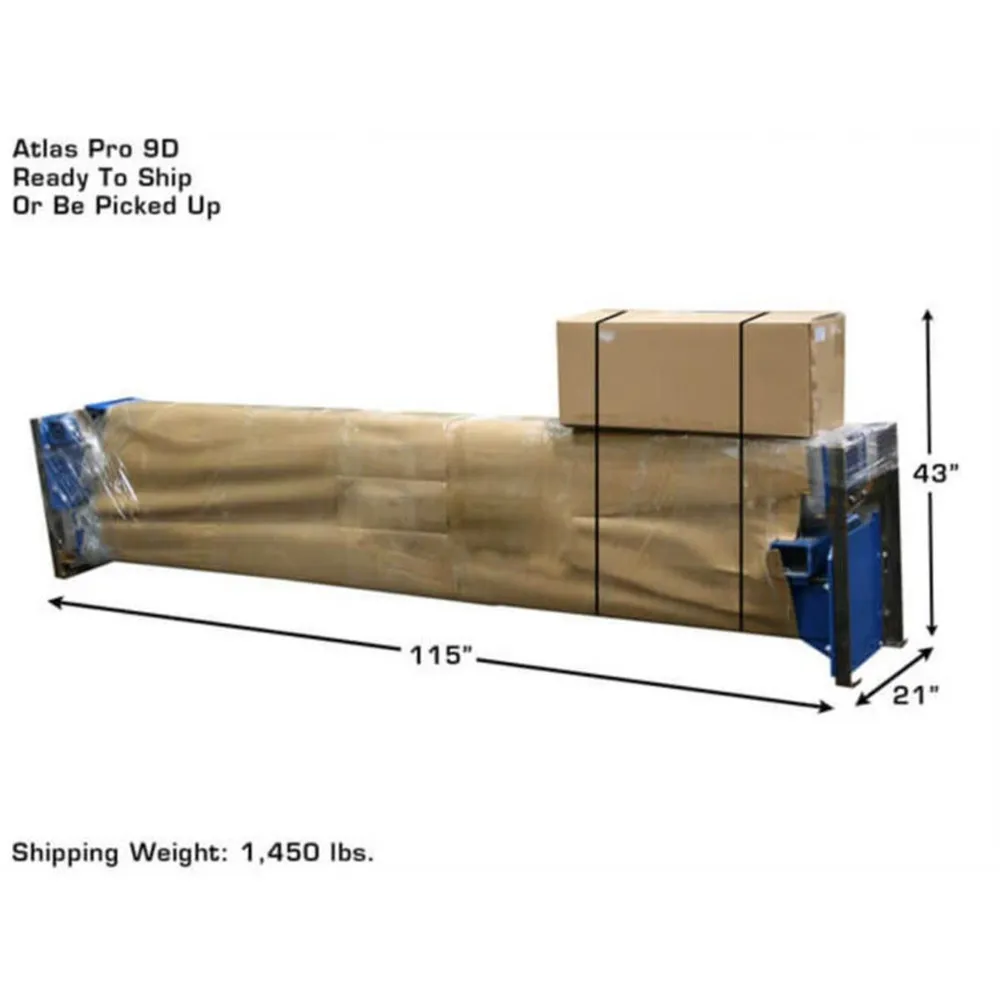

- Shipping Weight: 1,450 lbs.
- 5-year Structural Warranty, 2-year Hydraulic-Power Unit Warranty
- This part number FREIGHT PREPAID
Atlas® PRO-9D Specifications
- Capacity: 9,000 lb.

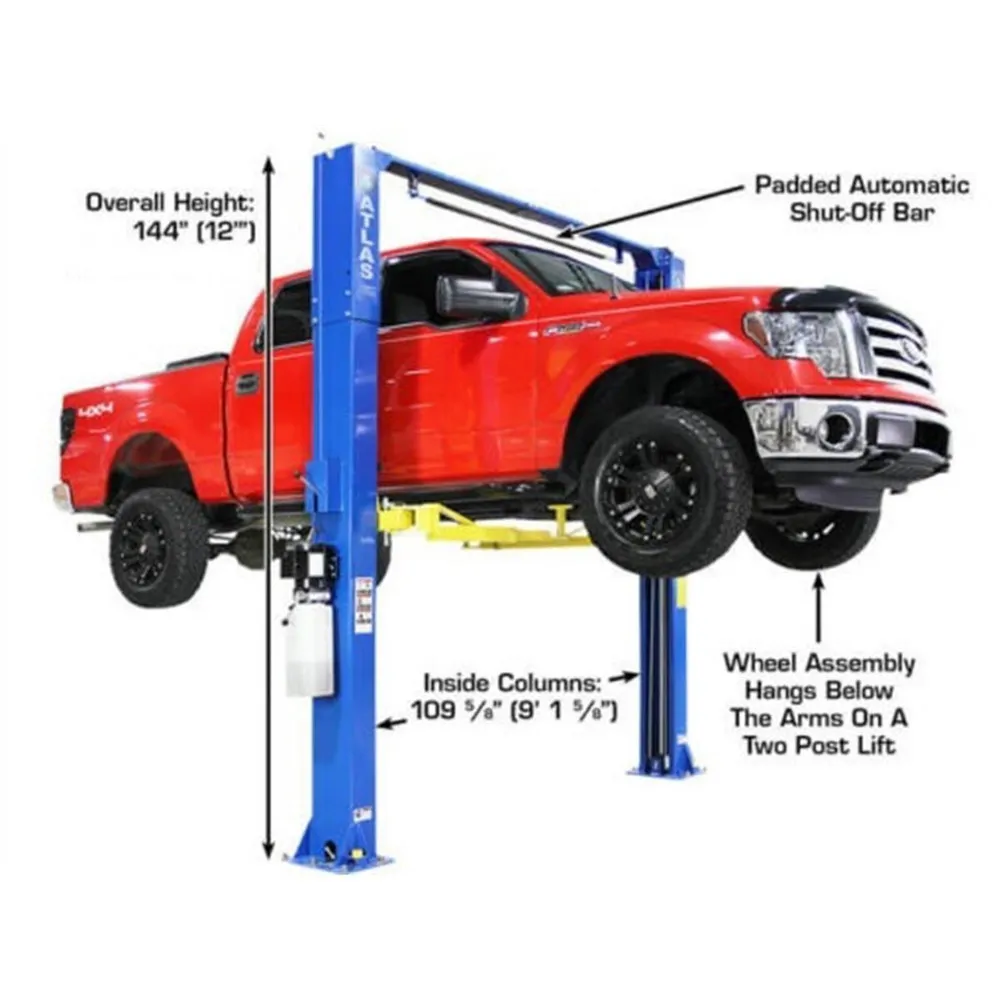

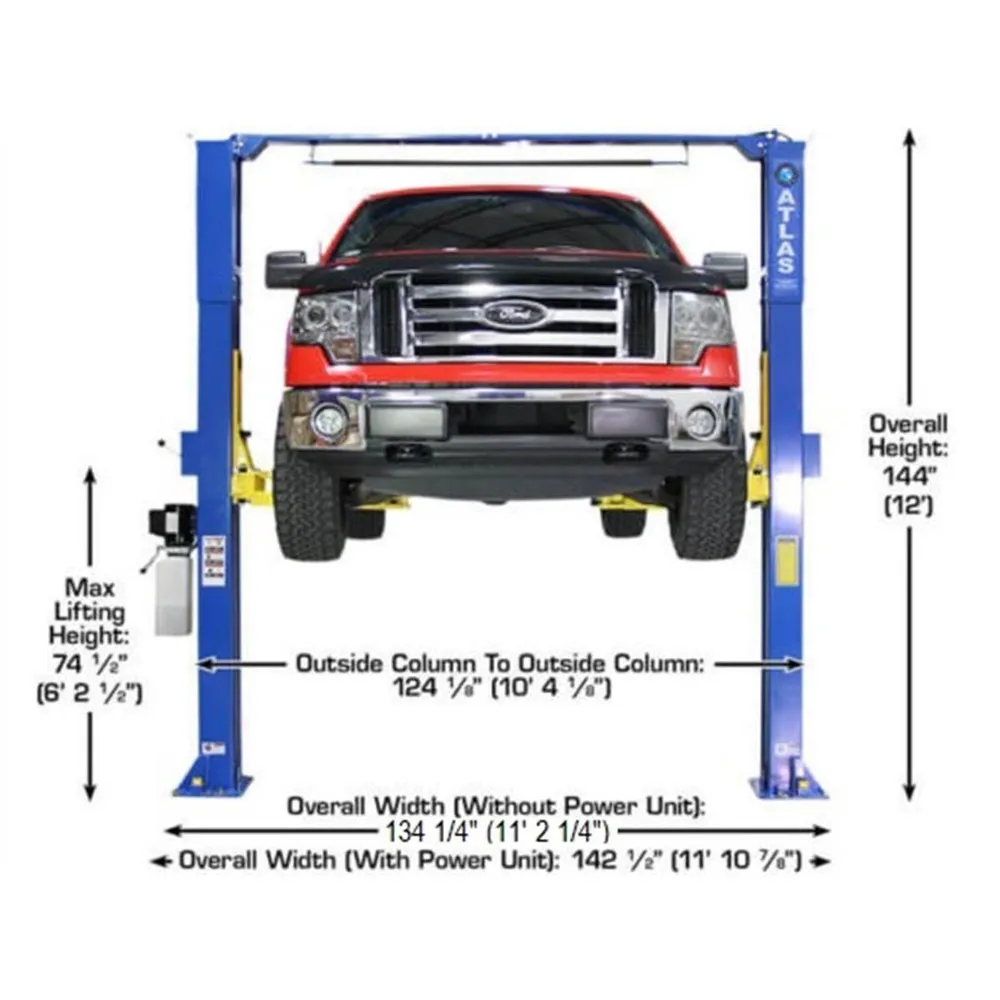

- Overall Height: 144″ (12′)

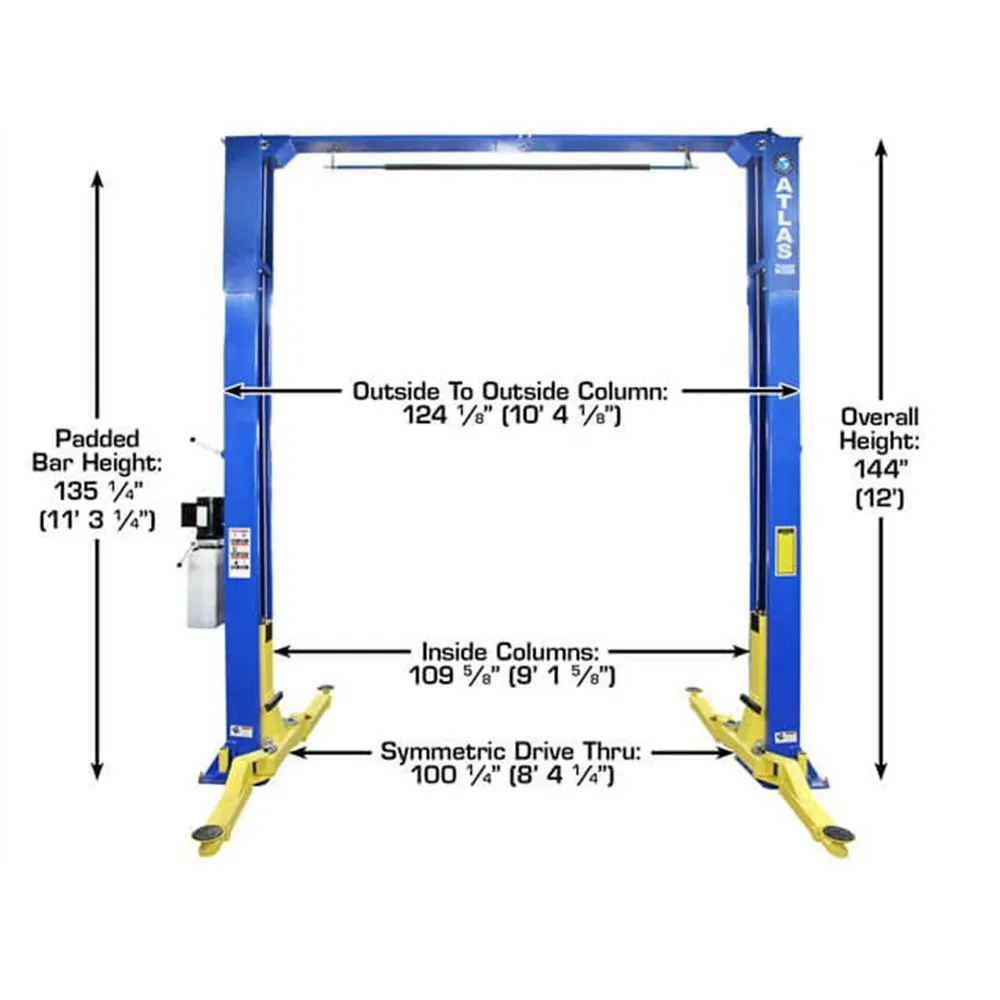

- Overall Floor Width: 134 1/2″ (11′ 2/12″)
- Outside Column to Outside Column: 124 7/8″ (10′ 4 7/8″)
- Max Lift Height (w/o Adapters): 68″

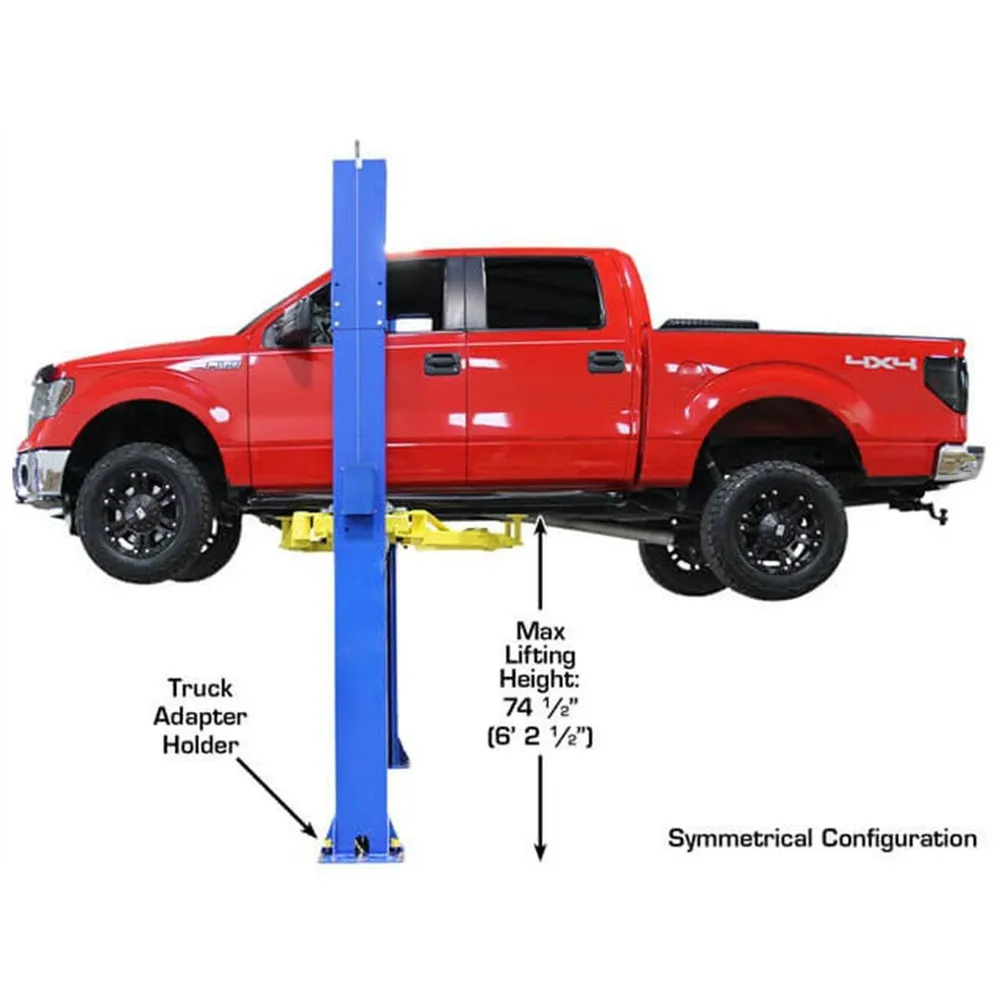

- Max Lift Height (w/ Adapters): 74 1/4″
- Min Arm Height: 4 1/2″
- Inside Column: 110″ (9′ 2″)

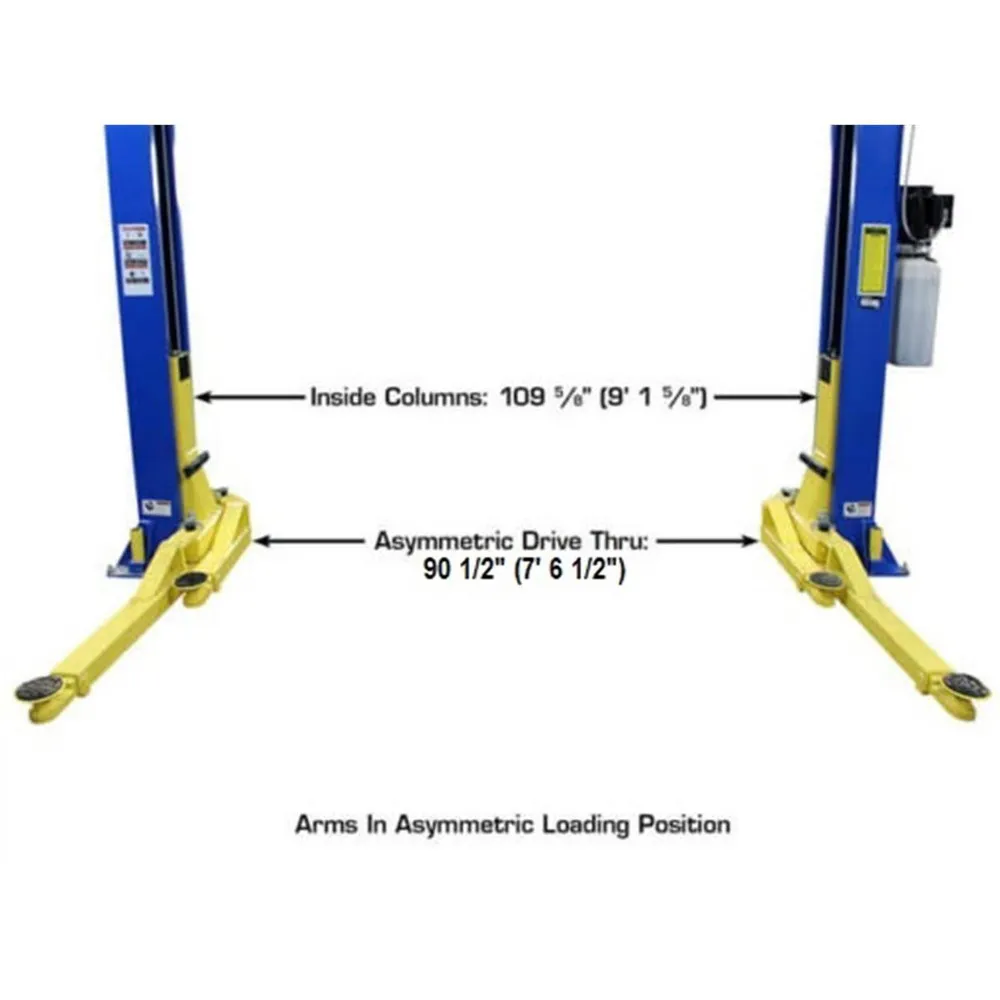

- Drive Thru: 100″ (8′ 4″) Symmetric/ 90 1/2″ (7′ 6 1/2″) Asymmetric

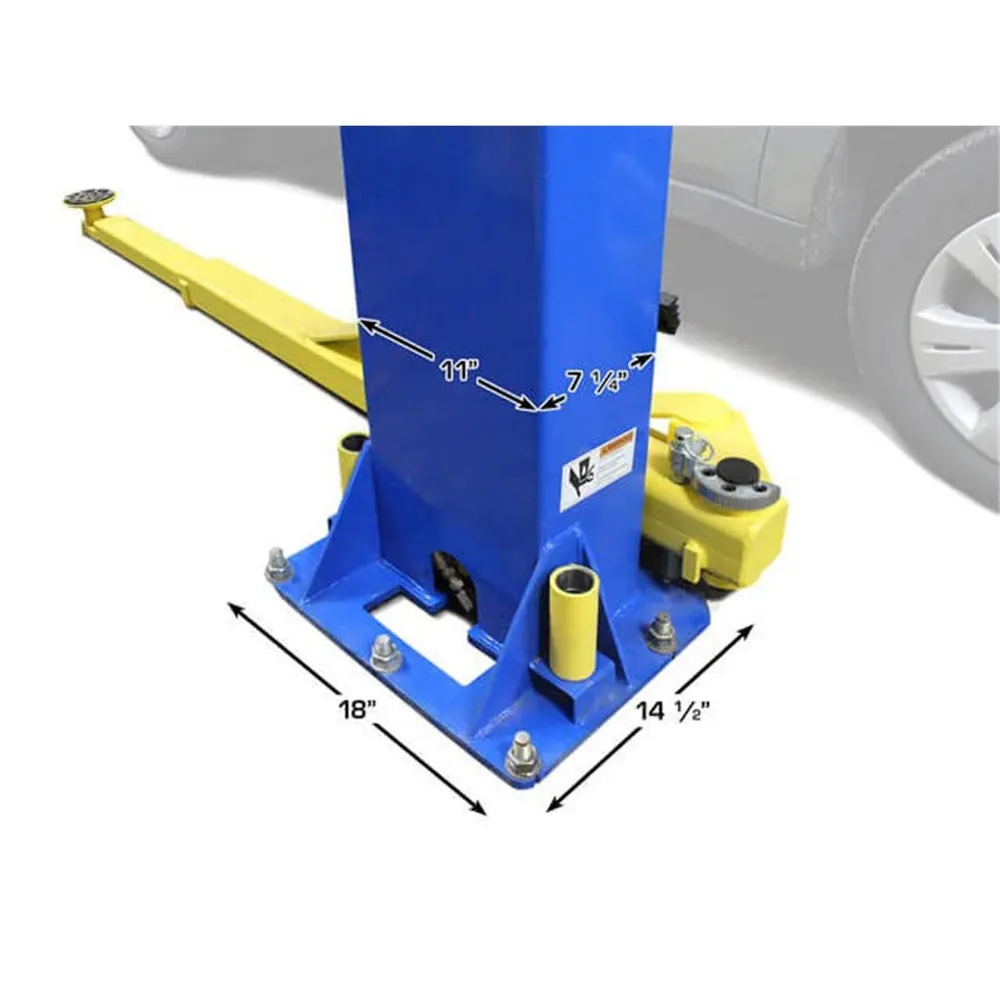

- Column Size: 7 1/4″ x 11″
- Column Thickness of Steel: 5mm
- Base of Lift: 14 1/4″ x 18″
- Motor/Electrical Requirement: 220V/Single (1) Phase (30amp Breaker Required)
- Oil Requirement: 3-5 Gallons AW32/AW46 (Not Included)
- Shipping Weight: 1,450 lbs.

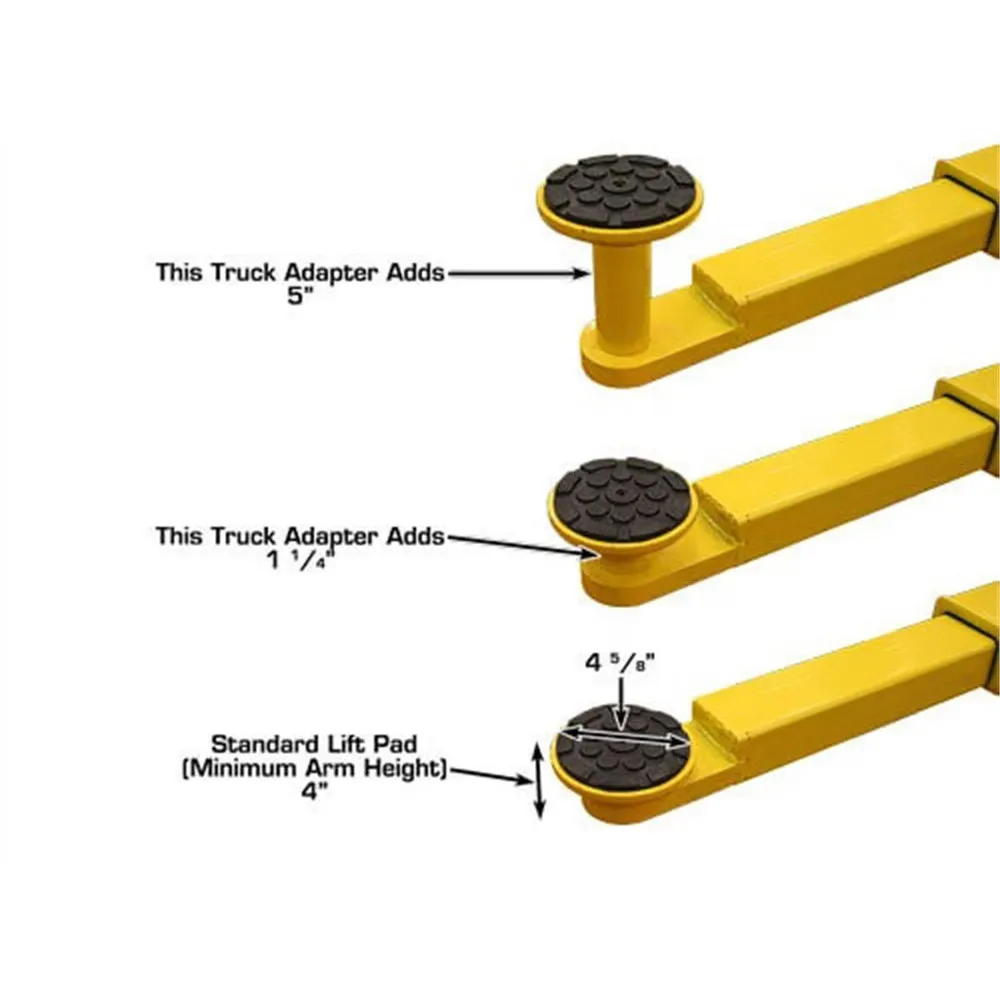

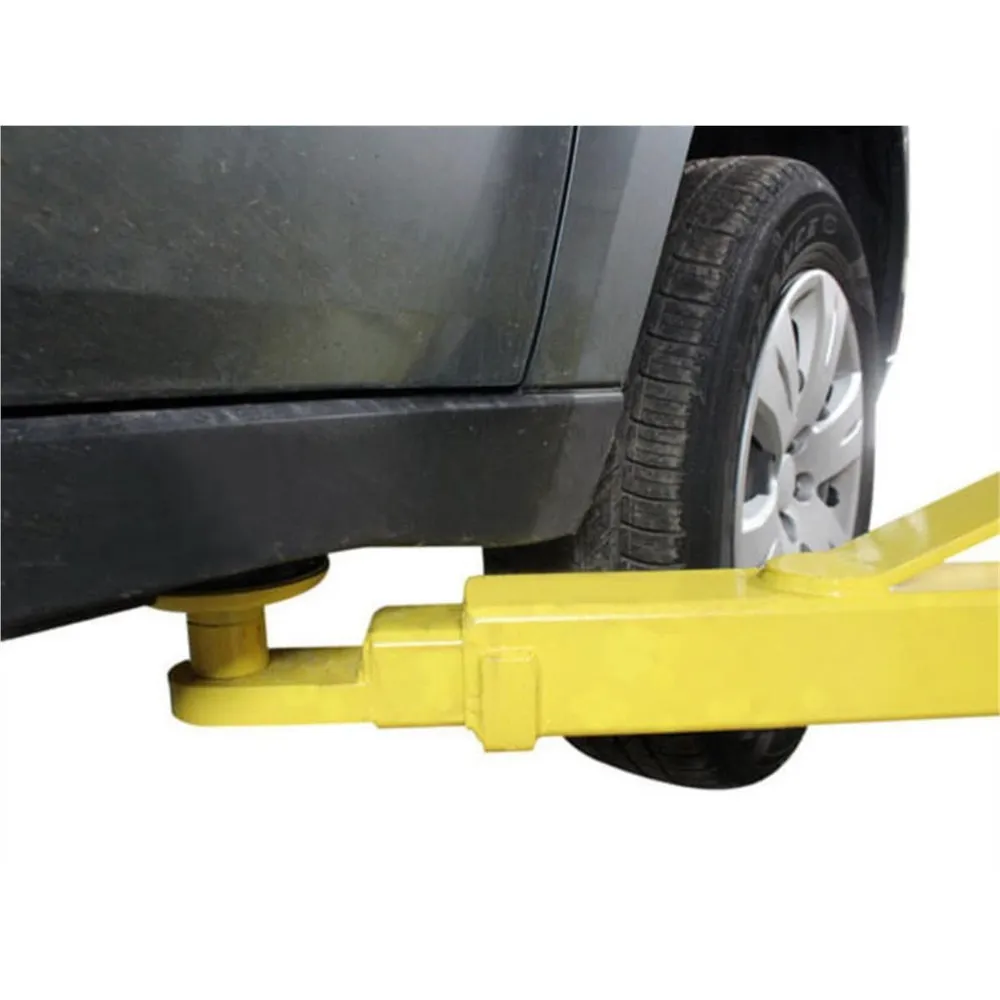

- Adapter Heights: 4 Each 1.5″, 5″
- Arm Hole/Adapter Peg Size: 1.5″
- Concrete Requirement: 4″ of conrete w/ 3000 PSI rating
- Not for use with Diesel Trucks (3/4 ton diesel or larger). Due to the weight placed on the front lifting arms, we recommend customers purchase a 10K or 11K 2-post lift.
