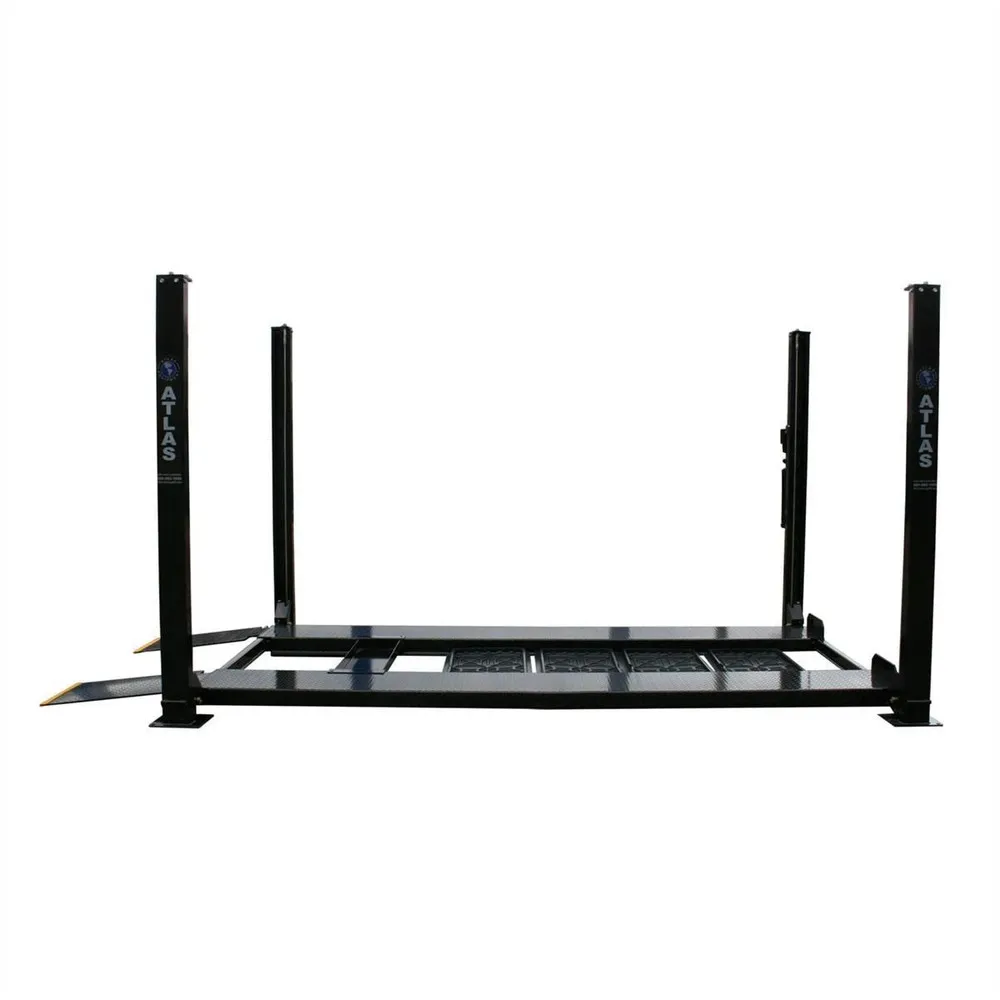

Atlas Garage PRO8000EXT Extra Tall Portable Hobbyist 8,000 lb. Capacity 4-Post Lift

Description

Shop the Atlas Garage PRO8000EXT Extra Tall Portable Hobbyist 8,000 lb. Capacity 4-Post Lift at Variety Engines — every unit is carefully inspected, warrantied, and ready to ship fast across the US.

Features and Benefits:

• 8,000 lb. Capacity
• Free Standing/Portable Design
• Extra Tall
• Diamond Plated Runways

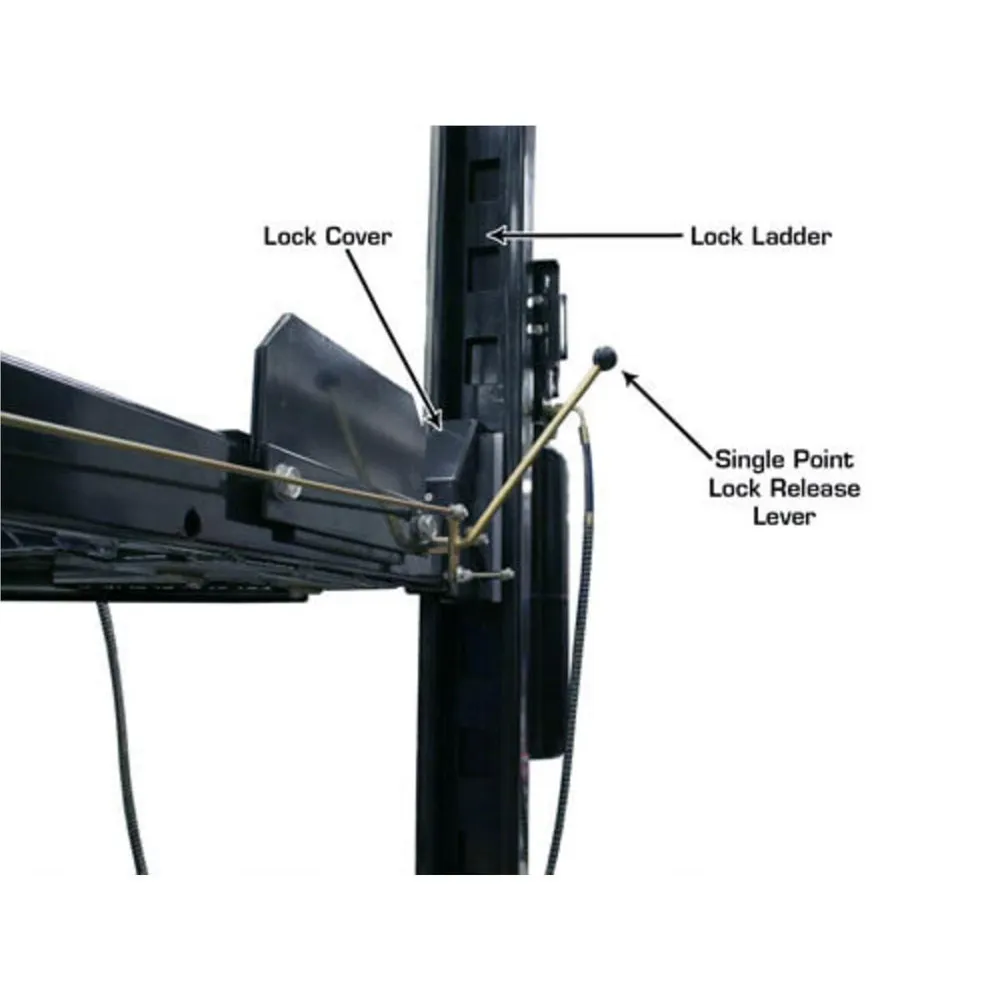

• Single-Point Lock Release

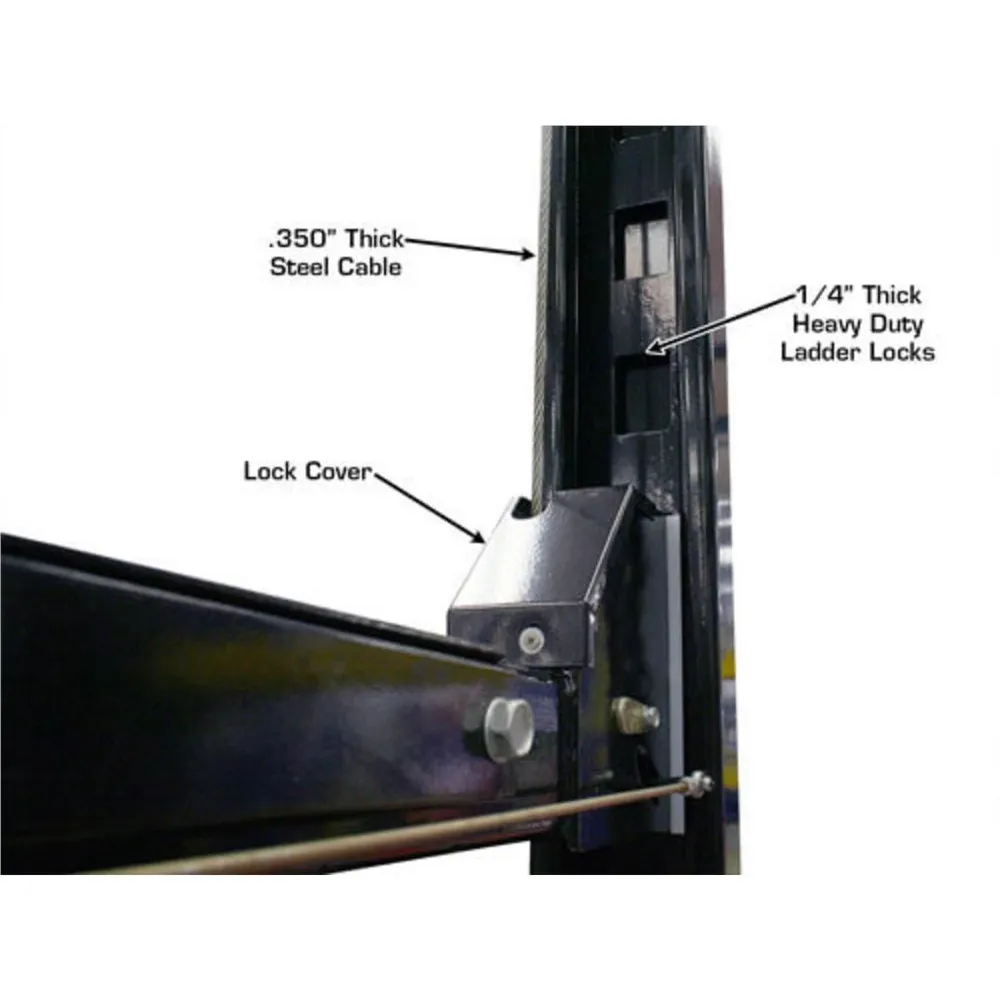

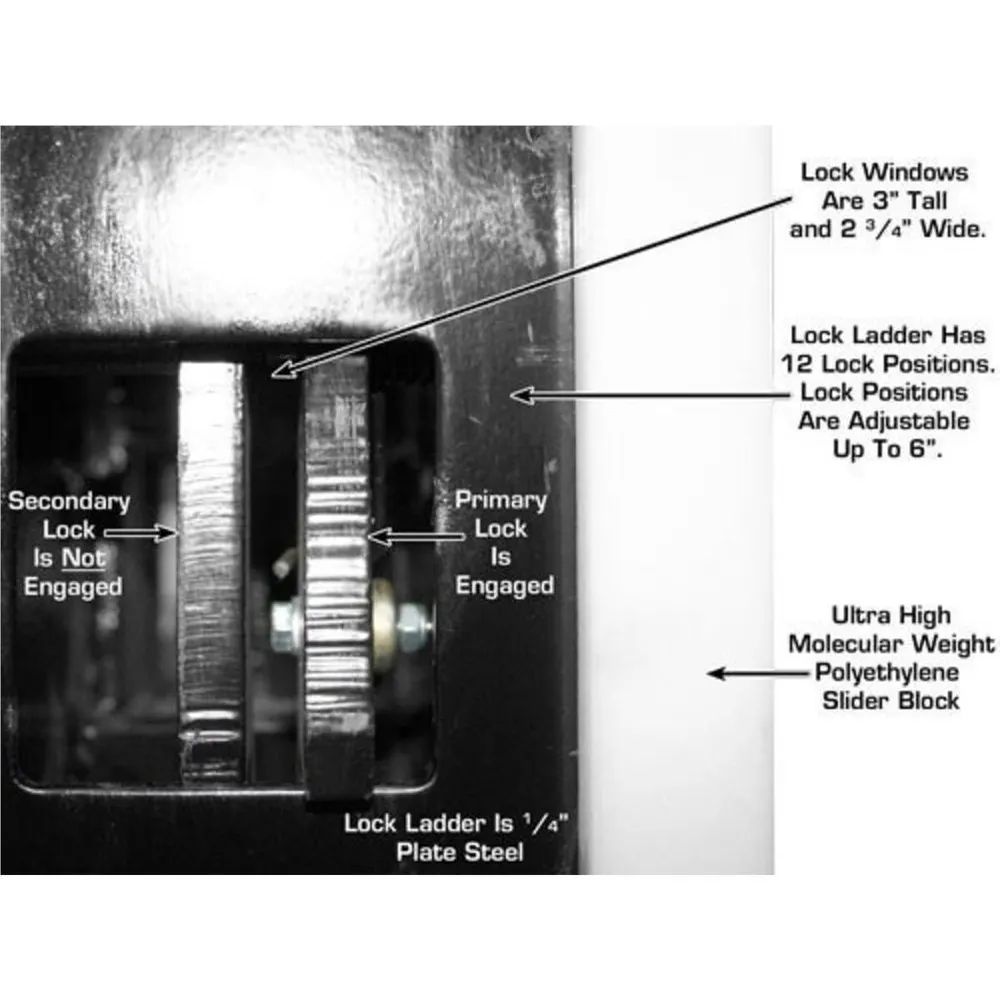

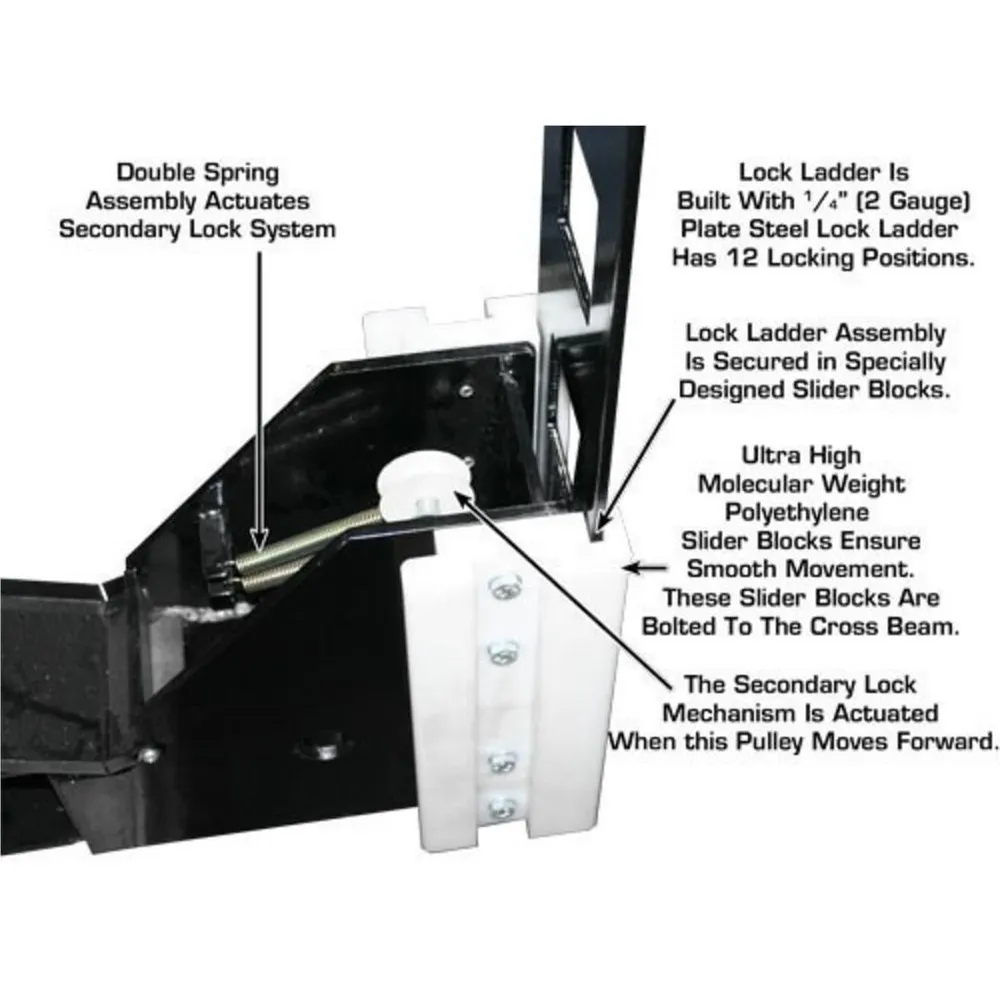

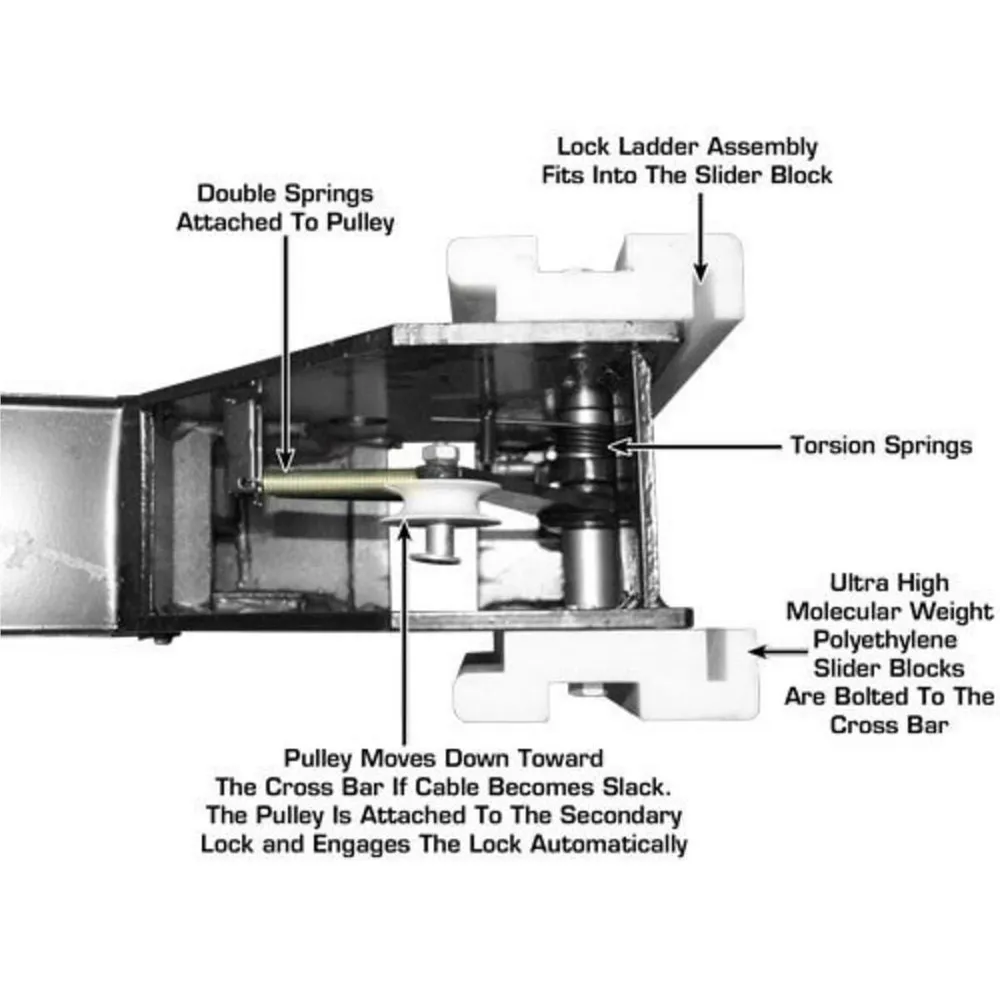

• Lock Ladder Design

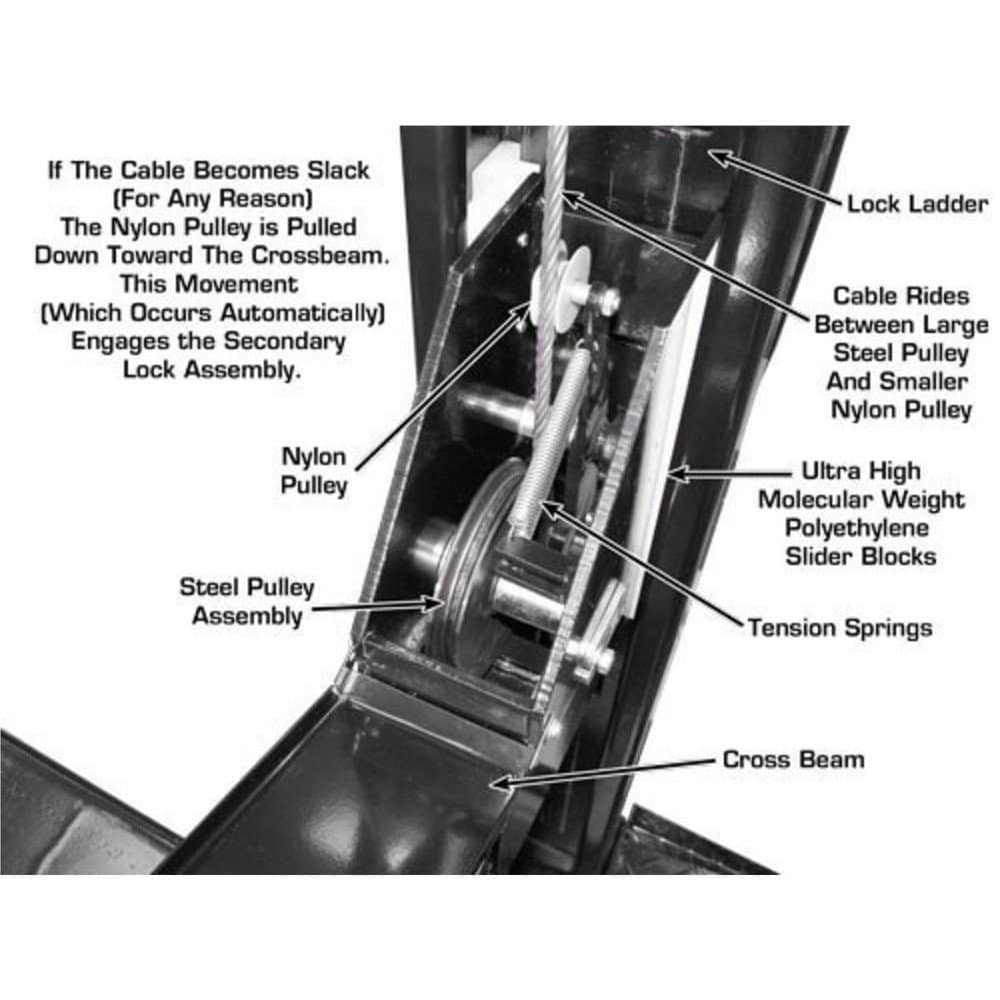

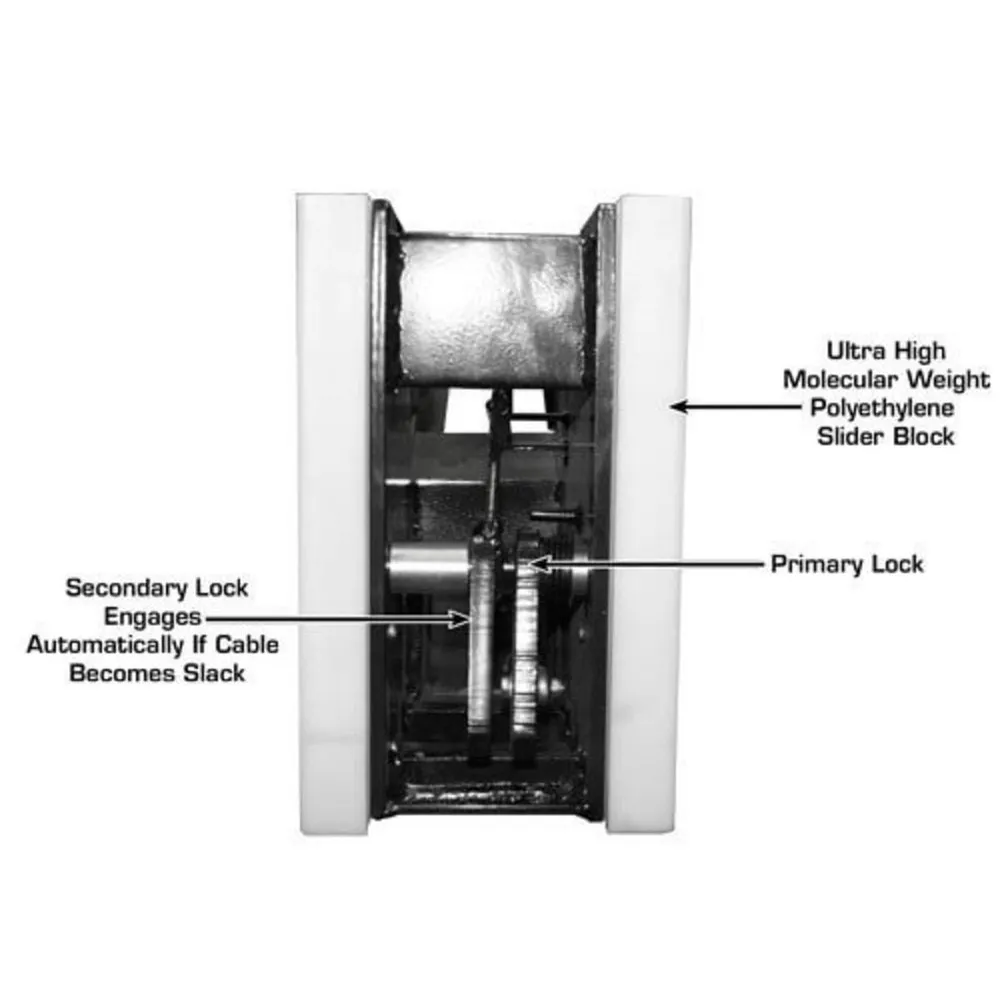

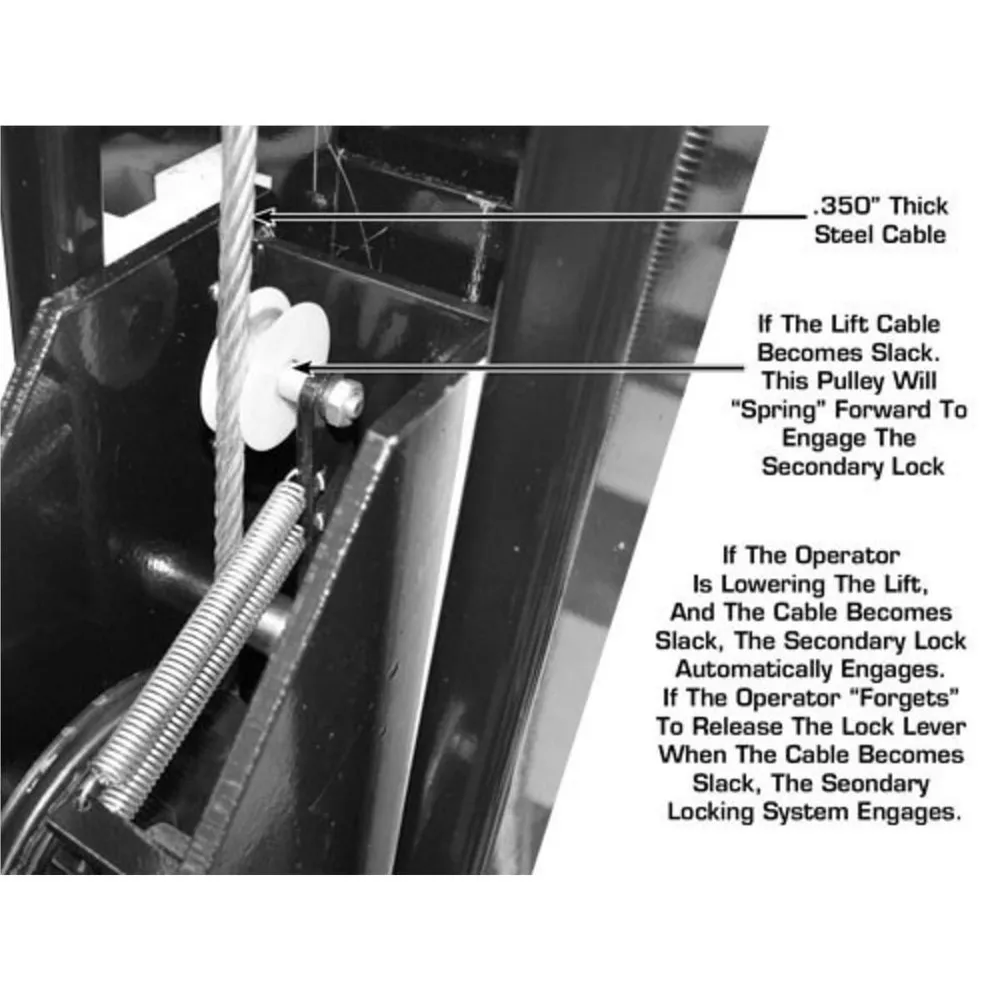

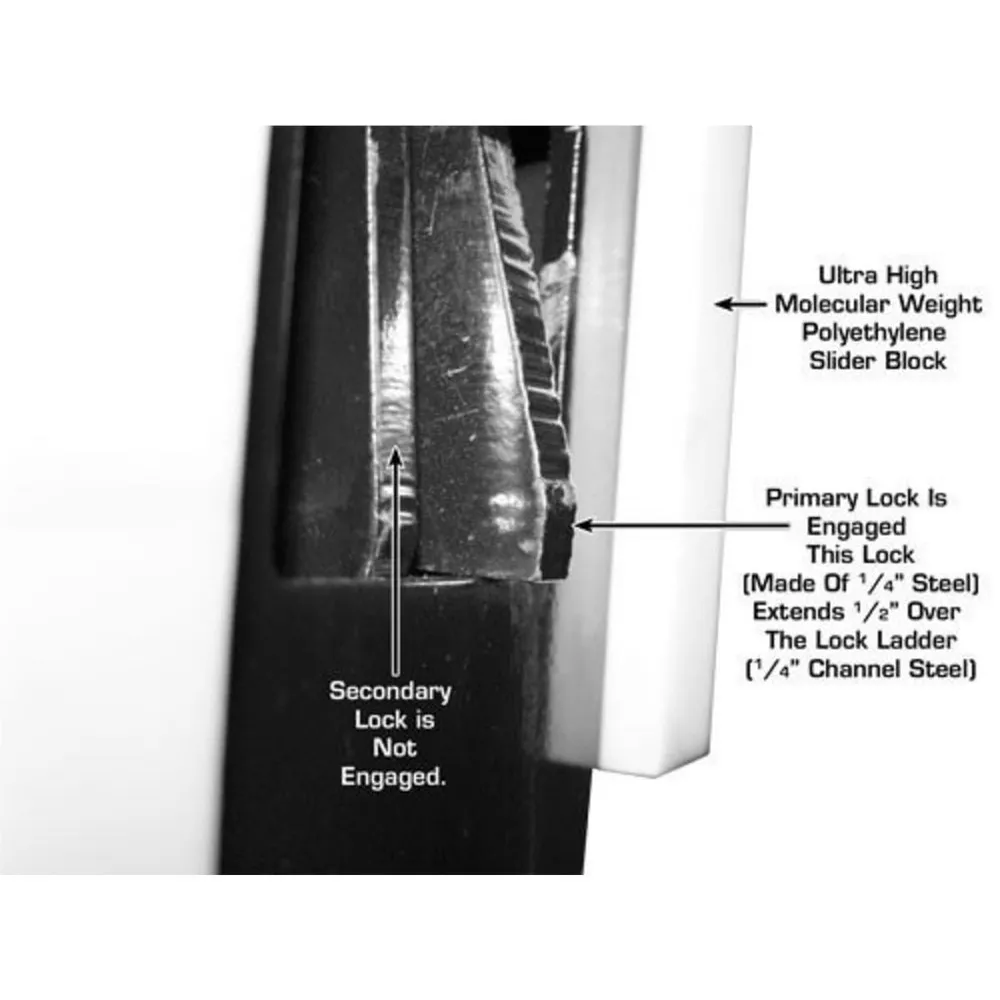

• Double Lock Safety System

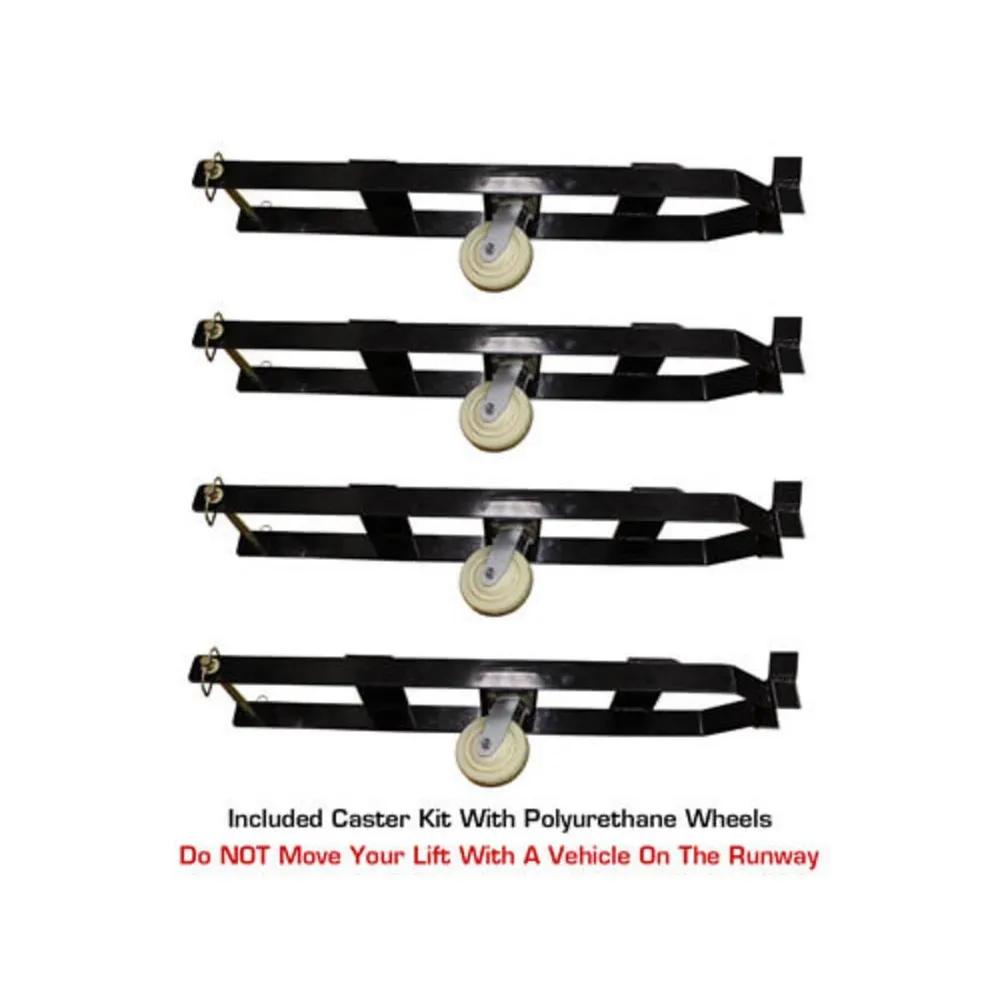

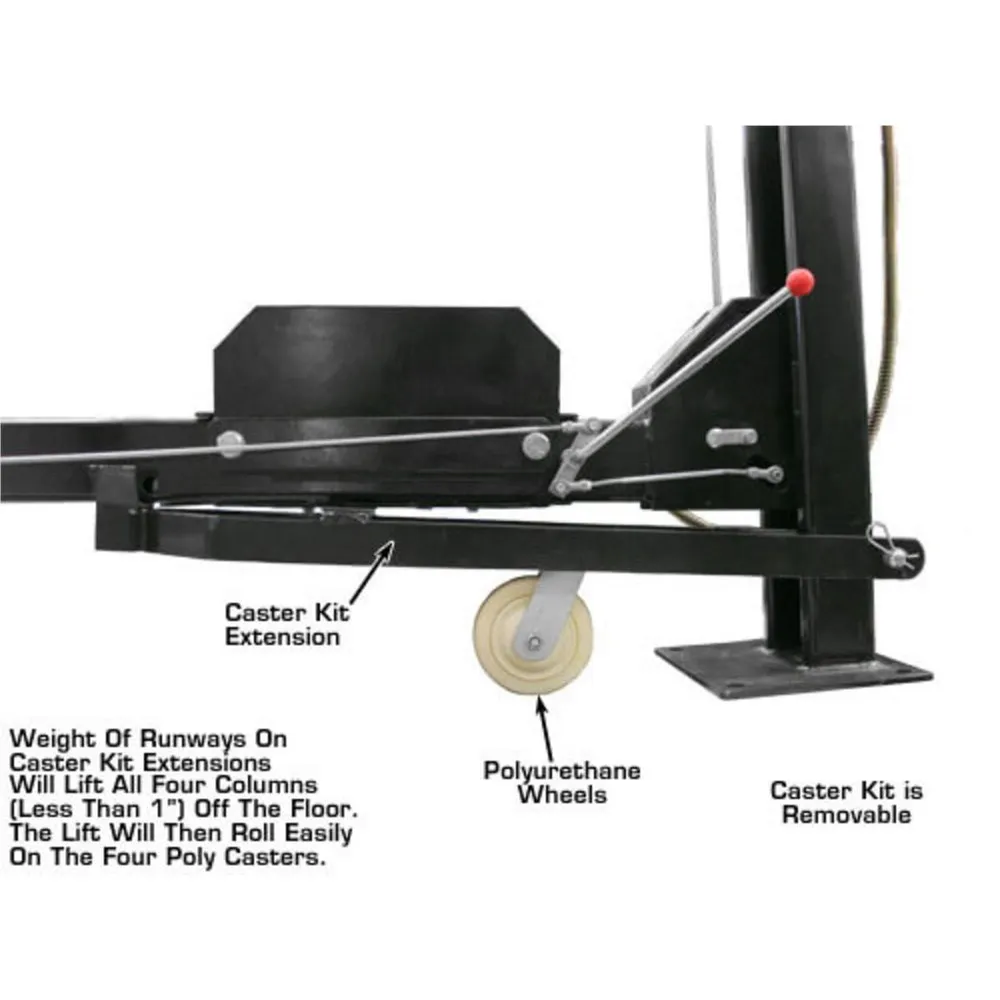

• Caster Kit With Polyurethane Wheels Included

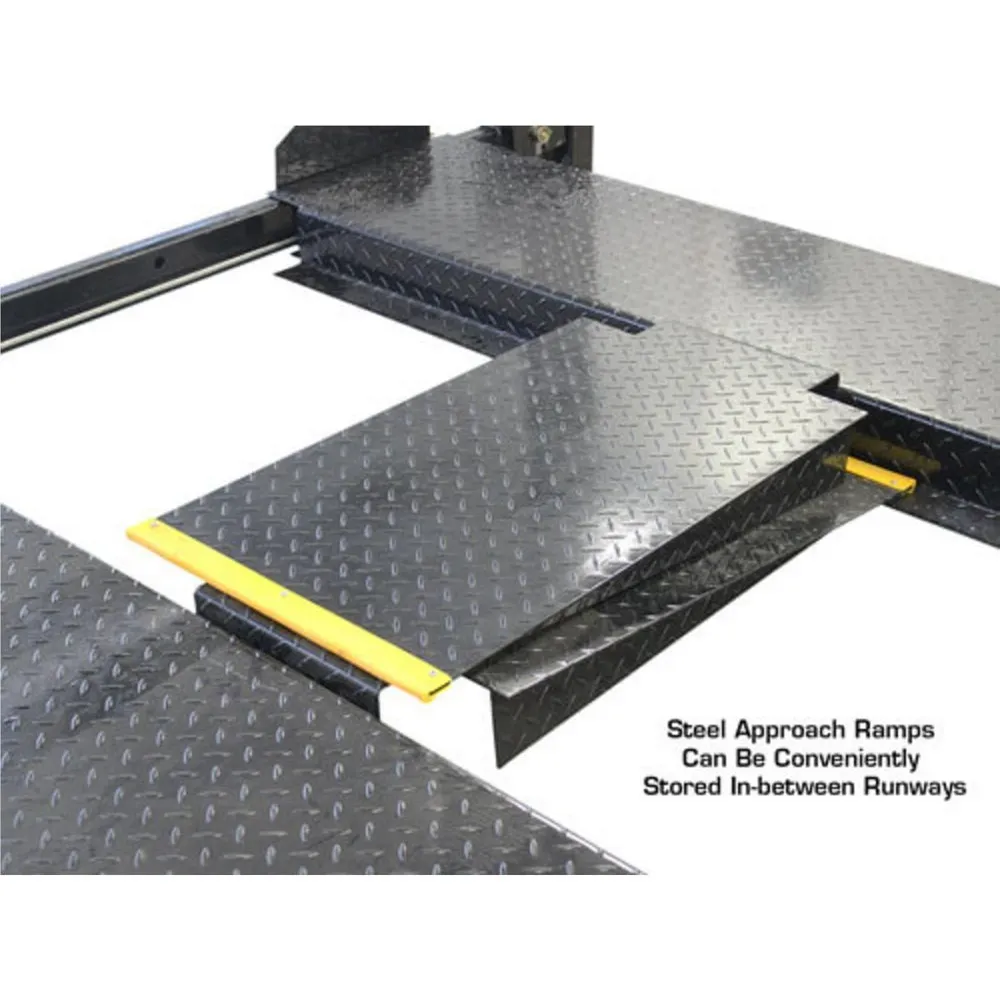

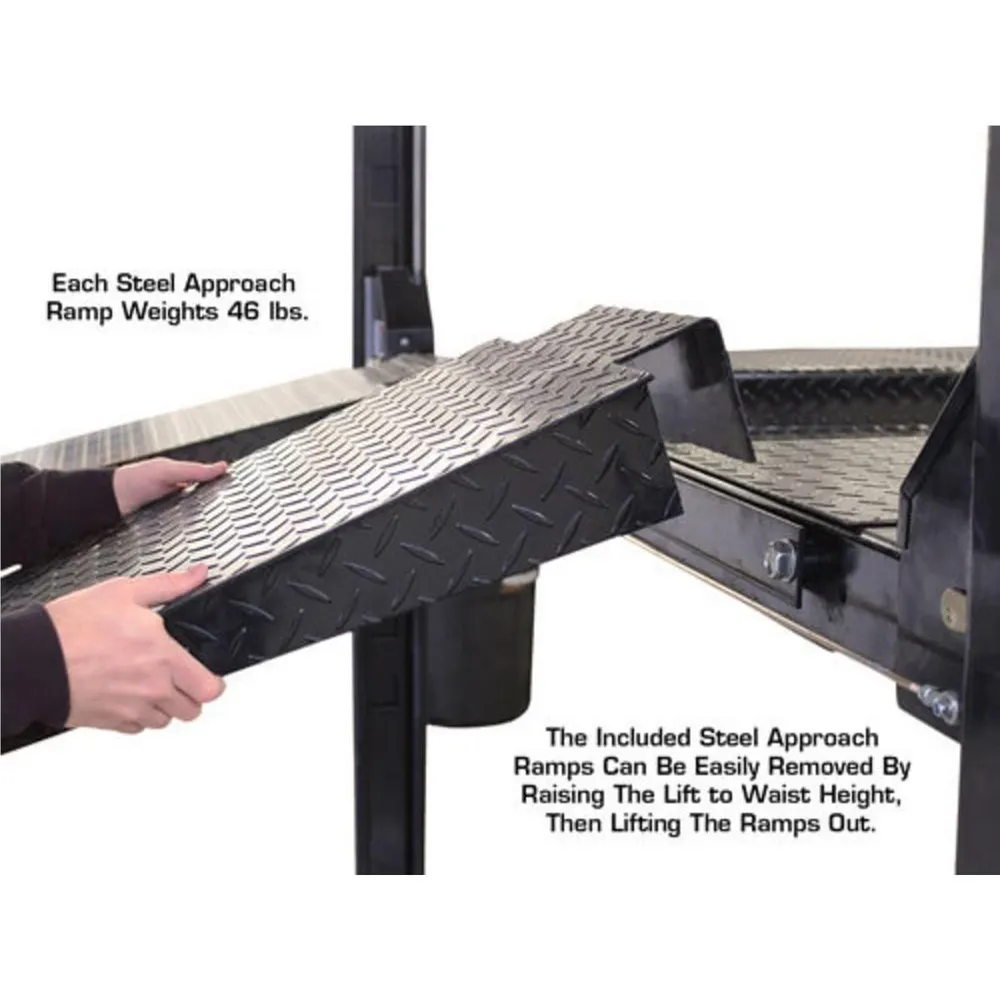

• Steel Approach Ramps Included

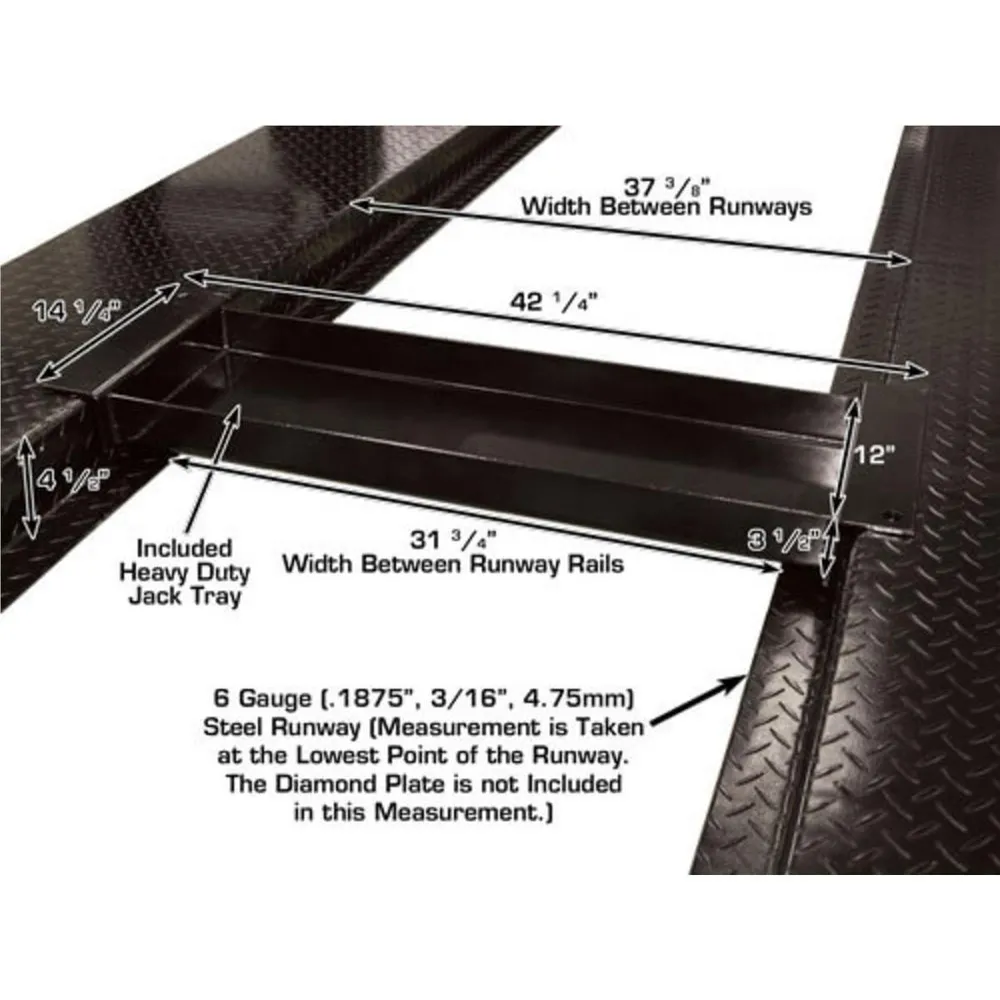

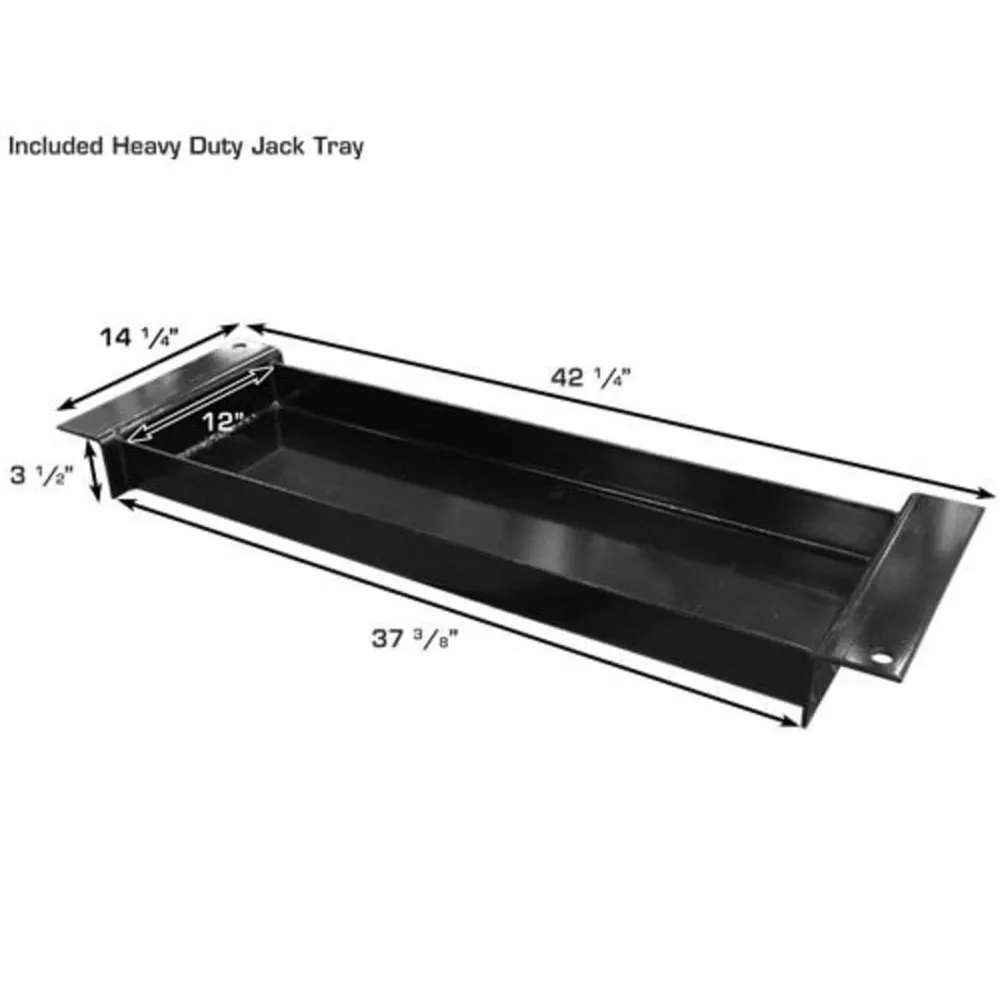

• Steel Jack Tray Included

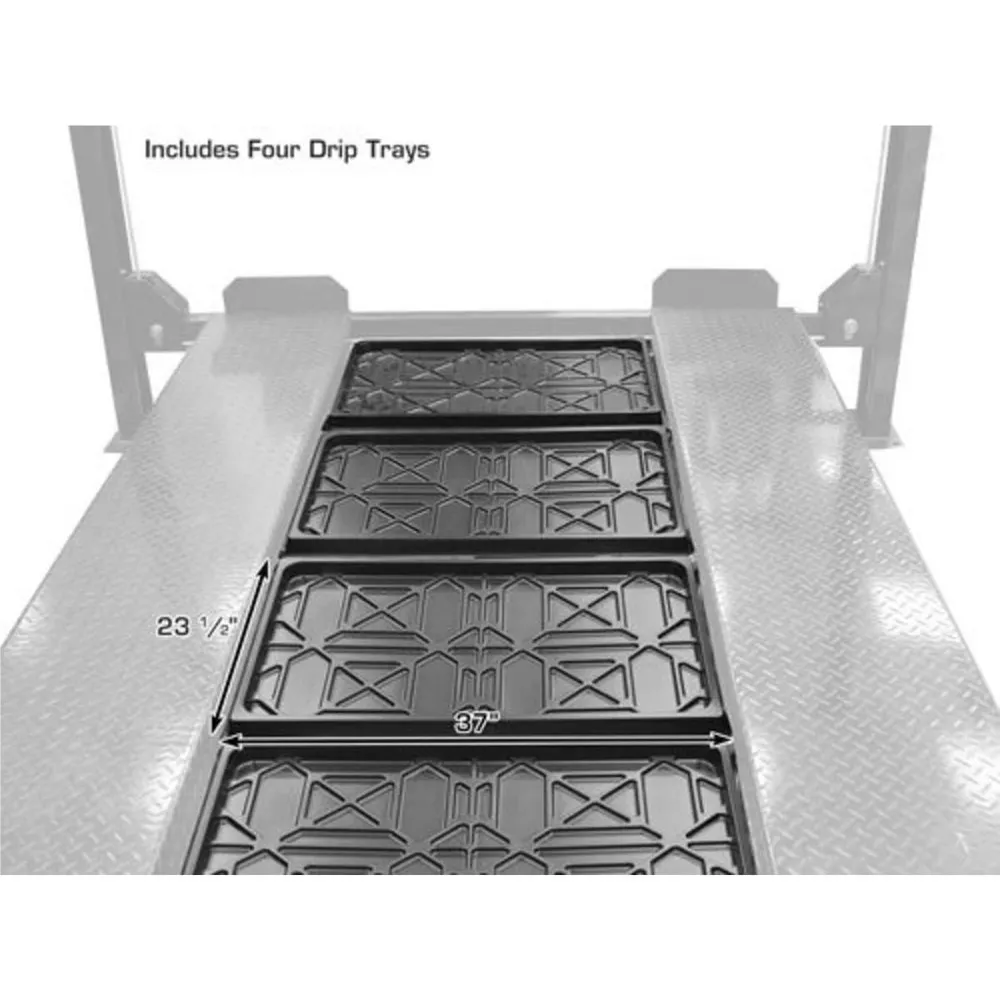

• 4 Plastic Drip Trays Included
• 4 Wheel Stops Included

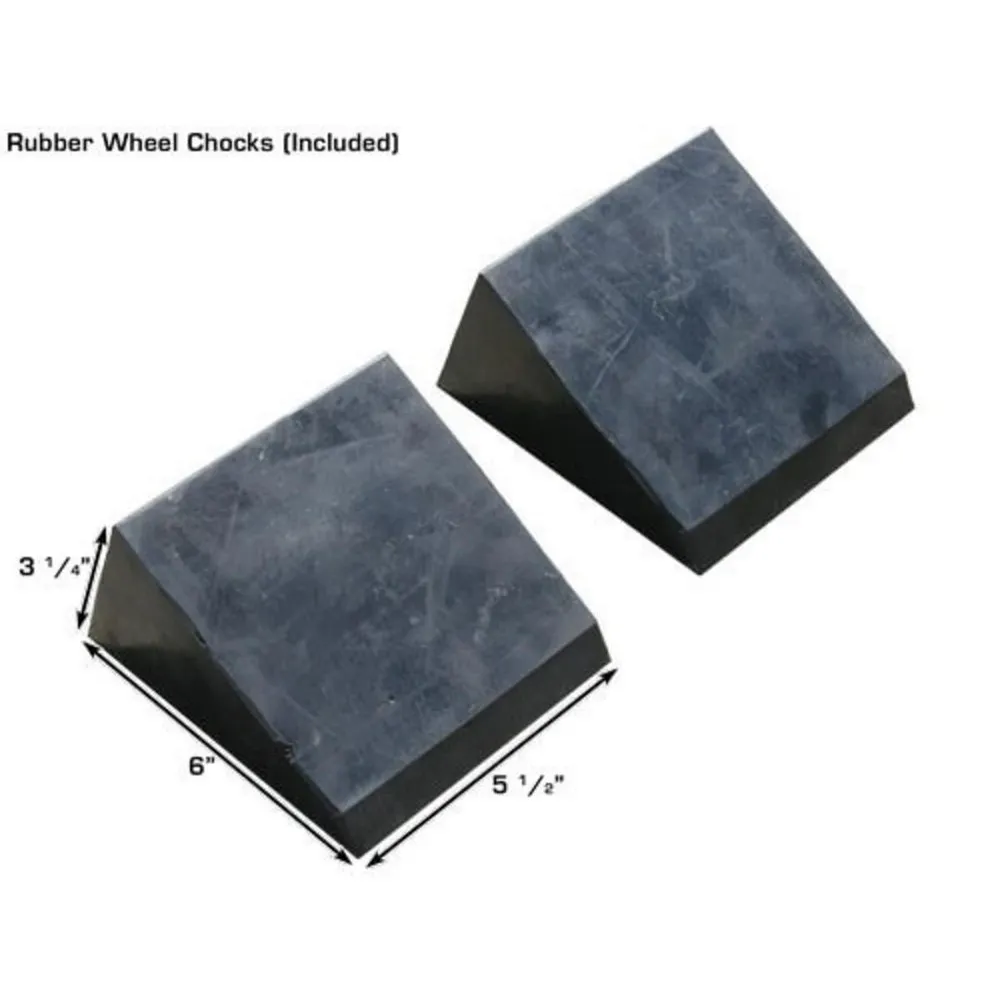

• 2 Rubber Wheel Chocks Included
• Perfect For Storing Or Working On Vehicles
• 110volt Electric Operation (30 AMP BREAKER REQUIRED)

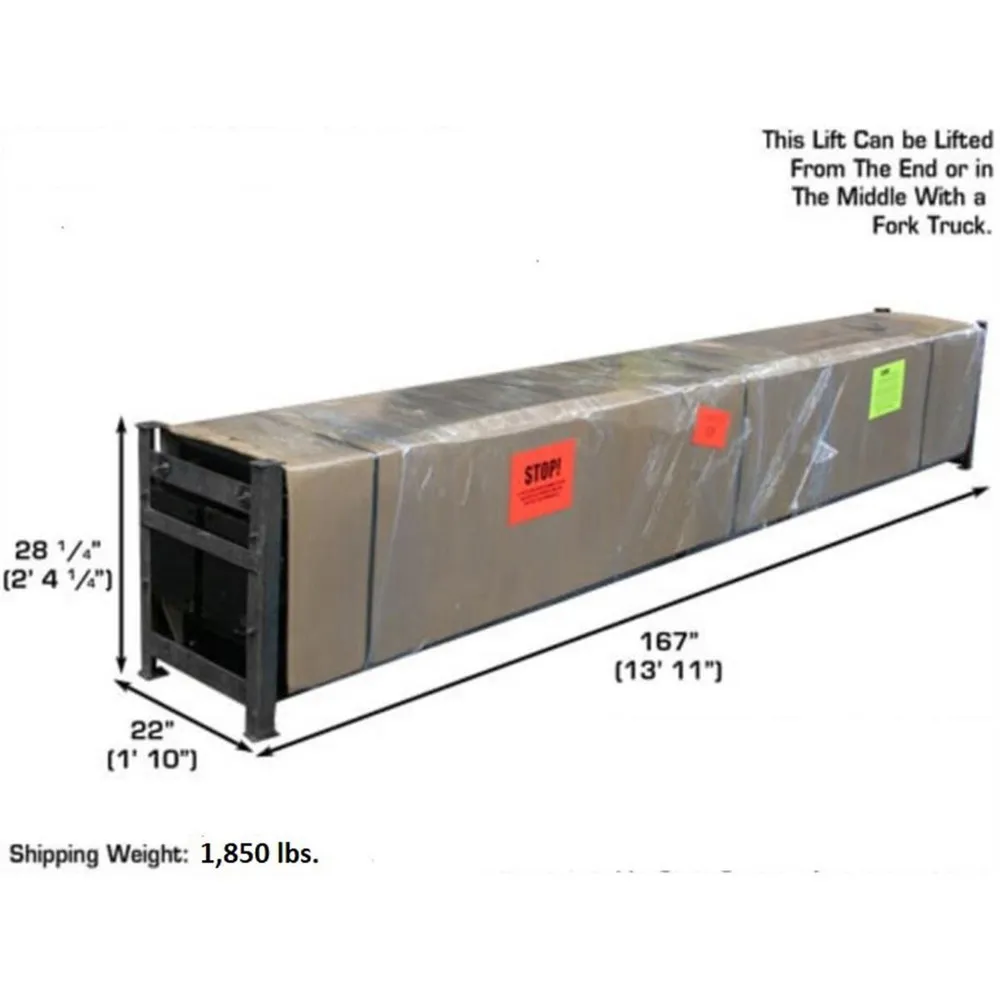

• Shipping Weight 1,850 lbs.
• 2 yr Structural ‐ 1 yr Hydraulic Warranty ‐ Parts Only
• This part number FREIGHT PREPAID

Atlas® Garage XH-PRO8000EXT Specifications

Capacity 8,000 Lb.

• Lifting Height To Top Of Runway 84 1/4″ (7′ 1/4″)
• Clearance Under Runways 79″ (6′ 7″)

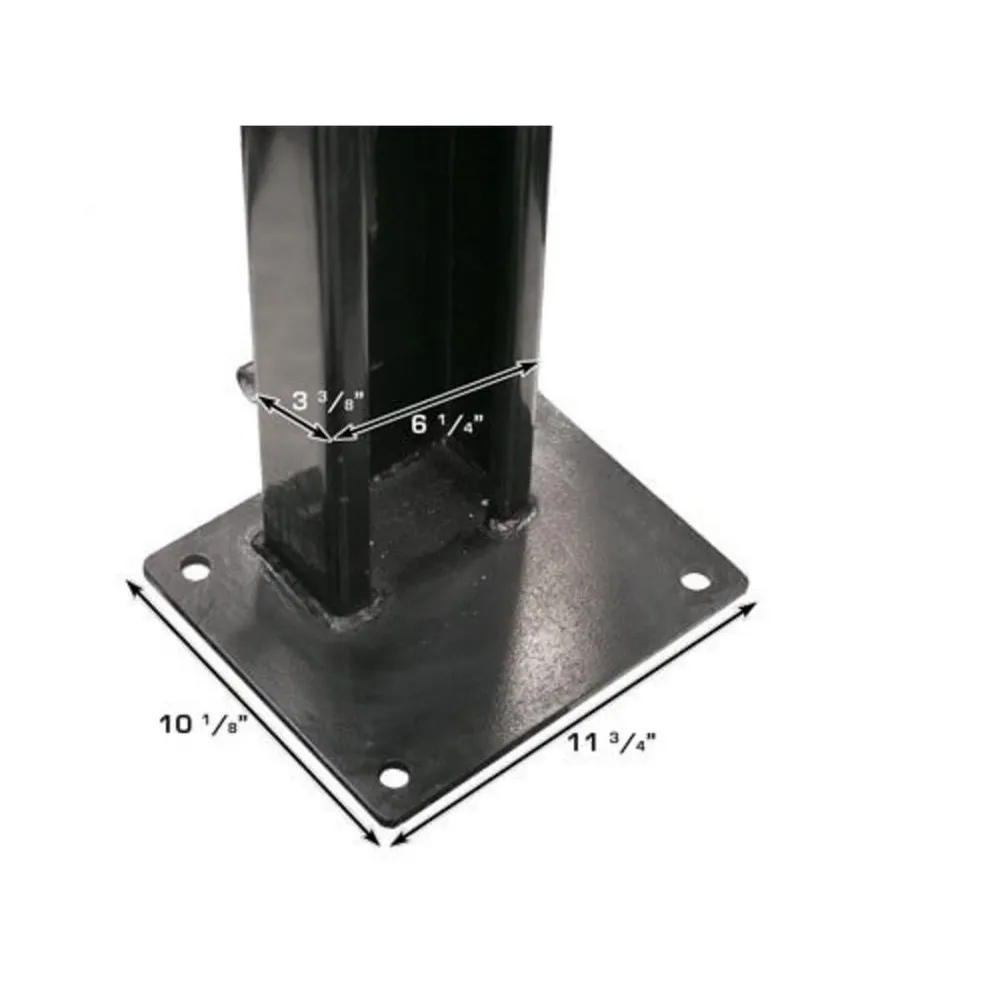

• Height Of Columns 98 1/2″ (8′ 2 1/2″)
• Overall Width (Without Motor) 104 1/2″ (8′ 8 1/2″)
• Overall Width (With Motor) 115″ (9′ 7″)
• Overall Length With Approach Ramp 206 3/4″ (17′ 2 3/4″)

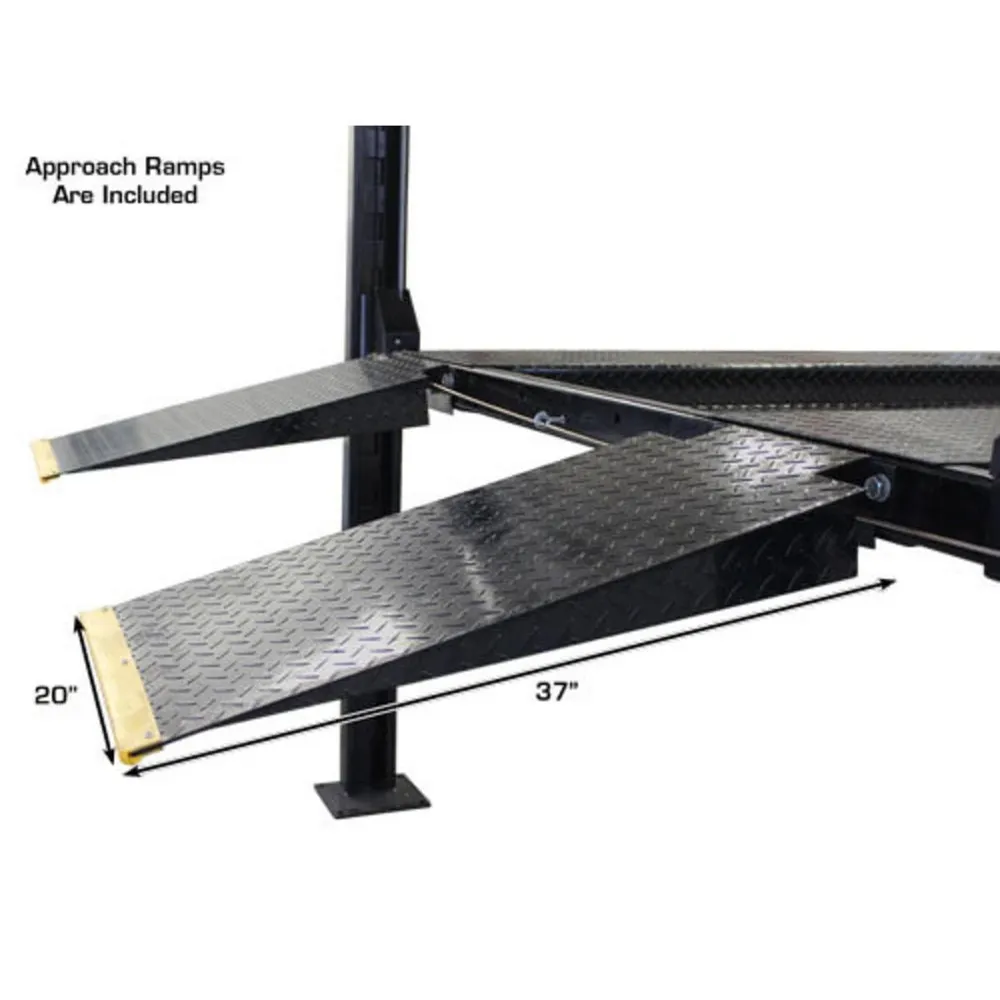

• Approach Ramp 37″ (3′ 1″)
• Runway Width 21 1/4″ (w/ Rails) or 18 3/4″ (Driving Surface)
• Runway Length 165 3/4″ (13′ 9 3/4″)
• Runway Thickness 4 1/2″
• Width Between Runways 37″ (3′ 1″)
• Width Between Runway Rails 31 1/2″ (2′ 7 1/2″)
• Outside Runway To Outside Runway 74 5/8″ (6′ 2 5/8″)
• Clearance Between Columns 94 1/2″ (7′ 10 1/2″)
• Length Between Columns 157 1/2″ (13′ 1 1/2″)
• Maximum Wheel Base 153 1/2″ (12′ 9 1/2″)
• Drive Thru (Outside Of Tire To Outside Of Tire) 80 1/2″ (6′ 8 1/2″)

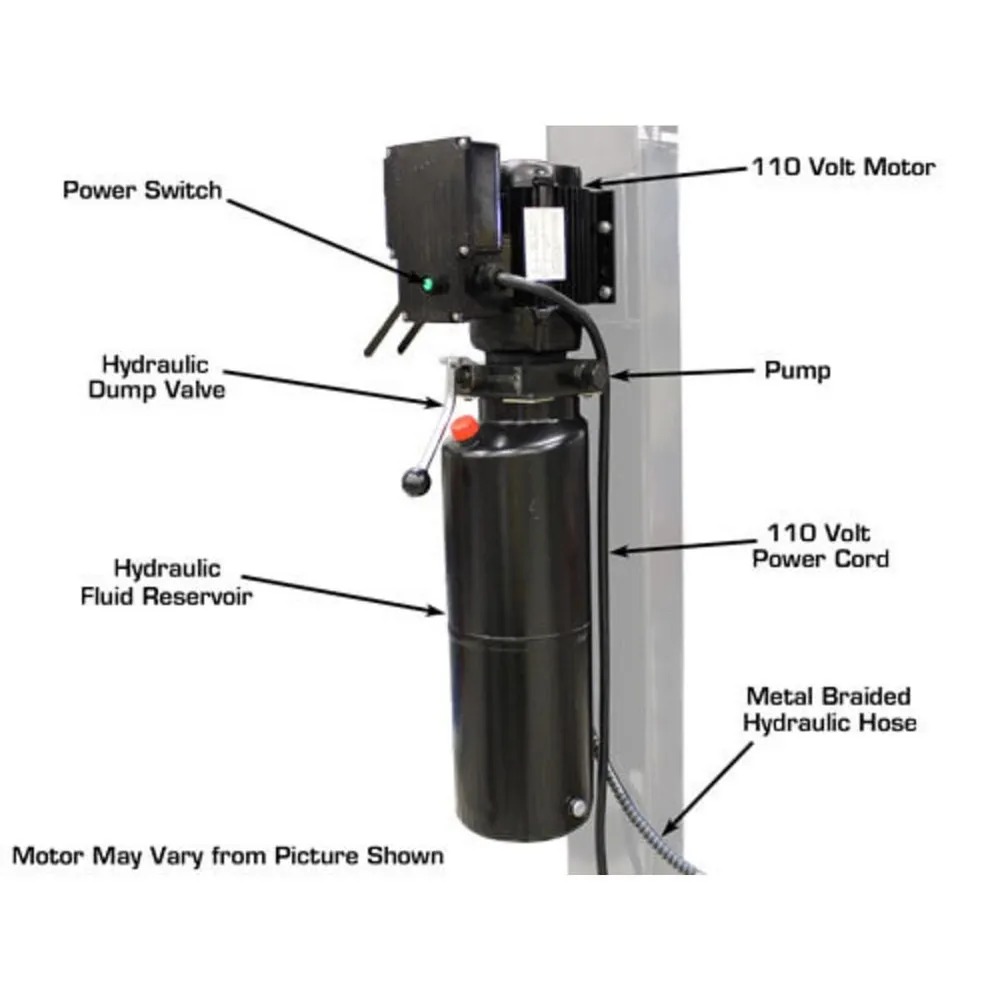

• Motor/Electrical Requirement 110 Volt, 30 AMP BREAKER REQUIRED
• Shipping Weight 1,850 lb.
