Atlas 414A 14,000 LB 4-Post Alignment Lift w/Turntables

Description

Shop the Atlas 414A 14,000 LB 4-Post Alignment Lift w/Turntables at Variety Engines — every unit is carefully inspected, warrantied, and ready to ship fast across the US.

Features and Benefits:

• 14,000 lb. Capacity
• Heavy Duty, Commercial Grade
• Extra Tall, Extra Wide, Extra Long

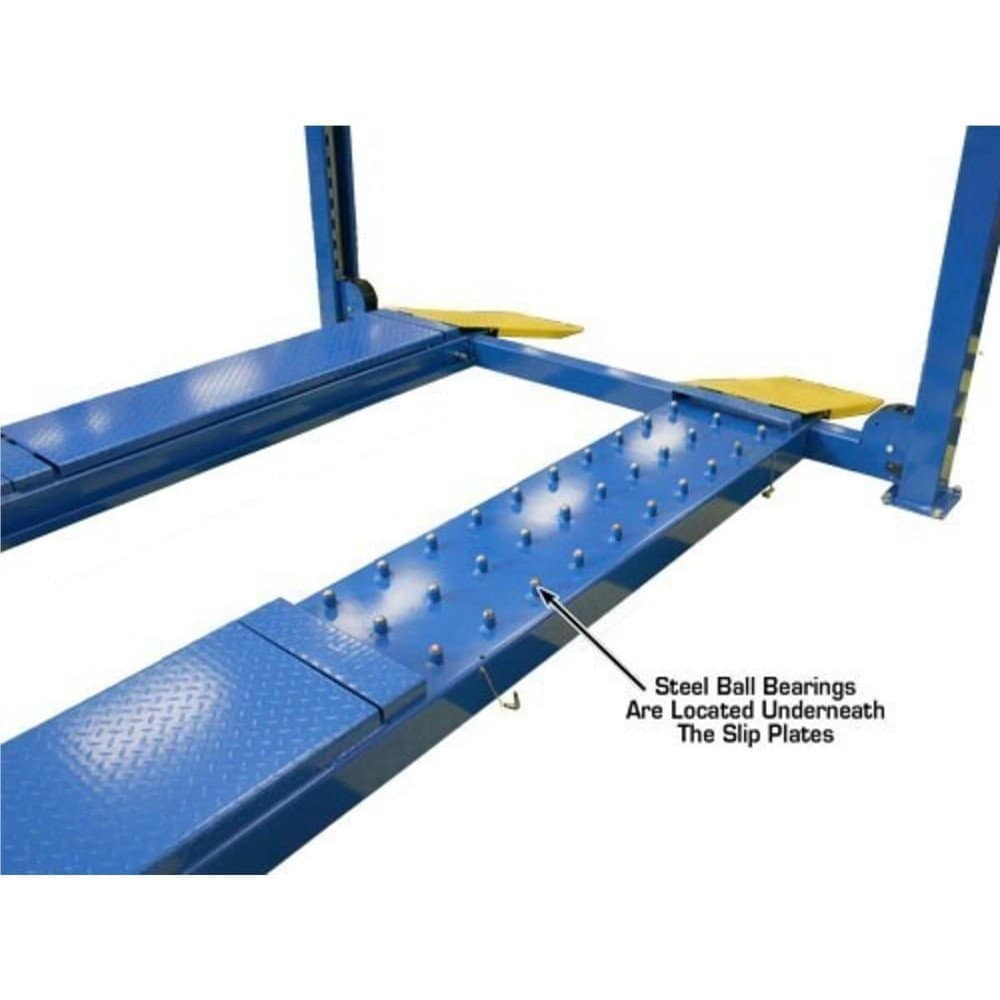

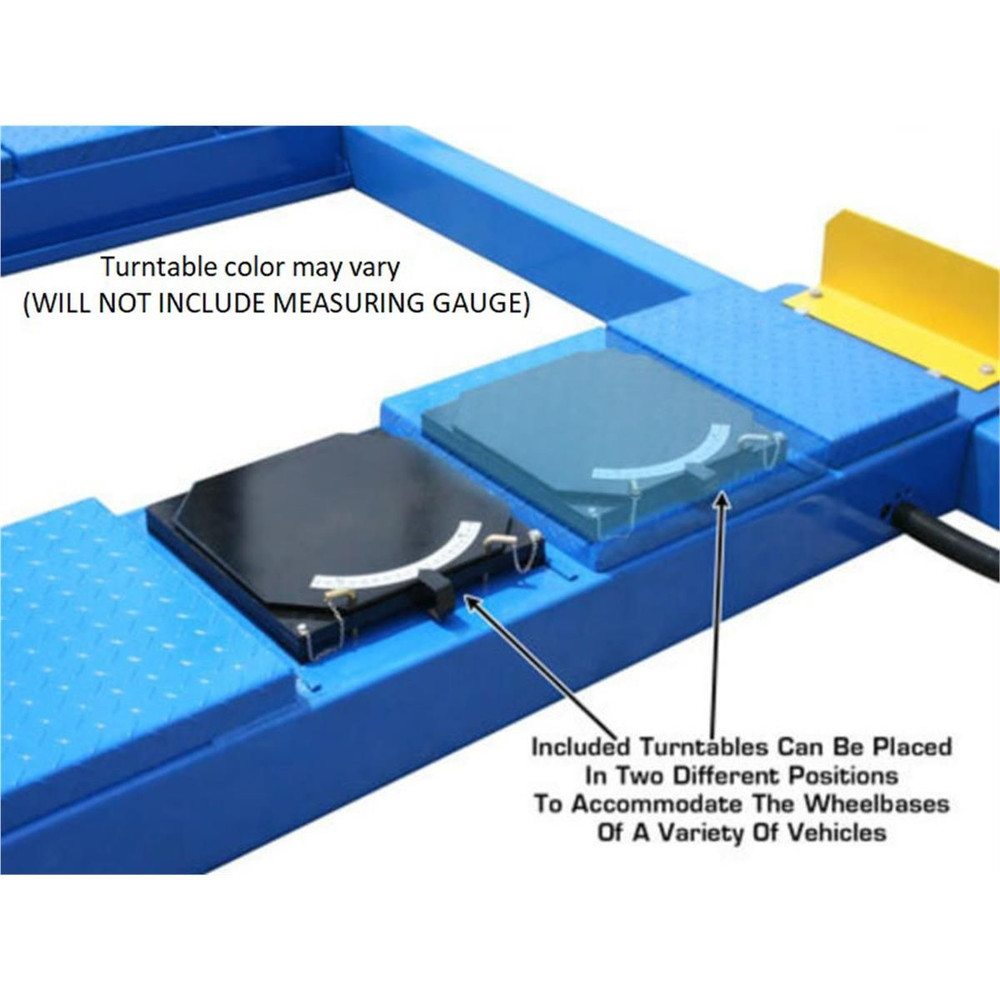

• Built-in Slip Plates & Alignment Turntables Included
• Multiple Positions for Turntable Placement
• Runway Covers Included (for when Turntables are Removed)

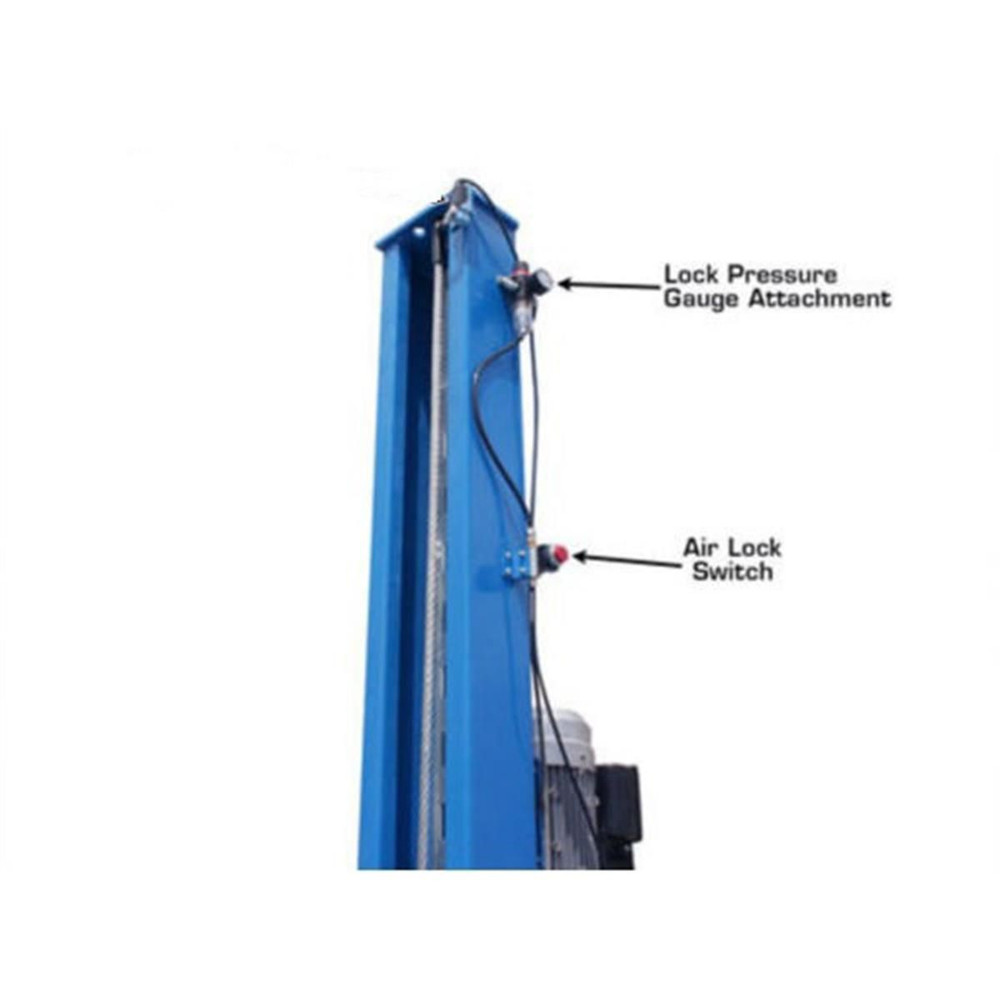

• Air Operated Single Point Lock Release (External Air Supply Required)

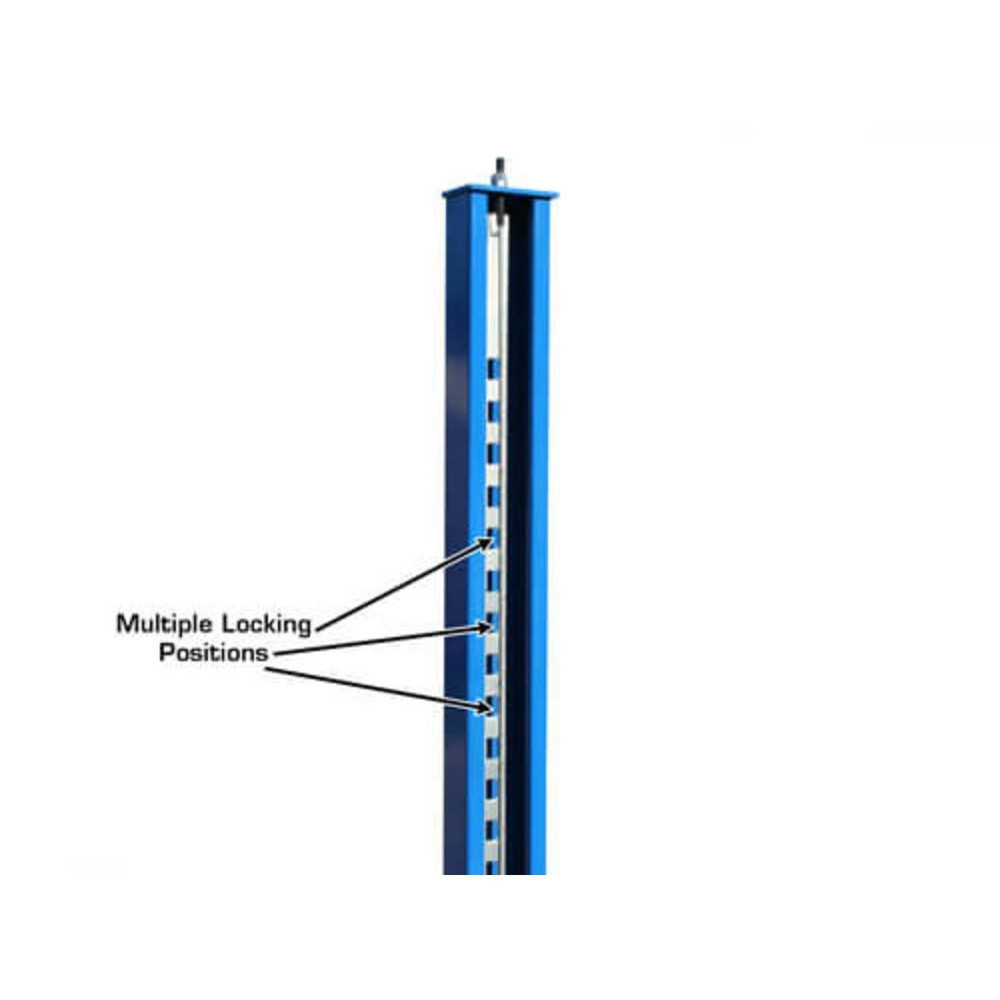

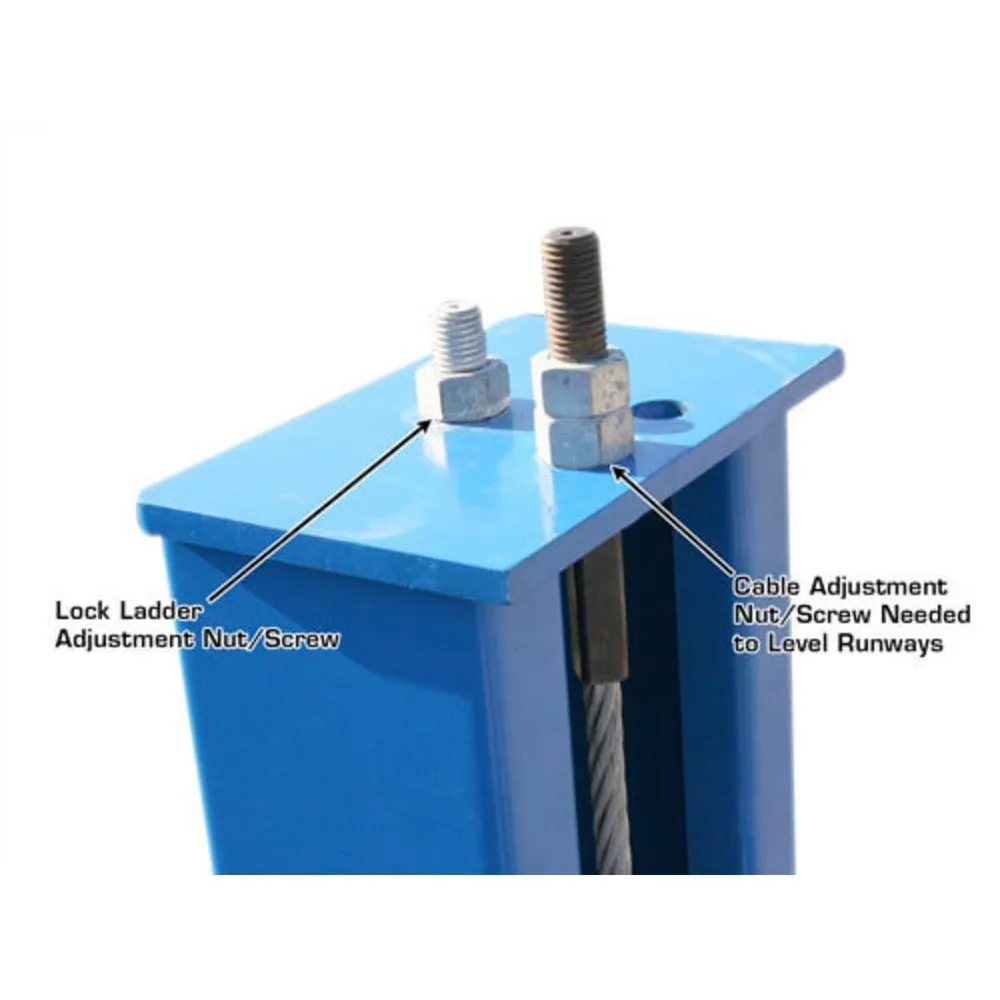

• Lock Ladder Design
• Double Lock Safety system
• Powder Coat Finish
• Steel Approach Ramps Included
• Additional Drive-off Ramps Available (Sold Separately)
• Runway Extensions Available (Sold Separately)

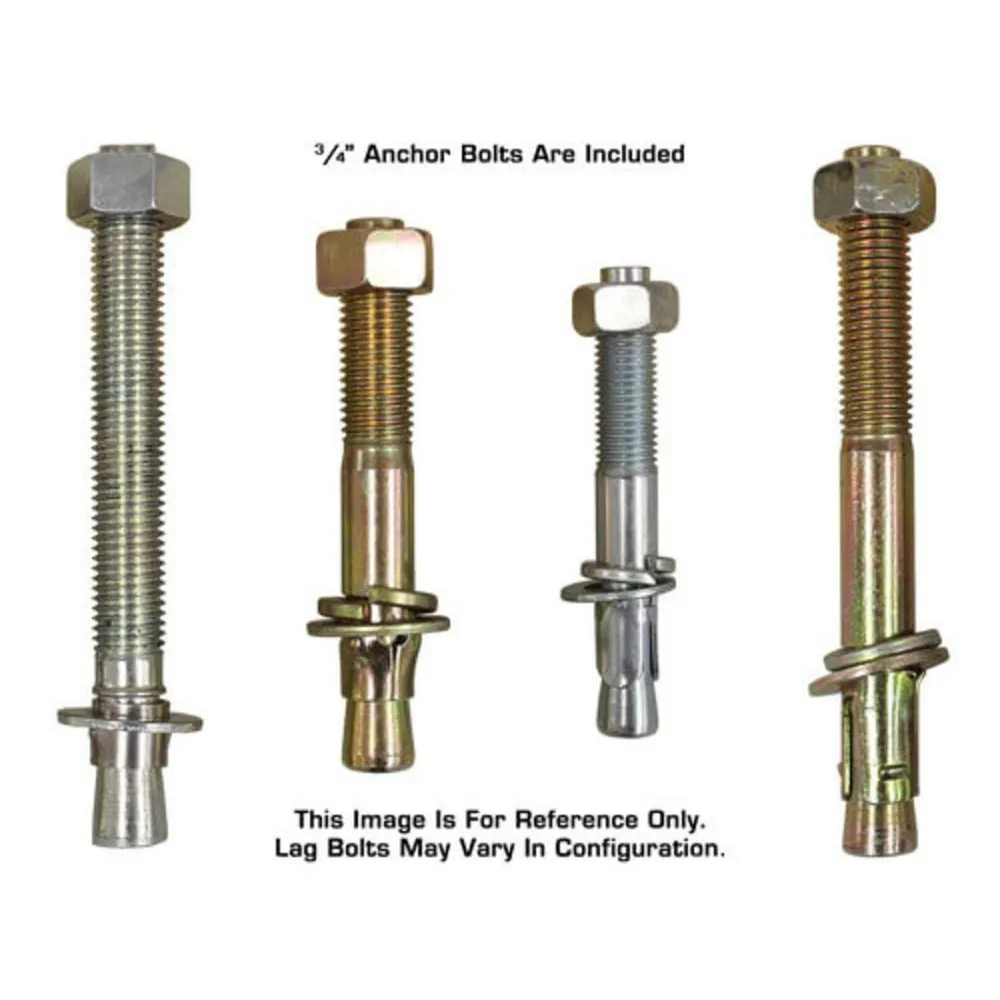

• Mounting Hardware Included

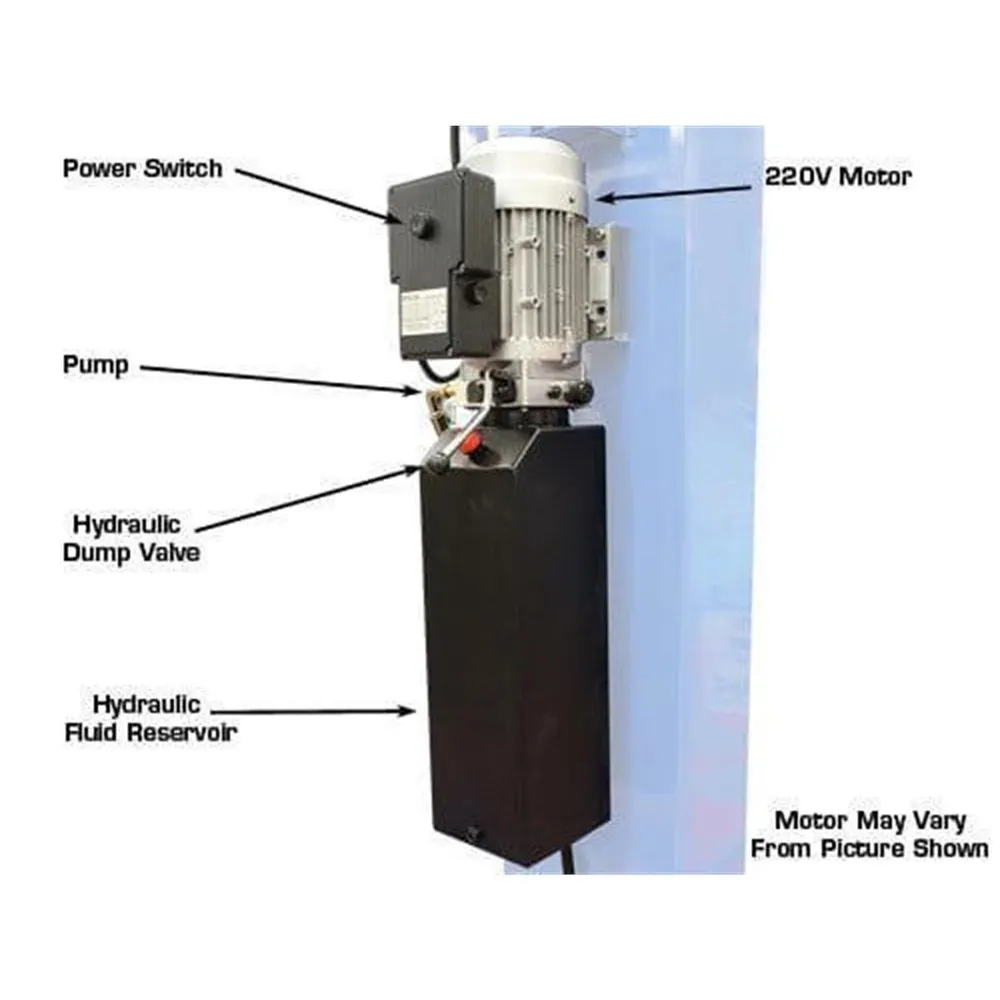

• 220volt/1phase Electric Operation (Requires 30amp Breaker)

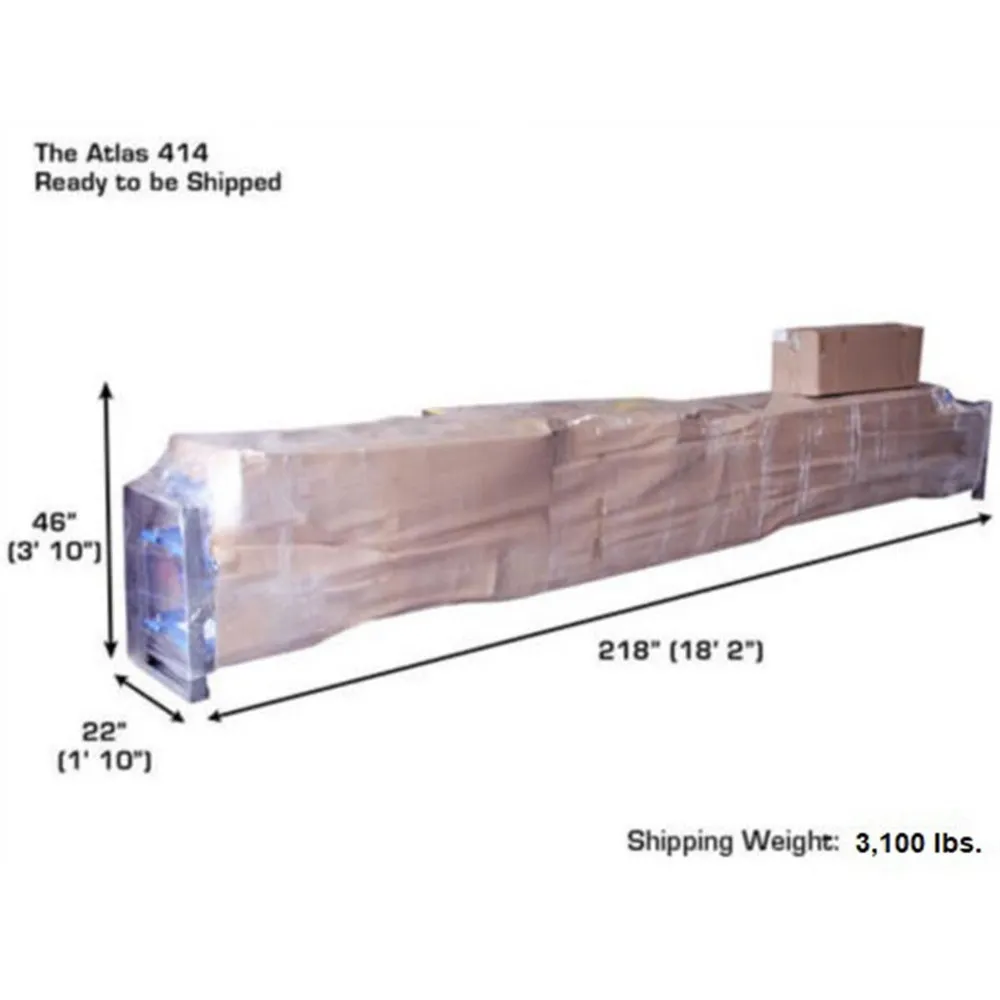

• Shipping Weight 3,200 lbs.
• 5 yr Structural – 2 yr Hydraulic – Parts Only Warranty
• This number FREIGHT PREPAID

Atlas® ATTD-414A Specifications

• Capacity 14,000 lb.
• Lifting Height 80″ (6′ 8″)

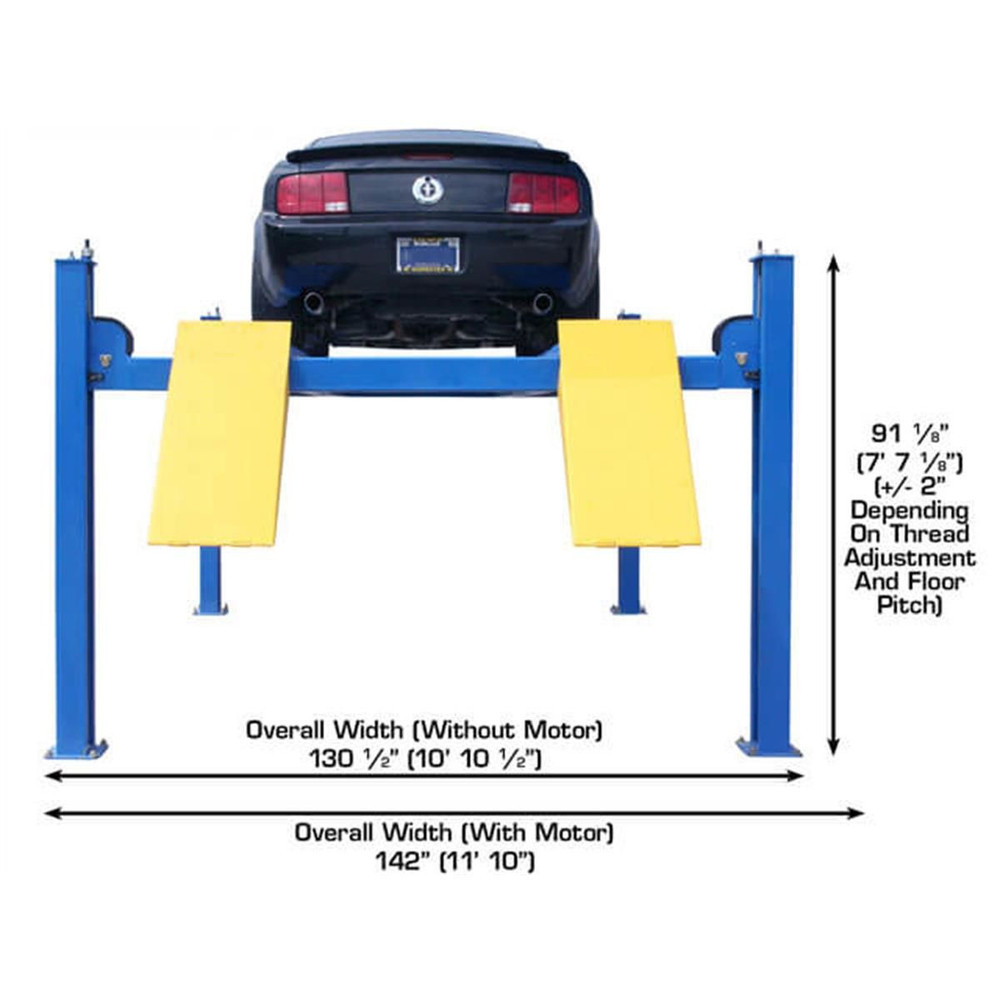

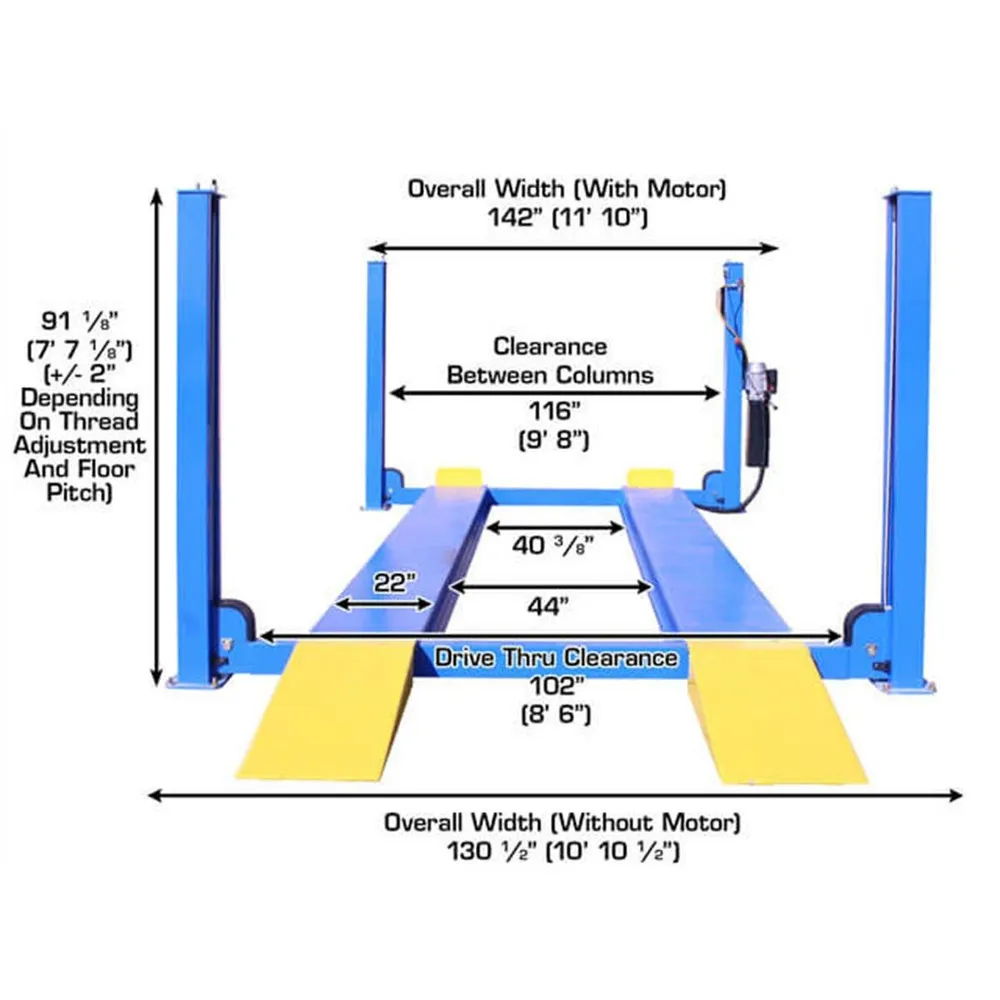

• Overall Width Of Columns (Without Motor) 130 7/8″ (10′ 10 7/8″)
• Overall Width Of Columns (With Motor) 138 7/8″ (11′ 6 7/8″)

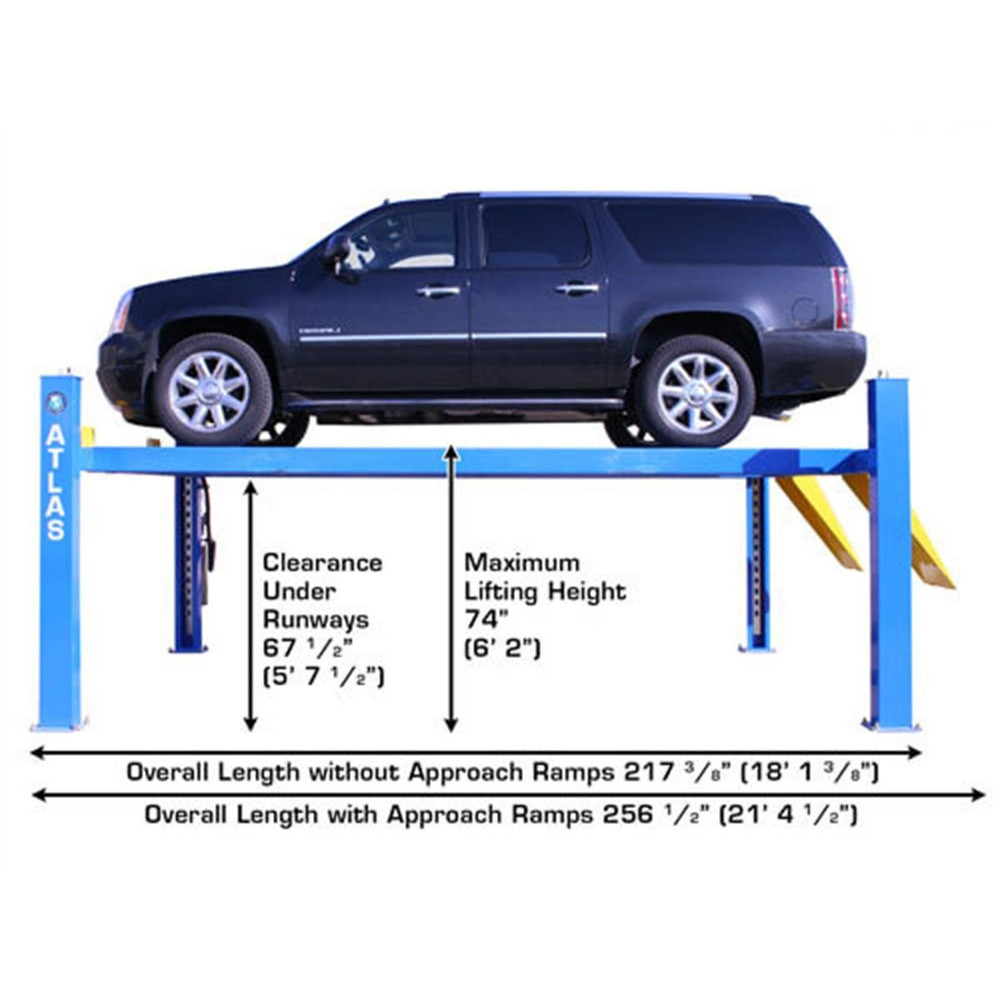

• Overall Length With Approach Ramp 255″ (21′ 3″)
• Length Between Columns 197 1/4″ (16′ 5 1/4″)
• Runway Length 208 5/8″ (17′ 4 5/8″)
• Runway Width 20″
• Thickness Of Runway 8 3/4″

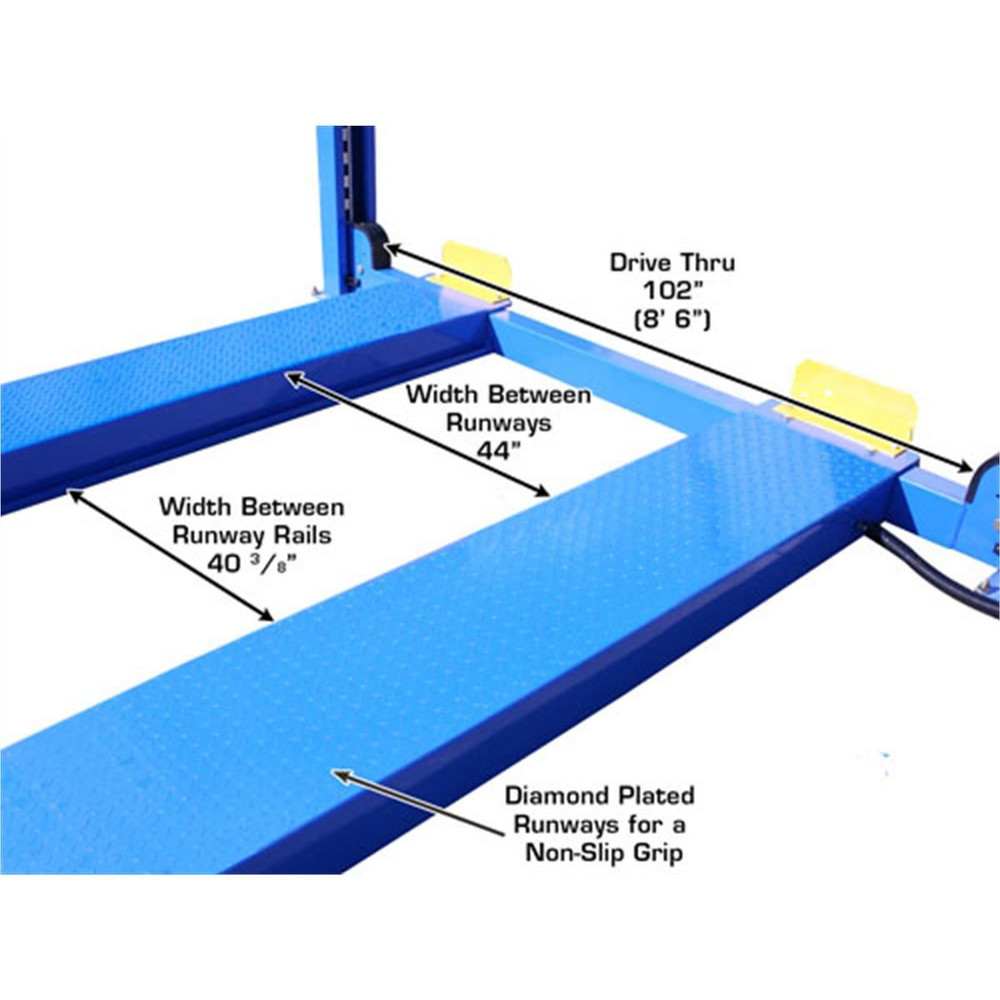

• Width Between Runways 46 7/8″ (w/ Rail 44 3/8″)
• Outside Runway To Outside Runway 86 7/8″ (7′ 2 7/8″)

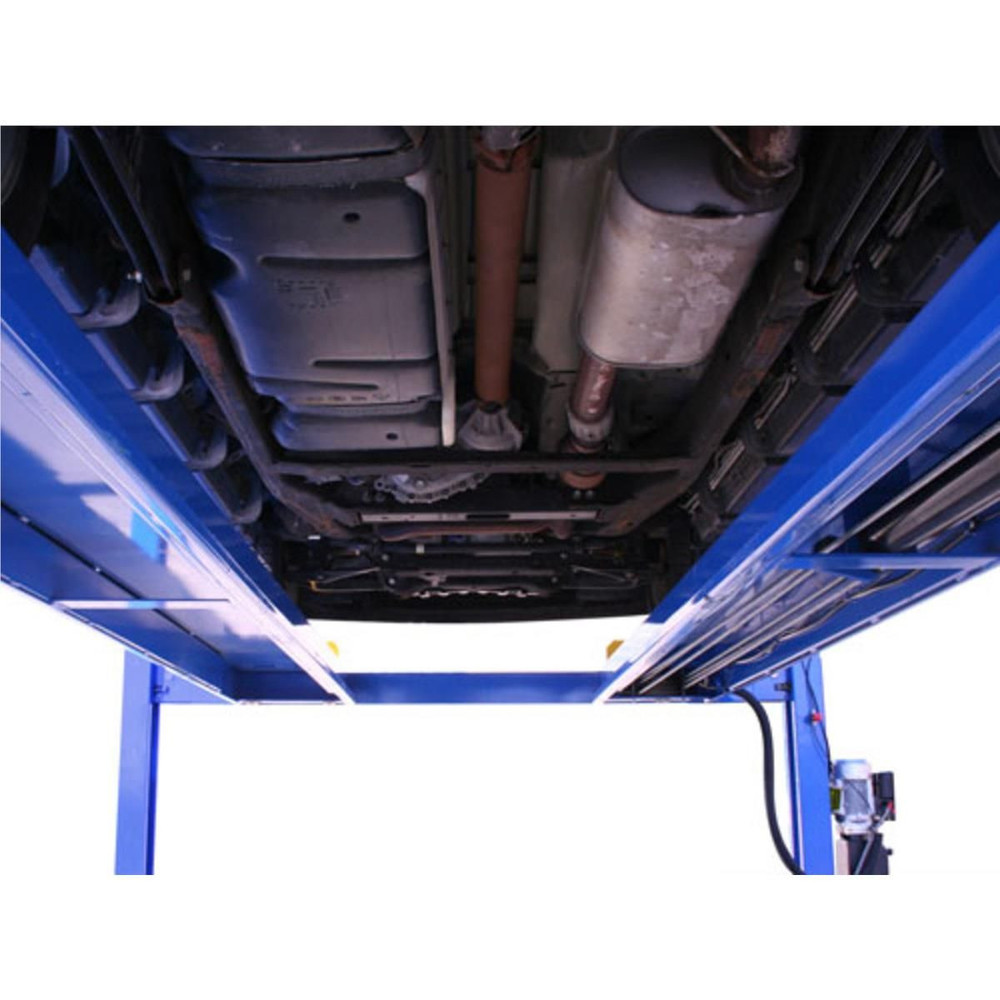

• Clearance Under Runways 71 1/4″ (5′ 11 1/4″)

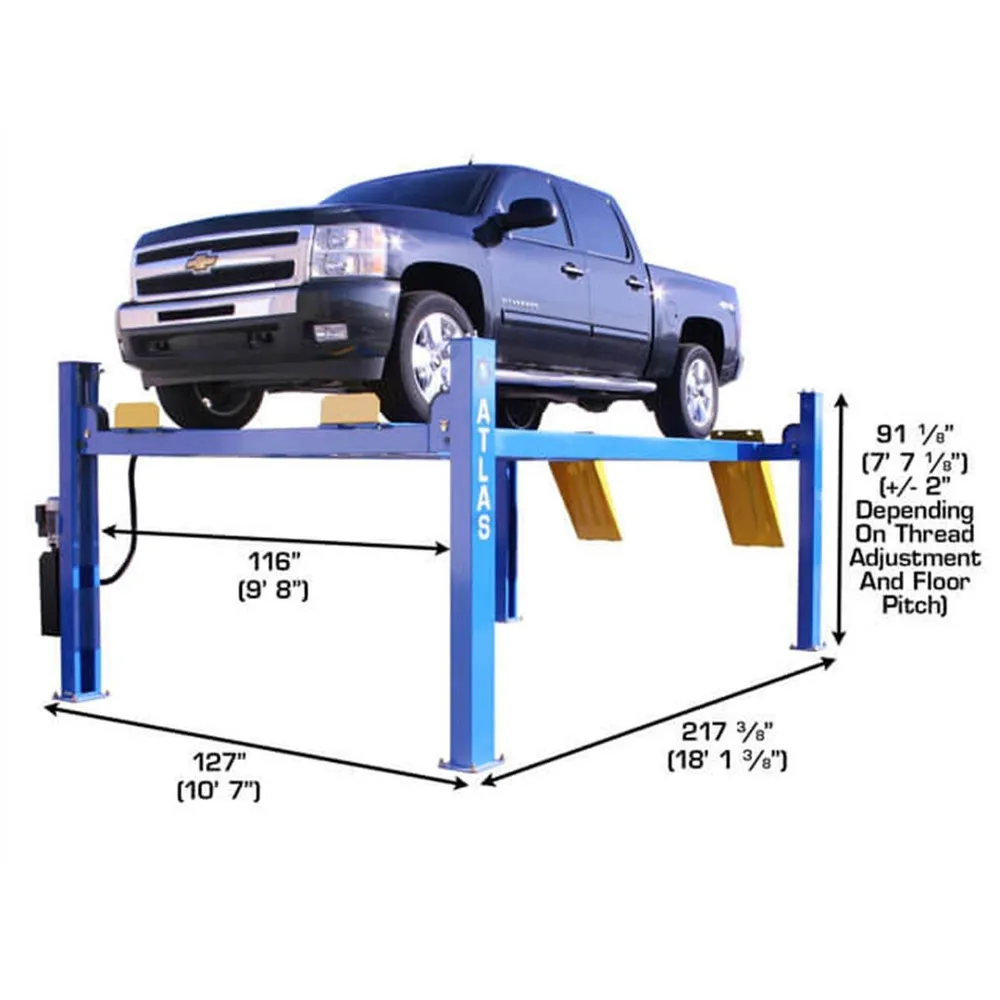

• Clearance Between Columns 116″ (9′ 8″)
• Height Of Columns 91 1/8″ (7′ 7 1/8″)
• Maximum Wheel Base 197″ (16′ 5″)
• Drive Thru 102 1/8″ (8′ 6 1/8″)
• Air Requirement 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
• Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 3,200 LBS.
• Requires a minimum of 6″ of concrete with a 3000 psi. rating
