Challenger CL10AV3 10,000 lb ALI Certified Versymmetric Two-Post Adjustable Lift
$7,147.00
The Challenger CL10AV3 is a 10,000-lb. ALI Certified symmetric two-post car lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.
In Stock
Description
Shop the Challenger CL10AV3 10,000 lb ALI Certified Versymmetric Two-Post Adjustable Lift at Variety Engines — every unit is carefully inspected, warrantied, and ready to ship fast across the US.
- 10,000 lbs. lift capacity

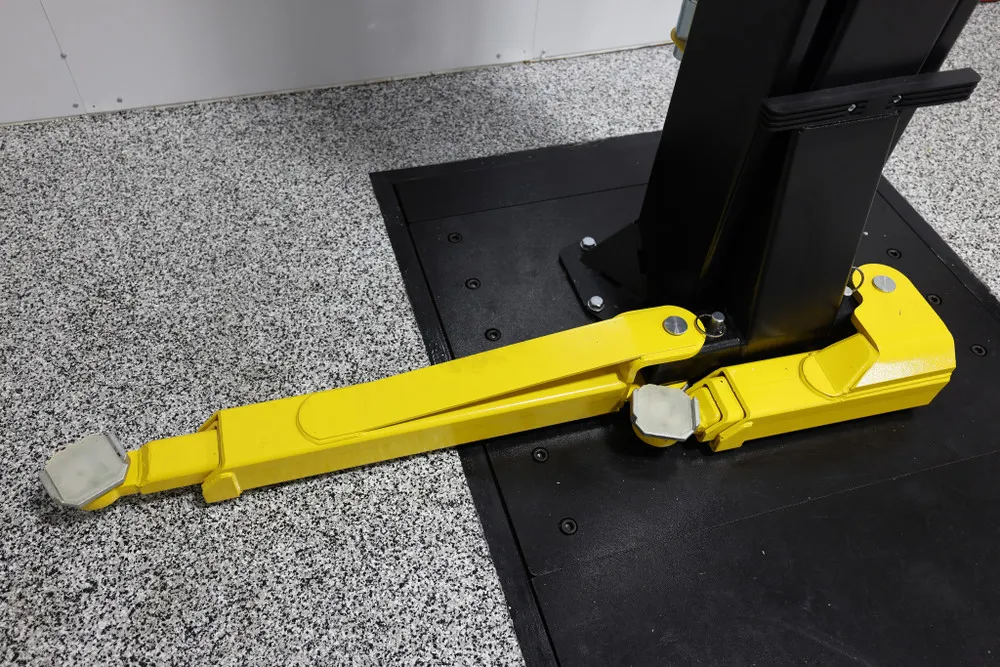

- Versymmetric® offset front arms provide directSPOT™ to vehicle lift points and safely lifts both symmetrically and asymmetrically within the same service bay maximizing service capabilities and revenue potential
- Oversized 5 in. diameter pulley and heavy duty 5/16 in. cable reduces stress on equalization system and increases cable life
- 48 in. elongated carriage design increases lift life
- Three settings for width adjustment, from 11′ 6.5″ to 12′ 6.5″
- Standard model fits 12 foot ceiling height. Additional 2 foot or 3 foot extensions available
- Padded overhead shut off system prevents vehicle damage

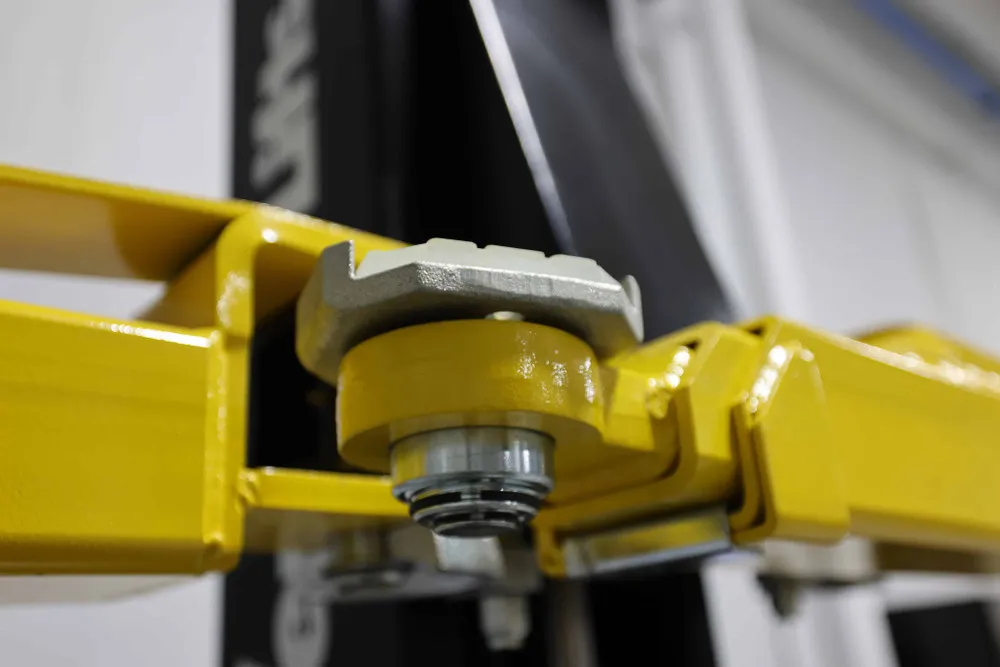

- Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters
- Fully gusseted base plate design increases column rigidity

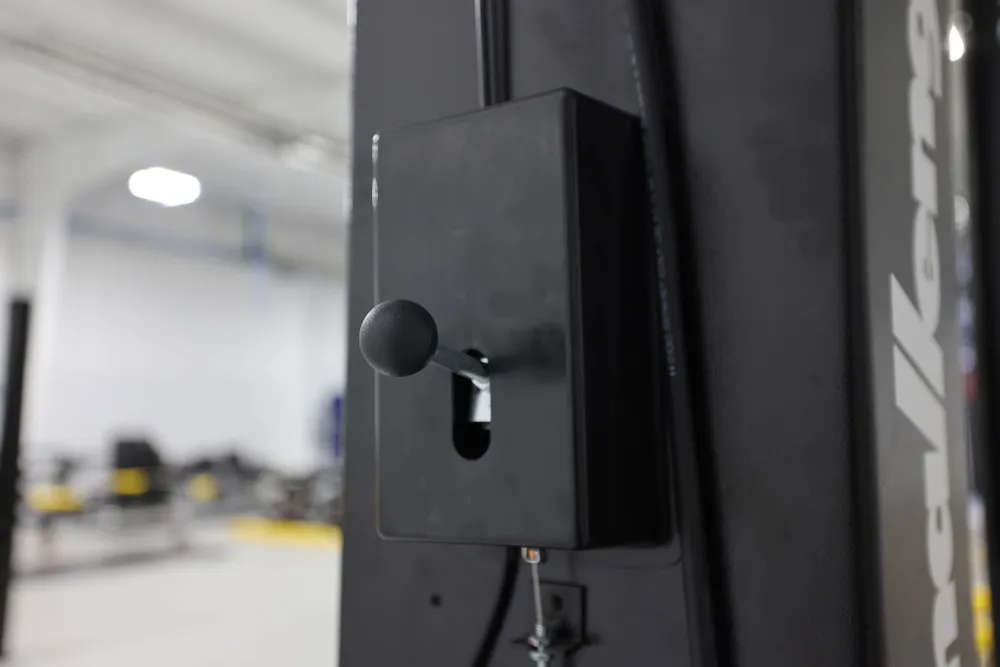

- Pulley-less jacketed single-point lock release system makes for smoother, easier operation and longer life
- Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
- Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
- Premium powder coat finish provides long-lasting durability
- ALI® Certified
| Model Number | CL10AV3 |
|---|---|
| Lifting Capacity | 10,000 lbs. |
| Lift Configuration | Standard |
| Arms | 3-stage front/3-stage rear |
| Rise Height | 74.125” |
| Overall Height | 11′ 2″ or 11′ 8″ |
| Overall Height (Cylinder Extended) | 11′ 11″ |
| 2’ Height Extension Available | Yes |
| 3’ Height Extension Available | Yes |
| Overall Width | 11′ 6.5″ / 12′ .5″ / 12′ 6.5″ |
| Drive-Thru Clearance | 100″ / 106″ / 112″ |
| Floor to Overhead Switch | 10′ 8.5″ – 11′ 2.5″ |
| Front Arm Reach | 20” – 42” |
| Rear Arm Reach | 37.625” – 60” |
| Screw Pad Height | 3.875” – 6.125” |
| Inside Columns | 110″ / 116″ / 122″ |
| Motor / Voltage | 2HP, 208v-230v, 60Hz, 1Ph |
| Speed of Rise | 38 s |
| Ceiling Height Required | 12′ |
| ALI/ETL Certified | Yes |
| Colors Available | Red, Blue, Black |
About the Challenger CL10AV3 10,000 lb ALI Certified Versymmetric Two-Post Adjustable Lift
This unit is quality-tested and ready to install. Browse more Two Post Lifts, or contact our team with your VIN for fitment help — with fast, tracked shipping on every order.
