BendPak’s HDSO14AX is a high-quality open-front alignment lift which can easily handle 14,000 lbs. With its intuitive “open” design, it’s easier than ever to access the front turn plates as well as the undercarriage. This alignment lift is equipped with front turn plates and rear slip plates which are built directly into the runways. When using this lift, wheels will respond to any adjustment with no resistance.

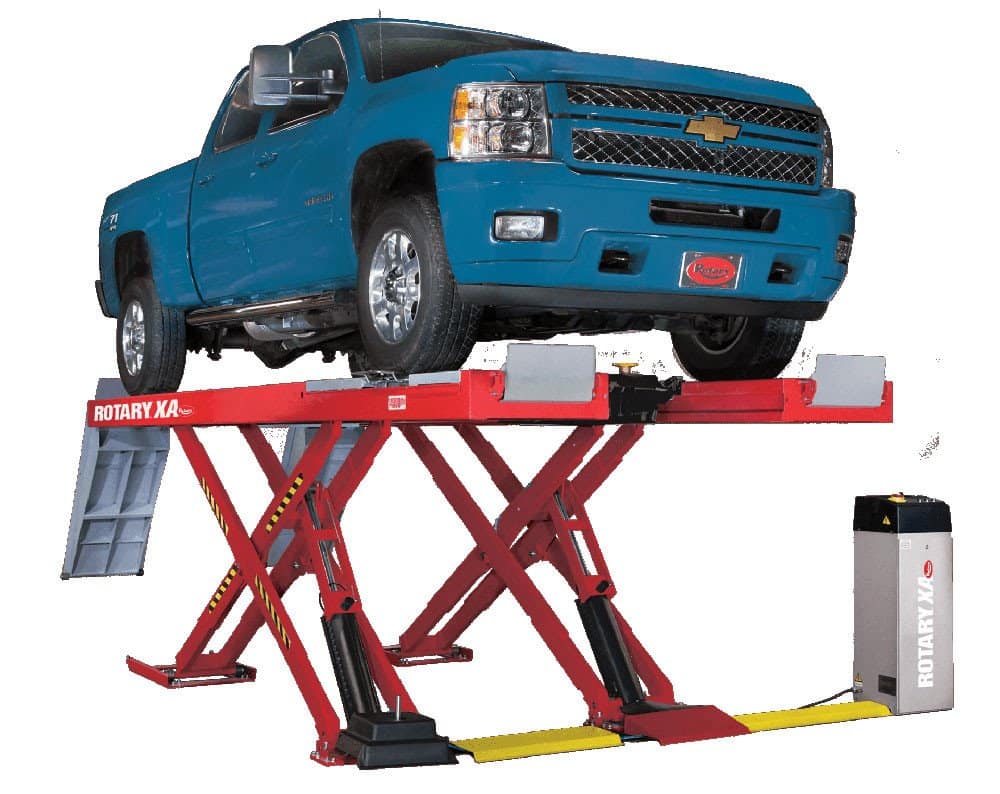

Rotary’s 14,000-pound alignment scissor lift offers an impressive 193-inch max wheelbase. The lift’s front radius gauge area has an extended, lengthened recess where multiple plates can be configured for vehicles with longer wheelbases, handling vehicles with wheel bases as little as 85.5 inches to larger trucks and vehicles up to 198 inches.

• 30,000 lb. lift capacity
• Closed front design with 244.5″, 281″, or 317” max wheelbase
• 71.75” rise height provides maximum head room for working underneath vehicles
• Multiple locking positions for a variety of alignment and general service tasks
• Compatible with the industry’s latest camera imaging alignment systems
• Adjustable lock ladders allow for a versatile install with sensitivity to uneven floors
• Recessed turn plate pockets for easy drive-on (Alignment models only)
• Single-point air actuated lock release disengages column locks simultaneously
• Durable diamond-plate approach ramps for positive vehicle traction
• Built-in runway rail system provides versatility to add convenience options like rolling jacks and oil drain pan (sold separately)

Model Number	4030SAX	4030EAX	4030XAX
Lifting Capacity	30,000 lbs.	30,000 lbs.	30,000 lbs.
Max. Wheelbase 1	244.5”	281”	317”
Rise Height	71.75”	71.75”	71.75”
Overall Length	308”	344”	380”
Overall Width	172.75”	172.75”	172.75”
Inside Columns	152”	152”	152”
Between Columns	246.125”	282.625”	318.625”
Height of Columns	92.25”	92.25”	92.25”
Height of Runways	8.5”	8.5”	8.5”
Width of Runways	24”	24”	24”
Width Between Runways	46” - 52”	46” - 52”	46” - 52”
Air Supply Required	90 - 120 psi	90 - 120 psi	90 - 120 psi
Motor / Voltage (Single Phase Std)	3HP, 208v - 230v	3HP, 208v - 230v	3HP, 208v - 230v
Speed of Rise	TBD	TBD	TBD
Max 2 Wheel Alignment	219.5”	256”	292”
Min Recomm. Bay Size	28’ x 17’	31’ x 17’	34’ x 17’
ALI/ETL Certified	Yes	Yes	Yes
Colors Available	Black	Black	Black

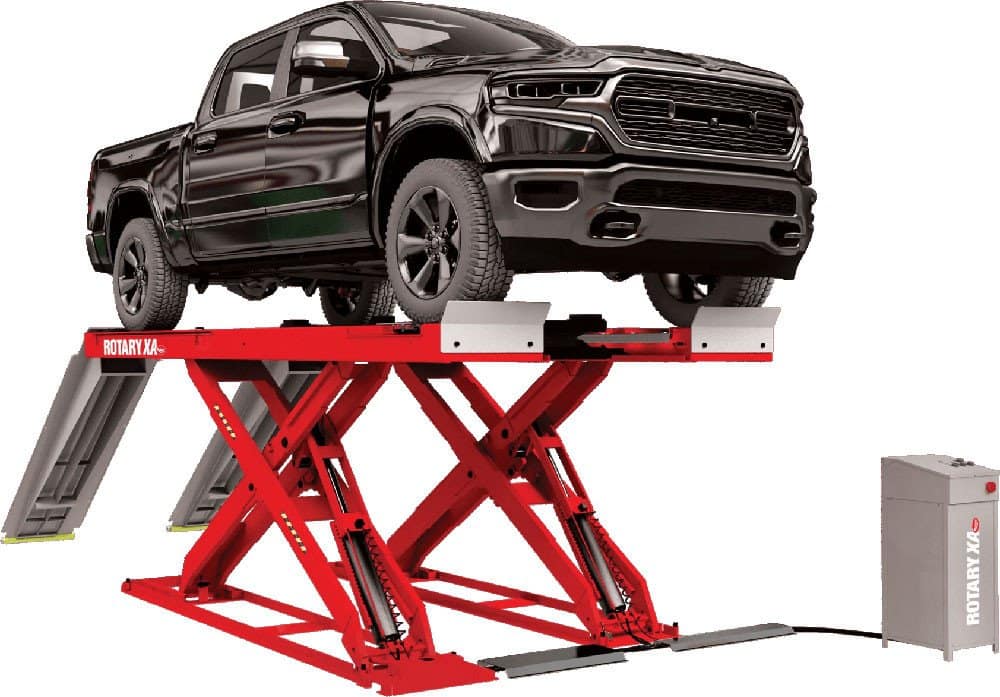

Rotary’s XA12 alignment lift is the perfect small bay solution for servicing cars, trucks, and everything in between. It has the most extensive four-wheel alignment wheelbase range in its class size (78“-164”) and a 12,000 lb. lifting capacity.

A Four-Post Truck Lift for Every Alignment Application

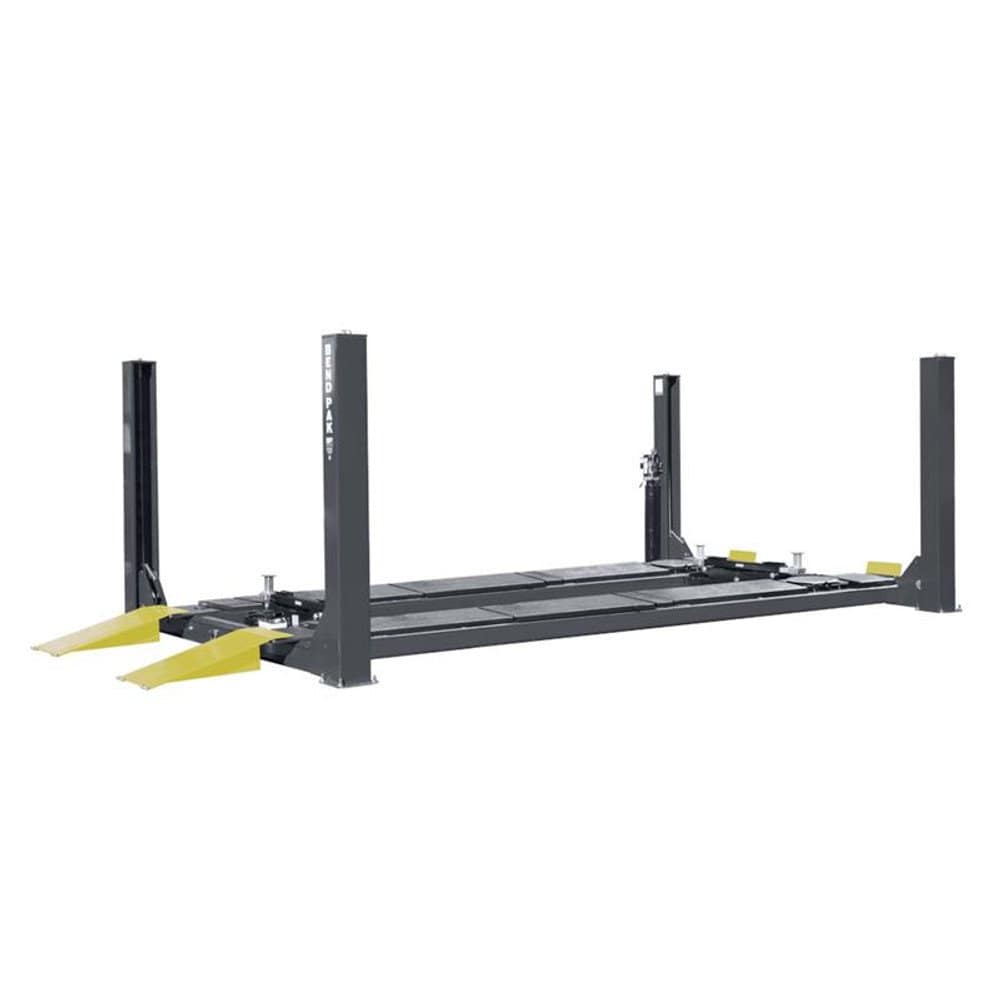

BendPak’s largest-capacity alignment lift easily accommodates vehicles up to 18,000 lbs. Of course, it still services smaller sports cars and race cars without a problem. If your shop is busy and can’t afford the space for multiple lifts, you’ll need the extra lifting power to be ready for those lager trucks and SUVs. The HDS-18EA offers the same safety features and rugged design as every other car lift we make, from the aircraft-quality steel cables and enhanced cable sheaves to the adjustable locking heights and slack-cable secondary lock system. You’ll also enjoy the best warranty money can buy, which makes this ​auto lift the very best value of any alignment lift, anywhere. Full stop.

CROA14 Alignment Runway Lift Features: The CROA14 is an alignment-ready lift that offers two runway lengths configured for vehicles with longer wheelbases. Service vehicles with wheelbases up to 215”. Its open front lift design allows for greater vehicle access.

The Atlas® PX16A 16,000 lb. capacity scissor alignment lift is the perfect choice for those service shops that need a space saving (narrow width) alignment lift to accommodate most all passenger cars up to heavy-duty long wheel base trucks and vans. The Atlas® PX16A allows the operator to perform 4-wheel alignments for vehicles with wheel base lengths from 96 inches to 184 inches. The Atlas® PX16A includes a set of turntables and the runway jack rail is designed to accommodate optional rolling jacks (like the Atlas® RJ8000BK). The lift is equipped with a semi enclosed air line kit routing system to accommodate the optional airline kit. This air line kit will provide air to the rolling jacks and prevent shop air hoses from cluttering the floor.

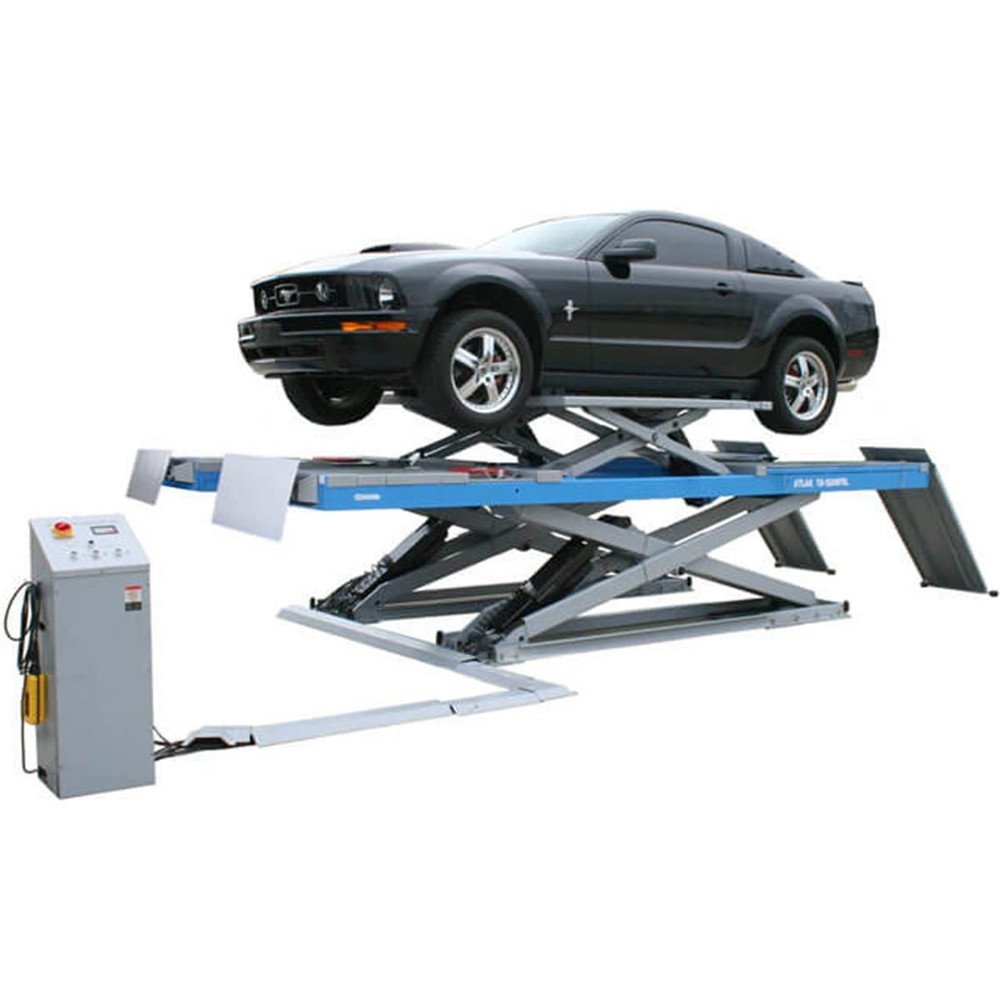

The Atlas® 12AWFSL 12,000 lb. scissor alginment lift has all the same features as the Atlas® 12ASL lift but with the addition of built in runway lifts known as the "Wheels Free" lifting system. When a vehicle is loaded on the 12AWFSL lift the "Wheels Free" jacks will raise a vehicle by the frame, lifting it so the wheels come off the runways for easier access and to facilitate alignments. The "Wheels Free" jacks are conveniently controlled at the lifts control console. The Atlas® 12AWFSL has a lifting height of over seven feet so that it may be floor mounted or recessed in the floor for flush mounting. The full frame under the scissor lift provides for maximum stability. The separate control panel may be conveniently positioned to allow easy access for the operator. The 220 volt (single phase) electric/hydraulic power unit is housed inside the metal control panel box. The push button controls activate the raising and lowering of the lift. The sophisticated air actuated lock system is automatically engaged and disengaged as the lift is being raised or lowered. The lift has a safety lowering limit switch. Once the lift platforms are lowered to within 10 inches of the ground, the lift automatically stops its descent. The Down button needs to be released and depressed again to allow the lift to go down completely. The Atlas® 12AWFSL has welded rails on the inside of the runways allowing the customer the option of using a rolling jack (such as the Atlas® RJ-6). Quality workmanship, ease of operation, straight forward installation instructions, a durable powder coat finish and the lowest prices in the industry makes the Atlas® 12AWFSL 12,000 lb. alignment scissor lift the perfect choice for the demanding and discriminating ship owner. This Alignment System allows the customer to utilize a minimum amount of space and still be able to align the smallest foreign car all the way up to a one ton dually.

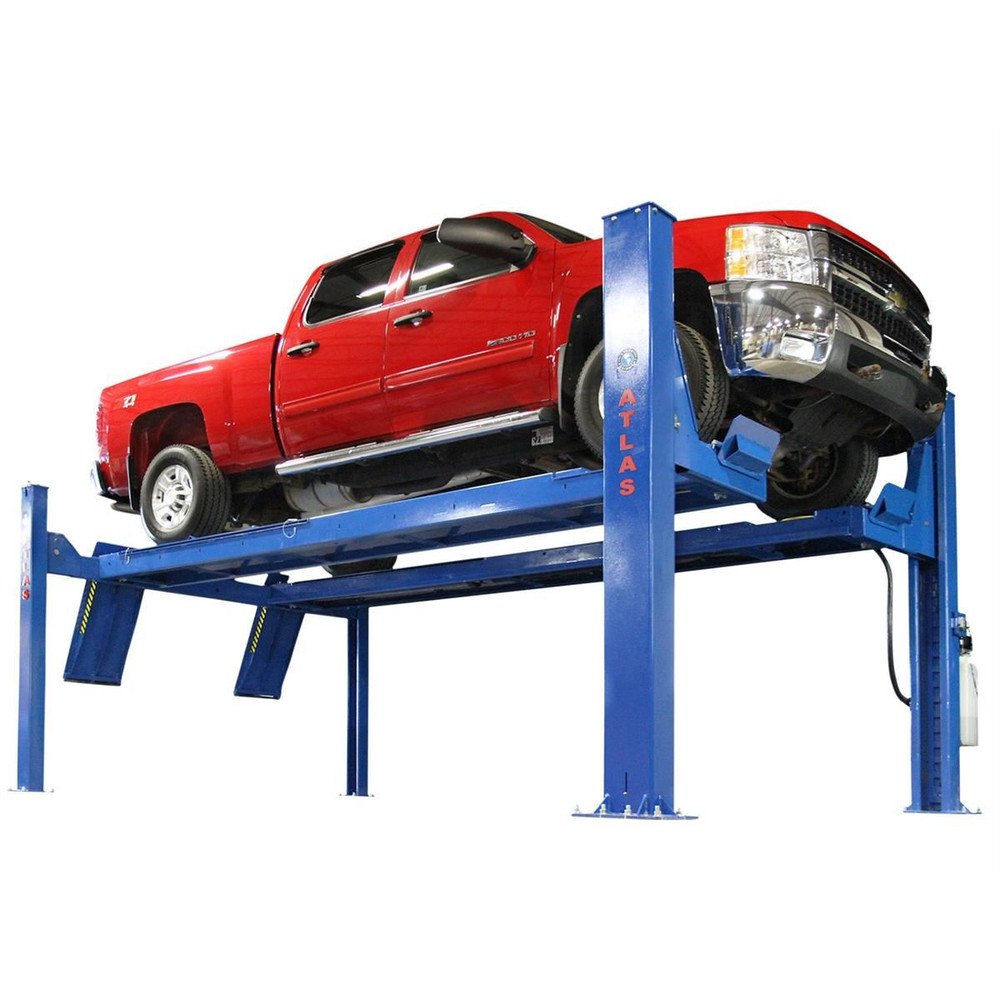

The Atlas® Platinum PVL14OF-EXT is a four post commercial grade Open-Front Alignment lift designed with the professional shop in mind. This lift has extra long runways and can accommodate a variety of cars, vans, SUVs, trucks, and commercial vehicles. the Open-Front design allows better access to the underside of vehicles during use. The AP-PVL14OF-EXT features built in slip plates and a pair of heavy duty turntables so the user can do wheel alignments. The Platinum PVL14OF-EXT uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”. The Atlas® Platinum PVL14OF-EXT features “tracks” between the runways to allow the use of a rolling bridge jack (recommended is the Atlas® Platinum RJ7000) on the lift. Rolling jacks sold separately. The Atlas® Platinum PVL14OF-EXT is also ALI certified and backed by one of the industry's best warranties for an added peace of mind. This product features an ALLY Hydraulic AL3000 Power Unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.

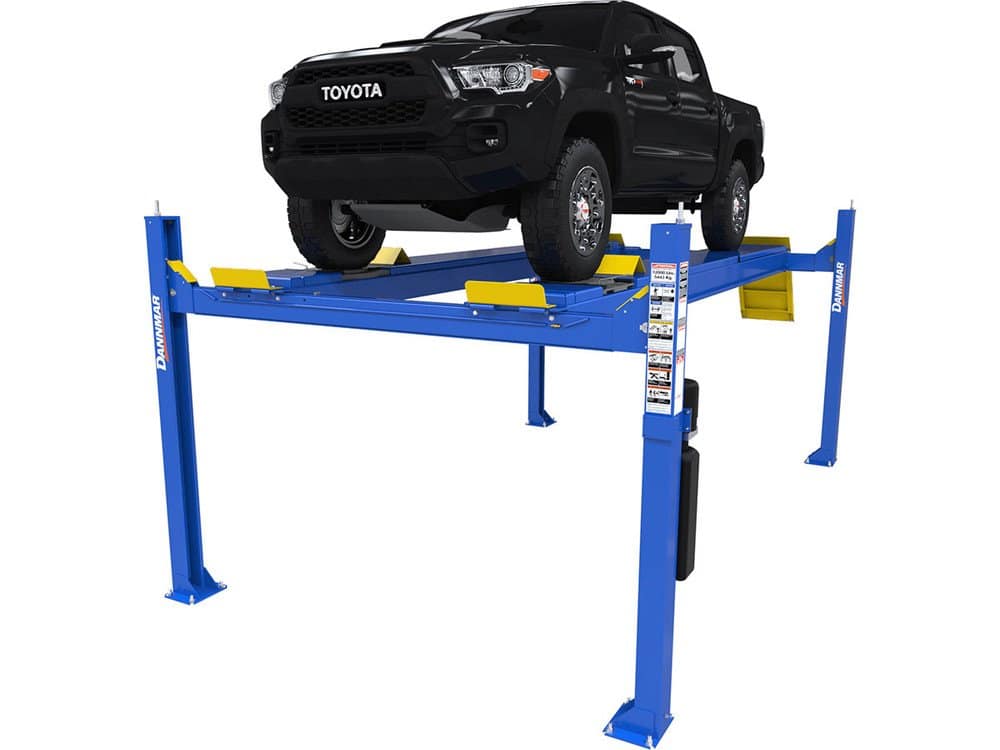

Dannmar’s 12,000 lb. capacity alignment lift is two lifts in one. That’s because it works as an alignment system and a car lift. Dannmar’s utilized industrial-strength slip plates and turn plates into the runways to provide optimal results. With this, the wheels respond to every adjustment with effectively no resistance. This is the sturdy alignment lift for most shops, especially if you service large, low ground-clearance vehicles. Dannmar’s alignment system features front turn plates and rear slip plates built right into the runways. The wheels always respond to your adjustments with free-floating and no resistance. Dannmar’s D4-12A four-post alignment lift utilizes multi-caster slip plates in the rear and turn plates in the front that allow for very precise alignments. These turn plates also provide more clearance for equipment installations. The lift can otherwise be used for most repairs and vehicle or light to medium weight truck storage. With a lift like the Dannmar D4-12A, shops can free up extra floor space or increase parking capacity. The Dannmar D4-12A alignment lift comes standard with robust 10.5” diameter dual-hub cable sheaves within the runway and cross tubes and 2.25” diameter sheave axles. A heavy-duty 1/2” diameter aircraft-quality stainless-steel lifting cable runs through each of the four columns. Designed for non-stop use and totally resistant to rubbing and other abrasions from weather, chemicals, and hydraulic oil. Aircraft-quality stainless steel and aluminum pneumatic cylinders provide years of trouble-free service. Other features include electric/hydraulic power, push button pneumatic lock release, adjustable height locking positions, an optional rolling bridge jack, and more.
