BendPak
BendPak XPR-12CL-LTA-192 12,000 lb 2-Post Lift, ALI Certified, Clearfloor, Long-Reach Telescoping Arms, 192" Height
SKU VE-7023Condition New
$12,195.00
In stock — ships in 1–2 business days
The BendPak XPR-12CL-LTA-192 is a 12,000-lb. ALI Certified clearfloor four-post lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.
Call with your VIN or tag number and we will confirm this listing fits before you pay.
- Shipping
- Freight, 3–6 business days
- Returns
- 45 days, by mail
- Warranty
- See warranty terms
- Payment
- Bank transfer, Zelle, Chime
Product details
Features & Specs
- 12,000-lb. lifting capacity
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
- Padded overhead safety shutoff bar
- Extended height top-beam provides greater overhead clearance
- Single-point safety release
- Dual direct-drive hydraulic cylinders
- Dual-synchro equalization system for equal lifting
- Oversized 53" tall carriage for superior strength and durability
- Electric / hydraulic power system
- Oversized A36 steel base plates
- Self-lubricating dura-glide UHMW polyethylene bearing system
- Safety locks in each column spaced every 3"
- Plated arm restraints and arm pins for rust prevention
- Heavy-duty 1/2" aircraft-quality equalizer cables
- Oversized cable sheave diameter reduces cable fatigue
- Durable, rubber lift pads with stackable adapters
- 16-piece specialty adapter set includes four 6" stackable adapters, four 3" stackable adapters, four polyurethane contact pads and four frame cradle pads
- Convenient storage is included for truck and van adapters

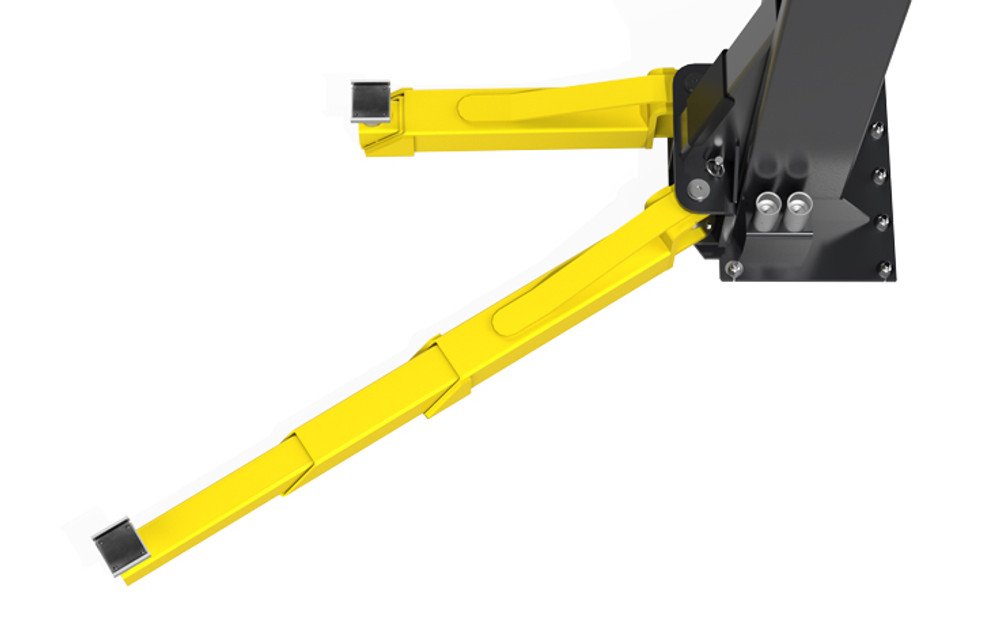

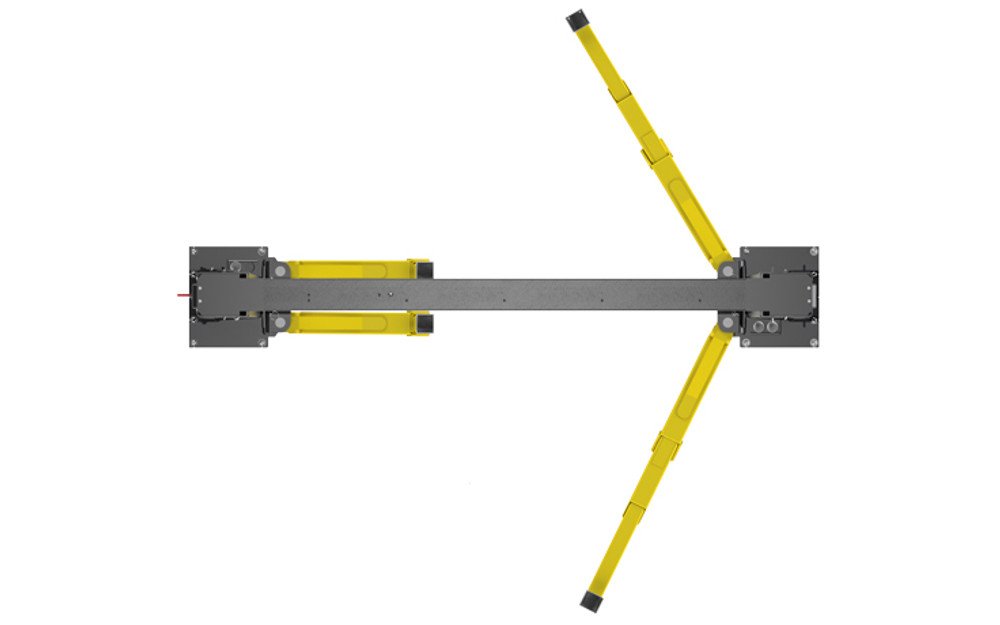

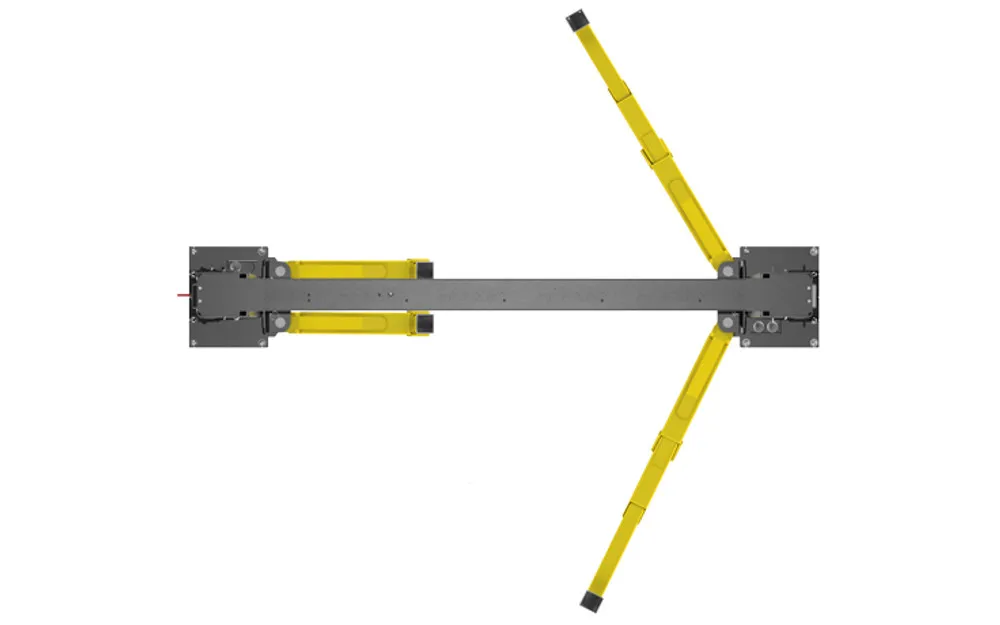

- Long-reach triple-telescoping arms provide increased range for lifting point access
Capacity
Lifting Capacity* 12,000 lbs. (5,443 kg)
*Max Capacity / Front Axle 6,000 lbs. (2,722 kg)
*Max Capacity / Rear Axle 6,000 lbs. (2,722 kg)
Rise
A - Rise: 69" (1,753 mm)
B - Rise + Pad Only: 74" (1,880 mm)
C - Rise + Pad + 63 mm Adapter: 80" (2,032 mm)
D - Min. Height + Pad: 5" (127 mm) Time to Full Rise: 45 seconds
Outside Dimensions
E - Height Overall: 192" (4,318 mm)
F - Width Overall: 155" (3,937 mm)
G - Outside Columns: 144" (3,658 mm)
Inside Dimensions
H - Inside Columns: 120" (3,048 mm)
I - Drive-Thru Clearance: 106" (2,692 mm)
J - Floor To Overhead Switch: 165" (4,191 mm)
Arms & Pads
K - Front Arm Reach: (MIN) 32" (813 mm)
K - Front Arm Reach: (MAX) 60" (1,524 mm)
L - Rear Arm Reach: (MIN) 32" (813 mm)
L - Rear Arm Reach: (MAX) 60" (1,524 mm)
Max Load Per Arm 3,000 lbs. (1,361 kg)
Shipping
Electrical: 220 VAC / 60 Hz / 1 Ph
Noise: 45 dB
Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Four Post Lifts.
