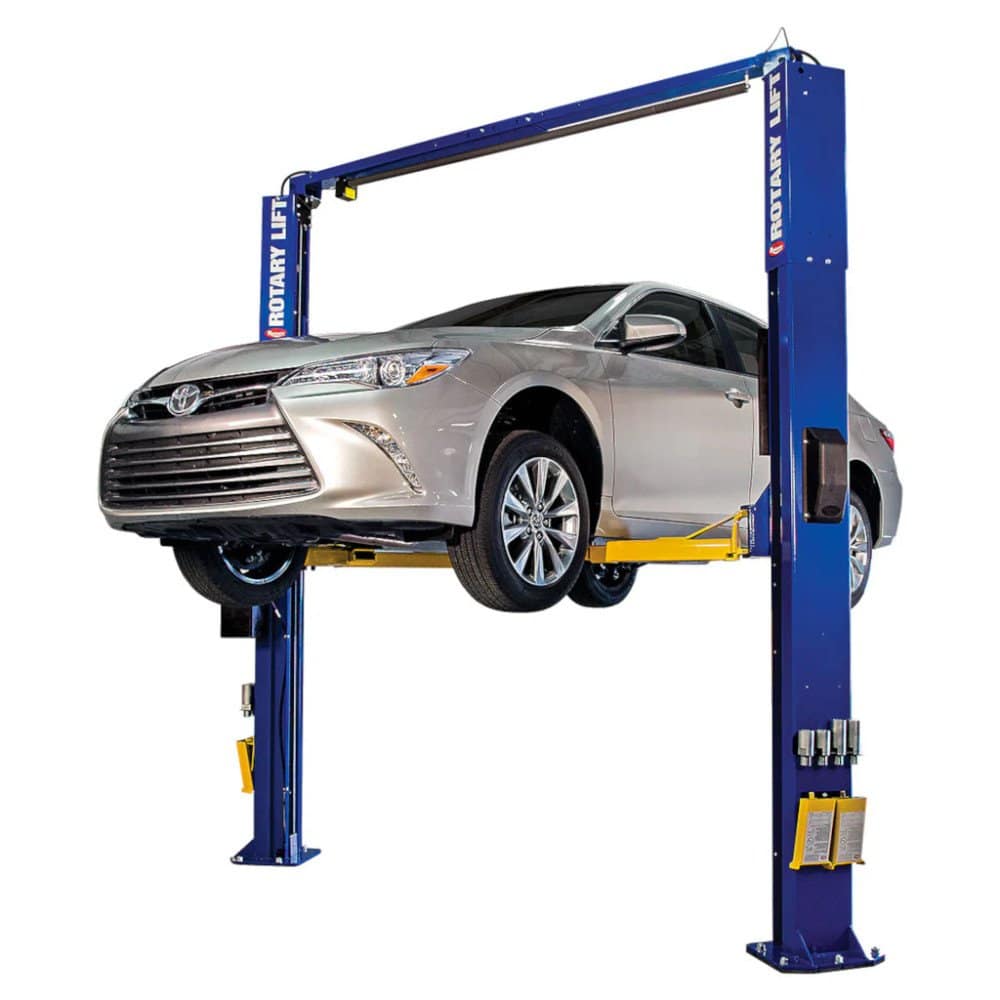

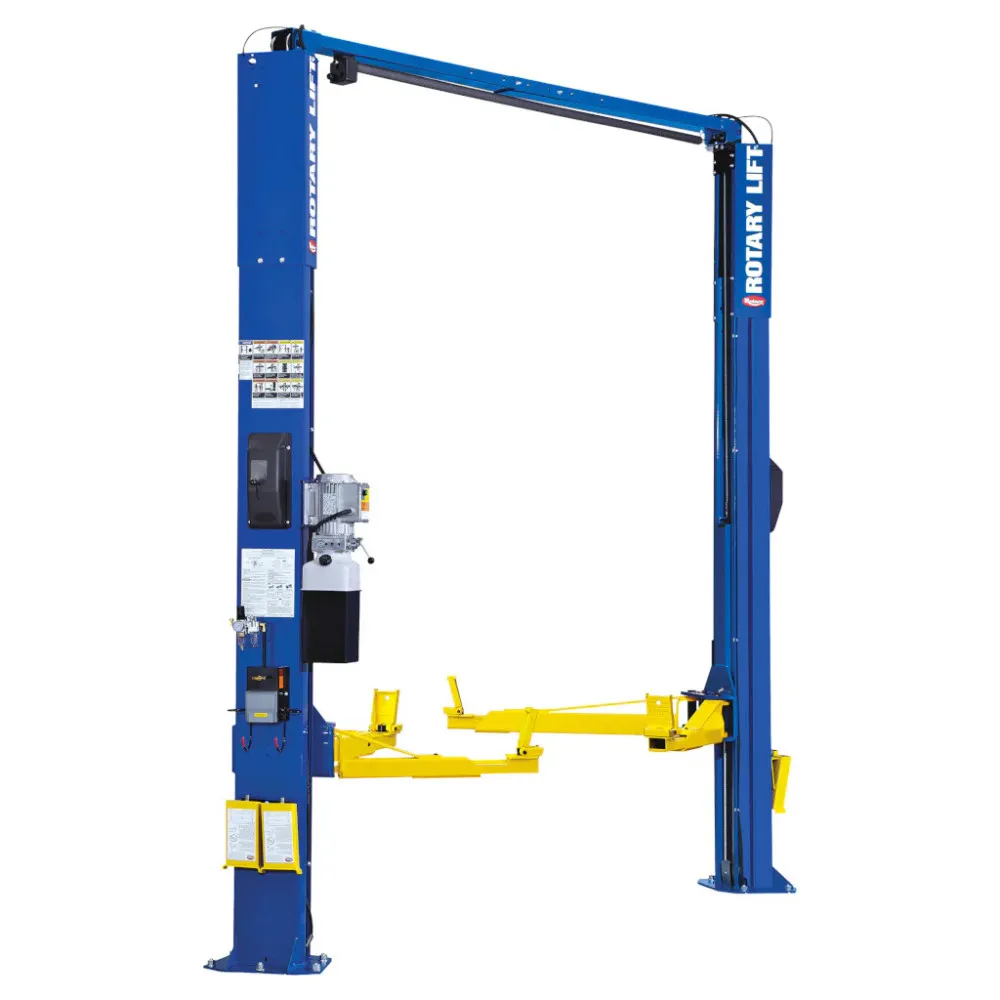

Rotary SPOA10 10,000 lb. ALI Certified Two-Post Asymmetric Lift | 2-Stage Arms with Flip-Up Adapters
$7,599.00
The Rotary SPOA10 is a 10,000-lb. ALI Certified asymmetric symmetric two-post car lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.
In Stock
Description
Shop the Rotary SPOA10 10,000 lb. ALI Certified Two-Post Asymmetric Lift | 2-Stage Arms with Flip-Up Adapters at Variety Engines — every unit is carefully inspected, warrantied, and ready to ship fast across the US.
Features:
- True asymmetric with columns rotated 30°
- “Double S” column design with single piece construction provides a channel for the bearings to travel in, maximizing the strength of the column and surface contact area of the bearing
- Single point lock release which releases the locks at the same time
- Two full stroke cylinders, one in each column
- Arm restraints on each arm engage when the vehicle is lifted
- Performance tested to 20,000 lift cycles
- ALI Gold Certified
| Specifications | SPOA10N700 |
| Arm Type | Conventional 2-Stage Design |
| Adapters | Standard Flip-Up |
| Capacity | 10,000 lbs |
| Rise | 72 3/4″ – 78 3/8″ |
| Overall Height | 11′ 8 1/2″ |
| Overall Width | 11′ 5 3/8″ |
| Drive-Thru | 95 1/4″ |
| Front Arm Minimum/Maximum | 20 1/2″ – 40 3/4″ |
| Rear Arm Minimum/Maximum | 40 1/4″ – 61″ |
| Minimum Adapter Height | 4 3/4″ |
| Median Adapter Height | 7″ |
| Maximum Adapter Height | 10 1/4″ |
| Inside Columns | 107 1/4″ |
| Minimum Bay Size | 12′ x 24′ |
| Minimum Ceiling Height | 12′ |
| Motor | 1 PH, 2 HP |
| Voltage | 208V – 230V |
| Time of Full Rise/Decent | 45 seconds/40 seconds |
About the Rotary SPOA10 10,000 lb. ALI Certified Two-Post Asymmetric Lift | 2-Stage Arms with Flip-Up Adapters
This unit is quality-tested and ready to install. Browse more Two Post Lifts, or contact our team with your VIN for fitment help — with fast, tracked shipping on every order.
