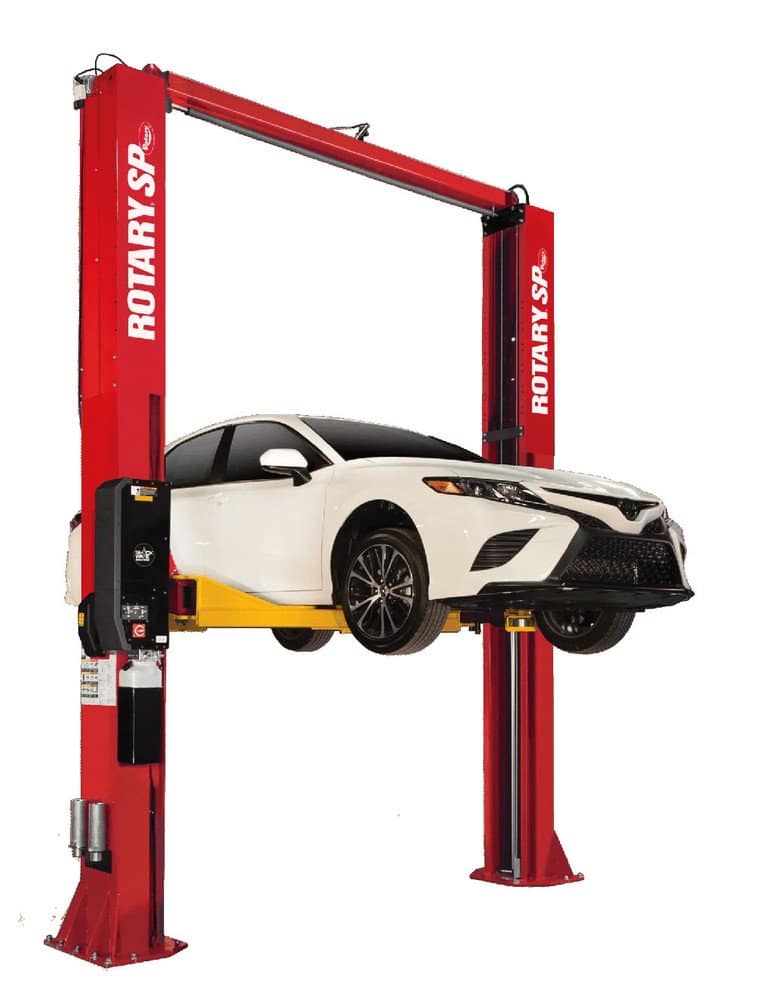

Rotary SPO16 16,000 lb. ALI Certified Two-Post Symmetric Lift with TRIO Arms
$27,045.00
The Rotary SPO16 is a 16,000-lb. ALI Certified symmetric two-post car lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you. Listed as: 16,000 lb. ALI Certified Two-Post Symmetric Lift with TRIO Arms.
Description
Shop the Rotary SPO16 16,000 lb. ALI Certified Two-Post Symmetric Lift with TRIO Arms at Variety Engines — every unit is carefully inspected, warrantied, and ready to ship fast across the US.
Three-stage arms for greater reach
• Original “Double S” column design
• Performance tested to 20,000 lift cycles
• Nationwide support
• ALI Gold Certified
Product Specifications
|
Specification |
SPO16-Standard |
SPO16-Low Ceiling |
|
Adapters |
Truck / Optional Round Adapters |
Truck / Optional Round Adapters |
|
Capacity |
16,000 lbs. |
16,000 lbs. |
|
Max. Load (per arm) |
4,000 lbs. |
4,000 lbs. |
|
Rise* |
80″ |
80″ |
|
Height Configurations |
Available in height increments of 6″ between 15′ to 16’6″ |
Available in height increments of 6″ between 13’6″ to 14’6″ |
|
Required Ceiling Height |
15’2″ – 16’8″ |
13’8″ – 14’8″ |
|
Overall Width |
13′ 5″ |
See note * |
|
Drive-Thru Width |
111-11/32″ |
See note * |
|
Inside Columns |
126-15/32″ |
See note * |
|
Front Arm Min/Max |
34-11/16″ – 64″ |
See note * |
|
Rear Arm Min/Max |
34-11/16″ – 64″ |
See note * |
|
Min. Adapter Height |
5-31/32″ |
5-31/32″ |
|
Max. Adapter Height |
8-1/32″ |
8-1/32″ |
|
Motor |
2 HP |
2 HP |
|
Voltage |
208v-230v |
208v-230v |
|
Time of Full Rise |
81 seconds |
81 seconds |
|
Min. Bay Size |
15’x30′ |
15’x30′ |
|
* Contact factory for available widths, drive-thru clearance, inside column widths and arm reach. |
||
About the Rotary SPO16 16,000 lb. ALI Certified Two-Post Symmetric Lift with TRIO Arms
This unit is quality-tested and ready to install. Browse more Two Post Lifts, or contact our team with your VIN for fitment help — with fast, tracked shipping on every order.
