Rotary X14 14000 lb ALI Certified Alignment Scissor Lift
$30,235.00

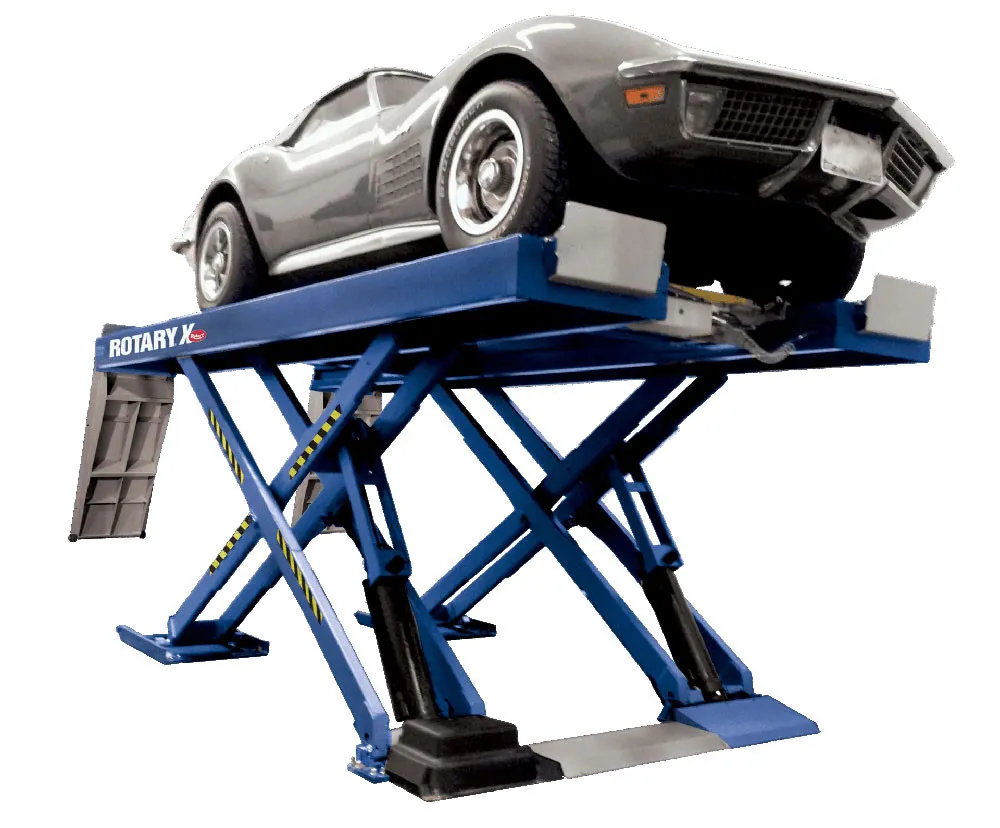

Rotary X14 14000 lb ALI Certified Alignment Scissor Lift
Rotary’s 14,000-pound scissor offers an impressive 193-inch max wheelbase. This configuration can handle vehicles with wheelbases as little as 85.5 inches to larger trucks and vehicles up to 198 inches. The X14 open front and rear design creates space-saving, working clearance through the entire middle of the lift, with open access points for easy movement.
This product has been added to 10 people'scarts.
Description
Rotary X14 14000 lb ALI Certified Alignment Scissor Lift
14,000 lbs. Capacity Scissor Lift
Open scissor design saves space and provides greater technician access with true vertical lifting
FEATURES:
40” Between Runways
Versatile 198” Wheelbase Range
Intuitive Console Controls
Folding Ramps With Rear Chocks
40” Between Platforms for More Access
Recessed / Surface Mount Options
Product Specifications
Model: X14
Capacity: 14,000 lbs. (6350kg)
Maximum Rise*: 72-3/4″ (1848mm) Surface Mounted
Lowered Height: 10-3/4″ (275mm)
Overall Length: 277″ (7035mm)
Overall Width: 91″ (2310mm)
Runway Width: 25-1/2″ (648mm)
Width Between Platforms: 40″ (1015mm)
Runway Length: 216″ (5486mm)
Max. Wheelbase: 198″ (5038mm)
Motor/Voltage: 5 hp / 230 volt / Single Phase
Time of Full Rise: 77 seconds
Lowering Time: 47 seconds
Compressed Air Connection: 85-110 psi
Recommended Bay Size: 14′ x 27′ (4.27m x 8.23m)
