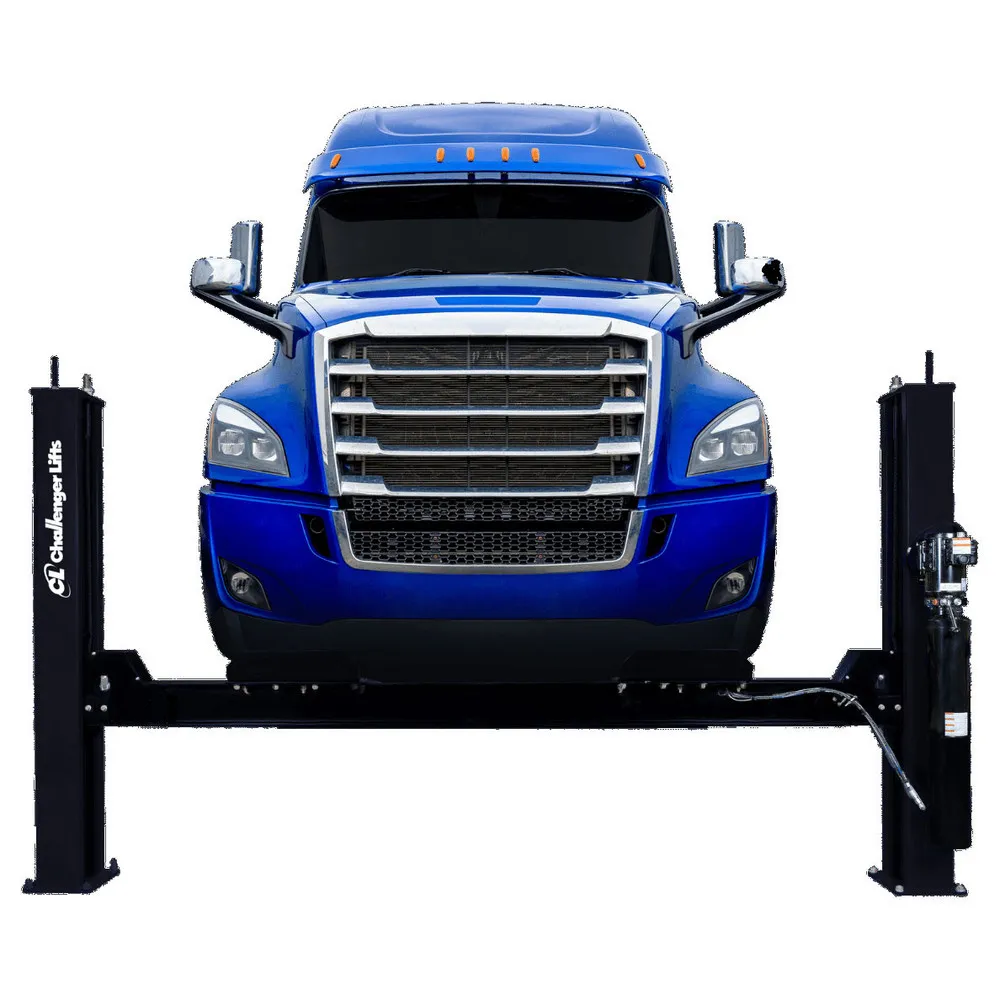

Challenger 4030 30,000 lb. ALI Certified Heavy-Duty 4-Post Alignment Lift
Challenger 4030 30,000 lb. ALI Certified Heavy-Duty 4-Post Alignment Lift - Image 2

Challenger 4030 30,000 lb. ALI Certified Heavy-Duty 4-Post Alignment Lift

In Stock

$37,459.00

  • 30,000 lb. lift capacity
  • Closed front design with 244.5″, 281″, or 317” max wheelbase
  • 71.75” rise height provides maximum head room for working underneath vehicles
  • Multiple locking positions for a variety of alignment and general service tasks
  • Compatible with the industry’s latest camera imaging alignment systems
  • Adjustable lock ladders allow for a versatile install with sensitivity to uneven floors
  • Recessed turn plate pockets for easy drive-on (Alignment models only)
  • Single-point air actuated lock release disengages column locks simultaneously
  • Durable diamond-plate approach ramps for positive vehicle traction
  • Built-in runway rail system provides versatility to add convenience options
    like rolling jacks and oil drain pan (sold separately)
Model Number 4030SAX 4030EAX 4030XAX
Lifting Capacity 30,000 lbs. 30,000 lbs. 30,000 lbs.
Max. Wheelbase 1 244.5” 281” 317”
Rise Height 71.75” 71.75” 71.75”
Overall Length 308” 344” 380”
Overall Width 172.75” 172.75” 172.75”
Inside Columns 152” 152” 152”
Between Columns 246.125” 282.625” 318.625”
Height of Columns 92.25” 92.25” 92.25”
Height of Runways 8.5” 8.5” 8.5”
Width of Runways 24” 24” 24”
Width Between Runways 46” – 52” 46” – 52” 46” – 52”
Air Supply Required 90 – 120 psi 90 – 120 psi 90 – 120 psi
Motor / Voltage (Single Phase Std) 3HP, 208v – 230v 3HP, 208v – 230v 3HP, 208v – 230v
Speed of Rise TBD TBD TBD
Max 2 Wheel Alignment 219.5” 256” 292”
Min Recomm. Bay Size 28’ x 17’ 31’ x 17’ 34’ x 17’
ALI/ETL Certified Yes Yes Yes
Colors Available Black Black Black
In Stock
Category:

Description

  • 30,000 lb. lift capacity
  • Closed front design with 244.5″, 281″, or 317” max wheelbase
  • 71.75” rise height provides maximum head room for working underneath vehicles
  • Multiple locking positions for a variety of alignment and general service tasks
  • Compatible with the industry’s latest camera imaging alignment systems
  • Adjustable lock ladders allow for a versatile install with sensitivity to uneven floors
  • Recessed turn plate pockets for easy drive-on (Alignment models only)
  • Single-point air actuated lock release disengages column locks simultaneously
  • Durable diamond-plate approach ramps for positive vehicle traction
  • Built-in runway rail system provides versatility to add convenience options
    like rolling jacks and oil drain pan (sold separately)
Model Number 4030SAX 4030EAX 4030XAX
Lifting Capacity 30,000 lbs. 30,000 lbs. 30,000 lbs.
Max. Wheelbase 1 244.5” 281” 317”
Rise Height 71.75” 71.75” 71.75”
Overall Length 308” 344” 380”
Overall Width 172.75” 172.75” 172.75”
Inside Columns 152” 152” 152”
Between Columns 246.125” 282.625” 318.625”
Height of Columns 92.25” 92.25” 92.25”
Height of Runways 8.5” 8.5” 8.5”
Width of Runways 24” 24” 24”
Width Between Runways 46” – 52” 46” – 52” 46” – 52”
Air Supply Required 90 – 120 psi 90 – 120 psi 90 – 120 psi
Motor / Voltage (Single Phase Std) 3HP, 208v – 230v 3HP, 208v – 230v 3HP, 208v – 230v
Speed of Rise TBD TBD TBD
Max 2 Wheel Alignment 219.5” 256” 292”
Min Recomm. Bay Size 28’ x 17’ 31’ x 17’ 34’ x 17’
ALI/ETL Certified Yes Yes Yes
Colors Available Black Black Black
