Bendpak 10AP-168 10,000‐lb. Capacity ALI Certified / Adaptable Clearfloor / Adjustable Width / Screw Pads / 168″ O.A. Height

SKU: VE-6808

In Stock

$7,295.00

The BendPak 10AP-168 10,000‐lb. Capacity / Adaptable Clearfloor / Adjustable Width / Screw Pads / 168″ O.A. Height is an ALI Certified clearfloor two-post car lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

In Stock

Description

Shop the Bendpak 10AP-168 10,000‐lb. Capacity ALI Certified / Adaptable Clearfloor / Adjustable Width / Screw Pads / 168″ O.A. Height at Variety Engines — every unit is carefully inspected, warrantied, and ready to ship fast across the US.

Durable powder coat finish
Expandable top beam accommodates wide or narrow drive-thru configurations
Double-telescoping screw pads offer increased versatility
Padded overhead safety shutoff bar

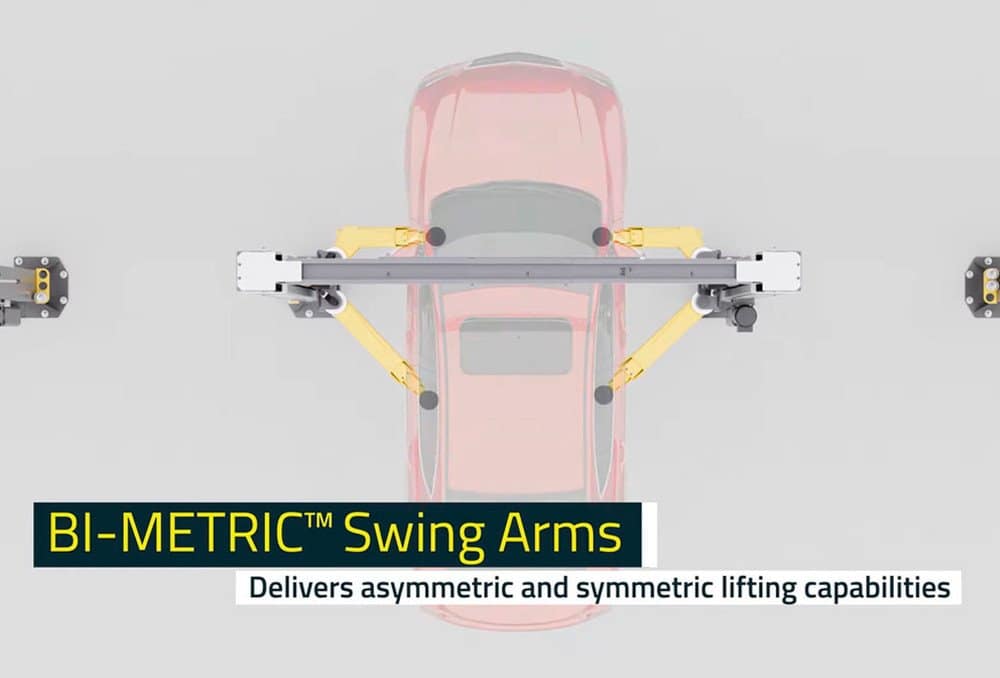

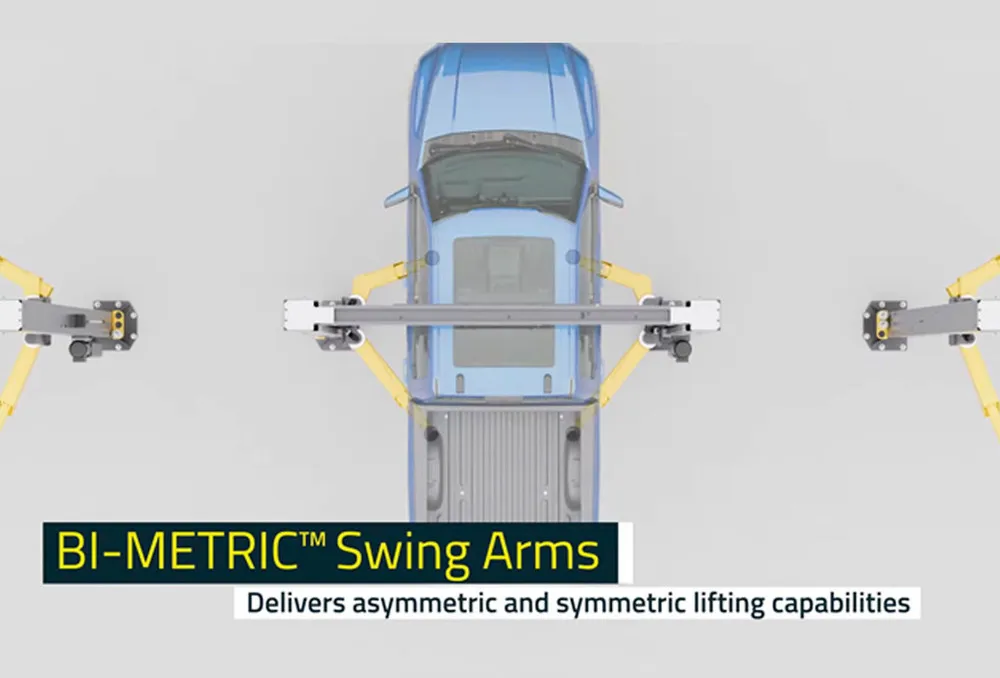

Exclusive Bi-Metric™ arm design for more versatile arm positioning
Single-point safety release

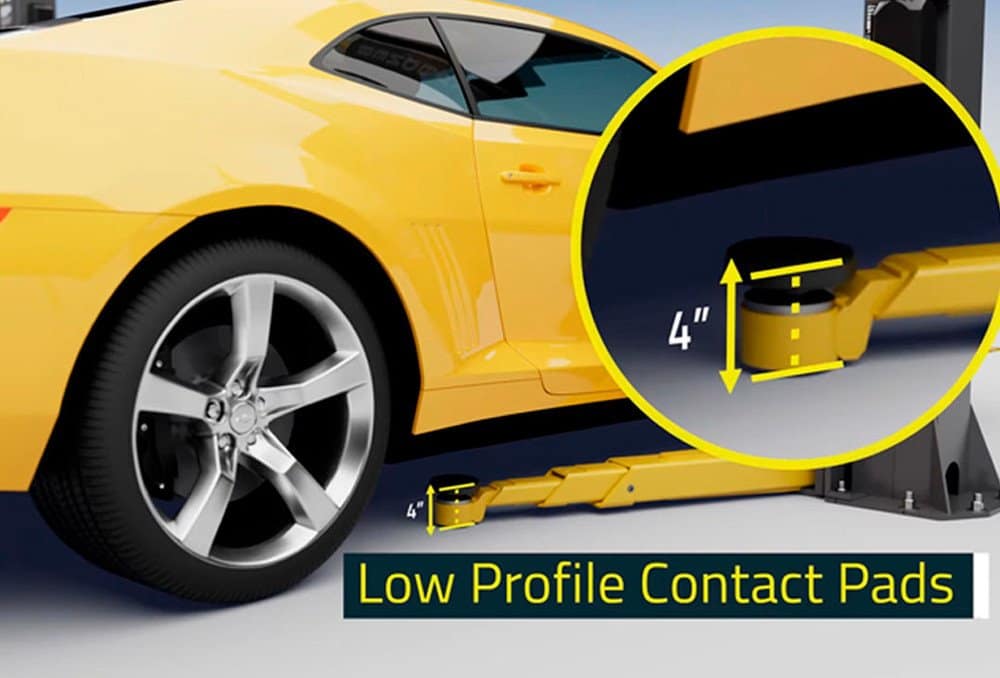

Drop-end arms provide a lower pad heigh
Dual hydraulic direct-drive cylinders
Oversized 53″ & 59″ tall carriages for superior strength and durability
Electric / hydraulic HVLP power system
Self-lubricating dura-glide UHMW polyethylene bearing system
Safety locks in each column spaced every 3″

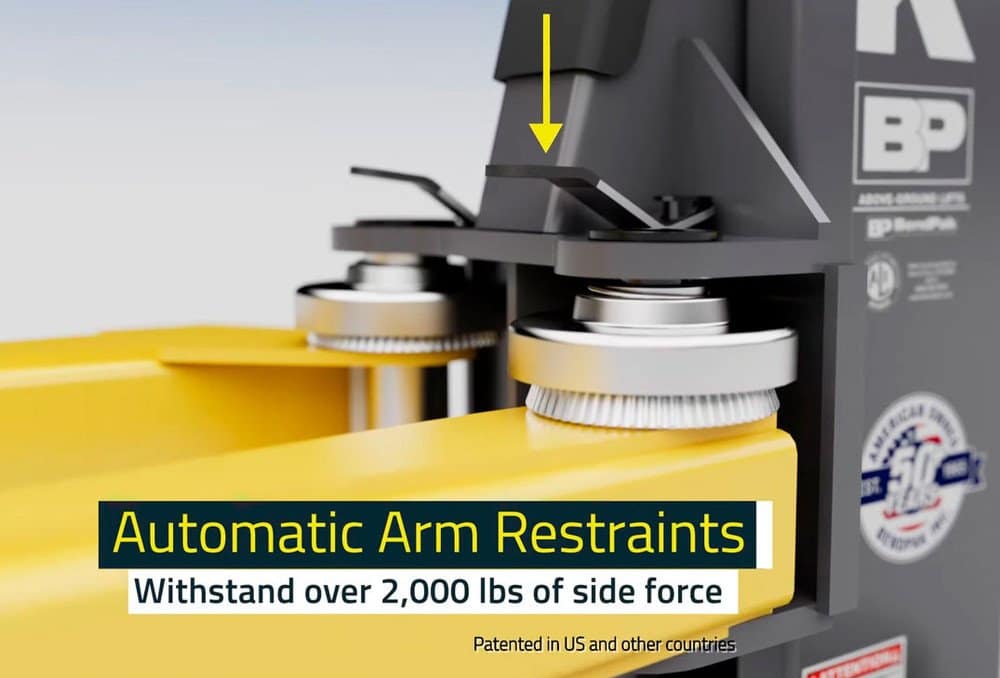

Automatic arm restraints withstand over 2000-pounds of side force
Heavy-duty 1/2″ aircraft-quality equalizer cables
Oversized cable sheave diameter reduces cable fatigue

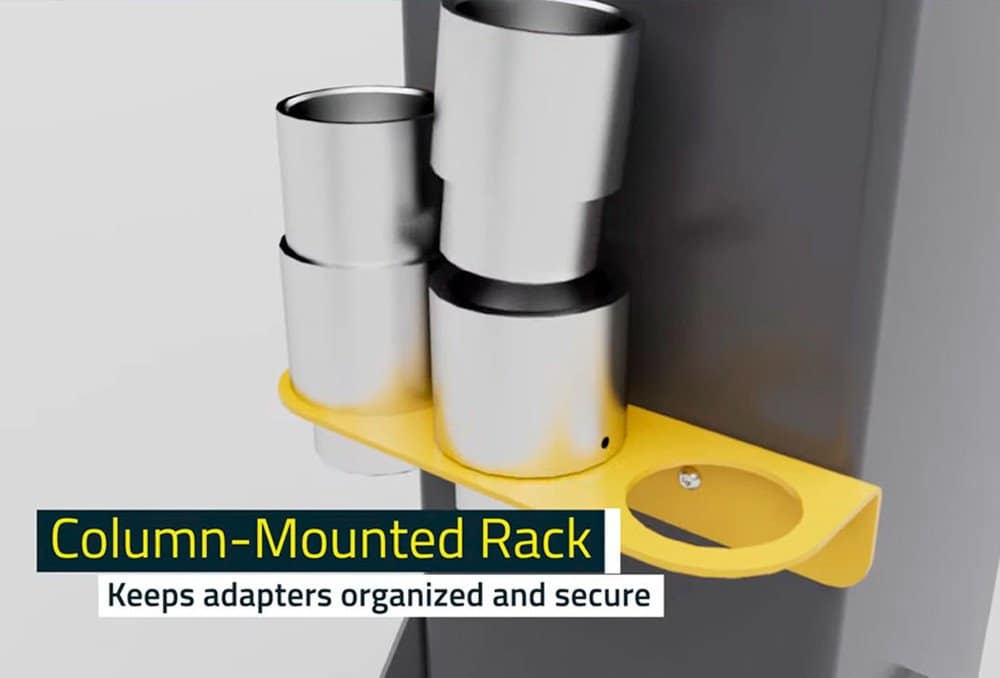

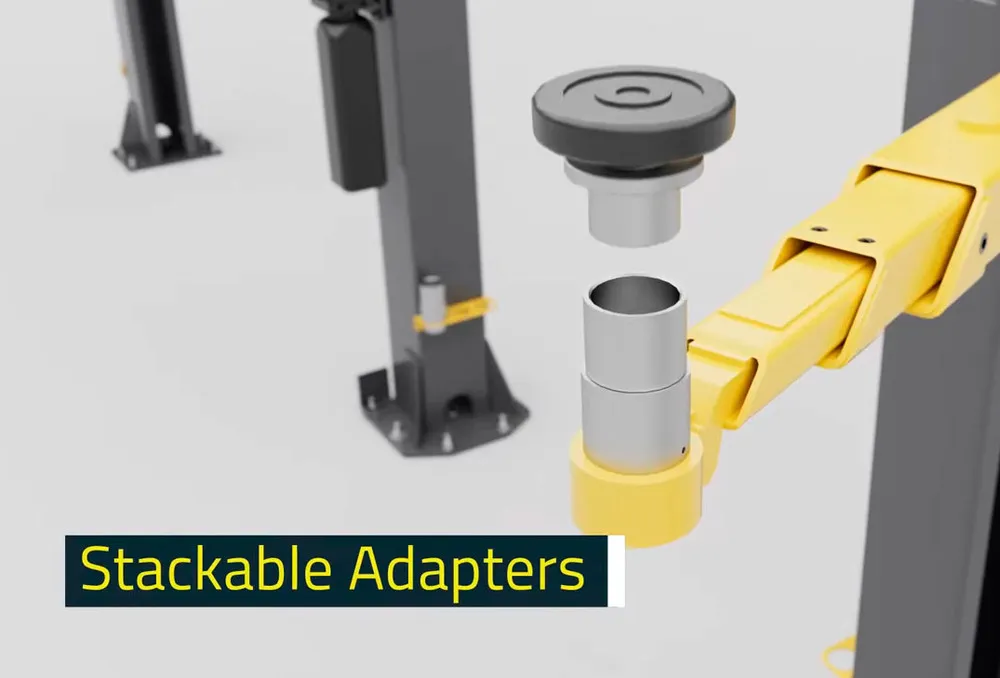

14-piece standard adapter set
Four triple-telescoping arms
ALI certified

Capacity

Lifting Capacity*: 10,000 lbs. (4,536 kg)

*Max Capacity / Front Axle: 5,000 lbs. (2,268 kg)

*Max Capacity / Rear Axle: 5,000 lbs. (2,268 kg)

Bendpak 10AP-168 10,000‐lb. Capacity ALI Certified / Adaptable Clearfloor / Adjustable Width / Screw Pads / 168" O.A. Height 1

Rise

A – Rise: 69″ (1,753 mm)

B – Rise + Pad Only: 73″ (1,854 mm)

C – Rise + Pad + 63 mm Adapter: 82.5″ (2,096 mm)

D – Min. Height + Pad: 4″ (102 mm)

Time to Full Rise: ≈45 seconds

Outside Dimensions

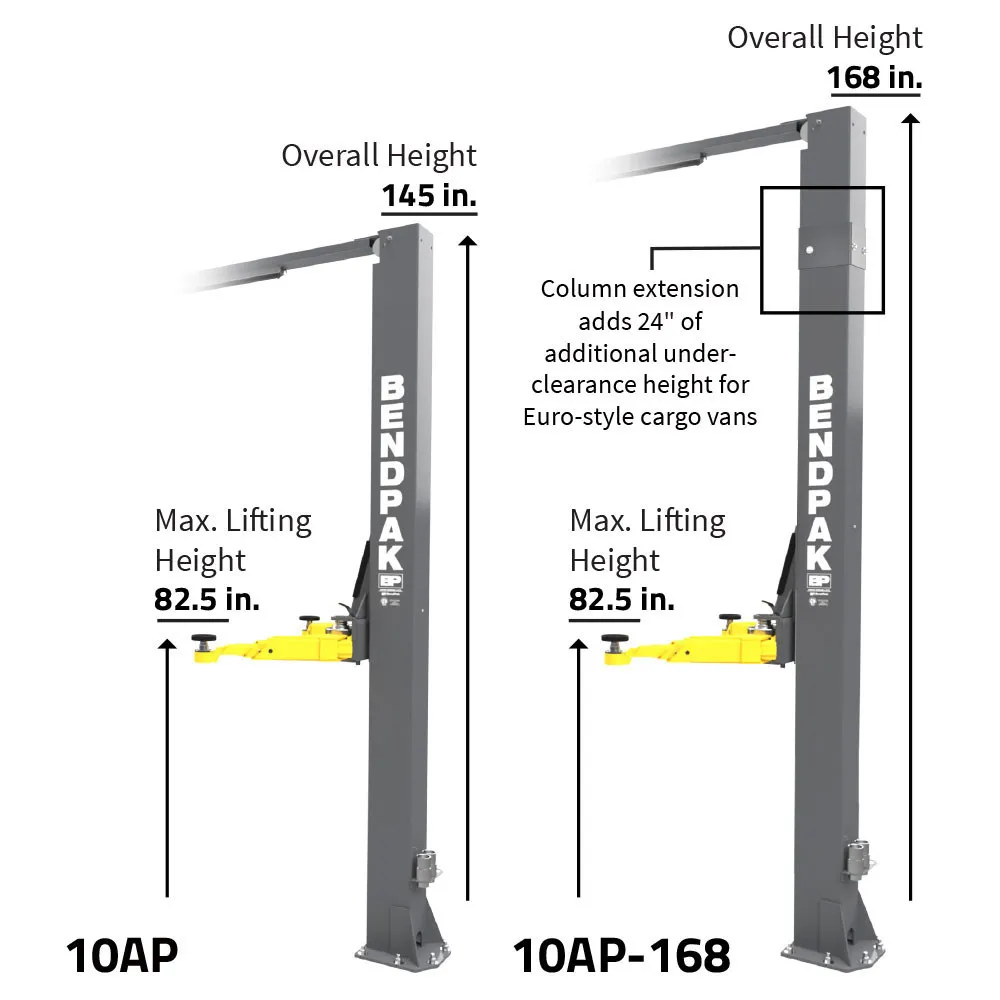

E – Height Overall: 168″ (4,267 mm)

F – Width Overall: 135″ (3,429 mm) or 145″ (3,683 mm)

G – Outside Columns: 127.5″ (3,239 mm) or 137.5″ (3,493 mm)

Inside Dimensions

H – Inside Columns: 108.5″ (2,756 mm) or 118.5″ (3,010 mm)

I – Drive-Thru Clearance: 92″ (2,337 mm) or 102″ (2,591 mm)

Arms & Pads

K – Front Arm Reach: (MIN) 24.5″ (622 mm)

K – Front Arm Reach: (MAX) 50″ (1,270 mm)

L – Rear Arm Reach: (MIN) 32″ (813 mm)

L – Rear Arm Reach: (MAX) 59.25″ (1,505 mm)

Screw Pad Adjustment: 2″ (51 mm)

Max Load Per Arm: 2,500 lbs. (1,134 kg)

Power Unit

Motor: 220 VAC, 60 Hz, 1 Phase

Noise: <70 dB

Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.

BendPak lifts are supplied with concrete fasteners that meet the criteria of the American National Standard ANSI/ALI ALCTV-(Current). Buyer is responsible for all charges relating to any special regional structural or seismic anchoring requirements specified by any other agencies or codes such as the Uniform Building Code (UBC) or International Building Code (IBC).
