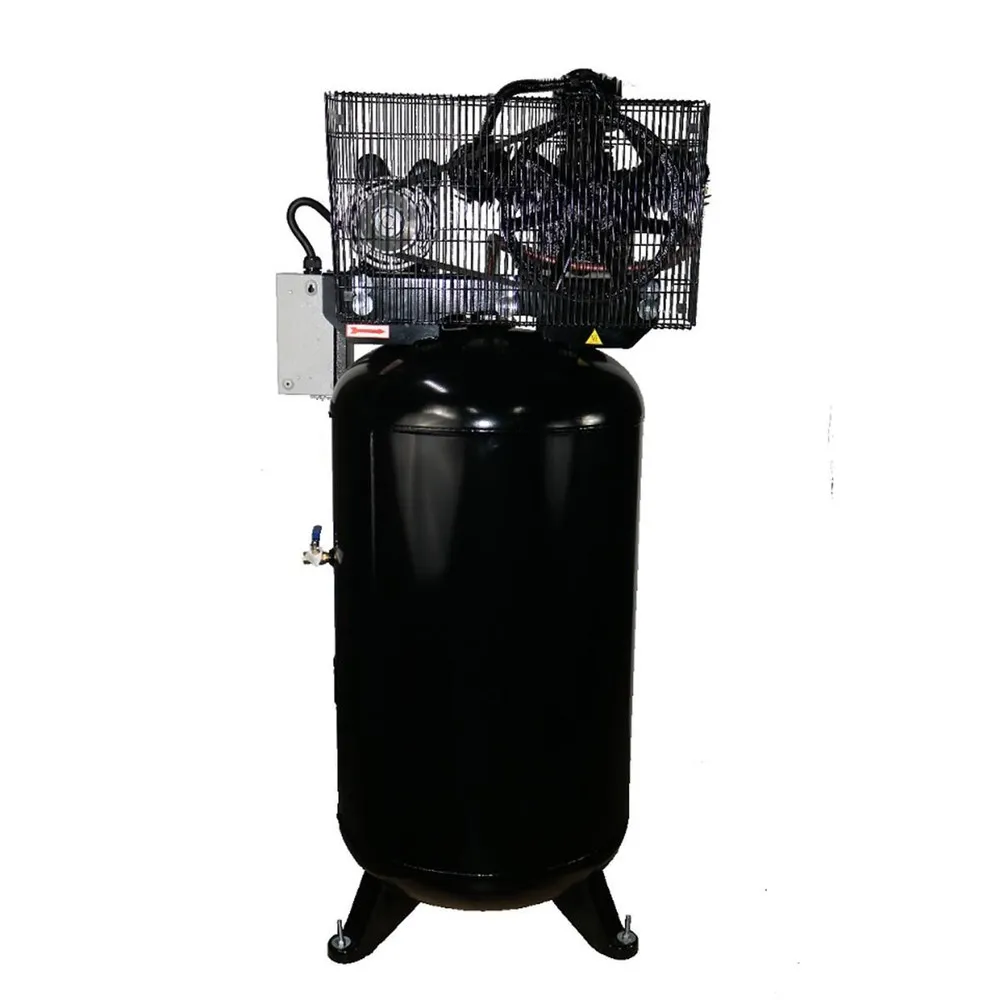

Atlas 5HP 80 Gallon Air Compressor w/Mag Starter
$2,599.00
Atlas 5HP 80 Gallon Air Compressor w/Mag Starter

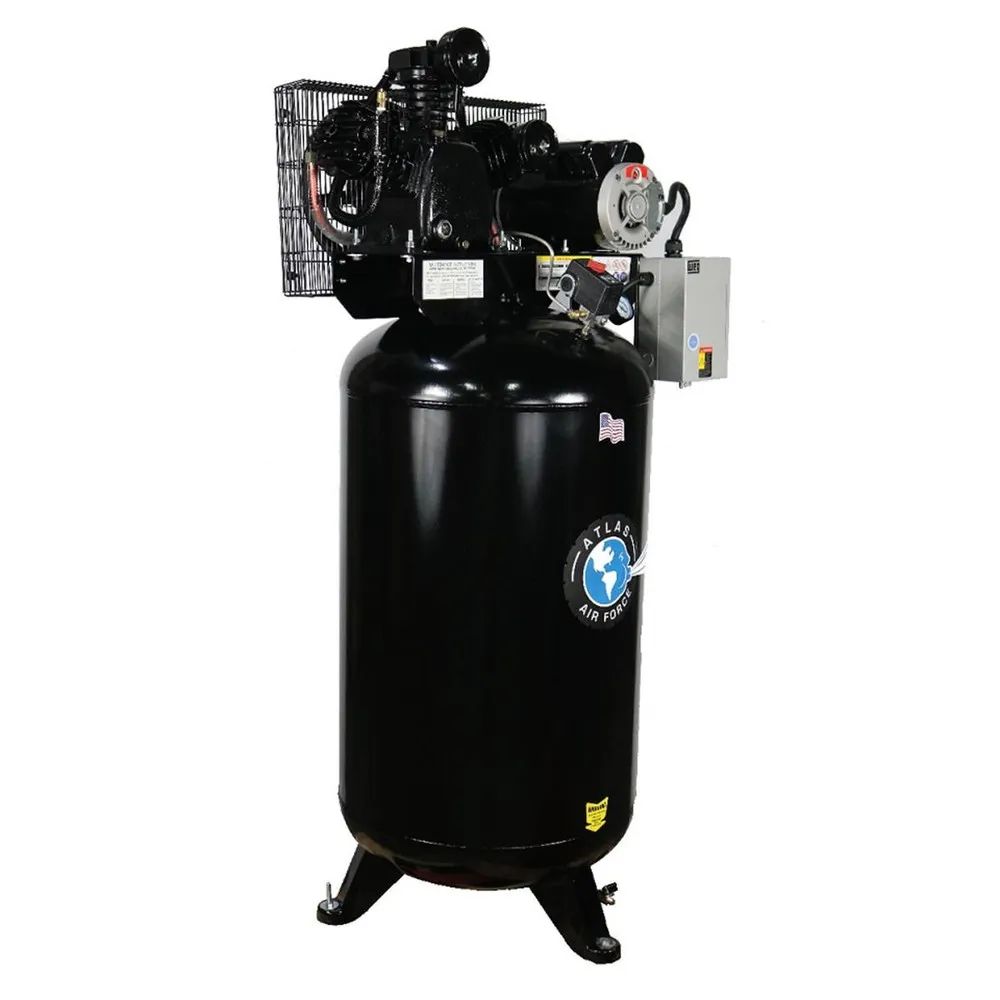

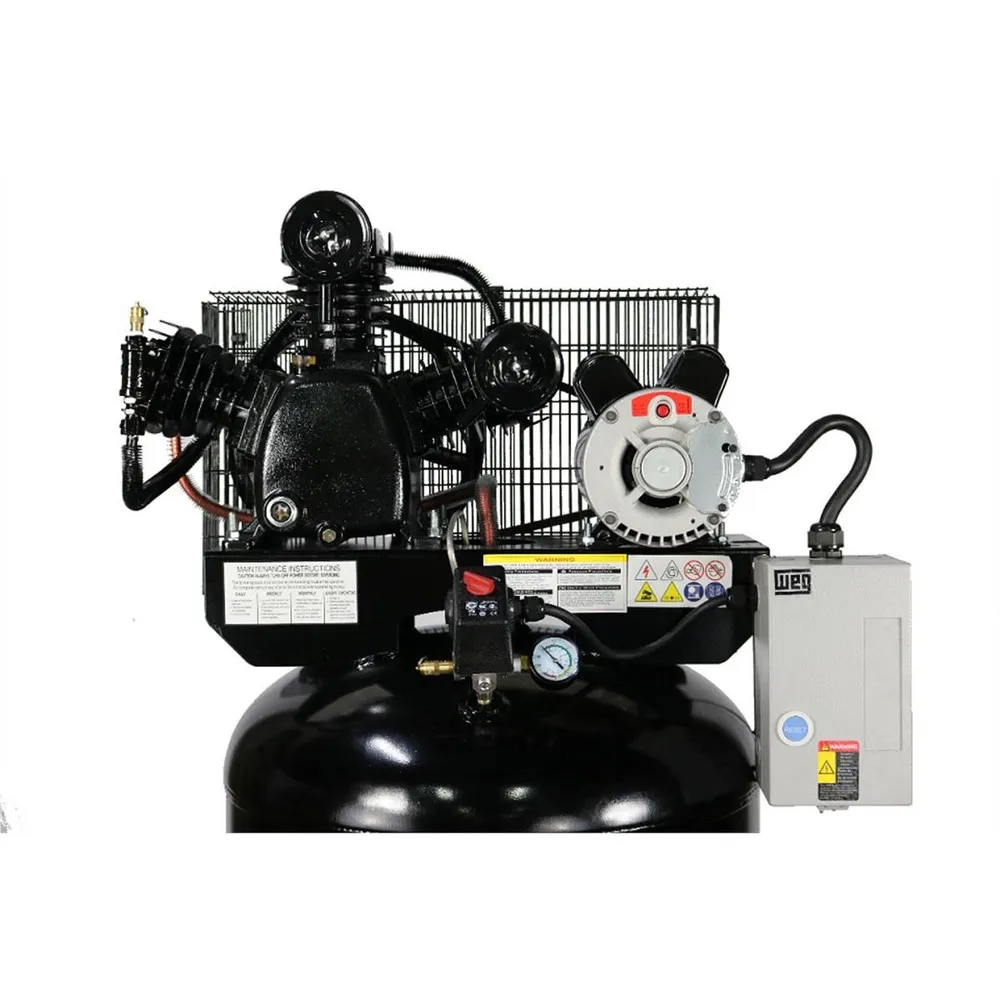

The Atlas® Air Force AF7 is our entry level commercial grade two (2) stage vertical air compressor. This unit operates between 140 and 175 PSI. The combination of the commercial grade motor and the heavy duty 3 cylinder (2 cylinders are low pressure and 1 cylinder is high pressure) cast iron reciprocating air compressor pump delivers an incredible amount of air volume and air pressure for a very low price. The AF7 comes standard with a USA made 80 gallon steel tank and also includes a magnetic starter. The magnetic starter controls the electric input and adds to the longevity of the unit.
The Atlas® Air Force air compressors are powerful, belt driven reciprocating air compressors designed and built to offer years of trouble-free service. The Atlas® Air Force shop compressors are built to the same exacting standards as the entire line of Atlas® professional grade automotive equipment
Description
Atlas 5HP 80 Gallon Air Compressor w/Mag Starter
Features and Benefits:
2-Stage Pump
5hp Motor
80 Gallon Vertical Tank (Made in the USA)
Air Output 90-175 PSI
Extremely Quiet Operation
Magnetic Starter Included
Set of Vibro-Isolation Pads Included
Hands free tank drain extension
Compressor oil drain extension tube
Finned tank inlet tube for reduced tank water accumulation
Heavy Duty Metal Belt Guard
Electric: 220volt/1phase

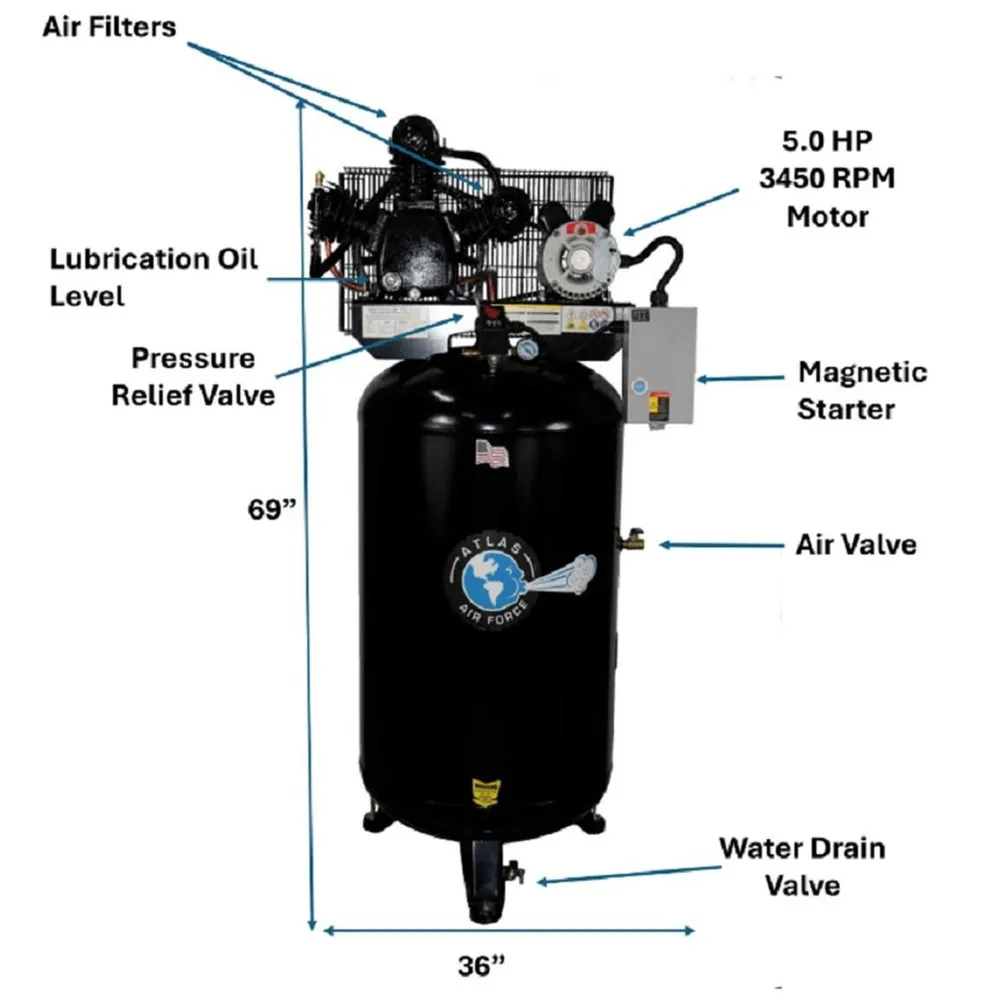

Atlas Air Force AF7 Specifications
Motor Running: 5 Horsepower
Pressure Setting: 90-175 PSI
Delivered CFM at 90 PSI: 18.5
Delivered CFM at 175 PSI: 14.5
Tank Capacity: 80 Gallons
Compressor Pump: 3 Cylinder, 2-Stage
Air Outlet Size: 1/2″ NPT
Overall Dimensions: L 36″ x W 24″ x H 69″
Motor/Electrical Requirement: 220volt Single Phase, 30 amp breaker required
Shipping Weight: 485 lbs
